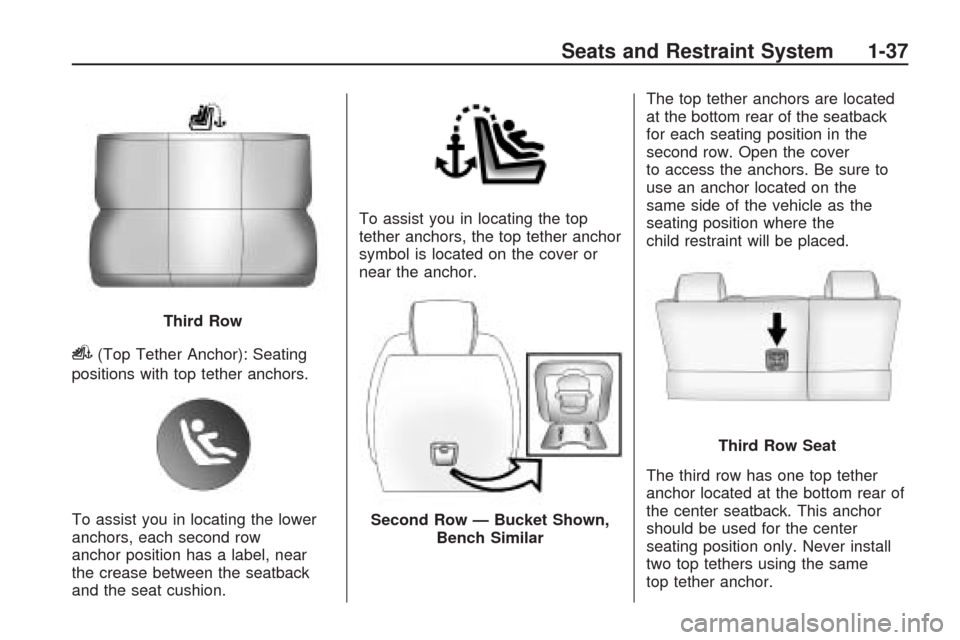

i(Top Tether Anchor): Seating
positions with top tether anchors.
To assist you in locating the lower
anchors, each second row
anchor position has a label, near
the crease between the seatback
and the seat cushion.To assist you in locating the top
tether anchors, the top tether anchor
symbol is located on the cover or
near the anchor.The top tether anchors are located
at the bottom rear of the seatback
for each seating position in the
second row. Open the cover
to access the anchors. Be sure to
use an anchor located on the
same side of the vehicle as the
seating position where the
child restraint will be placed.
The third row has one top tether
anchor located at the bottom rear of
the center seatback. This anchor
should be used for the center
seating position only. Never install
two top tethers using the same
top tether anchor. Third Row
Second Row — Bucket Shown,
Bench Similar
Third Row Seat
Seats and Restraint System 1-37

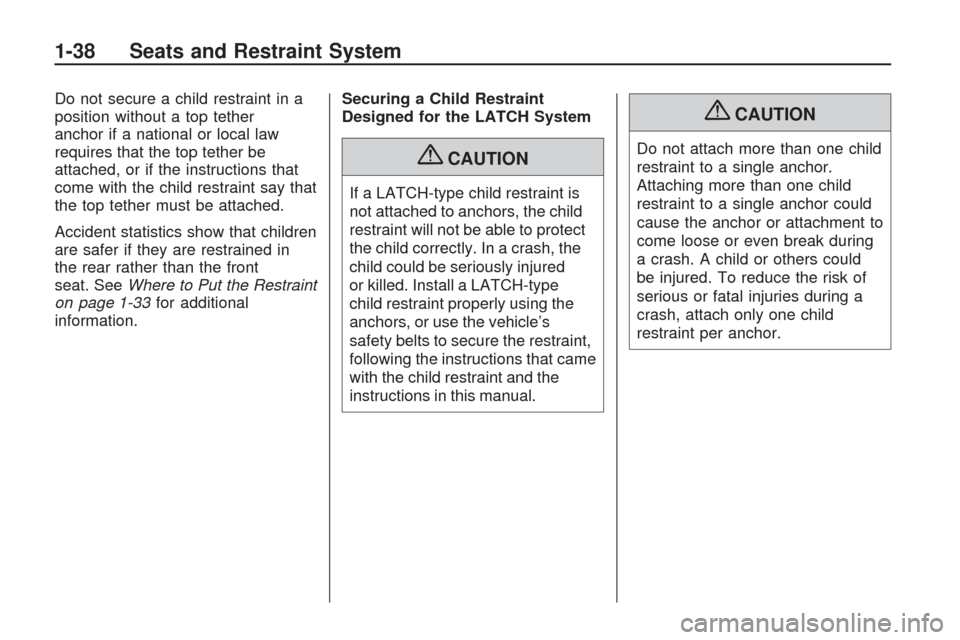

Do not secure a child restraint in a
position without a top tether
anchor if a national or local law
requires that the top tether be
attached, or if the instructions that
come with the child restraint say that
the top tether must be attached.
Accident statistics show that children
are safer if they are restrained in
the rear rather than the front
seat. SeeWhere to Put the Restraint
on page 1-33for additional
information.Securing a Child Restraint
Designed for the LATCH System
{CAUTION
If a LATCH-type child restraint is
not attached to anchors, the child
restraint will not be able to protect
the child correctly. In a crash, the
child could be seriously injured
or killed. Install a LATCH-type
child restraint properly using the
anchors, or use the vehicle’s
safety belts to secure the restraint,
following the instructions that came
with the child restraint and the
instructions in this manual.
{CAUTION
Do not attach more than one child
restraint to a single anchor.
Attaching more than one child
restraint to a single anchor could
cause the anchor or attachment to
come loose or even break during
a crash. A child or others could
be injured. To reduce the risk of
serious or fatal injuries during a
crash, attach only one child
restraint per anchor.
1-38 Seats and Restraint System

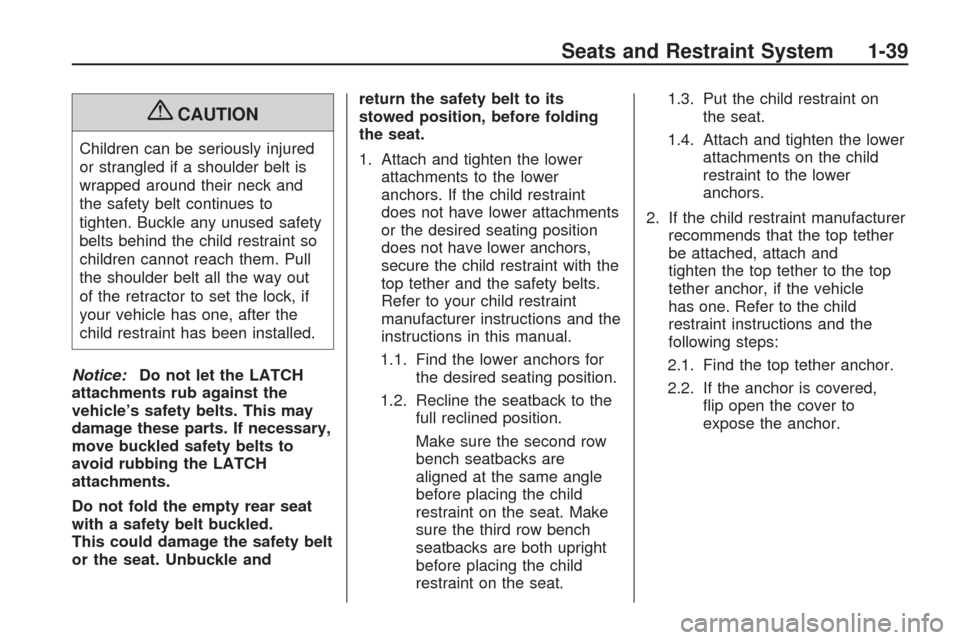

{CAUTION
Children can be seriously injured
or strangled if a shoulder belt is
wrapped around their neck and
the safety belt continues to
tighten. Buckle any unused safety
belts behind the child restraint so
children cannot reach them. Pull
the shoulder belt all the way out
of the retractor to set the lock, if
your vehicle has one, after the
child restraint has been installed.
Notice:Do not let the LATCH
attachments rub against the
vehicle’s safety belts. This may
damage these parts. If necessary,
move buckled safety belts to
avoid rubbing the LATCH
attachments.
Do not fold the empty rear seat
with a safety belt buckled.
This could damage the safety belt
or the seat. Unbuckle andreturn the safety belt to its
stowed position, before folding
the seat.
1. Attach and tighten the lower
attachments to the lower
anchors. If the child restraint
does not have lower attachments
or the desired seating position
does not have lower anchors,
secure the child restraint with the
top tether and the safety belts.
Refer to your child restraint
manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for
the desired seating position.
1.2. Recline the seatback to the
full reclined position.
Make sure the second row
bench seatbacks are
aligned at the same angle
before placing the child
restraint on the seat. Make
sure the third row bench
seatbacks are both upright
before placing the child
restraint on the seat.1.3. Put the child restraint on
the seat.
1.4. Attach and tighten the lower
attachments on the child
restraint to the lower
anchors.
2. If the child restraint manufacturer
recommends that the top tether
be attached, attach and
tighten the top tether to the top
tether anchor, if the vehicle
has one. Refer to the child
restraint instructions and the
following steps:
2.1. Find the top tether anchor.
2.2. If the anchor is covered,
ip open the cover to
expose the anchor.
Seats and Restraint System 1-39

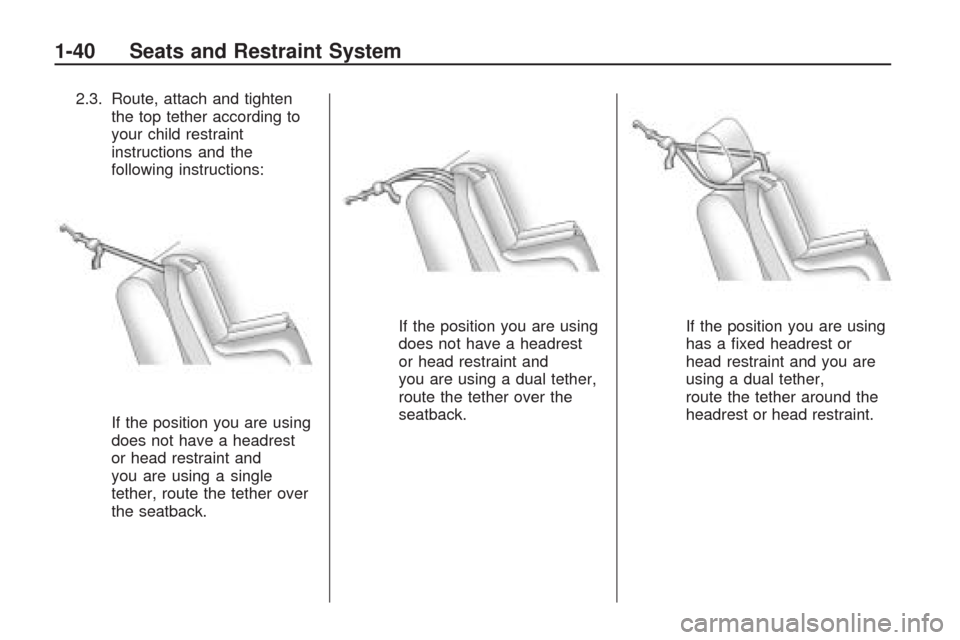

2.3. Route, attach and tighten
the top tether according to
your child restraint
instructions and the
following instructions:
If the position you are using
does not have a headrest
or head restraint and
you are using a single
tether, route the tether over
the seatback.If the position you are using
does not have a headrest
or head restraint and
you are using a dual tether,
route the tether over the
seatback.If the position you are using
has a xed headrest or
head restraint and you are
using a dual tether,
route the tether around the
headrest or head restraint.
1-40 Seats and Restraint System

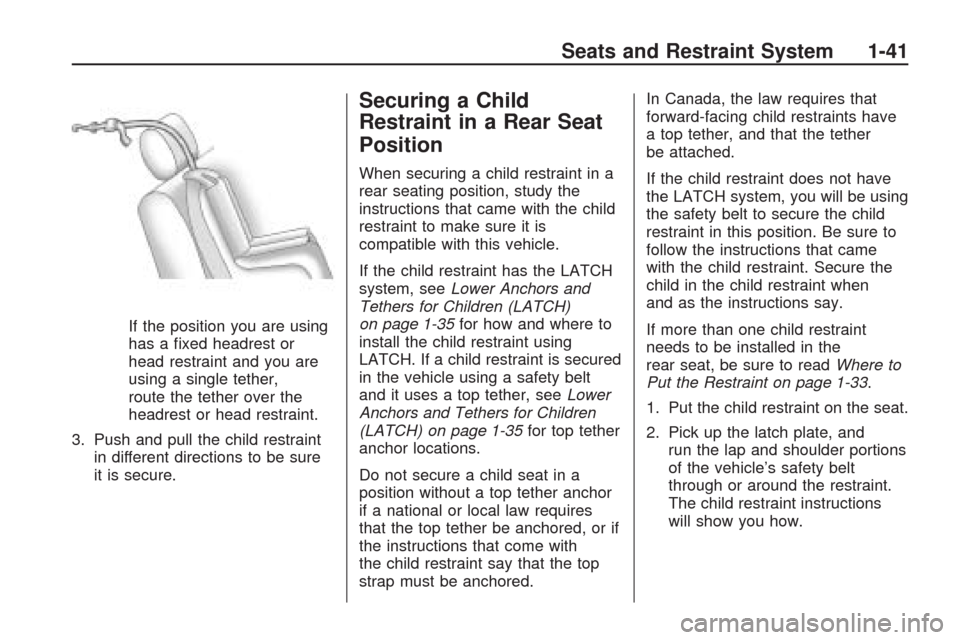

If the position you are using
has a xed headrest or
head restraint and you are
using a single tether,
route the tether over the
headrest or head restraint.
3. Push and pull the child restraint
in different directions to be sure
it is secure.
Securing a Child
Restraint in a Rear Seat
Position
When securing a child restraint in a
rear seating position, study the
instructions that came with the child
restraint to make sure it is
compatible with this vehicle.
If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-35for how and where to
install the child restraint using
LATCH. If a child restraint is secured
in the vehicle using a safety belt
and it uses a top tether, seeLower
Anchors and Tethers for Children
(LATCH) on page 1-35for top tether
anchor locations.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with
the child restraint say that the top
strap must be anchored.In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.
If the child restraint does not have
the LATCH system, you will be using
the safety belt to secure the child
restraint in this position. Be sure to
follow the instructions that came
with the child restraint. Secure the
child in the child restraint when
and as the instructions say.
If more than one child restraint
needs to be installed in the
rear seat, be sure to readWhere to
Put the Restraint on page 1-33.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and
run the lap and shoulder portions
of the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.
Seats and Restraint System 1-41

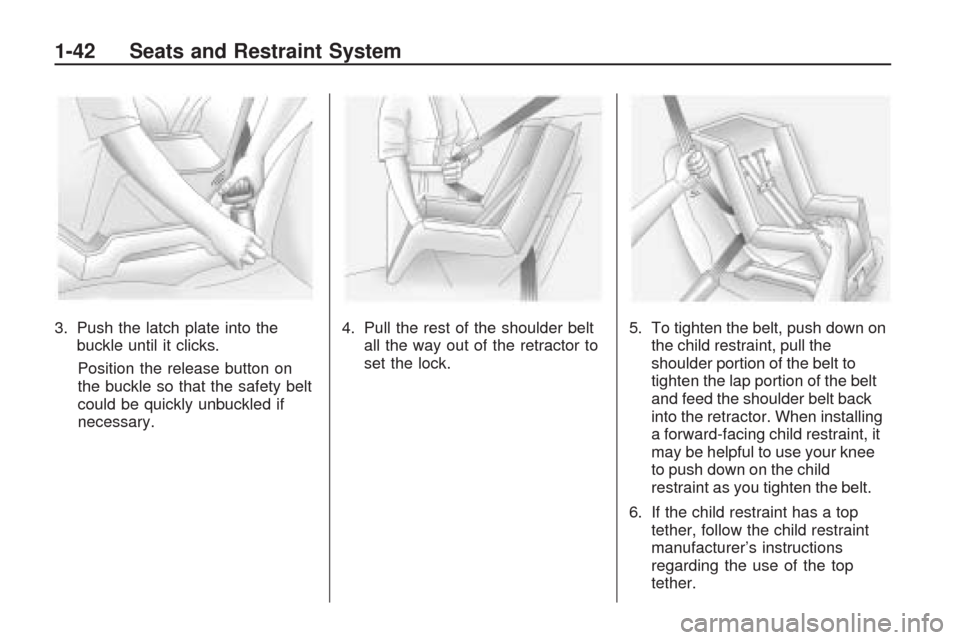

3. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if

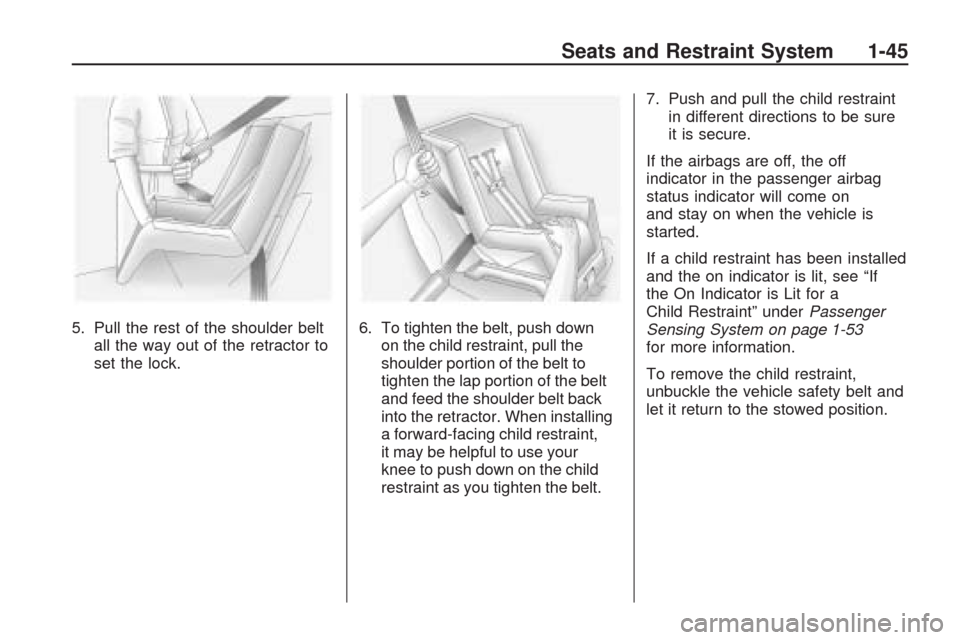

necessary.4. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.5. To tighten the belt, push down on
the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint, it
may be helpful to use your knee
to push down on the child
restraint as you tighten the belt.
6. If the child restraint has a top
tether, follow the child restraint
manufacturer’s instructions
regarding the use of the top
tether.
1-42 Seats and Restraint System

SeeLower Anchors and Tethers
for Children (LATCH) on
page 1-35for more information.
7. Push and pull the child restraint
in different directions to be sure
it is secure.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
If the top tether is attached to a top
tether anchor, disconnect it.
Securing a Child
Restraint in the Right
Front Seat Position
The vehicle has airbags. A rear seat
is a safer place to secure a
forward-facing child restraint. See
Where to Put the Restraint on
page 1-33.
In addition, the vehicle has a
passenger sensing system which is
designed to turn off the right
front passenger frontal airbag and
seat-mounted side impact airbag
under certain conditions.SeePassenger Sensing System on
page 1-53andPassenger Airbag
Status Indicator on page 3-33
for more information, including
important safety information.
A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously injured or
killed if the right front passenger
airbag inates. This is because
the back of the rear-facing child
restraint would be very close to
the inating airbag. A child in a
forward-facing child restraint can
be seriously injured or killed if the
right front passenger airbag
inates and the passenger seat
is in a forward position.
(Continued)
CAUTION (Continued)
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will not
deploy under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child restraints
in a rear seat, even if the airbag is
off. If you secure a forward-facing
child restraint in the right front seat,
always move the front passenger
seat as far back as it will go. It is
better to secure the child restraint
in a rear seat.
SeePassenger Sensing System
on page 1-53for additional
information.
If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-35for how and where to
Seats and Restraint System 1-43

install the child restraint using
LATCH. If a child restraint is secured
using a safety belt and it uses a
top tether, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-35for top tether anchor
locations.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with
the child restraint say that the top
strap must be anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.
You will be using the lap-shoulder
belt to secure the child restraint in
this position. Follow the instructions
that came with the child restraint.
1. Move the seat as far back as it
will go before securing the
forward-facing child restraint.When the passenger sensing
system has turned off the
right front passenger frontal
airbag and seat-mounted side
impact airbag, the off indicator on
the passenger airbag status
indicator should light and stay lit
when the vehicle is started.
SeePassenger Airbag Status
Indicator on page 3-33.
2. Put the child restraint on
the seat.
3. Pick up the latch plate, and
run the lap and shoulder portions
of the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.4. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
1-44 Seats and Restraint System

5. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.6. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint,
it may be helpful to use your
knee to push down on the child
restraint as you tighten the belt.7. Push and pull the child restraint
in different directions to be sure
it is secure.
If the airbags are off, the off
indicator in the passenger airbag
status indicator will come on
and stay on when the vehicle is
started.
If a child restraint has been installed
and the on indicator is lit, see “If
the On Indicator is Lit for a
Child Restraint” underPassenger
Sensing System on page 1-53
for more information.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
Seats and Restraint System 1-45

Airbag System
The vehicle has the following
airbags:
A frontal airbag for the driver.
A frontal airbag for the right front
passenger.
A seat-mounted side impact
airbag for the driver.
A seat-mounted side impact
airbag for the right front
passenger.
A roof-rail airbag for the driver,
passenger seated directly
behind the driver, and the third
row outboard passenger position.
A roof-rail airbag for the right
front passenger, passenger
seated directly behind the right
front passenger, and the third row
outboard passenger position.All of the airbags in the vehicle will
have the word AIRBAG embossed
in the trim or on an attached
label near the deployment opening.
For frontal airbags, the word
AIRBAG will appear on the middle
part of the steering wheel for
the driver and on the instrument
panel for the right front passenger.
With seat-mounted side impact
airbags, the word AIRBAG
will appear on the side of the
seatback closest to the door.
With roof-rail airbags, the word
AIRBAG will appear along the
headliner or trim.
Airbags are designed to supplement
the protection provided by safety
belts. Even though today’s airbags
are also designed to help reduce
the risk of injury from the force of an
inating bag, all airbags must
inate very quickly to do their job.Here are the most important things
to know about the airbag system:
{CAUTION
You can be severely injured or
killed in a crash if you are not
wearing your safety belt — even
if you have airbags. Airbags are
designed to work with safety
belts, but do not replace them.
Also, airbags are not designed to
deploy in every crash. In some
crashes safety belts are your only
restraint. SeeWhen Should an
Airbag Inflate? on page 1-49.
Wearing your safety belt during a
crash helps reduce your chance
of hitting things inside the vehicle
or being ejected from it. Airbags
are “supplemental restraints” to
the safety belts. Everyone in your
vehicle should wear a safety belt
properly — whether or not there is
an airbag for that person.
1-46 Seats and Restraint System
