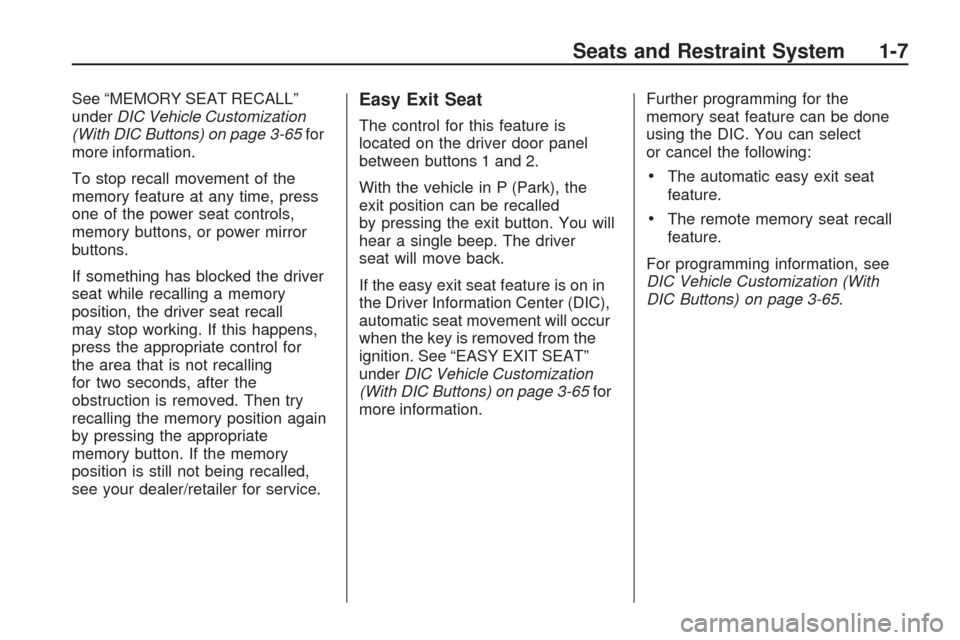

CHEVROLET TRAVERSE 2009 1.G User Guide

See “MEMORY SEAT RECALL”
underDIC Vehicle Customization
(With DIC Buttons) on page 3-65for
more information.
To stop recall movement of the
memory feature at any time, press
one of the power seat controls,
memory buttons, or power mirror
buttons.
If something has blocked the driver
seat while recalling a memory
position, the driver seat recall
may stop working. If this happens,
press the appropriate control for
the area that is not recalling
for two seconds, after the
obstruction is removed. Then try
recalling the memory position again
by pressing the appropriate
memory button. If the memory
position is still not being recalled,
see your dealer/retailer for service.Easy Exit Seat
The control for this feature is
located on the driver door panel
between buttons 1 and 2.
With the vehicle in P (Park), the
exit position can be recalled
by pressing the exit button. You will
hear a single beep. The driver
seat will move back.
If the easy exit seat feature is on in
the Driver Information Center (DIC),
automatic seat movement will occur
when the key is removed from the
ignition. See “EASY EXIT SEAT”
underDIC Vehicle Customization
(With DIC Buttons) on page 3-65for
more information.Further programming for the
memory seat feature can be done
using the DIC. You can select
or cancel the following:
The automatic easy exit seat
feature.
The remote memory seat recall
feature.
For programming information, see
DIC Vehicle Customization (With
DIC Buttons) on page 3-65.
Seats and Restraint System 1-7

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION
You can lose control of the
vehicle if you try to adjust a
manual driver’s seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver’s seat only when
the vehicle is not moving.
{CAUTION
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.In vehicles with seats that have
manual reclining seatbacks, the lever
used to operate them is located on
the outboard side of the seat.
To recline the seatback, do the
following:
1. Lift the recline lever.
2. Move the seatback to the desired
position, then release the lever to
lock the seatback in place.
3. Push and pull on the seatback to
make sure it is locked.
To return the seatback to an upright
position, do the following:
1. Lift the lever fully without
applying pressure to the
seatback and the seatback will
return to the upright position.
2. Push and pull on the seatback to
make sure it is locked.
Power Reclining Seatbacks
In vehicles with seats that have
power reclining seatbacks,
the control used to recline them is
located on the outboard side of
the seat behind the power
seat control. SeePower Seats on
page 1-4for more information.
To recline the seatback, tilt the
top of the control rearward.
To bring the seatback forward, tilt
the top of the control forward.
1-8 Seats and Restraint System

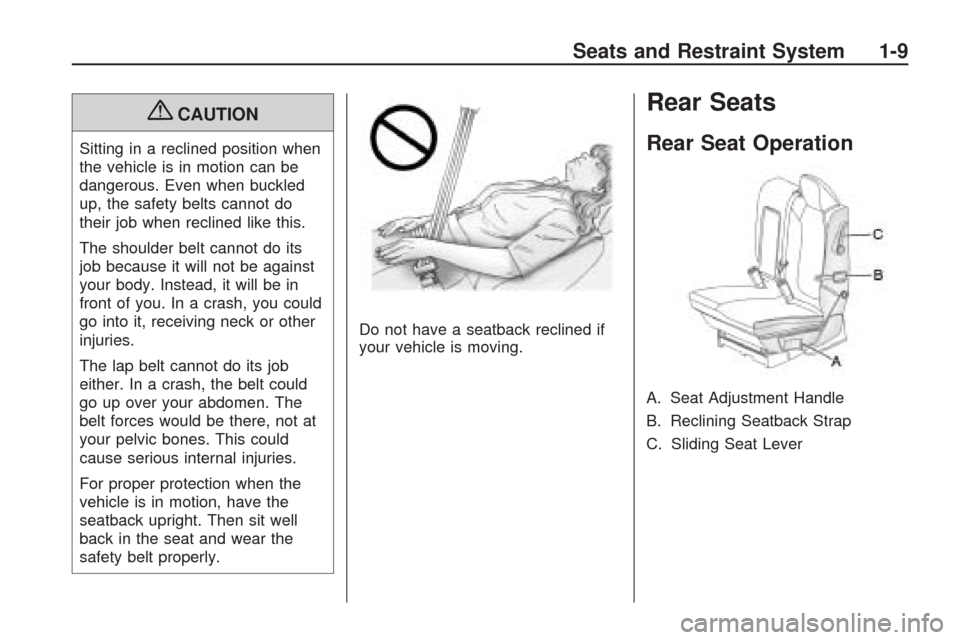

{CAUTION
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job when reclined like this.
The shoulder belt cannot do its
job because it will not be against
your body. Instead, it will be in
front of you. In a crash, you could
go into it, receiving neck or other
injuries.
The lap belt cannot do its job
either. In a crash, the belt could
go up over your abdomen. The
belt forces would be there, not at
your pelvic bones. This could
cause serious internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.Do not have a seatback reclined if
your vehicle is moving.
Rear Seats
Rear Seat Operation
A. Seat Adjustment Handle
B. Reclining Seatback Strap
C. Sliding Seat Lever
Seats and Restraint System 1-9

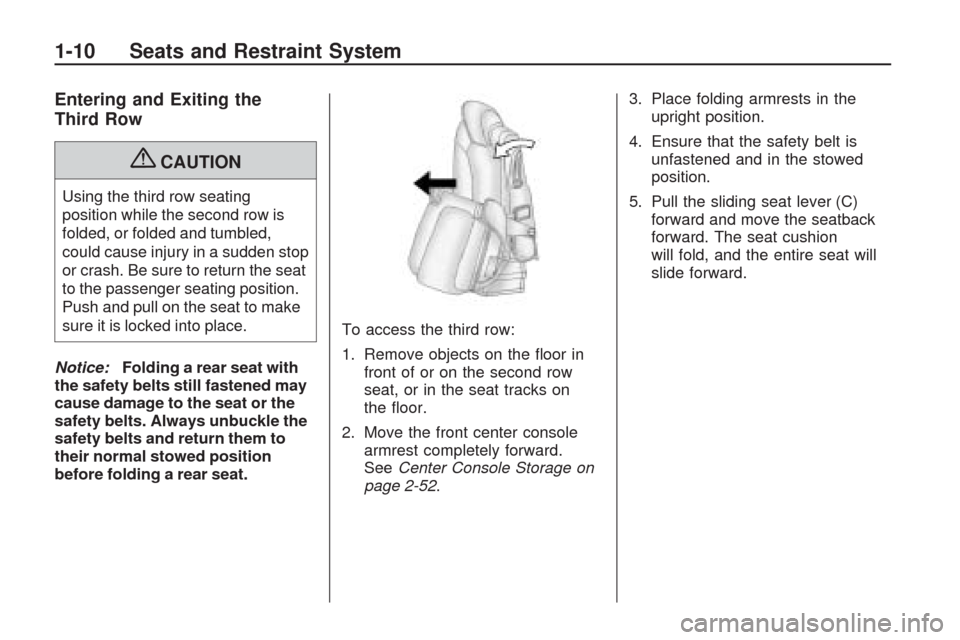

Entering and Exiting the
Third Row
{CAUTION
Using the third row seating
position while the second row is
folded, or folded and tumbled,
could cause injury in a sudden stop
or crash. Be sure to return the seat
to the passenger seating position.
Push and pull on the seat to make
sure it is locked into place.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.To access the third row:
1. Remove objects on the oor in
front of or on the second row
seat, or in the seat tracks on
the oor.
2. Move the front center console
armrest completely forward.
SeeCenter Console Storage on
page 2-52.3. Place folding armrests in the
upright position.
4. Ensure that the safety belt is
unfastened and in the stowed
position.
5. Pull the sliding seat lever (C)
forward and move the seatback
forward. The seat cushion
will fold, and the entire seat will
slide forward.
1-10 Seats and Restraint System

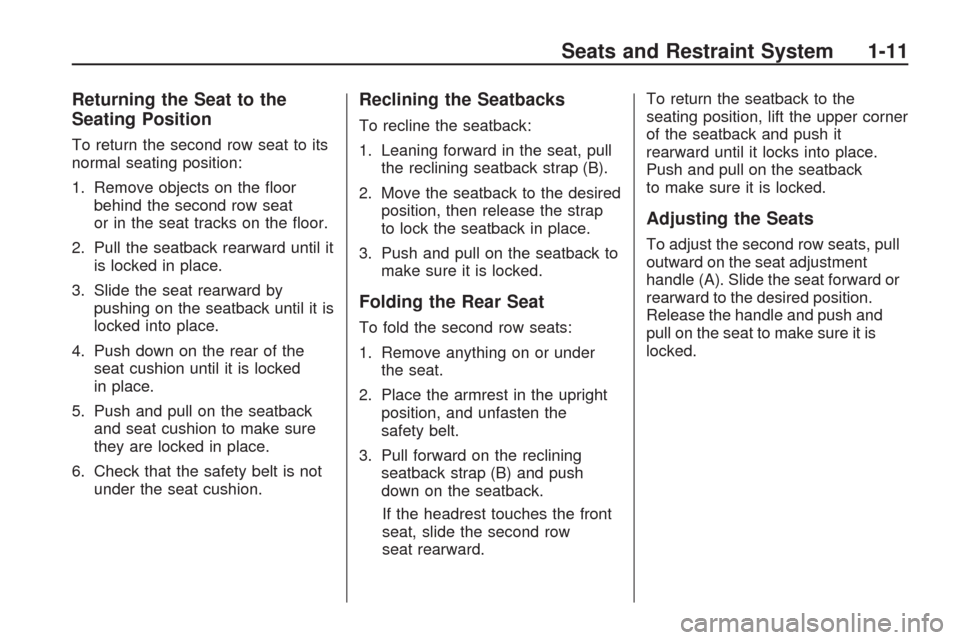

Returning the Seat to the
Seating Position
To return the second row seat to its
normal seating position:
1. Remove objects on the oor
behind the second row seat
or in the seat tracks on the oor.
2. Pull the seatback rearward until it
is locked in place.
3. Slide the seat rearward by
pushing on the seatback until it is
locked into place.
4. Push down on the rear of the
seat cushion until it is locked
in place.
5. Push and pull on the seatback
and seat cushion to make sure
they are locked in place.
6. Check that the safety belt is not
under the seat cushion.
Reclining the Seatbacks
To recline the seatback:
1. Leaning forward in the seat, pull
the reclining seatback strap (B).
2. Move the seatback to the desired
position, then release the strap
to lock the seatback in place.
3. Push and pull on the seatback to
make sure it is locked.
Folding the Rear Seat
To fold the second row seats:
1. Remove anything on or under
the seat.
2. Place the armrest in the upright
position, and unfasten the
safety belt.
3. Pull forward on the reclining
seatback strap (B) and push
down on the seatback.
If the headrest touches the front
seat, slide the second row
seat rearward.To return the seatback to the
seating position, lift the upper corner
of the seatback and push it
rearward until it locks into place.
Push and pull on the seatback
to make sure it is locked.
Adjusting the Seats
To adjust the second row seats, pull
outward on the seat adjustment
handle (A). Slide the seat forward or
rearward to the desired position.
Release the handle and push and
pull on the seat to make sure it is
locked.
Seats and Restraint System 1-11

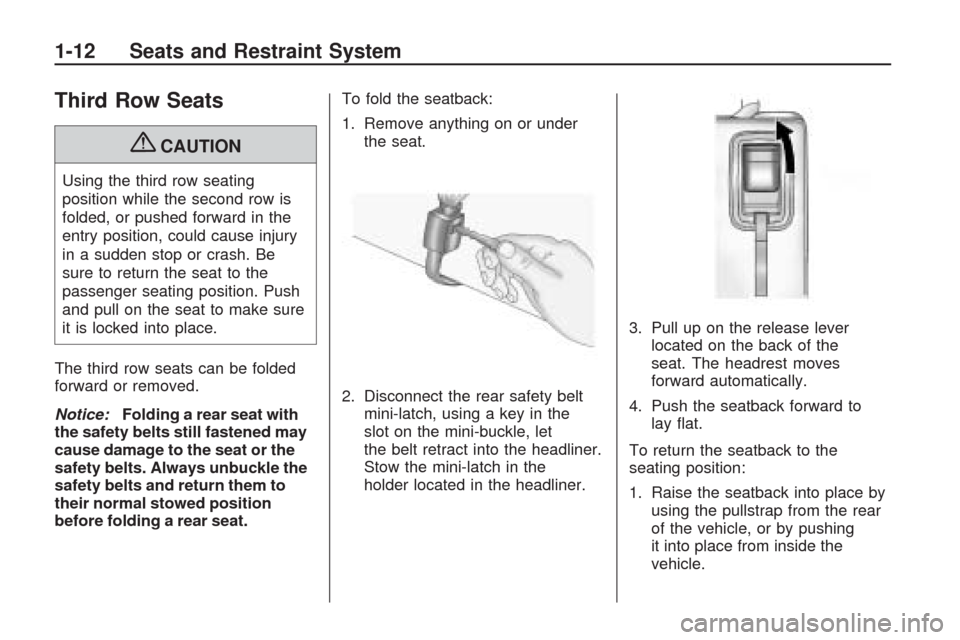

Third Row Seats
{CAUTION
Using the third row seating
position while the second row is
folded, or pushed forward in the
entry position, could cause injury
in a sudden stop or crash. Be
sure to return the seat to the
passenger seating position. Push
and pull on the seat to make sure
it is locked into place.
The third row seats can be folded
forward or removed.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.To fold the seatback:
1. Remove anything on or under
the seat.
2. Disconnect the rear safety belt
mini-latch, using a key in the
slot on the mini-buckle, let
the belt retract into the headliner.
Stow the mini-latch in the
holder located in the headliner.3. Pull up on the release lever
located on the back of the
seat. The headrest moves
forward automatically.
4. Push the seatback forward to
lay at.
To return the seatback to the
seating position:
1. Raise the seatback into place by
using the pullstrap from the rear
of the vehicle, or by pushing
it into place from inside the
vehicle.
1-12 Seats and Restraint System

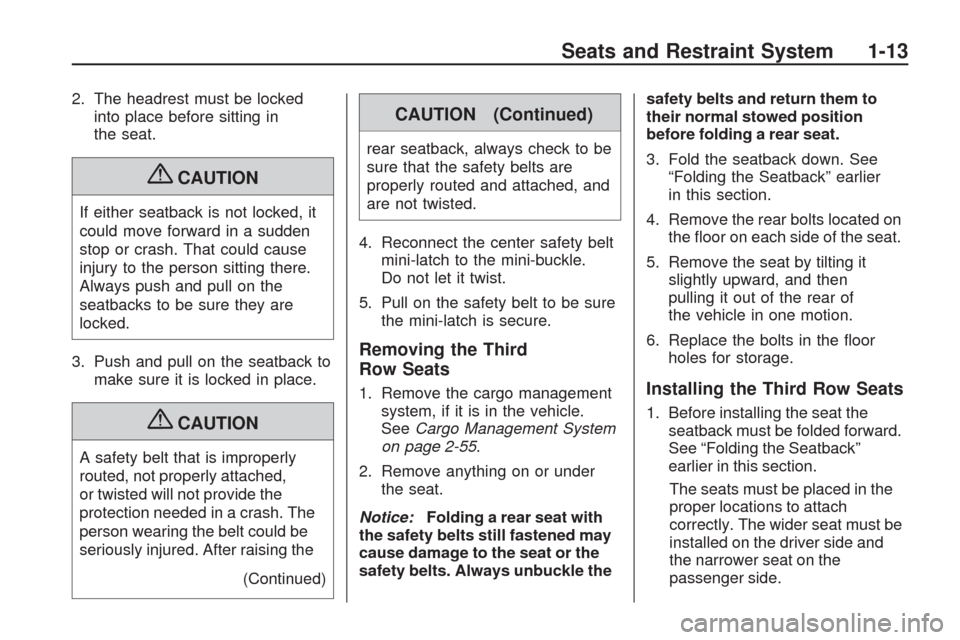

2. The headrest must be locked
into place before sitting in
the seat.
{CAUTION
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
3. Push and pull on the seatback to
make sure it is locked in place.
{CAUTION
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
(Continued)
CAUTION (Continued)
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted.
4. Reconnect the center safety belt
mini-latch to the mini-buckle.
Do not let it twist.
5. Pull on the safety belt to be sure
the mini-latch is secure.
Removing the Third
Row Seats
1. Remove the cargo management
system, if it is in the vehicle.
SeeCargo Management System
on page 2-55.
2. Remove anything on or under
the seat.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle thesafety belts and return them to
their normal stowed position
before folding a rear seat.
3. Fold the seatback down. See
“Folding the Seatback” earlier
in this section.
4. Remove the rear bolts located on
the oor on each side of the seat.
5. Remove the seat by tilting it
slightly upward, and then
pulling it out of the rear of
the vehicle in one motion.
6. Replace the bolts in the oor
holes for storage.Installing the Third Row Seats
1. Before installing the seat the
seatback must be folded forward.
See “Folding the Seatback”
earlier in this section.
The seats must be placed in the
proper locations to attach
correctly. The wider seat must be
installed on the driver side and
the narrower seat on the
passenger side.
Seats and Restraint System 1-13

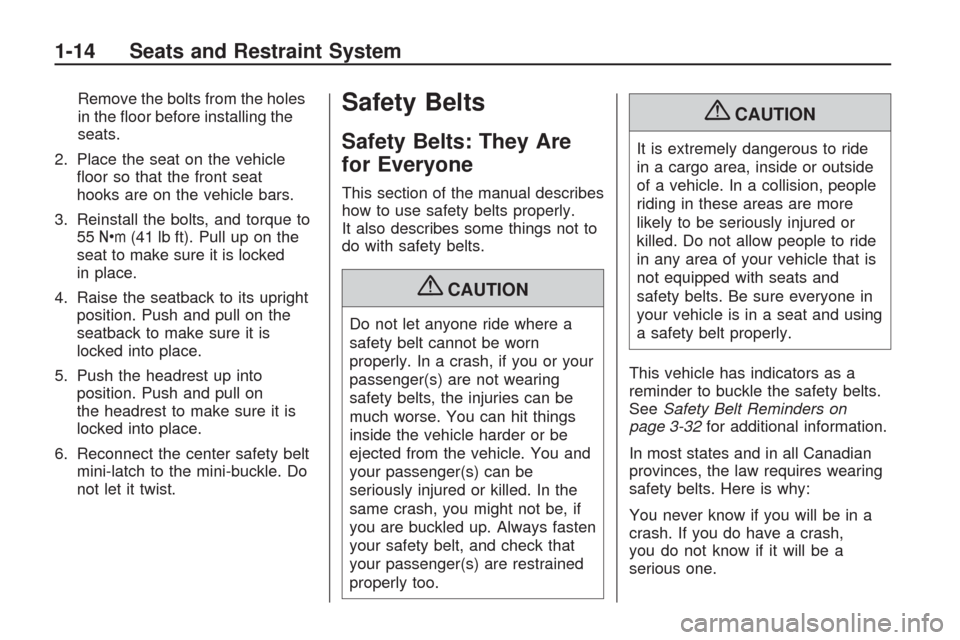

Remove the bolts from the holes
in the oor before installing the
seats.
2. Place the seat on the vehicle
oor so that the front seat
hooks are on the vehicle bars.
3. Reinstall the bolts, and torque to
55Y(41 lb ft). Pull up on the
seat to make sure it is locked
in place.
4. Raise the seatback to its upright
position. Push and pull on the
seatback to make sure it is
locked into place.
5. Push the headrest up into
position. Push and pull on
the headrest to make sure it is
locked into place.
6. Reconnect the center safety belt
mini-latch to the mini-buckle. Do
not let it twist.Safety Belts
Safety Belts: They Are
for Everyone
This section of the manual describes
how to use safety belts properly.
It also describes some things not to
do with safety belts.
{CAUTION
Do not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, the injuries can be
much worse. You can hit things
inside the vehicle harder or be
ejected from the vehicle. You and
your passenger(s) can be
seriously injured or killed. In the
same crash, you might not be, if
you are buckled up. Always fasten
your safety belt, and check that
your passenger(s) are restrained
properly too.
{CAUTION
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed. Do not allow people to ride
in any area of your vehicle that is
not equipped with seats and
safety belts. Be sure everyone in
your vehicle is in a seat and using
a safety belt properly.
This vehicle has indicators as a
reminder to buckle the safety belts.
SeeSafety Belt Reminders on
page 3-32for additional information.
In most states and in all Canadian
provinces, the law requires wearing
safety belts. Here is why:
You never know if you will be in a
crash. If you do have a crash,
you do not know if it will be a
serious one.
1-14 Seats and Restraint System

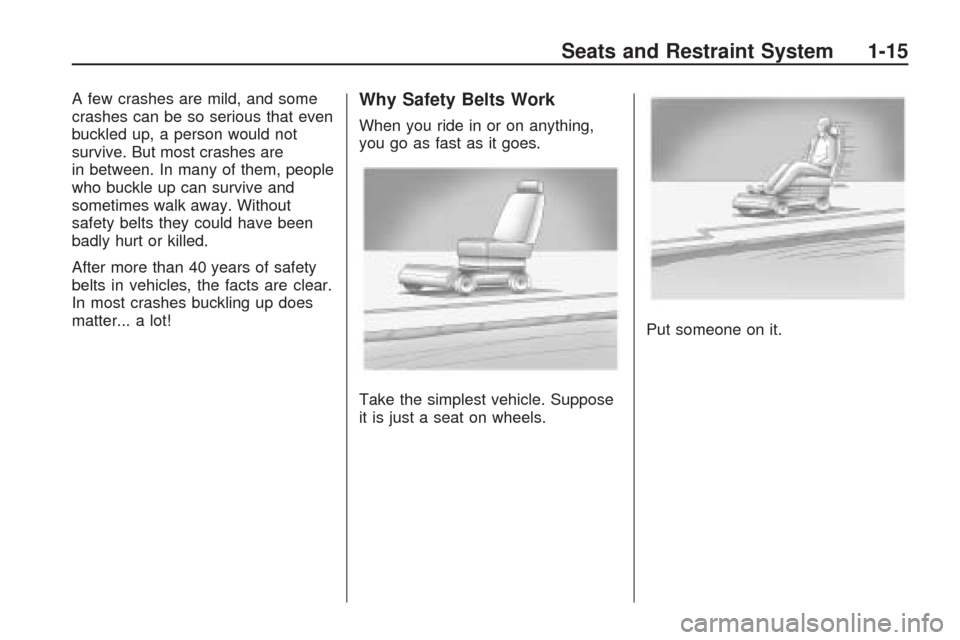

A few crashes are mild, and some
crashes can be so serious that even
buckled up, a person would not
survive. But most crashes are
in between. In many of them, people
who buckle up can survive and
sometimes walk away. Without
safety belts they could have been
badly hurt or killed.
After more than 40 years of safety
belts in vehicles, the facts are clear.
In most crashes buckling up does
matter... a lot!Why Safety Belts Work
When you ride in or on anything,
you go as fast as it goes.
Take the simplest vehicle. Suppose
it is just a seat on wheels.Put someone on it.
Seats and Restraint System 1-15

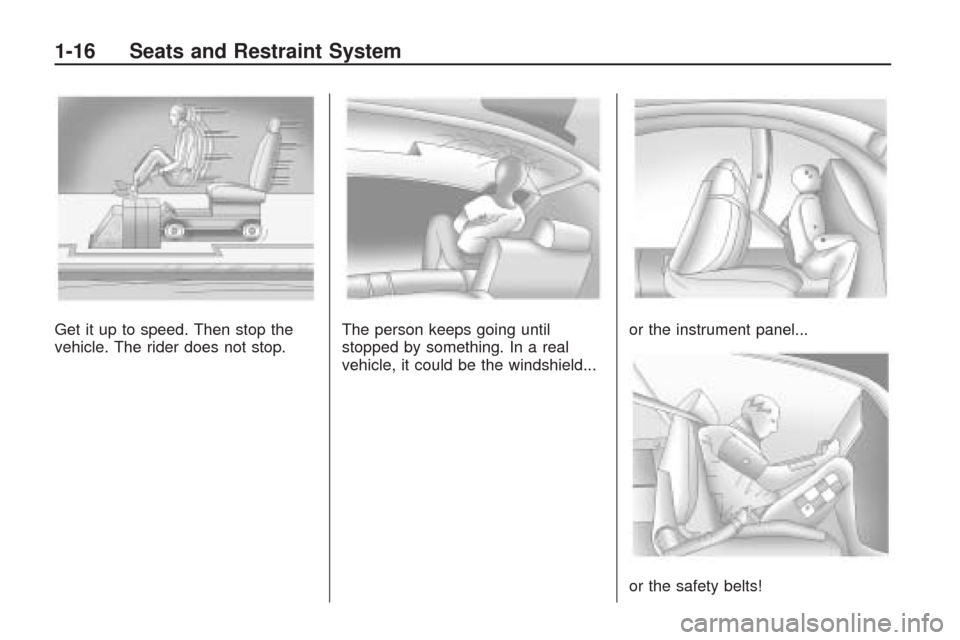

Get it up to speed. Then stop the
vehicle. The rider does not stop.The person keeps going until
stopped by something. In a real
vehicle, it could be the windshield...or the instrument panel...
or the safety belts!
1-16 Seats and Restraint System
