Black plate (19,1)Chevrolet Traverse Owner Manual - 2011
Keys, Doors and Windows 2-19
The vehicle aerodynamics are
designed to improve fuel economy
performance. This may result in a
pulsing sound when either rear
window is down and the front
windows are up. To reduce the
sound, open either a front window
or the sunroof (if equipped).
Power Windows
{WARNING
Leaving children in a vehicle with
the keys is dangerous for many
reasons. Children or others could
be badly injured or even killed.
They could operate the power
windows or other controls or even
make the vehicle move. The
windows will function and they
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave keys in a
vehicle with children.
When there are children in the
rear seat use the window lockout
button to prevent unintentional
operation of the windows.
Uplevel shown, base similar
The power window controls are
located on each of the side doors.
The driver door also has switches
that control the passenger and
rear windows. The power windows
work with the ignition in ACC/
ACCESSORY, ON/RUN or when
Retained Accessory Power (RAP) is
active. See Retained Accessory
Power (RAP) on page 9‑18.
Press the switch to lower the
window. Pull up on the front edge of
the switch to raise the window.

Black plate (20,1)Chevrolet Traverse Owner Manual - 2011
2-20 Keys, Doors and Windows
Express-Up/Express-Down
Windows
A window with the express‐up/down
feature allows it to be raised or
lowered without holding the switch.
Press or pull the window switch fully
and release it to activate the
express feature. The express mode
can be canceled by pressing or
pulling the switch.
Programming the Power
Windows
If the battery on the vehicle has
been recharged, disconnected,
or replaced, windows with the
express-up feature need to be
reprogrammed for this feature to
work. To program the window:
1. Close all doors with the ignitionin the ACC/ACCESSORY,
ON/RUN position, or when
Retained Accessory
Power (RAP) is active. See
Retained Accessory Power
(RAP) on page 9‑18. 2. Press and continue to hold the
window switch until the window
is fully open.
3. Pull up and hold the window switch to close the window.
Continue to hold it briefly after
the window is fully closed.
4. Repeat for each window that has the express-up feature.
Anti-Pinch Feature
The anti-pinch feature is on
windows with the express-up
feature. If an object is in the way of
the window as it is express-closing,
or in certain weather conditions like
severe icing, the window will stop
and open to a factory preset
position. The window functions
normally once the obstruction is
removed.
Window Lockout
o(Window Lockout): The window
lockout switch is located with the
power window switches on the
driver door armrest. This feature
prevents the rear windows from
being operated, except from the
driver position. Press the switch to
turn the lockout feature on or off.
An indicator light will come on to
show the lockout feature is on.

Black plate (21,1)Chevrolet Traverse Owner Manual - 2011
Keys, Doors and Windows 2-21

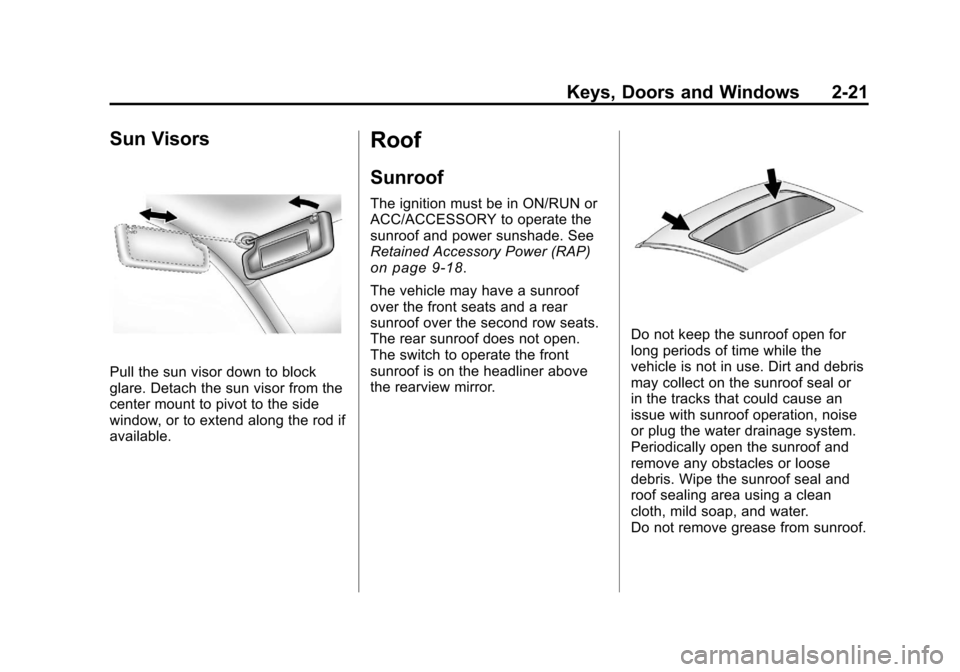

Sun Visors
Pull the sun visor down to block
glare. Detach the sun visor from the
center mount to pivot to the side
window, or to extend along the rod if
available.
Roof
Sunroof
The ignition must be in ON/RUN or
ACC/ACCESSORY to operate the
sunroof and power sunshade. See
Retained Accessory Power (RAP)
on page 9‑18.
The vehicle may have a sunroof
over the front seats and a rear
sunroof over the second row seats.
The rear sunroof does not open.
The switch to operate the front
sunroof is on the headliner above
the rearview mirror.
Do not keep the sunroof open for
long periods of time while the
vehicle is not in use. Dirt and debris
may collect on the sunroof seal or
in the tracks that could cause an
issue with sunroof operation, noise
or plug the water drainage system.
Periodically open the sunroof and
remove any obstacles or loose
debris. Wipe the sunroof seal and
roof sealing area using a clean
cloth, mild soap, and water.
Do not remove grease from sunroof.

Black plate (22,1)Chevrolet Traverse Owner Manual - 2011
2-22 Keys, Doors and Windows
Vent:From the closed position,
press and hold the front of the
switch to vent the sunroof.
Press and hold the rear of the
switch to close the sunroof. Express-open/Express-close:
From the closed position, press and
release the rear of the switch to
express-open the sunroof. Press
and release the front of the switch to
express-close the sunroof.
The front sunshade must be opened
and closed manually. Push up on
the sunshade handle to open the
sunshade.
Manual Sunshades
On a vehicle with only manual
sunshades, press the button on the
sunshade handle to release it and
guide it back. Pull the sunshade
forward until it latches to close it.
Rear Power Sunshade
On vehicles with a rear power
sunshade, the switch is on the
headliner above the rearview mirror.
Notice:
The rear sunshade could
be damaged if you attempt to
open or close it manually. Do not
manually open or close the rear
sunshade.
To open the rear sunshade, located
over the second row seats, press
and release the rear of the switch.
Press and release the front of the
switch to close the sunshade.

Black plate (1,1)Chevrolet Traverse Owner Manual - 2011
Seats and Restraints 3-1
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats
Seat Adjustment . . . . . . . . . . . . . . 3-3
Power Seat Adjustment . . . . . . . 3-4
Lumbar Adjustment . . . . . . . . . . . 3-6
Reclining Seatbacks . . . . . . . . . . 3-7
Heated Front Seats . . . . . . . . . . . 3-9
Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . 3-10
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . 3-11
Third Row Seats . . . . . . . . . . . . . 3-13
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . 3-16
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . 3-19
Lap-Shoulder Belt . . . . . . . . . . . 3-24
Safety Belt Use During Pregnancy . . . . . . . . . . . . . . . . . . 3-29
Safety Belt Extender . . . . . . . . . 3-29 Safety System Check . . . . . . . . 3-30
Safety Belt Care . . . . . . . . . . . . . 3-30
Replacing Safety Belt System
Parts After a Crash . . . . . . . . . 3-30
Airbag System
Airbag System . . . . . . . . . . . . . . . 3-31
Where Are the Airbags? . . . . . 3-33
When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . 3-35
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . 3-36
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . 3-37
What Will You See After an Airbag Inflates? . . . . . . . . . . . . 3-38
Passenger Sensing
System . . . . . . . . . . . . . . . . . . . . . 3-39
Servicing the Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . 3-44
Adding Equipment to the Airbag-Equipped Vehicle . . . 3-45
Airbag System Check . . . . . . . . 3-46
Replacing Airbag System Parts After a Crash . . . . . . . . . 3-46
Child Restraints
Older Children . . . . . . . . . . . . . . . 3-47
Infants and YoungChildren . . . . . . . . . . . . . . . . . . . . 3-49
Child Restraint Systems . . . . . 3-52
Where to Put the Restraint . . . 3-54
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . 3-56
Replacing LATCH System Parts After a Crash . . . . . . . . . 3-63
Securing Child Restraints (Rear Seat ) . . . . . . . . . . . . . . . . 3-63
Securing Child Restraints (Right Front
Passenger Seat) . . . . . . . . . . . 3-66

Black plate (2,1)Chevrolet Traverse Owner Manual - 2011
3-2 Seats and Restraints
Head Restraints
The vehicle's front seats have
adjustable head restraints in the
outboard seating positions.
{WARNING
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant's
head. This position reduces the
chance of a neck injury in a crash.1. Pull the head restraint up toraise it. To lower the head
restraint, press the release
button, located on the head
restraint post on the top of the
seatback, while you push the
head restraint down.

Black plate (3,1)Chevrolet Traverse Owner Manual - 2011
Seats and Restraints 3-3
2. Push down on the head restraintafter the button is released to
make sure that it is locked in
place.
The vehicle's second‐row seats
have head restraints in the outboard
seating positions that cannot be
adjusted.
The vehicle's third‐row seats have
headrests in the outboard seating
positions that cannot be adjusted.
The vehicle's head restraints and
headrests are not designed to be
removed.Front Seats
Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
A. Manual Seat Adjustment Handle.
B. Driver Seat Height Adjuster.
C. See Reclining Seatbacks
on
page 3‑7.
To adjust a manual seat:
1. Lift the handle (A) under the seat to unlock it.
2. Slide the seat and release the handle.
Try to move the seat to be sure it is
locked in place.

Black plate (4,1)Chevrolet Traverse Owner Manual - 2011
3-4 Seats and Restraints

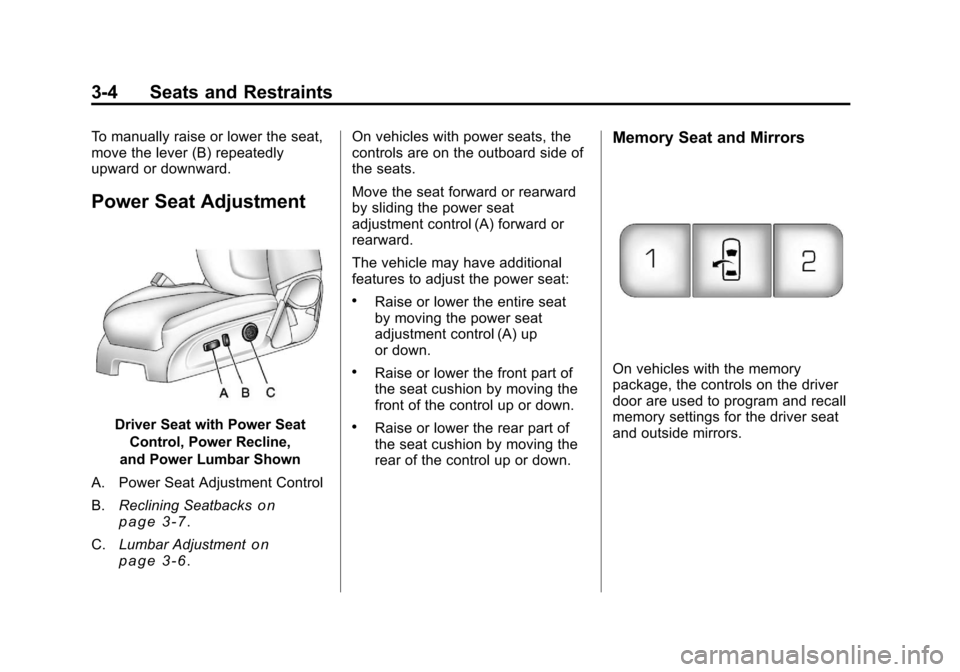

To manually raise or lower the seat,
move the lever (B) repeatedly
upward or downward.
Power Seat Adjustment
Driver Seat with Power SeatControl, Power Recline,
and Power Lumbar Shown
A. Power Seat Adjustment Control
B. Reclining Seatbacks
on
page 3‑7.
C. Lumbar Adjustment
on
page 3‑6. On vehicles with power seats, the
controls are on the outboard side of
the seats.
Move the seat forward or rearward
by sliding the power seat
adjustment control (A) forward or
rearward.
The vehicle may have additional
features to adjust the power seat:
.Raise or lower the entire seat
by moving the power seat
adjustment control (A) up
or down.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the rear part of
the seat cushion by moving the
rear of the control up or down.
Memory Seat and Mirrors
On vehicles with the memory
package, the controls on the driver
door are used to program and recall
memory settings for the driver seat
and outside mirrors.

Black plate (5,1)Chevrolet Traverse Owner Manual - 2011
Seats and Restraints 3-5
Storing Memory Positions
To save into memory:
1. Adjust the driver seat, seatbackrecliner, and both outside
mirrors.
See Power Mirrors
on
page 2‑16for more information.
Not all vehicles will have the
ability to save and recall the
mirror positions.
2. Press and hold “1”until
two beeps sound.
3. Repeat for a second driver position using “2.”
To recall the memory positions,
press and release “1”or“2.” The
vehicle must be in P (Park). A single
beep will sound. The seat and
outside mirrors will move to the
position previously stored for the
identified driver. Memory Remote Recall
The memory feature can recall the
driver seat and outside mirrors to
stored positions when entering
the vehicle.
To activate memory remote recall,
unlock the driver door with the
Remote Keyless Entry (RKE)
transmitter. The driver seat and
outside mirrors will move to the
memory position associated with the
transmitter used to unlock the
vehicle.
The automatic recall feature can be
turned on or off using the vehicle
personalization menu. See
“Memory
Seat Recall” underVehicle
Personalization (With DIC Buttons)
on page 5‑41for more information.
To stop recall movement of the
memory feature, press one of the
power seat controls, memory
buttons, or the power mirror buttons. If something has blocked the driver
seat while recalling a memory
position, the recall may stop.
Remove the obstruction; then press
and hold the appropriate manual
control for the memory item that is
not recalling for two seconds. Try
recalling the memory position again
by pressing the appropriate memory
button. If the memory position is still
not recalling, see your dealer for
service.
Easy Exit Driver Seat
The easy exit driver seat feature
can move the seat rearward to allow
extra room to exit the vehicle.
S(Easy Exit Driver Seat):
Press
to recall the easy exit seat position.
The vehicle must be in P (Park).
If the easy exit seat feature is
programmed on in the vehicle
personalization menu, automatic
seat movement occurs when the
ignition key is removed.

Black plate (6,1)Chevrolet Traverse Owner Manual - 2011
3-6 Seats and Restraints
A single beep sounds. The driver
seat moves back approximately
8 cm (3 in). To move the seat back
farther, press the easy exit seat
button again until the seat is all
the way back.
If something has blocked the driver
seat while recalling the exit position,
the recall may stop. Remove the
obstruction; then press and hold the
power seat control rearward for
two seconds. Try recalling the exit
position again. If the exit position is
still not recalling, see your dealer
for service.
See“Easy Exit Seat” underVehicle
Personalization (With DIC Buttons)
on page 5‑41for more information.
Lumbar Adjustment
Manual Lumbar
On vehicles with this feature, the
handle is located on the inboard
side of the seatback.
Move the handle forward or
rearward to increase or decrease
lumbar support.
Power Lumbar
On vehicles with power lumbar, the
controls used to operate this feature
are located on the outboard side of
the seats. See Power Seat
Adjustment
on page 3‑4for more
information.
To increase or decrease lumbar
support, press and hold the front or
rear of the control (C).
Release the control when the
seatback reaches the desired level
of lumbar support.
