Black plate (5,1)Chevrolet Traverse Owner Manual - 2011
In Brief 1-5
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the ignition switch on and
then off.
See Remote Vehicle Start
on
page 2‑5.
Door Locks
To lock or unlock a door manually:
.From the inside use the door
lock knob on the window sill.
.From the outside turn the key
toward the front or rear of the
vehicle, or press the
QorK
button on the Remote Keyless
Entry (RKE) transmitter.
Power Door Locks
On vehicles with power door locks,
the controls are located on the front
doors.
K: Press to unlock the doors.
Q:Press to lock the doors.
See Power Door Locks
on
page 2‑8.
Liftgate
To open the liftgate the vehicle must
be in P (Park). Press the touchpad
under the liftgate handle. To close
the liftgate, use the pull cup or pull
strap as an aid.
Power Liftgate
On vehicles with a power liftgate,
the vehicle must be in P (Park) to
operate it.
.Press and hold the liftgate
button
&on the Remote
Keyless Entry (RKE) transmitter.

Black plate (6,1)Chevrolet Traverse Owner Manual - 2011
1-6 In Brief
.Press the liftgate button on the
center console.
.Press the touchpad switch on
the outside liftgate handle.
For more information see Liftgate
on page 2‑9.
Windows
On vehicles with power windows,
the switches are on the doors.
Press the switch to lower the
window. Pull the switch up to
raise it.
For more information, see Power
Windows on page 2‑19.
Seat Adjustment
Manual Seats
1. Pull the handle under the seat to unlock the seat.
2. Slide the seat to the desired position and release the handle.
Try to move the seat to be sure it is
locked in place.
See Seat Adjustment
on page 3‑3for more information.

Black plate (7,1)Chevrolet Traverse Owner Manual - 2011
In Brief 1-7
Power Seats
A. Power Seat Adjustment Control
B. Reclining Seatbacks
C. Lumbar Adjustment
Move the seat forward or rearward
by moving the control (A) forward or
rearward.
Raise or lower the entire seat by
moving the control (A) up or down.
SeePower Seat Adjustment
on
page 3‑4. To raise or recline the seatback, tilt
the top of the control (B) forward or
rearward.
See
Reclining Seatbacks
on
page 3‑7.
Press the front or rear of the
control (C) to increase or decrease
lumbar support.
See Lumbar Adjustment
on
page 3‑6.
Memory Features
On vehicles with the memory
feature, the controls on the driver
door are used to program and recall
memory settings for the driver seat
and outside mirrors.
Storing Memory Positions
To save into memory:
1. Adjust the driver seat, seatback recliner, and both outside
mirrors.
See Power Mirrors
on
page 2‑16for more information.

Black plate (8,1)Chevrolet Traverse Owner Manual - 2011
1-8 In Brief
Not all vehicles will have the
ability to save and recall the
mirror positions.
2. Press and hold “1”until
two beeps sound.
3. Repeat for a second driver position using “2.”
To recall the memory positions,
press and release “1”or“2.” The
vehicle must be in P (Park). A single
beep will sound. The seat and
outside mirrors will move to the
position previously stored for the
identified driver.
See “Memory Seat and Mirrors”
under Power Seat Adjustment
on
page 3‑4and Vehicle
Personalization (With DIC Buttons)
on page 5‑41for more information. Easy Exit Driver Seat
The easy exit driver seat feature
can move the seat rearward to allow
extra room to exit the vehicle.
S:
Press to recall the easy exit
seat position. The vehicle must be
in P (Park).
See “Memory Seat and Mirrors”
under Power Seat Adjustment
on
page 3‑4and Vehicle
Personalization (With DIC Buttons)
on page 5‑41for more information.
Second Row Seats
The second row seat can be folded
to access the third row. Pull the
sliding seat lever forward, the seat
cushion folds, and the seat slides
forward.
See Rear Seats on page 3‑11.

Black plate (9,1)Chevrolet Traverse Owner Manual - 2011
In Brief 1-9
Third Row Seats
The third row seats can be folded
forward or removed.
Pull up on the release lever located
on the back of the seat and push
the seatback forward.
SeeThird Row Seats on page 3‑13.
Heated Seats
Heated Front Seats
On vehicles with this feature, the
heated seat controls are located on
the center console. The engine
must be running to operate them.
I:Press to turn on the heated
seatback.
J :Press to turn on or off the
heated seat and seatback.
See Heated Front Seats
on
page 3‑9.
Heated and Ventilated
Seats
On vehicles with this feature, the
controls are on the center console.
H: Press to ventilate.
J:Press to heat.
See Heated and Ventilated Front
Seats on page 3‑10.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
For more information see Head
Restraints
on page 3‑2and Seat
Adjustment on page 3‑3.

Black plate (10,1)Chevrolet Traverse Owner Manual - 2011
1-10 In Brief

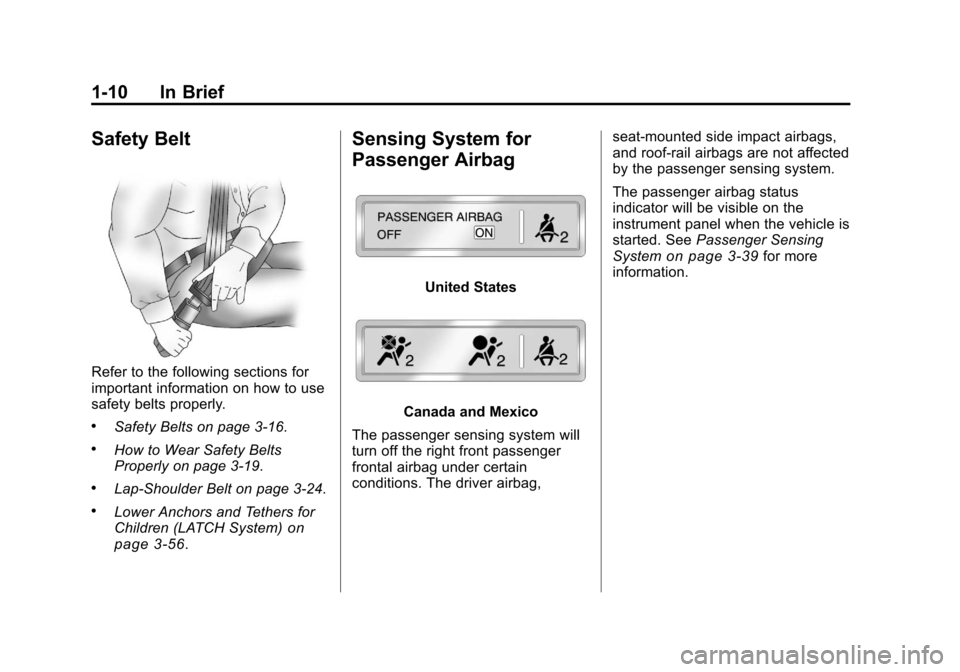

Safety Belt
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑16.
.How to Wear Safety Belts
Properly on page 3‑19.
.Lap-Shoulder Belt on page 3‑24.
.Lower Anchors and Tethers for
Children (LATCH System)on
page 3‑56.
Sensing System for
Passenger Airbag
United States
Canada and Mexico
The passenger sensing system will
turn off the right front passenger
frontal airbag under certain
conditions. The driver airbag, seat‐mounted side impact airbags,
and roof‐rail airbags are not affected
by the passenger sensing system.
The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle is
started. See
Passenger Sensing
System
on page 3‑39for more
information.

Black plate (11,1)Chevrolet Traverse Owner Manual - 2011
In Brief 1-11
Mirror Adjustment
Exterior Mirrors
Controls for the outside power
mirrors are located on the driver
door armrest.
1. Press (A) or (B) to select thedriver or passenger side mirror.
2. Press one of the four arrows located on the control pad to
adjust the mirror.
3. Press either (A) or (B) again to deselect the mirror. Manually fold the mirrors inward
to prevent damage when going
through an automatic car wash.
To fold, push the mirror toward the
vehicle. Push the mirror outward to
return it to the original position.
Interior Mirror
If equipped, a manual inside
rearview mirror can be adjusted so
that the driver can see behind the
vehicle more clearly. Hold the mirror
in the center to move it up or down
and side to side. Use the day/night
adjustment to help prevent glare
from the headlamps behind you.
Move the lever located at the
base of the mirror, to the right for
nighttime use and to the center for
daytime use.
For vehicles with an automatic
dimming rearview mirror, the mirror
will move automatically to reduce
the glare from the headlamps of the
vehicle behind you. The dimming
feature comes on and the indicator
light illuminates each time the
ignition is turned to start.
See
Automatic Dimming Rearview
Mirror on page 2‑18.

Black plate (12,1)Chevrolet Traverse Owner Manual - 2011
1-12 In Brief
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever (A) down.
2. Move the steering wheel upor down.
3. Pull or push the steering wheel closer or away from you.
4. Push the lever (A) up to lock the steering wheel in place.
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamps
The dome lamps are located in the
overhead console and above the
rear seat passengers.
The dome lamps come on when a
door is opened, unless the dome
lamp override button is pressed in.
To manually turn them on, turn the
instrument panel brightness control
clockwise to the farthest position. Dome Lamp Override
The dome lamp override button is
next to the exterior lamps control.
E:
Press the button in and the
dome lamps remain off when a door
is opened. Press the button again to
the extended position so the dome
lamps come on when a door is
opened.

Black plate (13,1)Chevrolet Traverse Owner Manual - 2011
In Brief 1-13
Reading Lamps
Press the button near each lamp to
turn them on or off.
For more information, see:
.Dome Lamps on page 6‑5.
.Instrument Panel Illumination
Control on page 6‑4.
Exterior Lighting
The exterior lamps control is located
on the instrument panel, to the left
of the steering wheel.
O:Turns the automatic light
control on or off.
AUTO : Automatic operation
of the headlamps at normal
brightness and other exterior lamps.
;: Manual operation of the parking
lamps and other exterior lamps.
2: Manual operation of the
headlamps and other exterior
lamps.
For more information, see:
.Exterior Lamp Controlson
page 6‑1.
.Daytime Running Lamps (DRL)/
Automatic Headlamp Systemon
page 6‑3.
.Delayed Headlampson
page 6‑3.
Windshield Wiper/Washer
The windshield wiper/washer lever
is located on the left side of the
steering column.
Turn the band with the wiper symbol
to control the windshield wipers.
8: Use for a single wiping cycle.
9:Turns the wipers off.
6:Delays wiping cycle. Turn the
band up for more frequent wipes or
down for less frequent wipes.

Black plate (14,1)Chevrolet Traverse Owner Manual - 2011
1-14 In Brief
1 :Slow wipes.
2 : Fast wipes.
Windshield Washer
J: Press the button at the end of
the turn signal/lane change lever to
spray washer fluid on the
windshield.
Rear Window Wiper/Washer
The rear wiper and rear wash button
is located on the instrument panel
below the climate control system.
Z (Rear Wiper): Press to turn the
rear wiper on and off. The wiper
speed cannot be changed.
Y (Wash): Press to spray washer
fluid on the rear window. The
window wiper will also come on.
See Windshield Wiper/Washer
on
page 5‑5and Rear Window Wiper/
Washer on page 5‑6.
Climate Controls
A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning E. REAR (Rear Climate Control)
F. Air Recirculation
G. Rear Window Defogger
