Instruments and Controls 5-37
Passive Entry Lock
This feature can be turned on or off
or to select feedback when using
the button on the driver door to lock
the vehicle.
Press Passive Entry Lock when
highlighted. Select Off, On, or On
with Active Chirp. Press
4.
Passive Entry Unlock
This specifies of which doors are
unlocked by pressing the button on
the outside door handle.
Press Delayed Door Lock when
highlighted. Select All Doors or
Driver Door. Press
4.
Remote Unlock Light Feedback
When on, the exterior lamps will
flash when unlocking the vehicle
with the RKE transmitter.
Press Remote Unlock Light
Feedback when highlighted. Select
Flash Lights or Lights Off. Press
4. Remote Lock Light & Horn
Feedback
This allows selection of what type of
feedback is given when pressing
Q
on the RKE transmitter.
Press Remote Lock Light & Horn
Feedback when highlighted. Select
Lights only, Lights & Horn, horn
Only, or Off. Press
4.
Remote Door Unlock
This allows selection of which doors
will unlock when pressing
Kon the
RKE transmitter.
Press Remote Door Unlock when
highlighted. Select All Doors or
Driver Door. When set to Driver
Door Only, the driver door will
unlock the first time
Kis pressed
and all doors will unlock when the
button is pressed a second time.
When set to All Doors, all of the
doors will unlock at the first
press of
K. Press4. Relock Remotely Unlocked Doors
When on, if the doors are unlocked
from the RKE transmitter and a door
is not opened after a period of time,
the doors will automatically relock.
Press Relock Remotely Unlocked
Doors when highlighted. Select On
or Off. Press
4.
Relock Unlocked Door
When on, the doors will
automatically lock after a period of
time not entering or exiting the
vehicle.
Press Relock Unlocked Door when
highlighted. Select On or Off.
Press
4.
Memory Remote Recall
This allows the Memory Remote
Recall feature to be turned on or off.
When on, this feature will recall the
current driver's last seat, outside
mirrors upon unlocking the driver
door with the RKE, and opening that

Black plate (38,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
5-38 Instruments and Controls
door. The current driver is identified
when the RKE transmitter is used to
unlock the driver door.
Memory Remote Recall is when the
memorized settings will be recalled
when the vehicle is unlocked.
Press Memory Remote Recall when
highlighted. Select On or Off.
Press
4.
Remote Start
This allows the remote start feature
to be turned on or off.
Press Remote Start when
highlighted. Select On or Off.
Press
4.
Remote Left in Vehicle Reminder
This allows the Remote Left in
Vehicle Reminder feature to be
turned on or off. If on, the horn will
chirp if a remote is left in the
vehicle.
Press Remote Left in Vehicle
Reminder when highlighted. Select
On or Off. Press
4.
Rear Camera Option
Select Rear Camera Option and the
following may be displayed:
.Guidelines
Guidelines
This feature will turn on the
guidelines in the rear camera
display.
Press Guidelines when highlighted.
Select On or Off. Press
4.
Vehicle Factory Settings
Select Vehicle Factory Settings to
return all of the vehicle
personalization to the default
settings. Press Vehicle Factory
Settings when highlighted. Select
Yes or No. Press
4.
Sport Mode Settings
Select Sport Mode Settings and the
following may be displayed:
.Sport Suspension
.Powertrain Performance
.Sport Steering
.All Wheel Drive Steering
.Instrument Lighting
Sport Suspension
This feature will turn on the sport
suspension feature.
Press Sport Suspension when
highlighted. Select On or Off.
Press
4.
Powertrain Performance
This feature will turn on the
powertrain performance feature.
Press Powertrain Performance
when highlighted. Select On or Off.
Press
4.
Sport Steering
This feature will turn on the sport
steering feature on.
Press Sport Steering when
highlighted. Select On or Off.
Press
4.

Black plate (39,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Instruments and Controls 5-39

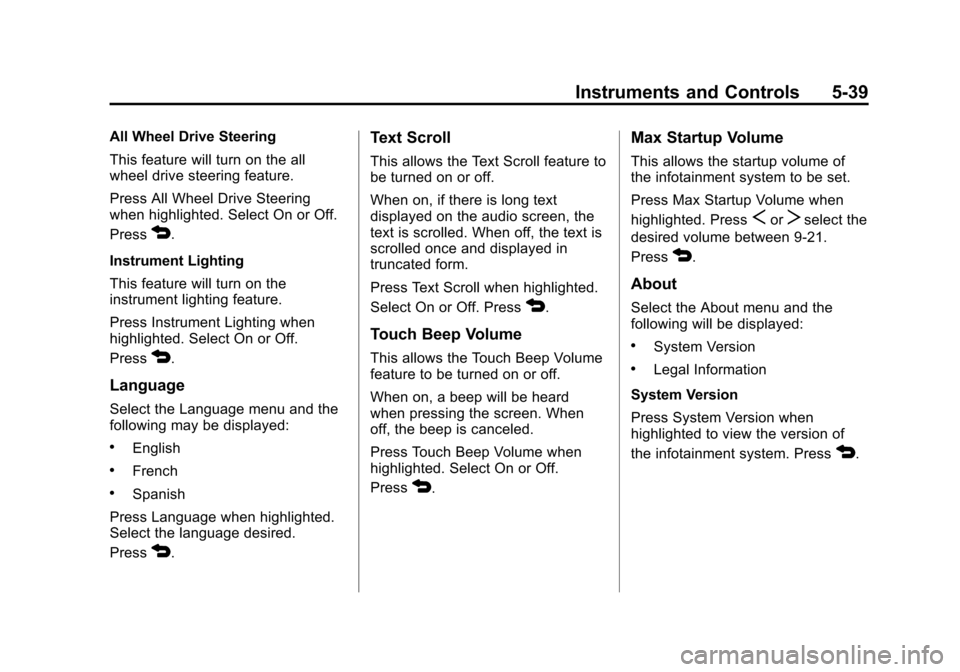

All Wheel Drive Steering
This feature will turn on the all
wheel drive steering feature.
Press All Wheel Drive Steering
when highlighted. Select On or Off.
Press
4.
Instrument Lighting
This feature will turn on the
instrument lighting feature.
Press Instrument Lighting when
highlighted. Select On or Off.
Press
4.
Language
Select the Language menu and the
following may be displayed:
.English
.French
.Spanish
Press Language when highlighted.
Select the language desired.
Press
4.
Text Scroll
This allows the Text Scroll feature to
be turned on or off.
When on, if there is long text
displayed on the audio screen, the
text is scrolled. When off, the text is
scrolled once and displayed in
truncated form.
Press Text Scroll when highlighted.
Select On or Off. Press
4.
Touch Beep Volume
This allows the Touch Beep Volume
feature to be turned on or off.
When on, a beep will be heard
when pressing the screen. When
off, the beep is canceled.
Press Touch Beep Volume when
highlighted. Select On or Off.
Press
4.
Max Startup Volume
This allows the startup volume of
the infotainment system to be set.
Press Max Startup Volume when
highlighted. Press
SorTselect the
desired volume between 9-21.
Press
4.
About
Select the About menu and the
following will be displayed:
.System Version
.Legal Information
System Version
Press System Version when
highlighted to view the version of
the infotainment system. Press
4.

Black plate (40,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
5-40 Instruments and Controls
Legal Information
Press Legal Information when
highlighted to view the Open source
information. Press
4.
DivX VOD
Press DivX VOD when highlighted.
.DIVX VIDEO: DivX is a digital
video format created by DivX,
LLC, a subsidiary of Rovi
Corporation. This is an official
DivX Certified
®device that plays
DivX video. See divx.com for
more information and software
tools on how to convert files into
DivX videos.
.DIVX VIDEO-ON DEMAND: This
DivX Certified device must be
registered in order to play
purchased DivX
Video-on-Demand (VOD)
movies. To obtain a registration
code, locate the DivX VOD
section in the device setup
menu. See vod.divx.com for
more information on how to
complete the registration.
Press
4.

Black plate (1,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13

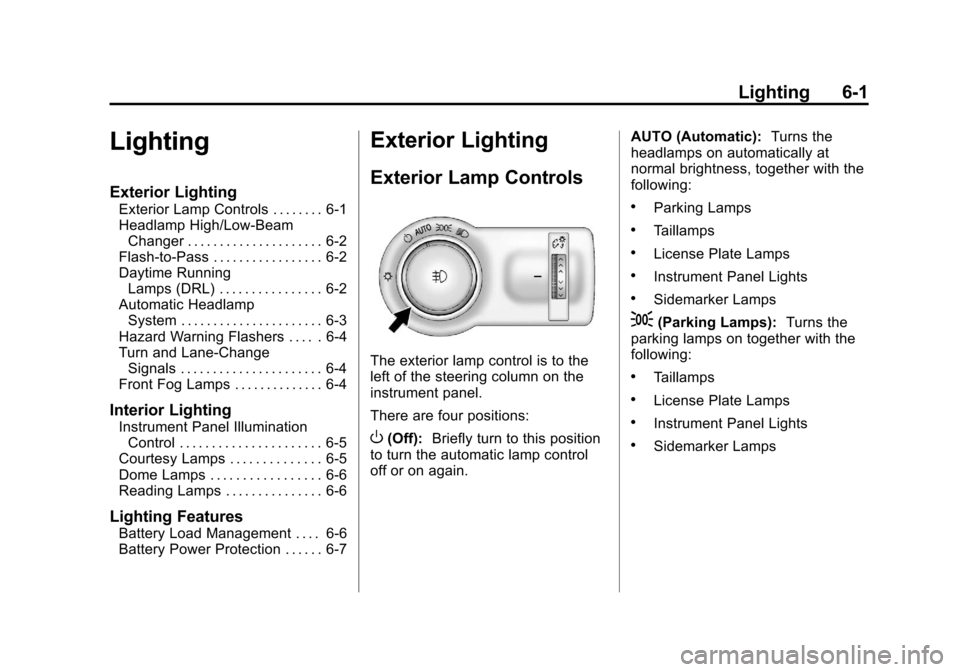

Lighting 6-1
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . . 6-1
Headlamp High/Low-BeamChanger . . . . . . . . . . . . . . . . . . . . . 6-2
Flash-to-Pass . . . . . . . . . . . . . . . . . 6-2
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 6-2
Automatic Headlamp System . . . . . . . . . . . . . . . . . . . . . . 6-3
Hazard Warning Flashers . . . . . 6-4
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . 6-4
Front Fog Lamps . . . . . . . . . . . . . . 6-4
Interior Lighting
Instrument Panel Illumination Control . . . . . . . . . . . . . . . . . . . . . . 6-5
Courtesy Lamps . . . . . . . . . . . . . . 6-5
Dome Lamps . . . . . . . . . . . . . . . . . 6-6
Reading Lamps . . . . . . . . . . . . . . . 6-6
Lighting Features
Battery Load Management . . . . 6-6
Battery Power Protection . . . . . . 6-7
Exterior Lighting
Exterior Lamp Controls
The exterior lamp control is to the
left of the steering column on the
instrument panel.
There are four positions:
O(Off): Briefly turn to this position
to turn the automatic lamp control
off or on again. AUTO (Automatic):
Turns the
headlamps on automatically at
normal brightness, together with the
following:
.Parking Lamps
.Taillamps
.License Plate Lamps
.Instrument Panel Lights
.Sidemarker Lamps
;(Parking Lamps): Turns the
parking lamps on together with the
following:
.Taillamps
.License Plate Lamps
.Instrument Panel Lights
.Sidemarker Lamps

Black plate (2,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
6-2 Lighting
5(Headlamps):Turns the
headlamps on together with the
lamps listed below. A warning chime
sounds if the driver door is opened
when the ignition switch is off and
the headlamps are on.
.Parking Lamps
.Taillamps
.License Plate Lamps
.Instrument Panel Lights
.Sidemarker Lamps
#(Front Fog Lamps): For
vehicles with fog lamps, press to
turn the lamps on or off.
See Front Fog Lamps on page 6‑4.
When the lights are on,
;will be
lit. See Lamps On Reminder on
page 5‑23.
Headlamp High/
Low-Beam Changer
3
(Headlamp High/Low-Beam
Changer): Push the turn signal
lever away from you and release, to
turn the high beams on.
To return to low beams, push the
lever again or pull it toward you and
release.
This indicator light turns on in the
instrument cluster when the
high-beam headlamps are on.
Flash-to-Pass
To flash the high beams, pull the
turn signal lever all the way toward
you. Then release it.
Daytime Running
Lamps (DRL)
Daytime Running Lamps can make
it easier for others to see the front of
your vehicle during the day. Fully
functional daytime running lamps
are required on all vehicles first sold
in Canada.
A light sensor on top of the
instrument panel makes the DRL
work, so be sure it is not covered.

Black plate (3,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Lighting 6-3

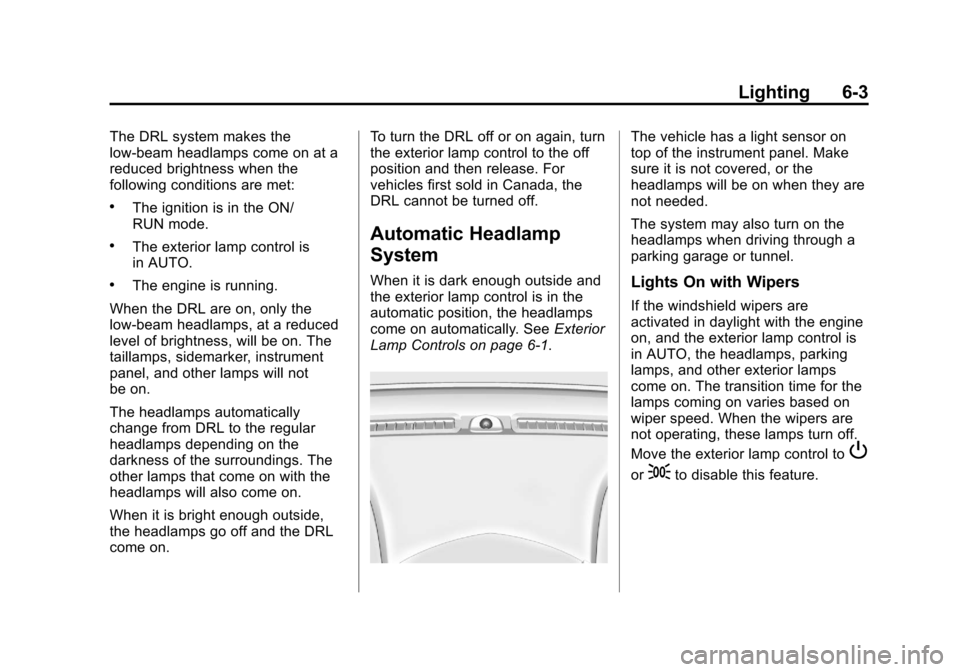

The DRL system makes the
low-beam headlamps come on at a
reduced brightness when the
following conditions are met:
.The ignition is in the ON/
RUN mode.
.The exterior lamp control is
in AUTO.
.The engine is running.
When the DRL are on, only the
low-beam headlamps, at a reduced
level of brightness, will be on. The
taillamps, sidemarker, instrument
panel, and other lamps will not
be on.
The headlamps automatically
change from DRL to the regular
headlamps depending on the
darkness of the surroundings. The
other lamps that come on with the
headlamps will also come on.
When it is bright enough outside,
the headlamps go off and the DRL
come on. To turn the DRL off or on again, turn
the exterior lamp control to the off
position and then release. For
vehicles first sold in Canada, the
DRL cannot be turned off.
Automatic Headlamp
System
When it is dark enough outside and
the exterior lamp control is in the
automatic position, the headlamps
come on automatically. See
Exterior
Lamp Controls on page 6‑1.
The vehicle has a light sensor on
top of the instrument panel. Make
sure it is not covered, or the
headlamps will be on when they are
not needed.
The system may also turn on the
headlamps when driving through a
parking garage or tunnel.
Lights On with Wipers
If the windshield wipers are
activated in daylight with the engine
on, and the exterior lamp control is
in AUTO, the headlamps, parking
lamps, and other exterior lamps
come on. The transition time for the
lamps coming on varies based on
wiper speed. When the wipers are
not operating, these lamps turn off.
Move the exterior lamp control to
P
or;to disable this feature.

Black plate (4,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
6-4 Lighting

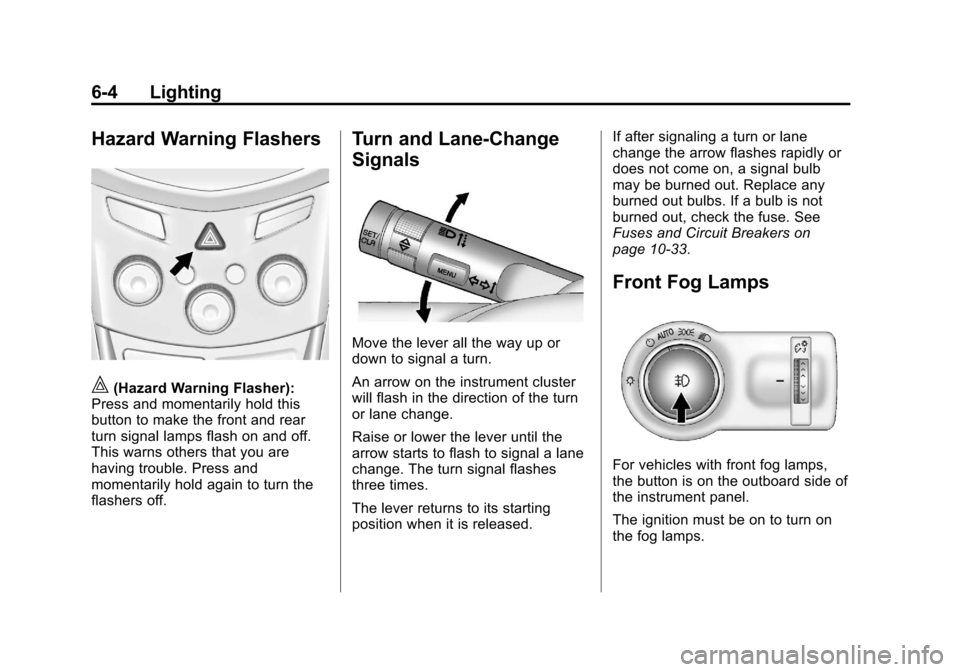

Hazard Warning Flashers
|(Hazard Warning Flasher):
Press and momentarily hold this
button to make the front and rear
turn signal lamps flash on and off.
This warns others that you are
having trouble. Press and
momentarily hold again to turn the
flashers off.
Turn and Lane-Change
Signals
Move the lever all the way up or
down to signal a turn.
An arrow on the instrument cluster
will flash in the direction of the turn
or lane change.
Raise or lower the lever until the
arrow starts to flash to signal a lane
change. The turn signal flashes
three times.
The lever returns to its starting
position when it is released. If after signaling a turn or lane
change the arrow flashes rapidly or
does not come on, a signal bulb
may be burned out. Replace any
burned out bulbs. If a bulb is not
burned out, check the fuse. See
Fuses and Circuit Breakers on
page 10‑33.
Front Fog Lamps
For vehicles with front fog lamps,
the button is on the outboard side of
the instrument panel.
The ignition must be on to turn on
the fog lamps.

Black plate (5,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Lighting 6-5
#(Front Fog Lamps):Press to
turn the fog lamps on or off. An
indicator light on the instrument
cluster comes on when the fog
lamps are on.

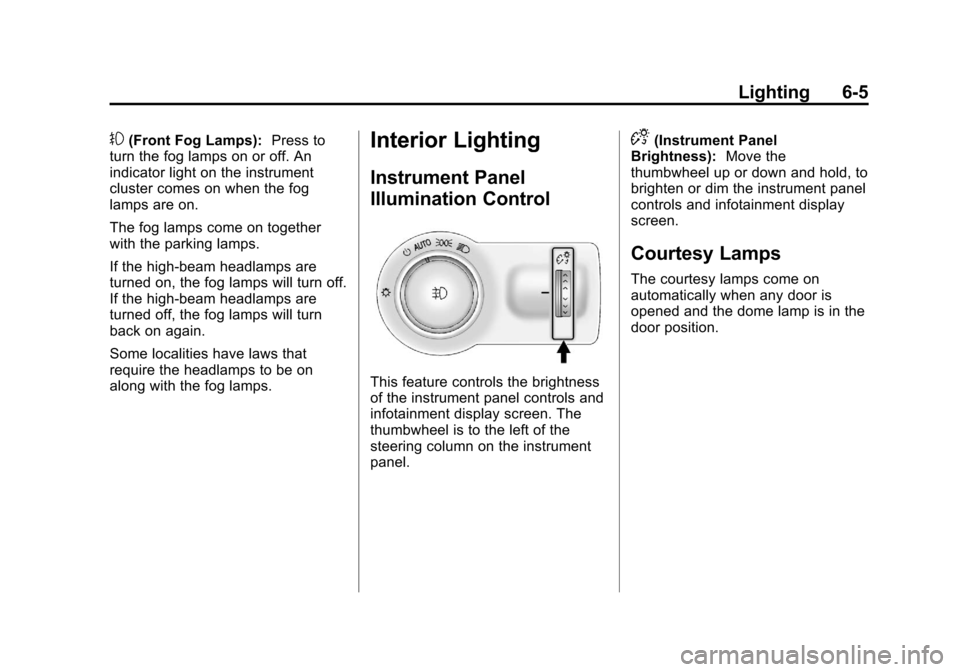

The fog lamps come on together
with the parking lamps.
If the high-beam headlamps are
turned on, the fog lamps will turn off.
If the high-beam headlamps are
turned off, the fog lamps will turn
back on again.
Some localities have laws that
require the headlamps to be on
along with the fog lamps.Interior Lighting
Instrument Panel
Illumination Control
This feature controls the brightness
of the instrument panel controls and
infotainment display screen. The
thumbwheel is to the left of the
steering column on the instrument
panel.
D(Instrument Panel
Brightness): Move the
thumbwheel up or down and hold, to
brighten or dim the instrument panel
controls and infotainment display
screen.
Courtesy Lamps
The courtesy lamps come on
automatically when any door is
opened and the dome lamp is in the
door position.

Black plate (6,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
6-6 Lighting
Dome Lamps

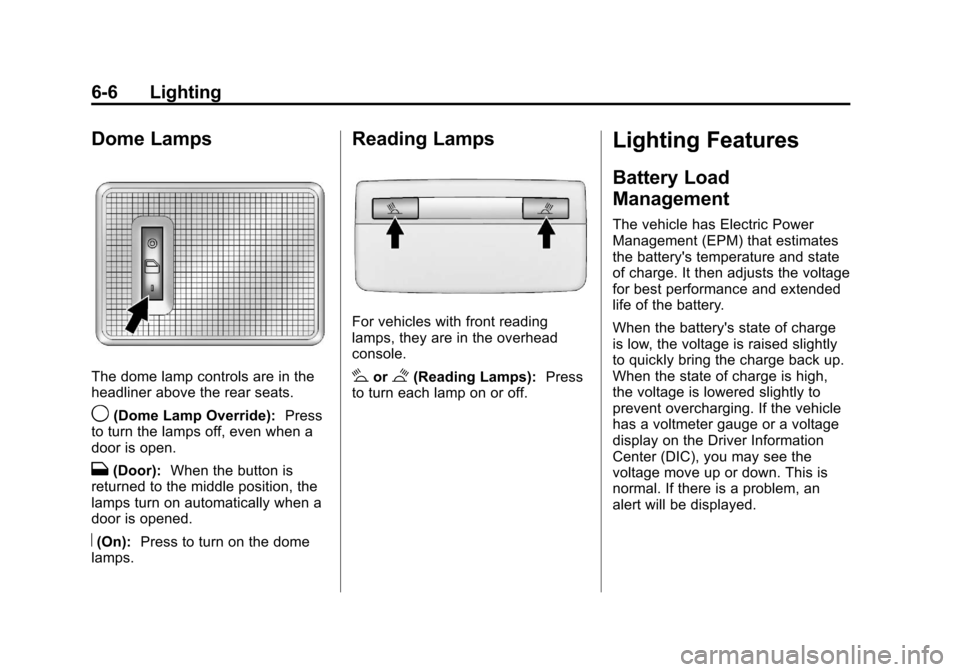

The dome lamp controls are in the
headliner above the rear seats.
9(Dome Lamp Override):Press
to turn the lamps off, even when a
door is open.
H(Door): When the button is
returned to the middle position, the
lamps turn on automatically when a
door is opened.
R(On): Press to turn on the dome
lamps.
Reading Lamps
For vehicles with front reading
lamps, they are in the overhead
console.
#or$(Reading Lamps): Press
to turn each lamp on or off.
Lighting Features
Battery Load
Management
The vehicle has Electric Power
Management (EPM) that estimates
the battery's temperature and state
of charge. It then adjusts the voltage
for best performance and extended
life of the battery.
When the battery's state of charge
is low, the voltage is raised slightly
to quickly bring the charge back up.
When the state of charge is high,
the voltage is lowered slightly to
prevent overcharging. If the vehicle
has a voltmeter gauge or a voltage
display on the Driver Information
Center (DIC), you may see the
voltage move up or down. This is
normal. If there is a problem, an
alert will be displayed.
