CHEVROLET UPLANDER 2005 1.G User Guide

Press this button once to
turn on the front
passenger’s heated seat to
the high setting.
Both indicator lights to the left of the symbol will be lit to
indicate that it is on the high setting. Press the button
a second time to go to the low setting. One indicator will
be lit. Press the button a third time to turn the heated
seat off.
The heated seats will turn off when the ignition is turned
to LOCK and will resume operation when the ignition
is turned to RUN, unless the button is manually
turned off.Reclining Seatbacks
To adjust a seatback, pull up on the lever located on
the outboard side of the driver’s or front passenger’s
seats. Release the lever to lock the seatback where you
want it. Push and pull on the seat to make sure it is
locked into position. Pull up on the lever, and the seat
will go to its original upright position.
1-5

But do not have a seatback reclined if your vehicle is
moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-6

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The head restraints are adjustable on the rst and
second row seats. They are not adjustable on the third
row seat, if equipped. To adjust a head restraint,
slide it up or down.
Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and straps
used to adjust, remove, and reinstall the seats. By using
the levers and straps in the correct order, you can
easily remove the seats from the vehicle.
When reinstalling the seats, make sure the seats are in
the proper positions.
If your vehicle has a second row center console, it can
be removed. SeeSecond Row Center Console on
page 2-53. Do not put a seat in the center position
because the safety belt cannot be worn properly in this
position. SeeSafety Belts: They Are for Everyone
on page 1-22.
1-7

Flip and Fold Feature (Bucket Seats)
The rear seats in your vehicle can be folded forward.
Use this feature for exiting and entering third row seats.
1. Ensure the adjustable head restraints are
fully down.
2. Fold the seatback at
on the seat, by either
pulling on the nylon
strap on the rear of the
seat or lifting up on
the lever located on the
front of the seatback.
If the seat adjusts, slide
it all the way back.3. Release the rear set of
hooks from the oor
pins by pulling the
nylon strap located at
the base of the
seat. Hang on to the
strap to guide the seat
forward.
To return the seat(s) to the normal position, do the
following:
1. Push the seat back and rmly push the rear hooks
onto the rear oor pins by pushing down on the
rear of the seat.
2. Try to raise the seat to check that it is locked down.
3. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
4. Push and pull on the seatback to check that it is
locked.
1-8

Bucket Seats
If your vehicle has the bucket seats, the seatbacks can
be folded down or reclined. The seats can also be
adjusted forward or rearward, or removed.
One of the bucket seats may be equipped with a built-in
child restraint. SeeBuilt-In Child Restraint on page 1-62.
Adjusting the Bucket Seats
There are two adjustment levers on each seat to adjust
the seat forward or rearward.
One is located below the center, in front of the
bucket seats.The other lever is located
on the rear of the
bucket seat.
Lift up either lever and slide the seat forward or
rearward.
Release the lever. Push and pull on the seat to make
sure it is locked into place.
1-9

Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
The seatback on a bucket seat can be either folded
forward or reclined. The following explains how to use
either the nylon strap or the lever to fold or recline
the seatback.To fold the seatback forward, pull the nylon strap
located on the rear of the seat or lift up on the recliner
lever located on the front of the seatback. The
seatback will lock into place.
To raise a seatback, pull the nylon strap or lift the
recliner lever while raising the seatback until it locks
upright. Push and pull on the seatback to check that it is
locked into place.Nylon Strap
Recliner Lever
1-10

To recline the seatback, pull the nylon strap or lift the
recliner lever. Press back on the seatback until you
reach the desired position, then let go of the strap or
lever.
To return the seatback to an upright position, pull on the
nylon strap or lift the recliner lever without putting any
pressure on the seatback. Push and pull on the
seatback to be sure it is locked into place.
Removing the Bucket Seats
Make sure the seatback is in the upright position. The
head restraints should be fully down.
1. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat to fold the seatback
forward.
2. Slide the seat all the way back by lifting either one
of the adjuster levers and sliding the seat fully
rearward.3. From behind the seat, pull the nylon strap, located
at the base of the seat, to release the rear latches
from the oor pins.
1-11

You can also lift the lever on the side of the seat to
release the rear latches from the oor pins.
Do not let go of the strap or lever until the seat is
folded all the way forward.4. To unlatch the front latches, with the seat folded
forward, squeeze the angled bar toward the
straight crossbar.
5. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it
out. This should be done in one motion.
1-12

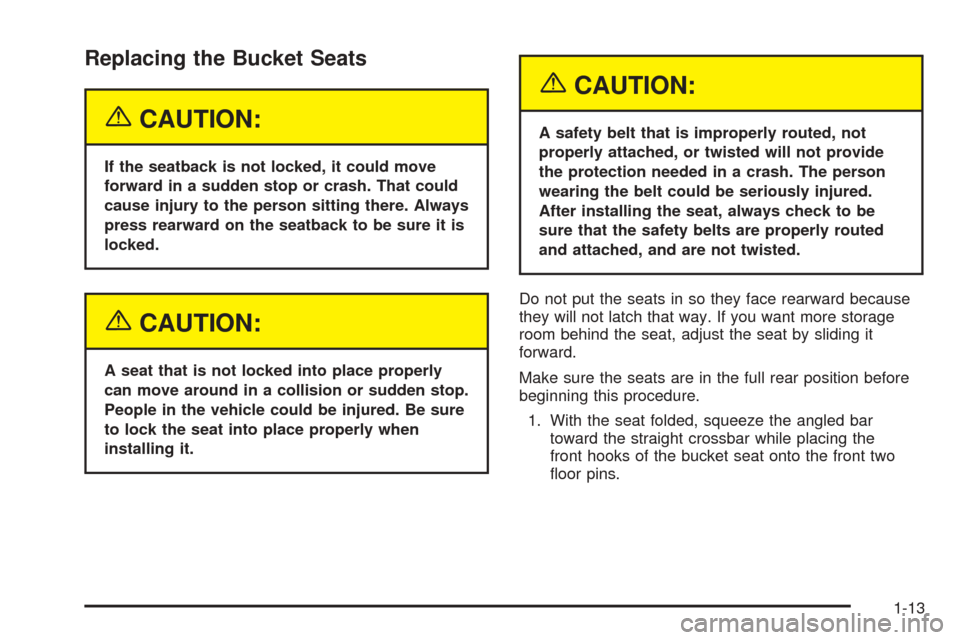

Replacing the Bucket Seats
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not put the seats in so they face rearward because
they will not latch that way. If you want more storage
room behind the seat, adjust the seat by sliding it
forward.
Make sure the seats are in the full rear position before
beginning this procedure.
1. With the seat folded, squeeze the angled bar
toward the straight crossbar while placing the
front hooks of the bucket seat onto the front two
oor pins.
1-13

2. Make sure the bucket
seat is angled so that
the front hooks
clear the oor pins.
If the front hooks are not attached correctly, the rear
hooks will not attach to the rear set of oor pins.
If the front hooks are not attaching correctly, check that
the seat is in the full rear position.3. Firmly push the rear hooks onto the rear oor pins
by pushing down the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
6. Push and pull on the seatback to make sure that it
is locked in place.
Captain Chairs
If your vehicle has captain’s chairs, the chairs and
seatbacks can be adjusted forward or rearward.
1-14
