Page 301 of 460

CHEVROLET UPLANDER 2005 1.G Owners Manual 4. The resulting �gure equals the available amount of
cargo and luggage load capacity. For example, if
the “XXX” amount equals 1400 lbs and there will be
�ve 150 lb passengers in your vehicle, the

Page 302 of 460

CHEVROLET UPLANDER 2005 1.G Owners Manual Item Description Total
AVehicle Capacity Weight
for Example 2=1,000 lbs (453 kg)
BSubtract Occupant
Weight 150 lbs
(68 kg)×5=750 lbs (340 kg)
CAvailable Cargo
Weight=250 lbs (113 kg)Item Description

Page 303 of 460

CHEVROLET UPLANDER 2005 1.G Owners Manual Certi�cation/Tire Label
A vehicle speci�c Certi�cation/Tire label is attached to
the rear edge of the driver’s door.The label shows the gross weight capacity of your
vehicle. This is called the Gros

Page 304 of 460

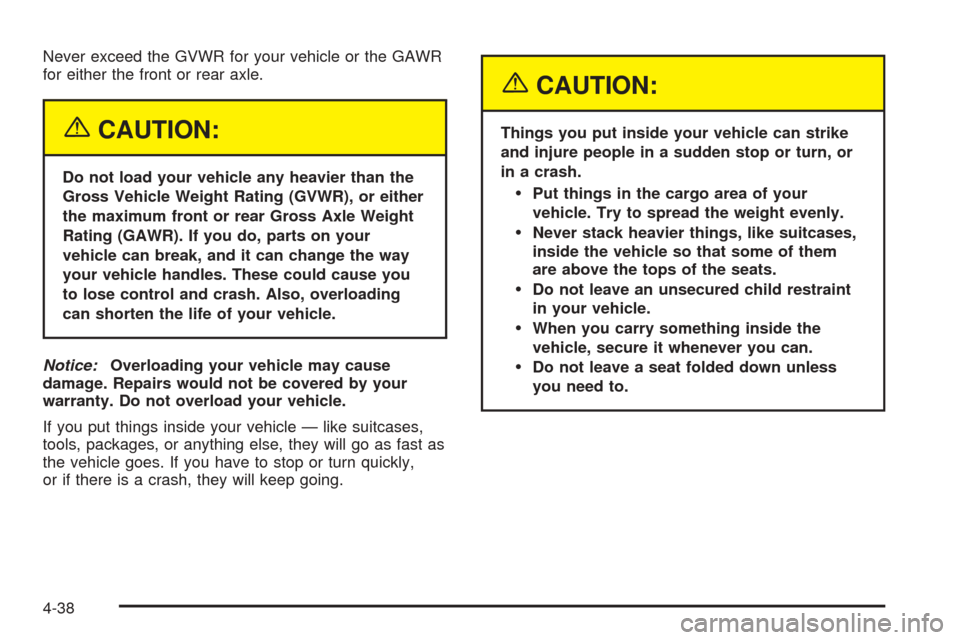

CHEVROLET UPLANDER 2005 1.G Owners Manual Never exceed the GVWR for your vehicle or the GAWR
for either the front or rear axle.
{CAUTION:
Do not load your vehicle any heavier than the
Gross Vehicle Weight Rating (GVWR), or either
the maximum

Page 305 of 460

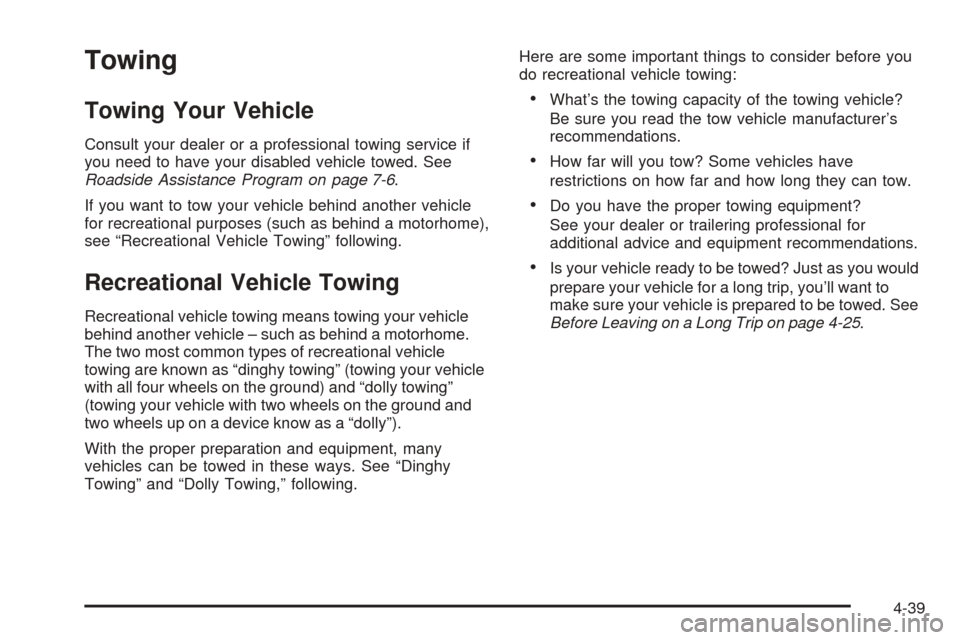

CHEVROLET UPLANDER 2005 1.G Owners Manual Towing
Towing Your Vehicle
Consult your dealer or a professional towing service if
you need to have your disabled vehicle towed. See
Roadside Assistance Program on page 7-6.
If you want to tow your ve

Page 306 of 460

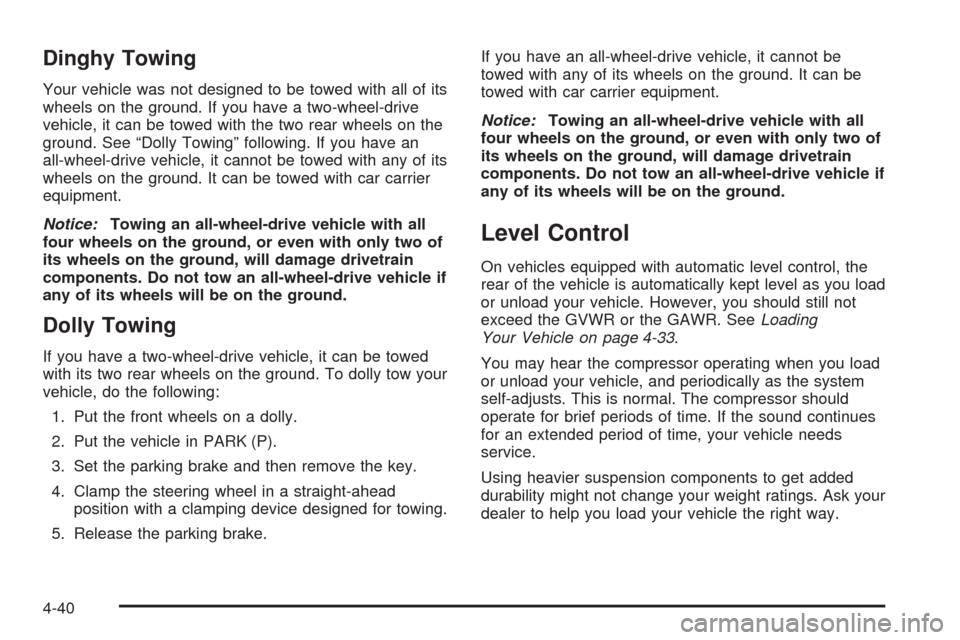

CHEVROLET UPLANDER 2005 1.G Owners Manual Dinghy Towing
Your vehicle was not designed to be towed with all of its
wheels on the ground. If you have a two-wheel-drive
vehicle, it can be towed with the two rear wheels on the
ground. See “Doll

Page 307 of 460

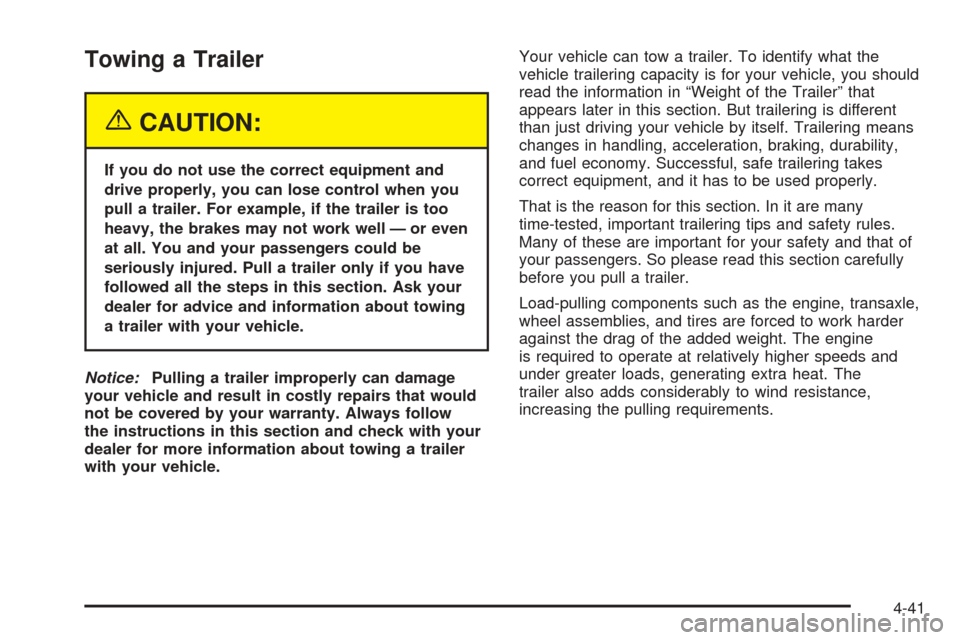

CHEVROLET UPLANDER 2005 1.G Owners Manual Towing a Trailer
{CAUTION:
If you do not use the correct equipment and
drive properly, you can lose control when you
pull a trailer. For example, if the trailer is too
heavy, the brakes may not work w

Page 308 of 460

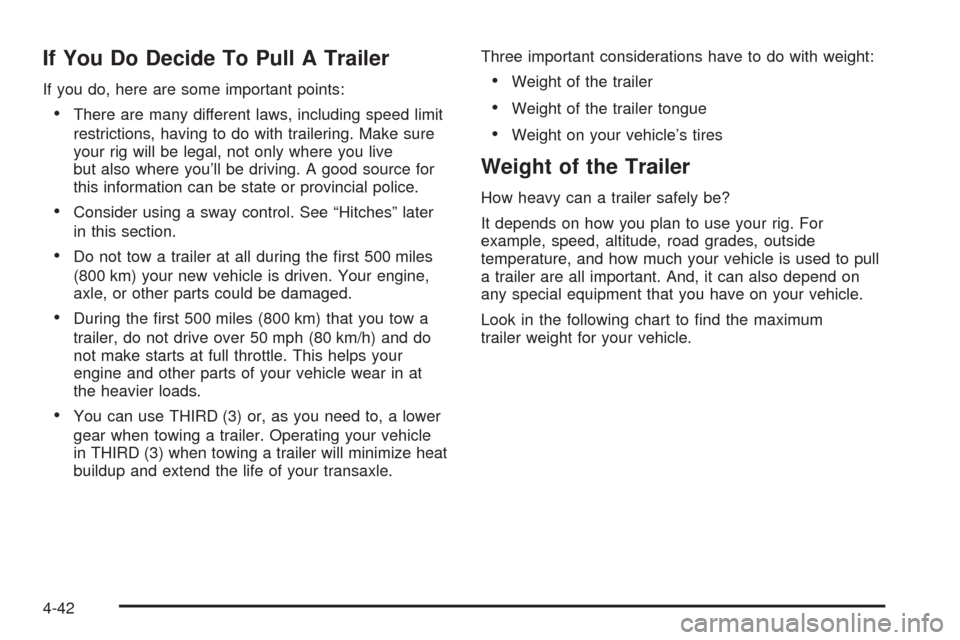

CHEVROLET UPLANDER 2005 1.G Owners Manual If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will

Page 309 of 460

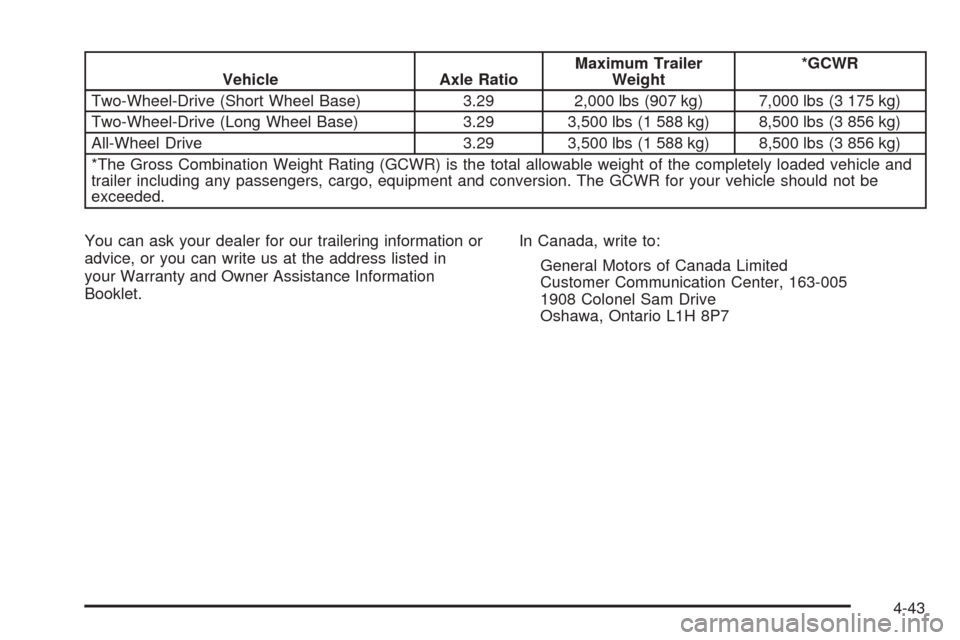

CHEVROLET UPLANDER 2005 1.G Owners Manual Vehicle Axle RatioMaximum Trailer
Weight*GCWR
Two-Wheel-Drive (Short Wheel Base) 3.29 2,000 lbs (907 kg) 7,000 lbs (3 175 kg)
Two-Wheel-Drive (Long Wheel Base) 3.29 3,500 lbs (1 588 kg) 8,500 lbs (3 8

Page 310 of 460

CHEVROLET UPLANDER 2005 1.G Owners Manual Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total or gross weight
of your vehicle. The Gross Vehicle Weight (GVW)
includes
