CHEVROLET UPLANDER 2006 User Guide

Do not have a seatback reclined if your vehicle is
moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash, you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there, not
at your pelvic bones. This could cause serious
internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-5
ProCarManuals.com

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The head restraints are adjustable on the rst and
second row seats. They are not adjustable on the
third row seat, if equipped. To adjust a head restraint,
slide it up or down.
Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and straps
used to adjust, remove, and reinstall the seats. By using
the levers and straps in the correct order, you can
easily remove the seats from the vehicle. If your vehicle
has second row captain chairs with airbags, the seats
cannot be removed.
When reinstalling the seats, make sure the seats are in
the proper positions.
If your vehicle has a second row center console, it can
be removed. SeeSecond Row Center Console on
page 2-51. Do not put a seat in the center position
because the safety belt cannot be worn properly in this
position. SeeSafety Belts: They Are for Everyone
on page 1-21.
1-6
ProCarManuals.com

Bucket Seats
Your vehicle may have bucket seats in the second row.
These seats can be adjusted several different ways.
Fold and Tumble Feature
The second row bucket seats can be folded and
tumbled forward. Use this feature for exiting and
entering third row seats, if the vehicle has them.
1. Make sure the adjustable head restraints are
in the fully lowered position.
2. Fold the seatback at
on the seat, by either
pulling on the nylon
strap, located on
the rear right hand side
of the seat, or by
lifting the recline lever,
located on the front
right hand side of
the seatback.
3. Slide the seat all the
way back in this
position.4. Release the rear set of
seat hooks from the
oor pins by pulling
either the nylon strap,
located at the base of
the seat, or the release
handle located on the
side of the seat. Use
the strap to guide the
seat forward.
To return the seat to the original position, do the
following:
1. Align the seat so that the rear hooks on the seat
are over the rear oor pins. Push down rmly on
the rear of the seat so that the rear hooks attach to
the rear oor pins.
2. Try to raise the seat to check that it is locked
to the oor.
1-7
ProCarManuals.com

3. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback, to
raise the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
4. Push and pull on the seatback to check that it is
locked.
One of the bucket seats may be equipped with a built-in
child restraint. SeeBuilt-In Child Restraint on page 1-64.
Adjusting the Bucket Seats Forward
and Rearward
There are two adjustment levers on the second row
bucket seats that enable them to move forward or
rearward.
One is located below the front of the seat.
1-8
ProCarManuals.com

The other lever is located
on the rear of the seat.
To adjust the second row bucket seats forward or
rearward, do the following:
1. Lift up either lever and slide the seat forward or
rearward.
2. Release the lever when the seat is in the desired
position.
3. Push and pull on the seat to make sure it is locked.Folding or Reclining the Seatbacks
The seatback on a bucket seat can either be folded
forward or reclined using the nylon strap or the
recline lever.
To fold the seatback forward, do the following:
1. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback to
release the seatback.
2. Fold the seatback forward.
Nylon StrapRecline Lever
1-9
ProCarManuals.com

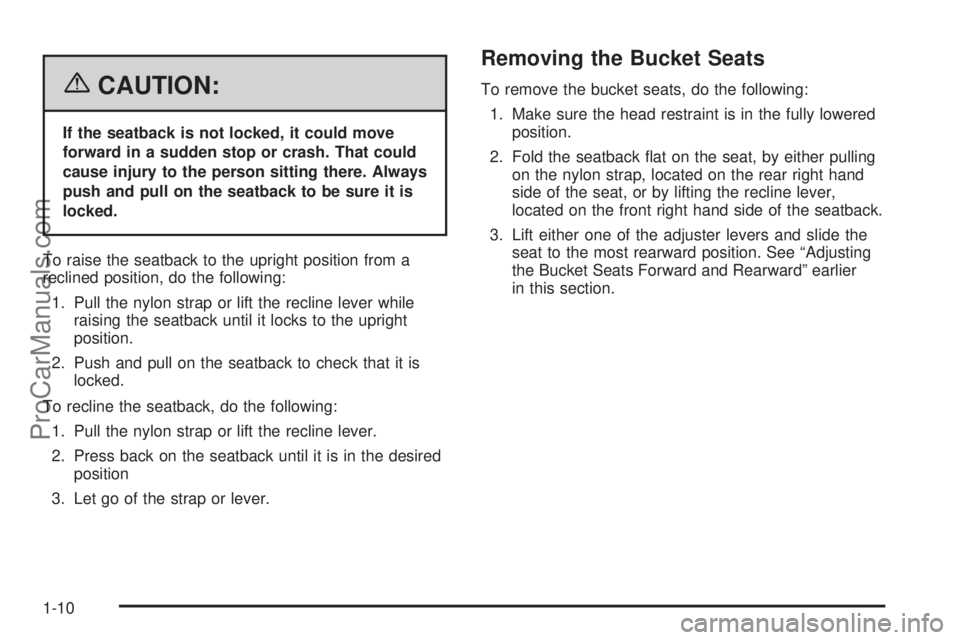

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
To raise the seatback to the upright position from a
reclined position, do the following:
1. Pull the nylon strap or lift the recline lever while
raising the seatback until it locks to the upright
position.
2. Push and pull on the seatback to check that it is
locked.
To recline the seatback, do the following:
1. Pull the nylon strap or lift the recline lever.
2. Press back on the seatback until it is in the desired
position
3. Let go of the strap or lever.
Removing the Bucket Seats
To remove the bucket seats, do the following:
1. Make sure the head restraint is in the fully lowered
position.
2. Fold the seatback at on the seat, by either pulling
on the nylon strap, located on the rear right hand
side of the seat, or by lifting the recline lever,
located on the front right hand side of the seatback.
3. Lift either one of the adjuster levers and slide the
seat to the most rearward position. See “Adjusting
the Bucket Seats Forward and Rearward” earlier
in this section.
1-10
ProCarManuals.com

4. Release the rear set of hooks from the oor pins by
pulling either the nylon strap, located at the base of
the seat, or the release handle located on the
side of the seat. Use the strap to guide the seat
forward.5. To release the front seat hooks from the oor pins,
squeeze the angled bar, located beneath the seat
toward the straight crossbar.
6. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle while pulling it out.
This should be done in one motion.
1-11
ProCarManuals.com

Reinstalling the Bucket Seats
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not install the seat facing the rear of the vehicle, as
it will not lock into place. If more storage room is
needed behind the seat, slide the seat forward.
Make sure the seat is in the full rear position before
beginning this procedure.To reinstall the bucket seats, do the following:
1. With the seat folded, squeeze the angled bar
beneath the seat toward the straight crossbar, while
placing the front hooks of the seat into the front
two oor pins.
2. Make sure the seat is
angled so that the front
seat hooks clear the
oor pins. If the
front hooks are not
attached correctly, the
seat’s rear hooks
will not attach to the
rear set of oor pins.
If the front hooks are not attaching correctly, check
that the seat is in the full rear position.
1-12
ProCarManuals.com

3. Firmly push the rear seat hooks into the rear oor
pins by pushing down the rear of the seat.
{CAUTION:
A seat that is not locked into place properly can
move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.4. Check that the seat is locked by trying to raise
the seat.
5. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback, to
raise the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
6. Push and pull on the seatback to make sure that it
is locked.
1-13
ProCarManuals.com

Captain Chairs
Your vehicle may have second row captain chairs. If so,
they can be adjusted forward or rearward and the
seatbacks can be adjusted.
Adjusting the Captain Chairs Forward
and Rearward
There are two manual adjustment bars on each seat.
One is located under the front of the seat cushion. The
other one is located under the rear of the seat
cushion.
Lift up either bar to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to
make sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.To recline the seatback, lift up on the recliner lever
located on the outboard side of the seat, then move the
seatback to the desired position.
To raise the seatback, lift up on the recliner lever
without applying pressure to the seatback. Push and
pull on the seatback to make sure it is locked in place.
To fold the seatback forward, lift up fully on the
recliner lever. Push the seatback forward until it is at.
The armrests can be lowered or raised for easier
entry or exit of the vehicle. If your vehicle has captain
chairs with side impact airbags, they will have
one armrest on the inboard side.
1-14
