CHEVROLET UPLANDER 2008 1.G User Guide

Fold and Tumble Feature
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled,
could cause injury in a sudden stop or crash.
Be sure to return the seat to the passenger
seating position. Push and pull on the seat to
make sure it is locked into place.
The second row bucket seats can be folded and
tumbled forward. Use this feature for exiting and
entering third row seats, if the vehicle has them.
1. Make sure the adjustable head restraints are in
the fully lowered position.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.2. Fold the seatback at
on the seat.
You can do this by either pulling on the nylon strap,
located on the rear right hand side of the seat, or
by lifting the recline lever, located on the front right
hand side of the seatback.
3. Slide the seat all the way back in this position.
1-7

4. Release the rear set of
seat hooks from the
oor pins by pulling the
nylon strap, located
at the base of the seat.
Use the strap to
guide the seat forward.
To return the seat to the original position, do the
following:
1. Align the seat so that the rear hooks on the seat
are over the rear oor pins. Push down rmly on
the rear of the seat so that the rear hooks attach
to the rear oor pins.
2. Try to raise the seat to check that it is locked to
the oor.3. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located
on the front right hand side of the seatback, to
raise the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
4. Push and pull on the seatback to check that it
is locked.
One of the bucket seats may be equipped with a built-in
child restraint. SeeBuilt-In Child Restraint on page 1-68.
1-8

Adjusting the Bucket Seats Forward
and Rearward
There are two adjustment levers on the second row
bucket seats that enable them to move forward or
rearward.
One is located below the front of the seat.The other lever is located
on the rear of the seat.
To adjust the second row bucket seats forward or
rearward, do the following:
1. Lift up either lever and slide the seat forward or
rearward.
2. Release the lever when the seat is in the desired
position.
3. Push and pull on the seat to make sure it is locked.
1-9

Folding or Reclining the Seatbacks
The seatback on a bucket seat can either be folded
forward or reclined using the nylon strap or the
recline lever.
To fold the seatback forward, do the following:
1. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located
on the front right hand side of the seatback
to release the seatback.Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Fold the seatback forward.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
To raise the seatback to the upright position from a
reclined position, do the following:
1. Pull the nylon strap or lift the recline lever while
raising the seatback until it locks to the upright
position.
2. Push and pull on the seatback to check that it
is locked. Nylon Strap
Recline Lever
1-10

To recline the seatback, do the following:
1. Pull the nylon strap or lift the recline lever.
2. Press back on the seatback until it is in the
desired position
3. Let go of the strap or lever.
Removing the Bucket Seats
To remove the bucket seats, do the following:
1. Make sure the head restraint is in the fully
lowered position.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Fold the seatback at on the seat, by either pulling
on the nylon strap, located on the rear right hand
side of the seat, or by lifting the recline lever,
located on the front right hand side of the seatback.
3. Lift either one of the adjuster levers and slide the
seat to the most rearward position. See “Adjusting
the Bucket Seats Forward and Rearward” earlier
in this section.4. Release the rear set of hooks from the oor pins by
pulling the nylon strap, located at the base of the
seat. Use the strap to guide the seat forward.
1-11

5. To release the front seat hooks from the oor pins,
squeeze the angled bar, located beneath the seat
toward the straight crossbar.
6. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle while pulling it out.
This should be done in one motion.
Reinstalling the Bucket Seats
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not install the seat facing the rear of the vehicle,
as it will not lock into place. If more storage room
is needed behind the seat, slide the seat forward.
Make sure the seat is in the full rear position before
beginning this procedure.
1-12

To reinstall the bucket seats, do the following:
1. With the seat folded, squeeze the angled bar
beneath the seat toward the straight crossbar,
while placing the front hooks of the seat into
the front two oor pins.
2. Make sure the seat is
angled so that the
front seat hooks
clear the oor pins.
If the front hooks
are not attached
correctly, the seat’s
rear hooks will
not attach to the
rear set of oor pins.
If the front hooks are not attaching correctly,
check that the seat is in the full rear position.3. Firmly push the rear seat hooks into the rear oor
pins by pushing down the rear of the seat.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
4. Check that the seat is locked by trying to raise
the seat.
1-13

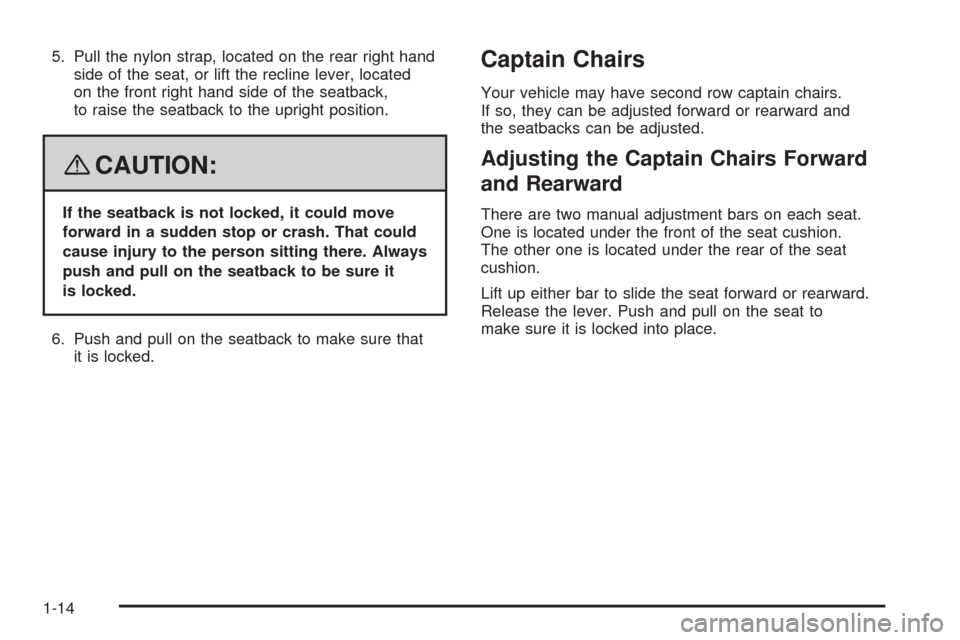

5. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located
on the front right hand side of the seatback,
to raise the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
6. Push and pull on the seatback to make sure that
it is locked.
Captain Chairs
Your vehicle may have second row captain chairs.
If so, they can be adjusted forward or rearward and
the seatbacks can be adjusted.
Adjusting the Captain Chairs Forward
and Rearward
There are two manual adjustment bars on each seat.
One is located under the front of the seat cushion.
The other one is located under the rear of the seat
cushion.
Lift up either bar to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to
make sure it is locked into place.
1-14

Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
To recline the seatback, lift up on the recliner lever
located on the outboard side of the seat, then move
the seatback to the desired position.
To raise the seatback, lift up on the recliner lever
without applying pressure to the seatback. Push and
pull on the seatback to make sure it is locked in place.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
To fold the seatback forward, lift up fully on the recliner
lever. Push the seatback forward until it is at.
1-15

The armrests can be lowered or raised for easier
entry or exit of the vehicle. If your vehicle has
captain chairs with side impact airbags, they will
have one armrest on the inboard side.
Removing a Captain Chair
(without a Side Impact Airbag)
If your vehicle has captain chairs with side impact
airbags, the seats cannot be removed. SeeWhere Are
the Airbags? on page 1-80for more information.
To remove a captain chair, do the following:
1. Pull the nylon strap behind the seat to release the
rear hooks from the oor pins.2. The seat can then be lifted off the front oor pins
and removed from the vehicle.
1-16
