CHEVROLET UPLANDER 2008 1.G Owner's Manual

Installing a Captain Chair
(without a Side Impact Airbag)
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not put the seats in so they face rearward because
they will not latch that way. For the second row,
if you want more storage room behind the seat,
adjust the seat by sliding it forward.
Make sure the seatbacks are in the upright position,
the seat belts are on the correct side of the seats and
the seats are in the full rear position before beginning
this procedure.To install a captain chair, do the following:
1. Hook the front latches over the front oor pins.
1-17

2. Push the rear of the seat down to lock the rear
latches onto the rear set of oor pins.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
3. Push and pull on the seat to be sure it is properly
attached.
Third Row Seat
Your vehicle may have a third row seat. It is a full
bench seat and may come with the convenience center.
SeeConvenience Center on page 2-62for more
information. The third row seat can be removed and
replaced, or with the seatback folded, it will lie at with
the convenience center.
1-18

Folding the Seatback(s)
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
To fold down either side of the 50/50 split bench seat,
lift the lever located on the back of the seat you want to
fold, and push the seatback down.
Returning the Seatback to an
Upright Position
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
To raise the seatback, do the following:
1. Move the second row seat completely forward by
using the manual adjustment bar under either the
front or rear of the seat cushion.
2. Open the liftgate.
1-19

3. From the rear of the vehicle, locate the pullstrap
attached to the lever on the back of the seat and
pull it to raise the seat.
4. Push and pull on the seatback to make sure that it
is locked into place.
Removing the Third Row Seat
1. Remove the convenience center, if equipped.
SeeConvenience Center on page 2-62for more
information.
2. Make sure all items are off the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
3. Put the seatback in its folded position before
removing the seat. See “Folding the Seatback(s)”
earlier in this section.
1-20

4. From behind the seat, squeeze the release handle
until the pin indicators are fully out. This indicates
that the rear latches are released from the oor.
For ease of removing the seat, squeeze the handle
with the palm of your hand up.
5. Lift the seat slightly from the oor to ensure the
latches are clear of the oor pins.
6. Pull the seat rearward and out of the vehicle.
The release handle can be used to carry the seat.
Installing the Third Row Seat
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Do not put the third row seat in so it faces rearward
because it will not latch that way. The seat needs
to be installed before the convenience center. See
Convenience Center on page 2-62for more information.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1-21

For ease of installing the seat, put the seat in the folded
position before beginning this procedure.
1. From the rear of the vehicle, place the front hooks
of the seat onto the front oor pins in the third row.
To do this, the seat will need to be angled
approximately 8-10 inches (20-25 cm) from the
oor so the front hooks clear the rear oor pins
and rear oor cups. Use the release handle to
guide the seat into place.
If the front hooks are not attached correctly,
the rear latches will not attach to the rear set
of oor pins.
2. Firmly push the rear latches into the rear oor
pins by pushing down on the rear of the seat.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.3. Try to raise the seat to make sure that it is locked
down. The indicator pins will no longer stick out
when the seat is properly latched into place.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
4. Return the seatback to its upright position. See
“Returning the Seatback to an Upright Position”
earlier in this section.
1-22

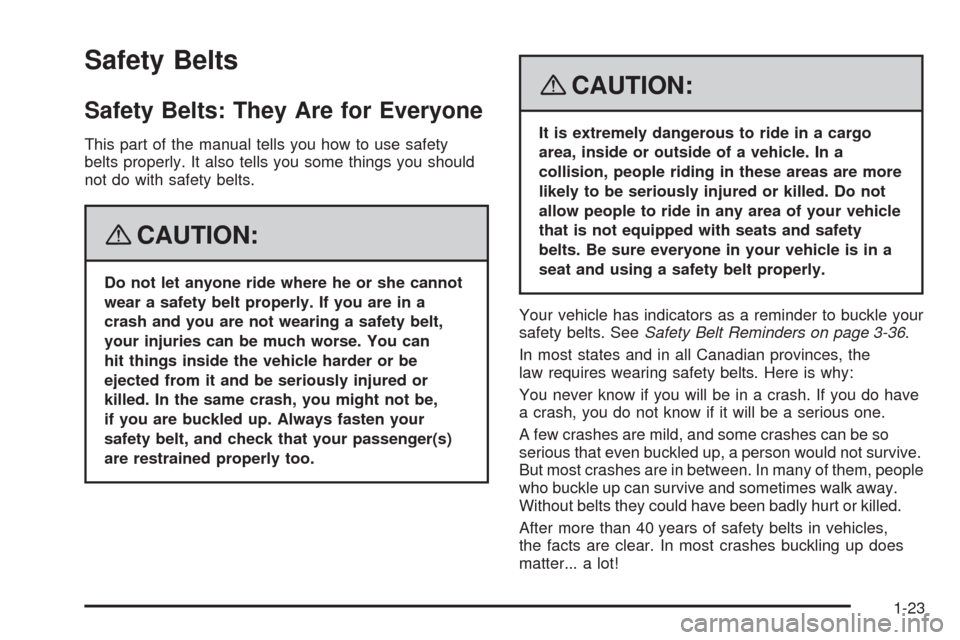

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can
hit things inside the vehicle harder or be
ejected from it and be seriously injured or
killed. In the same crash, you might not be,
if you are buckled up. Always fasten your
safety belt, and check that your passenger(s)
are restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has indicators as a reminder to buckle your
safety belts. SeeSafety Belt Reminders on page 3-36.
In most states and in all Canadian provinces, the
law requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not survive.
But most crashes are in between. In many of them, people
who buckle up can survive and sometimes walk away.
Without belts they could have been badly hurt or killed.
After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter... a lot!
1-23

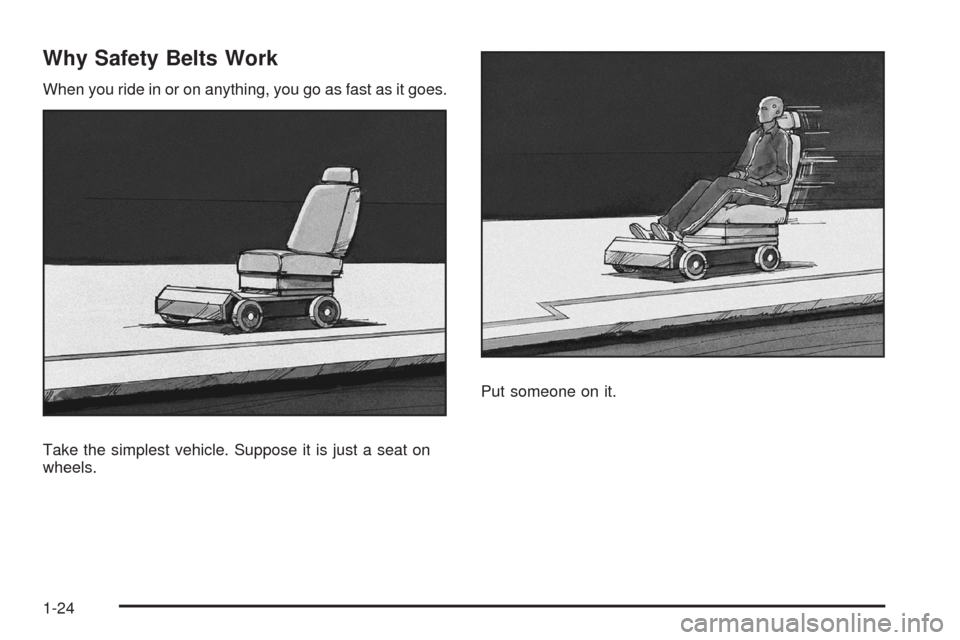

Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.Put someone on it.
1-24

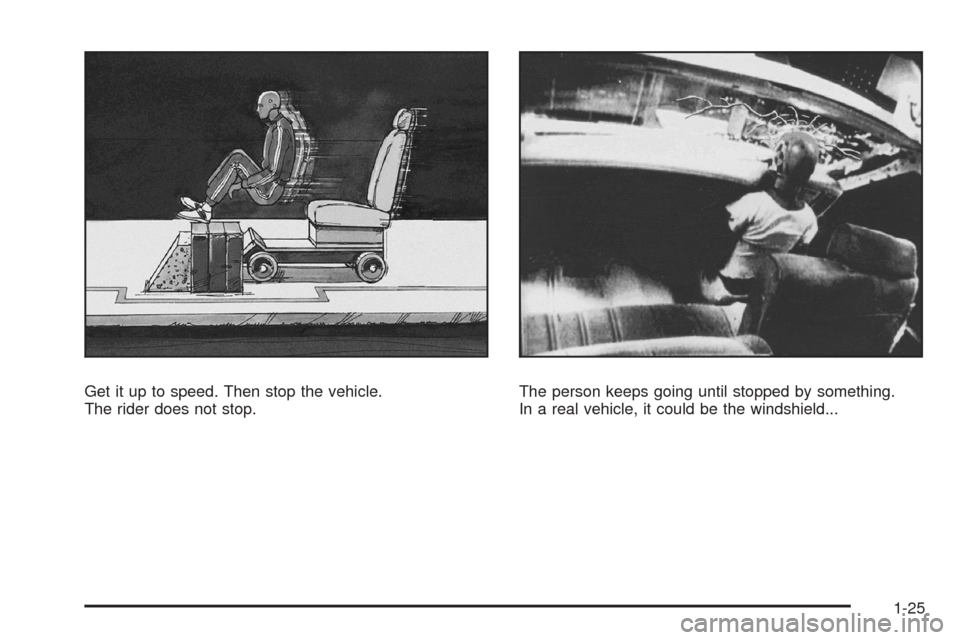

Get it up to speed. Then stop the vehicle.
The rider does not stop.The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...
1-25

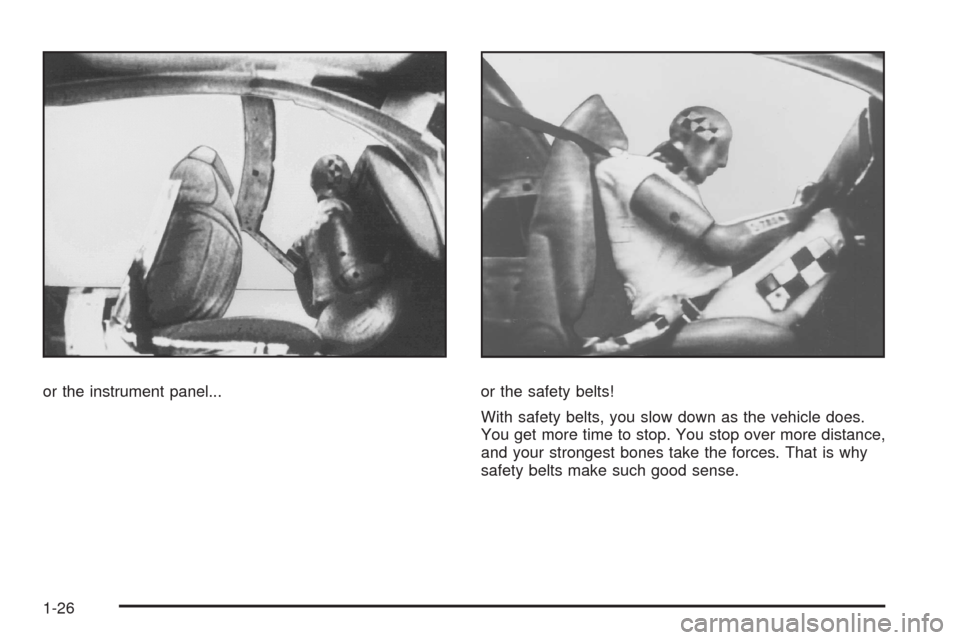

or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
1-26
