1-3 Manual Front Passenger Seats
To move the seat, pull up
the lever on the front of the
seat to unlock it.
Slide the seat to where you want it. To make sure the
seat is locked into place, release the lever and try to
move the seat with your body.
6-Way Power Seat (Option)
To adjust the six-way power seat:
Front Control (A): Raise the front of the seat by
holding the switch up. Hold the switch down to lower
the front of the seat.
Center Control (B): Move the seat forward or rearward
by holding the control to the front or rear. Raise or lower
the seat by holding the control up or down.
Rear Control (C): Raise the rear of the seat by holding
the switch up. Hold the switch down to lower the rear of
the seat.

yellowblue
1-4
Manual Lumbar Control
The knob for the lumbar
control is located on the
side of the seat.
Turn this knob to adjust the support for the lower back.
Reclining Front Seatbacks
All front seats recline.
To adjust the seatback, turn
this knob. It is easier to
recline the seat if you lean
forward, taking your weight
off the seatback.

yellowblue
1-5
But don't have a seatback reclined if your vehicle
is moving.

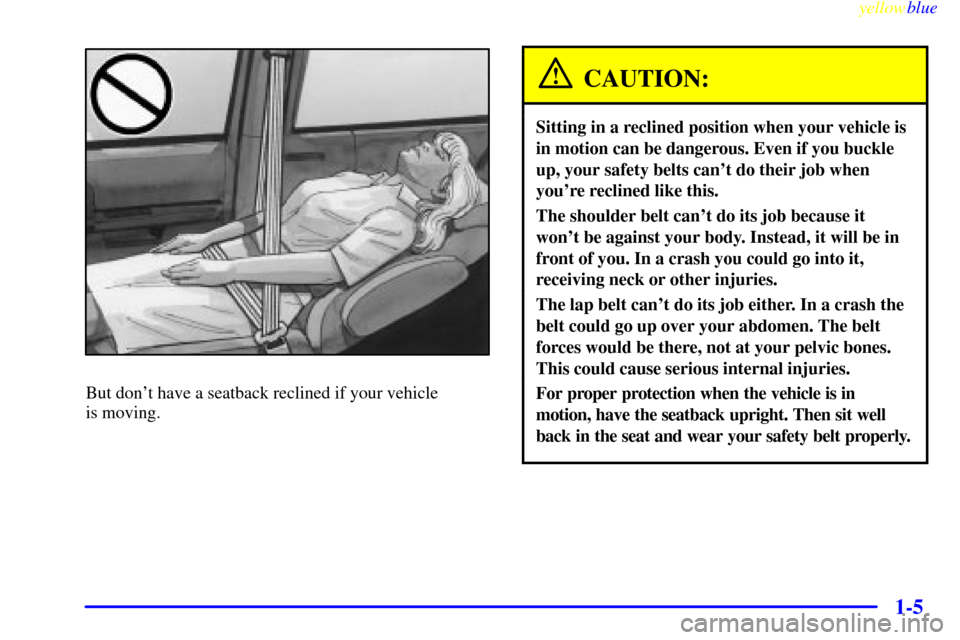

CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt properly.

yellowblue
1-6 Head Restraints
Head restraints are fixed on some models and adjustable
on others. Slide an adjustable head restraint up or down
so that the top of the restraint is closest to the top of
your ears. This position reduces the chance of a neck
injury in a crash.
Folding Seatbacks
The seatbacks on the second
row seats fold forward to
put items behind the left and
right seats. Lift the lever
and fold the seatback
forward. The seatback will
lock into place when you
push it back to the
upright position.
Rear Seats
Seat Controls
The rear seats in your vehicle have levers and straps
used to adjust, remove and replace the seats. By using
the levers and straps, in the correct order, you can easily
remove the seats from your vehicle.
Floor Seat Pin Diagram
When you replace the seats in the vehicle, be sure to
follow the label on the back of the seat for proper
location. Follow the diagram above when the text in this
manual tells you what sets of floor cups to use for
each seat.

yellowblue
1-7 Second Row Safety Belt Stowage
If your vehicle has seats in the third row, there is a
sleeve on the second row outside safety belt to store the
safety belt while entering and exiting the third row of
the vehicle.
If your vehicle has a split bench seat in the second row,
follow this procedure:

Pull the belt out and slide the sleeve along the belt
until it reaches the patch of Velcro
 on the roof.

Simply press the sleeve against the Velcro patch to
secure it in place.
Do not have the second row outside safety belt stored if
someone is sitting in the second row outside position.
To release the second row outside safety belt, just pull
the sleeve away from the Velcro patch and use the safety
belt as usual. The sleeve should slide freely when not
in use.
There is also a clip on the safety belt used to secure the
belt after it is disconnected from the mini
-buckle. When
removing the split second row bench seat, secure the
loose end of the safety belt in this clip. This will keep
the safety belt from dangling and possibly
striking something.
Flip and Fold Feature
The rear seats in your vehicle, except the captain's
chairs, can be folded forward. Use this feature for
exiting and entering third row seats.
1. Push the adjustable head restraints fully down.
2. Fold the seatback flat on the seat. If the seat adjusts,
slide it all the way back.
3. Release the rear set of hooks from the floor pins;
hang on to the straps as the seat folds forward.

yellowblue
1-8 Split Bench Seats
If you have the split bench seat (50/50 or 40/60), the
seatbacks can be folded down individually and the
sections can be removed individually. The sections can
also be adjusted forward or rearward individually.
The second row (40/60) split bench may be equipped
with built
-in child restraint(s). See ªBuilt-In Child
Restraintº in the Index.
Folding or Reclining the Seatbacks
The seatbacks on each section of the split bench seat can
be either folded down or reclined. The following
explains how to use either the nylon strap or the lever to
fold or recline the seatbacks.
To fold down the seatback,
pull this nylon strap on the
rear of the seat.To raise a seatback, pull the nylon strap while raising the
seatback until it locks upright.
To fold down the seatback,
lift up on this lever located
on the front of the seatback.
Use the lever to raise or lower the seatback to the
desired position.
When raising or reclining a seatback to an upright
position, push and pull on the seatback to check that it is
locked upright.

yellowblue
1-9
Adjusting the Split Bench Seats
There are two adjustment levers on each section of the
split bench seats to adjust the seat forward or rearward.
One is located below the center, in the front of each
section of the split bench.
The other lever is located on
the rear of the seat.
Lift up either lever and slide the seat forward to allow
for extra storage behind the seat, or slide the seat back to
allow extra room for passengers.
Release the lever. Push and pull on the seat to be sure it
is locked into place.

yellowblue
1-10
Removing the Split Bench Seat
Make sure the seatback is in the upright position and
that the safety belts are on the correct section of the seat.
The head restraints should be fully down.
1. For the second row split bench, with the seatback in
the upright position, unhook the side attachment for
the safety belt. This mini
-buckle is located on the
right side of the seat.
2. Push the red center of
the buckle up with a
small pointed
object
-- like a key or a
pen to remove the seat
belt, if needed.
3. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat to fold the seatback forward.
4. Slide the seat all the way back by lifting either one of
the adjustment bars and sliding the seat
fully rearward.
5. From behind the bench seat, pull the nylon strap at
the base of the seat to release the rear latches from
the floor pins.
Do not let go of the straps until the seat is folded all
the way forward.

yellowblue
1-11
6. To unlatch the front latches, squeeze the angled latch
release bar toward the straight crossbar.
7. Remove the seat by rocking it slightly toward the
rear of the vehicle and then pulling it out.
Repeat these steps for the other section of the split
bench seat.Replacing the Split Bench Sections
Don't put the sections of the bench seat in so they face
rearward because they won't latch that way. If you want
more storage room behind the seat, adjust each section
by sliding it forward.
The split benches have seat position labels, located on
the back of each seat, showing where the seat must go.
Follow that diagram.

The left (40) section of the 40/60 split bench uses the
A and B sets of floor cups.

The right (60) section of the 40/60 split bench uses
the C and D sets of floor cups.

The left section of the 50/50 split bench uses the G
and H sets of floor cups.

The right section of the 50/50 split bench uses the I
and J sets of floor cups.
See ªSeat Controlsº in the beginning of this section for
more details. The seat must be placed in the proper
location for the legs to attach correctly.
Make sure the seat is in the full rear position before
beginning this procedure.

yellowblue
1-12
1. Squeeze the angled bar toward the solid crossbar
while placing the front hooks of the bench seat onto
the front two floor pins.
To do this, the bench seat
will need to be angled so
that the front hooks clear
the floor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of floor pins.
