CHEVROLET VENTURE 2000 1.G Owners Manual

2-27
NOTICE:
When your vehicle goes through an automatic
car wash, be sure the power sliding door is
turned off. If it isn't, the power sliding door may
open accidentally.
To open or close the sliding door, press and release one
of the following two power door switches.
One switch is located
in the overhead
console switchbank.
The other switch is mounted
on the wall, just in front
of the passenger's side
sliding door.
The power sliding door override switch will also stop
the door immediately, while the door is opening or
closing, when the switch is turned off.
The power sliding door will only open if the transaxle is
in PARK (P). The transaxle does not have to be in
PARK (P) to close the door.

2-28
If the power sliding door is open or in the process of
closing when you shift out of PARK (P), a buzzer will
sound. This is a warning that the sliding door is not
completely closed.
If the power sliding door is turned off, the buzzer will
not sound indicating the door is not completely closed.
CAUTION:
If you shift the transaxle out of PARK (P) and
accelerate before the power sliding door latches
closed, the door may reverse to the open position.
A child or others could fall out of the vehicle and
be injured. Always make sure the power sliding
door is closed and latched before you drive away.
If anything obstructs the power sliding door while it is
closing, the door will automatically reverse to the open
position, provided it meets sufficient resistance.
Resistance must be as strong as the force of the closing
door, or stronger. The force of the closing door increases
significantly as the door approaches the latched position.
CAUTION:
You or others could be injured if caught in the
path of the sliding door. Make sure the door path
is clear before closing the door.

2-29
If you want to open the power sliding door when the
switch is turned on, pull the inside or outside handle and
let go. The door will open fully.
To open the power sliding door when the power sliding
door switch is off, pull the inside or outside handle and
slide the door all the way back.
CAUTION:
If your vehicle is facing downward on a steep
grade (15 percent or more), the door may not
stay open and could slam shut, possibly injuring
someone. To make sure the door does not slam
shut, turn on the power sliding door feature.
Then if the door closes, it will close under the
control of the power door system.
If you want to close the power sliding door when the
switch is turned on, pull the inside or outside handle or
the edge of the door. Move the door about 4 inches
(10 cm) toward the closed position and release.
The door will close completely and latch for you.
To close the power sliding door when the switch is
turned off, pull the inside or outside handle and slide the
door all the way forward to the latched position.

2-30 Sliding Door Security Lock
Your vehicle is equipped with a sliding door security
lock that helps prevent young children or other
passengers from opening the sliding door by using the
inside door handle.
The security lock lever is located on the inside of the
sliding door, on the front edge of the door. To access the
lever, open the sliding door. Use the security lock label
on the edge of the door as a guide. This lock is on both
doors if your vehicle is equipped with dual sliding doors.
To use the security lock,
move the security lock lever
all the way up and close the
door from the outside.If your vehicle is equipped with a power sliding door,
you can override the security lock by pressing either
power door switch when the power sliding door is
turned off. When the power sliding door is turned on,
the power sliding door cannot be opened from the inside
when the sliding door security lock is in use.
If you want to open the sliding door when the security
lock is on, unlock the sliding door and open the door
from the outside.
You should let adults and older children know how the
security lock works, and how to cancel the lock. If you
don't, adults or older children who ride in the rear won't
be able to open the sliding door from the inside when
the security lock feature is in use.

2-31
Resetting the Power Sliding Door
The power sliding door may operate incorrectly or not at
all because of the following conditions:

A low voltage or dead battery,

disconnecting the battery, or

if the IGN 1, B/U LAMP, RADIO or
PWR SEAT/PSD fuse is removed or blown.
See ªFuse Panelº in the Index for more information
about your fuse panel.
If any of these conditions occur, the power sliding door
will need to be reset. To do this, follow the directions
listed here. It will be easier if you read through them
once before beginning this procedure.
1. Check to be sure the power sliding door is unlocked
and securely closed.
2. Turn the ignition key to OFF.
3. Turn off the power sliding door override on
the switchbank.
4. Remove the RADIO fuse from the underhood fuse
and relay center. Leave it out for 30 seconds.5. Reinstall the fuse and wait 10 seconds.
6. Turn on the power sliding door override on
the switchbank.
7. Push either of the power door buttons to open the
power sliding door.
8. Open the door.
9. Wait five seconds and close the door by pushing
either power door button.
10. Wait five seconds and repeat Steps 7 through 9.
If the door does not rest in the fully open position
after repeating Step 7, repeat Steps 7 through 9 again.
If the door still does not operate correctly, see your
dealer for service.
Canceling the Sliding Door Security Lock
1. Unlock the sliding door and open the door from
the outside.
2. Move the security lock lever all the way down.
The sliding door lock will now work normally.

2-32
Liftgate
To unlock the liftgate from the outside, turn the key in
the cylinder clockwise. To lock the liftgate using the
key, turn the key counterclockwise.
Open the liftgate using the handle above the license
plate. Once slightly opened, the liftgate will rise by
itself. Lamps in the rear of the vehicle will come on,
illuminating the rear cargo area. See ªInterior Lampsº in
the Index.
NOTICE:
Be sure there are no overhead obstructions, such
as a garage door, before you open the liftgate.
You could slam the liftgate into something and
break the glass.
CAUTION:
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the liftgate open or if
electrical wiring or other cable connections must
pass through the seal between the body and
the liftgate:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on bi
-level (outside air button is pressed).
That will force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

2-33
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make it
impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle. Also remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your key.
But what if you have to leave your key? What if you
have to leave something valuable in your vehicle?

Put your valuables in a storage area, like your
glove box.

If your vehicle has a remote keyless entry system,
take the transmitter with you.

Lock all the doors except the driver's.

2-34
Content Theft-Deterrent (Option)
If your vehicle has this option, it has a theft-deterrent
alarm system.
A light located on top of your instrument panel (near the
center of the vehicle, next to the windshield) will flash
slowly to let you know that the system has been armed.
While armed, the doors will not unlock with the power
door lock switch.Once armed, the alarm will go off if someone tries to
enter the vehicle (without using the remote keyless entry
transmitter or a key), breaks a window, tries to damage
the vehicle or turns the ignition on. The horn will sound
and the parking lamps will flash for up to two minutes.
The system will also cut off the fuel supply, preventing
the vehicle from being driven.
When the alarm is armed, the liftgate may be opened
with the remote keyless entry transmitter or with a key.
Arming with the Power Lock Switch
Your alarm system will arm when you use either power
door lock switch to lock the doors while any door or the
liftgate is open and the key is removed from the ignition.
If you would like to turn on power door lock switch
arming, see ªMultifunction Alarm Locks and Lighting
Choicesº in the Index.
The security light flashes quickly to let you know when
the system is ready to arm with the power door lock
switches. The security light will stop flashing and stay
on when you press the rear of the power door lock
switch, to let you know the system is arming. After all
doors and the liftgate are closed and locked, the security
light will begin flashing at a very slow rate to let you
know the system is armed.

2-35
Arming with the Remote Keyless
Entry Transmitter
Your alarm system will arm when you use your remote
keyless entry transmitter to lock the doors, if the key is
not in the ignition. The security light will turn on to let
you know the system is arming. After all doors and the
liftgate are closed and locked, the security light will
begin flashing at a very slow rate to let you know the
system is armed.
Arming with Your Key
Your alarm system will arm when you use your key to
lock the doors. The security light will turn on to let you
know the system is arming. After all doors and the
liftgate are closed and locked, the security light will
begin flashing at a very slow rate to let you know the
system is armed. If you would like your key not to arm
the system, see ªMultifunction Alarm Locks and
Lighting Choicesº in the Index.
Arming Confirmation
If remote unlock confirmation is on (see ªMultifunction
Alarm Locks and Lighting Choicesº in the Index), your
parking lamps will flash briefly to let you know when
your alarm system has disarmed.
Disarming with the Remote Keyless
Entry Transmitter
Your alarm system will disarm when you use your
remote keyless entry transmitter to unlock the doors.
The security light will stop flashing to let you know the
system is no longer armed.
Disarming with Your Key
Your alarm system will disarm when you use your key
to unlock the doors. The security light will stop flashing
to let you know the system is no longer armed. If you
would like your key not to disarm the alarm system,
see ªMultifunction Alarm Locks and Lighting Choicesº
in the Index.
Nuisance Alarms
If you experience nuisance alarms (alarms which are not
caused by the opening of a door or the liftgate and are
not desirable), you may need to reduce the damage
detection sensitivity. Try programming the content
theft
-deterrent to Mode 1.
If you continue to experience nuisance alarms,
you may want to try turning off damage detection by
programming your content theft
-deterrent to Mode 2.

2-36
If you are still having trouble with nuisance alarms, you
can turn off the content theft
-deterrent system by
programming your content theft
-deterrent to Mode 3.
See ªMultifunction Alarm Locks and Lighting Choicesº
in the Index for more information. See your dealer or
qualified technician for service.

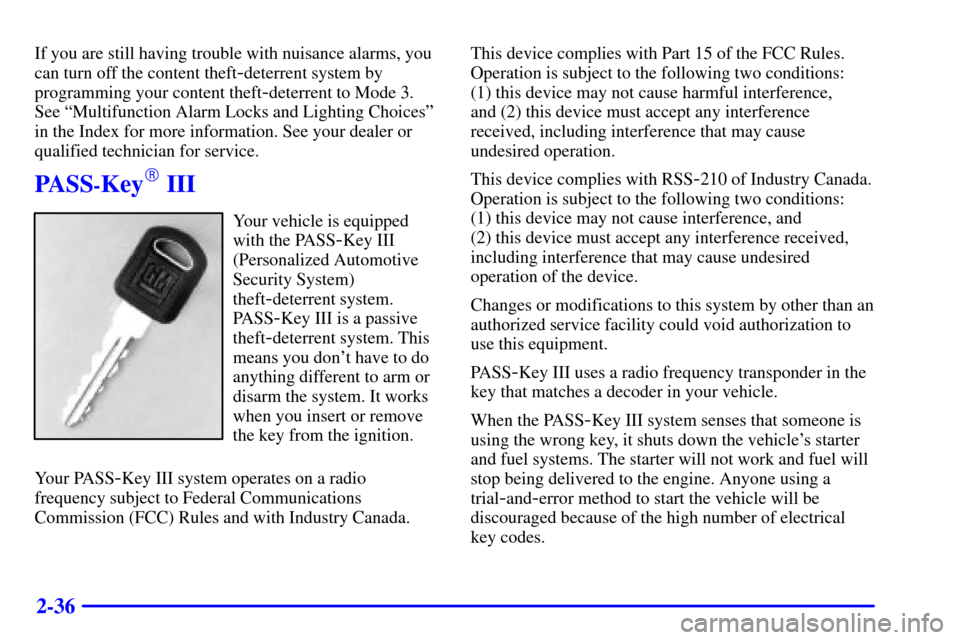

PASS-Key
III
Your vehicle is equipped
with the PASS
-Key III
(Personalized Automotive
Security System)
theft
-deterrent system.
PASS
-Key III is a passive
theft
-deterrent system. This
means you don't have to do
anything different to arm or
disarm the system. It works
when you insert or remove
the key from the ignition.
Your PASS
-Key III system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
PASS
-Key III uses a radio frequency transponder in the
key that matches a decoder in your vehicle.
When the PASS
-Key III system senses that someone is
using the wrong key, it shuts down the vehicle's starter
and fuel systems. The starter will not work and fuel will
stop being delivered to the engine. Anyone using a
trial
-and-error method to start the vehicle will be
discouraged because of the high number of electrical
key codes.
