CHEVROLET VENTURE 2000 1.G Manual PDF

1-59
Built-in Child Restraint (Option)
Bucket Seat
60/40 Bench Seat
If your vehicle has this option in a bucket seat, each
bucket seat that has the built
-in child restraint fits in
only one location in your vehicle. To find out where a
bucket seat that has a built
-in child restraint must be
located in your vehicle, see ªRemovable Rear Bucket
Seatsº in the Index. If your vehicle has this option in a
60/40 bench seat, you may have one or two built
-in
child restraints. This bench seat will only fit in the
second row of your vehicle. In both types of seats,
the built
-in child restraint works the same way.

1-60
This child restraint system conforms to all applicable
Federal Motor Vehicle Safety Standards.
Each child restraint is designed for use only by children
who weigh between 22 and 40 pounds (10 and 18 kg)
and whose height is between 33.5 and 40 inches
(850 and 1 016 mm) and who are capable of sitting
upright alone.
The child should also be at least one year old. It is
important to use a rear
-facing infant restraint until the
child is about a year old. A rear
-facing restraint gives
the infant's head, neck and body the support they would
need in a crash. See ªChild Restraintsº later in this
section for more information.
Q:What if the top of my child's shoulders is above
the shoulder belt slots for the five
-point child
restraint harness system?
A:A child whose shoulders are above the shoulder
belt slots for the five
-point child restraint harness
system shouldn't use this child restraint. Instead,
the child should sit on the vehicle's regular seat
cushion and use the vehicle's adult safety belts.
CAUTION:
BEFORE YOU USE THIS CHILD RESTRAINT,
BE SURE THE TOP OF THE CHILD'S
SHOULDERS IS BELOW THE SLOTS THAT
THE HARNESS GOES THROUGH. A CHILD
WHOSE SHOULDERS ARE ABOVE THOSE
SLOTS COULD BE INJURED DURING A
SUDDEN STOP OR CRASH. IF THE TOP OF
THE CHILD'S SHOULDERS IS ABOVE THE
SLOTS, DON'T USE THIS CHILD
RESTRAINT WHILE THE VEHICLE IS
IN MOTION.

1-61 Securing a Child in the Built-In
Child Restraint
1. Raise the head restraint until the lower edge of the
head restraint is even with the top of the seatback.
2. Rotate the head restraint rearward until it touches the
top of the seatback. Make sure there is no gap
between the lower edge of the head restraint and the
top of the seatback.

1-62
3. Lower the child restraint cushion.You'll be using the child restraint's harness (A)
to secure your child. Don't use the vehicle's
safety belts.

1-63
CAUTION:
Using the vehicle's regular safety belts on a child
seated on the child restraint cushion can cause
serious injury to the child in a sudden stop or
crash. If a child is the proper size for the built
-in
child restraint, secure the child using the child
restraint's harness. But children who are too
large for the built
-in child restraint should sit on
the vehicle's regular seat and use the vehicle's
adult safety belts.
WARNING! FAILURE TO FOLLOW THE
MANUFACTURER'S INSTRUCTIONS ON THE
USE OF THIS CHILD RESTRAINT SYSTEM
CAN RESULT IN YOUR CHILD STRIKING THE
VEHICLE'S INTERIOR DURING A SUDDEN
STOP OR CRASH. SNUGLY ADJUST THE
BELTS PROVIDED WITH THIS CHILD
RESTRAINT AROUND YOUR CHILD.
4. Before placing the child in the child restraint, add
slack to the shoulder harness. Pull the black shoulder
harness release strap firmly. At the same time pull
both shoulder harness straps through the slots in the
seatback as shown.
5. Place the child on the child restraint cushion.

1-64
6. Select only one side of the harness. Place the harness
over the child's shoulder.
7. Push the latch plate (B) into the buckle until it clicks.
Be sure the buckle is free of any foreign objects that
may prevent you from securing the latch plates.
If you can't secure a latch plate, see your dealer for
service before using the child restraint.8. Place the other side of the harness over the
child's shoulder.
9. Push the latch plate into the buckle until it clicks.
10. Pull up on both latch plates to make sure they
are secure.

1-65
11. Now fasten the left and right halves of the shoulder
harness clip together. The purpose of this clip is
to help keep the harness positioned on the
child's shoulders.
CAUTION:
An unfastened shoulder harness clip won't help
keep the harness in place on the child's shoulders.
If the harness isn't on the child's shoulders, it
won't be able to restrain the child's upper body
in a sudden stop or crash. The child could be
seriously injured. Make sure the harness clip is
properly fastened.

1-66
12. Pull the shoulder harness adjustment strap (C)
firmly until the harness is snugly adjusted around
the child. You should not be able to put more than
two fingers between the harness and the child's
chest. Make sure the harness and buckle strap are
not twisted.13. Adjust the position of the harness on the child's
shoulder by moving the clip up or down along the
harness. On each side of the harness, the shoulder
part should be centered on the child's shoulder.
The harness should be away from the child's face
and neck, but not falling from the child's shoulders.
If you expect that the child will sleep while riding,
you can recline the seatback. See ªSeatsº in
the Index.

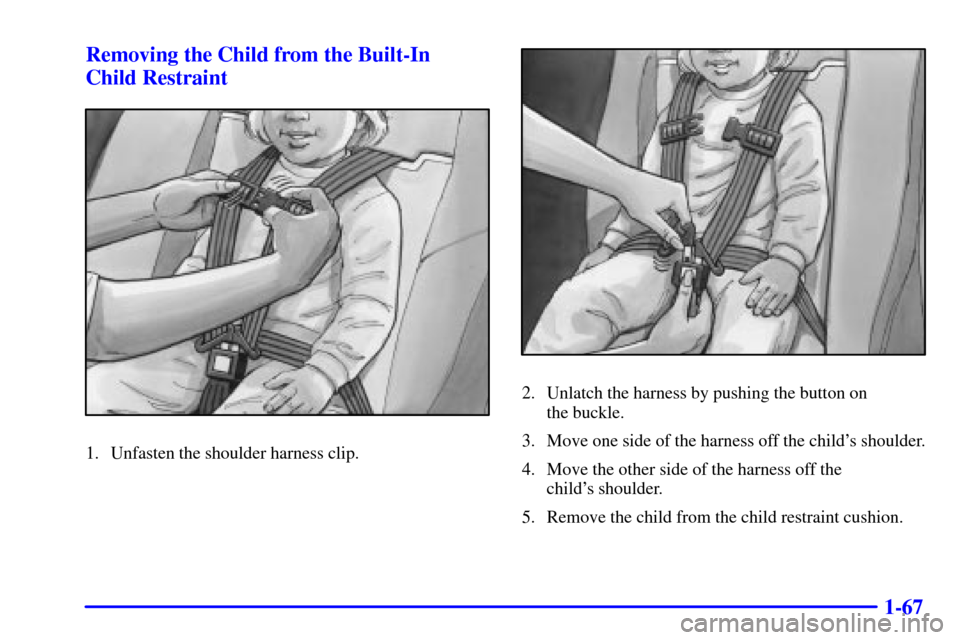

1-67 Removing the Child from the Built-In
Child Restraint
1. Unfasten the shoulder harness clip.
2. Unlatch the harness by pushing the button on
the buckle.
3. Move one side of the harness off the child's shoulder.
4. Move the other side of the harness off the
child's shoulder.
5. Remove the child from the child restraint cushion.

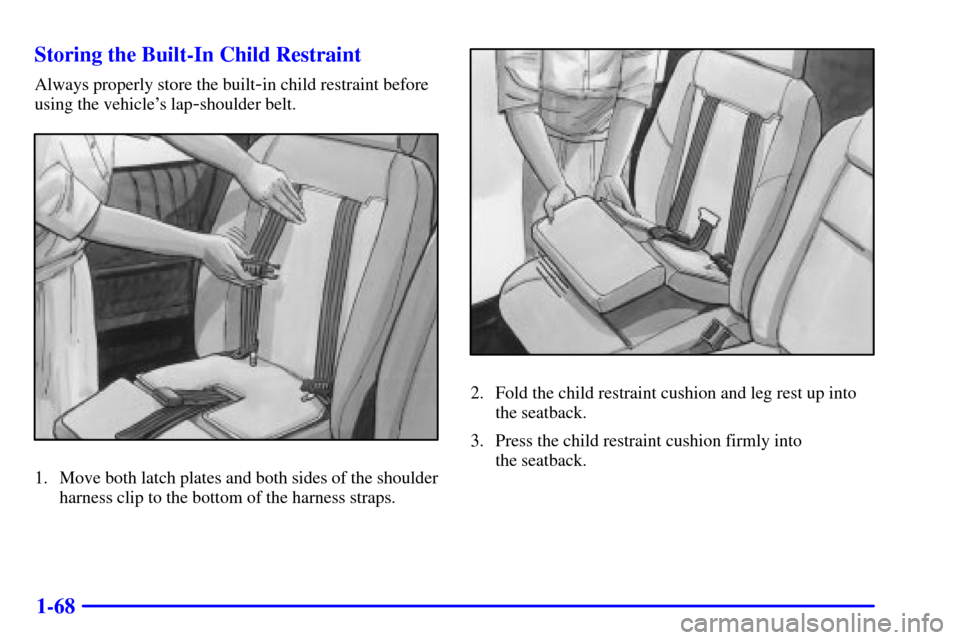

1-68 Storing the Built-In Child Restraint
Always properly store the built-in child restraint before
using the vehicle's lap
-shoulder belt.
1. Move both latch plates and both sides of the shoulder
harness clip to the bottom of the harness straps.
2. Fold the child restraint cushion and leg rest up into
the seatback.
3. Press the child restraint cushion firmly into
the seatback.
