Page 21 of 486
1-15
Folding or Reclining the Seatbacks
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
The seatback on a bucket seat can be either folded down
or reclined. The following explains how to use either the
nylon strap or the lever to fold or recline the seatback.
To fold the seatback
forward, pull this nylon
strap on the rear of the seat.To raise a seatback, pull the nylon strap while raising the
seatback until it locks upright.
To fold the seatback
forward, lift up on this
lever located on the
front of the seatback.
Use the lever to raise or lower the seatback to the
desired position.
When raising a seatback to an upright position, push
and pull on the seatback to make sure that it is
locked upright.
Page 22 of 486
1-16
Adjusting the Bucket Seats
There are two adjustment levers on each seat to adjust
the seat forward or rearward.
One is located below the center, in front of the
bucket seats.
The other lever is located on
the rear of the bucket seat.
Lift up either lever and slide the seat forward
or rearward.
Release the lever. Push and pull on the seat to make sure
that it is locked into place.
Page 23 of 486
1-17
Removing the Bucket Seats
Make sure the seatback is in the upright position.
The head restraints should be fully down.
1. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat to fold the seatback forward.
2. Slide the seat all the way back by lifting either one of
the adjuster levers and sliding the seat fully rearward.3. From behind the seat, pull the nylon strap, located at
the base of the seat, to release the rear latches from
the floor pins.
You can also lift the lever on the side of the seat to
release the rear latches from the floor pins.
Do not let go of the strap or the lever until the seat is
folded all the way forward.
Page 24 of 486
1-18
4. To unlatch the front latches, with the seat
folded forward, squeeze the angled bar toward the
straight crossbar.
5. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it out.
This should be done in one motion.Replacing the Bucket Seats
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
Page 25 of 486
1-19
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
Don't put the seats in so they face rearward because they
won't latch that way. If you want more storage room
behind the seat, adjust the seat by sliding it forward.
The bucket seats have seat position labels, located on the
back of the seat, showing where the seat must go.
Follow that diagram. The seat must be placed in the
proper location for the legs to attach correctly.Make sure the seat is in the full rear position before
beginning this procedure.
1. With the seat folded, squeeze the angled bar toward
the solid crossbar while placing the front hooks of
the bucket seat onto the front two floor pins.
2. Make sure the
bucket seat is
angled so that the
front hooks clear
the floor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of floor pins.
Page 26 of 486
1-20
If the front latches are not attaching correctly, check
that the seat is in the full rear position.3. Firmly push the rear hooks onto the rear floor pins
by pushing down the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat and raise the seatback until it
locks upright.
6. Push and pull on the seatback to make sure that it is
locked in place.
Page 27 of 486
1-21
Captain's Chairs (If Equipped)
If your vehicle has the captain's chairs, the seatbacks
can be folded forward or reclined and the seats can
be removed.
Folding or Reclining the Seatbacks
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Page 28 of 486
1-22
To recline the seatback, lift up on the recliner lever,
located on the outboard side of the seat. Use the recliner
lever to move the seatback to the desired position.
It is easier to raise or lower the seatback if you lean
forward, taking the weight off the seatback.
The seatbacks on the second row captain's chairs also
fold forward to put items behind the left and right seats.
Lift up on the recliner lever and fold the seatback
forward. The seatback will lock into place when you
push it back to the upright position.
The armrests can be lowered or raised for entering or
exiting the vehicle.Adjusting the Captain's Chairs (Second Row)
The second row captain's chairs can be adjusted forward
or rearward.
There are two adjustment levers on each seat. One is
located below the center, in front of the seat. The other
is located across the rear of the seat.
Lift up either lever to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to make sure
it is locked into place.
Page 29 of 486
1-23
Removing the Captain's Chairs
1. Pull the nylon strap behind the chair to release the
rear hooks from the floor pins.
2. The seat can then be lifted off the front floor pins
and removed from the vehicle.
Page 30 of 486
1-24

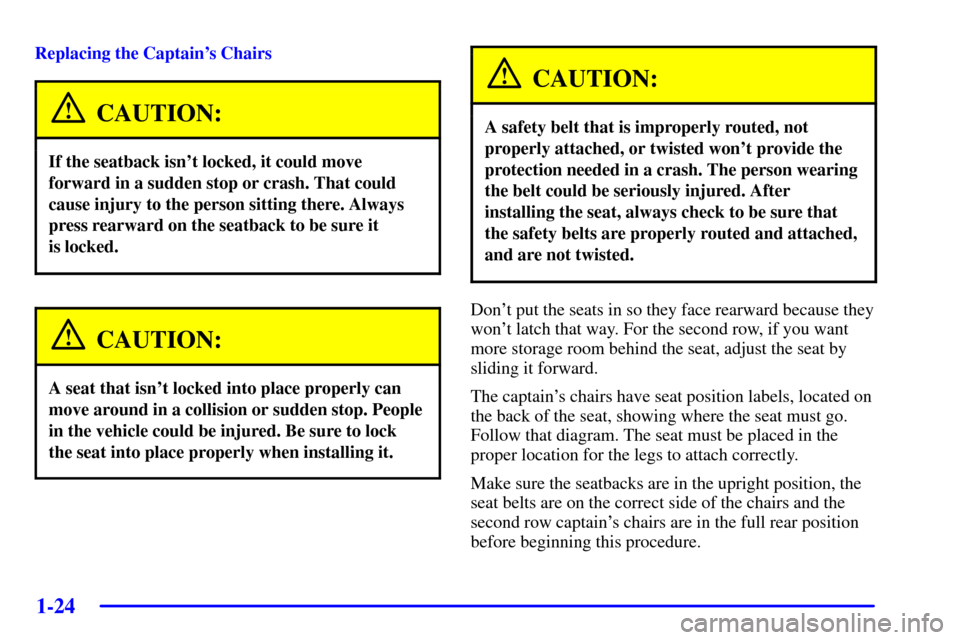

Replacing the Captain's Chairs
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
Don't put the seats in so they face rearward because they
won't latch that way. For the second row, if you want
more storage room behind the seat, adjust the seat by
sliding it forward.
The captain's chairs have seat position labels, located on
the back of the seat, showing where the seat must go.
Follow that diagram. The seat must be placed in the
proper location for the legs to attach correctly.
Make sure the seatbacks are in the upright position, the
seat belts are on the correct side of the chairs and the
second row captain's chairs are in the full rear position
before beginning this procedure.
