clock setting CHEVROLET VOLT 2013 1.G Infotainment Manual
[x] Cancel search | Manufacturer: CHEVROLET, Model Year: 2013, Model line: VOLT, Model: CHEVROLET VOLT 2013 1.GPages: 92, PDF Size: 0.97 MB
Page 8 of 92
Black plate (8,1)Chevrolet Volt Infotainment System - 2013 - CRC - 5/16/12
8 Infotainment System
SEEK[(Next/Forward):
.CD, USB, Bluetooth Audio:
Press to seek the next track.
.CD, USB, Bluetooth Audio:
Press and hold to fast forward
through a track. Release the
button to return to playing
speed. SeeCD Player on
page 36, USB on page 37,
or Bluetooth Audio on page 44.
.AM, FM, XM (if equipped): Press
to seek to the previous strong
station.
k(Play/Pause): Press to pause
or resume playback. This feature is
unavailable for AM, FM, and XM (if
equipped). See CD Player on
page 36, Pandora Internet Radio on
page 26, Stitcher Internet Radio on
page 30, USB on page 37,
or Bluetooth Audio on page 44.
AS 1-2 (Autostore): See
“Autostore” in this section. TP (Time Program):
Press to set
the time. Press + or −to increase or
decrease the hours and minutes
displayed on the clock. See “Clock”
in the owner manual.
TONE: Press TONE or the Tone
Settings button on the Home Page
to adjust Bass, Mid (Midrange),
Treble, EQ, Fade, and Balance.
Tone settings are specific to each
source. See AM-FM Radio on
page 15.
FAV (Favorites): Press to display
the current favorite page number
above the preset buttons. Keep
pressing to scroll through the
favorites pages. The stored stations
for each list displays on the bottom
of the screen. The number of preset
Favorite Pages can be changed by
pressing the CONFIG button on the
Home Page, then pressing Radio
Settings, and then pressing Number
of Favorite Pages.
INFO (Information): Press to
display available source information.
?(Mute): Press to mute the
system. Press again to unmute.
Autostore
To use Autostore:
1. Press SOURCE to select FM or AM.
2. Press the AS 1-2 button for two seconds.
3. The radio searches and automatically stores the six
strongest stations.
Press the AS 1-2 button to alternate
between the Autostore stations and
favorites.
Autostore does not delete
previously stored favorite stations.
Autostore does not function with
SiriusXM radio stations.
Touch Screen Buttons
Touch screen buttons are on the
screen and highlighted when a
feature is available. Some toggle
screen buttons highlight when active
and gray out when inactive.
Page 35 of 92
Black plate (35,1)Chevrolet Volt Infotainment System - 2013 - CRC - 5/16/12
Infotainment System 35

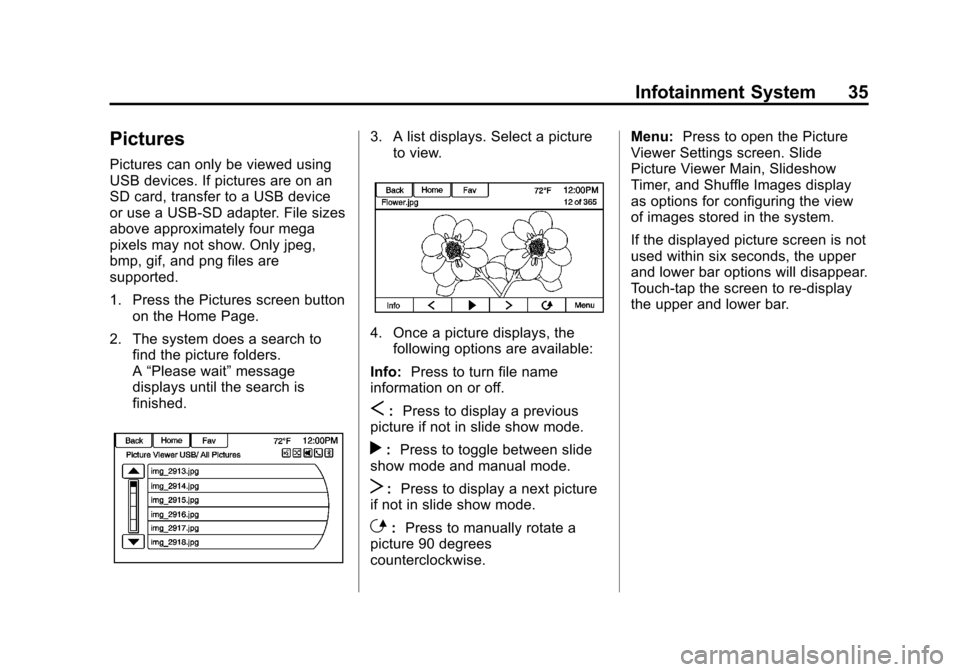

Pictures
Pictures can only be viewed using
USB devices. If pictures are on an
SD card, transfer to a USB device
or use a USB-SD adapter. File sizes
above approximately four mega
pixels may not show. Only jpeg,
bmp, gif, and png files are
supported.
1. Press the Pictures screen buttonon the Home Page.
2. The system does a search to find the picture folders.
A“Please wait” message
displays until the search is
finished.
3. A list displays. Select a picture to view.
4. Once a picture displays, thefollowing options are available:
Info: Press to turn file name
information on or off.
S: Press to display a previous
picture if not in slide show mode.
r: Press to toggle between slide
show mode and manual mode.
T: Press to display a next picture
if not in slide show mode.
E: Press to manually rotate a
picture 90 degrees
counterclockwise. Menu:
Press to open the Picture
Viewer Settings screen. Slide
Picture Viewer Main, Slideshow
Timer, and Shuffle Images display
as options for configuring the view
of images stored in the system.
If the displayed picture screen is not
used within six seconds, the upper
and lower bar options will disappear.
Touch-tap the screen to re-display
the upper and lower bar.
Page 61 of 92
Black plate (61,1)Chevrolet Volt Infotainment System - 2013 - CRC - 5/16/12
Infotainment System 61
.All other buttons on the pop-up
screen operate as described
under“Route Guidance Not
Active.”
Previous Destinations
Previously downloaded OnStar
destinations are saved under
Previous Destinations in the
navigation system, where they can
be accessed or saved to the
Address Book.

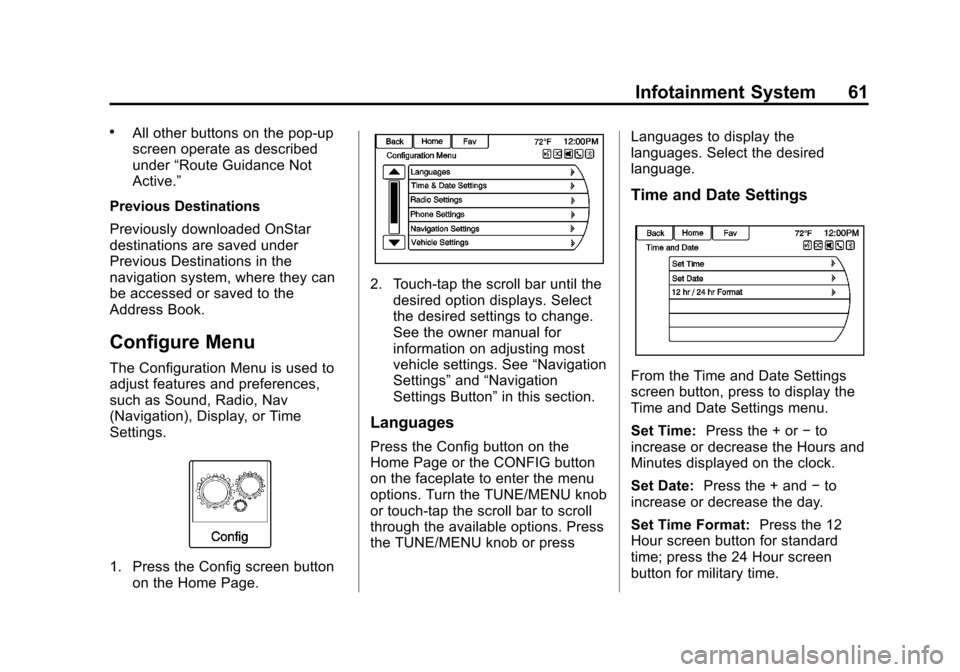

Configure Menu
The Configuration Menu is used to
adjust features and preferences,
such as Sound, Radio, Nav
(Navigation), Display, or Time
Settings.
1. Press the Config screen button on the Home Page.
2. Touch-tap the scroll bar until thedesired option displays. Select
the desired settings to change.
See the owner manual for
information on adjusting most
vehicle settings. See “Navigation
Settings” and“Navigation
Settings Button” in this section.
Languages
Press the Config button on the
Home Page or the CONFIG button
on the faceplate to enter the menu
options. Turn the TUNE/MENU knob
or touch-tap the scroll bar to scroll
through the available options. Press
the TUNE/MENU knob or press Languages to display the
languages. Select the desired
language.
Time and Date Settings
From the Time and Date Settings
screen button, press to display the
Time and Date Settings menu.
Set Time:
Press the + or −to
increase or decrease the Hours and
Minutes displayed on the clock.
Set Date: Press the + and −to
increase or decrease the day.
Set Time Format: Press the 12
Hour screen button for standard
time; press the 24 Hour screen
button for military time.
