Page 109 of 517
MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare from
vehicles behind you. You can turn the feature on or off by
pressing the button at the base of the mirror. A light to the
left of the button will illuminate to indicate when the
dimming feature is activated. The sensor to the right of the
button does not illuminate.
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
Page 112 of 517
Adjusting Side View Mirrors
Outside Mirror — Driver Side
Adjust the outside mirror to center on the adjacent lane of
traffic, with a slight overlap of the view obtained on the
inside mirror.
Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the side
of your vehicle in the part of the mirror closest to the vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away than
they really are. Relying too much on your passenger
side convex mirror could cause you to collide with
another vehicle or other object. Use your inside mirror
(Continued)
WARNING!(Continued)
when judging the size or distance of a vehicle seen in
the passenger side convex mirror. Some vehicles will
not have a convex passenger side mirror.
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have three
detent positions: full forward, full rearward and normal.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster if equipped. Some vehicles may
not be equipped with rear window defroster, in this case
the heated mirrors will still function as intended. Refer to
“Rear Window Features” in “Understanding The Fea-
tures Of Your Vehicle” for further information.
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 135 of 517
Voice Command
•For best performance, adjust the rearview mirror to
provide at least ½ in (1 cm) gap between the overhead
console (if equipped) and the mirror.
• Always wait for the beep before speaking.
•
Speak normally, without pausing, just as you would speak
to a person sitting a few feet/meters away from you.
• Make sure that no one other than you is speaking
during a Voice Command period.
• Performance is maximized under:
• low-to-medium blower setting,
• low-to-medium vehicle speed,
• low road noise,
• smooth road surface,
• fully closed windows,
• dry weather condition. •
Even though the system is designed for users speaking
in North American English, French, and Spanish ac-
cents, the system may not always work for some.
• When navigating through an automated system such
as voice mail, or when sending a page, at the end of
speaking the digit string, make sure to say “Send”.
• Storing names in the phonebook when the vehicle is
not in motion is recommended.
• It is not recommended to store similar sounding names
in the Uconnect® Phonebook.
• Phonebook (Downloaded and Uconnect® Phone Lo-
cal) name recognition rate is optimized when the
entries are not similar.
• Numbers must be spoken in single digits. “800” must
be spoken “eight-zero-zero” not “eight hundred”.
• You can say “O” (letter “O”) for “0” (zero).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
Page 172 of 517
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.Map/Reading/Interior Lights
These lights are mounted between the sun visors above
the rearview mirror. Each light can be turned on by
pressing the barrel. Press the barrel a second time to turn
the light off. Both of these lights can swivel so that the
light can be aimed at a specific spot, if desired. The lights
will remain on until the switch is pressed a second time,
so be sure they have been turned off before leaving the
vehicle. They will not turn off automatically. Interior
lighting also comes on when a door is opened or the
dimmer control is turned fully upward, past the second
detent.
Dimmer Control
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

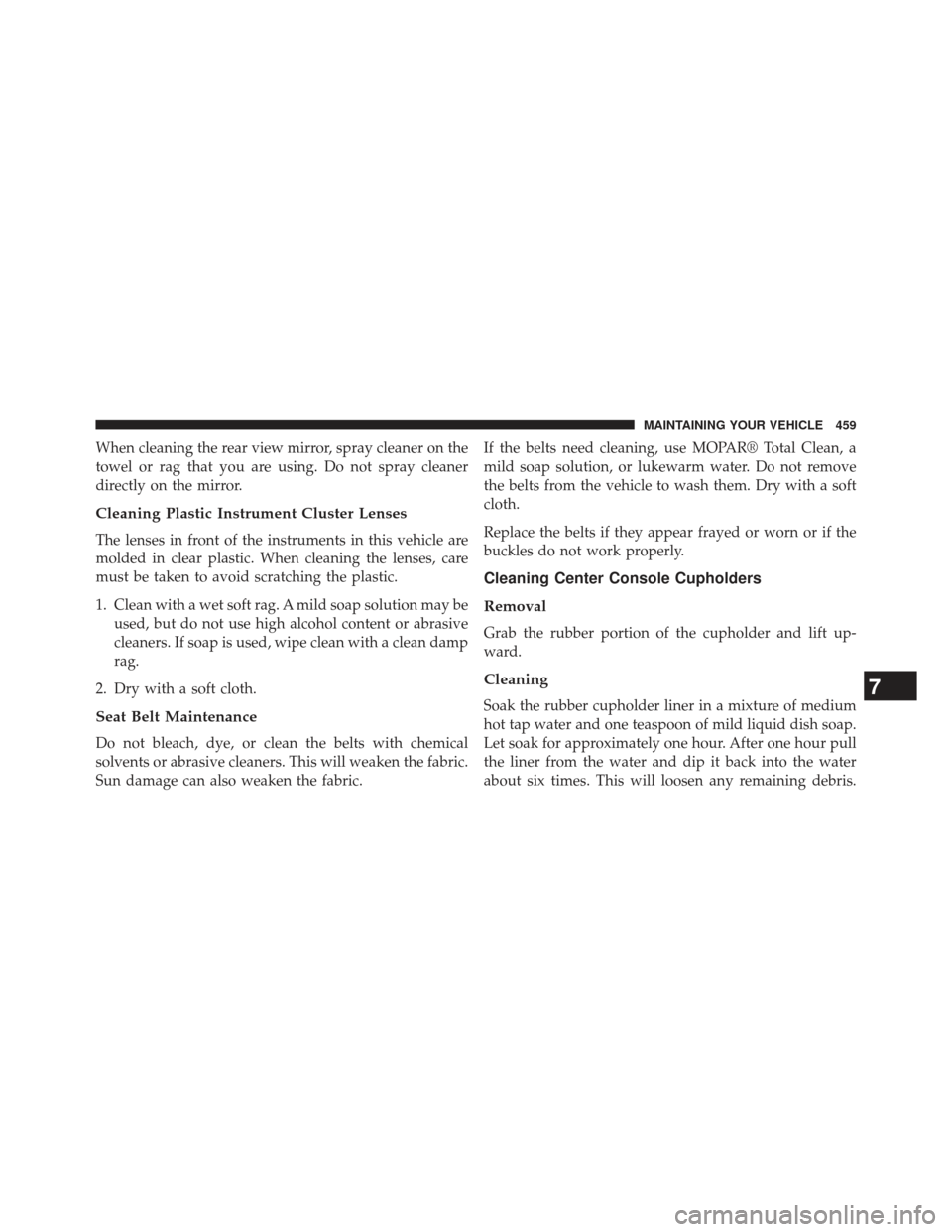

Page 461 of 517
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may beused, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric. If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning Center Console Cupholders
Removal
Grab the rubber portion of the cupholder and lift up-
ward.
Cleaning
Soak the rubber cupholder liner in a mixture of medium
hot tap water and one teaspoon of mild liquid dish soap.
Let soak for approximately one hour. After one hour pull
the liner from the water and dip it back into the water
about six times. This will loosen any remaining debris.
7
MAINTAINING YOUR VEHICLE 459

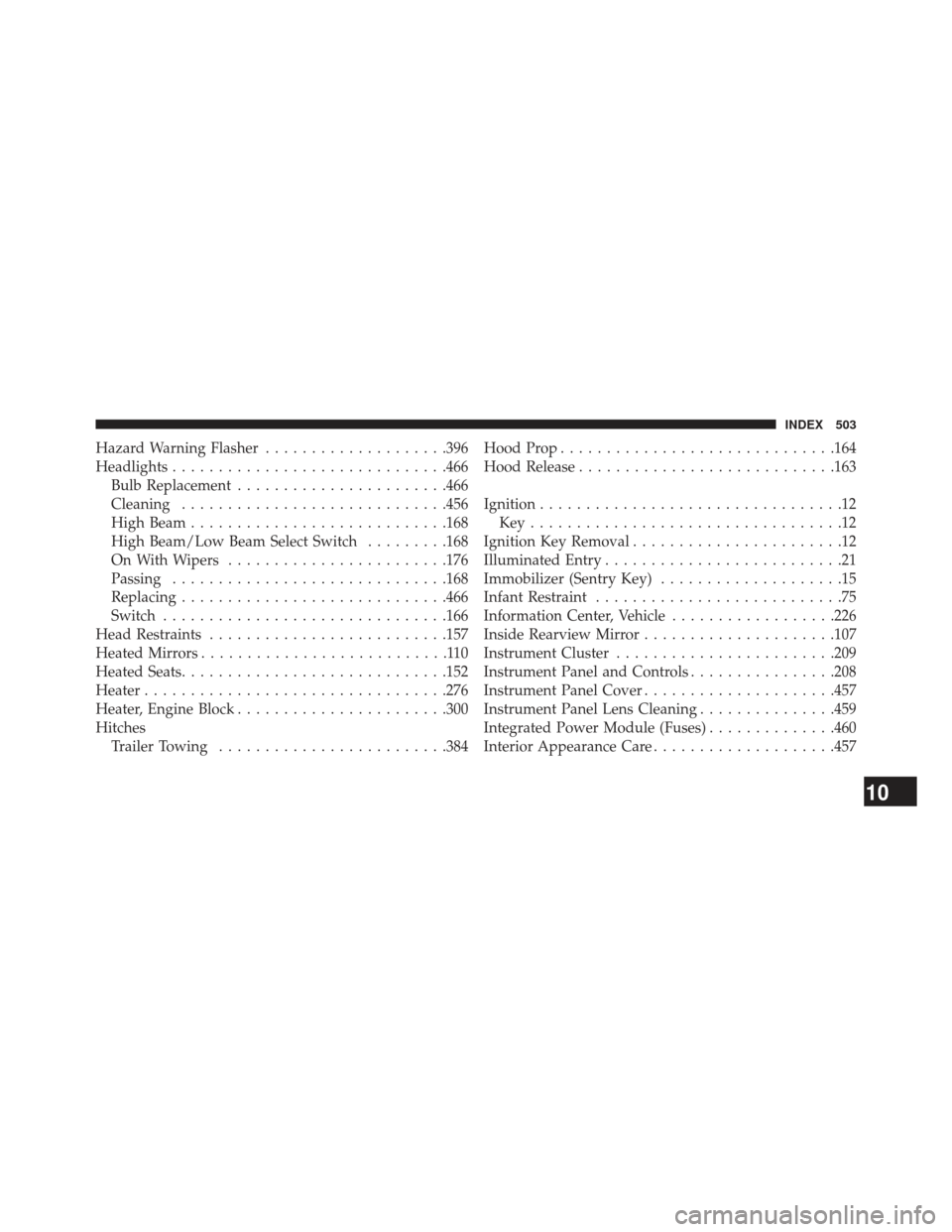

Page 505 of 517
Hazard Warning Flasher....................396
Headlights ............................. .466
Bulb Replacement ...................... .466
Cleaning ............................ .456
High Beam ........................... .168
High Beam/Low Beam Select Switch .........168
On With Wipers ....................... .176
Passing ............................. .168
Replacing ............................ .466
Switch .............................. .166
Head Restraints ......................... .157
Heated Mirrors ...........................110
Heated Seats ............................ .152
Heater ................................ .276
Heater, Engine Block ...................... .300
Hitches Trailer Towing ........................ .384Hood Prop
............................. .164
Hood Release ........................... .163
Ignition .................................12
Key..................................12
Ignition Key Removal .......................12
Illuminated Entry ..........................21
Immobilizer (Sentry Key) ....................15
Infant Restraint ...........................75
Information Center, Vehicle ..................226
Inside Rearview Mirror .....................107
Instrument Cluster ....................... .209
Instrument Panel and Controls ................208
Instrument Panel Cover .....................457
Instrument Panel Lens Cleaning ...............459
Integrated Power Module (Fuses) ..............460
Interior Appearance Care ....................457
10
INDEX 503

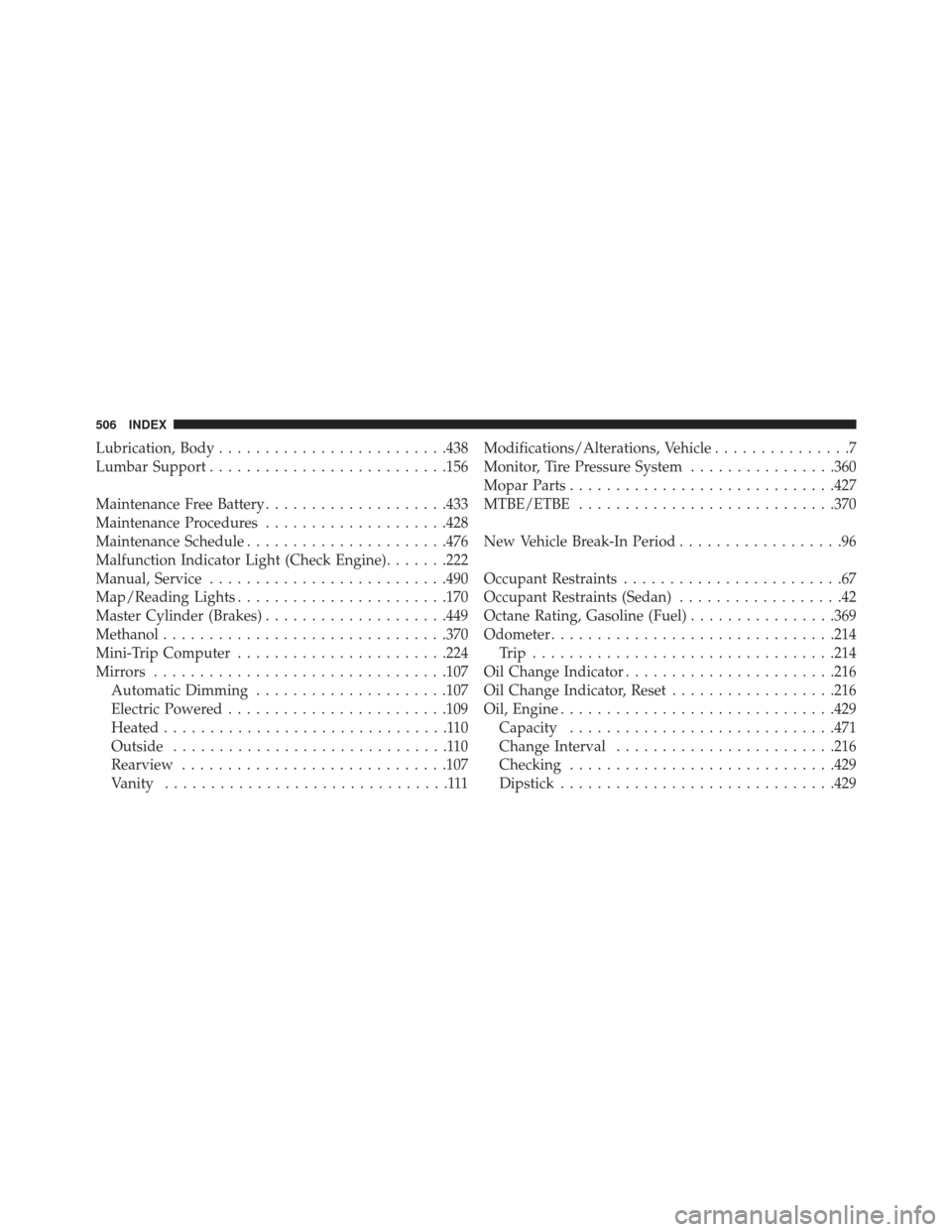

Page 508 of 517
Lubrication, Body........................ .438
Lumbar Support ......................... .156
Maintenance Free Battery ....................433
Maintenance Procedures ....................428
Maintenance Schedule ..................... .476
Malfunction Indicator Light (Check Engine) .......222
Manual, Service ......................... .490
Map/Reading Lights ...................... .170
Master Cylinder (Brakes) ....................449
Methanol .............................. .370
Mini-Trip Computer ...................... .224
Mirrors ............................... .107
Automatic Dimming .....................107
Electric Powered ....................... .109
Heated ...............................110
Outside ..............................110
Rearview ............................ .107
Vanity ...............................111 Modifications/Alterations, Vehicle
...............7
Monitor, Tire Pressure System ................360
Mopar Parts ............................ .427
MTBE/ETBE ........................... .370
New Vehicle Break-In Period ..................96
Occupant Restraints ........................67
Occupant Restraints (Sedan) ..................42
Octane Rating, Gasoline (Fuel) ................369
Odometer .............................. .214
Trip ................................ .214
Oil Change Indicator ...................... .216
Oil Change Indicator, Reset ..................216
Oil, Engine ............................. .429
Capacity ............................ .471
Change Interval ....................... .216
Checking ............................ .429
Dipstick ............................. .429
506 INDEX

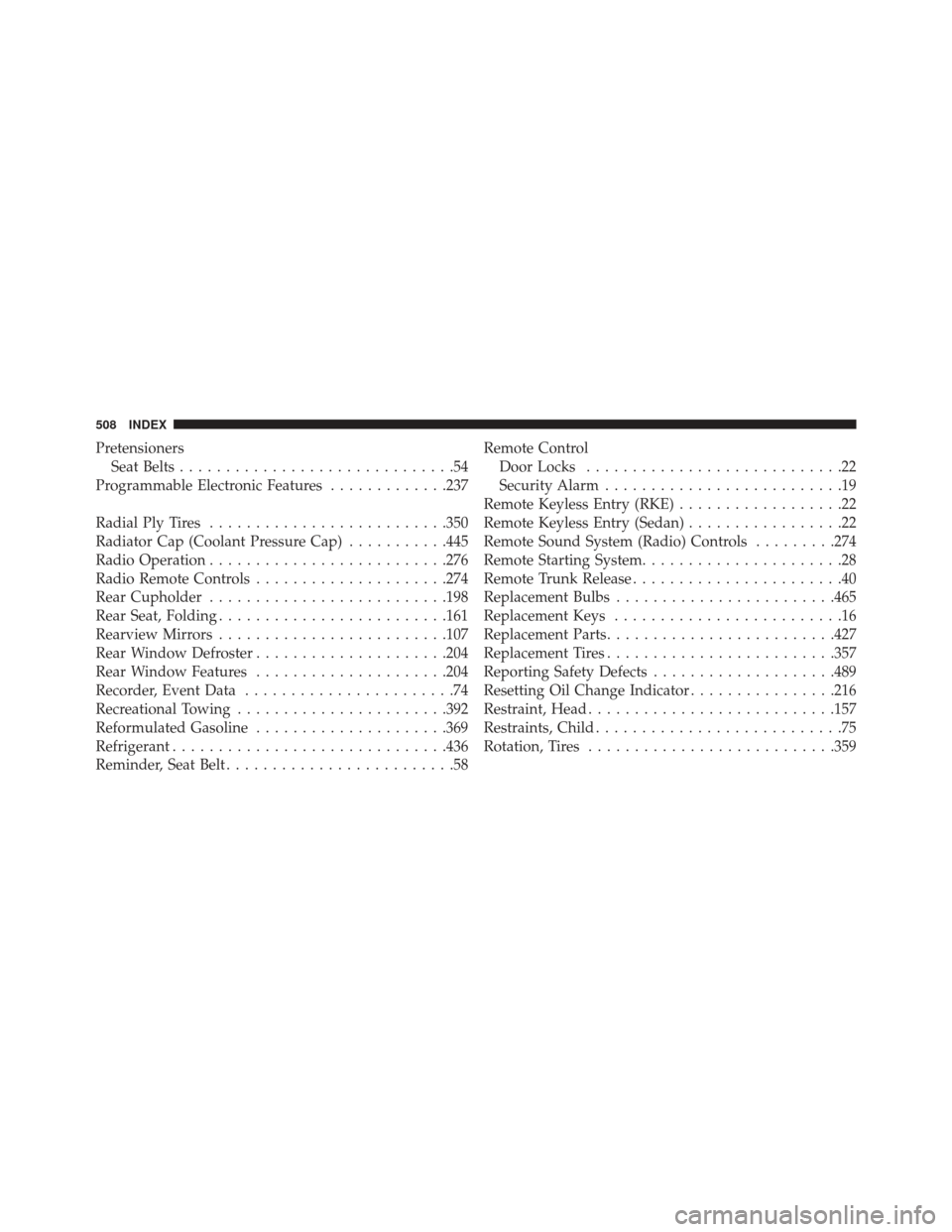

Page 510 of 517
PretensionersSeat Belts ..............................54
Programmable Electronic Features .............237
Radial Ply Tires ......................... .350
Radiator Cap (Coolant Pressure Cap) ...........445
Radio Operation ......................... .276
Radio Remote Controls .....................274
Rear Cupholder ......................... .198
Rear Seat, Folding ........................ .161
Rearview Mirrors ........................ .107
Rear Window Defroster .....................204
Rear Window Features .....................204
Recorder, Event Data .......................74
Recreational Towing ...................... .392
Reformulated Gasoline .....................369
Refrigerant ............................. .436
Reminder, Seat Belt .........................58 Remote Control
Door Locks ............................22
Security Alarm ..........................19
Remote Keyless Entry (RKE) ..................22
Remote Keyless Entry (Sedan) .................22
Remote Sound System (Radio) Controls .........274
Remote Starting System ......................28
Remote Trunk Release .......................40
Replacement Bulbs ....................... .465
Replacement Keys .........................16
Replacement Parts ........................ .427
Replacement Tires ........................ .357
Reporting Safety Defects ....................489
Resetting Oil Change Indicator ................216
Restraint, Head .......................... .157
Restraints, Child ...........................75
Rotation, Tires .......................... .359
508 INDEX
