Page 461 of 516
CavityCar-
tridge Fuse Mini
Fuse Description
12 — 20 Amp YellowSpare
13 — 20 Amp YellowIgnition/Cigar
Lighter
14 — 10 Amp RedInstrument Panel
15 40 Amp Green — Radiator Fan Relay
16 — 15 Amp Lt. BlueSunroof – If
EquippedCavity Car-
tridge Fuse Mini
Fuse Description
17 — 10 Amp RedWireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
18 40 Amp Green — Auto Shutdown
(ASD) Relay
19 — 20 Amp YellowAudio Amplifier –
If Equipped
20 — 15 Amp Lt. BlueRadio
21 — 10 Amp RedSiren – If Equipped
7
MAINTAINING YOUR VEHICLE 459
Page 462 of 516
CavityCar-
tridge Fuse Mini
Fuse Description
22 — 10 Amp RedIgnition Run – Cli-
mate Controls/Hot
Cupholder – If
Equipped
23 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 3
24 — 25 Amp NaturalSunroof – If
Equipped
25 — 10 Amp RedIgnition Run —
Heated Mirrors - If
Equipped
26 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 2Cavity Car-
tridge Fuse Mini
Fuse Description
27 — 10 Amp RedIgnition Run – Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
28 — 10 Amp RedIgnition Run —
Occupant Classifi-
cation Module
(OCM)/Occupant
Restraint Controller
(ORC)
29 — — Hot Car (No Fuse Required)
460 MAINTAINING YOUR VEHICLE
Page 463 of 516
CavityCar-
tridge Fuse Mini
Fuse Description
30 — 20 Amp YellowIgnition Run –
Heated Seats – If
Equipped
31 — — Spare
32 30 Amp Pink — Auto Shutdown
(ASD) Relay 1
33 — 10 Amp RedSwitch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)Cavity Car-
tridge Fuse Mini
Fuse Description
34 30 Amp Pink —
Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC) Mod-
ule – If Equipped
35 40 Amp
Green —Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC) Mod-
ule – If Equipped
7
MAINTAINING YOUR VEHICLE 461

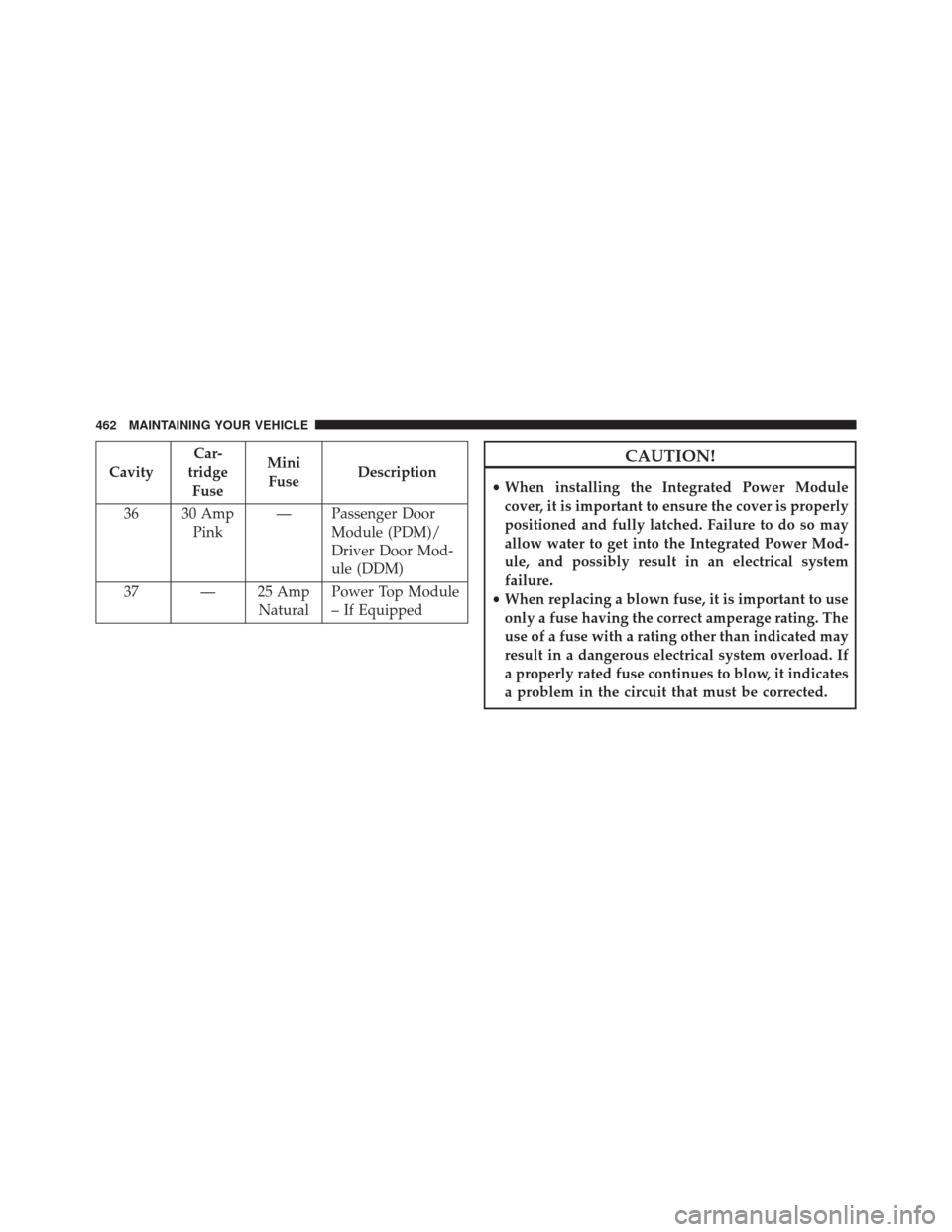

Page 464 of 516
CavityCar-
tridge Fuse Mini
Fuse Description
36 30 Amp Pink — Passenger Door
Module (PDM)/
Driver Door Mod-
ule (DDM)
37 — 25 Amp NaturalPower Top Module
– If EquippedCAUTION!
•
When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the Integrated Power Mod-
ule, and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
462 MAINTAINING YOUR VEHICLE
Page 465 of 516
VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading
Lamp 578/W5W
Center Courtesy/Reading
Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Box Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment
(Trunk) Lamp 579
NOTE: For lighted switches, see your authorized
dealer for replacement.
7
MAINTAINING YOUR VEHICLE 463

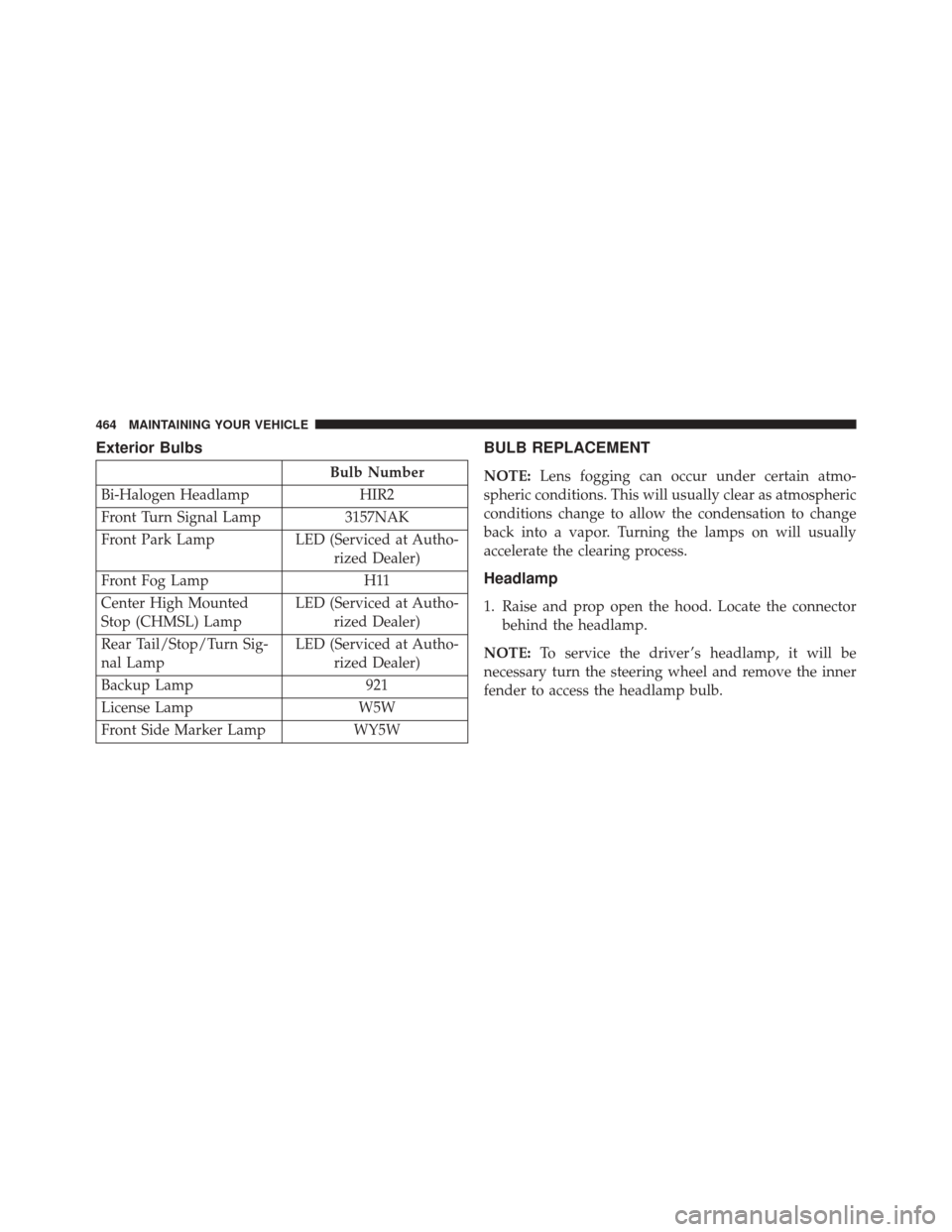

Page 466 of 516
Exterior Bulbs
Bulb Number
Bi-Halogen Headlamp HIR2
Front Turn Signal Lamp 3157NAK
Front Park Lamp LED (Serviced at Autho-
rized Dealer)
Front Fog Lamp H11
Center High Mounted
Stop (CHMSL) Lamp LED (Serviced at Autho-
rized Dealer)
Rear Tail/Stop/Turn Sig-
nal Lamp LED (Serviced at Autho-
rized Dealer)
Backup Lamp 921
License Lamp W5W
Front Side Marker Lamp WY5W
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Raise and prop open the hood. Locate the connector behind the headlamp.
NOTE: To service the driver ’s headlamp, it will be
necessary turn the steering wheel and remove the inner
fender to access the headlamp bulb.
464 MAINTAINING YOUR VEHICLE

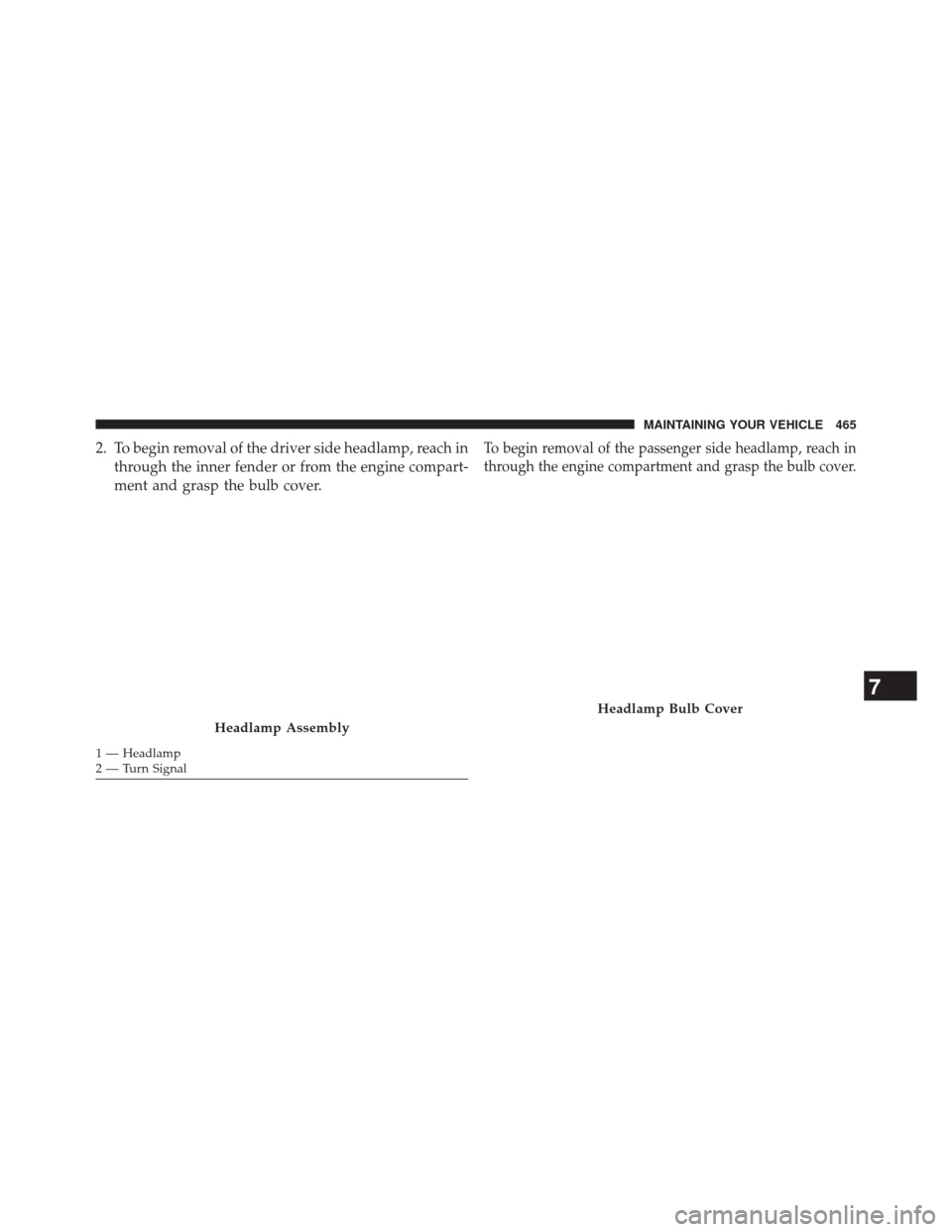

Page 467 of 516
2. To begin removal of the driver side headlamp, reach inthrough the inner fender or from the engine compart-
ment and grasp the bulb cover.
1 — Headlamp
2 — Turn Signal
To begin removal of the passenger side headlamp, reach in
through the engine compartment and grasp the bulb cover.
Headlamp Assembly
Headlamp Bulb Cover
7
MAINTAINING YOUR VEHICLE 465

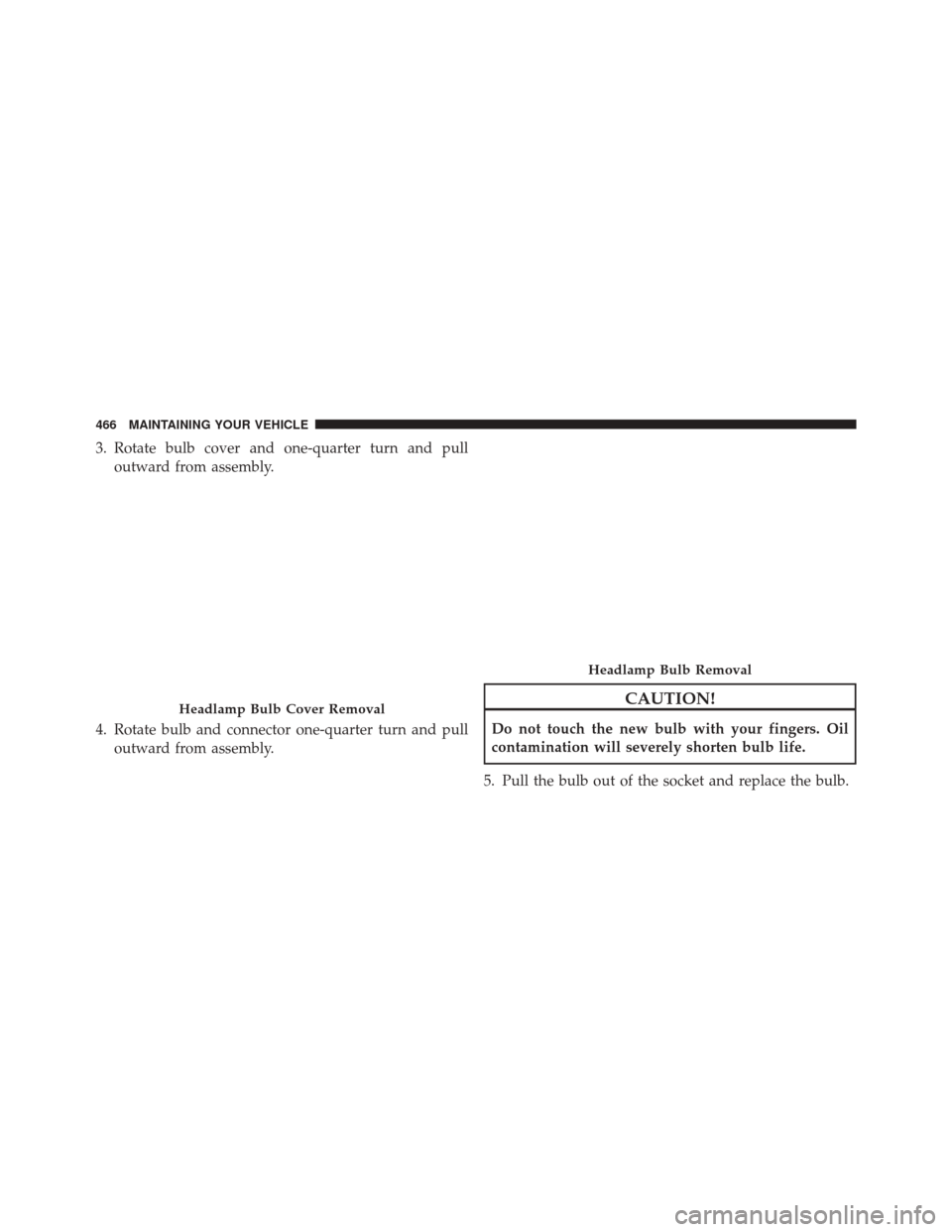

Page 468 of 516
3. Rotate bulb cover and one-quarter turn and pulloutward from assembly.
4. Rotate bulb and connector one-quarter turn and pull outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
5. Pull the bulb out of the socket and replace the bulb.
Headlamp Bulb Cover Removal
Headlamp Bulb Removal
466 MAINTAINING YOUR VEHICLE

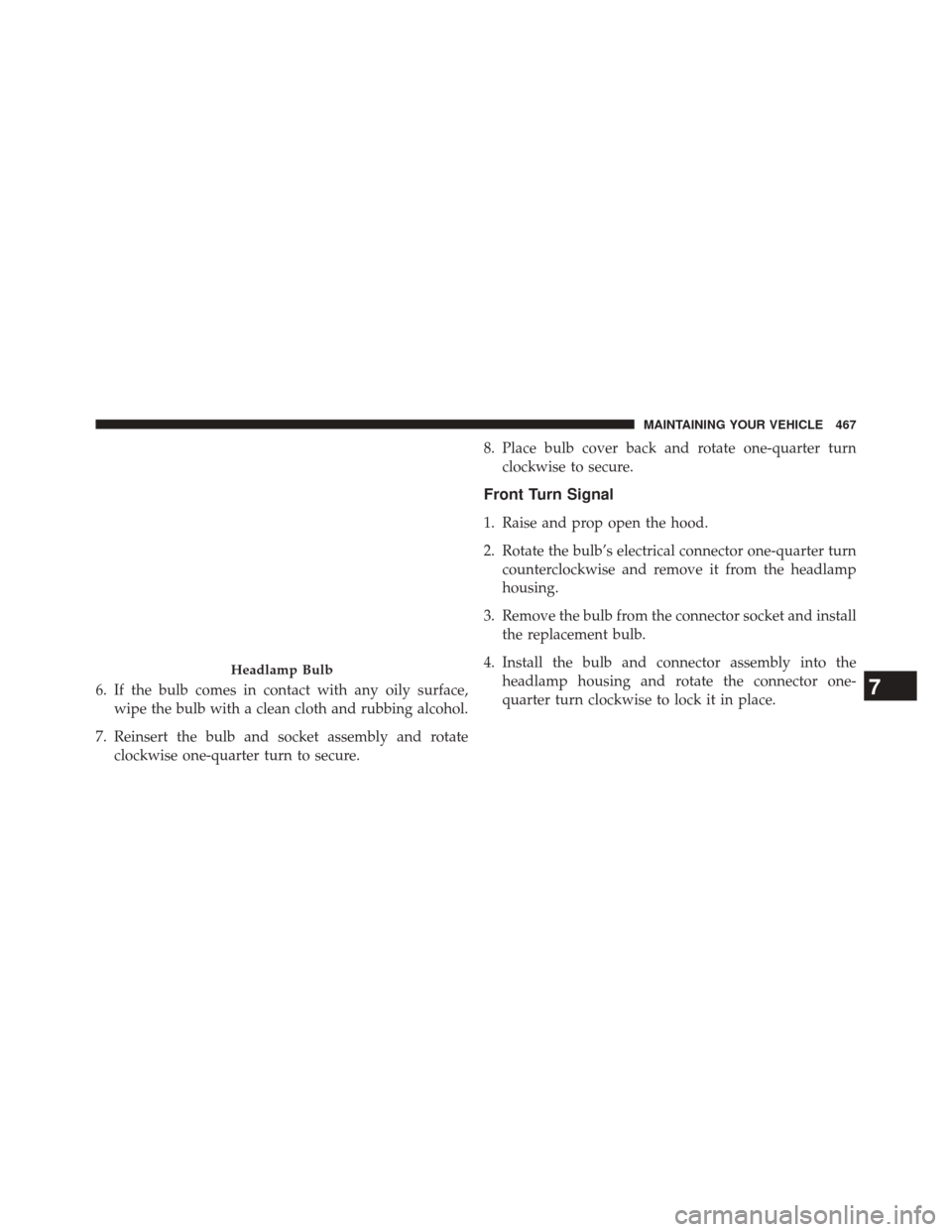

Page 469 of 516
6. If the bulb comes in contact with any oily surface,wipe the bulb with a clean cloth and rubbing alcohol.
7. Reinsert the bulb and socket assembly and rotate clockwise one-quarter turn to secure. 8. Place bulb cover back and rotate one-quarter turn
clockwise to secure.
Front Turn Signal
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turncounterclockwise and remove it from the headlamp
housing.
3. Remove the bulb from the connector socket and install the replacement bulb.
4. Install the bulb and connector assembly into the headlamp housing and rotate the connector one-
quarter turn clockwise to lock it in place.
Headlamp Bulb
7
MAINTAINING YOUR VEHICLE 467

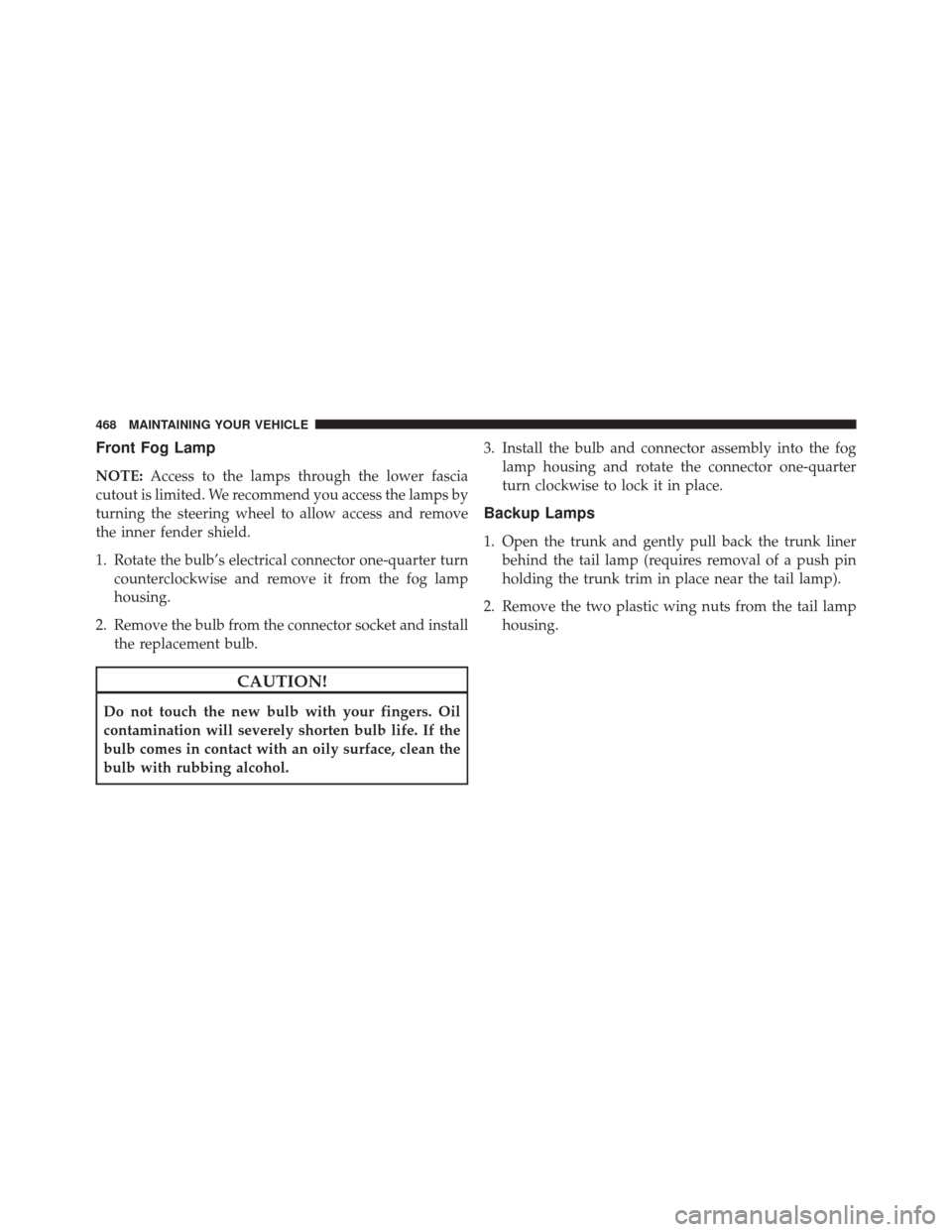

Page 470 of 516

Front Fog Lamp
NOTE:Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.
1. Rotate the bulb’s electrical connector one-quarter turn counterclockwise and remove it from the fog lamp
housing.
2. Remove the bulb from the connector socket and install the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol. 3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Backup Lamps
1. Open the trunk and gently pull back the trunk linerbehind the tail lamp (requires removal of a push pin
holding the trunk trim in place near the tail lamp).
2. Remove the two plastic wing nuts from the tail lamp housing.
468 MAINTAINING YOUR VEHICLE
