ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) — IF EQUIPPED
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.The EVIC consists of the following:
•
Compass Heading Display (N, S, E, W, NE, NW, SE, SW)
•
Mileage (Avg/MPG)
• Miles To Empty
• Low Tire Information (Tire Pressure Monitor System
(TPMS) Displays) — if equipped
• Timer
• Units
• System Warnings (Door Ajar, etc)
• Personal Settings (Customer-Programmable Features)
• Outside Temperature Display (°F or °C)
• Audio Mode Displays – 12 preset Radio Stations or CD
Title and Track number when playing
Electronic Vehicle Information Center (EVIC)
224 UNDERSTANDING YOUR INSTRUMENT PANEL

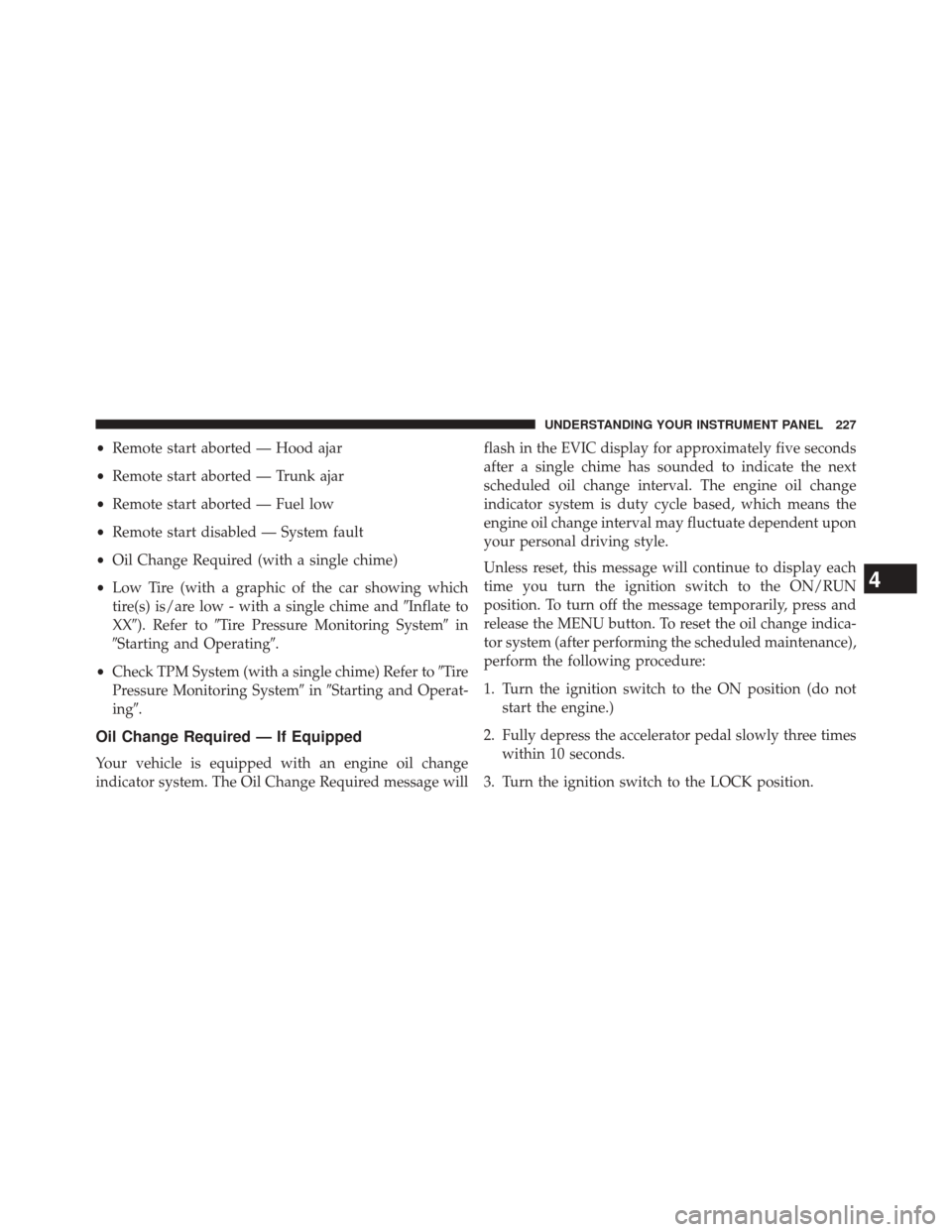

•Remote start aborted — Hood ajar
• Remote start aborted — Trunk ajar
• Remote start aborted — Fuel low
• Remote start disabled — System fault
• Oil Change Required (with a single chime)
• Low Tire (with a graphic of the car showing which
tire(s) is/are low - with a single chime and Inflate to
XX). Refer to Tire Pressure Monitoring System in
Starting and Operating.
• Check TPM System (with a single chime) Refer to Ti re
Pressure Monitoring System inStarting and Operat-
ing.
Oil Change Required — If Equipped
Your vehicle is equipped with an engine oil change
indicator system. The Oil Change Required message will flash in the EVIC display for approximately five seconds
after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the MENU button. To reset the oil change indica-
tor system (after performing the scheduled maintenance),
perform the following procedure:
1. Turn the ignition switch to the ON position (do not
start the engine.)
2. Fully depress the accelerator pedal slowly three times within 10 seconds.
3. Turn the ignition switch to the LOCK position.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 227

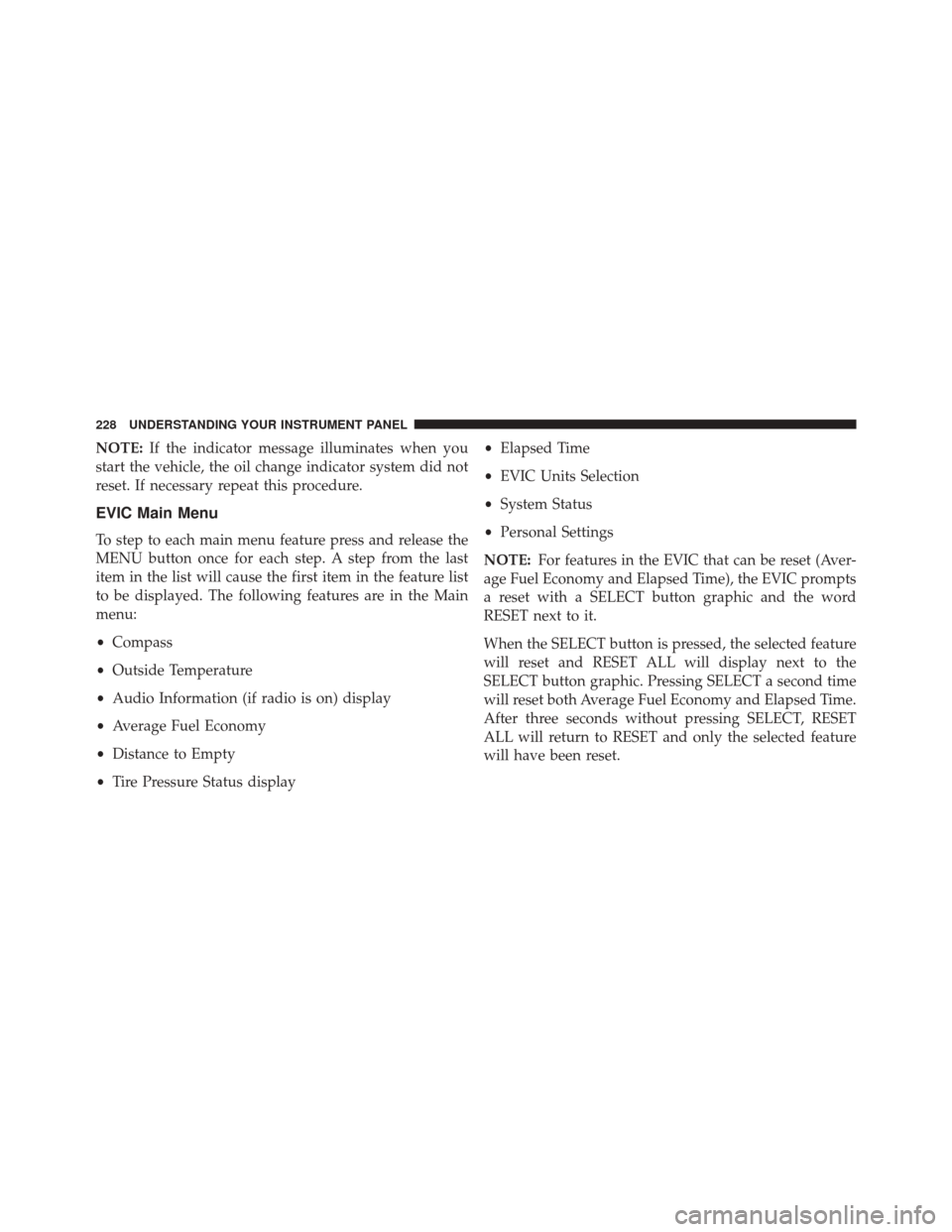

NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.
EVIC Main Menu
To step to each main menu feature press and release the
MENU button once for each step. A step from the last
item in the list will cause the first item in the feature list
to be displayed. The following features are in the Main
menu:
• Compass
• Outside Temperature
• Audio Information (if radio is on) display
• Average Fuel Economy
• Distance to Empty
• Tire Pressure Status display •
Elapsed Time
• EVIC Units Selection
• System Status
• Personal Settings
NOTE: For features in the EVIC that can be reset (Aver-
age Fuel Economy and Elapsed Time), the EVIC prompts
a reset with a SELECT button graphic and the word
RESET next to it.
When the SELECT button is pressed, the selected feature
will reset and RESET ALL will display next to the
SELECT button graphic. Pressing SELECT a second time
will reset both Average Fuel Economy and Elapsed Time.
After three seconds without pressing SELECT, RESET
ALL will return to RESET and only the selected feature
will have been reset.
228 UNDERSTANDING YOUR INSTRUMENT PANEL

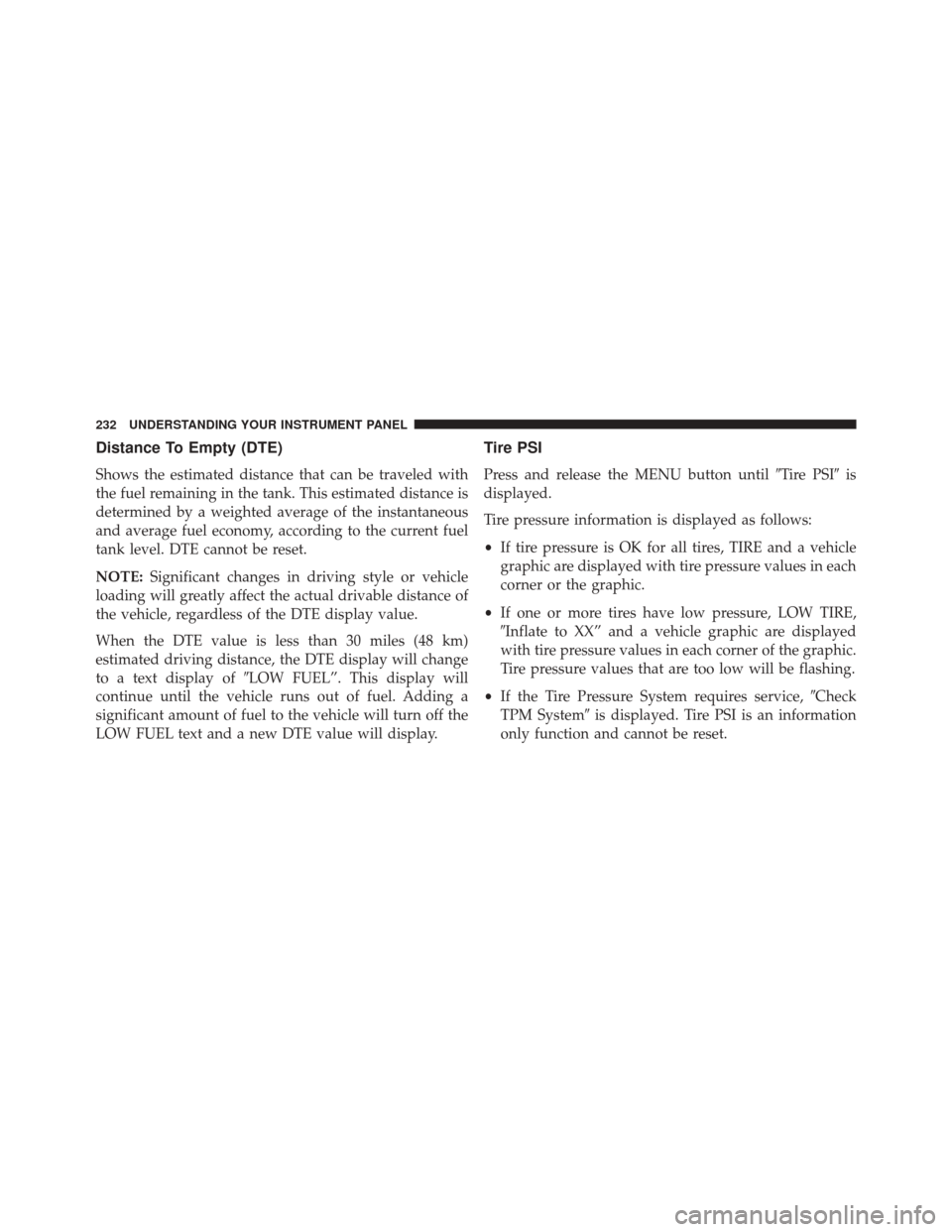

Distance To Empty (DTE)
Shows the estimated distance that can be traveled with
the fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level. DTE cannot be reset.
NOTE:Significant changes in driving style or vehicle
loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE display value.
When the DTE value is less than 30 miles (48 km)
estimated driving distance, the DTE display will change
to a text display of LOW FUEL”. This display will
continue until the vehicle runs out of fuel. Adding a
significant amount of fuel to the vehicle will turn off the
LOW FUEL text and a new DTE value will display.
Tire PSI
Press and release the MENU button until Tire PSIis
displayed.
Tire pressure information is displayed as follows:
• If tire pressure is OK for all tires, TIRE and a vehicle
graphic are displayed with tire pressure values in each
corner or the graphic.
• If one or more tires have low pressure, LOW TIRE,
Inflate to XX” and a vehicle graphic are displayed
with tire pressure values in each corner of the graphic.
Tire pressure values that are too low will be flashing.
• If the Tire Pressure System requires service, Check
TPM System is displayed. Tire PSI is an information
only function and cannot be reset.
232 UNDERSTANDING YOUR INSTRUMENT PANEL

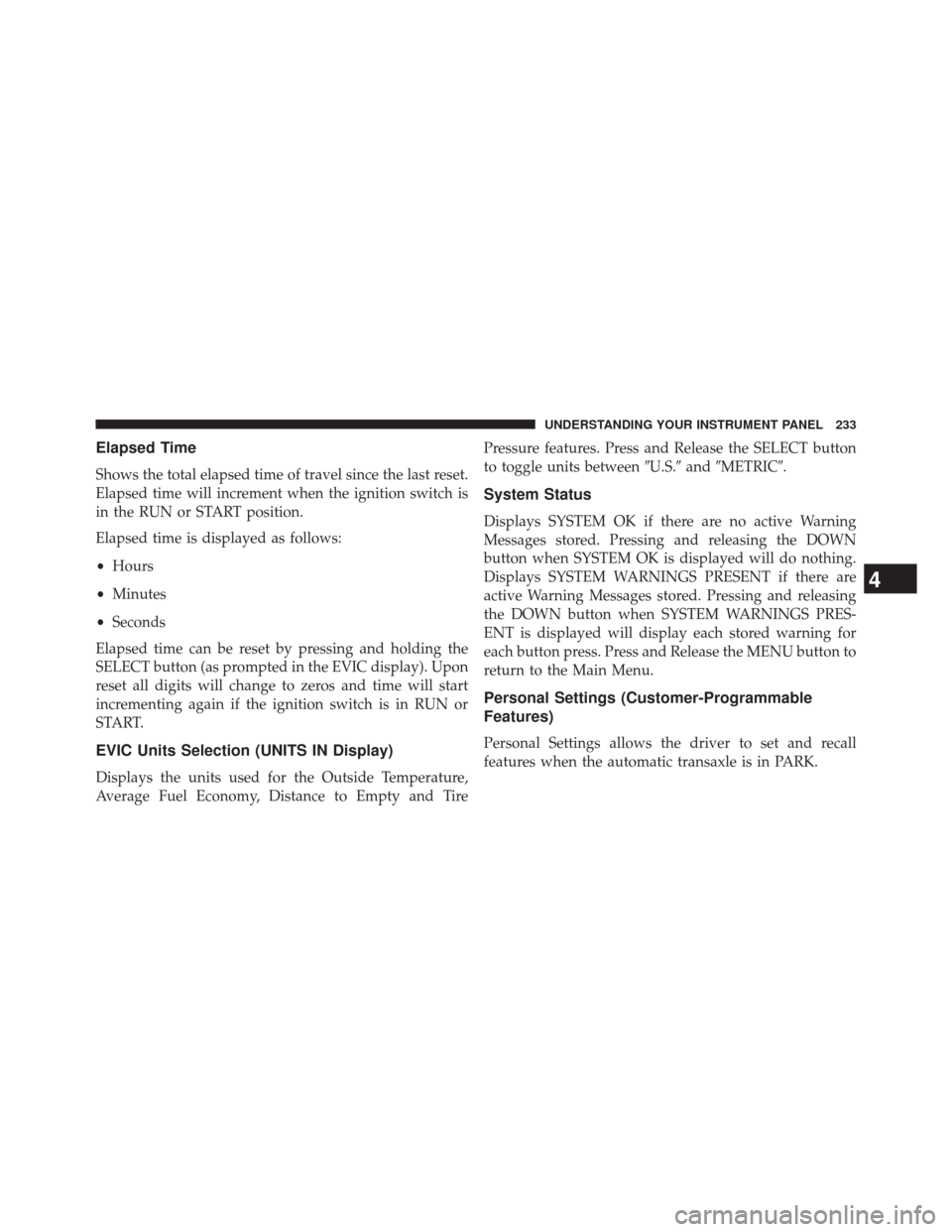

Elapsed Time
Shows the total elapsed time of travel since the last reset.
Elapsed time will increment when the ignition switch is
in the RUN or START position.
Elapsed time is displayed as follows:
•Hours
• Minutes
• Seconds
Elapsed time can be reset by pressing and holding the
SELECT button (as prompted in the EVIC display). Upon
reset all digits will change to zeros and time will start
incrementing again if the ignition switch is in RUN or
START.
EVIC Units Selection (UNITS IN Display)
Displays the units used for the Outside Temperature,
Average Fuel Economy, Distance to Empty and Tire Pressure features. Press and Release the SELECT button
to toggle units between
U.S.andMETRIC.
System Status
Displays SYSTEM OK if there are no active Warning
Messages stored. Pressing and releasing the DOWN
button when SYSTEM OK is displayed will do nothing.
Displays SYSTEM WARNINGS PRESENT if there are
active Warning Messages stored. Pressing and releasing
the DOWN button when SYSTEM WARNINGS PRES-
ENT is displayed will display each stored warning for
each button press. Press and Release the MENU button to
return to the Main Menu.
Personal Settings (Customer-Programmable
Features)
Personal Settings allows the driver to set and recall
features when the automatic transaxle is in PARK.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 233

Lumbar Support......................... .153
Maintenance Free Battery ....................429
Maintenance Procedures ....................424
Maintenance Schedule ..................... .476
Malfunction Indicator Light (Check Engine) .......220
Manual, Service ......................... .490
Map/Reading Lights ...................... .168
Master Cylinder (Brakes) ....................444
Methanol .............................. .365
Mini-Trip Computer ...................... .222
Mirrors ............................... .105
Automatic Dimming .....................106
Electric Powered ....................... .107
Heated .............................. .109
Outside ............................. .108
Rearview ............................ .105
Vanity .............................. .109
Modifications/Alterations, Vehicle ...............7Monitor, Tire Pressure System
................355
Mopar Parts ............................ .423
MTBE/ETBE ........................... .365
New Vehicle Break-In Period ..................94
Occupant Restraints ........................65
Occupant Restraints (Sedan) ..................41
Octane Rating, Gasoline (Fuel) ................364
Odometer .............................. .212
Trip ................................ .212
Oil Change Indicator ...................... .214
Oil Change Indicator, Reset ..................214
Oil, Engine ............................. .425
Capacity ............................ .471
Change Interval ....................... .214
Checking ............................ .425
Dipstick ............................. .425
Disposal ............................. .428
504 INDEX

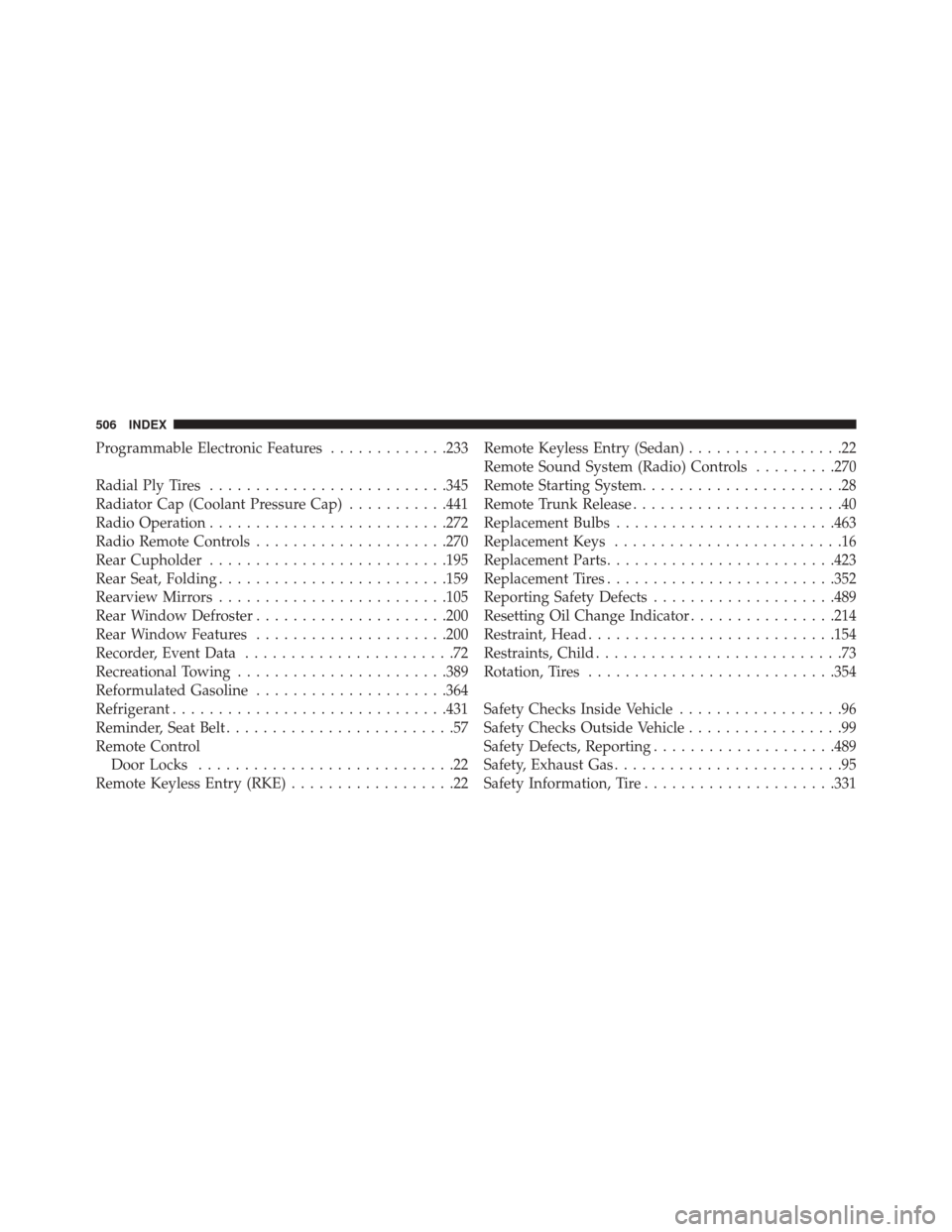

Programmable Electronic Features.............233
