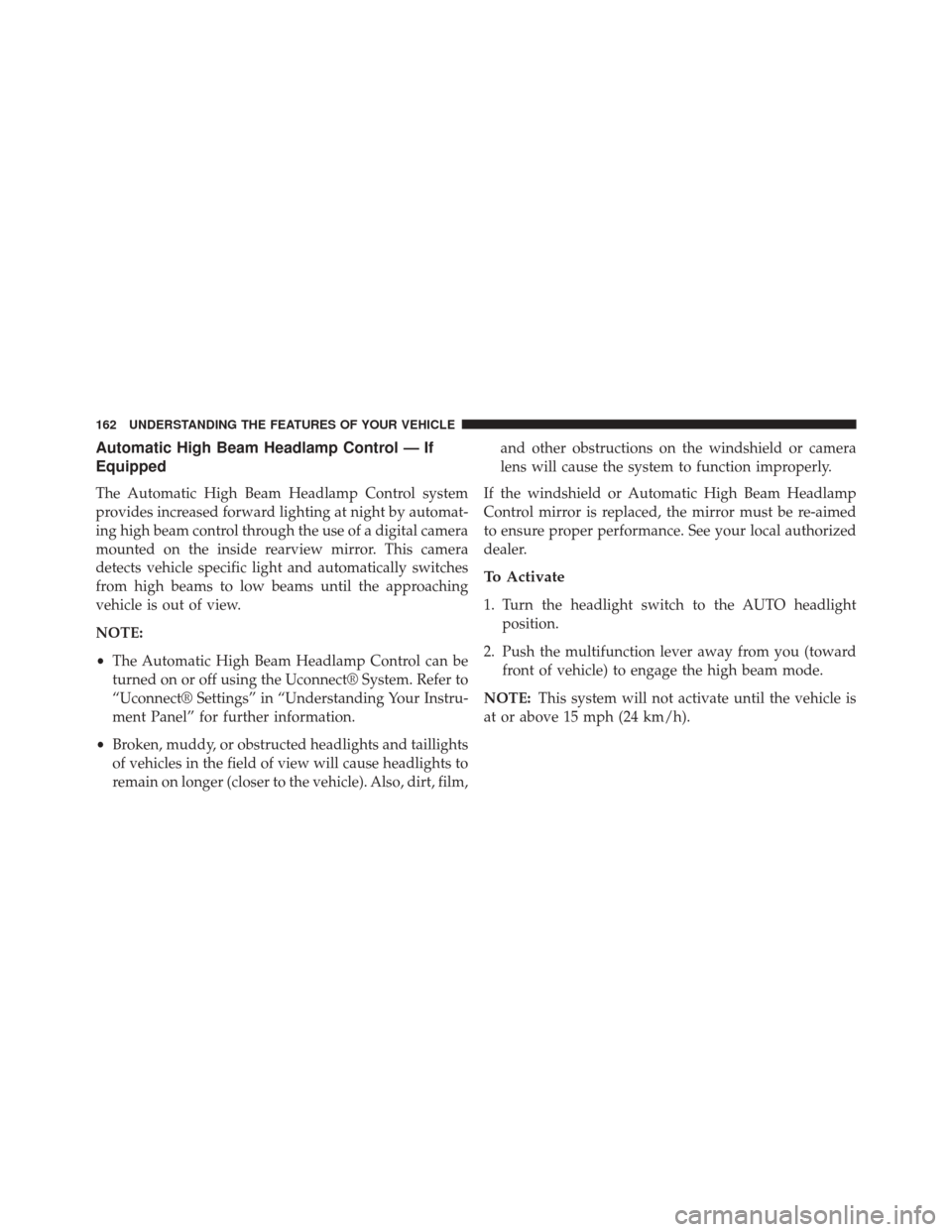

Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera
detects vehicle specific light and automatically switches
from high beams to low beams until the approaching
vehicle is out of view.
NOTE:
•The Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect® System. Refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
• Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film, and other obstructions on the windshield or camera
lens will cause the system to function improperly.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.
To Activate
1. Turn the headlight switch to the AUTO headlight position.
2. Push the multifunction lever away from you (toward front of vehicle) to engage the high beam mode.
NOTE: This system will not activate until the vehicle is
at or above 15 mph (24 km/h).
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 458 of 698

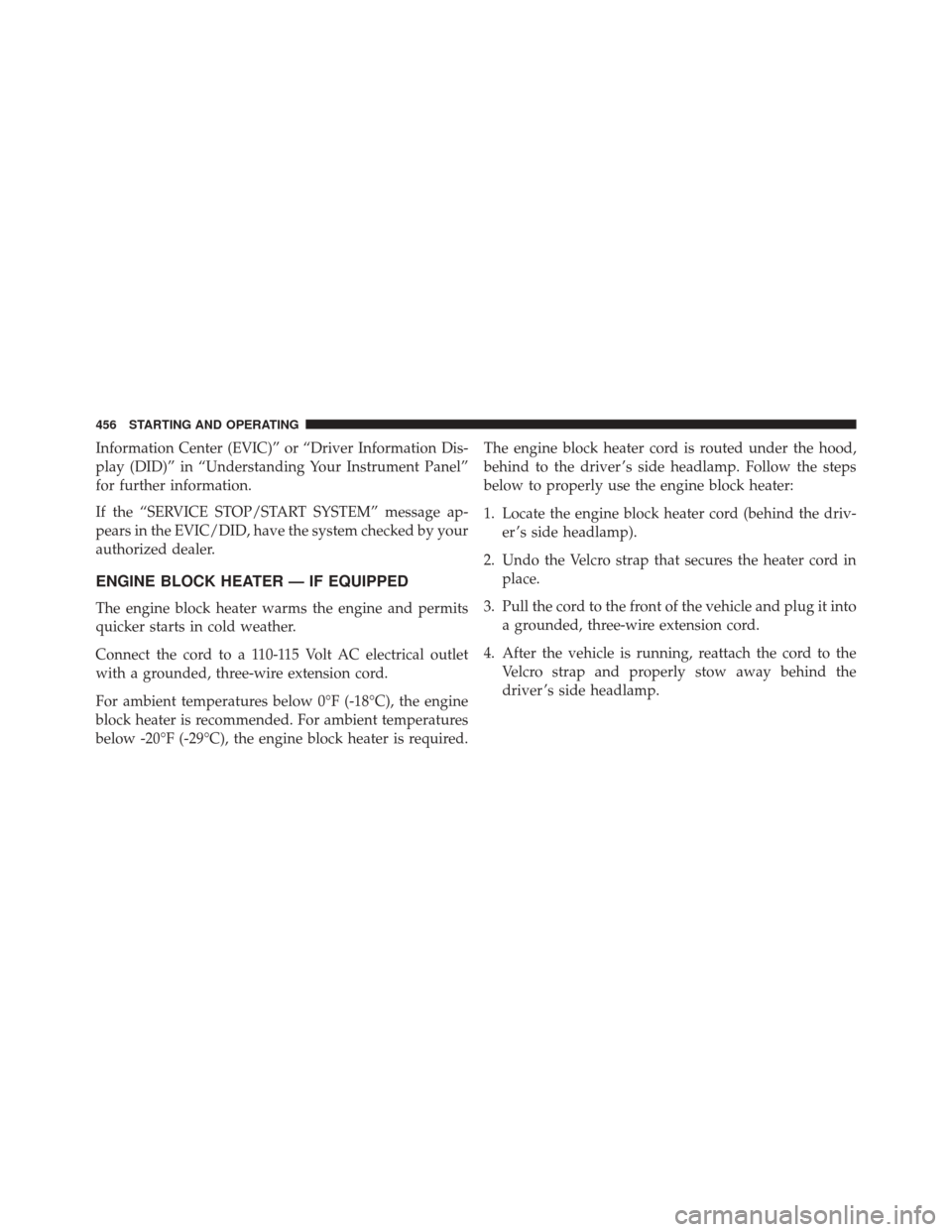

Information Center (EVIC)” or “Driver Information Dis-
play (DID)” in “Understanding Your Instrument Panel”
for further information.
If the “SERVICE STOP/START SYSTEM” message ap-
pears in the EVIC/DID, have the system checked by your
authorized dealer.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine and permits
quicker starts in cold weather.
Connect the cord to a 110-115 Volt AC electrical outlet
with a grounded, three-wire extension cord.
For ambient temperatures below 0°F (-18°C), the engine
block heater is recommended. For ambient temperatures
below -20°F (-29°C), the engine block heater is required.The engine block heater cord is routed under the hood,
behind to the driver ’s side headlamp. Follow the steps
below to properly use the engine block heater:
1. Locate the engine block heater cord (behind the driv-
er ’s side headlamp).
2. Undo the Velcro strap that secures the heater cord in place.
3. Pull the cord to the front of the vehicle and plug it into a grounded, three-wire extension cord.
4. After the vehicle is running, reattach the cord to the Velcro strap and properly stow away behind the
driver ’s side headlamp.
456 STARTING AND OPERATING
Page 590 of 698

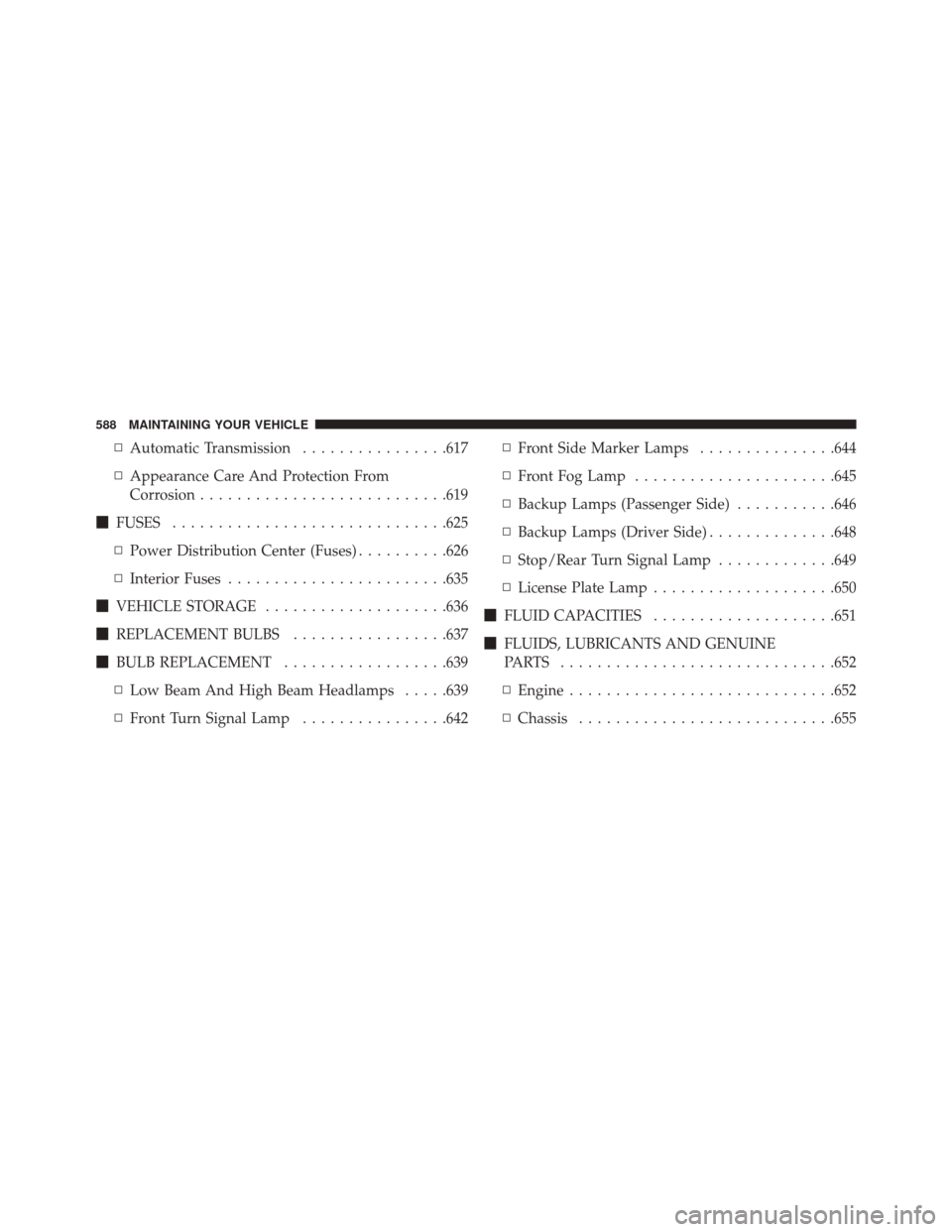

▫Automatic Transmission ................617
▫ Appearance Care And Protection From
Corrosion .......................... .619
FUSES ............................. .625
▫ Power Distribution Center (Fuses) ..........626
▫ Interior Fuses ....................... .635
VEHICLE STORAGE ....................636
REPLACEMENT BULBS .................637
BULB REPLACEMENT ..................639
▫ Low Beam And High Beam Headlamps .....639
▫ Front Turn Signal Lamp ................642 ▫
Front Side Marker Lamps ...............644
▫ Front Fog Lamp ..................... .645
▫ Backup Lamps (Passenger Side) ...........646
▫ Backup Lamps (Driver Side) ..............648
▫ Stop/Rear Turn Signal Lamp .............649
▫ License Plate Lamp ....................650
FLUID CAPACITIES ....................651
FLUIDS, LUBRICANTS AND GENUINE
PARTS ............................. .652
▫ Engine ............................ .652
▫ Chassis ........................... .655
588 MAINTAINING YOUR VEHICLE
Page 634 of 698

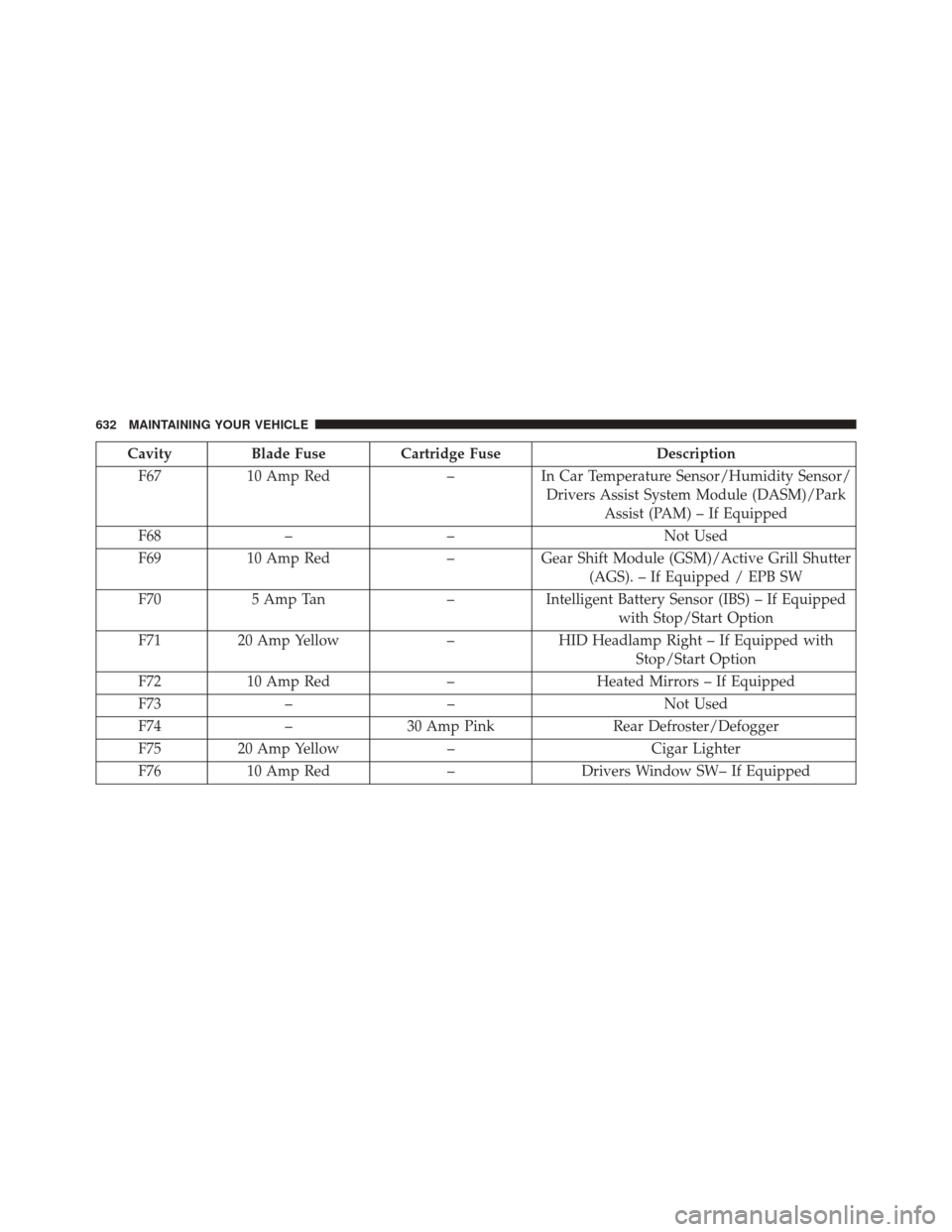

CavityBlade Fuse Cartridge Fuse Description
F67 10 Amp Red –In Car Temperature Sensor/Humidity Sensor/
Drivers Assist System Module (DASM)/Park Assist (PAM) – If Equipped
F68 – – Not Used
F69 10 Amp Red –Gear Shift Module (GSM)/Active Grill Shutter
(AGS). – If Equipped / EPB SW
F70 5 Amp Tan –Intelligent Battery Sensor (IBS) – If Equipped
with Stop/Start Option
F71 20 Amp Yellow –HID Headlamp Right – If Equipped with
Stop/Start Option
F72 10 Amp Red –Heated Mirrors – If Equipped
F73 – – Not Used
F74 –30 Amp Pink Rear Defroster/Defogger
F75 20 Amp Yellow –Cigar Lighter
F76 10 Amp Red –Drivers Window SW– If Equipped
632 MAINTAINING YOUR VEHICLE
Page 635 of 698

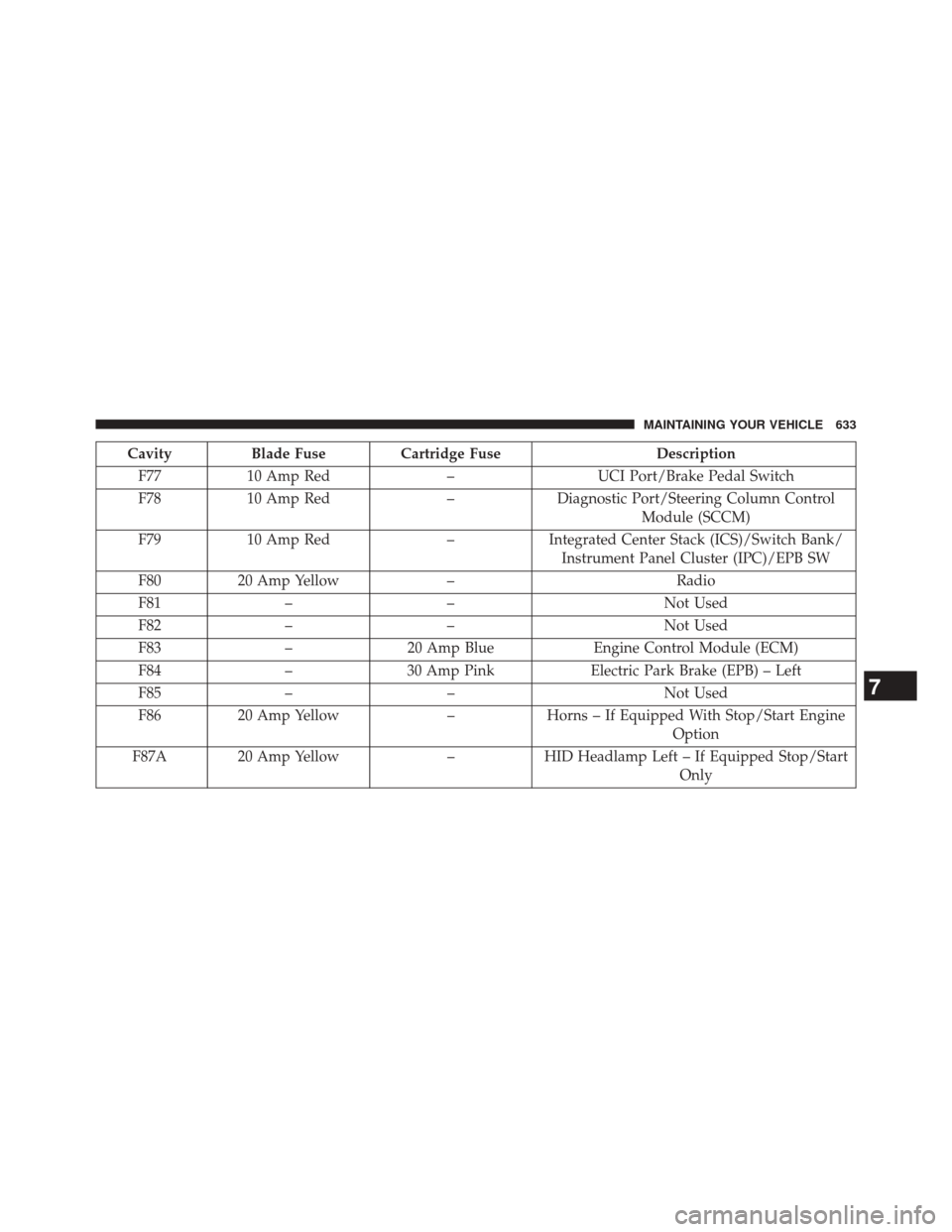

CavityBlade Fuse Cartridge Fuse Description
F77 10 Amp Red –UCI Port/Brake Pedal Switch
F78 10 Amp Red –Diagnostic Port/Steering Column Control
Module (SCCM)
F79 10 Amp Red –Integrated Center Stack (ICS)/Switch Bank/
Instrument Panel Cluster (IPC)/EPB SW
F80 20 Amp Yellow – Radio
F81 – – Not Used
F82 – – Not Used
F83 –20 Amp Blue Engine Control Module (ECM)
F84 –30 Amp Pink Electric Park Brake (EPB) – Left
F85 – – Not Used
F86 20 Amp Yellow –Horns – If Equipped With Stop/Start Engine
Option
F87A 20 Amp Yellow –HID Headlamp Left – If Equipped Stop/Start
Only
7
MAINTAINING YOUR VEHICLE 633
Page 640 of 698

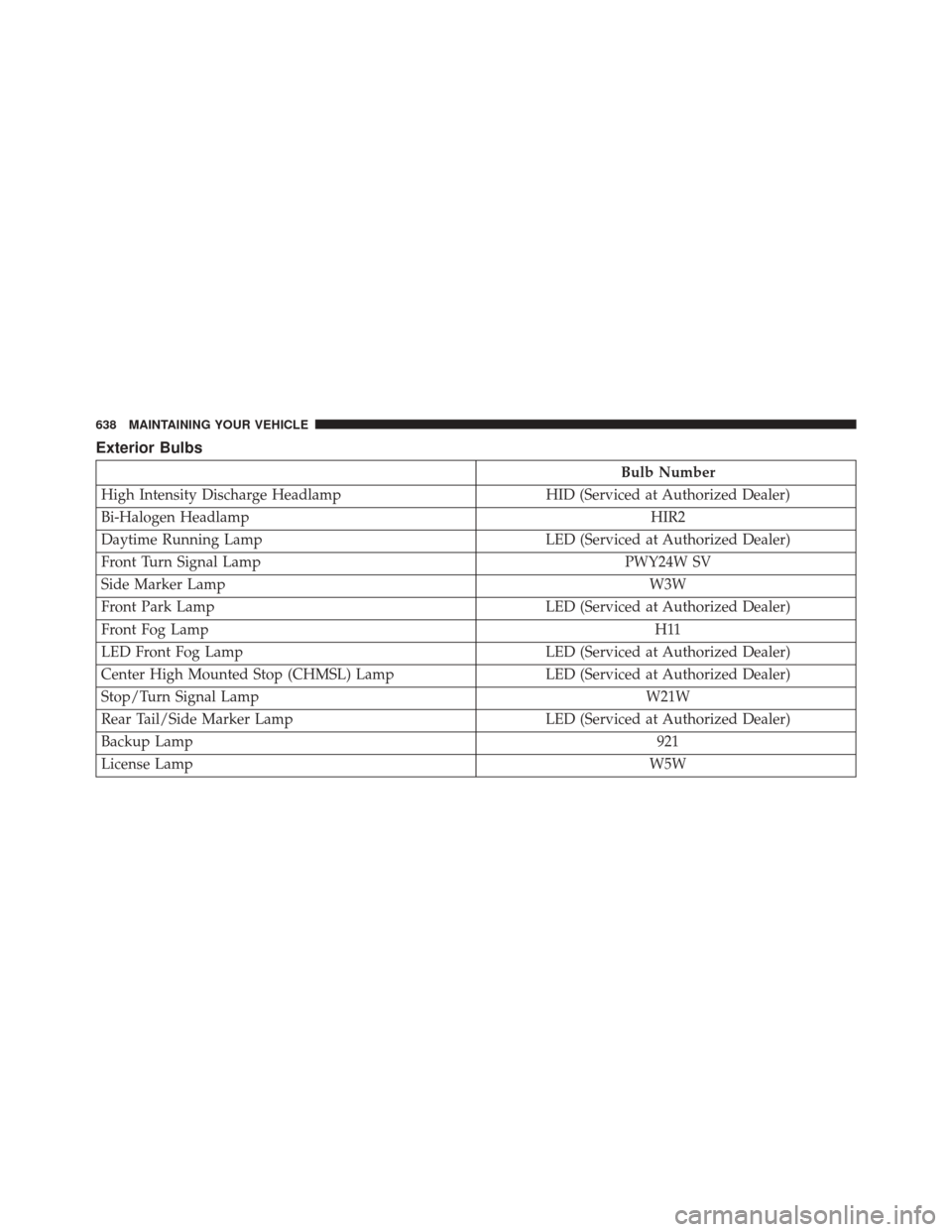

Exterior Bulbs
Bulb Number
High Intensity Discharge Headlamp HID (Serviced at Authorized Dealer)
Bi-Halogen Headlamp HIR2
Daytime Running Lamp LED (Serviced at Authorized Dealer)
Front Turn Signal Lamp PWY24W SV
Side Marker Lamp W3W
Front Park Lamp LED (Serviced at Authorized Dealer)
Front Fog Lamp H11
LED Front Fog Lamp LED (Serviced at Authorized Dealer)
Center High Mounted Stop (CHMSL) Lamp LED (Serviced at Authorized Dealer)
Stop/Turn Signal Lamp W21W
Rear Tail/Side Marker Lamp LED (Serviced at Authorized Dealer)
Backup Lamp 921
License Lamp W5W
638 MAINTAINING YOUR VEHICLE
Page 641 of 698
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamps
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off. Because of this, you should
not attempt to service a HID headlamp light source
yourself. If an HID headlamp light source fails, take your
vehicle to an authorized dealer for service. NOTE:
On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Rotate the screw on the headlamp access door in the wheel liner to access headlamp assembly.
7
MAINTAINING YOUR VEHICLE 639
Page 642 of 698
2. Reach behind the headlamp housing to access theheadlamp bulb cap.
3. Firmly grasp the headlamp bulb cap and rotate it counterclockwise to unlock it. 4. Firmly grasp the headlamp bulb socket assembly and
rotate counterclockwise to remove from the housing.
Access DoorHeadlamp Bulb Cap
640 MAINTAINING YOUR VEHICLE
Page 643 of 698
5. Disconnect the bulb from the electrical connector andthen connect the replacement bulb.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Headlamp Bulb SocketHeadlamp Bulb
7
MAINTAINING YOUR VEHICLE 641
