CHRYSLER 200 2016 2.G Owners Manual

STORAGE
Glove Compartment
The glove compartment is located on the passenger side
of the instrument panel. Pull on the release handle to
open the glove compartment.
NOTE:The glove compartment handle is equipped with
a lock. To lock the glove compartment, remove the
emergency key from the key fob, insert emergency key
into glove compartment handle lock cylinder and turn
the key to the lock position and remove the key. Use the
reverse sequence to unlock the glove compartment.
Glove Compartment Release Handle
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 299

Console Features
There is a storage compartment located under the center
console armrest.
Pull upward on the release handle, located on the front of
the armrest, to open the storage compartment.The armrest can be slid forward/rearward to allow
driver/passenger comfort position.
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
There is a front center console storage area located under
the center console cupholder.
• To access the front center console storage area push the
release button and pull rearward.
NOTE: The center console cupholder can be placed in
any position to maintain access to the storage area.
Center Console Armrest Storage
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Located inside the center console storage compartment is
a line that indicates how much storage is allowed.
Center Console Cupholder ReleaseFront Center Console Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 301

NOTE:Filling the console storage area above this line
may impede the sliding of the cupholder.
Located inside the front of the console storage area power
cords can be routed from the storage area to the center
console pass-through.
Storage Compartment Fill LineCenter Console Storage Passage
302 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Door Storage
The door panels contain storage areas with a bottle
holder.
Front Center Console Pass-Through
Front Door Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 303

Rear Seat Armrest Storage — If Equipped
For rear passengers there is a storage bin located in the
armrest. Lift upward on the latch to open the storage
compartment.
CARGO AREA FEATURES
Cargo Area — 60/40 Split-Folding Rear Seat — If
Equipped
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling the
seatback loops between the seatbacks and the bolsters.
When the seats are folded down, they provide a continu-
ous, nearly-flat extension of the load floor.
NOTE:The rear seatback loops can be tucked away
when not in use.
Rear Armrest Storage
304 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

After releasing the seatback, it can be folded forward. When the seatback is folded to the upright position, makesure it is latched by strongly pulling on the top of the
seatback above the seat strap.
Rear Seatback LoopsFolded Rear Seatback
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 305

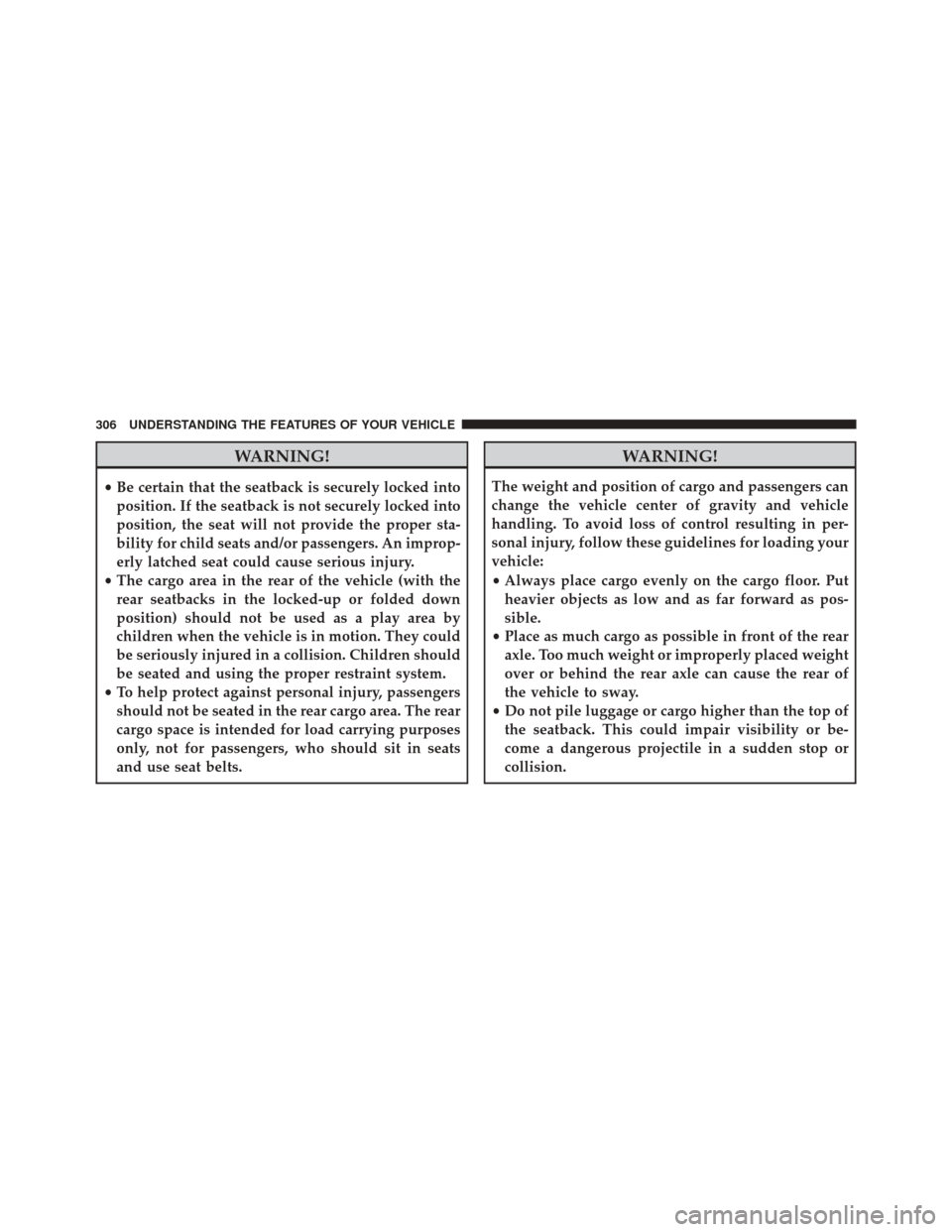

WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position, the seat will not provide the proper sta-
bility for child seats and/or passengers. An improp-
erly latched seat could cause serious injury.
• The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in a collision. Children should
be seated and using the proper restraint system.
• To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats
and use seat belts.
WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
• Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as pos-
sible.
• Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of
the vehicle to sway.
• Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
306 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Grocery Bag Hooks
The rear cargo area is equipped with grocery bag hooks,
located on either side of the rear cargo area.
CAUTION!
Do not exceed the maximum weight limit 35 lbs
(16 kg) of the grocery bag hook. Damage may occur to
hook and mounting surface.
Grocery Bag Hooks
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 307

Ski Pass-Through
There is a ski pass-through door located behind the rear
seat armrest that allows longer items, such as snow skis,
to be stored in the rear cargo area. Lower the armrest and
pull downward on the latch to open the ski pass-through
door.
REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on
the climate control. Push this button to turn on the
rear window defroster and the heated outside mirrors (if
equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately 15
minutes. For an additional 5 minutes of operation, push
the button a second time.
Ski Pass-Through
308 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
