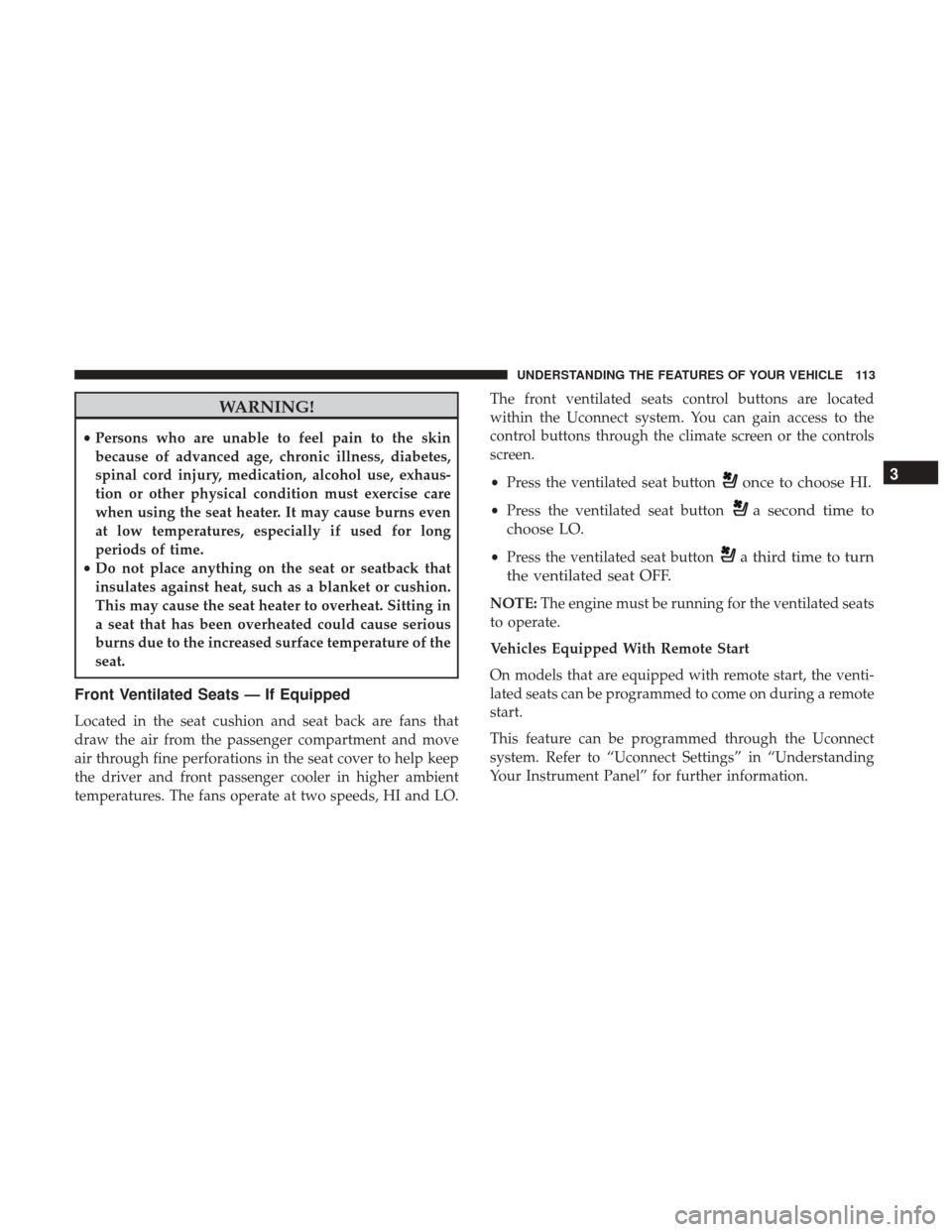

WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of the
seat.
Front Ventilated Seats — If Equipped
Located in the seat cushion and seat back are fans that
draw the air from the passenger compartment and move
air through fine perforations in the seat cover to help keep
the driver and front passenger cooler in higher ambient
temperatures. The fans operate at two speeds, HI and LO. The front ventilated seats control buttons are located
within the Uconnect system. You can gain access to the
control buttons through the climate screen or the controls
screen.
•
Press the ventilated seat button
once to choose HI.
•Press the ventilated seat buttona second time to
choose LO.
• Press the ventilated seat buttona third time to turn
the ventilated seat OFF.
NOTE: The engine must be running for the ventilated seats
to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the venti-
lated seats can be programmed to come on during a remote
start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

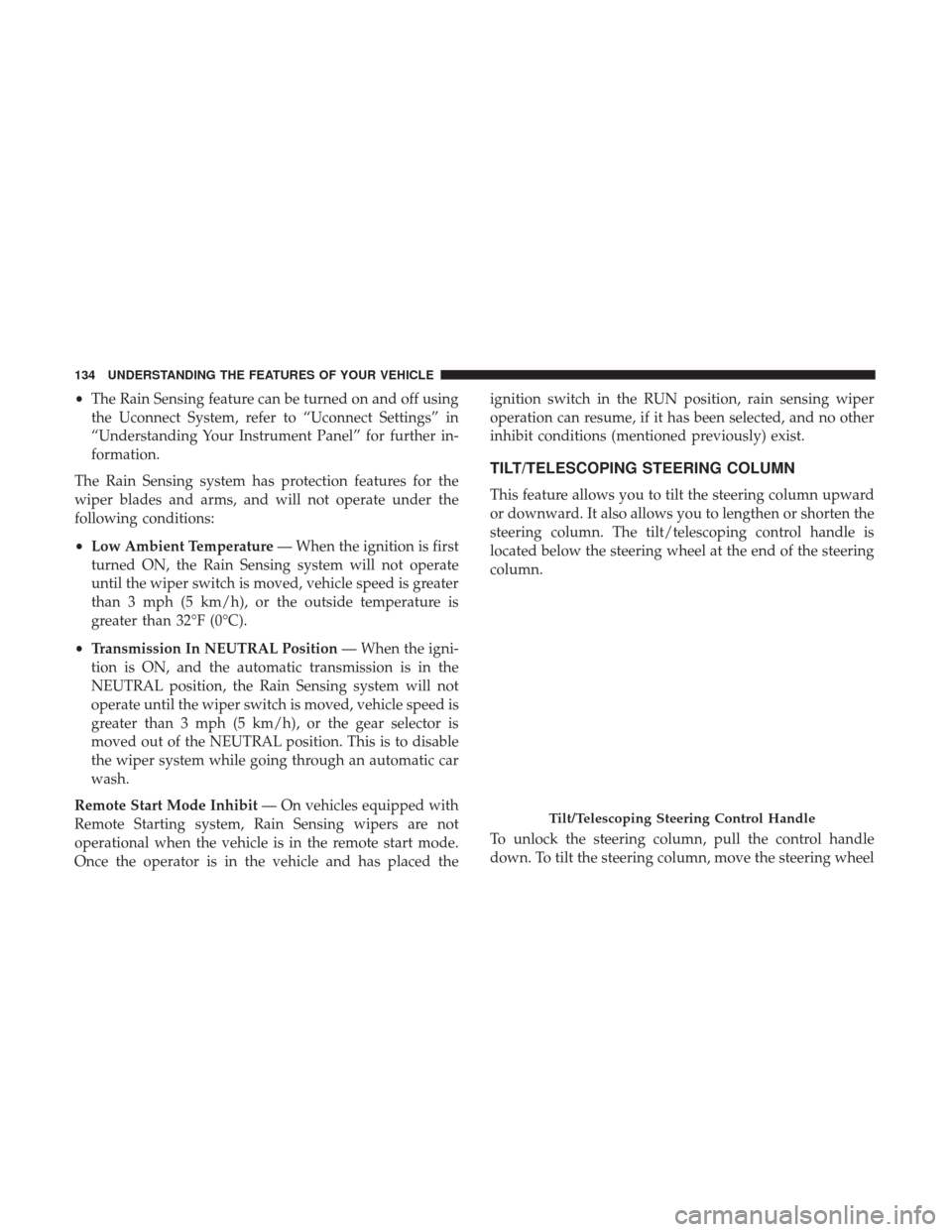

•The Rain Sensing feature can be turned on and off using
the Uconnect System, refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:
• Low Ambient Temperature — When the ignition is first
turned ON, the Rain Sensing system will not operate
until the wiper switch is moved, vehicle speed is greater
than 3 mph (5 km/h), or the outside temperature is
greater than 32°F (0°C).
• Transmission In NEUTRAL Position — When the igni-
tion is ON, and the automatic transmission is in the
NEUTRAL position, the Rain Sensing system will not
operate until the wiper switch is moved, vehicle speed is
greater than 3 mph (5 km/h), or the gear selector is
moved out of the NEUTRAL position. This is to disable
the wiper system while going through an automatic car
wash.
Remote Start Mode Inhibit — On vehicles equipped with
Remote Starting system, Rain Sensing wipers are not
operational when the vehicle is in the remote start mode.
Once the operator is in the vehicle and has placed the ignition switch in the RUN position, rain sensing wiper
operation can resume, if it has been selected, and no other
inhibit conditions (mentioned previously) exist.
TILT/TELESCOPING STEERING COLUMN
This feature allows you to tilt the steering column upward
or downward. It also allows you to lengthen or shorten the
steering column. The tilt/telescoping control handle is
located below the steering wheel at the end of the steering
column.
To unlock the steering column, pull the control handle
down. To tilt the steering column, move the steering wheel
Tilt/Telescoping Steering Control Handle
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

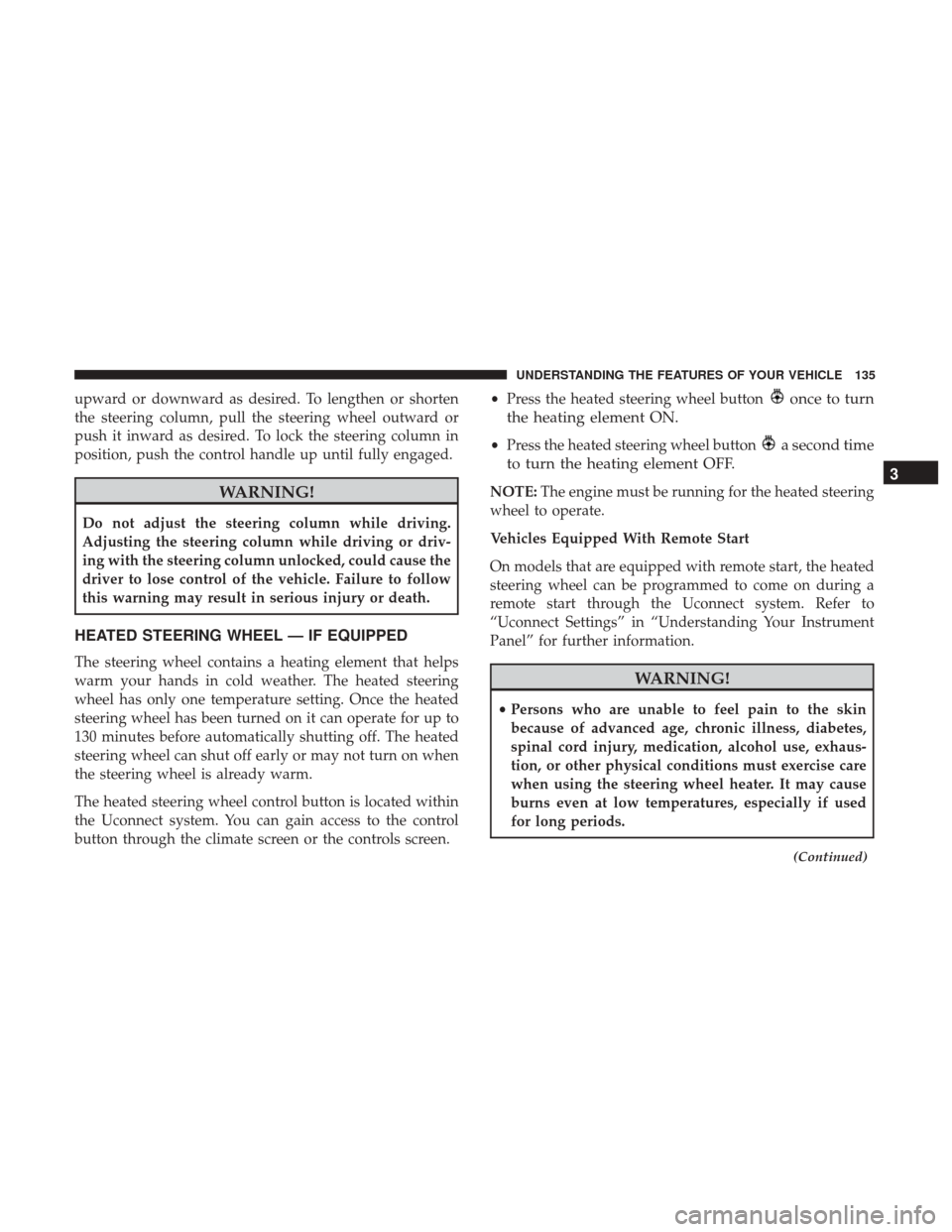

upward or downward as desired. To lengthen or shorten
the steering column, pull the steering wheel outward or
push it inward as desired. To lock the steering column in
position, push the control handle up until fully engaged.
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.
HEATED STEERING WHEEL — IF EQUIPPED
The steering wheel contains a heating element that helps
warm your hands in cold weather. The heated steering
wheel has only one temperature setting. Once the heated
steering wheel has been turned on it can operate for up to
130 minutes before automatically shutting off. The heated
steering wheel can shut off early or may not turn on when
the steering wheel is already warm.
The heated steering wheel control button is located within
the Uconnect system. You can gain access to the control
button through the climate screen or the controls screen.•
Press the heated steering wheel button
once to turn
the heating element ON.
• Press the heated steering wheel buttona second time
to turn the heating element OFF.
NOTE: The engine must be running for the heated steering
wheel to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
steering wheel can be programmed to come on during a
remote start through the Uconnect system. Refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion, or other physical conditions must exercise care
when using the steering wheel heater. It may cause
burns even at low temperatures, especially if used
for long periods.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

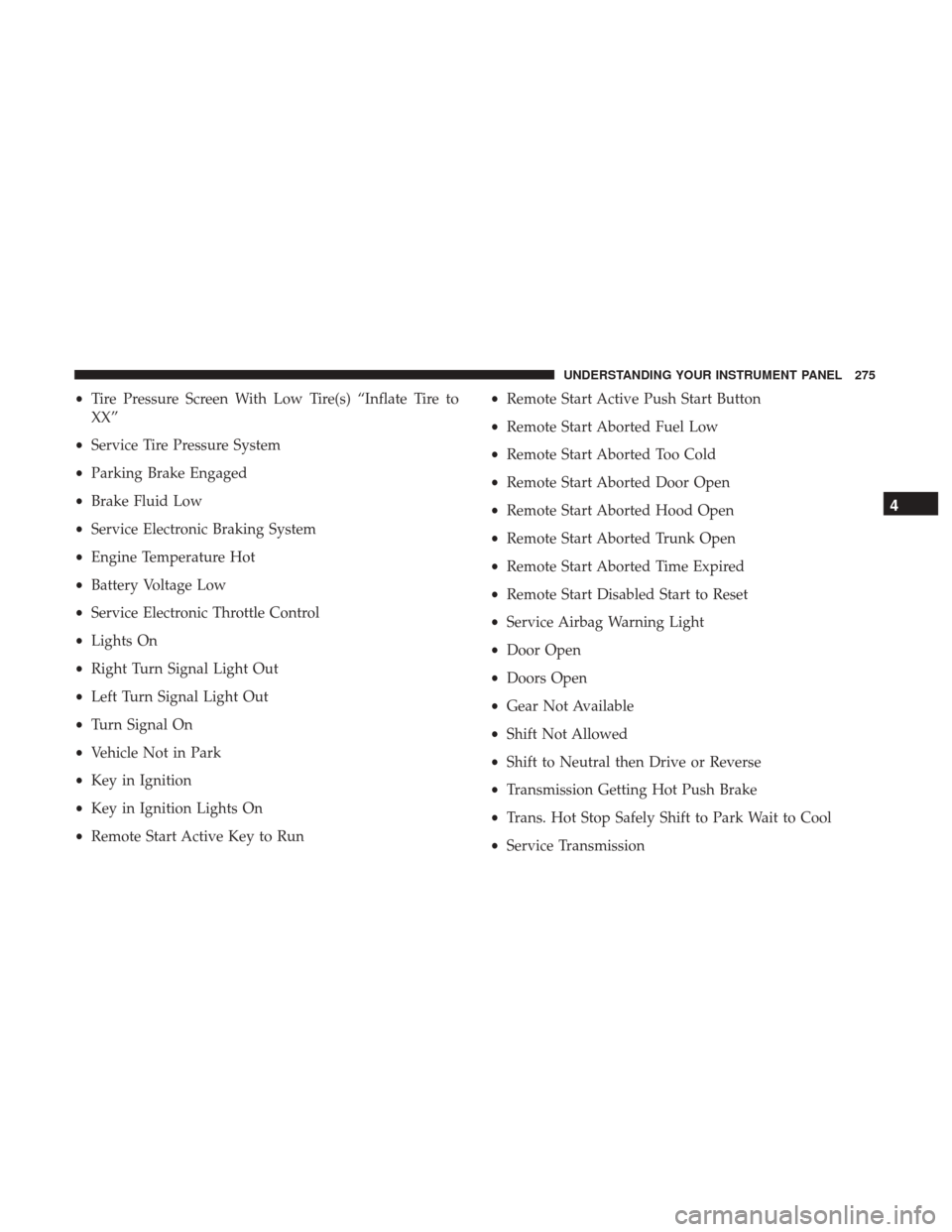

•Tire Pressure Screen With Low Tire(s) “Inflate Tire to
XX”
• Service Tire Pressure System
• Parking Brake Engaged
• Brake Fluid Low
• Service Electronic Braking System
• Engine Temperature Hot
• Battery Voltage Low
• Service Electronic Throttle Control
• Lights On
• Right Turn Signal Light Out
• Left Turn Signal Light Out
• Turn Signal On
• Vehicle Not in Park
• Key in Ignition
• Key in Ignition Lights On
• Remote Start Active Key to Run •
Remote Start Active Push Start Button
• Remote Start Aborted Fuel Low
• Remote Start Aborted Too Cold
• Remote Start Aborted Door Open
• Remote Start Aborted Hood Open
• Remote Start Aborted Trunk Open
• Remote Start Aborted Time Expired
• Remote Start Disabled Start to Reset
• Service Airbag Warning Light
• Door Open
• Doors Open
• Gear Not Available
• Shift Not Allowed
• Shift to Neutral then Drive or Reverse
• Transmission Getting Hot Push Brake
• Trans. Hot Stop Safely Shift to Park Wait to Cool
• Service Transmission
4
UNDERSTANDING YOUR INSTRUMENT PANEL 275

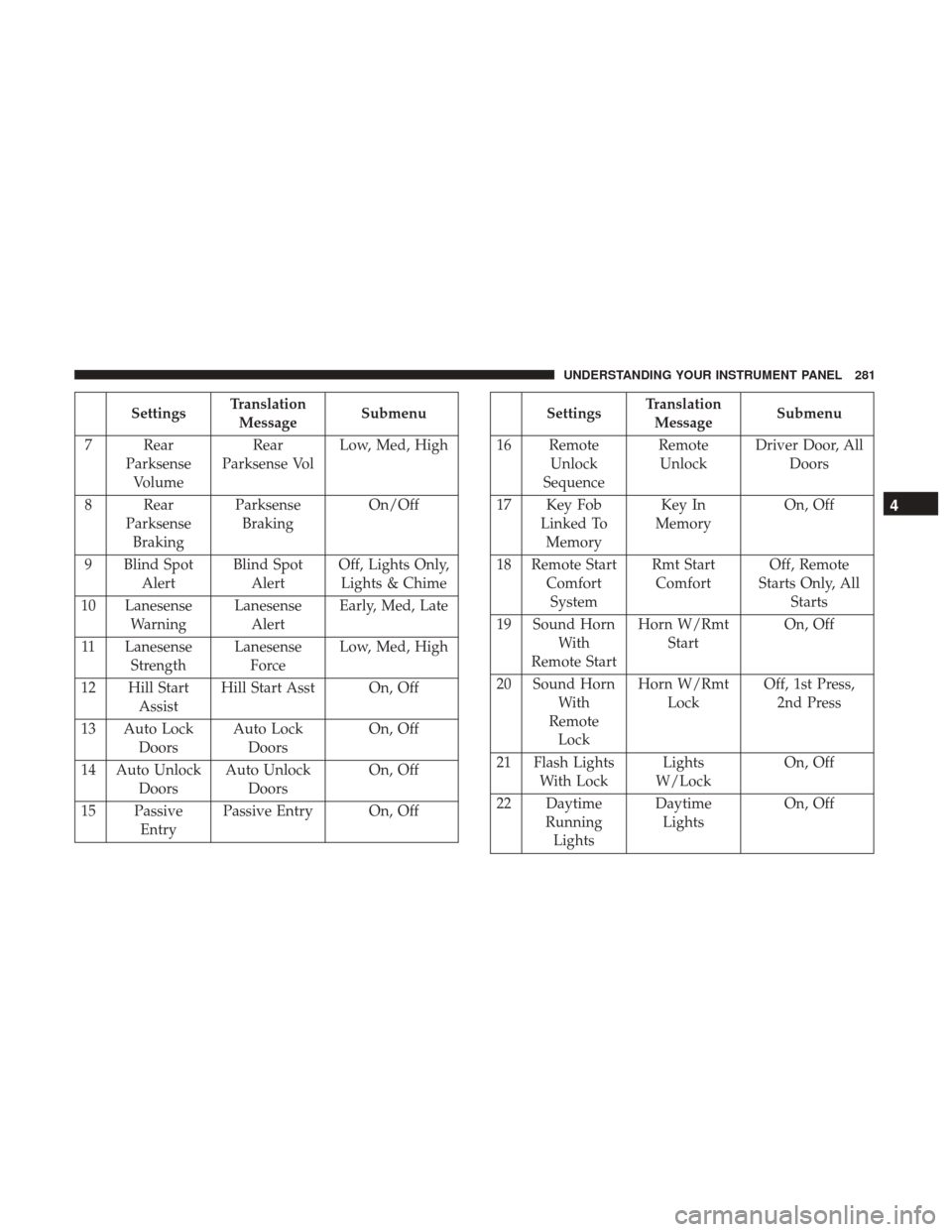

SettingsTranslation
Message Submenu
7 Rear ParksenseVolume Rear
Parksense Vol Low, Med, High
8 Rear ParksenseBraking Parksense
Braking On/Off
9 Blind Spot Alert Blind Spot
Alert Off, Lights Only,
Lights & Chime
10 Lanesense Warning Lanesense
Alert Early, Med, Late
11 Lanesense Strength Lanesense
Force Low, Med, High
12 Hill Start Assist Hill Start Asst On, Off
13 Auto Lock Doors Auto Lock
Doors On, Off
14 Auto Unlock Doors Auto Unlock
Doors On, Off
15 Passive Entry Passive Entry On, OffSettings
Translation
Message Submenu
16 Remote Unlock
Sequence Remote
Unlock Driver Door, All
Doors
17 Key Fob Linked ToMemory Key In
Memory On, Off
18 Remote Start ComfortSystem Rmt Start
Comfort Off, Remote
Starts Only, All Starts
19 Sound Horn With
Remote Start Horn W/Rmt
Start On, Off
20 Sound Horn With
Remote Lock Horn W/Rmt
Lock Off, 1st Press,
2nd Press
21 Flash Lights With Lock Lights
W/Lock On, Off
22 Daytime RunningLights Daytime
Lights On, Off
4
UNDERSTANDING YOUR INSTRUMENT PANEL 281

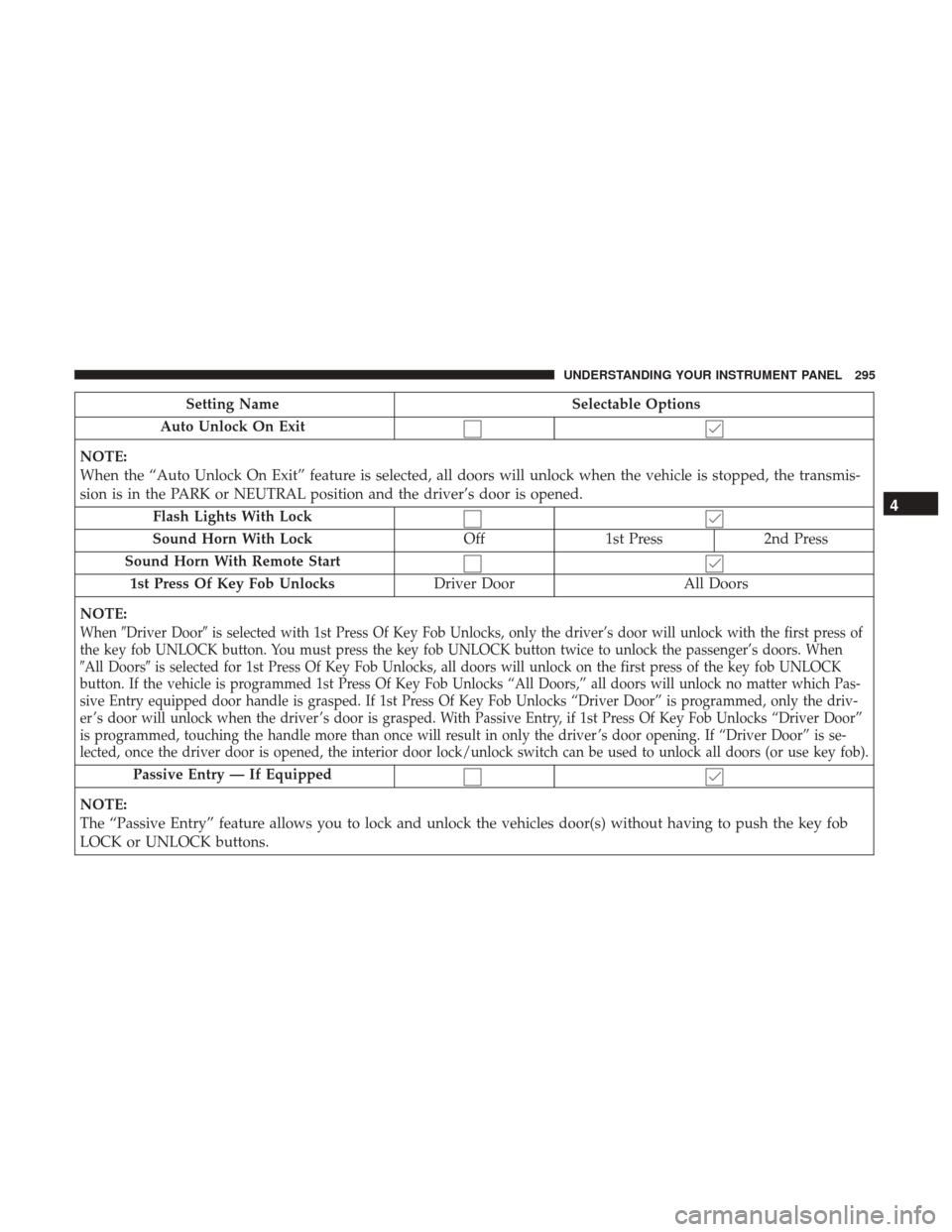

Setting NameSelectable Options
Auto Unlock On Exit
NOTE:
When the “Auto Unlock On Exit” feature is selected, all doors will unlock when the vehicle is stopped, the transmis-
sion is in the PARK or NEUTRAL position and the driver’s door is opened. Flash Lights With Lock
Sound Horn With Lock Off1st Press 2nd Press
Sound Horn With Remote Start 1st Press Of Key Fob Unlocks Driver DoorAll Doors
NOTE:
When Driver Door is selected with 1st Press Of Key Fob Unlocks, only the driver’s door will unlock with the first press of
the key fob UNLOCK button. You must press the key fob UNLOCK button twice to unlock the passenger’s doors. When
All Doors is selected for 1st Press Of Key Fob Unlocks, all doors will unlock on the first press of the key fob UNLOCK
button. If the vehicle is programmed 1st Press Of Key Fob Unlocks “All Doors,” all doors will unlock no matter which Pas-
sive Entry equipped door handle is grasped. If 1st Press Of Key Fob Unlocks “Driver Door” is programmed, only the driv-
er ’s door will unlock when the driver ’s door is grasped. With Passive Entry, if 1st Press Of Key Fob Unlocks “Driver Door”
is programmed, touching the handle more than once will result in only the driver ’s door opening. If “Driver Door” is se-
lected, once the driver door is opened, the interior door lock/unlock switch can be used to unlock all doors (or use key fob).
Passive Entry — If Equipped
NOTE:
The “Passive Entry” feature allows you to lock and unlock the vehicles door(s) without having to push the key fob
LOCK or UNLOCK buttons.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 295

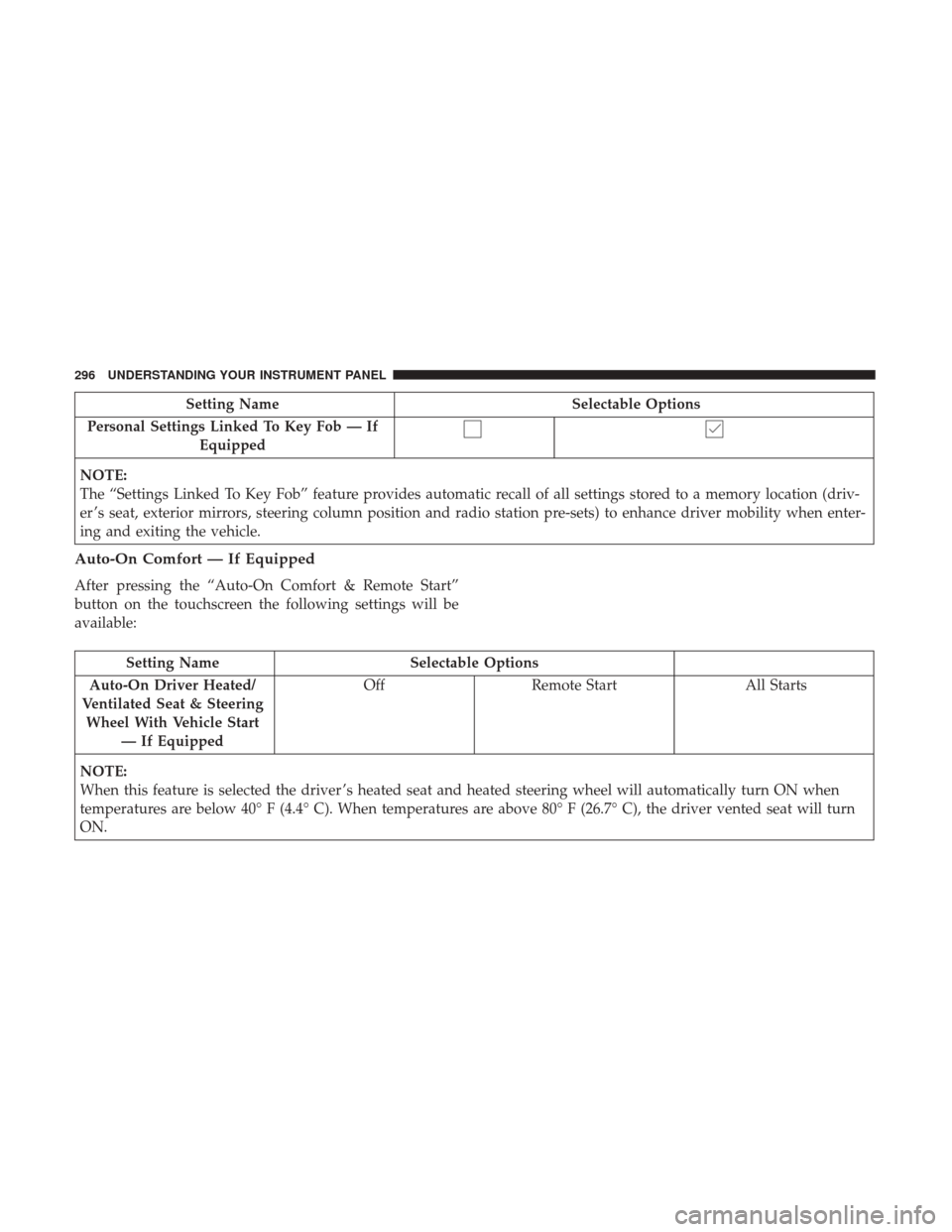

Setting NameSelectable Options
Personal Settings Linked To Key Fob — If Equipped
NOTE:
The “Settings Linked To Key Fob” feature provides automatic recall of all settings stored to a memory location (driv-
er ’s seat, exterior mirrors, steering column position and radio station pre-sets) to enhance driver mobility when enter-
ing and exiting the vehicle.
Auto-On Comfort — If Equipped
After pressing the “Auto-On Comfort & Remote Start”
button on the touchscreen the following settings will be
available:
Setting Name Selectable Options
Auto-On Driver Heated/
Ventilated Seat & Steering Wheel With Vehicle Start — If Equipped Off
Remote Start All Starts
NOTE:
When this feature is selected the driver ’s heated seat and heated steering wheel will automatically turn ON when
temperatures are below 40° F (4.4° C). When temperatures are above 80° F (26.7° C), the driver vented seat will turn
ON.
296 UNDERSTANDING YOUR INSTRUMENT PANEL

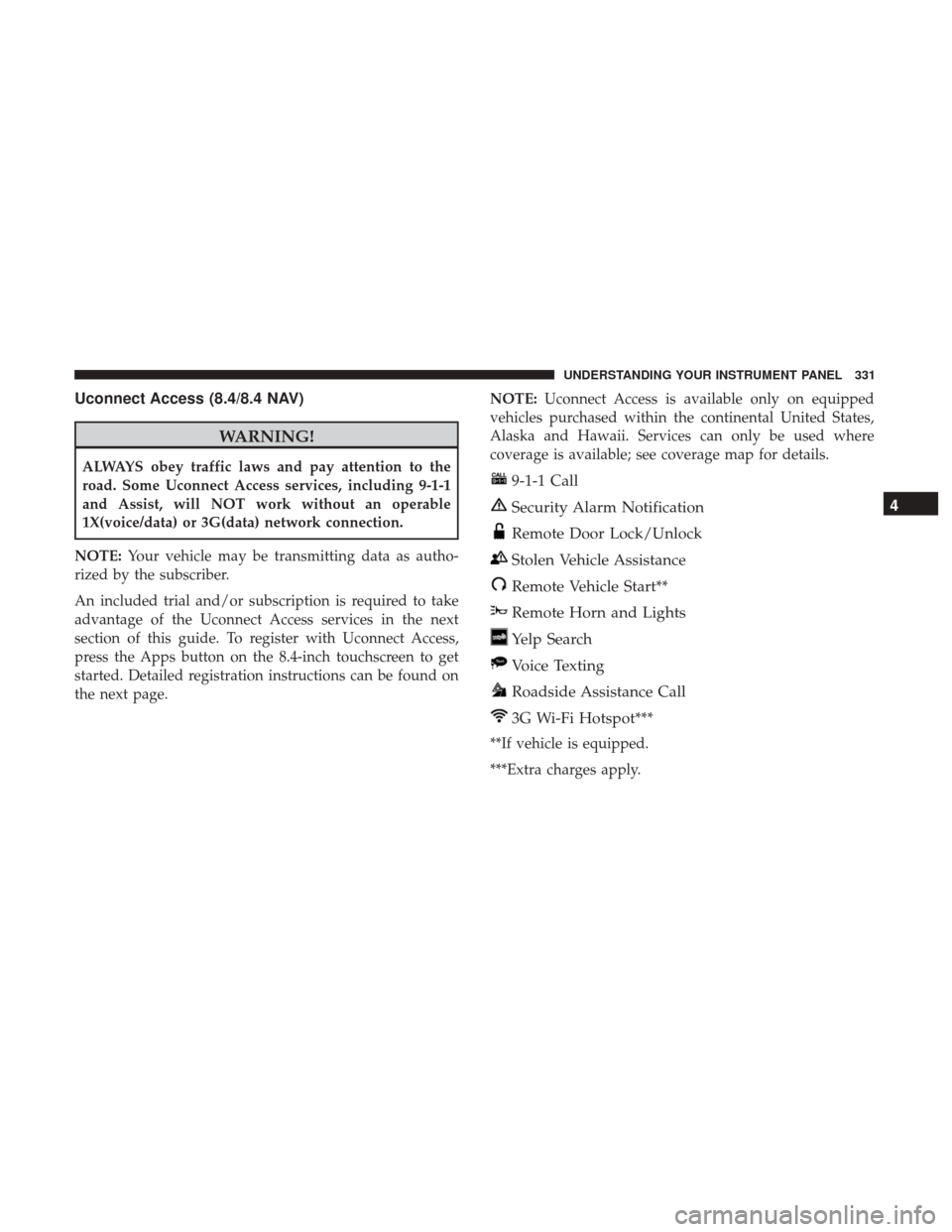

Uconnect Access (8.4/8.4 NAV)
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection.
NOTE: Your vehicle may be transmitting data as autho-
rized by the subscriber.
An included trial and/or subscription is required to take
advantage of the Uconnect Access services in the next
section of this guide. To register with Uconnect Access,
press the Apps button on the 8.4-inch touchscreen to get
started. Detailed registration instructions can be found on
the next page. NOTE:
Uconnect Access is available only on equipped
vehicles purchased within the continental United States,
Alaska and Hawaii. Services can only be used where
coverage is available; see coverage map for details.9-1-1 Call
Security Alarm Notification
Remote Door Lock/Unlock
Stolen Vehicle Assistance
Remote Vehicle Start**
Remote Horn and Lights
Yelp Search
Voice Texting
Roadside Assistance Call
3G Wi-Fi Hotspot***
**If vehicle is equipped.
***Extra charges apply.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 331

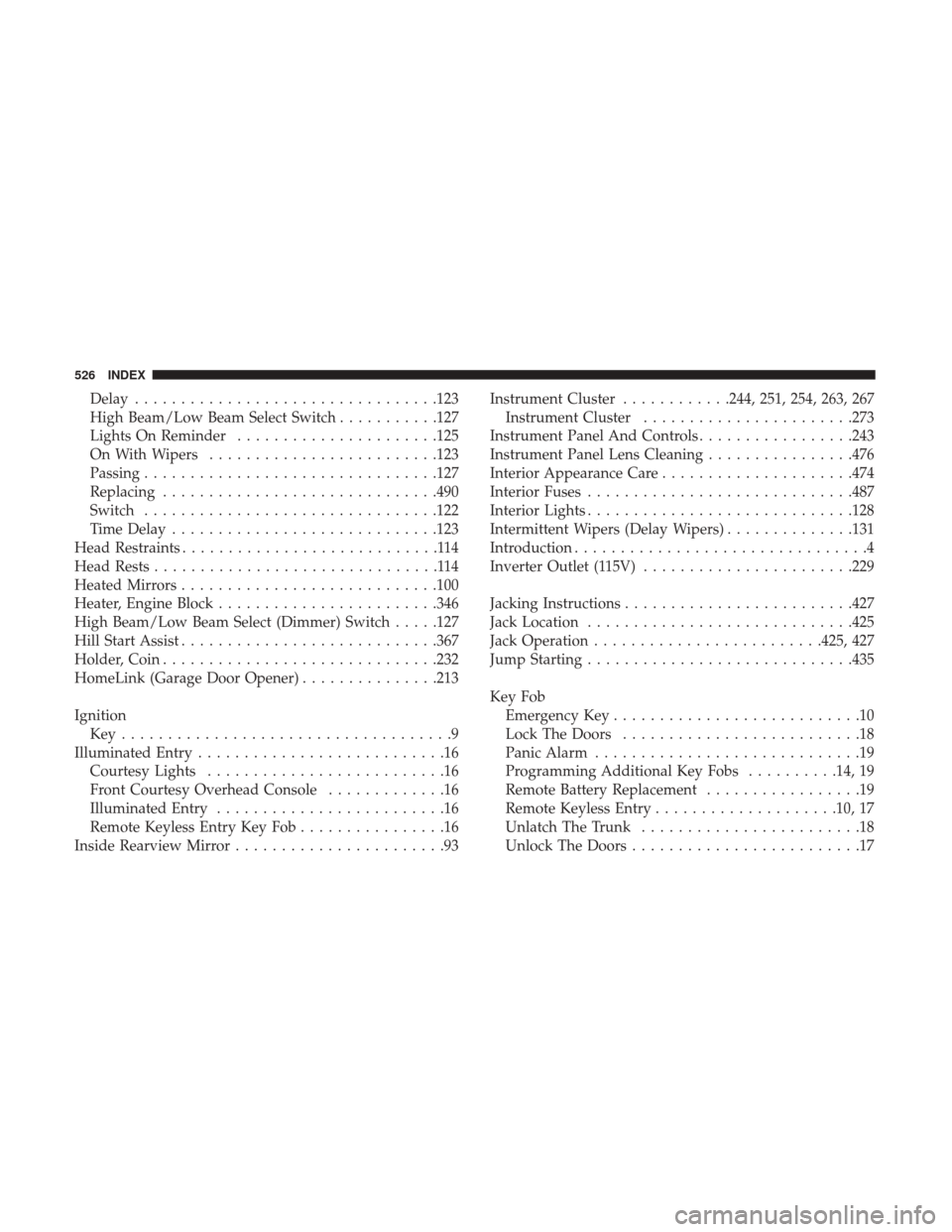

Delay................................ .123
High Beam/Low Beam Select Switch ...........127
Lights On Reminder ..................... .125
On With Wipers ........................ .123
Passing ............................... .127
Replacing ............................. .490
Switch ............................... .122
Time Delay ............................ .123
Head Restraints ............................114
Head Rests ...............................114
Heated Mirrors ........................... .100
Heater, Engine Block ....................... .346
High Beam/Low Beam Select (Dimmer) Switch .....127
Hill Start Assist ........................... .367
Holder, Coin ............................. .232
HomeLink (Garage Door Opener) ...............213
Ignition Key....................................9
Illuminated Entry ...........................16
Courtesy Lights ..........................16
Front Courtesy Overhead Console .............16
Illuminated Entry .........................16
Remote Keyless Entry Key Fob ................16
Inside Rearview Mirror .......................93 Instrument Cluster
............244, 251, 254, 263, 267
Instrument Cluster ...................... .273
Instrument Panel And Controls .................243
Instrument Panel Lens Cleaning ................476
Interior Appearance Care .....................474
Interior Fuses ............................ .487
Interior Lights ............................ .128
Intermittent Wipers (Delay Wipers) ..............131
Introduction ................................4
Inverter Outlet (115V) ...................... .229
Jacking Instructions ........................ .427
Jack Location ............................ .425
Jack Operation ........................ .425, 427
Jump Starting ............................ .435
Key Fob Emer
gency Key ...........................10
Lock The Doors ..........................18
Panic Alarm .............................19
Programming Additional Key Fobs ..........14, 19
Remote Battery Replacement .................19
Remote Keyless Entry ....................10, 17
Unlatch The Trunk ........................18
Unlock The Doors .........................17
526 INDEX

Windows...............................32
Power Seats Down ................................ .109
Forward .............................. .108
Rearward ............................. .108
Up.................................. .109
Pregnant Women And Seat Belts .................44
Preparation For Jacking ..................... .426
Pretensioners Seat Belts ...............................45
Radial Ply Tires ........................... .385
Radiator Cap (Coolant Pressure Cap) .............467
Radio Frequency General Information .............12, 14, 21, 23, 31
Radio Operation .......................... .305
Radio Remote Controls ..................... .304
Radio (Sound Systems) ..................... .303
Rain Sensitive Wiper System ...................133
Rear Camera ............................. .208
Rear Cupholder ........................... .230
Rear ParkSense System ...................168, 175
Rear Seat, Folding ..........................116
Rear Window Defroster ..................... .240
Rear Window Features ...................... .240Recreational Towing
.........................411
Reformulated Gasoline ...................... .400
Refrigerant .............................. .459
Reminder, Lights On ....................... .125
Reminder, Seat Belt ..........................38
Remote Control Starting System ...........................21
Remote Keyless Entry Key Fob Battery Replacement .................19
Lock The Doors ..........................18
Panic Alarm .............................19
Programming Additional Key Fobs ..........14, 19
Remote Battery Replacement .................19
Remote Keyless Entry ....................10, 17
Unlatch The Trunk ........................18
Unlock The Doors .........................17
Remote Sound System (Radio) Controls ...........304
Remote Starting Enter Remote Start Mode ....................22
EVIC

Remote Start Abort Message .............22
Exit Remote Start Mode .....................23
How To Use Remote Start ...................21
Remote Starting System .....................21
To Exit Remote Start Mode And Drive The Vehicle . .23
Remote Starting System .......................21
530 INDEX
