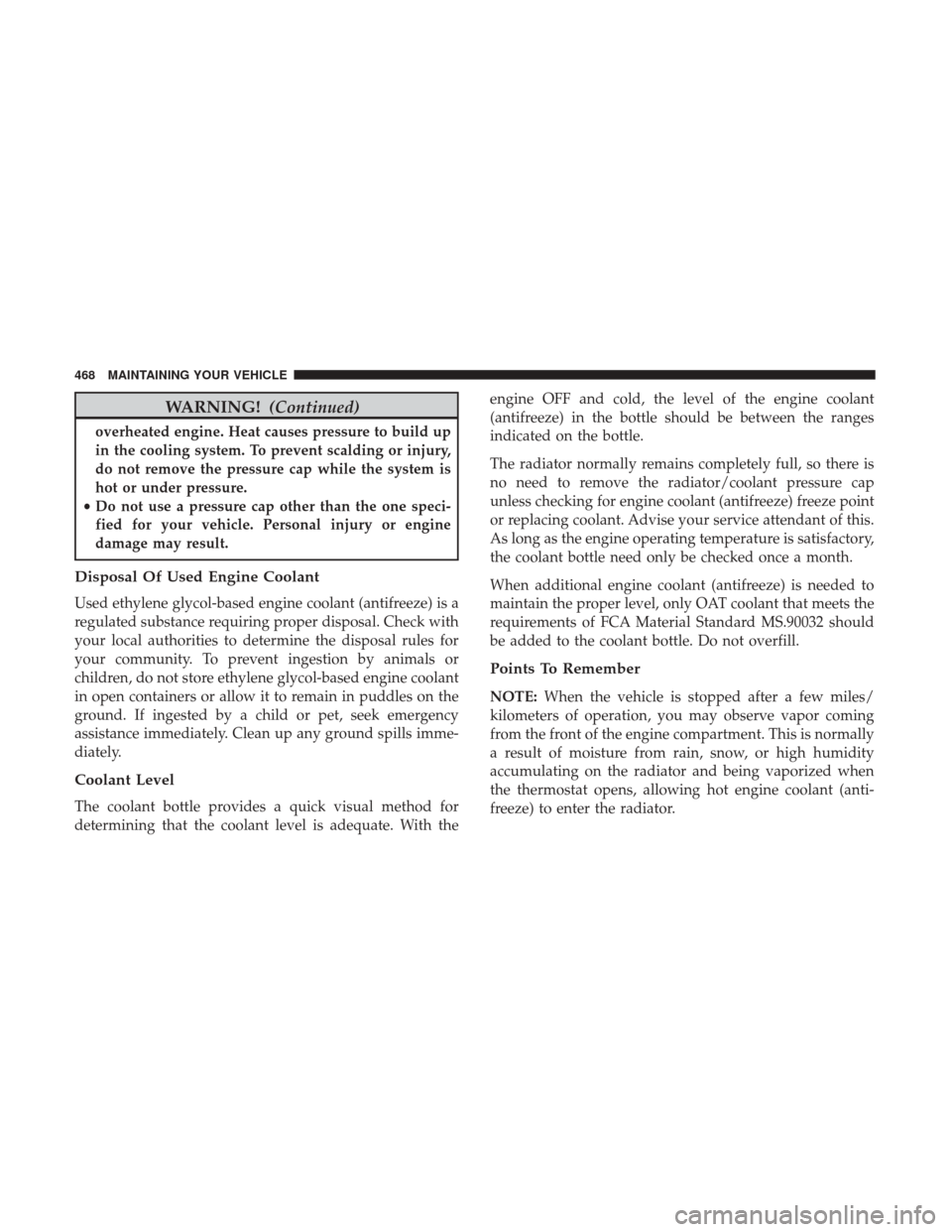

WARNING!(Continued)
overheated engine. Heat causes pressure to build up
in the cooling system. To prevent scalding or injury,
do not remove the pressure cap while the system is
hot or under pressure.
• Do not use a pressure cap other than the one speci-
fied for your vehicle. Personal injury or engine
damage may result.
Disposal Of Used Engine Coolant
Used ethylene glycol-based engine coolant (antifreeze) is a
regulated substance requiring proper disposal. Check with
your local authorities to determine the disposal rules for
your community. To prevent ingestion by animals or
children, do not store ethylene glycol-based engine coolant
in open containers or allow it to remain in puddles on the
ground. If ingested by a child or pet, seek emergency
assistance immediately. Clean up any ground spills imme-
diately.
Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the engine OFF and cold, the level of the engine coolant
(antifreeze) in the bottle should be between the ranges
indicated on the bottle.
The radiator normally remains completely full, so there is
no need to remove the radiator/coolant pressure cap
unless checking for engine coolant (antifreeze) freeze point
or replacing coolant. Advise your service attendant of this.
As long as the engine operating temperature is satisfactory,
the coolant bottle need only be checked once a month.
When additional engine coolant (antifreeze) is needed to
maintain the proper level, only OAT coolant that meets the
requirements of FCA Material Standard MS.90032 should
be added to the coolant bottle. Do not overfill.
Points To Remember
NOTE:
When the vehicle is stopped after a few miles/
kilometers of operation, you may observe vapor coming
from the front of the engine compartment. This is normally
a result of moisture from rain, snow, or high humidity
accumulating on the radiator and being vaporized when
the thermostat opens, allowing hot engine coolant (anti-
freeze) to enter the radiator.
468 MAINTAINING YOUR VEHICLE

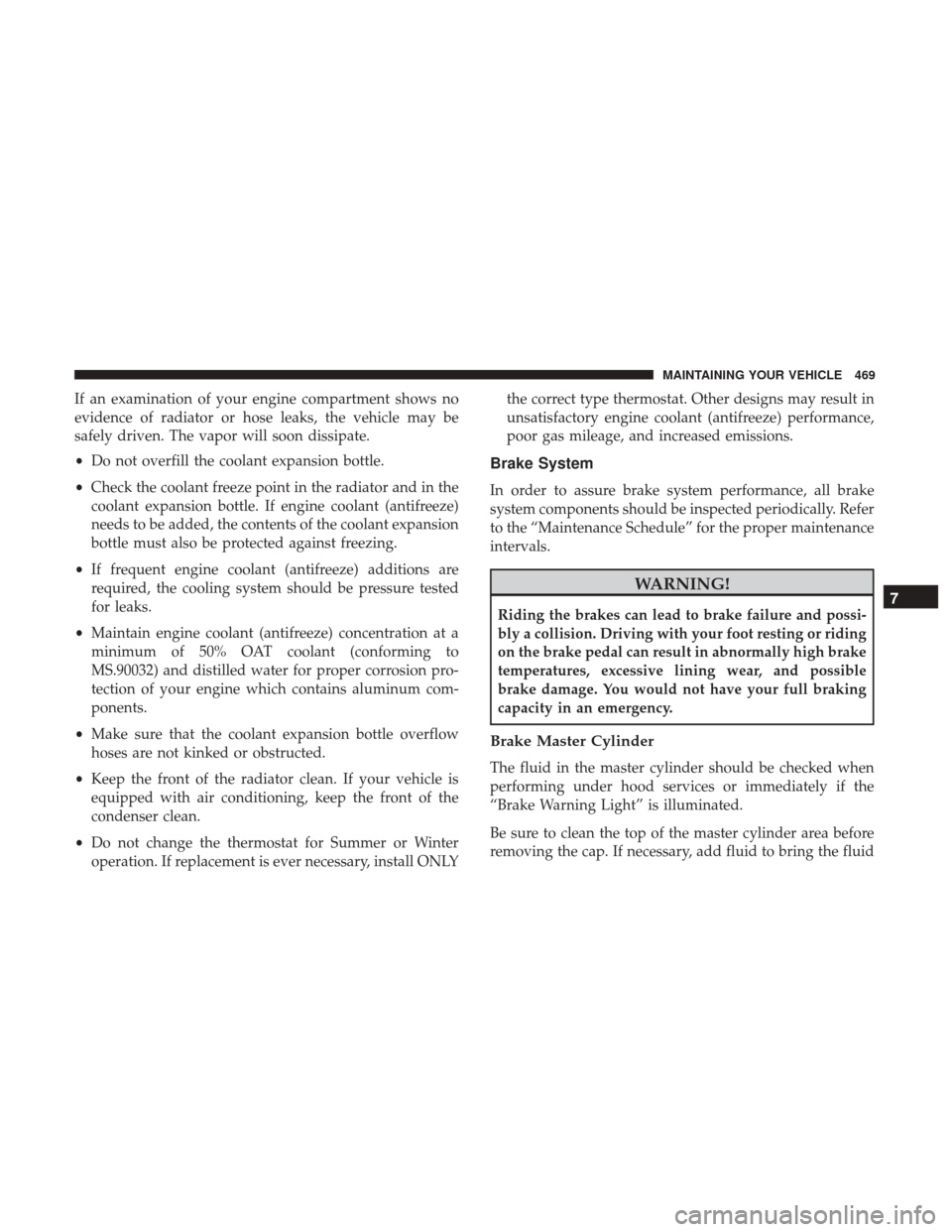

If an examination of your engine compartment shows no
evidence of radiator or hose leaks, the vehicle may be
safely driven. The vapor will soon dissipate.
•Do not overfill the coolant expansion bottle.
• Check the coolant freeze point in the radiator and in the
coolant expansion bottle. If engine coolant (antifreeze)
needs to be added, the contents of the coolant expansion
bottle must also be protected against freezing.
• If frequent engine coolant (antifreeze) additions are
required, the cooling system should be pressure tested
for leaks.
• Maintain engine coolant (antifreeze) concentration at a
minimum of 50% OAT coolant (conforming to
MS.90032) and distilled water for proper corrosion pro-
tection of your engine which contains aluminum com-
ponents.
• Make sure that the coolant expansion bottle overflow
hoses are not kinked or obstructed.
• Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean.
• Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install ONLY the correct type thermostat. Other designs may result in
unsatisfactory engine coolant (antifreeze) performance,
poor gas mileage, and increased emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically. Refer
to the “Maintenance Schedule” for the proper maintenance
intervals.
WARNING!
Riding the brakes can lead to brake failure and possi-
bly a collision. Driving with your foot resting or riding
on the brake pedal can result in abnormally high brake
temperatures, excessive lining wear, and possible
brake damage. You would not have your full braking
capacity in an emergency.
Brake Master Cylinder
The fluid in the master cylinder should be checked when
performing under hood services or immediately if the
“Brake Warning Light” is illuminated.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the fluid
7
MAINTAINING YOUR VEHICLE 469

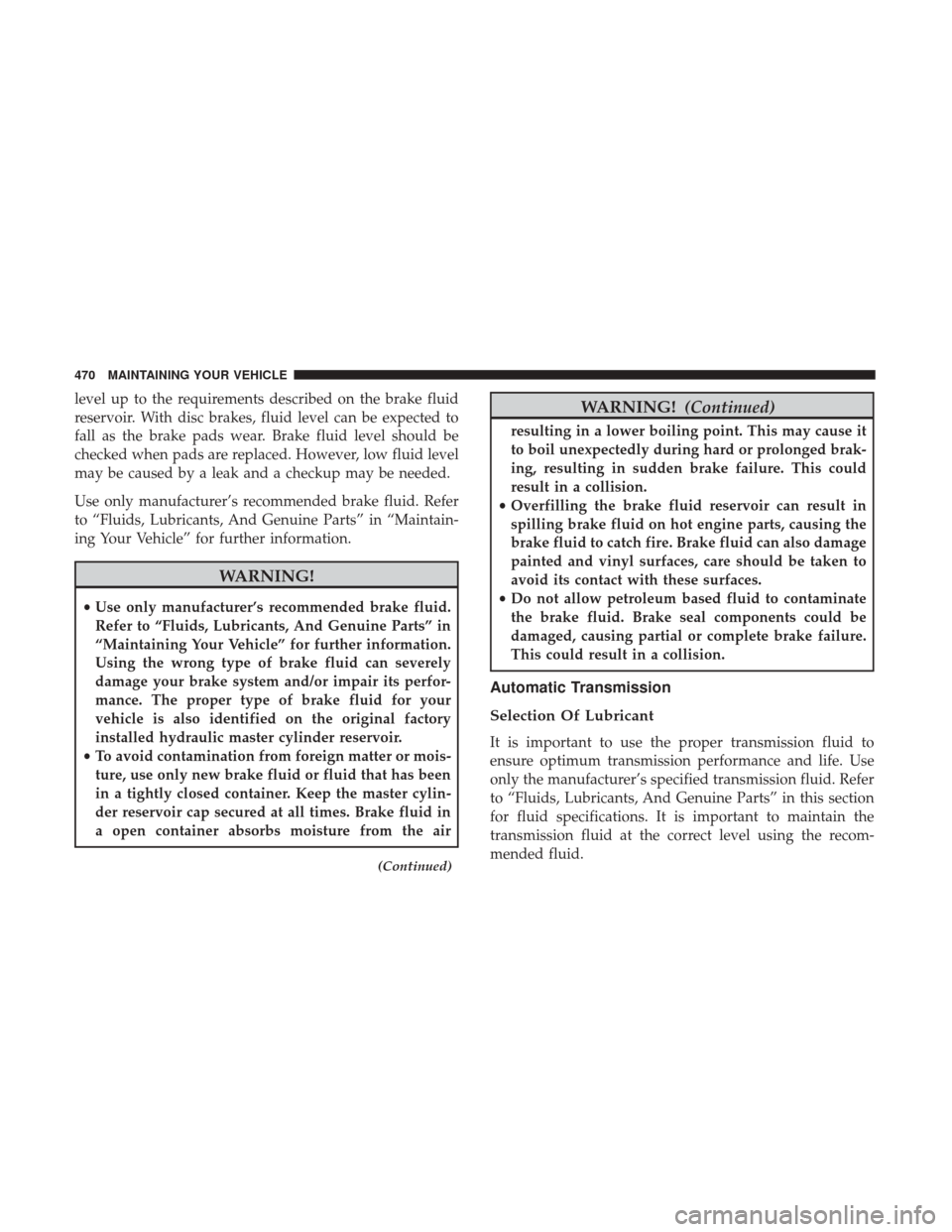

level up to the requirements described on the brake fluid
reservoir. With disc brakes, fluid level can be expected to
fall as the brake pads wear. Brake fluid level should be
checked when pads are replaced. However, low fluid level
may be caused by a leak and a checkup may be needed.
Use only manufacturer’s recommended brake fluid. Refer
to “Fluids, Lubricants, And Genuine Parts” in “Maintain-
ing Your Vehicle” for further information.
WARNING!
•Use only manufacturer’s recommended brake fluid.
Refer to “Fluids, Lubricants, And Genuine Parts” in
“Maintaining Your Vehicle” for further information.
Using the wrong type of brake fluid can severely
damage your brake system and/or impair its perfor-
mance. The proper type of brake fluid for your
vehicle is also identified on the original factory
installed hydraulic master cylinder reservoir.
• To avoid contamination from foreign matter or mois-
ture, use only new brake fluid or fluid that has been
in a tightly closed container. Keep the master cylin-
der reservoir cap secured at all times. Brake fluid in
a open container absorbs moisture from the air
(Continued)
WARNING! (Continued)
resulting in a lower boiling point. This may cause it
to boil unexpectedly during hard or prolonged brak-
ing, resulting in sudden brake failure. This could
result in a collision.
• Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing the
brake fluid to catch fire. Brake fluid can also damage
painted and vinyl surfaces, care should be taken to
avoid its contact with these surfaces.
• Do not allow petroleum based fluid to contaminate
the brake fluid. Brake seal components could be
damaged, causing partial or complete brake failure.
This could result in a collision.
Automatic Transmission
Selection Of Lubricant
It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer’s specified transmission fluid. Refer
to “Fluids, Lubricants, And Genuine Parts” in this section
for fluid specifications. It is important to maintain the
transmission fluid at the correct level using the recom-
mended fluid.
470 MAINTAINING YOUR VEHICLE

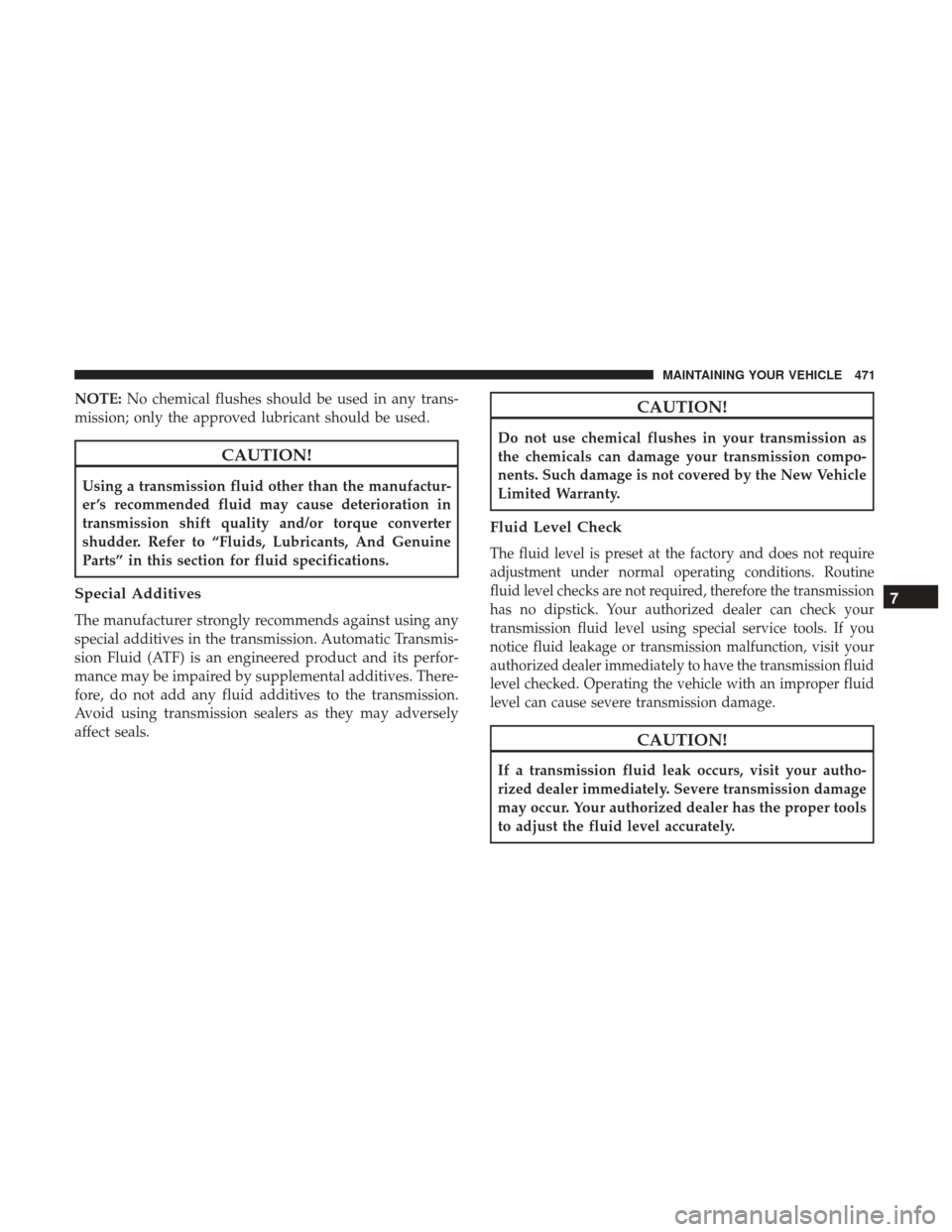

NOTE:No chemical flushes should be used in any trans-
mission; only the approved lubricant should be used.
CAUTION!
Using a transmission fluid other than the manufactur-
er ’s recommended fluid may cause deterioration in
transmission shift quality and/or torque converter
shudder. Refer to “Fluids, Lubricants, And Genuine
Parts” in this section for fluid specifications.
Special Additives
The manufacturer strongly recommends against using any
special additives in the transmission. Automatic Transmis-
sion Fluid (ATF) is an engineered product and its perfor-
mance may be impaired by supplemental additives. There-
fore, do not add any fluid additives to the transmission.
Avoid using transmission sealers as they may adversely
affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New Vehicle
Limited Warranty.
Fluid Level Check
The fluid level is preset at the factory and does not require
adjustment under normal operating conditions. Routine
fluid level checks are not required, therefore the transmission
has no dipstick. Your authorized dealer can check your
transmission fluid level using special service tools. If you
notice fluid leakage or transmission malfunction, visit your
authorized dealer immediately to have the transmission fluid
level checked. Operating the vehicle with an improper fluid
level can cause severe transmission damage.
CAUTION!
If a transmission fluid leak occurs, visit your autho-
rized dealer immediately. Severe transmission damage
may occur. Your authorized dealer has the proper tools
to adjust the fluid level accurately.
7
MAINTAINING YOUR VEHICLE 471

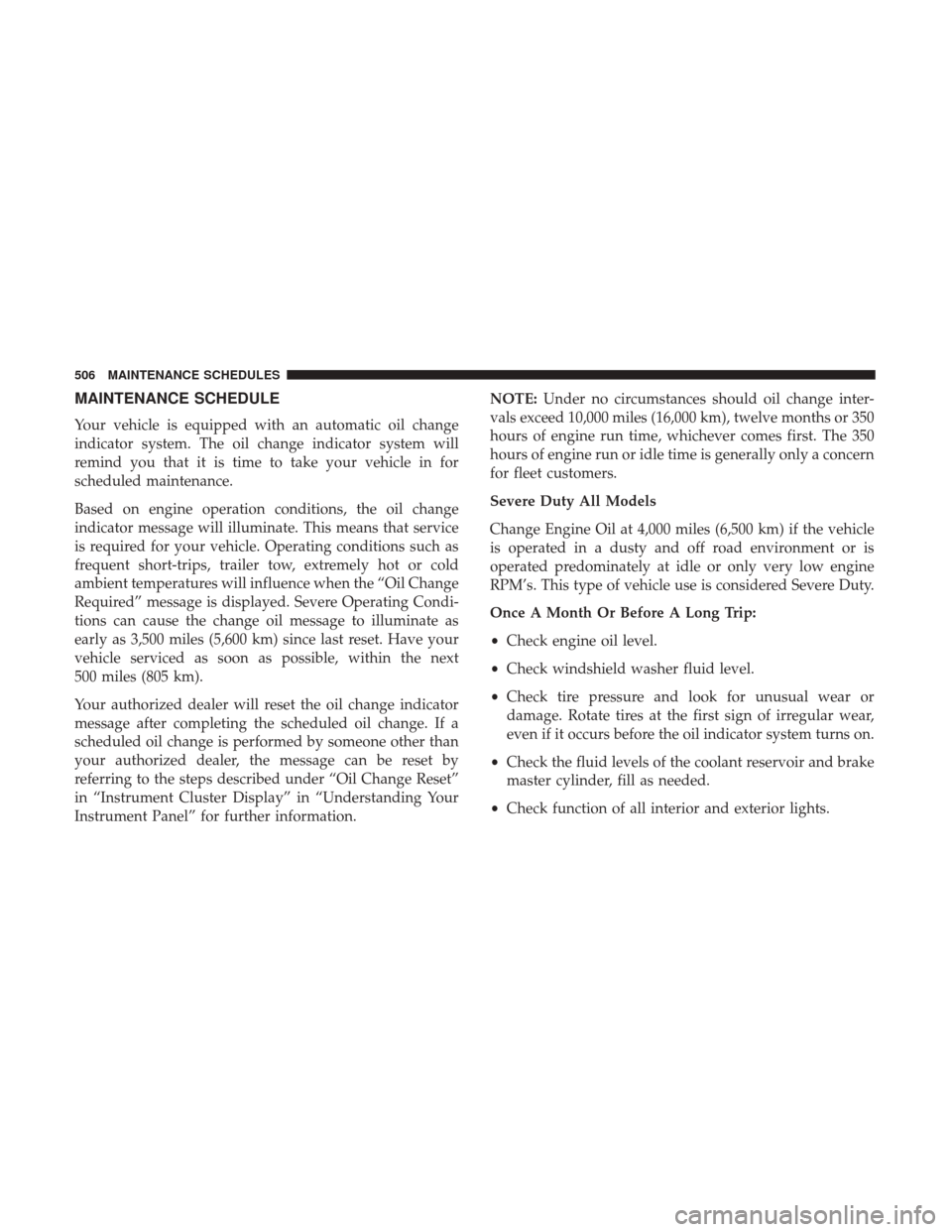

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures will influence when the “Oil Change
Required” message is displayed. Severe Operating Condi-
tions can cause the change oil message to illuminate as
early as 3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next
500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by
referring to the steps described under “Oil Change Reset”
in “Instrument Cluster Display” in “Understanding Your
Instrument Panel” for further information.NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or 350
hours of engine run time, whichever comes first. The 350
hours of engine run or idle time is generally only a concern
for fleet customers.
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment or is
operated predominately at idle or only very low engine
RPM’s. This type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns on.
• Check the fluid levels of the coolant reservoir and brake
master cylinder, fill as needed.
• Check function of all interior and exterior lights.
506 MAINTENANCE SCHEDULES

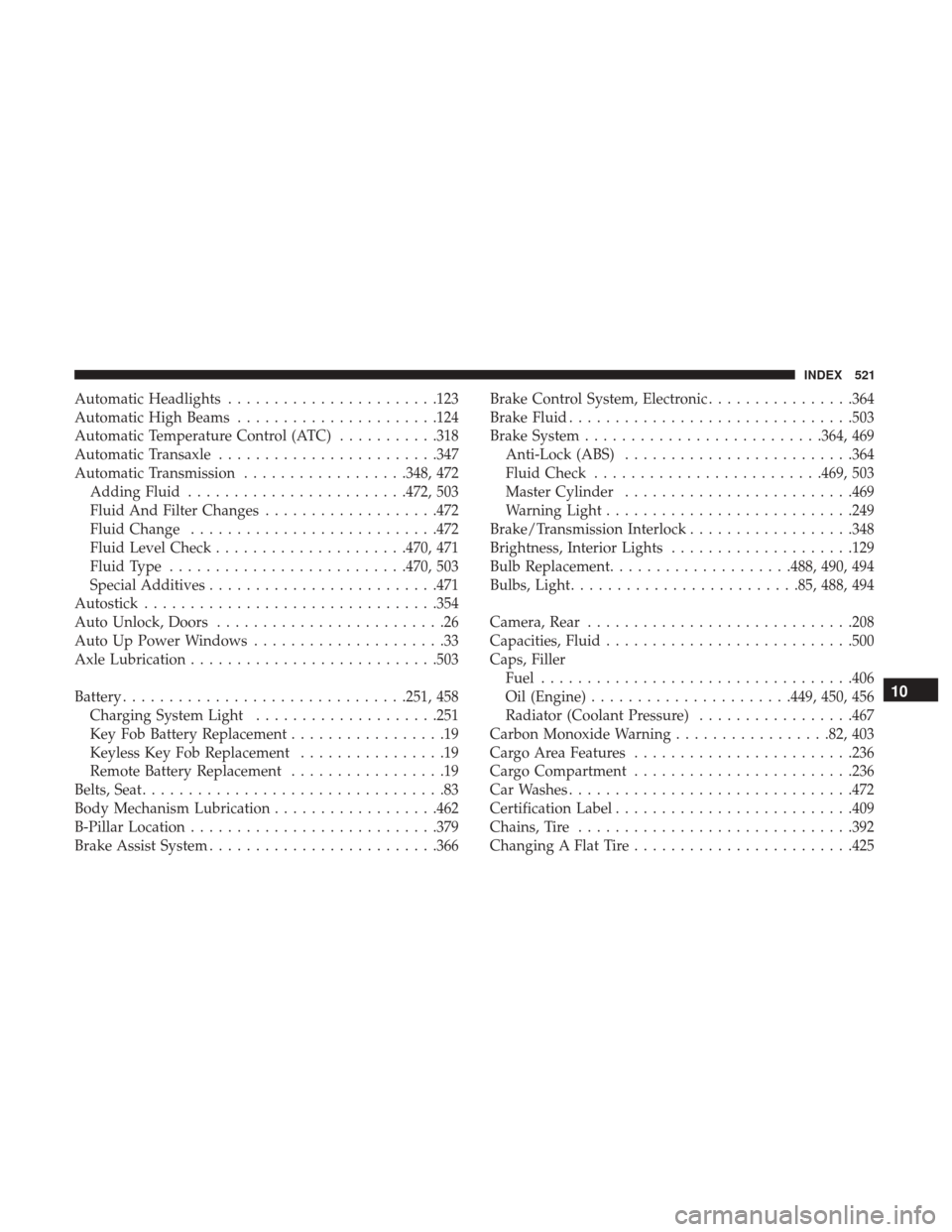

Automatic Headlights...................... .123
Automatic High Beams ..................... .124
Automatic Temperature Control (ATC) ...........318
Automatic Transaxle ....................... .347
Automatic Transmission ..................348, 472
Adding Fluid ....................... .472, 503
Fluid And Filter Changes ...................472
Fluid Change .......................... .472
Fluid Level Check .....................470, 471
Fluid Type ......................... .470, 503
Special Additives ........................ .471
Autostick ............................... .354
Auto Unlock, Doors .........................26
Auto Up Power Windows .....................33
Axle Lubrication .......................... .503
Battery .............................. .251, 458
Charging System Light ....................251
Key Fob Battery Replacement .................19
Keyless Key Fob Replacement ................19
Remote Battery Replacement .................19
Belts, Seat .................................83
Body Mechanism Lubrication ..................462
B-Pillar Location .......................... .379
Brake Assist System ........................ .366Brake Control System, Electronic
................364
Brake Fluid .............................. .503
Brake System ......................... .364, 469
Anti-Lock (ABS) ........................ .364
Fluid Check ........................ .469, 503
Master Cylinder ........................ .469
Warning Light .......................... .249
Brake/Transmission Interlock ..................348
Brightness, Interior Lights ....................129
Bulb Replacement ....................488, 490, 494
Bulbs, Light ........................ .85, 488, 494
Camera, Rear ............................ .208
Capacities,

Fluid .......................... .500
Caps, Filler Fuel ................................. .406
Oil (Engine) ..................... .449, 450, 456
Radiator (Coolant Pressure) .................467
Carbon Monoxide Warning .................82, 403
Cargo Area Features ....................... .236
Cargo Compartment ....................... .236
Car Washes .............................. .472
Certification Label ......................... .409
Chains, Tire ............................. .392
Changing A Flat Tire ....................... .425
10
INDEX 521

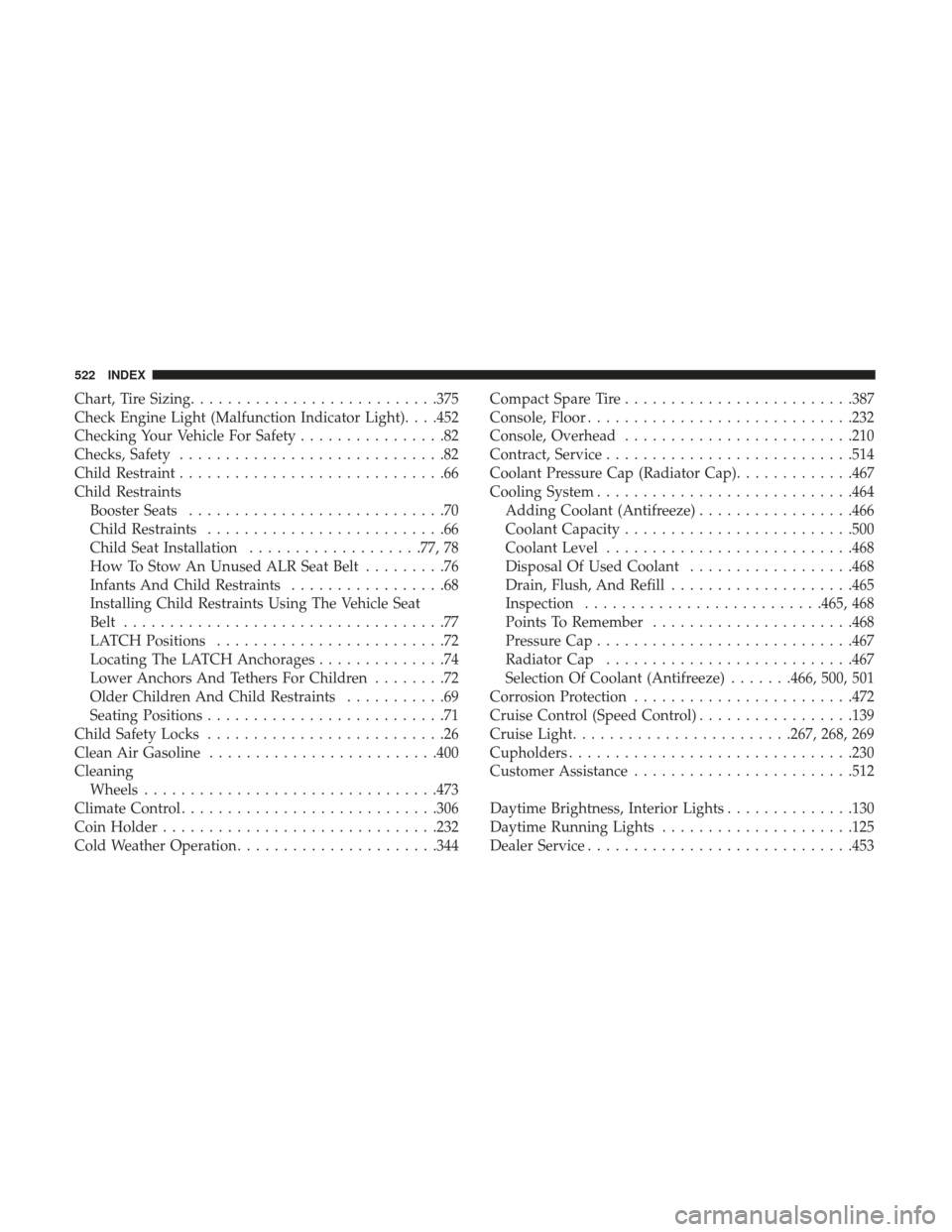

Chart, Tire Sizing.......................... .375
Check Engine Light (Malfunction Indicator Light). . . .452
Checking Your Vehicle For Safety ................82
Checks, Safety .............................82
Child Restraint .............................66
Child Restraints Booster Seats ............................70
Child Restraints ..........................66
Child Seat Installation ...................77, 78
How To Stow An Unused ALR Seat Belt .........76
Infants And Child Restraints .................68
Installing Child Restraints Using The Vehicle Seat
Belt ...................................77
LATCH Positions .........................72
Locating The LATCH Anchorages ..............74
Lower Anchors And Tethers For Children ........72
Older Children And Child Restraints ...........69
Seating Positions ..........................71
Child Safety Locks ..........................26
Clean Air Gasoline ........................ .400
Cleaning Wheels ............................... .473
Climate Control ........................... .306
Coin Holder ............................. .232
Cold Weather Operation ..................... .344Compact Spare Tire
........................ .387
Console, Floor ............................ .232
Console, Overhead ........................ .210
Contract, Service .......................... .514
Coolant Pressure Cap (Radiator Cap) .............467
Cooling System ........................... .464
Adding Coolant (Antifreeze) .................466
Coolant Capacity ........................ .500
Coolant Level .......................... .468
Disposal Of Used Coolant ..................468
Drain, Flush, And Refill ....................465
Inspection ......................... .465, 468
Points To Remember ..................... .468
Pressure Cap ........................... .467
Radiator Cap .......................... .467
Selection Of Coolant (Antifreeze) .......466, 500, 501
Corrosion Protection ....................... .472
Cr
uise Control (Speed Control) .................139
Cruise Light ....................... .267, 268, 269
Cupholders .............................. .230
Customer Assistance ....................... .512
Daytime Brightness, Interior Lights ..............130
Daytime Running Lights .....................125
Dealer Service ............................ .453
522 INDEX

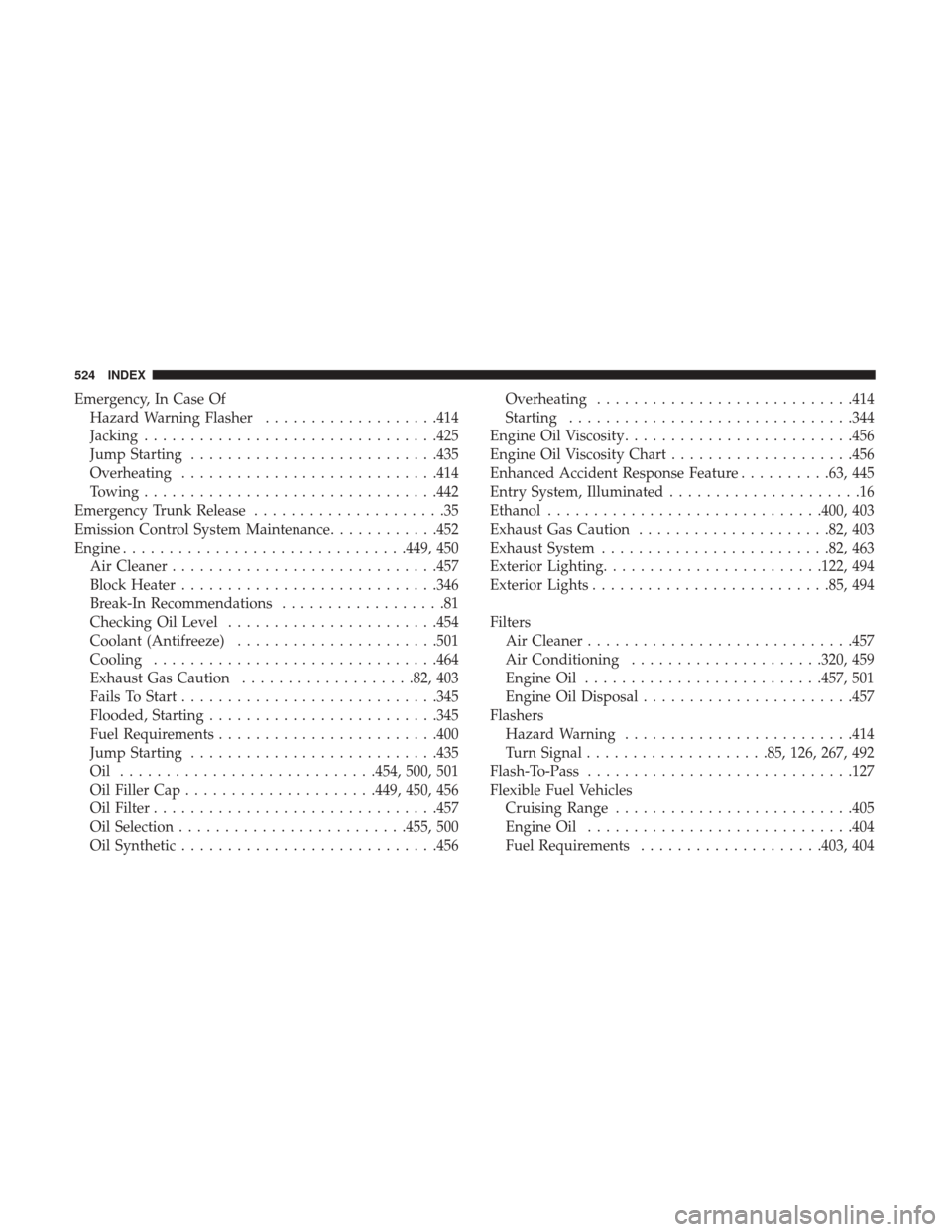

Emergency, In Case OfHazard Warning Flasher ...................414
Jacking ............................... .425
Jump Starting .......................... .435
Overheating ........................... .414
Towing ............................... .442
Emergency Trunk Release .....................35
Emission Control System Maintenance ............452
Engine .............................. .449, 450
Air Cleaner ............................ .457
Block Heater ........................... .346
Break-In Recommendations ..................81
Checking Oil Level ...................... .454
Coolant (Antifreeze) ..................... .501
Cooling .............................. .464
Exhaust Gas Caution ...................82, 403
Fails To Start ........................... .345
Flooded, Starting ........................ .345
Fuel Requirements ....................... .400
Jump Starting .......................... .435
Oil ........................... .454, 500, 501
Oil Filler Cap .....................449, 450, 456
Oil Filter .............................. .457
Oil Selection ........................ .455, 500
Oil Synthetic ........................... .456Overheating
........................... .414
Starting .............................. .344
Engine Oil Viscosity ........................ .456
Engine Oil Viscosity Chart ....................456
Enhanced Accident Response Feature ..........63, 445
Entry System, Illuminated .....................16
Ethanol ............................. .400, 403
Exhaust Gas Caution .....................82, 403
Exhaust System ........................ .82, 463
Exterior Lighting ....................... .122, 494
Exterior Lights ......................... .85, 494
Filters Air

Cleaner ............................ .457
Air Conditioning .....................320, 459
Engine Oil ......................... .457, 501
Engine Oil Disposal ...................... .457
Flashers Hazard Warning ........................ .414
Turn Signal ....................85, 126, 267, 492
Flash-To-Pass ............................ .127

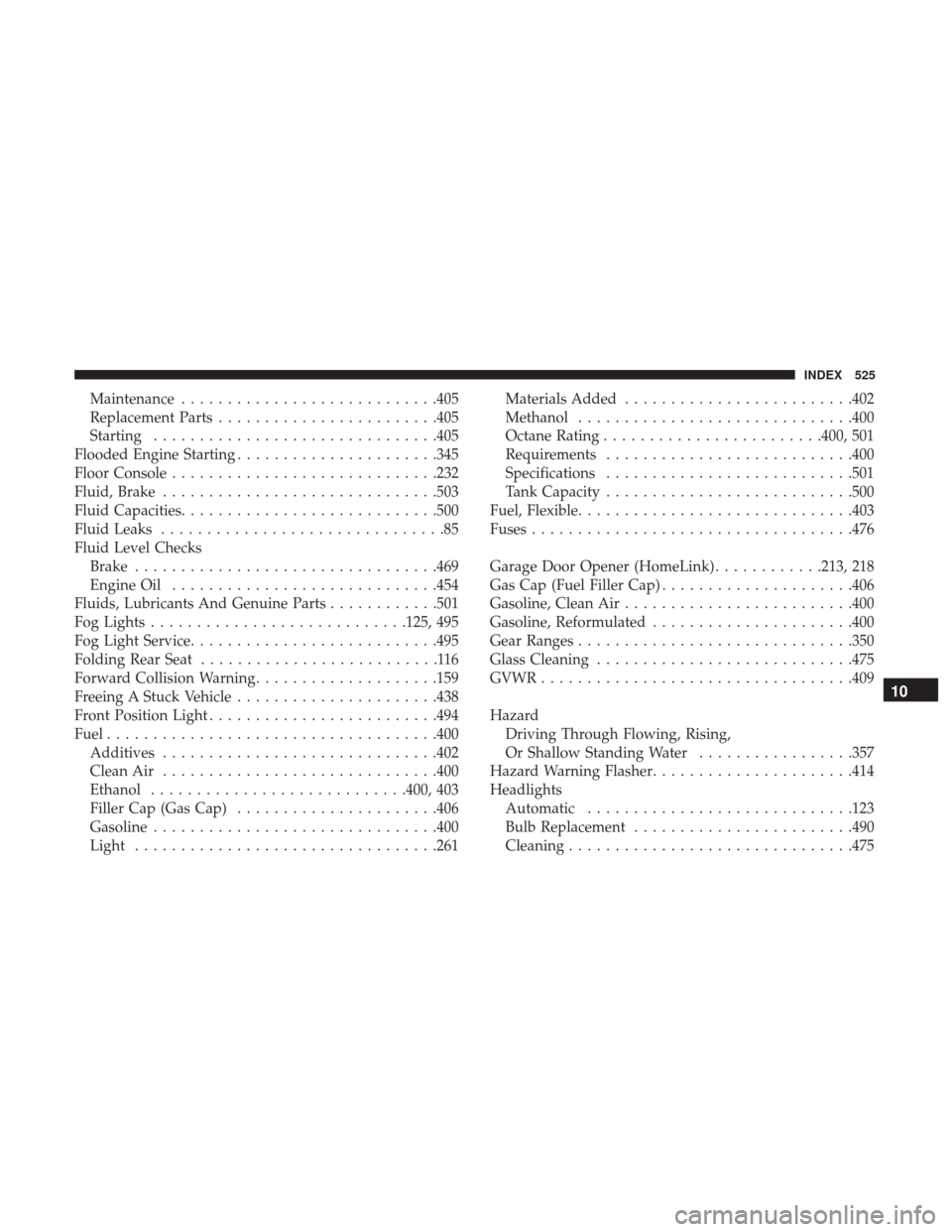

Flexible Fuel Vehicles Cruising Range ......................... .405
Engine Oil ............................ .404
Fuel Requirements ....................403, 404
524 INDEX

Maintenance........................... .405
Replacement Parts ....................... .405
Starting .............................. .405
Flooded Engine Starting ..................... .345
Floor Console ............................ .232
Fluid, Brake ............................. .503
Fluid Capacities ........................... .500
Fluid Leaks ...............................85
Fluid Level Checks Brake ................................ .469
Engine Oil ............................ .454
Fluids, Lubricants And Genuine Parts ............501
Fog Lights ........................... .125, 495
Fog Light Service .......................... .495
Folding Rear Seat ..........................116
Forward Collision Warning ....................159
Freeing A Stuck Vehicle ..................... .438
Front Position Light ........................ .494
Fuel ................................... .400
Additives ............................. .402
Clean Air ............................. .400
Ethanol ........................... .400, 403
Filler Cap (Gas Cap) ..................... .406
Gasoline .............................. .400
Light ................................ .261Materials Added
........................ .402
Methanol ............................. .400
Octane Rating ....................... .400, 501
Requirements .......................... .400
Specifications .......................... .501
Tank Capacity .......................... .500
Fuel, Flexible ............................. .403
Fuses .................................. .476
Garage Door Opener (HomeLink) ............213, 218
Gas Cap (Fuel Filler Cap) .....................406
Gasoline, Clean Air ........................ .400
Gasoline,
Reformulated ..................... .400
Gear Ranges ............................. .350
Glass Cleaning ........................... .475
GVWR ................................. .409
Hazard Driving Through Flowing, Rising,
Or Shallow Standing Water .................357
Hazard Warning Flasher ..................... .414
Headlights Automatic ............................ .123
Bulb Replacement ....................... .490
Cleaning .............................. .475
10
INDEX 525

Intensity Control........................ .129
Interior ............................... .128
License ............................... .499
Lights On Reminder ..................... .125
Low Fuel ............................. .261
Malfunction Indicator (Check Engine) ..........256
Parade Mode (Daytime Brightness) ............130
Park ............................. .265, 266
Passing ............................... .127
Reading ........................... .127, 211
Seat Belt Reminder ...................... .247
Security Alarm ......................... .250
Service ............................... .490
Side Marker ........................ .492, 494
Tire Pressure Monitoring (TPMS) ..........259, 394
Traction Control ........................ .371
Turn Signal ....................85, 126, 267, 492
Vanity Mirror .......................... .100
Warning (Instrument Cluster Description) . . . .251, 267
Loading Vehicle ........................... .409
Tires................................. .379
Locks ....................................23
Automatic Door ..........................26
Auto Unlock .............................26
Child Protection ..........................26 Door
..................................23
Power Door .............................25
Low Tire Pressure System .....................394
Lubrication, Body ......................... .462
Lug Nuts ............................... .415
Maintenance Free Battery .....................458
Maintenance Procedures ..................... .454
Maintenance Schedule ...................... .506
Malfunction Indicator Light (Check Engine) . . . .256, 452
Manual, Service ........................... .516
Marker Lights, Side ........................ .492
Master Cylinder (Brakes) .................... .469
Memory

Feature (Memory Seat) ................117
Memory Seat ..............................117
Memory Seats And Radio .....................117
Methanol ............................... .400
Mirrors ..................................93
Electric Powered ........................ .100
Electric Remote ......................... .100
Exterior Folding ..........................99
Heated ............................... .100
Outside ................................98
Rearview ...............................93
Vanity ............................... .100
Modifications/Alterations, Vehicle ................6
528 INDEX
