windshield wipers CHRYSLER 200 CONVERTIBLE 2011 1.G Owners Manual

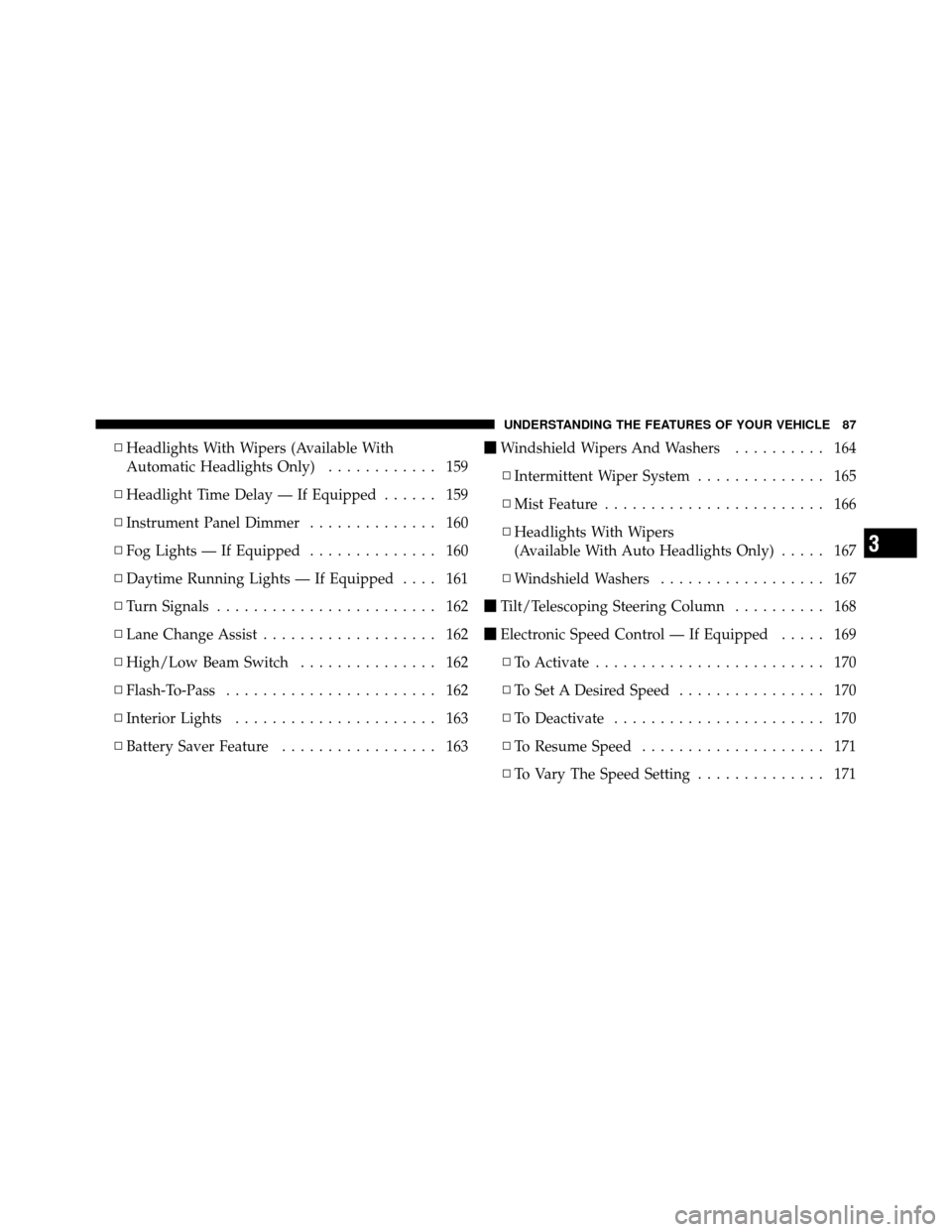

▫Headlights With Wipers (Available With
Automatic Headlights Only) ............ 159
▫ Headlight Time Delay — If Equipped ...... 159
▫ Instrument Panel Dimmer .............. 160
▫ Fog Lights — If Equipped .............. 160
▫ Daytime Running Lights — If Equipped .... 161
▫ Turn Signals ........................ 162
▫ Lane Change Assist ................... 162
▫ High/Low Beam Switch ............... 162
▫ Flash-To-Pass ....................... 162
▫ Interior Lights ...................... 163
▫ Battery Saver Feature ................. 163
Windshield Wipers And Washers .......... 164
▫ Intermittent Wiper System .............. 165
▫ Mist Feature ........................ 166
▫ Headlights With Wipers
(Available With Auto Headlights Only) ..... 167
▫ Windshield Washers .................. 167
 Tilt/Telescoping Steering Column .......... 168
 Electronic Speed Control — If Equipped ..... 169
▫ To Activate ......................... 170
▫ To Set A Desired Speed ................ 170
▫ To Deactivate ....................... 170
▫ To Resume Speed .................... 171
▫ To Vary The Speed Setting .............. 171
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

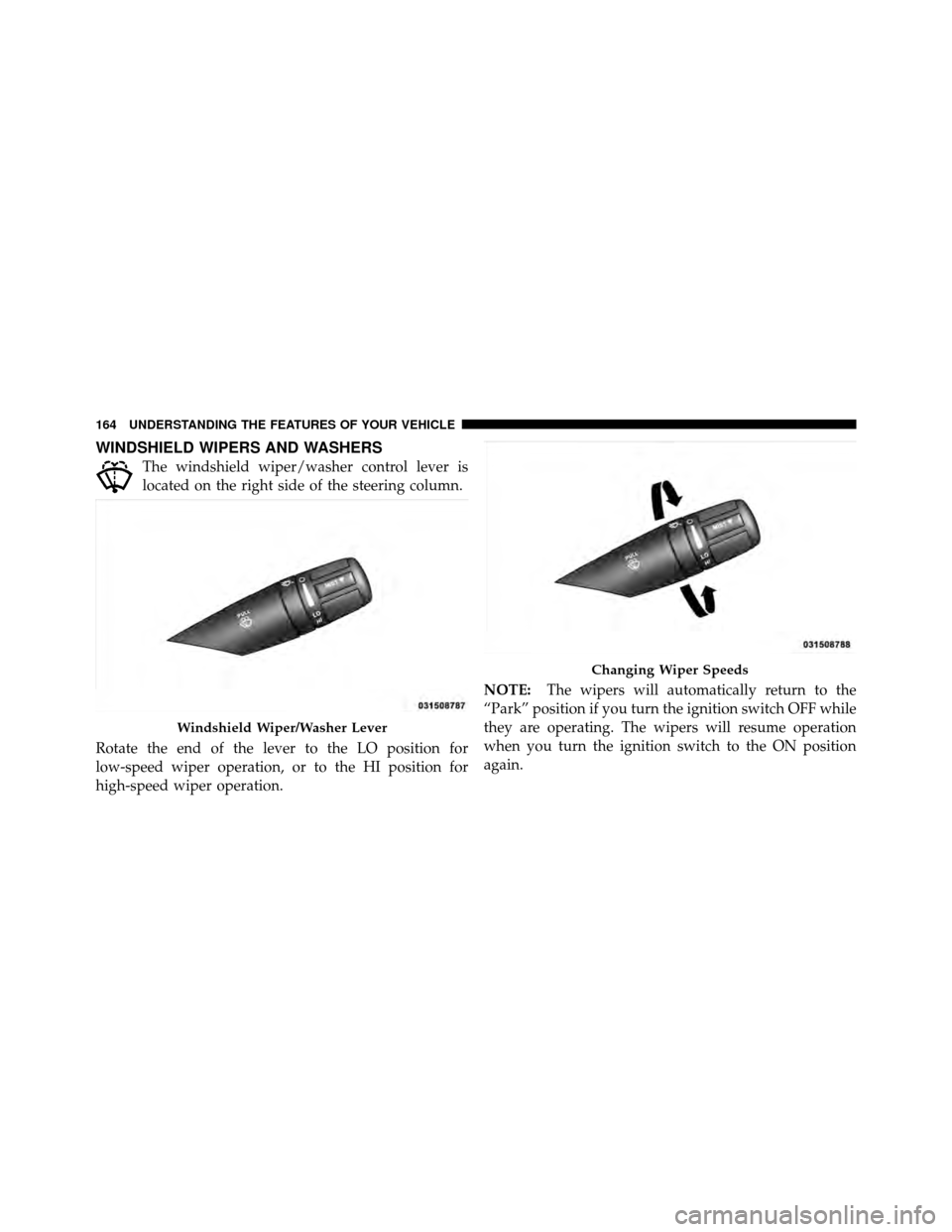

WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is
located on the right side of the steering column.
Rotate the end of the lever to the LO position for
low-speed wiper operation, or to the HI position for
high-speed wiper operation. NOTE:
The wipers will automatically return to the
“Park” position if you turn the ignition switch OFF while
they are operating. The wipers will resume operation
when you turn the ignition switch to the ON position
again.
Windshield Wiper/Washer Lever
Changing Wiper Speeds
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

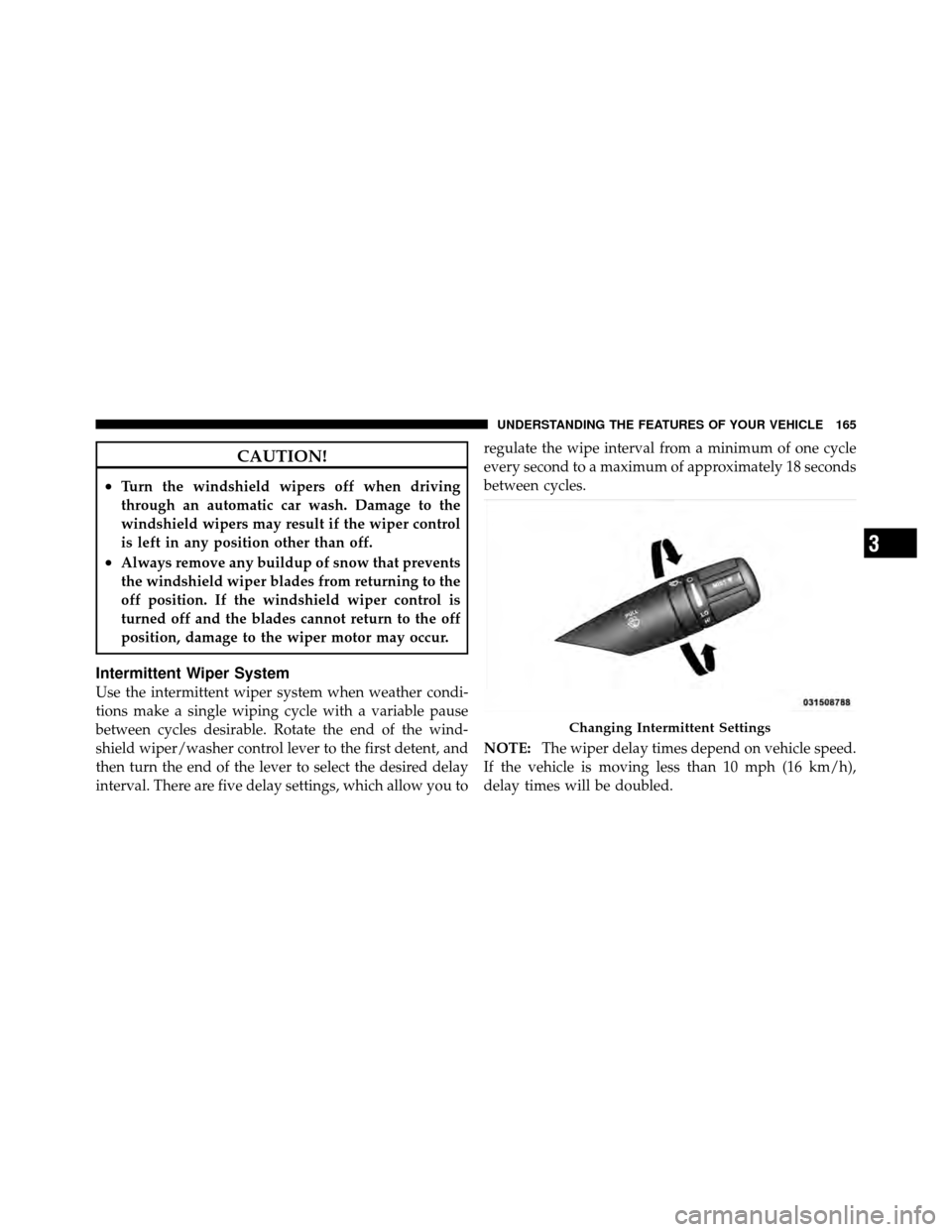

CAUTION!
•Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.
•Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Intermittent Wiper System
Use the intermittent wiper system when weather condi-
tions make a single wiping cycle with a variable pause
between cycles desirable. Rotate the end of the wind-
shield wiper/washer control lever to the first detent, and
then turn the end of the lever to select the desired delay
interval. There are five delay settings, which allow you toregulate the wipe interval from a minimum of one cycle
every second to a maximum of approximately 18 seconds
between cycles.
NOTE:
The wiper delay times depend on vehicle speed.
If the vehicle is moving less than 10 mph (16 km/h),
delay times will be doubled.
Changing Intermittent Settings
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
Mist Feature
Push downward on the windshield wiper/washer con-
trol lever to activate a single wipe cycle to clear the
windshield of road mist or spray from a passing vehicle.
The wipers will continue to operate until you release the
lever.NOTE:
The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Mist Control
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

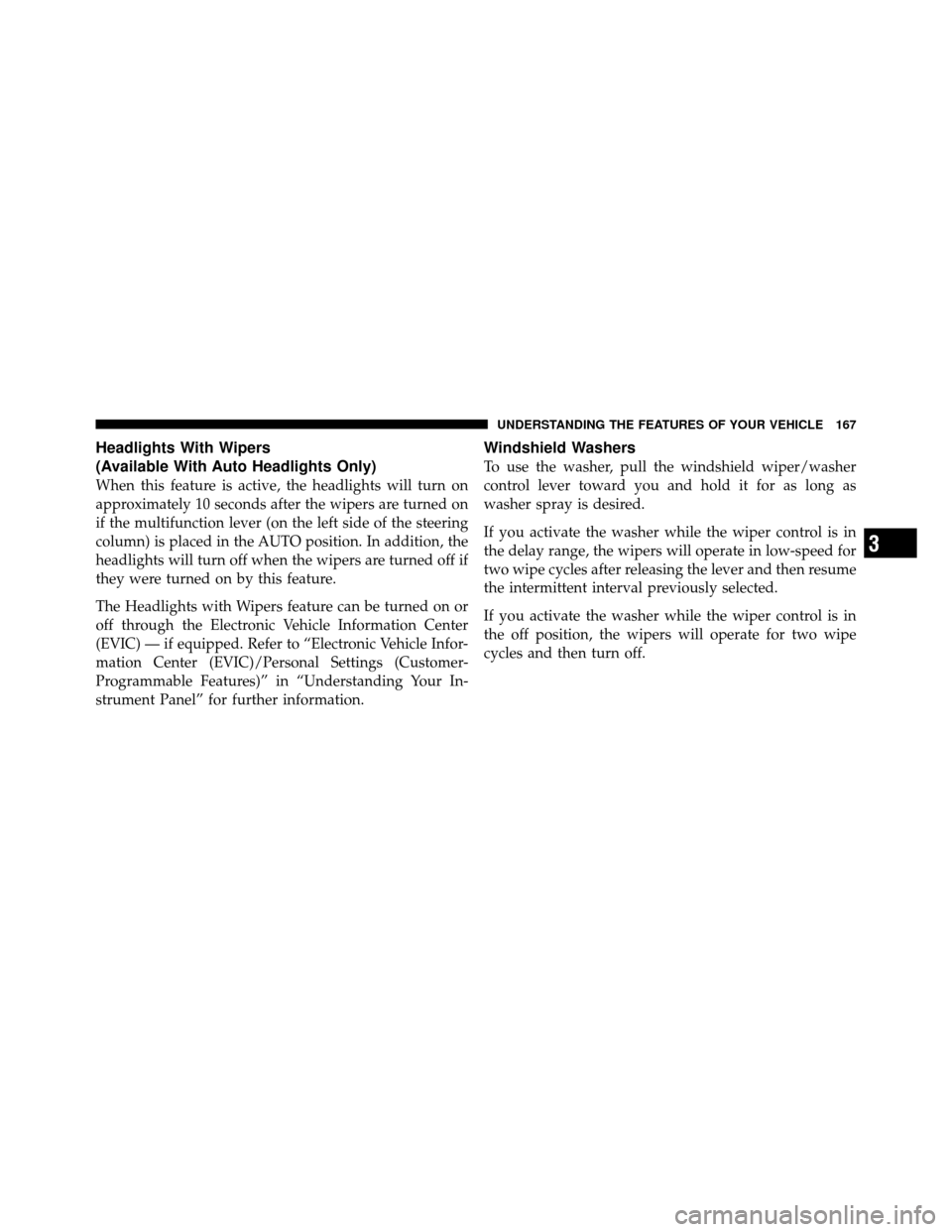

Headlights With Wipers
(Available With Auto Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the multifunction lever (on the left side of the steering
column) is placed in the AUTO position. In addition, the
headlights will turn off when the wipers are turned off if
they were turned on by this feature.
The Headlights with Wipers feature can be turned on or
off through the Electronic Vehicle Information Center
(EVIC) — if equipped. Refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
Windshield Washers
To use the washer, pull the windshield wiper/washer
control lever toward you and hold it for as long as
washer spray is desired.
If you activate the washer while the wiper control is in
the delay range, the wipers will operate in low-speed for
two wipe cycles after releasing the lever and then resume
the intermittent interval previously selected.
If you activate the washer while the wiper control is in
the off position, the wipers will operate for two wipe
cycles and then turn off.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

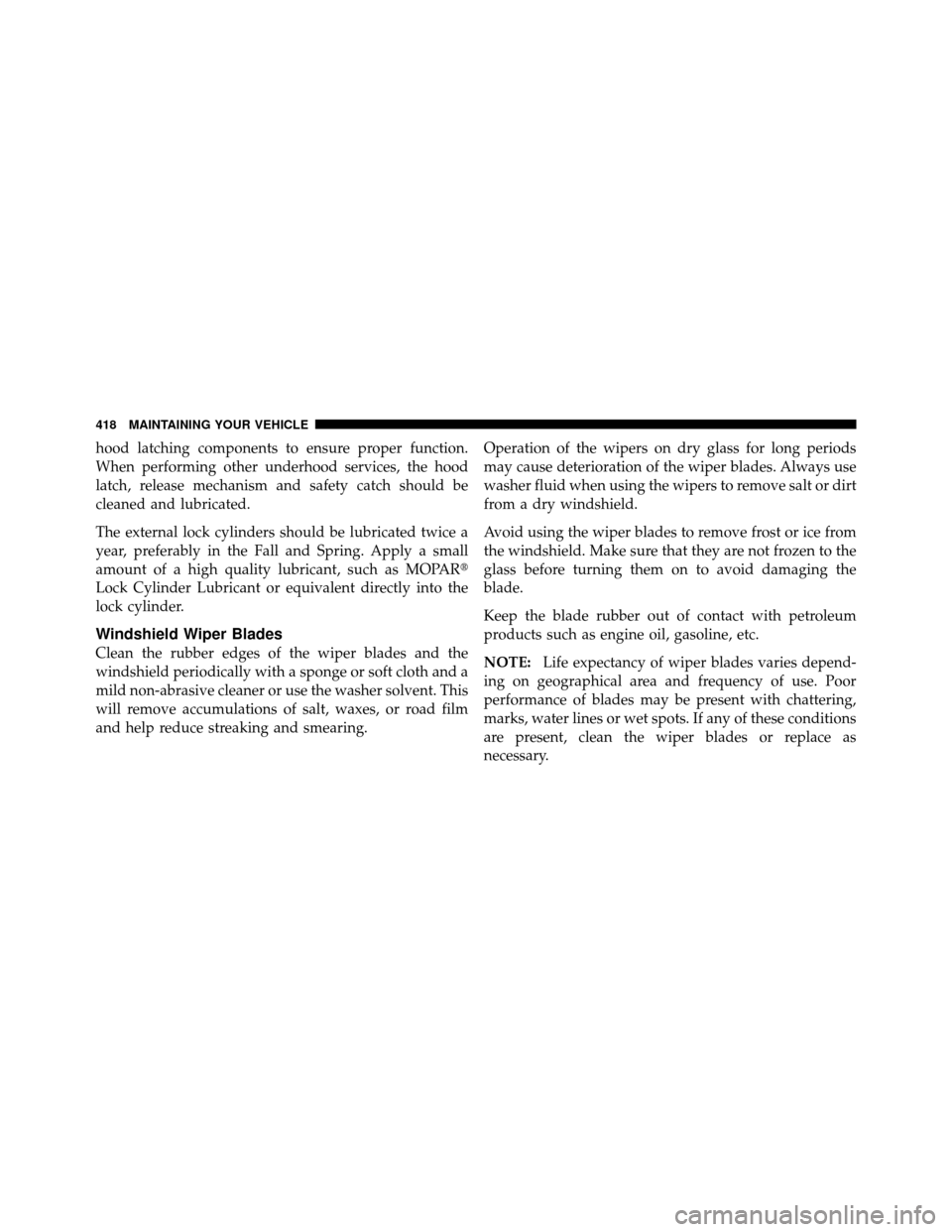

hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild non-abrasive cleaner or use the washer solvent. This
will remove accumulations of salt, waxes, or road film
and help reduce streaking and smearing. Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Make sure that they are not frozen to the
glass before turning them on to avoid damaging the
blade.
Keep the blade rubber out of contact with petroleum
products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as
necessary.
418 MAINTAINING YOUR VEHICLE

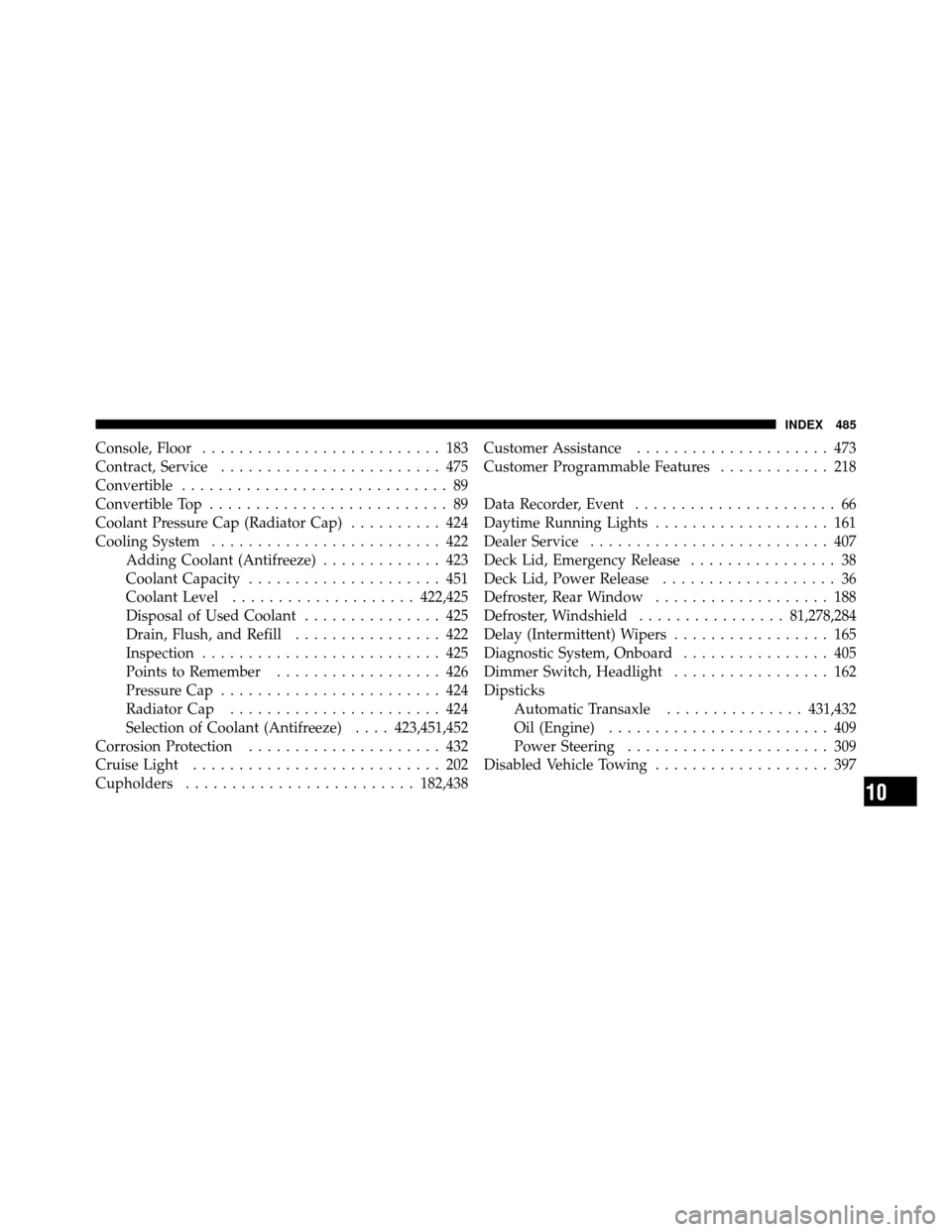

Console, Floor.......................... 183
Contract, Service ........................ 475
Convertible ............................. 89
Convertible Top .......................... 89
Coolant Pressure Cap (Radiator Cap) .......... 424
Cooling System ......................... 422
Adding Coolant (Antifreeze) ............. 423
Coolant Capacity ..................... 451
Coolant Level .................... 422,425
Disposal of Used Coolant ............... 425
Drain, Flush, and Refill ................ 422
Inspection .......................... 425
Points to Remember .................. 426
Pressure Cap ........................ 424
Radiator Cap ....................... 424
Selection of Coolant (Antifreeze) ....423,451,452
Corrosion Protection ..................... 432
Cruise Light ........................... 202
Cupholders ......................... 182,438Customer Assistance
..................... 473
Customer Programmable Features ............ 218
Data Recorder, Event ...................... 66
Daytime Running Lights ................... 161
Dealer Service .......................... 407
Deck Lid, Emergency Release ................ 38
Deck Lid, Power Release ................... 36
Defroster, Rear Window ................... 188
Defroster, Windshield ................81,278,284
Delay (Intermittent) Wipers ................. 165
Diagnostic System, Onboard ................ 405
Dimmer Switch, Headlight ................. 162
Dipsticks Automatic Transaxle ...............431,432
Oil (Engine) ........................ 409
Power Steering ...................... 309
Disabled Vehicle Towing ................... 397
10
INDEX 485

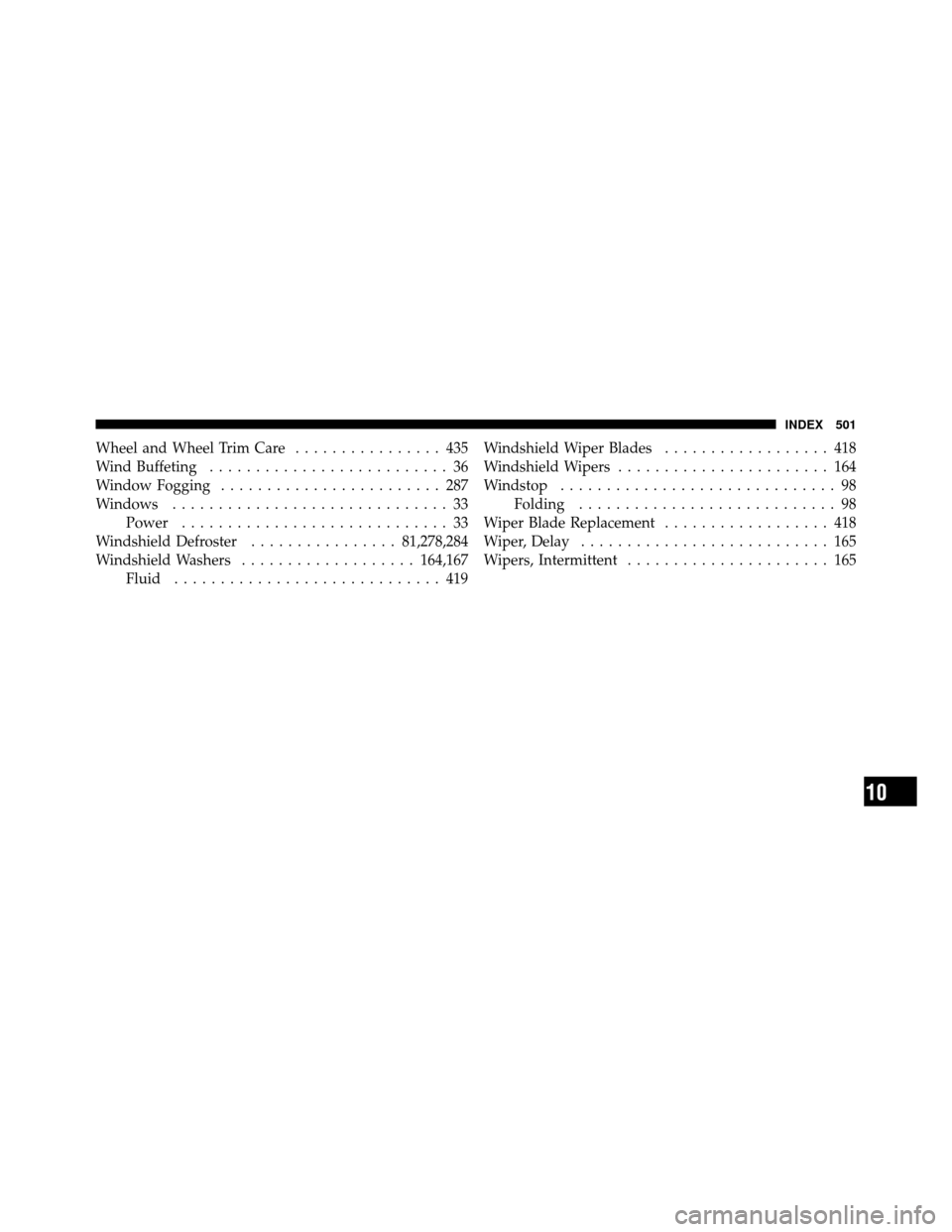

Wheel and Wheel Trim Care................ 435
Wind Buffeting .......................... 36
Window Fogging ........................ 287
Windows .............................. 33
Power ............................. 33
Windshield Defroster ................81,278,284
Windshield Washers ................... 164,167
Fluid ............................. 419 Windshield Wiper Blades
.................. 418
Windshield Wipers ....................... 164
Windstop .............................. 98
Folding ............................ 98
Wiper Blade Replacement .................. 418
Wiper, Delay ........................... 165
Wipers, Intermittent ...................... 165
10
INDEX 501
