INTRODUCTION/WELCOMEWelcome From Chrysler Group LLC......2
CONTROLS AT A GLANCEDriver Cockpit................4
Instrument Cluster ..............6
GETTING STARTEDKeyFOB...................8
Remote Start.................9
Theft Alarm .................9
Seat Belt ...................9
Supplemental Restraint System (SRS) —
Airbags ...................10
Child Restraints ................11
Front Seats ..................13
Heated Seats .................15
Tilt / Telescoping Steering Column .......16
OPERATING YOUR VEHICLETurn Signal/Lights Lever............17
Wiper/Washer Lever .............18
Speed Control ................18
Manual Climate Controls ...........19
Automatic Temperature Controls (ATC) ....20
Power Convertible Top Operation .......21
Wind Buffeting ................23
ELECTRONICSYour Vehicle's Sound System .........24
Non-Touch-Screen Radios ...........26
Touch-Screen Radio ..............29
Steering Wheel Audio Controls ........35
Uconnect™ Phone ...............35
Uconnect™ Voice Command .........37
iPod®/USB/MP3 Control ...........38
Electronic Vehicle Information Center
(EVIC) ....................39
Programmable Features ............40
Universal Garage Door Opener
(HomeLink®) .................41
Power Outlets ................43
UTILITY
Trailer Towing Weights (Maximum Trailer
Weight Ratings) ...............44
Recreational Towing (Behind
Motorhome, Etc.) ...............45
WHAT TO DO IN EMERGENCIES
24-Hour Towing Assistance ..........46
Instrument Cluster Warning Lights .......46
If Your Engine Overheats ...........49
Jacking And Tire Changing ..........51
Jump-Starting ................54
Shift Lever Override .............56
Towing A Disabled Vehicle ..........57
Freeing A Stuck Vehicle ............58
Event Data Recorder (EDR) ..........59
MAINTAINING YOUR VEHICLE
Opening The Hood..............60
Engine Compartment .............61
Fluids And Capacities .............63
Maintenance Chart ..............64
Fuses .....................66
Tire Pressures .................68
Wheel And Wheel Trim Care .........68
Exterior Bulbs .................69
CONSUMER ASSISTANCE
Chrysler Group LLC Customer Center .....70
Chrysler Canada Inc. Customer Center ....70
Assistance For The Hearing Impaired .....70
Publications Ordering .............70
Reporting Safety Defects In The
50 United States And Washington, D.C. ....71
MOPAR ACCESSORIES
Authentic Accessories By MOPAR®......72
INDEX..................73
TABLE OF CONTENTS

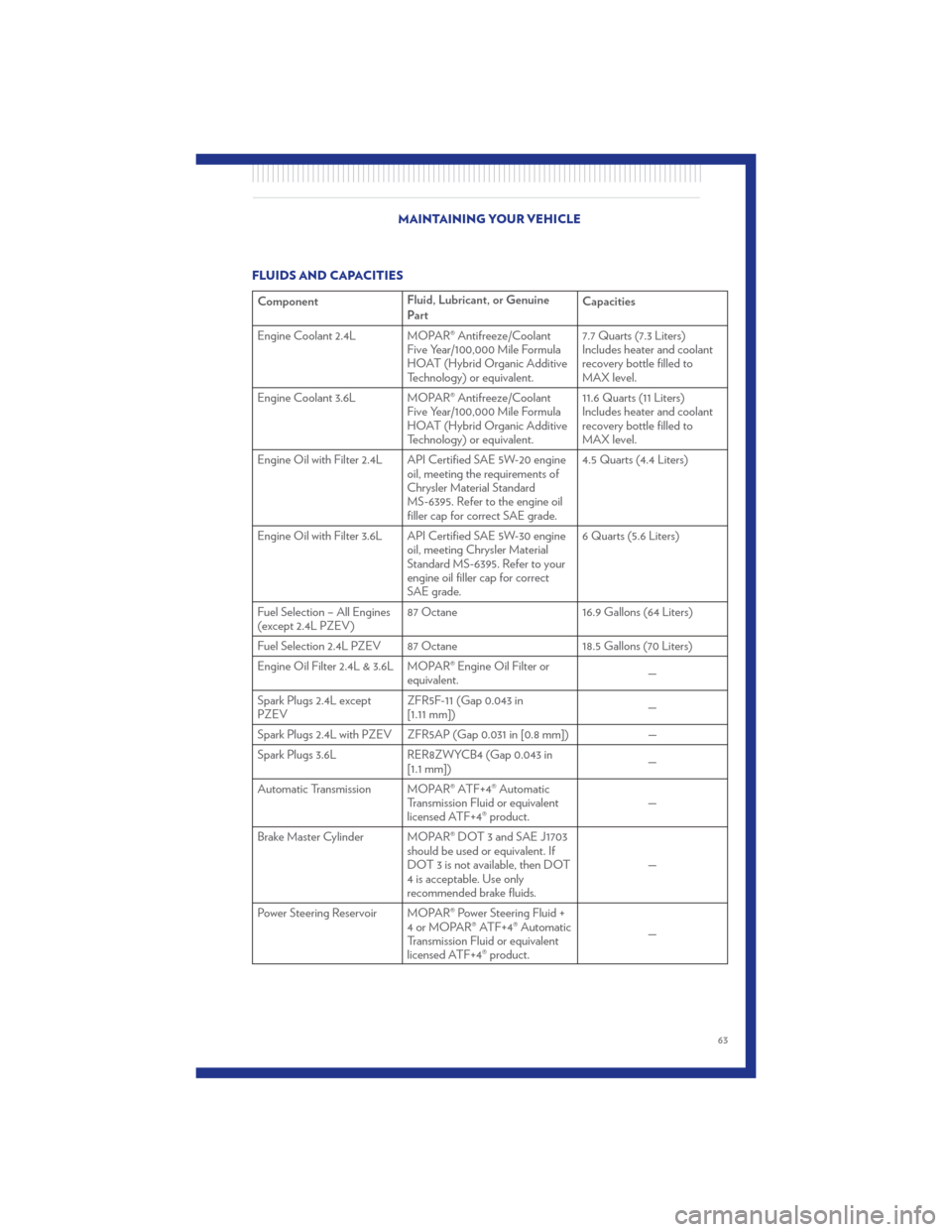

FLUIDS AND CAPACITIES
ComponentFluid, Lubricant, or Genuine
Part Capacities
Engine Coolant 2.4L MOPAR® Antifreeze/Coolant Five Year/100,000 Mile Formula
HOAT (Hybrid Organic Additive
Technology) or equivalent. 7.7 Quarts (7.3 Liters)
Includes heater and coolant
recovery bottle filled to
MAX level.
Engine Coolant 3.6L MOPAR® Antifreeze/Coolant Five Year/100,000 Mile Formula
HOAT (Hybrid Organic Additive
Technology) or equivalent. 11.6 Quarts (11 Liters)
Includes heater and coolant
recovery bottle filled to
MAX level.
Engine Oil with Filter 2.4L API Certified SAE 5W-20 engine oil, meeting the requirements of
Chrysler Material Standard
MS-6395. Refer to the engine oil
filler cap for correct SAE grade. 4.5 Quarts (4.4 Liters)
Engine Oil with Filter 3.6L API Certified SAE 5W-30 engine oil, meeting Chrysler Material
Standard MS-6395. Refer to your
engine oil filler cap for correct
SAE grade. 6 Quarts (5.6 Liters)
Fuel Selection – All Engines
(except 2.4L PZEV) 87 Octane
16.9 Gallons (64 Liters)
Fuel Selection 2.4L PZEV 87 Octane 18.5 Gallons (70 Liters)
Engine Oil Filter 2.4L & 3.6L MOPAR® Engine Oil Filter or equivalent. —
Spark Plugs 2.4L except
PZEV ZFR5F-11 (Gap 0.043 in
[1.11 mm])
—
Spark Plugs 2.4L with PZEV ZFR5AP (Gap 0.031 in [0.8 mm]) —
Spark Plugs 3.6L RER8ZWYCB4 (Gap 0.043 in
[1.1 mm]) —
Automatic Transmission MOPAR® ATF+4® Automatic Transmission Fluid or equivalent
licensed ATF+4® product. —
Brake Master Cylinder MOPAR® DOT 3 and SAE J1703 should be used or equivalent. If
DOT 3 is not available, then DOT
4 is acceptable. Use only
recommended brake fluids. —
Power Steering Reservoir MOPAR® Power Steering Fluid + 4 or MOPAR® ATF+4® Automatic
Transmission Fluid or equivalent
licensed ATF+4® product. —
MAINTAINING YOUR VEHICLE
63
