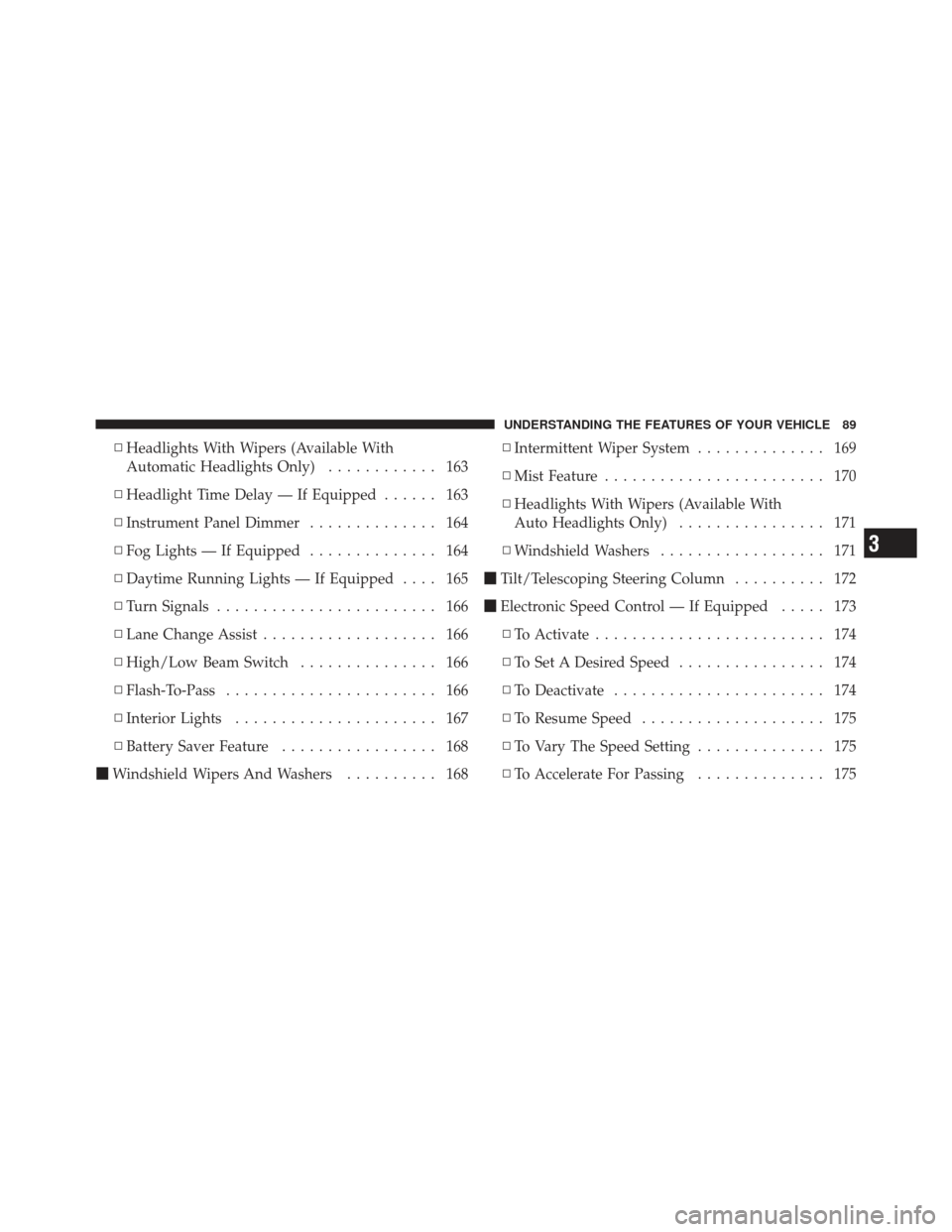

â–«Headlights With Wipers (Available With
Automatic Headlights Only) ............ 163
▫ Headlight Time Delay — If Equipped ...... 163
â–« Instrument Panel Dimmer .............. 164
▫ Fog Lights — If Equipped .............. 164
▫ Daytime Running Lights — If Equipped .... 165
â–« Turn Signals ........................ 166
â–« Lane Change Assist ................... 166
â–« High/Low Beam Switch ............... 166
â–« Flash-To-Pass ....................... 166
â–« Interior Lights ...................... 167
â–« Battery Saver Feature ................. 168
 Windshield Wipers And Washers .......... 168â–«
Intermittent Wiper System .............. 169
â–« Mist Feature ........................ 170
â–« Headlights With Wipers (Available With
Auto Headlights Only) ................ 171
â–« Windshield Washers .................. 171
 Tilt/Telescoping Steering Column .......... 172
 Electronic Speed Control — If Equipped ..... 173
â–« To Activate ......................... 174
â–« To Set A Desired Speed ................ 174
â–« To Deactivate ....................... 174
â–« To Resume Speed .................... 175
â–« To Vary The Speed Setting .............. 175
â–« To Accelerate For Passing .............. 175
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

Garage Door Opener — If Equipped ........ 176
â–« Before You Begin Programming HomeLink . 177
â–« Programming A Rolling Code ........... 178
â–« Programming A Non-Rolling Code ........ 180
â–« Canadian/Gate Operator Programming .... 181
â–« Using HomeLink ................... 182
â–« Security ........................... 183
â–« Troubleshooting Tips .................. 183
â–« General Information .................. 184
 Electrical Power Outlets ................. 185
 Cigar Lighter And Ash Receiver — If Equipped 188
Cupholders .......................... 188
â–« Front Seat Cupholder ................. 188
â–« Rear Seat Cupholders ................. 189
 Storage ............................. 190
â–« Glove Box Storage Compartment ......... 190
 Console Features ...................... 190
â–« Storage ........................... 190
 Cargo Area Features ................... 192
â–« Ski Pass-Through .................... 194
 Rear Window Features .................. 194
â–« Rear Window Defroster ................ 194
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

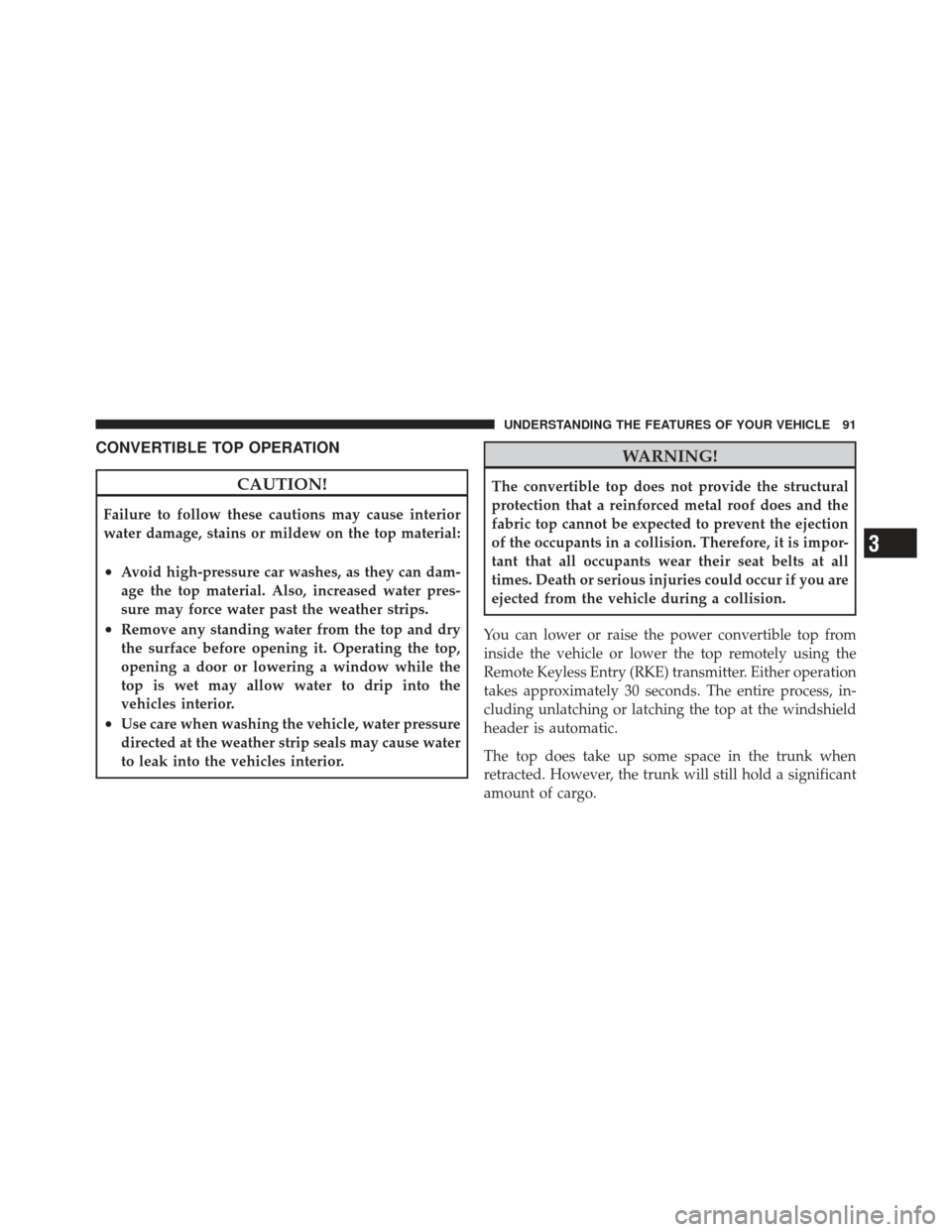

CONVERTIBLE TOP OPERATION
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•Avoid high-pressure car washes, as they can dam-
age the top material. Also, increased water pres-
sure may force water past the weather strips.
•Remove any standing water from the top and dry
the surface before opening it. Operating the top,
opening a door or lowering a window while the
top is wet may allow water to drip into the
vehicles interior.
•Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicles interior.
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection
of the occupants in a collision. Therefore, it is impor-
tant that all occupants wear their seat belts at all
times. Death or serious injuries could occur if you are
ejected from the vehicle during a collision.
You can lower or raise the power convertible top from
inside the vehicle or lower the top remotely using the
Remote Keyless Entry (RKE) transmitter. Either operation
takes approximately 30 seconds. The entire process, in-
cluding unlatching or latching the top at the windshield
header is automatic.
The top does take up some space in the trunk when
retracted. However, the trunk will still hold a significant
amount of cargo.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

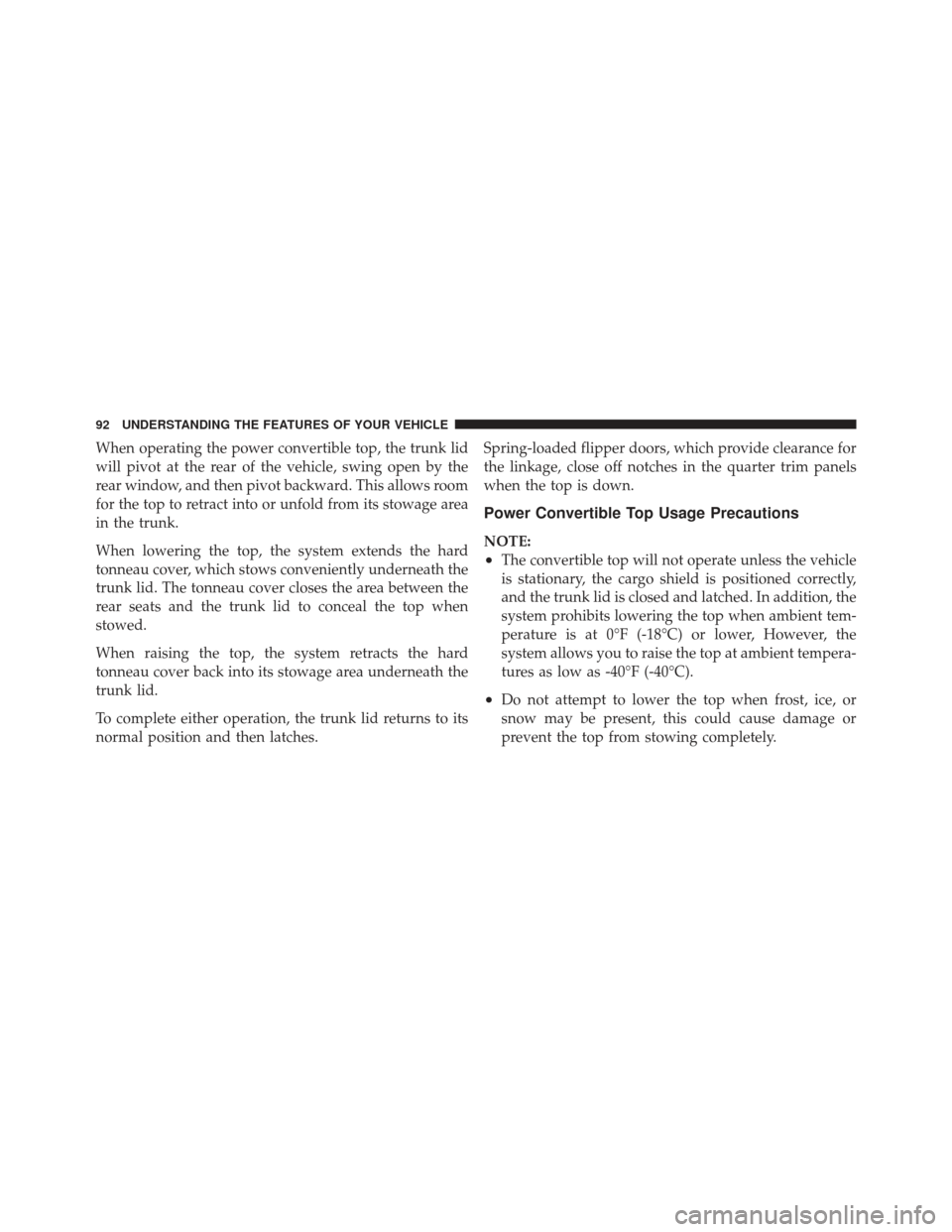

When operating the power convertible top, the trunk lid
will pivot at the rear of the vehicle, swing open by the
rear window, and then pivot backward. This allows room
for the top to retract into or unfold from its stowage area
in the trunk.
When lowering the top, the system extends the hard
tonneau cover, which stows conveniently underneath the
trunk lid. The tonneau cover closes the area between the
rear seats and the trunk lid to conceal the top when
stowed.
When raising the top, the system retracts the hard
tonneau cover back into its stowage area underneath the
trunk lid.
To complete either operation, the trunk lid returns to its
normal position and then latches.Spring-loaded flipper doors, which provide clearance for
the linkage, close off notches in the quarter trim panels
when the top is down.
Power Convertible Top Usage Precautions
NOTE:
•The convertible top will not operate unless the vehicle
is stationary, the cargo shield is positioned correctly,
and the trunk lid is closed and latched. In addition, the
system prohibits lowering the top when ambient tem-
perature is at 0°F (-18°C) or lower, However, the
system allows you to raise the top at ambient tempera-
tures as low as -40°F (-40°C).
•Do not attempt to lower the top when frost, ice, or
snow may be present, this could cause damage or
prevent the top from stowing completely.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

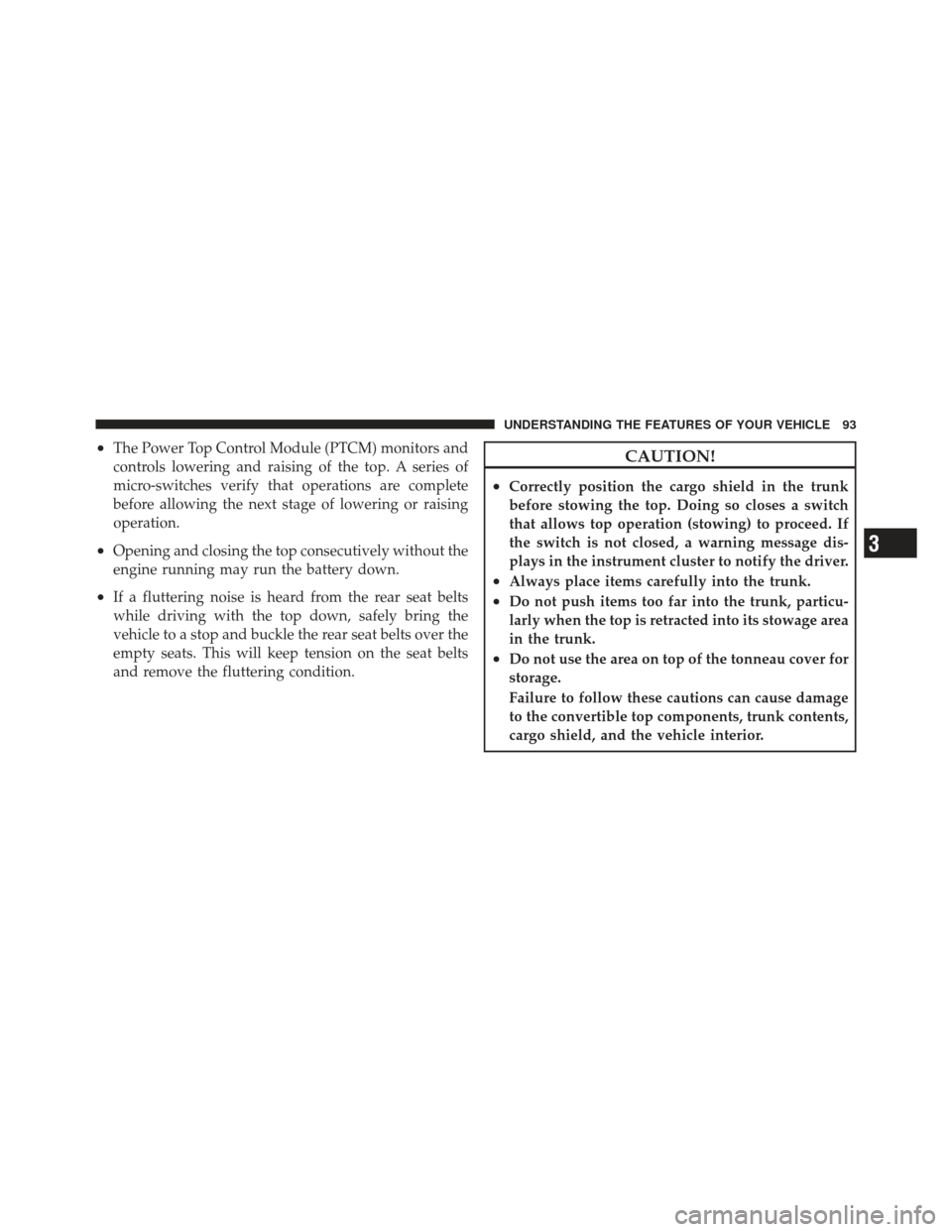

•The Power Top Control Module (PTCM) monitors and
controls lowering and raising of the top. A series of
micro-switches verify that operations are complete
before allowing the next stage of lowering or raising
operation.
•Opening and closing the top consecutively without the
engine running may run the battery down.
•If a fluttering noise is heard from the rear seat belts
while driving with the top down, safely bring the
vehicle to a stop and buckle the rear seat belts over the
empty seats. This will keep tension on the seat belts
and remove the fluttering condition.
CAUTION!
•Correctly position the cargo shield in the trunk
before stowing the top. Doing so closes a switch
that allows top operation (stowing) to proceed. If
the switch is not closed, a warning message dis-
plays in the instrument cluster to notify the driver.
•Always place items carefully into the trunk.
•Do not push items too far into the trunk, particu-
larly when the top is retracted into its stowage area
in the trunk.
•Do not use the area on top of the tonneau cover for
storage.
Failure to follow these cautions can cause damage
to the convertible top components, trunk contents,
cargo shield, and the vehicle interior.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

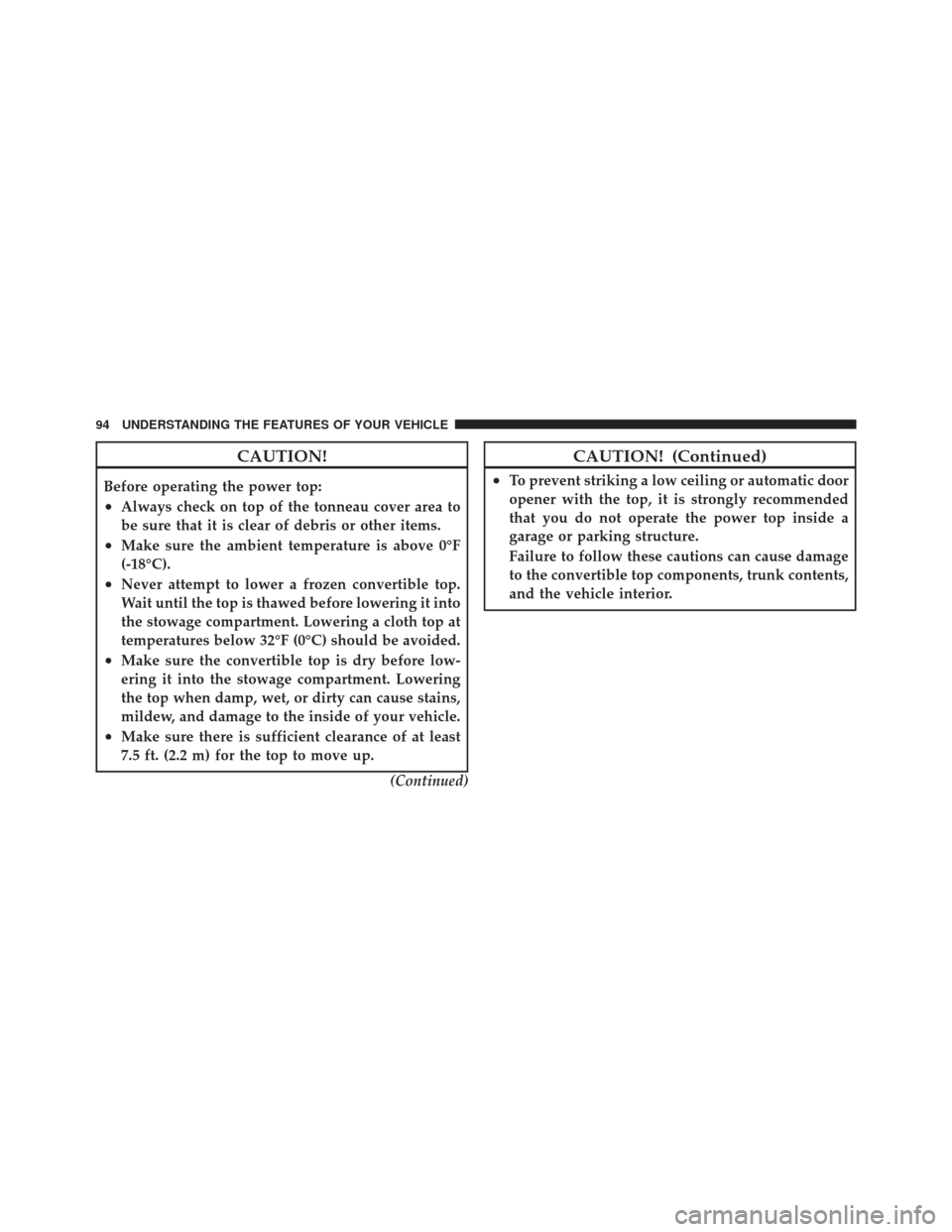

CAUTION!
Before operating the power top:
•Always check on top of the tonneau cover area to
be sure that it is clear of debris or other items.
•Make sure the ambient temperature is above 0°F
(-18°C).
•Never attempt to lower a frozen convertible top.
Wait until the top is thawed before lowering it into
the stowage compartment. Lowering a cloth top at
temperatures below 32°F (0°C) should be avoided.
•Make sure the convertible top is dry before low-
ering it into the stowage compartment. Lowering
the top when damp, wet, or dirty can cause stains,
mildew, and damage to the inside of your vehicle.
•Make sure there is sufficient clearance of at least
7.5 ft. (2.2 m) for the top to move up.(Continued)
CAUTION! (Continued)
•To prevent striking a low ceiling or automatic door
opener with the top, it is strongly recommended
that you do not operate the power top inside a
garage or parking structure.
Failure to follow these cautions can cause damage
to the convertible top components, trunk contents,
and the vehicle interior.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

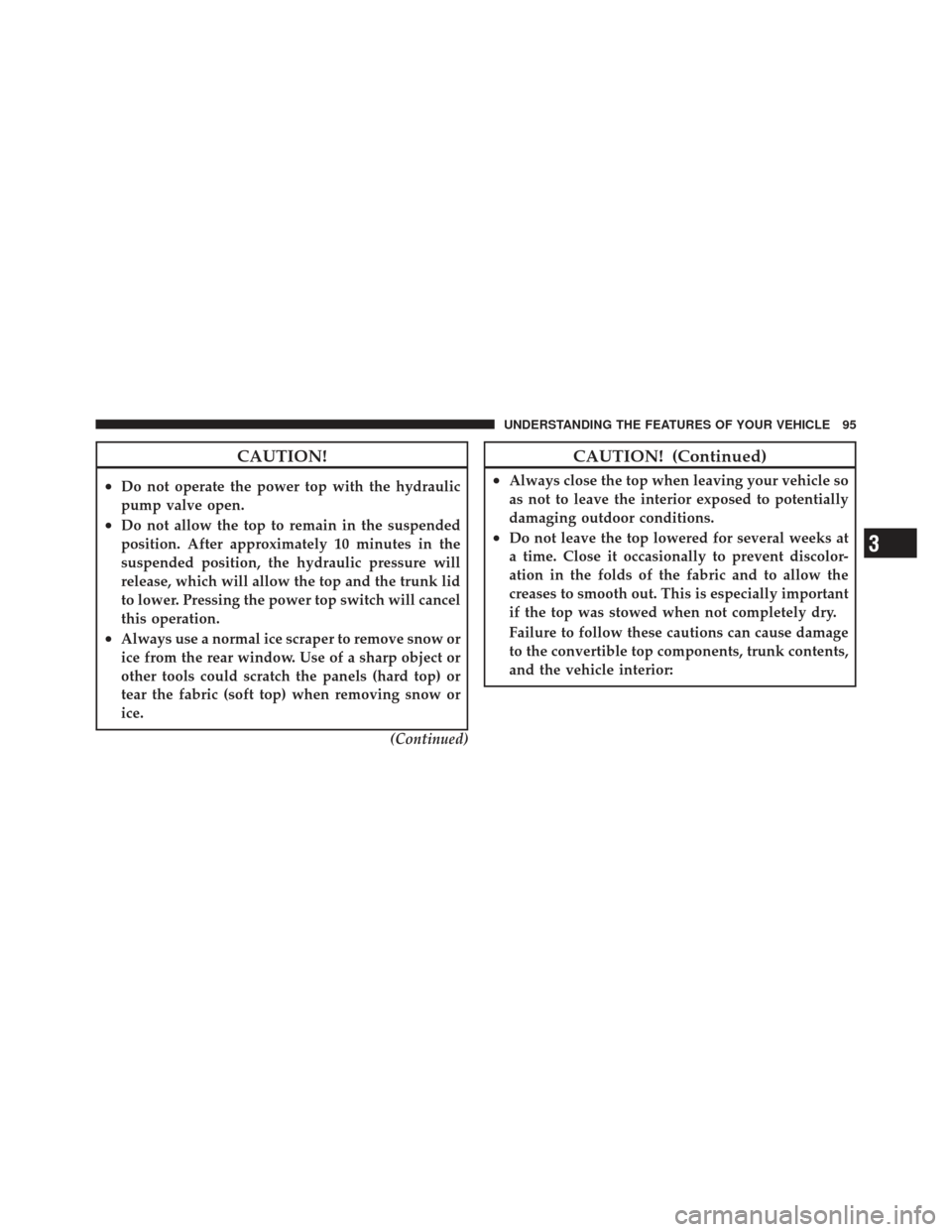

CAUTION!
•Do not operate the power top with the hydraulic
pump valve open.
•Do not allow the top to remain in the suspended
position. After approximately 10 minutes in the
suspended position, the hydraulic pressure will
release, which will allow the top and the trunk lid
to lower. Pressing the power top switch will cancel
this operation.
•Always use a normal ice scraper to remove snow or
ice from the rear window. Use of a sharp object or
other tools could scratch the panels (hard top) or
tear the fabric (soft top) when removing snow or
ice.(Continued)
CAUTION! (Continued)
•Always close the top when leaving your vehicle so
as not to leave the interior exposed to potentially
damaging outdoor conditions.
•Do not leave the top lowered for several weeks at
a time. Close it occasionally to prevent discolor-
ation in the folds of the fabric and to allow the
creases to smooth out. This is especially important
if the top was stowed when not completely dry.
Failure to follow these cautions can cause damage
to the convertible top components, trunk contents,
and the vehicle interior:3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

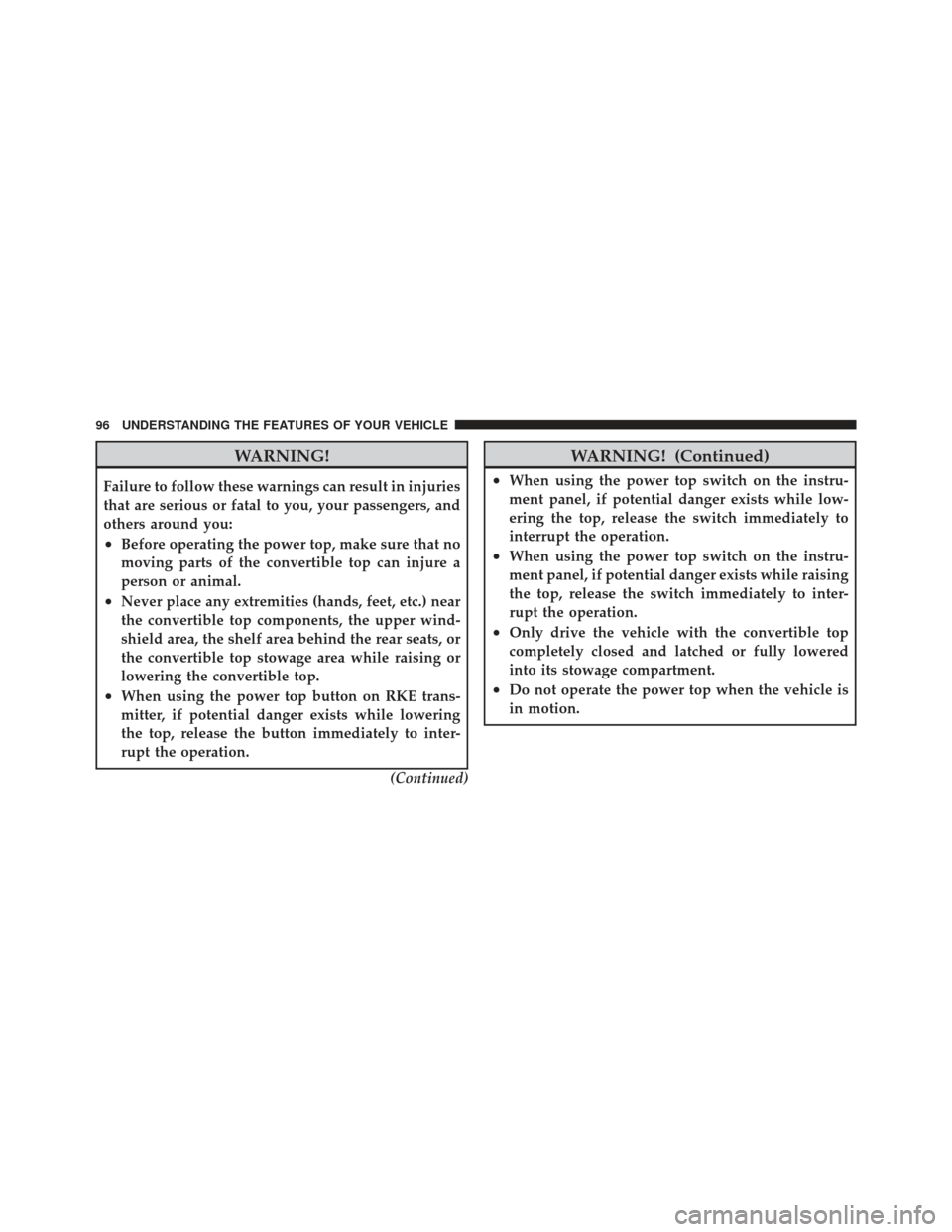

WARNING!
Failure to follow these warnings can result in injuries
that are serious or fatal to you, your passengers, and
others around you:
•Before operating the power top, make sure that no
moving parts of the convertible top can injure a
person or animal.
•Never place any extremities (hands, feet, etc.) near
the convertible top components, the upper wind-
shield area, the shelf area behind the rear seats, or
the convertible top stowage area while raising or
lowering the convertible top.
•When using the power top button on RKE trans-
mitter, if potential danger exists while lowering
the top, release the button immediately to inter-
rupt the operation.(Continued)
WARNING! (Continued)
•When using the power top switch on the instru-
ment panel, if potential danger exists while low-
ering the top, release the switch immediately to
interrupt the operation.
•When using the power top switch on the instru-
ment panel, if potential danger exists while raising
the top, release the switch immediately to inter-
rupt the operation.
•Only drive the vehicle with the convertible top
completely closed and latched or fully lowered
into its stowage compartment.
•Do not operate the power top when the vehicle is
in motion.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

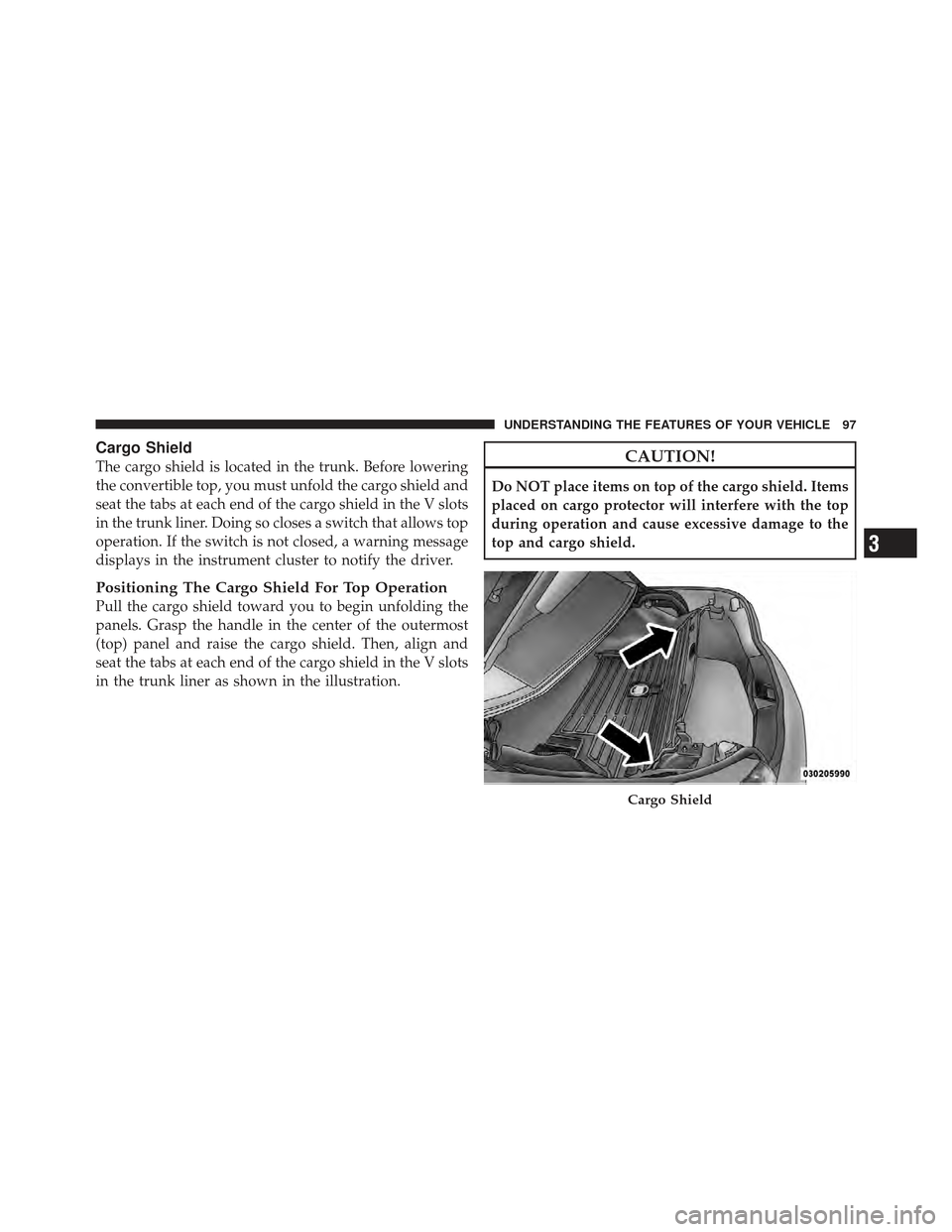

Cargo Shield
The cargo shield is located in the trunk. Before lowering
the convertible top, you must unfold the cargo shield and
seat the tabs at each end of the cargo shield in the V slots
in the trunk liner. Doing so closes a switch that allows top
operation. If the switch is not closed, a warning message
displays in the instrument cluster to notify the driver.
Positioning The Cargo Shield For Top Operation
Pull the cargo shield toward you to begin unfolding the
panels. Grasp the handle in the center of the outermost
(top) panel and raise the cargo shield. Then, align and
seat the tabs at each end of the cargo shield in the V slots
in the trunk liner as shown in the illustration.
CAUTION!
Do NOT place items on top of the cargo shield. Items
placed on cargo protector will interfere with the top
during operation and cause excessive damage to the
top and cargo shield.
Cargo Shield
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

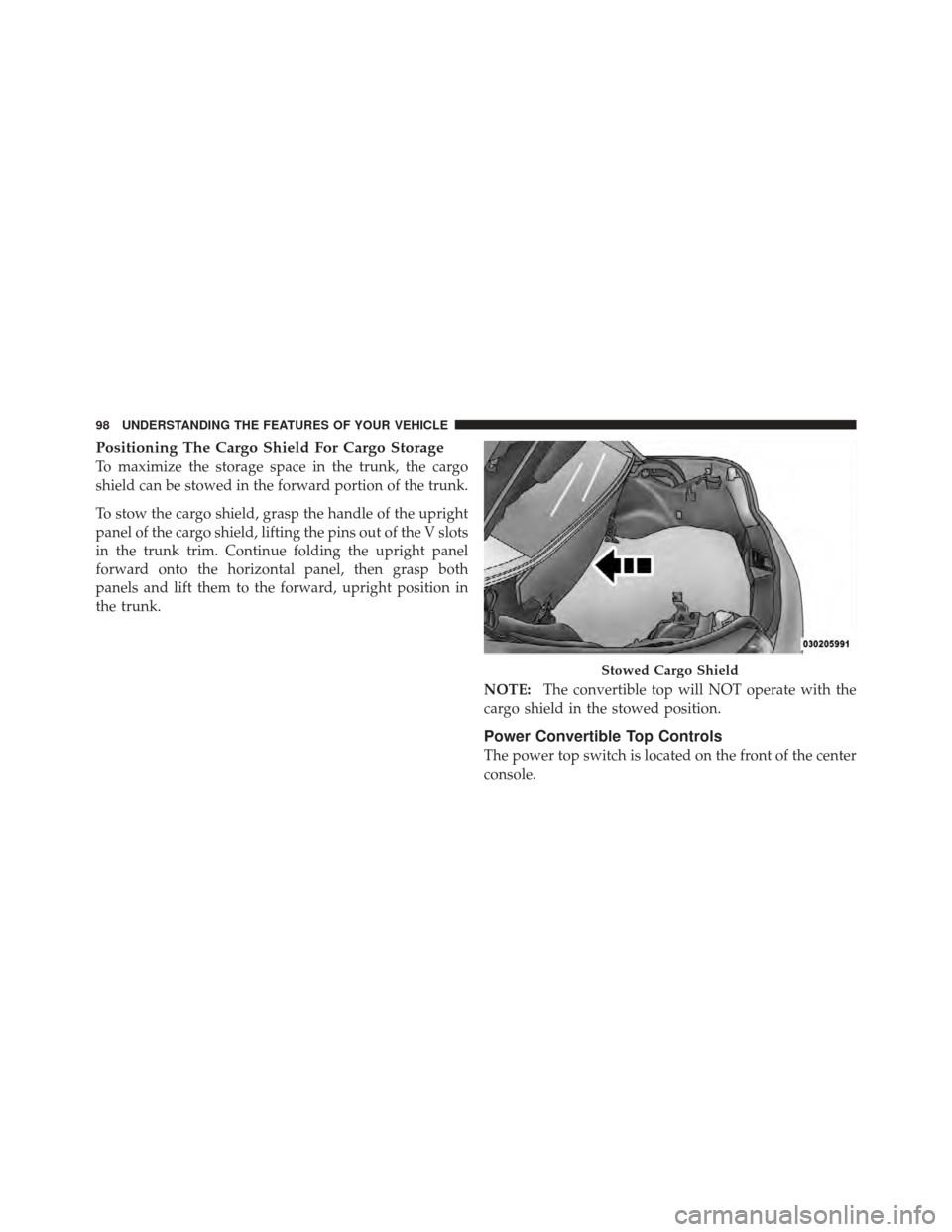

Positioning The Cargo Shield For Cargo Storage
To maximize the storage space in the trunk, the cargo
shield can be stowed in the forward portion of the trunk.
To stow the cargo shield, grasp the handle of the upright
panel of the cargo shield, lifting the pins out of the V slots
in the trunk trim. Continue folding the upright panel
forward onto the horizontal panel, then grasp both
panels and lift them to the forward, upright position in
the trunk.NOTE:The convertible top will NOT operate with the
cargo shield in the stowed position.
Power Convertible Top Controls
The power top switch is located on the front of the center
console.
Stowed Cargo Shield
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
