CHRYSLER 300 2010 1.G Owners Manual

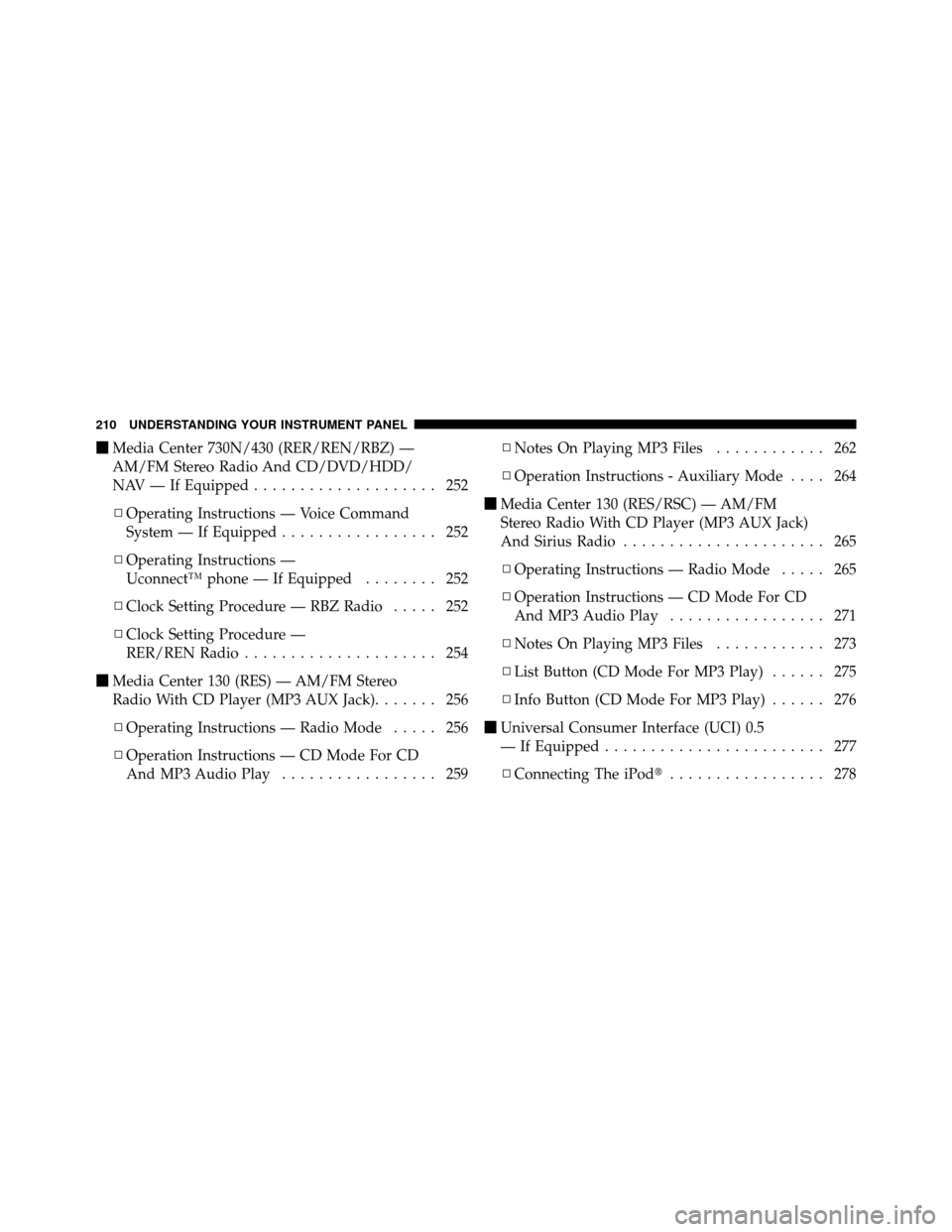

Media Center 730N/430 (RER/REN/RBZ) —
AM/FM Stereo Radio And CD/DVD/HDD/
NAV — If Equipped .................... 252
▫ Operating Instructions — Voice Command
System — If Equipped ................. 252
▫ Operating Instructions —
Uconnect™ phone — If Equipped ........ 252
▫ Clock Setting Procedure — RBZ Radio ..... 252
▫ Clock Setting Procedure —
RER/REN Radio ..................... 254
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 256
▫ Operating Instructions — Radio Mode ..... 256
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 259 ▫
Notes On Playing MP3 Files ............ 262
▫ Operation Instructions - Auxiliary Mode .... 264
 Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 265
▫ Operating Instructions — Radio Mode ..... 265
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 271
▫ Notes On Playing MP3 Files ............ 273
▫ List Button (CD Mode For MP3 Play) ...... 275
▫ Info Button (CD Mode For MP3 Play) ...... 276
 Universal Consumer Interface (UCI) 0.5
— If Equipped ........................ 277
▫ Connecting The iPod ................. 278
210 UNDERSTANDING YOUR INSTRUMENT PANEL

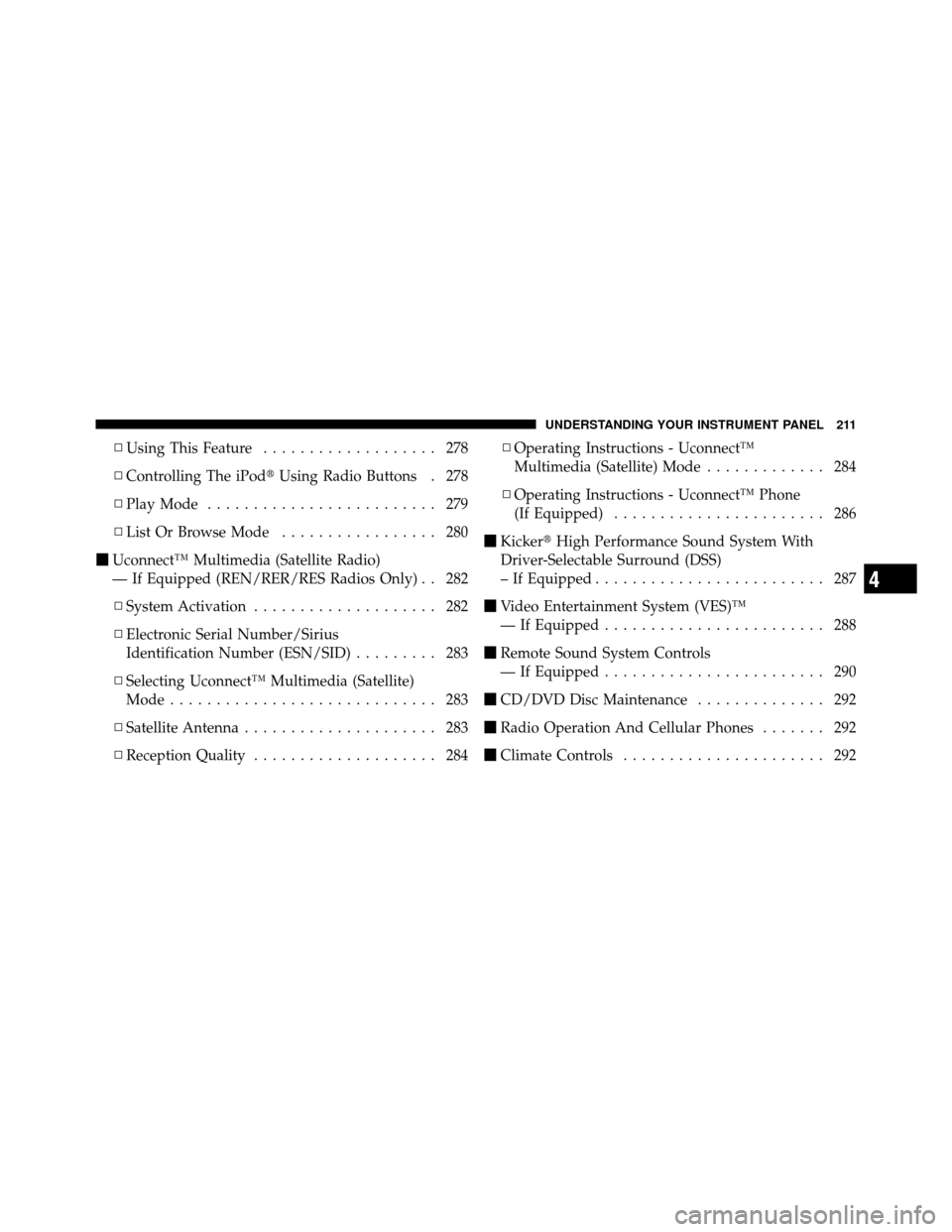

▫Using This Feature ................... 278
▫ Controlling The iPod Using Radio Buttons . 278
▫ Play Mode ......................... 279
▫ List Or Browse Mode ................. 280
 Uconnect™ Multimedia (Satellite Radio)
— If Equipped (REN/RER/RES Radios Only) . . 282
▫ System Activation .................... 282
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 283
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 283
▫ Satellite Antenna ..................... 283
▫ Reception Quality .................... 284 ▫
Operating Instructions - Uconnect™
Multimedia (Satellite) Mode ............. 284
▫ Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 286
 Kicker High Performance Sound System With
Driver-Selectable Surround (DSS)
– If Equipped ......................... 287
 Video Entertainment System (VES)™
— If Equipped ........................ 288
 Remote Sound System Controls
— If Equipped ........................ 290
 CD/DVD Disc Maintenance .............. 292
 Radio Operation And Cellular Phones ....... 292
 Climate Controls ...................... 292
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211

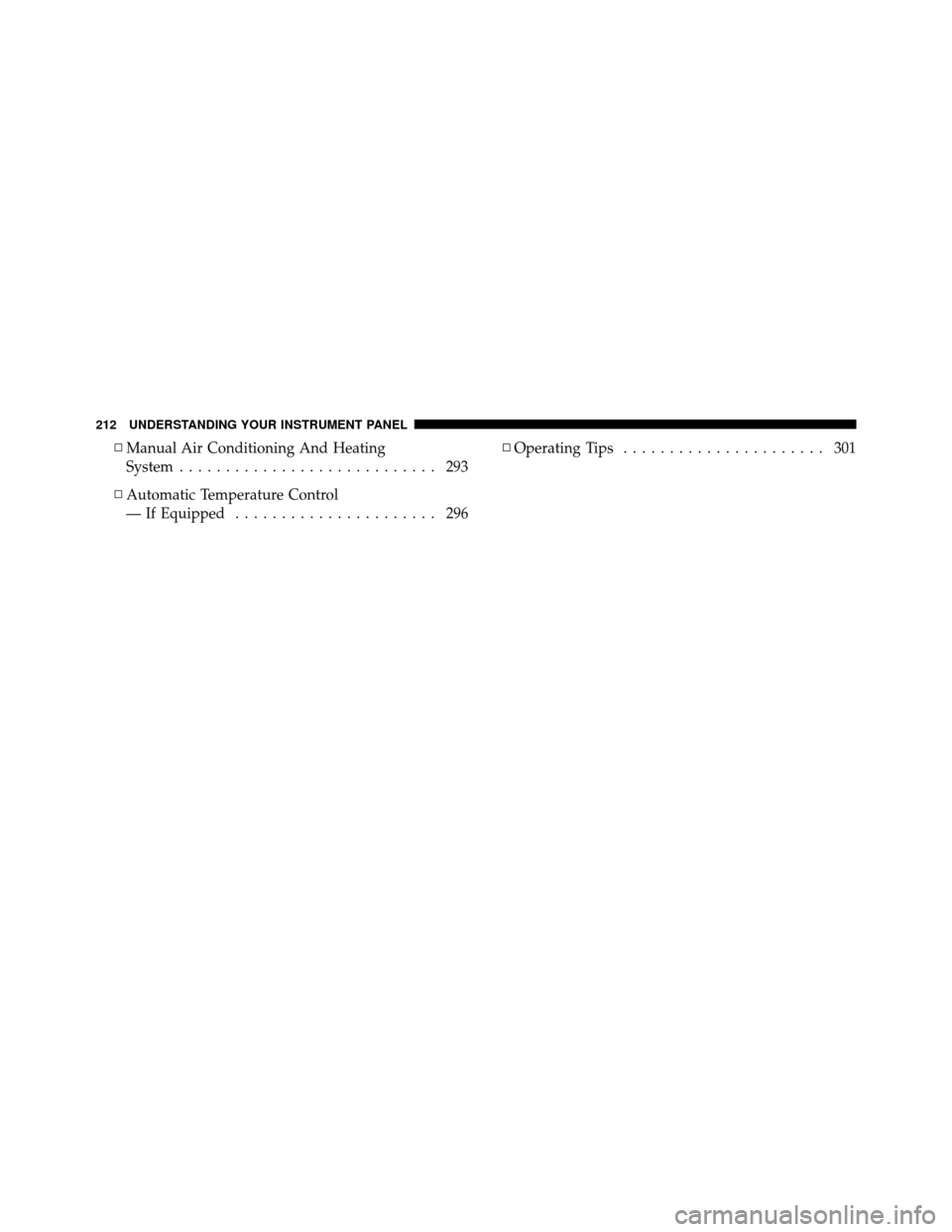

▫Manual Air Conditioning And Heating
System ............................ 293
▫ Automatic Temperature Control
— If Equipped ...................... 296 ▫
Operating Tips ...................... 301
212 UNDERSTANDING YOUR INSTRUMENT PANEL

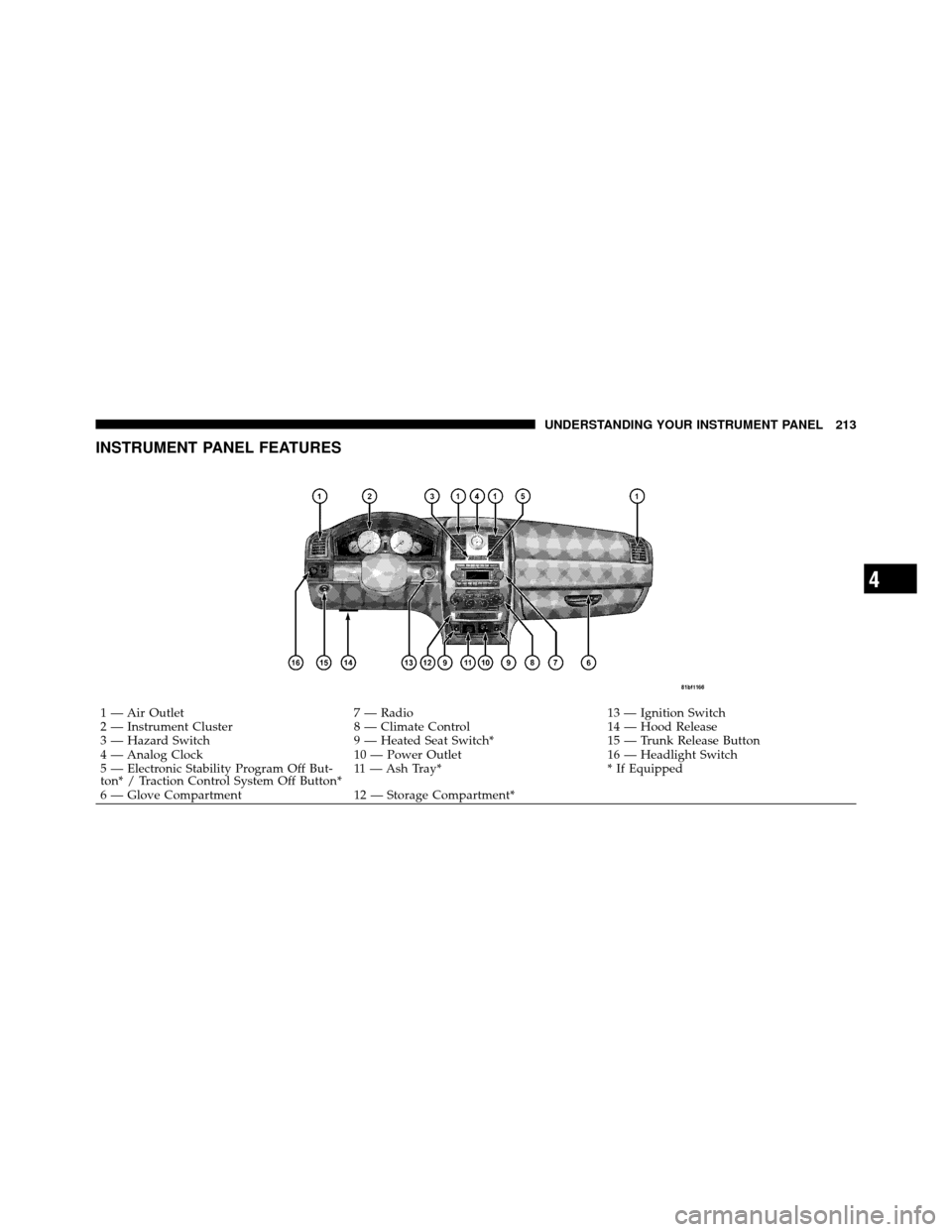

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Radio13 — Ignition Switch
2 — Instrument Cluster 8 — Climate Control14 — Hood Release
3 — Hazard Switch 9 — Heated Seat Switch*15 — Trunk Release Button
4 — Analog Clock 10 — Power Outlet16 — Headlight Switch
5 — Electronic Stability Program Off But-
ton* / Traction Control System Off Button* 11 — Ash Tray*
* If Equipped
6 — Glove Compartment 12 — Storage Compartment*
4
UNDERSTANDING YOUR INSTRUMENT PANEL 213

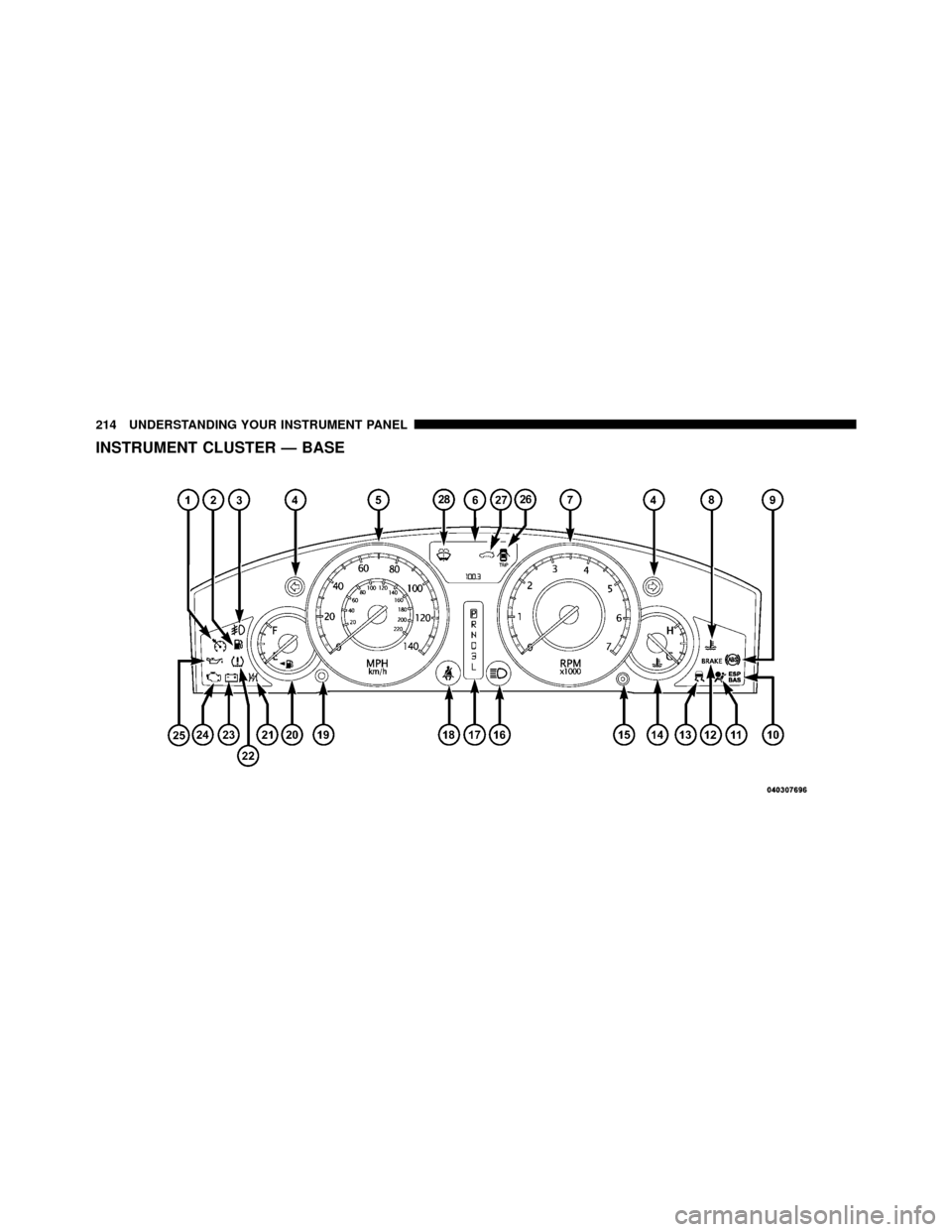

INSTRUMENT CLUSTER — BASE
214 UNDERSTANDING YOUR INSTRUMENT PANEL

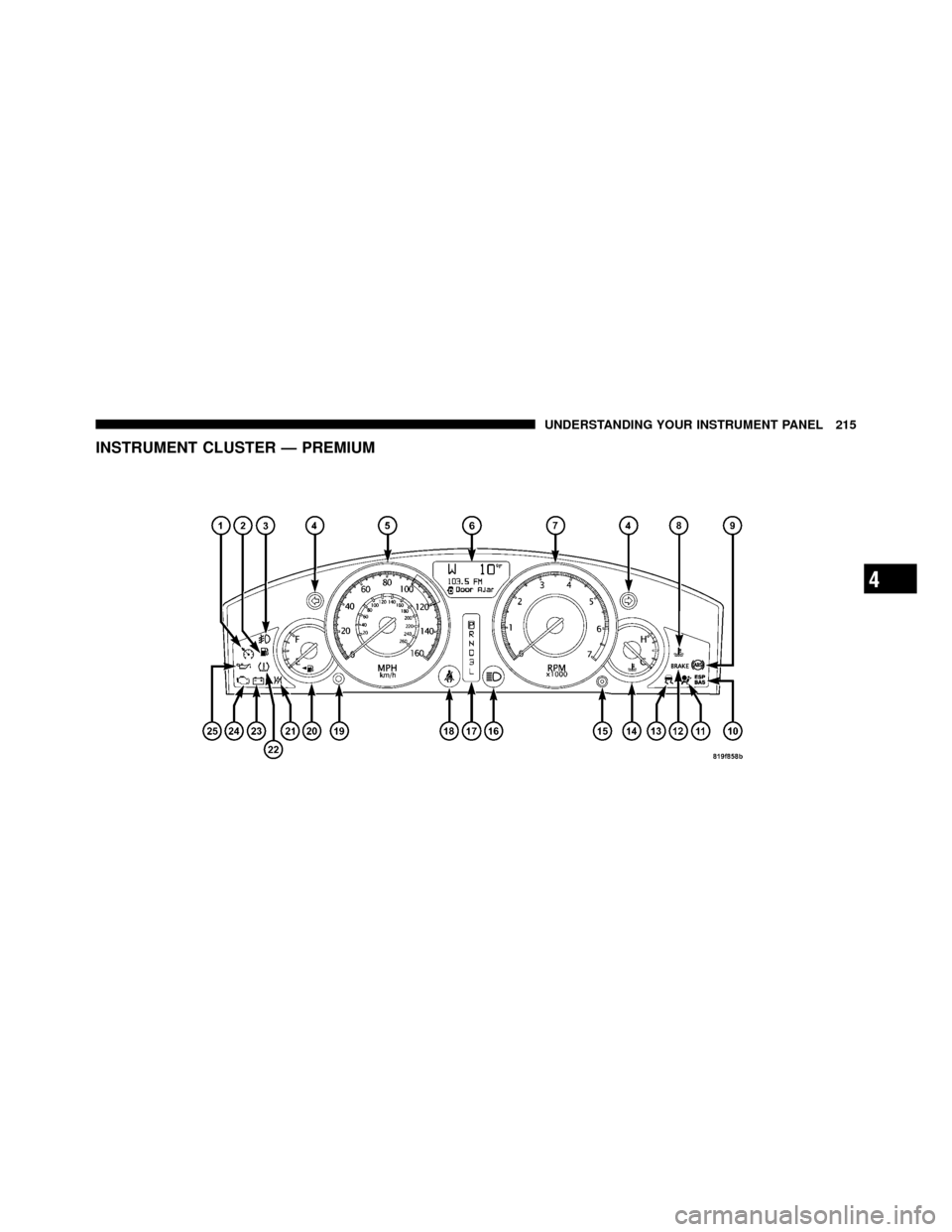

INSTRUMENT CLUSTER — PREMIUM
4
UNDERSTANDING YOUR INSTRUMENT PANEL 215

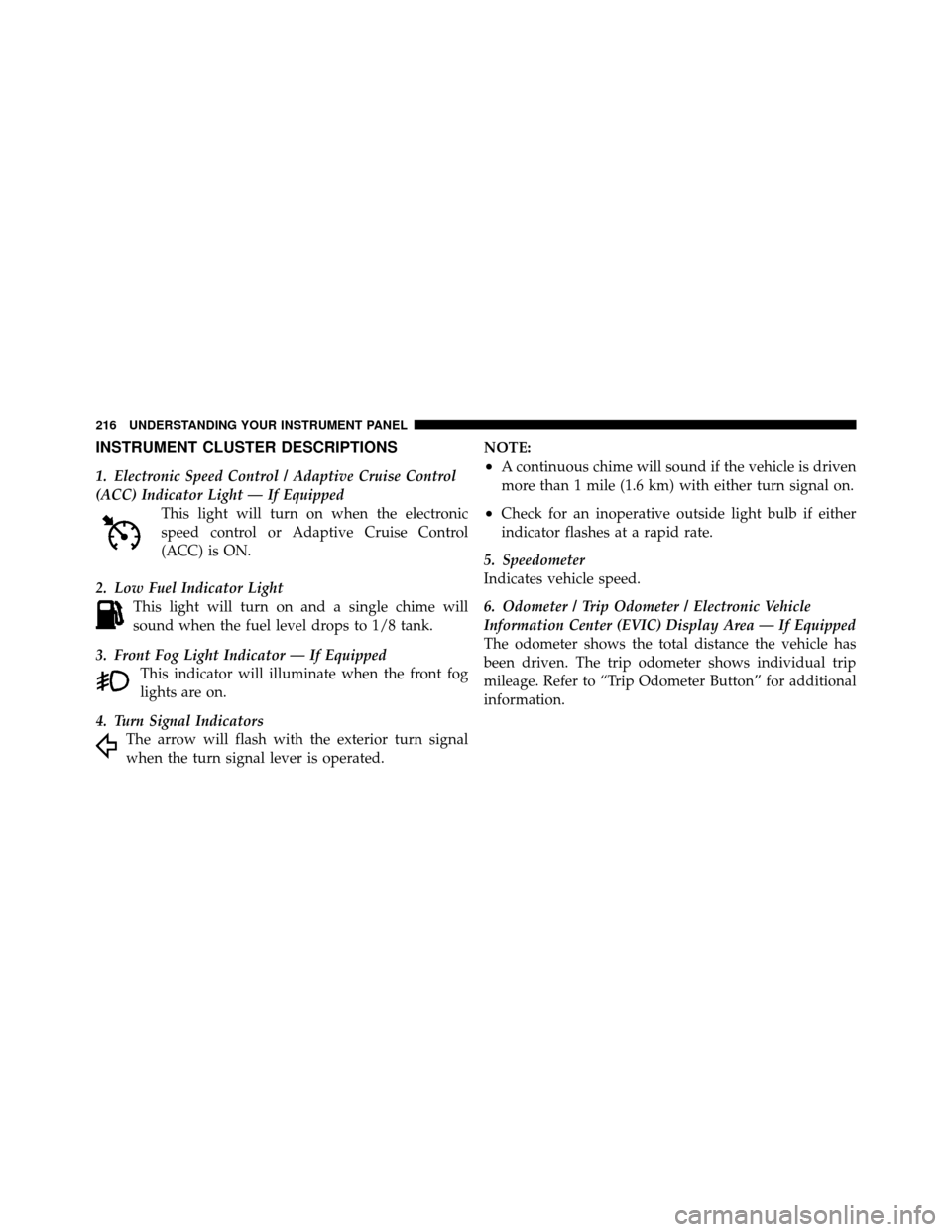

INSTRUMENT CLUSTER DESCRIPTIONS
1. Electronic Speed Control / Adaptive Cruise Control
(ACC) Indicator Light — If EquippedThis light will turn on when the electronic
speed control or Adaptive Cruise Control
(ACC) is ON.
2. Low Fuel Indicator Light This light will turn on and a single chime will
sound when the fuel level drops to 1/8 tank.
3. Front Fog Light Indicator — If Equipped This indicator will illuminate when the front fog
lights are on.
4. Turn Signal Indicators The arrow will flash with the exterior turn signal
when the turn signal lever is operated. NOTE:•A continuous chime will sound if the vehicle is driven
more than 1 mile (1.6 km) with either turn signal on.
•Check for an inoperative outside light bulb if either
indicator flashes at a rapid rate.
5. Speedometer
Indicates vehicle speed.
6. Odometer / Trip Odometer / Electronic Vehicle
Information Center (EVIC) Display Area — If Equipped
The odometer shows the total distance the vehicle has
been driven. The trip odometer shows individual trip
mileage. Refer to “Trip Odometer Button” for additional
information.
216 UNDERSTANDING YOUR INSTRUMENT PANEL

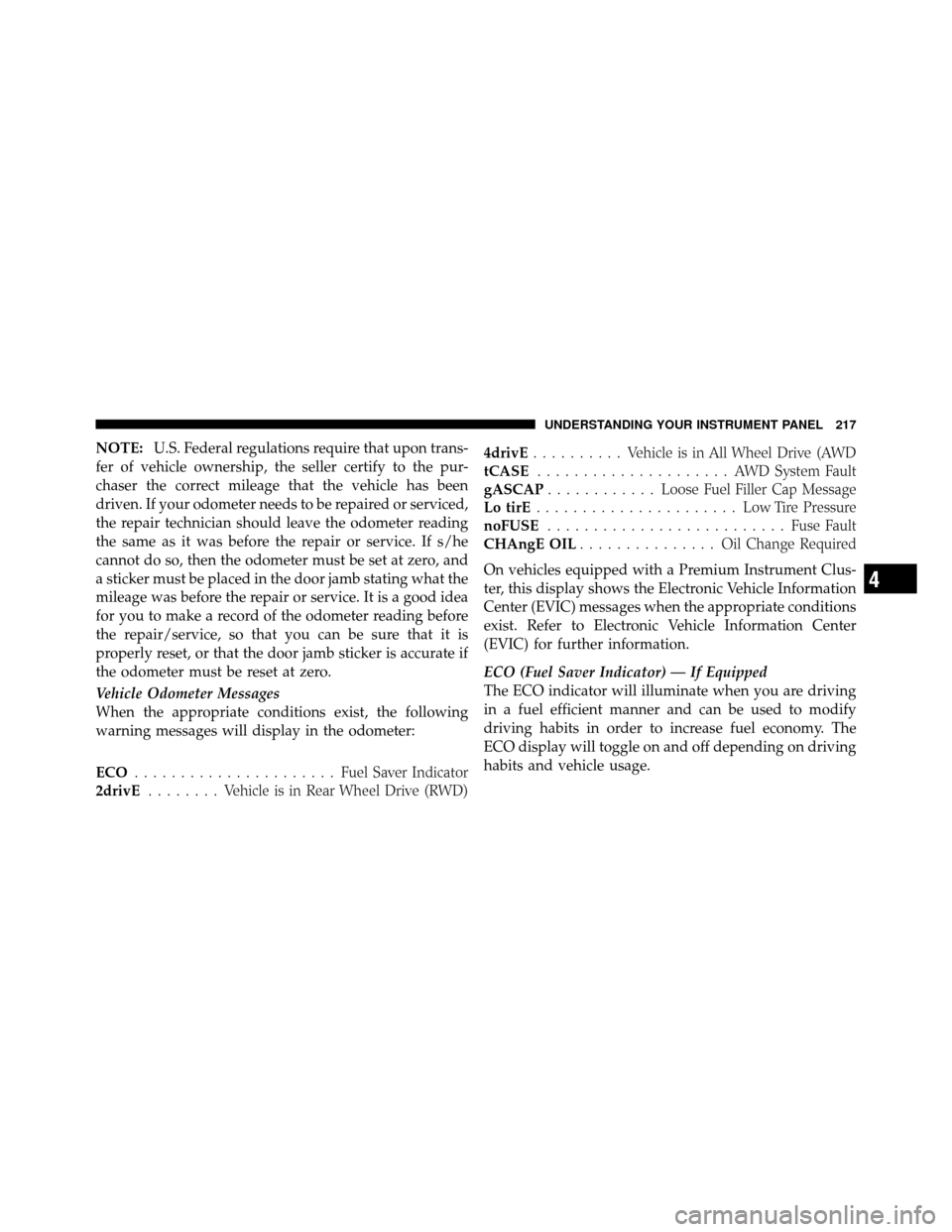

NOTE:U.S. Federal regulations require that upon trans-
fer of vehicle ownership, the seller certify to the pur-
chaser the correct mileage that the vehicle has been
driven. If your odometer needs to be repaired or serviced,
the repair technician should leave the odometer reading
the same as it was before the repair or service. If s/he
cannot do so, then the odometer must be set at zero, and
a sticker must be placed in the door jamb stating what the
mileage was before the repair or service. It is a good idea
for you to make a record of the odometer reading before
the repair/service, so that you can be sure that it is
properly reset, or that the door jamb sticker is accurate if
the odometer must be reset at zero.
Vehicle Odometer Messages
When the appropriate conditions exist, the following
warning messages will display in the odometer:
ECO ...................... Fuel Saver Indicator
2drivE ........ V ehicle is in Rear Wheel Drive (RWD) 4drivE
.......... V ehicle is in All Wheel Drive (AWD
tCASE ..................... AWD System Fault
gASCAP ............ Loose Fuel Filler Cap Message
Lo tirE ...................... LowTirePr essure
noFUSE .......................... Fuse Fault
CHAngE OIL ............... Oil Change Required
On vehicles equipped with a Premium Instrument Clus-
ter, this display shows the Electronic Vehicle Information
Center (EVIC) messages when the appropriate conditions
exist. Refer to Electronic Vehicle Information Center
(EVIC) for further information.
ECO (Fuel Saver Indicator) — If Equipped
The ECO indicator will illuminate when you are driving
in a fuel efficient manner and can be used to modify
driving habits in order to increase fuel economy. The
ECO display will toggle on and off depending on driving
habits and vehicle usage.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 217

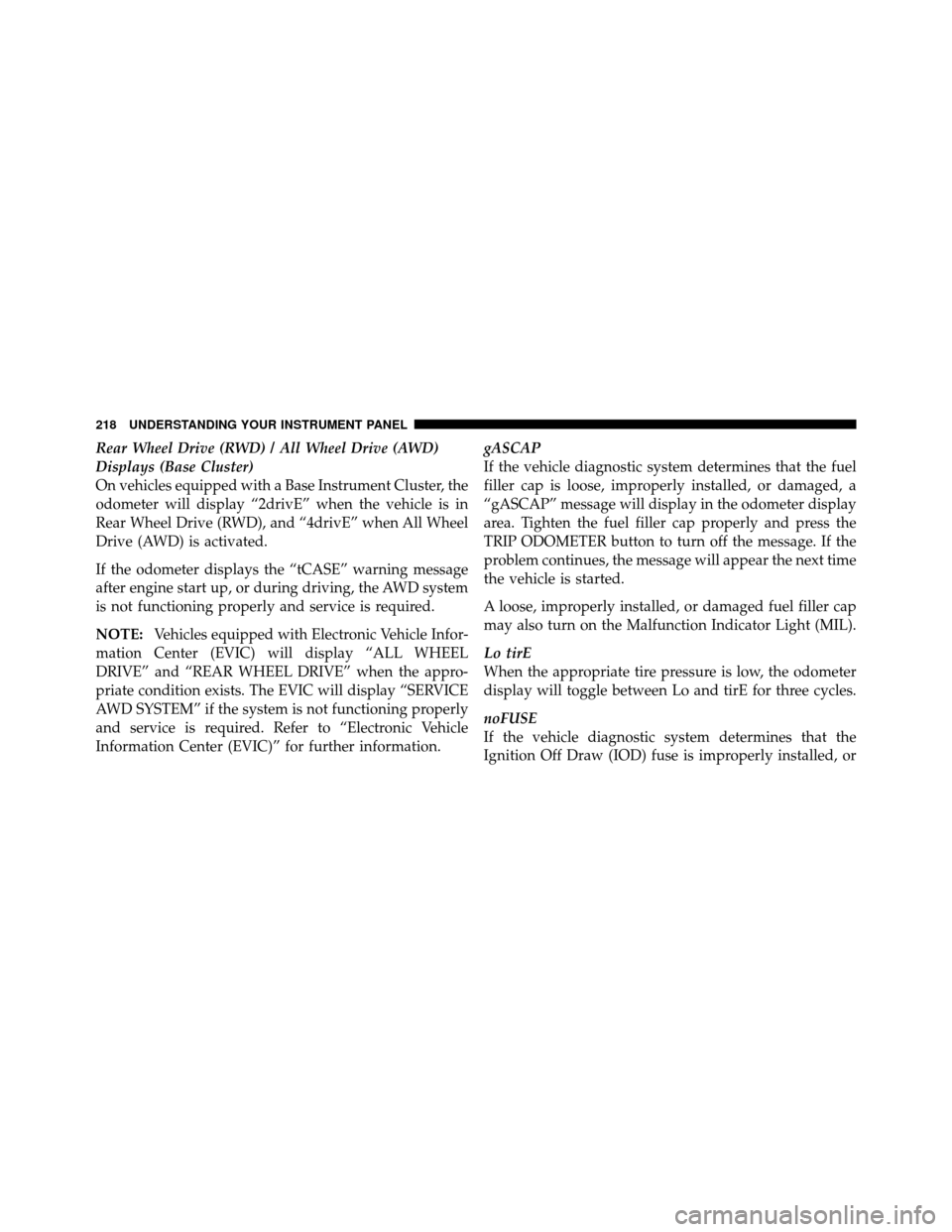

Rear Wheel Drive (RWD) / All Wheel Drive (AWD)
Displays (Base Cluster)
On vehicles equipped with a Base Instrument Cluster, the
odometer will display “2drivE” when the vehicle is in
Rear Wheel Drive (RWD), and “4drivE” when All Wheel
Drive (AWD) is activated.
If the odometer displays the “tCASE” warning message
after engine start up, or during driving, the AWD system
is not functioning properly and service is required.
NOTE:Vehicles equipped with Electronic Vehicle Infor-
mation Center (EVIC) will display “ALL WHEEL
DRIVE” and “REAR WHEEL DRIVE” when the appro-
priate condition exists. The EVIC will display “SERVICE
AWD SYSTEM” if the system is not functioning properly
and service is required. Refer to “Electronic Vehicle
Information Center (EVIC)” for further information. gASCAP
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“gASCAP” message will display in the odometer display
area. Tighten the fuel filler cap properly and press the
TRIP ODOMETER button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
Lo tirE
When the appropriate tire pressure is low, the odometer
display will toggle between Lo and tirE for three cycles.
noFUSE
If the vehicle diagnostic system determines that the
Ignition Off Draw (IOD) fuse is improperly installed, or
218 UNDERSTANDING YOUR INSTRUMENT PANEL

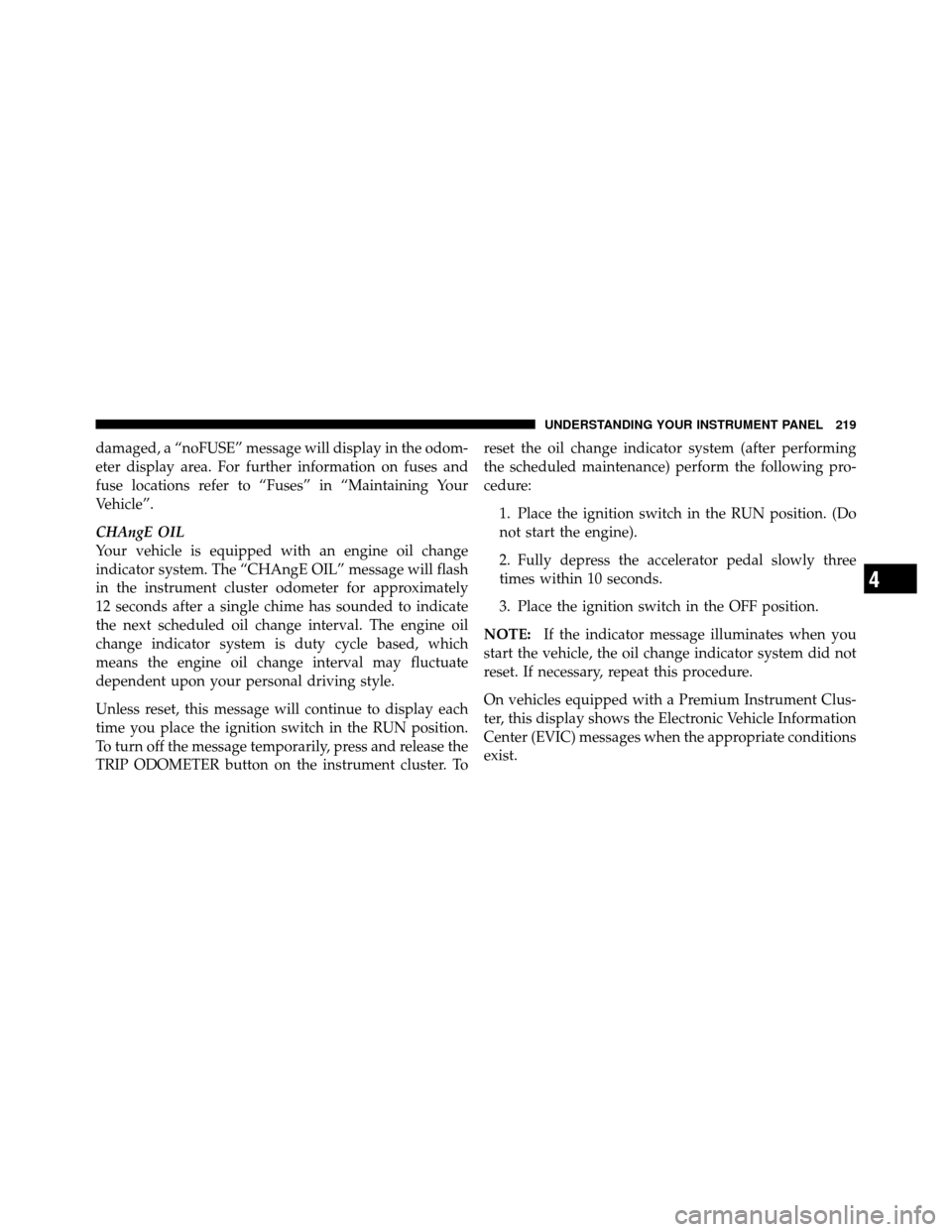

damaged, a “noFUSE” message will display in the odom-
eter display area. For further information on fuses and
fuse locations refer to “Fuses” in “Maintaining Your
Vehicle”.
CHAngE OIL
Your vehicle is equipped with an engine oil change
indicator system. The “CHAngE OIL” message will flash
in the instrument cluster odometer for approximately
12 seconds after a single chime has sounded to indicate
the next scheduled oil change interval. The engine oil
change indicator system is duty cycle based, which
means the engine oil change interval may fluctuate
dependent upon your personal driving style.
Unless reset, this message will continue to display each
time you place the ignition switch in the RUN position.
To turn off the message temporarily, press and release the
TRIP ODOMETER button on the instrument cluster. Toreset the oil change indicator system (after performing
the scheduled maintenance) perform the following pro-
cedure:
1. Place the ignition switch in the RUN position. (Do
not start the engine).
2. Fully depress the accelerator pedal slowly three
times within 10 seconds.
3. Place the ignition switch in the OFF position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
On vehicles equipped with a Premium Instrument Clus-
ter, this display shows the Electronic Vehicle Information
Center (EVIC) messages when the appropriate conditions
exist.
4
