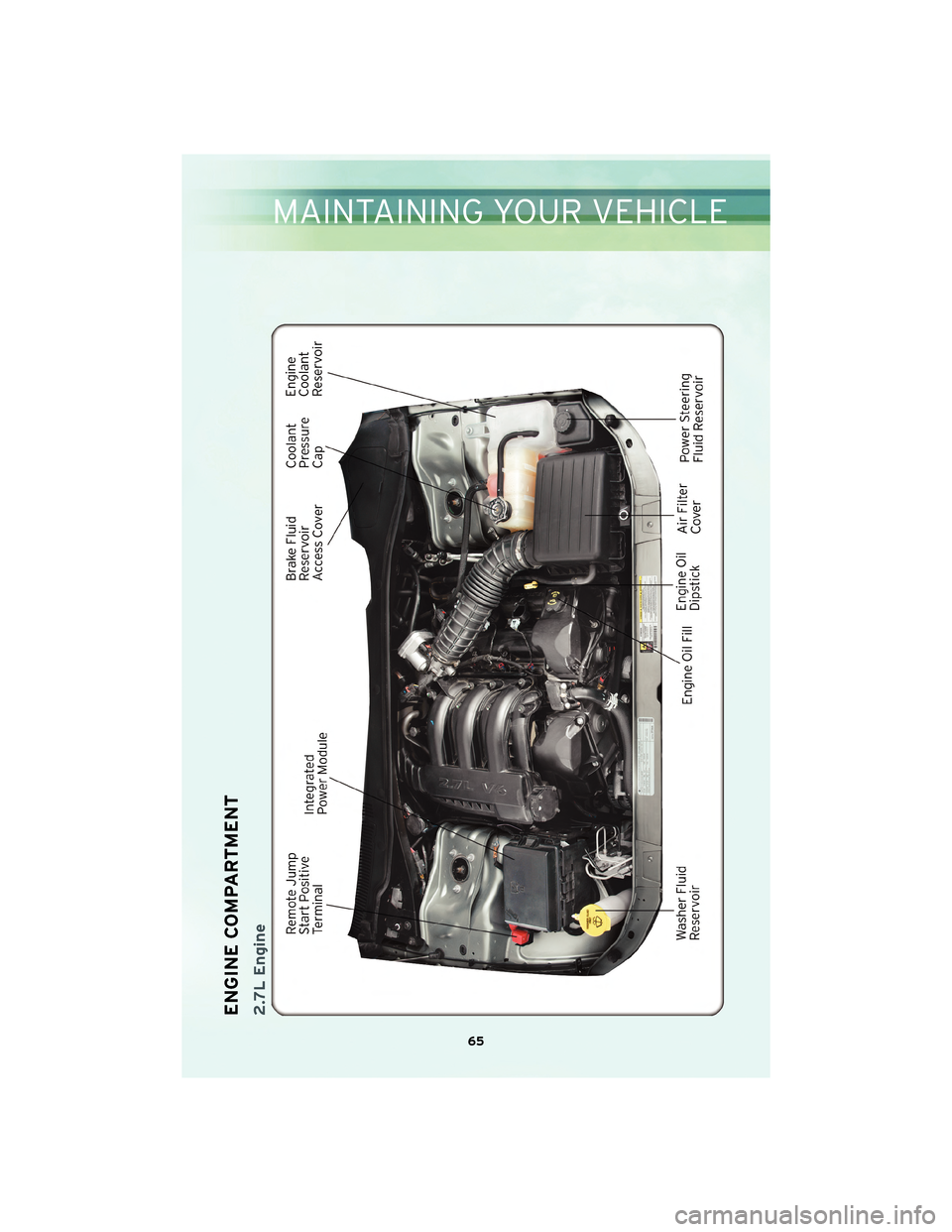

ENGINE COMPARTMENT2.7L Engine
65
MAINTAINING YOUR VEHICLE

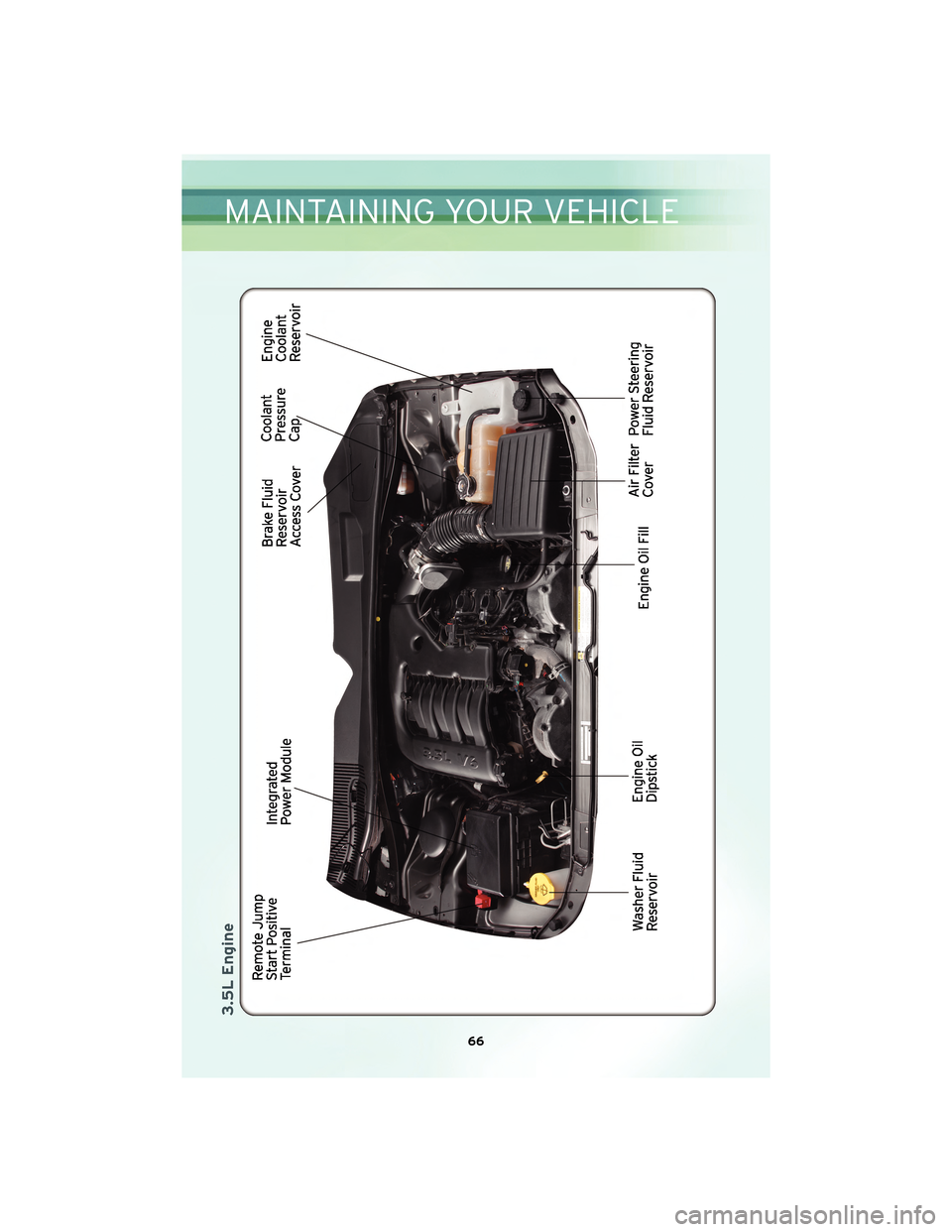

3.5L Engine
66
MAINTAINING YOUR VEHICLE

5.7L Engine
67
MAINTAINING YOUR VEHICLE

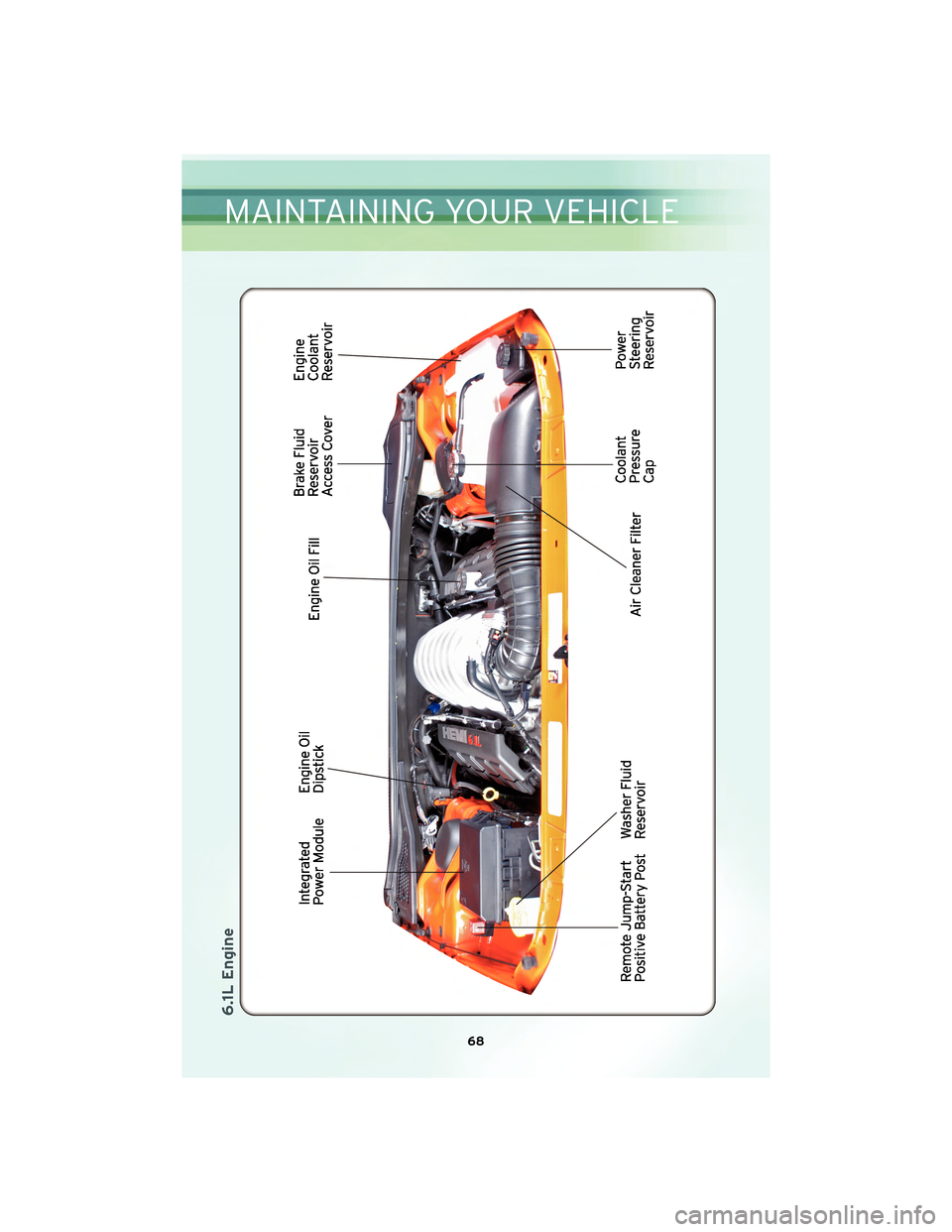

6.1L Engine
68
MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES
ComponentFluid, Lubricant, or
Genuine PartCapacities
Engine Coolant 2.7L MOPAR
®Antifreeze/
Coolant Five
Year/100,000 Mile
Formula HOAT (Hybrid
Organic Additive
Technology) or equivalent. 9.9 Quarts (9.4 Liters)
Includes heater and
coolant recovery bottle
filled to MAX level.
Engine Coolant 3.5L with
and without All Wheel
Drive (AWD). MOPAR
®Antifreeze/
Coolant Five
Year/100,000 Mile
Formula HOAT (Hybrid
Organic Additive
Technology) or equivalent. Without AWD 11.1 Quarts
(10.5 Liters). With AWD
11.4 Quarts (10.8 Liters).
Includes heater and
coolant recovery bottle
filled to MAX level.
Engine Coolant 5.7L with
and without Severe Duty II
Cooling System. MOPAR
®Antifreeze/
Coolant Five
Year/100,000 Mile
Formula HOAT (Hybrid
Organic Additive
Technology) or equivalent. Without Severe Duty
14.7 Quarts (13.9 Liters).
With Severe Duty
15.1 Quarts (14.3 Liters).
Includes heater and
coolant recovery bottle
filled to MAX level.
Engine Coolant 6.1L MOPAR
®Antifreeze/
Coolant Five
Year/100,000 Mile
Formula HOAT (Hybrid
Organic Additive
Technology) or equivalent. 15 Quarts (14.4 Liters)
Includes heater and
coolant recovery bottle
filled to MAX level.
Engine Oil with Filter 2.7L API Certified SAE 5W-20 engine oil, meeting the
requirements of Chrysler
Material Standard
MS-6395. Refer to the
engine oil filler cap for
correct SAE grade.6 Quarts (5.7 Liters)
Engine Oil with Filter 3.5L API Certified SAE 10W-30 engine oil, meeting
Chrysler Material
Standard MS-6395. Refer
to your engine oil filler cap
for correct SAE grade.6 Quarts (5.7 Liters)
Engine Oil with Filter 5.7L API Certified SAE 5W-20 engine oil, meeting the
requirements of Chrysler
Material Standard
MS-6395. Refer to the
engine oil filler cap for
correct SAE grade.7 Quarts (6.6 Liters)
69
MAINTAINING YOUR VEHICLE

ComponentFluid, Lubricant, or
Genuine PartCapacities
Engine Oil with Filter 6.1L API Certified SAE 5W-40 full synthetic engine oil,
meeting the requirements
of Chrysler Material
Standard MS-10725.7 Quarts (6.6 Liters)
Fuel Selection 2.7L, 3.5L 87 Octane 2.7L and 3.5L w/o AWD,
18 Gallons (67 Liters). 3.5L
with AWD, 19 Gallons
(72 Liters).
Fuel Selection 5.7L 87 Octane Acceptable. 89 Octane Recommended.19 Gallons (72 Liters)
Fuel Selection 6.1L Premium Unleaded 91 Octane or higher.19 Gallons (72 Liters)
Engine Oil Filter 2.7L, 3.5L,
5.7L, 6.1L MOPAR
®Engine Oil Filter
or equivalent. —
Spark Plug 2.7L TE10MCC5 (Gap 0.050 in
[1.27 mm]) —
Spark Plug 3.5L ZFR5LP–13G (Gap 0.050 in
[1.27 mm]) —
Spark Plug 5.7L LZFR5C–11 (Gap 0.043 in
[1.1 mm]) —
Spark Plug 6.1L PLZTR5A-13 (Gap.050 in
[1.27 mm]) —
Automatic Transmission MOPAR
®ATF+4®
Automatic Transmission
Fluid or equivalent
licensed ATF+4
®product. —
Transfer Case MOPAR®BorgWarner
44–40 Transfer Case
Lubricant or equivalent. —
Axle Front API GL-5 SAE 75W90 Synthetic Gear Lubricant
or equivalent. —
Axle Rear 2.7L, 3.5L, 5.7L API GL-5 SAE 75W140 Synthetic Gear Lubricant
or equivalent. —
Axle Rear 6.1L API GL-5 SAE 75W90 Synthetic Gear Lubricant
or equivalent (with
MOPAR
®Friction
Modifier-Hypoid Gear
Additive).
MAINTAINING YOUR VEHICLE
70

MAINTENANCE CHART
Miles:
6,000 12,000 18,000 24,000 30,000 36,000 42,000 48,000 54,000 60,000 66,000 72,000 78,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
10,000 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000
Change the engine oil and filter. XXXXXXXXXXXXX
Rotatethetires. XXXXXXXXXXXXX
If using your vehicle for any of the following: dusty
or off-road conditions. Inspect the engine air
cleaner filter; replace if necessary. XXXX X
Replace the air conditioning filter (if equipped). X X X X X X
Inspect the brake linings; replace if necessary. X X X X X X
Inspect the CV joints. Perform the first inspection at
12,000 miles (20,000 km) or 12 months. XXXX
Inspect the exhaust system. Perform the first
inspection at 12,000 miles (20,000 km) or
12 months. XXXX
Inspect the front suspension, tie rod ends and boot
seals for cracks or leaks and all parts for damage,
wear, improper looseness or end play; replace if
necessary. XXXXXX
Inspect the rear axle fluid. Inspect the front axle
fluid – All Wheel Drive (AWD). XXXX
Replace the engine air cleaner filter. X X
Adjust the parking brake on vehicles equipped with
four wheel disc brakes. XX
Replace the spark plugs (5.7L Engine). X XInspect the transfer case fluid – All Wheel Drive (AWD).
X
Change the rear axle fluid, and on models equipped
with All Wheel Drive (AWD) change the front axle
fluid if using your vehicle for any of the following:
police, taxi, fleet, off-road, or frequent trailer
towing. X
• Refer to the Owner’s Manual on the DVD for the complete maintenance schedule.
72
MAINTAINING YOUR VEHICLE

FUSES
Integrated Power Module (IPM)
• The Integrated Power Module (IPM) is located in the engine compartment on theright hand side near the Washer Fluid Reservoir. This module contains fuses and
relays.
Cavity Cartridge Fuse Mini-Fuse Description
1 15 Amp Blue Washer Motor
2 25 Amp Natural Powertrain Control Module (PCM) 3 25 Amp Natural Ignition Run/Start
4 25 Amp Natural EGR Solenoid/Alternator 5— — —
6 25 Amp Natural Ignition Coils/Injectors 7— — —
8 30 Amp Green Starter
10 30 Amp Pink Windshield Wiper 11 30 Amp Pink Anti-Lock Brake System (ABS) Valves
12 40 Amp Green Radiator Fan Lo/High
13 50 Amp Red Anti-Lock Brake System (ABS)
Pump Motor
14 — — —
15 50 Amp Red Radiator Fan
