CHRYSLER 300 2012 2.G Owners Manual

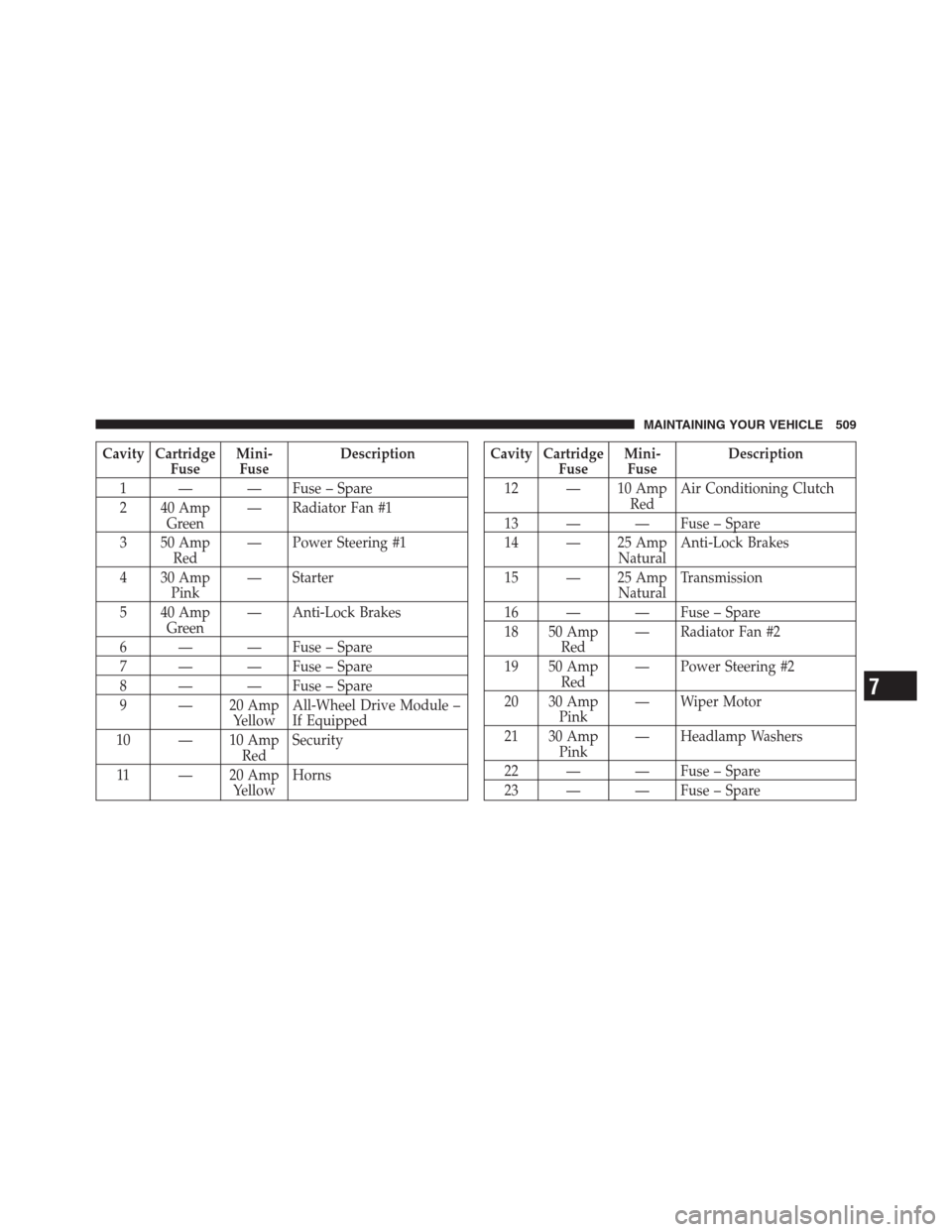

Cavity Cartridge
FuseMini-
FuseDescription
1 — — Fuse – Spare
2 40 Amp
Green— Radiator Fan #1
3 50 Amp
Red— Power Steering #1
4 30 Amp
Pink— Starter
5 40 Amp
Green— Anti-Lock Brakes
6 — — Fuse – Spare
7 — — Fuse – Spare
8 — — Fuse – Spare
9 — 20 Amp
YellowAll-Wheel Drive Module –
If Equipped
10 — 10 Amp
RedSecurity
11 — 20 Amp
YellowHornsCavity Cartridge
FuseMini-
FuseDescription
12 — 10 Amp
RedAir Conditioning Clutch
13 — — Fuse – Spare
14 — 25 Amp
NaturalAnti-Lock Brakes
15 — 25 Amp
NaturalTransmission
16 — — Fuse – Spare
18 50 Amp
Red— Radiator Fan #2
19 50 Amp
Red— Power Steering #2
20 30 Amp
Pink— Wiper Motor
21 30 Amp
Pink— Headlamp Washers
22 — — Fuse – Spare
23 — — Fuse – Spare
7
MAINTAINING YOUR VEHICLE 509

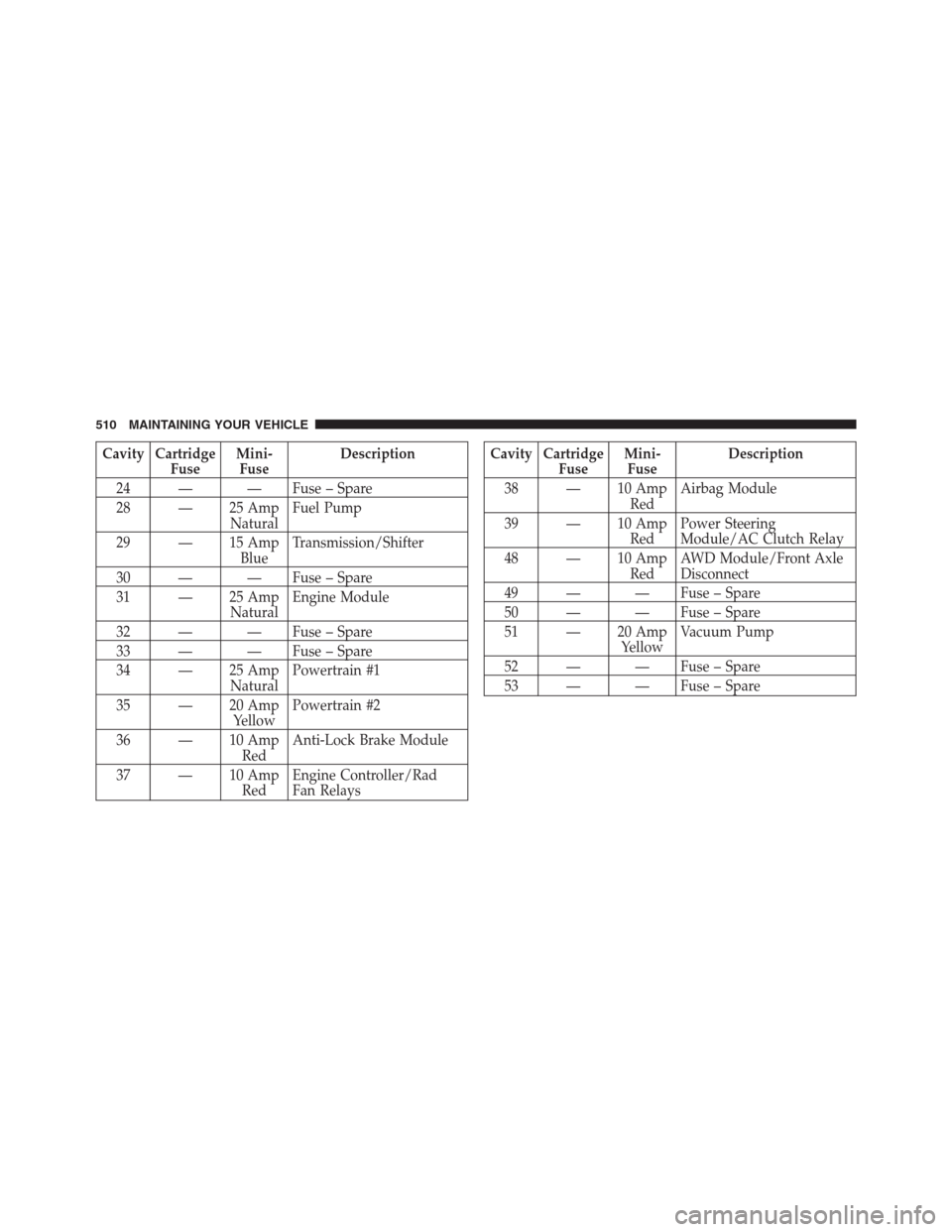

Cavity Cartridge
FuseMini-
FuseDescription
24 — — Fuse – Spare
28 — 25 Amp
NaturalFuel Pump
29 — 15 Amp
BlueTransmission/Shifter
30 — — Fuse – Spare
31 — 25 Amp
NaturalEngine Module
32 — — Fuse – Spare
33 — — Fuse – Spare
34 — 25 Amp
NaturalPowertrain #1
35 — 20 Amp
YellowPowertrain #2
36 — 10 Amp
RedAnti-Lock Brake Module
37 — 10 Amp
RedEngine Controller/Rad
Fan RelaysCavity Cartridge
FuseMini-
FuseDescription
38 — 10 Amp
RedAirbag Module
39 — 10 Amp
RedPower Steering
Module/AC Clutch Relay
48 — 10 Amp
RedAWD Module/Front Axle
Disconnect
49 — — Fuse – Spare
50 — — Fuse – Spare
51 — 20 Amp
YellowVacuum Pump
52 — — Fuse – Spare
53 — — Fuse – Spare
510 MAINTAINING YOUR VEHICLE

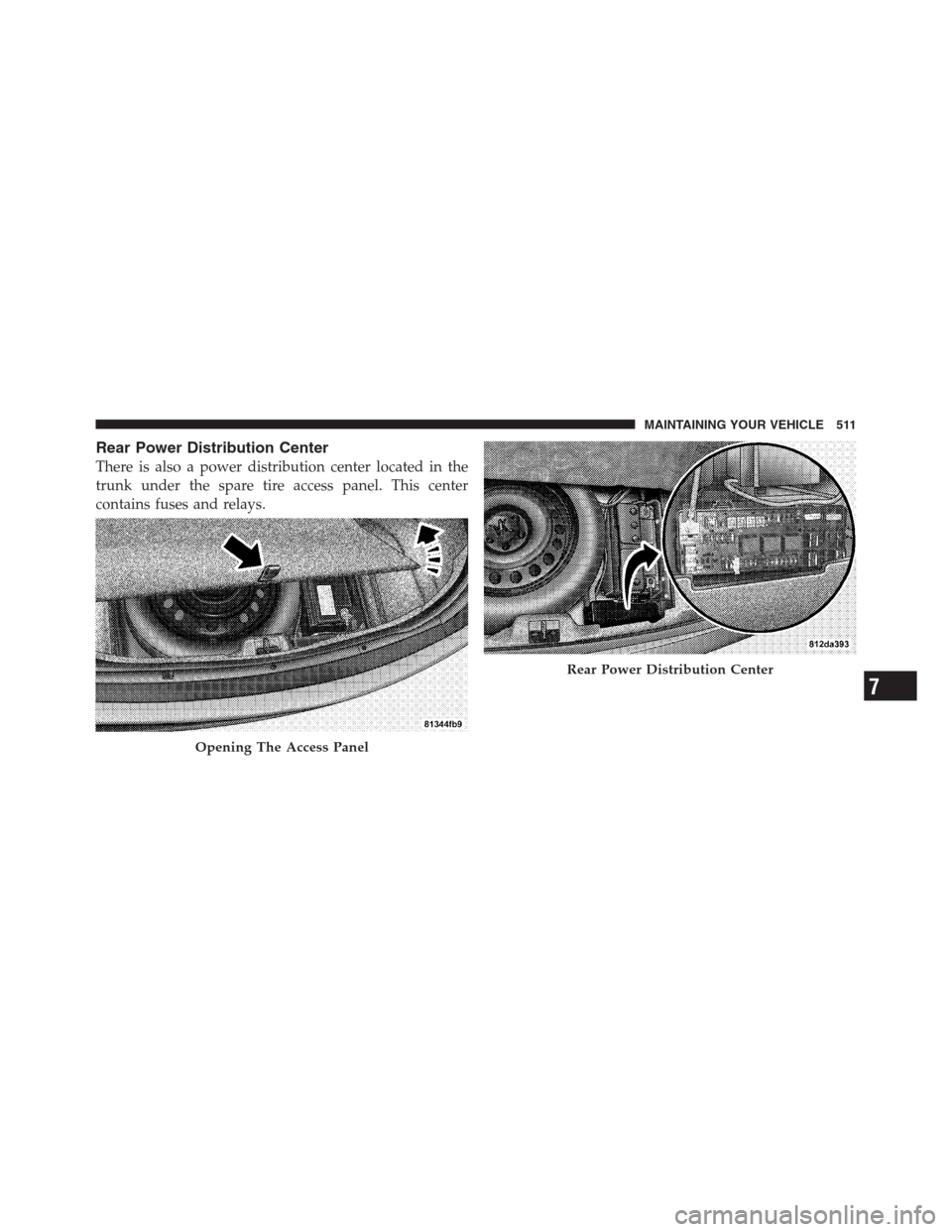

Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Panel
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 511

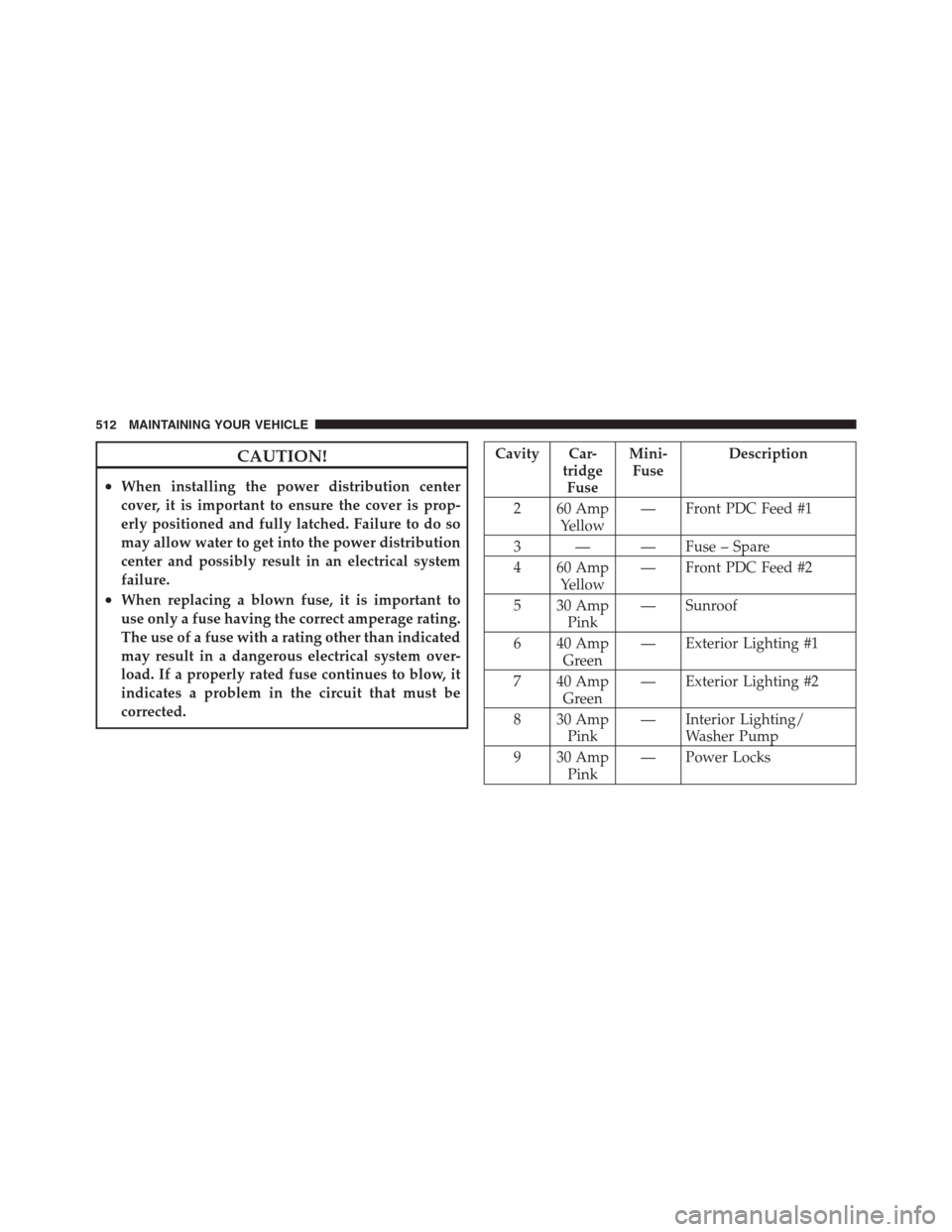

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Cavity Car-
tridge
FuseMini-
FuseDescription
2 60 Amp
Yellow— Front PDC Feed #1
3 — — Fuse – Spare
4 60 Amp
Yellow— Front PDC Feed #2
5 30 Amp
Pink— Sunroof
6 40 Amp
Green— Exterior Lighting #1
7 40 Amp
Green— Exterior Lighting #2
8 30 Amp
Pink— Interior Lighting/
Washer Pump
9 30 Amp
Pink— Power Locks
512 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini-
FuseDescription
10 30 Amp
Pink— Driver Door
11 30 Amp
Pink— Passenger Door
12 — 20 Amp
YellowCigar Lighters, Instru-
ment Panel & Power
Outlet Console Rear
15 40 Amp
Green— HVAC Blower
16 — — Fuse — Spare
17 — — Fuse — Spare
18 — — Fuse — Spare
19 — — Fuse — Spare
20 — — Fuse — Spare
21 — — Fuse — SpareCavity Car-
tridge
FuseMini-
FuseDescription
22 — — Fuse — Spare
23 — 10 Amp
RedFuel Door/Diagnostic
Port
24 — 15 Amp
BlueRadio Screen
25 — 10 Amp
RedTire Pressure Monitor
26 — — Fuse — Spare
27 — 25 Amp
NaturalAmplifier
31 — 25 Amp
NaturalPower Seats
32 — 15 Amp
BlueHVAC Module/Cluster
7
MAINTAINING YOUR VEHICLE 513

Cavity Car-
tridge
FuseMini-
FuseDescription
33 — 15 Amp
BlueIgnition Switch/Wireless
Module
34 — 10 Amp
RedSteering Column
Module/Clock
35 — 10 Amp
RedBattery Sensor
36 — — Fuse — Spare
37 — 15 Amp
BlueRadio
38 — 20 Amp
YellowPower Outlet Inside
Arm Rest
40 — — Fuse — Spare
41 — — Fuse — Spare
42 30 Amp
Pink— Rear DefrostCavity Car-
tridge
FuseMini-
FuseDescription
43 — 25 Amp
NaturalRear Heated Seats/
Steering Wheel
44 — 10 Amp
RedPark Assist/Blind Spot/
Camera
45 — 15 Amp
BlueCluster/Rearview
Mirror/Compass
46 — 10 Amp
RedAdaptive Cruise Control
47 — 10 Amp
RedAdaptive Front Lighting
48 — 20 Amp
YellowActive Suspension
49 — — Fuse — Spare
50 — — Fuse — Spare
514 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini-
FuseDescription
51 — 20 Amp
YellowFront Heated Seats
52 — 10 Amp
RedHeated Cupholders/
Rear Heated Seat
Switches
53 — 10 Amp
RedHVAC Module/In Car
Temperature Sensor
54 — — Fuse — Spare
55 — — Fuse — Spare
56 — — Fuse — Spare
57 — — Fuse — Spare
58 — 10 Amp
RedAirbag Module
59 — — Fuse — Spare
60 — — Fuse — SpareCavity Car-
tridge
FuseMini-
FuseDescription
61 — — Fuse — Spare
62 — — Fuse — Spare
63 — — Fuse — Spare
64 — 25 Amp
NaturalRear Windows
65 — 10 Amp
RedAirbag Module
66 — — Fuse — Spare
67 — 15 Amp
BlueRun Sense
68 — 15 Amp
BlueIllumination/Rear Sun-
shade
69 — — Fuse — Spare
70 — — Fuse — Spare
7
MAINTAINING YOUR VEHICLE 515

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamps............ 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
516 MAINTAINING YOUR VEHICLE

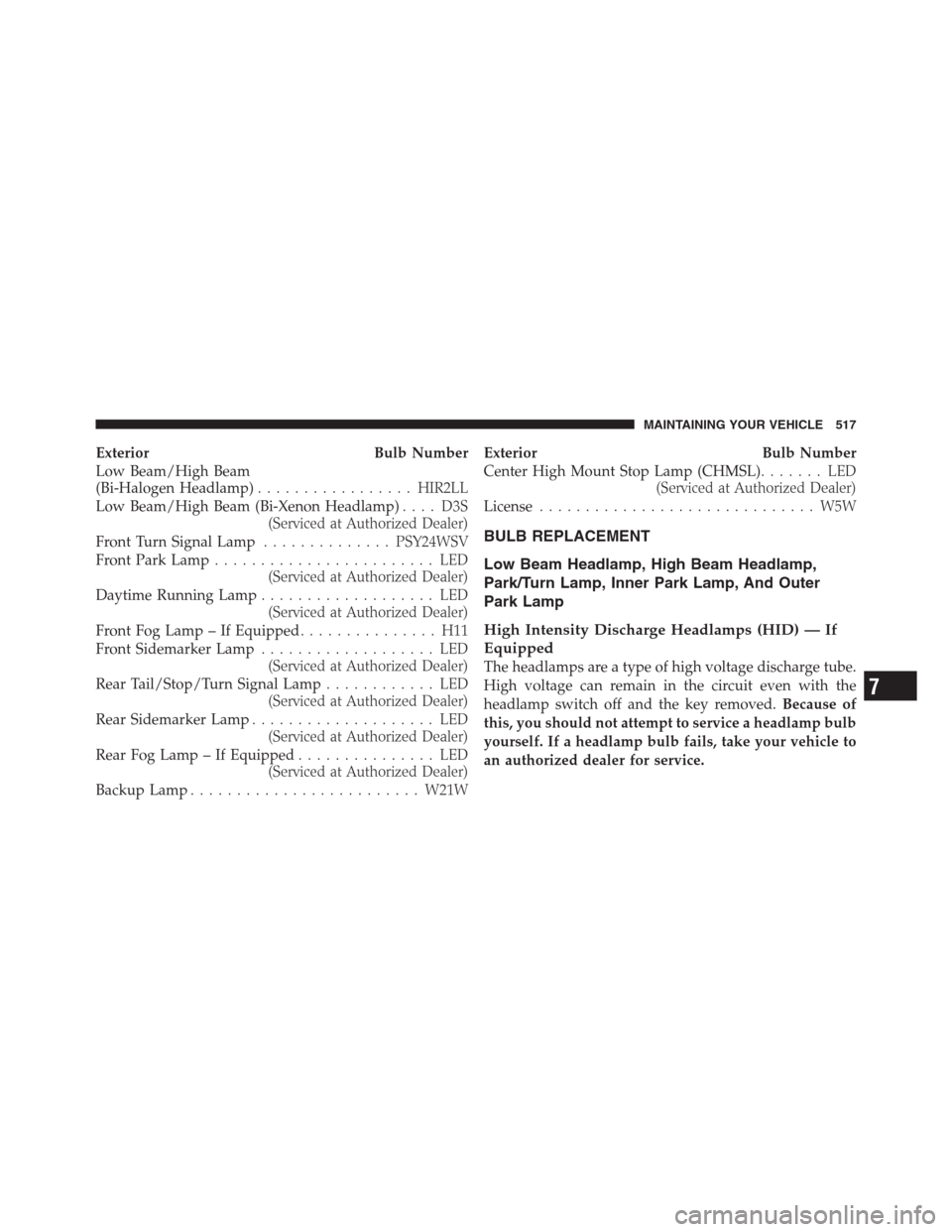

Exterior Bulb Number
Low Beam/High Beam
(Bi-Halogen Headlamp).................HIR2LL
Low Beam/High Beam (Bi-Xenon Headlamp).... D3S
(Serviced at Authorized Dealer)
Front Turn Signal Lamp..............PSY24WSV
Front Park Lamp........................ LED
(Serviced at Authorized Dealer)
Daytime Running Lamp................... LED
(Serviced at Authorized Dealer)
Front Fog Lamp – If Equipped............... H11
Front Sidemarker Lamp................... LED
(Serviced at Authorized Dealer)
Rear Tail/Stop/Turn Signal Lamp............ LED
(Serviced at Authorized Dealer)
Rear Sidemarker Lamp.................... LED
(Serviced at Authorized Dealer)
Rear Fog Lamp – If Equipped............... LED
(Serviced at Authorized Dealer)
Backup Lamp.........................W21WExterior Bulb Number
Center High Mount Stop Lamp (CHMSL)....... LED
(Serviced at Authorized Dealer)
License.............................. W5W
BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp, Inner Park Lamp, And Outer
Park Lamp
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
7
MAINTAINING YOUR VEHICLE 517

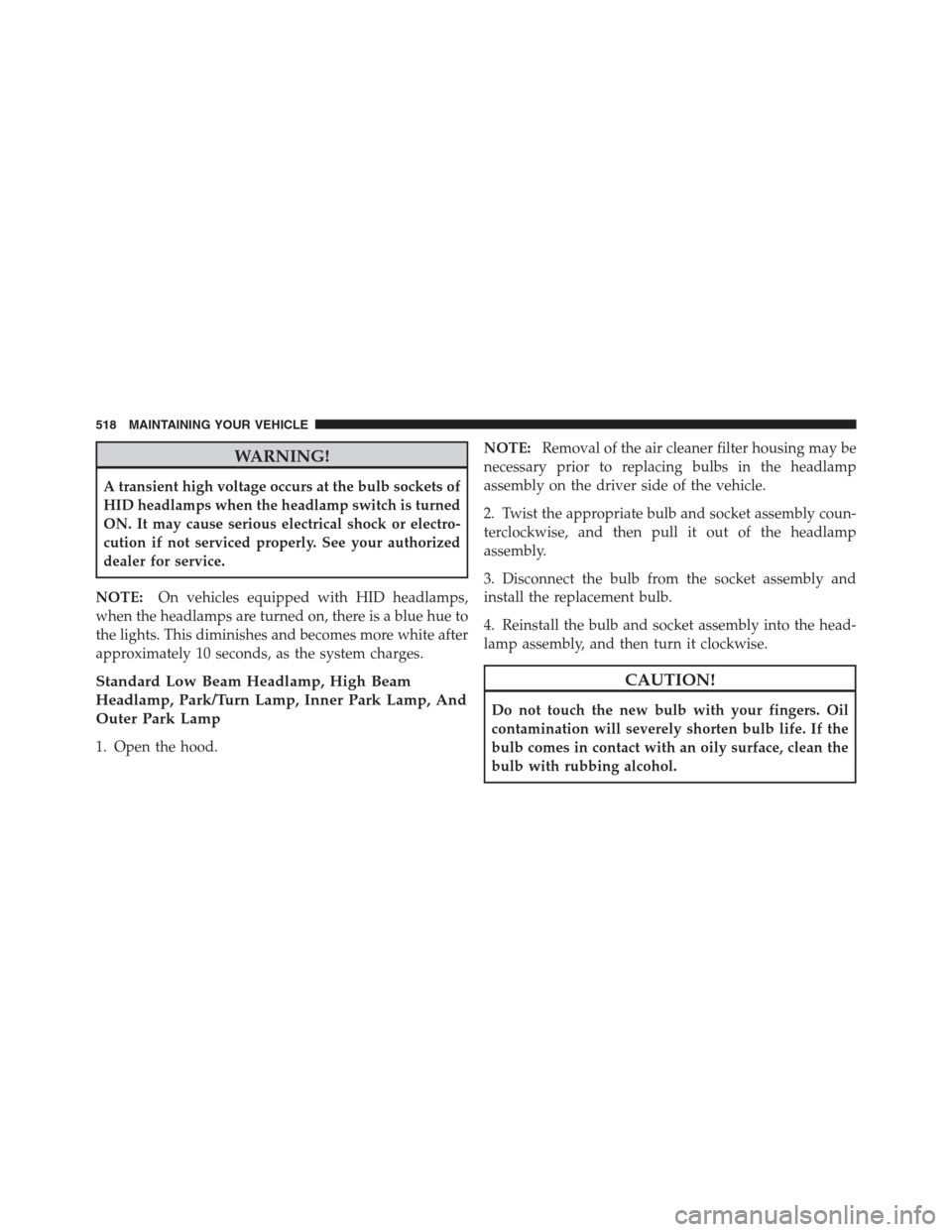

WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Standard Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, Inner Park Lamp, And
Outer Park Lamp
1. Open the hood.NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlamp
assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
lamp assembly, and then turn it clockwise.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
518 MAINTAINING YOUR VEHICLE
