glove box CHRYSLER 300 2012 2.G Owners Manual

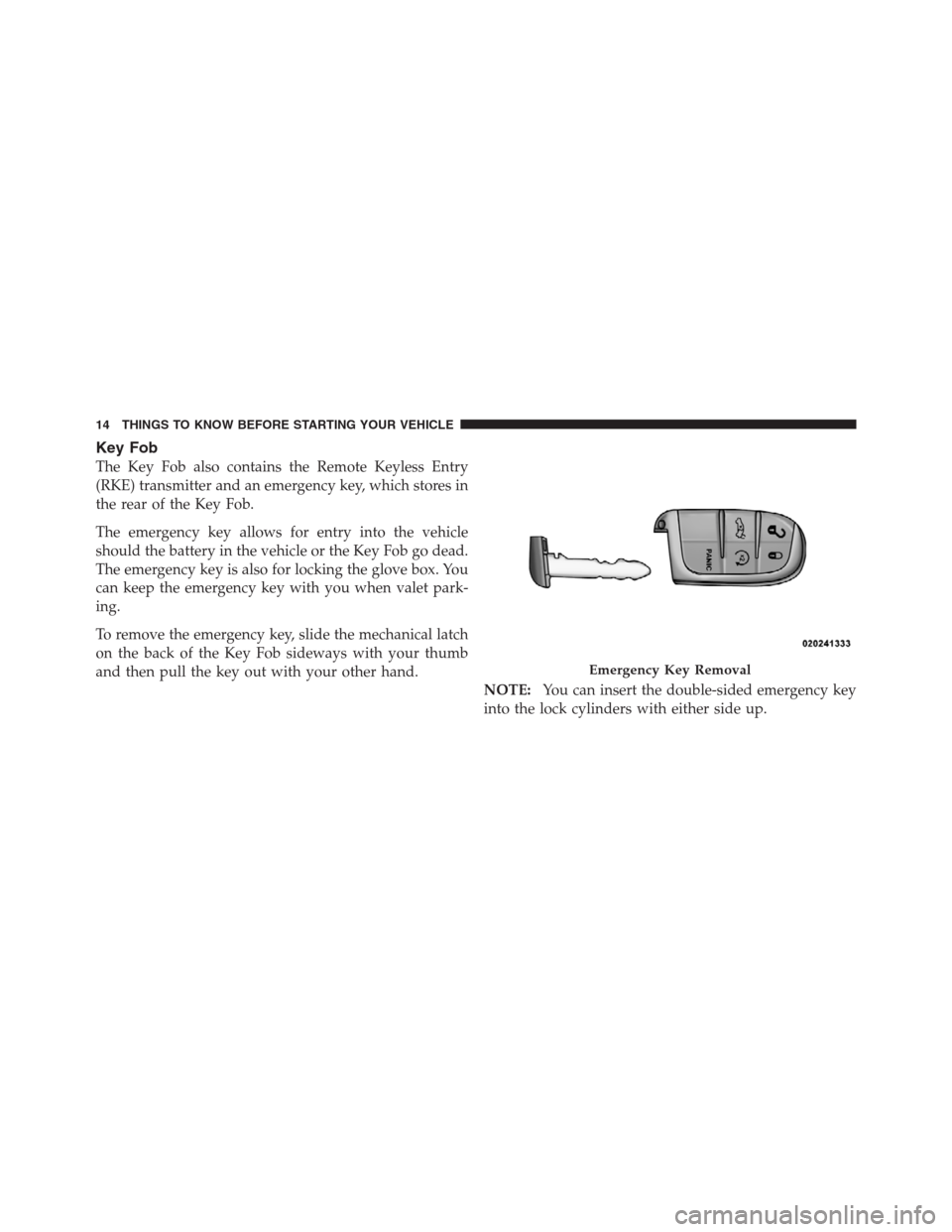

Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
To remove the emergency key, slide the mechanical latch
on the back of the Key Fob sideways with your thumb
and then pull the key out with your other hand.
NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Emergency Key Removal
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

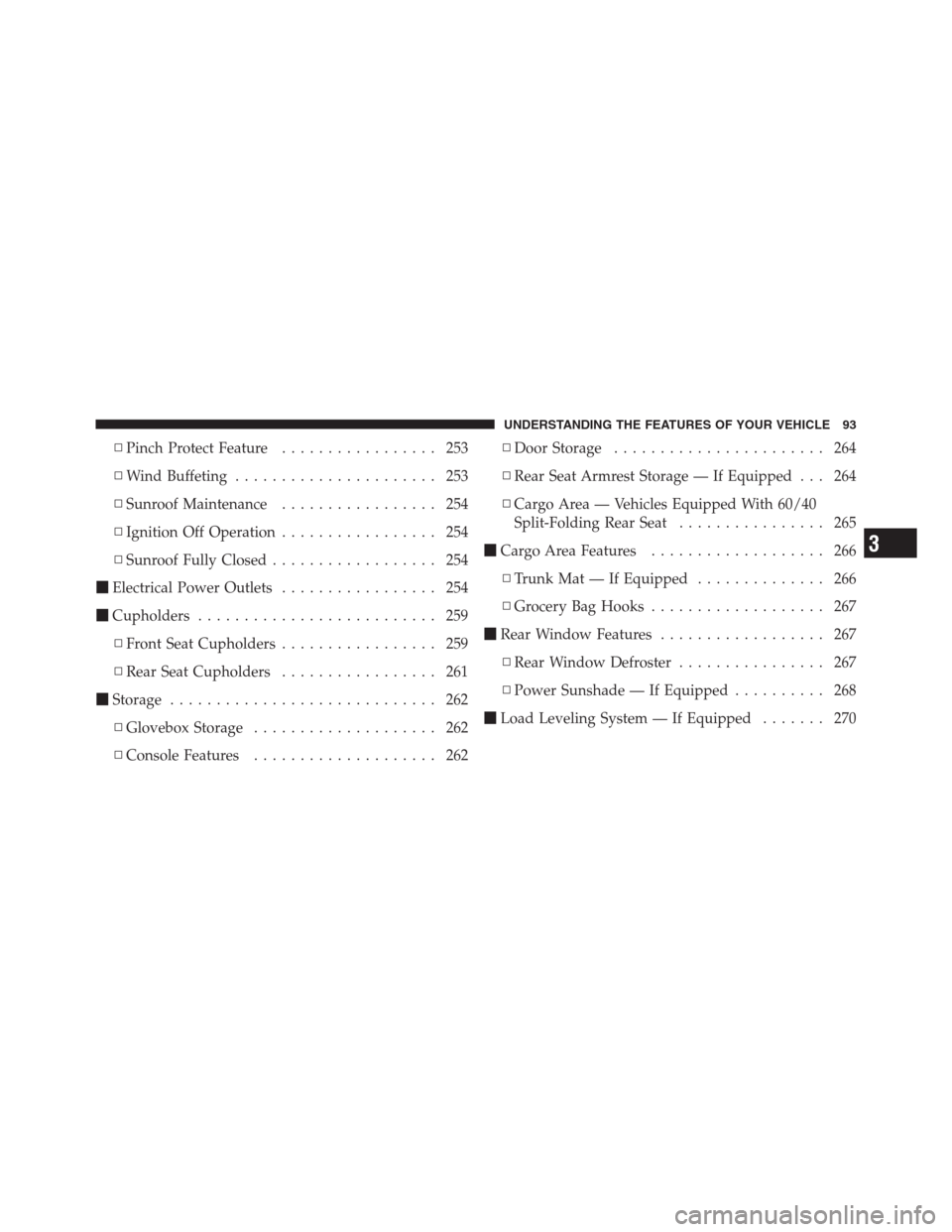

▫Pinch Protect Feature................. 253
▫Wind Buffeting...................... 253
▫Sunroof Maintenance................. 254
▫Ignition Off Operation................. 254
▫Sunroof Fully Closed.................. 254
Electrical Power Outlets................. 254
Cupholders.......................... 259
▫Front Seat Cupholders................. 259
▫Rear Seat Cupholders................. 261
Storage............................. 262
▫Glovebox Storage.................... 262
▫Console Features.................... 262▫Door Storage....................... 264
▫Rear Seat Armrest Storage — If Equipped . . . 264
▫Cargo Area — Vehicles Equipped With 60/40
Split-Folding Rear Seat................ 265
Cargo Area Features................... 266
▫Trunk Mat — If Equipped.............. 266
▫Grocery Bag Hooks................... 267
Rear Window Features.................. 267
▫Rear Window Defroster................ 267
▫Power Sunshade — If Equipped.......... 268
Load Leveling System — If Equipped....... 270
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

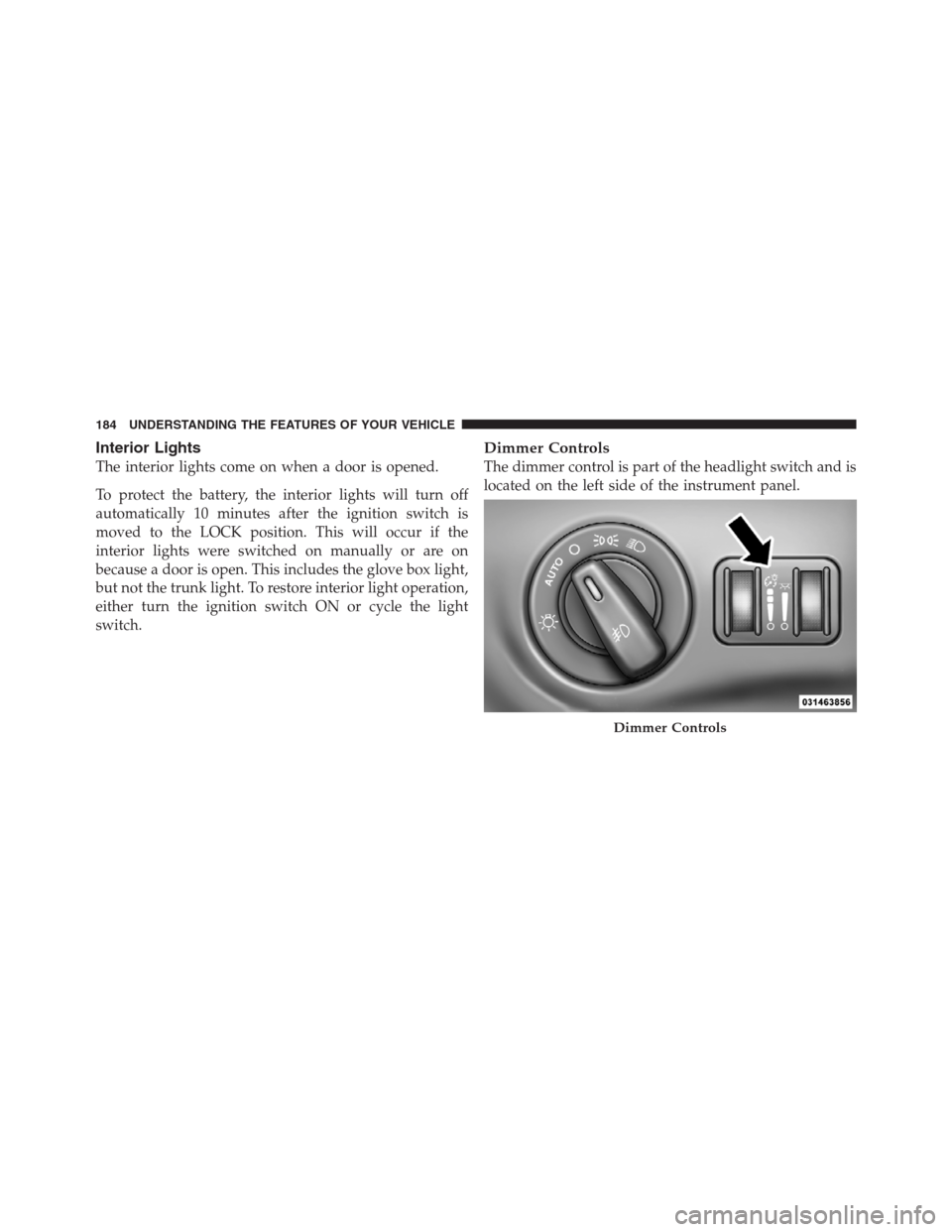

Interior Lights
The interior lights come on when a door is opened.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open. This includes the glove box light,
but not the trunk light. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
Dimmer Controls
The dimmer control is part of the headlight switch and is
located on the left side of the instrument panel.
Dimmer Controls
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

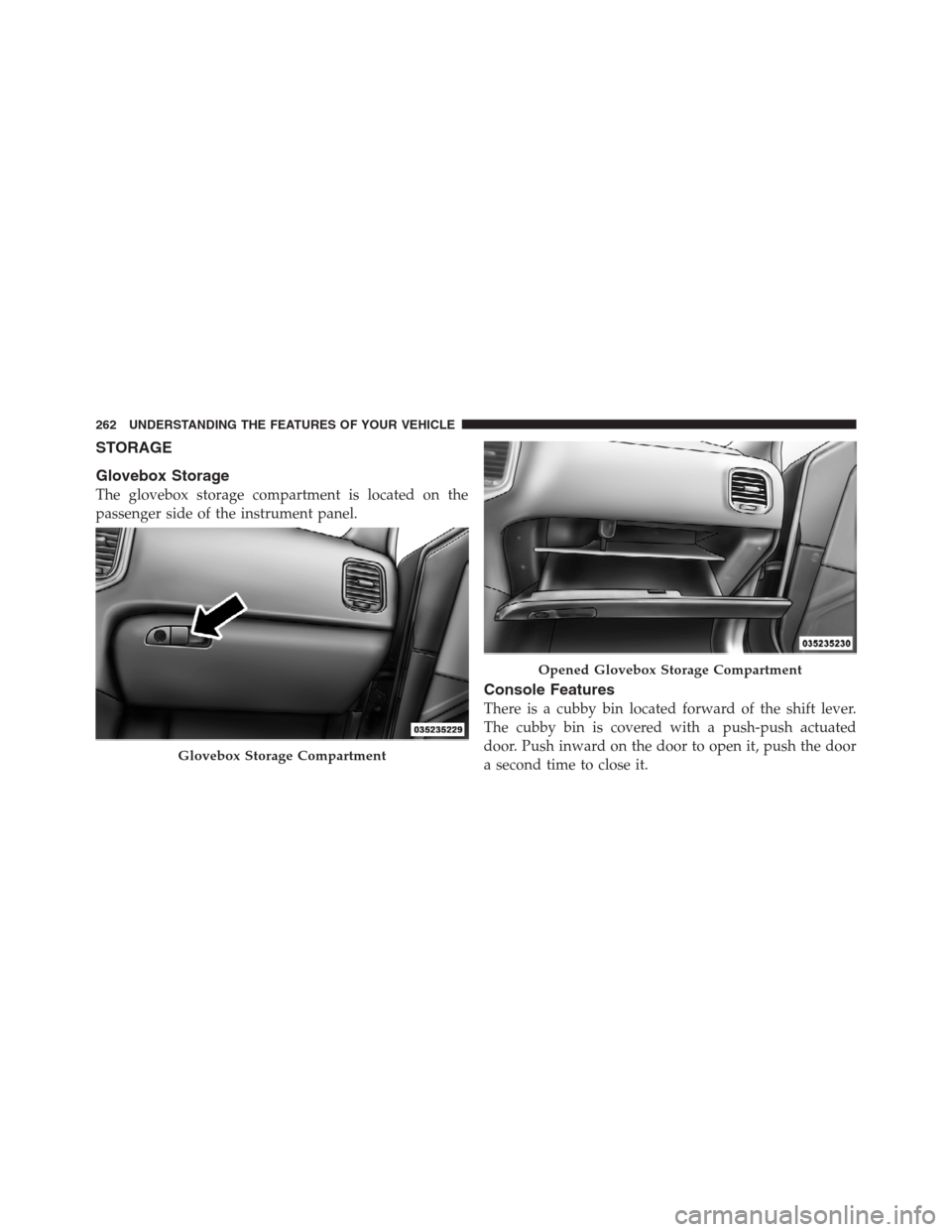

STORAGE
Glovebox Storage
The glovebox storage compartment is located on the
passenger side of the instrument panel.
Console Features
There is a cubby bin located forward of the shift lever.
The cubby bin is covered with a push-push actuated
door. Push inward on the door to open it, push the door
a second time to close it.
Glovebox Storage Compartment
Opened Glovebox Storage Compartment
262 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

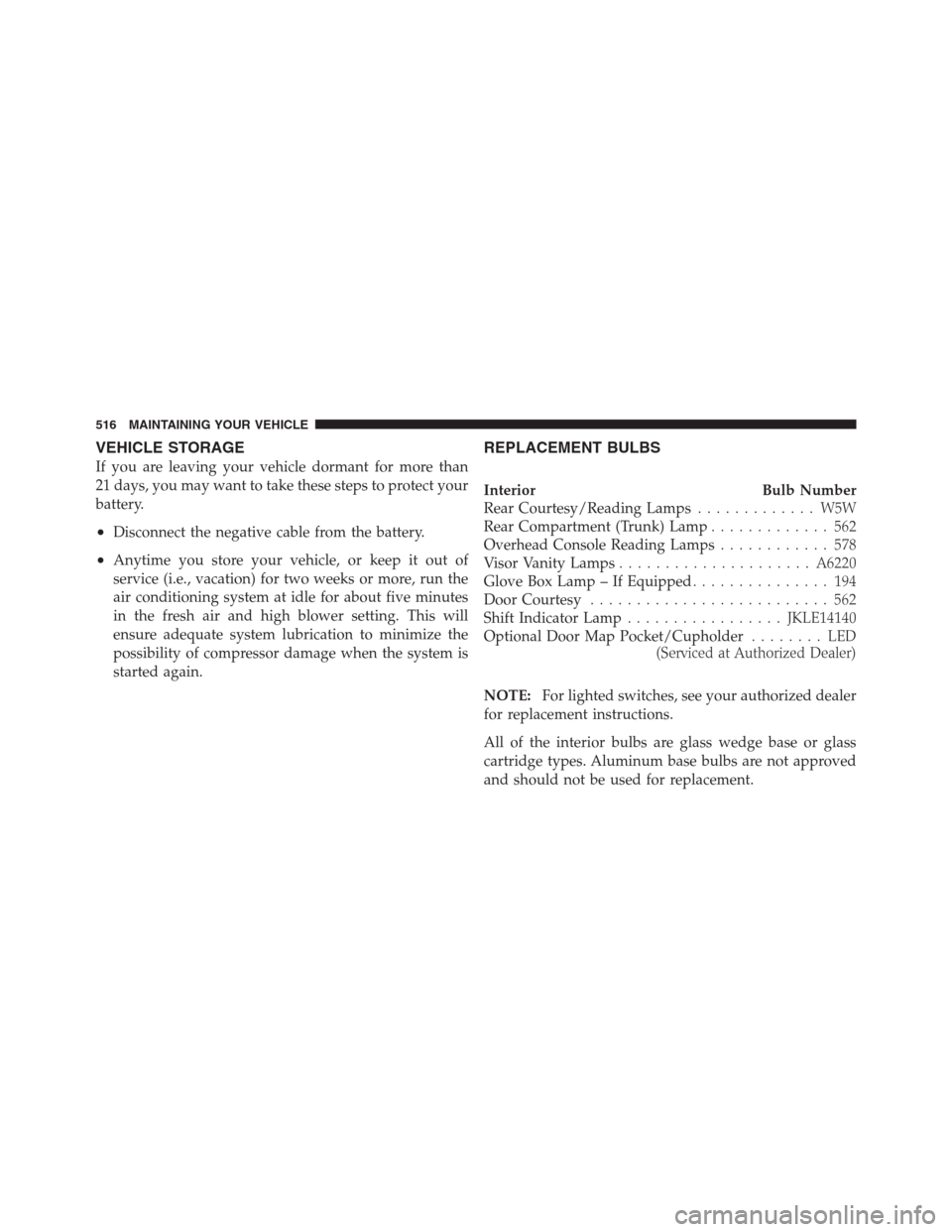

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamps............ 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
516 MAINTAINING YOUR VEHICLE
