CHRYSLER 300 2014 2.G Owners Manual

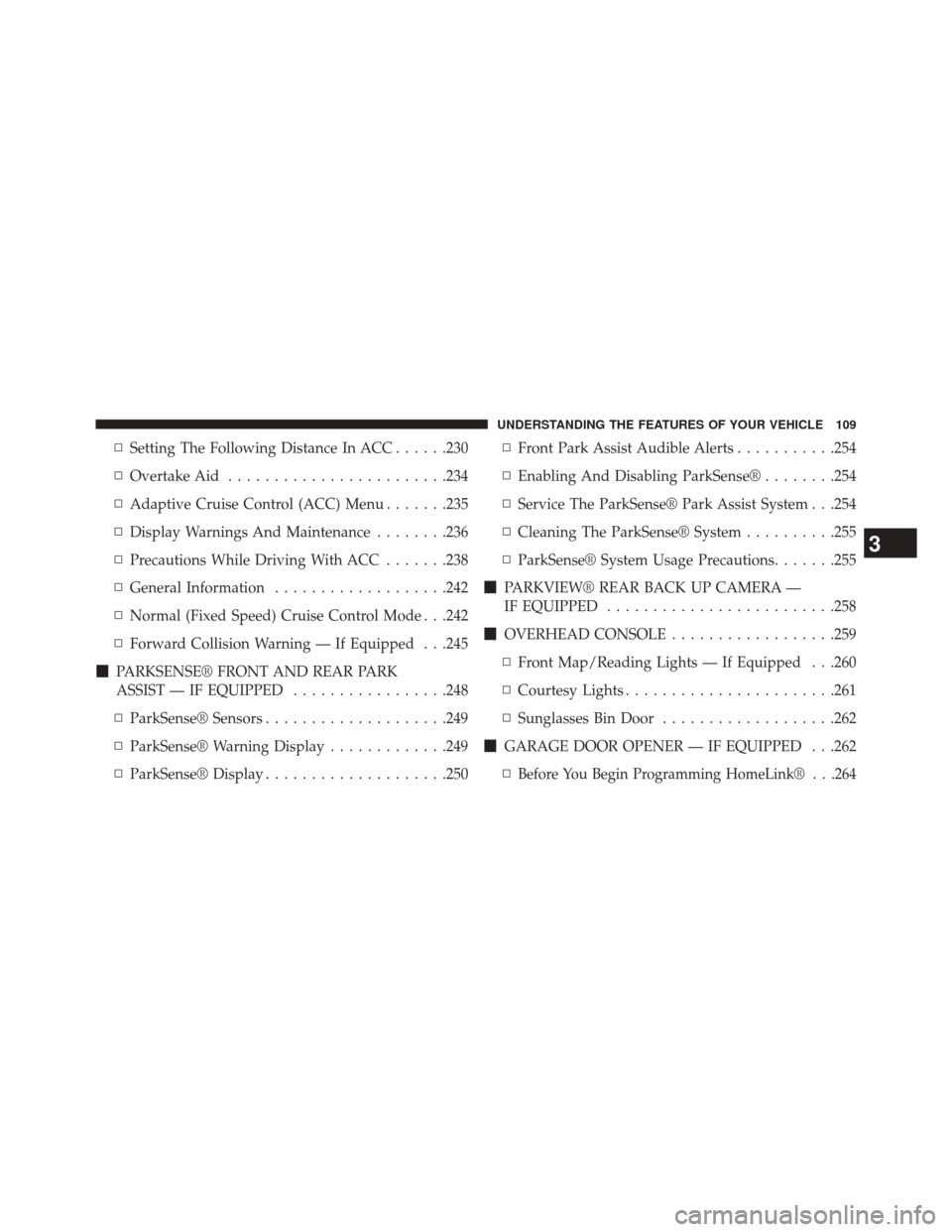

▫Setting The Following Distance In ACC ......230
▫ Overtake Aid ....................... .234
▫ Adaptive Cruise Control (ACC) Menu .......235
▫ Display Warnings And Maintenance ........236
▫ Precautions While Driving With ACC .......238
▫ General Information ...................242
▫ Normal (Fixed Speed) Cruise Control Mode . . .242
▫ Forward Collision Warning — If Equipped . . .245
 PARKSENSE® FRONT AND REAR PARK
ASSIST — IF EQUIPPED .................248
▫ ParkSense® Sensors ....................249
▫ ParkSense® Warning Display .............249
▫ ParkSense® Display ....................250 ▫
Front Park Assist Audible Alerts ...........254
▫ Enabling And Disabling ParkSense® ........254
▫ Service The ParkSense® Park Assist System . . .254
▫ Cleaning The ParkSense® System ..........255
▫ ParkSense® System Usage Precautions .......255
 PARKVIEW® REAR BACK UP CAMERA —
IF EQUIPPED ........................ .258
 OVERHEAD CONSOLE ..................259
▫ Front Map/Reading Lights — If Equipped . . .260
▫ Courtesy Lights ...................... .261
▫ Sunglasses Bin Door ...................262
 GARAGE DOOR OPENER — IF EQUIPPED . . .262
▫
Before You Begin Programming HomeLink® . . .264
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

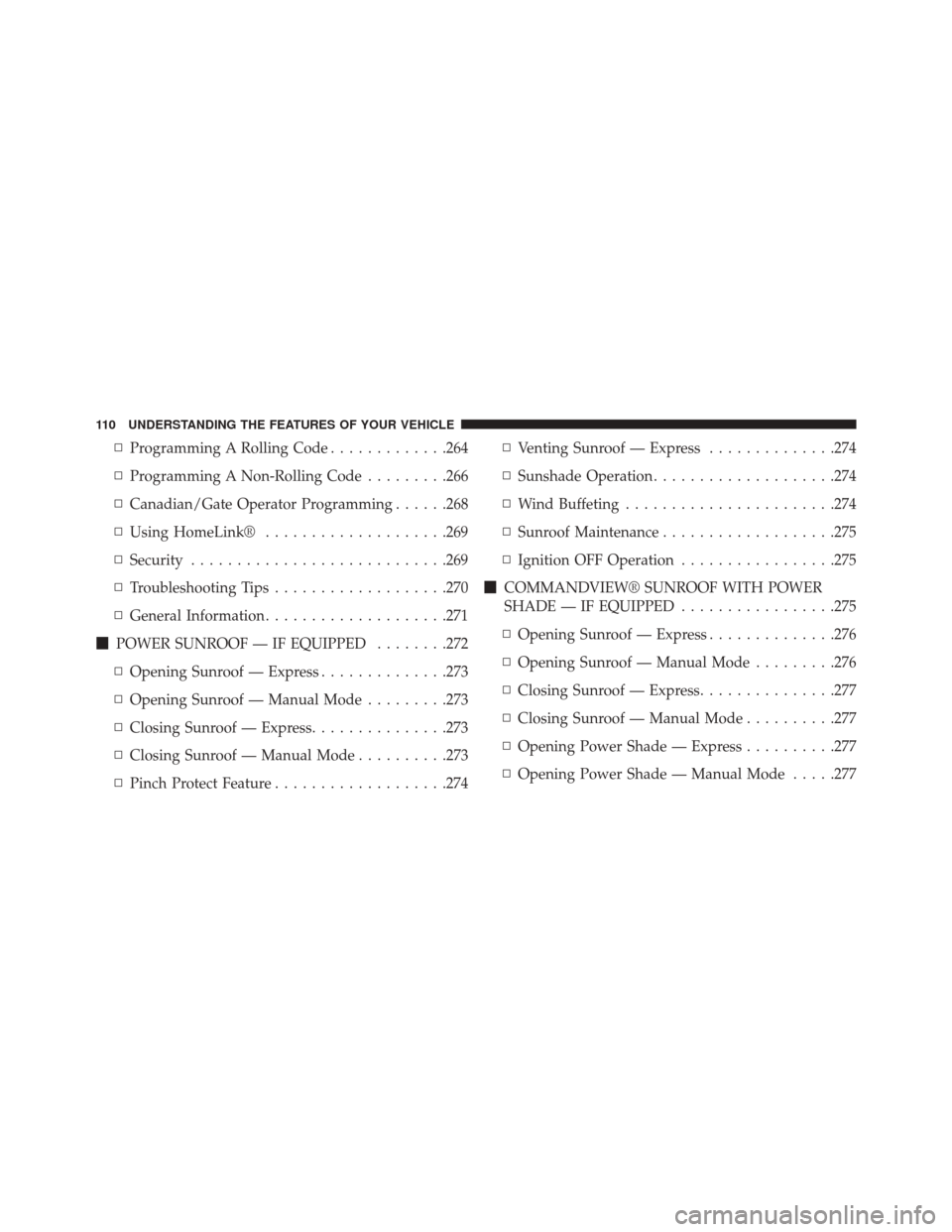

▫Programming A Rolling Code .............264
▫ Programming A Non-Rolling Code .........266
▫ Canadian/Gate Operator Programming ......268
▫ Using HomeLink® ....................269
▫ Security ........................... .269
▫ Troubleshooting Tips ...................270
▫ General Information ....................271
 POWER SUNROOF — IF EQUIPPED ........272
▫ Opening Sunroof — Express ..............273
▫ Opening Sunroof — Manual Mode .........273
▫ Closing Sunroof — Express ...............273
▫ Closing Sunroof — Manual Mode ..........273
▫ Pinch Protect Feature ...................274 ▫
Venting Sunroof — Express ..............274
▫ Sunshade Operation ....................274
▫ Wind Buffeting ...................... .274
▫ Sunroof Maintenance ...................275
▫ Ignition OFF Operation .................275
 COMMANDVIEW® SUNROOF WITH POWER
SHADE — IF EQUIPPED .................275
▫ Opening Sunroof — Express ..............276
▫ Opening Sunroof — Manual Mode .........276
▫ Closing Sunroof — Express ...............277
▫ Closing Sunroof — Manual Mode ..........277
▫ Opening Power Shade — Express ..........277
▫ Opening Power Shade — Manual Mode .....277
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

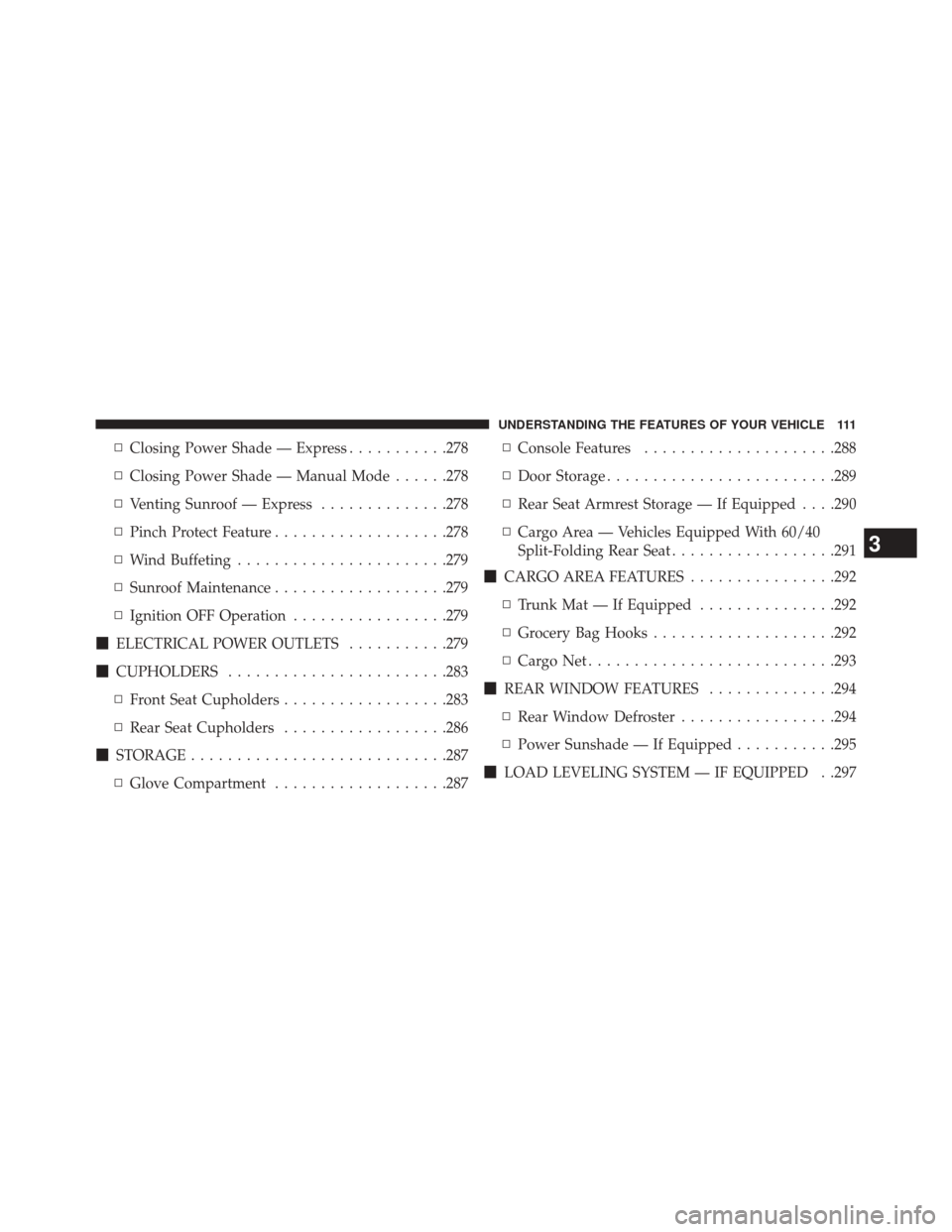

▫Closing Power Shade — Express ...........278
▫ Closing Power Shade — Manual Mode ......278
▫ Venting Sunroof — Express ..............278
▫ Pinch Protect Feature ...................278
▫ Wind Buffeting ...................... .279
▫ Sunroof Maintenance ...................279
▫ Ignition OFF Operation .................279
 ELECTRICAL POWER OUTLETS ...........279
 CUPHOLDERS ....................... .283
▫ Front Seat Cupholders ..................283
▫ Rear Seat Cupholders ..................286
 STORAGE ........................... .287
▫ Glove Compartment ...................287 ▫
Console Features .....................288
▫ Door Storage ........................ .289
▫ Rear Seat Armrest Storage — If Equipped . . . .290
▫ Cargo Area — Vehicles Equipped With 60/40
Split-Folding Rear Seat ..................291
 CARGO AREA FEATURES ................292
▫ Trunk Mat — If Equipped ...............292
▫ Grocery Bag Hooks ....................292
▫ CargoNet.......................... .293
 REAR WINDOW FEATURES ..............294
▫ Rear Window Defroster .................294
▫ Power Sunshade — If Equipped ...........295
 LOAD LEVELING SYSTEM — IF EQUIPPED . .297
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

MIRRORS
Automatic Dimming Mirror
This mirror automatically adjusts for headlight glare
from vehicles behind you. This feature will be defaulted
on, and is only disabled when the vehicle is moving in
reverse.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

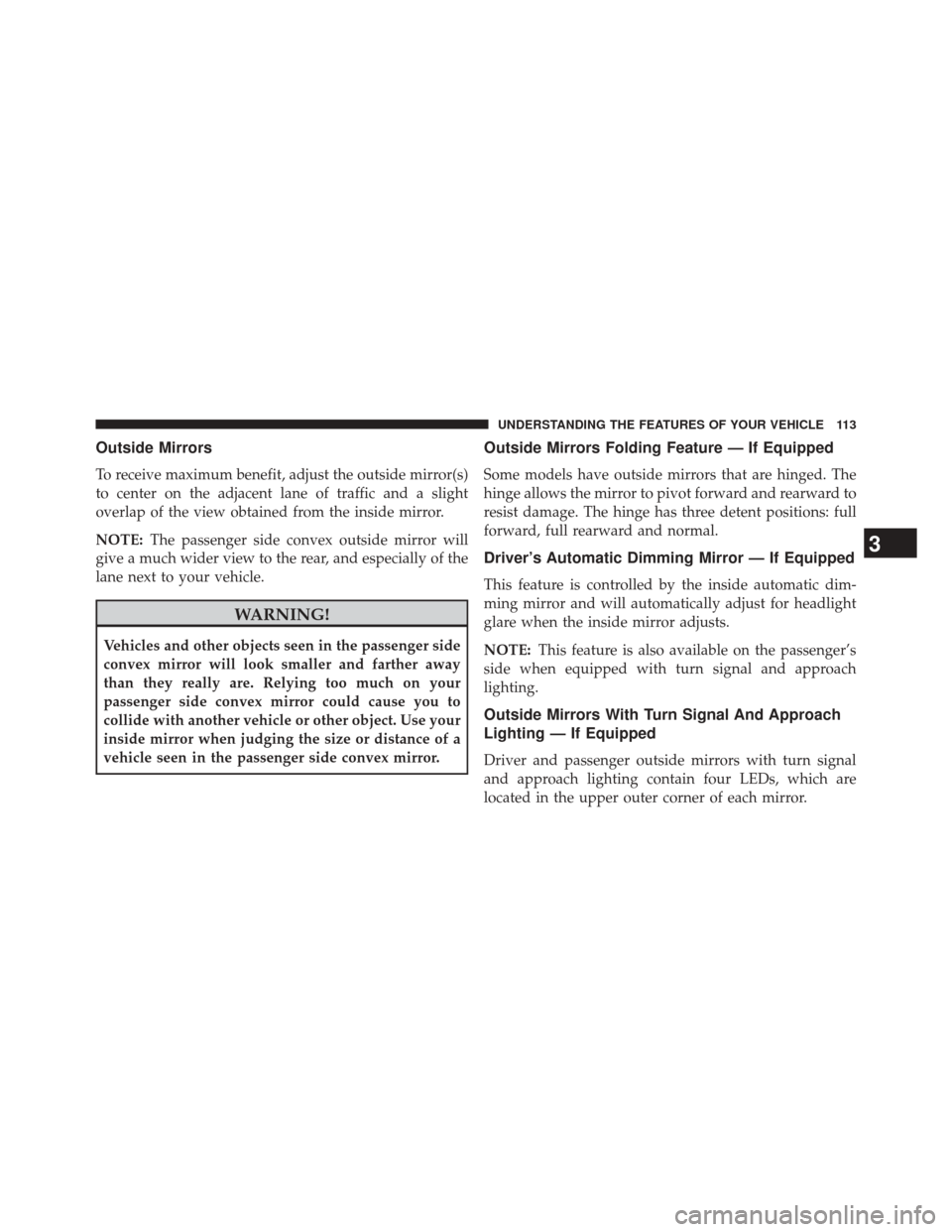

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Outside Mirrors Folding Feature — If Equipped
Some models have outside mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions: full
forward, full rearward and normal.
Driver’s Automatic Dimming Mirror — If Equipped
This feature is controlled by the inside automatic dim-
ming mirror and will automatically adjust for headlight
glare when the inside mirror adjusts.
NOTE: This feature is also available on the passenger’s
side when equipped with turn signal and approach
lighting.
Outside Mirrors With Turn Signal And Approach
Lighting — If Equipped
Driver and passenger outside mirrors with turn signal
and approach lighting contain four LEDs, which are
located in the upper outer corner of each mirror.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

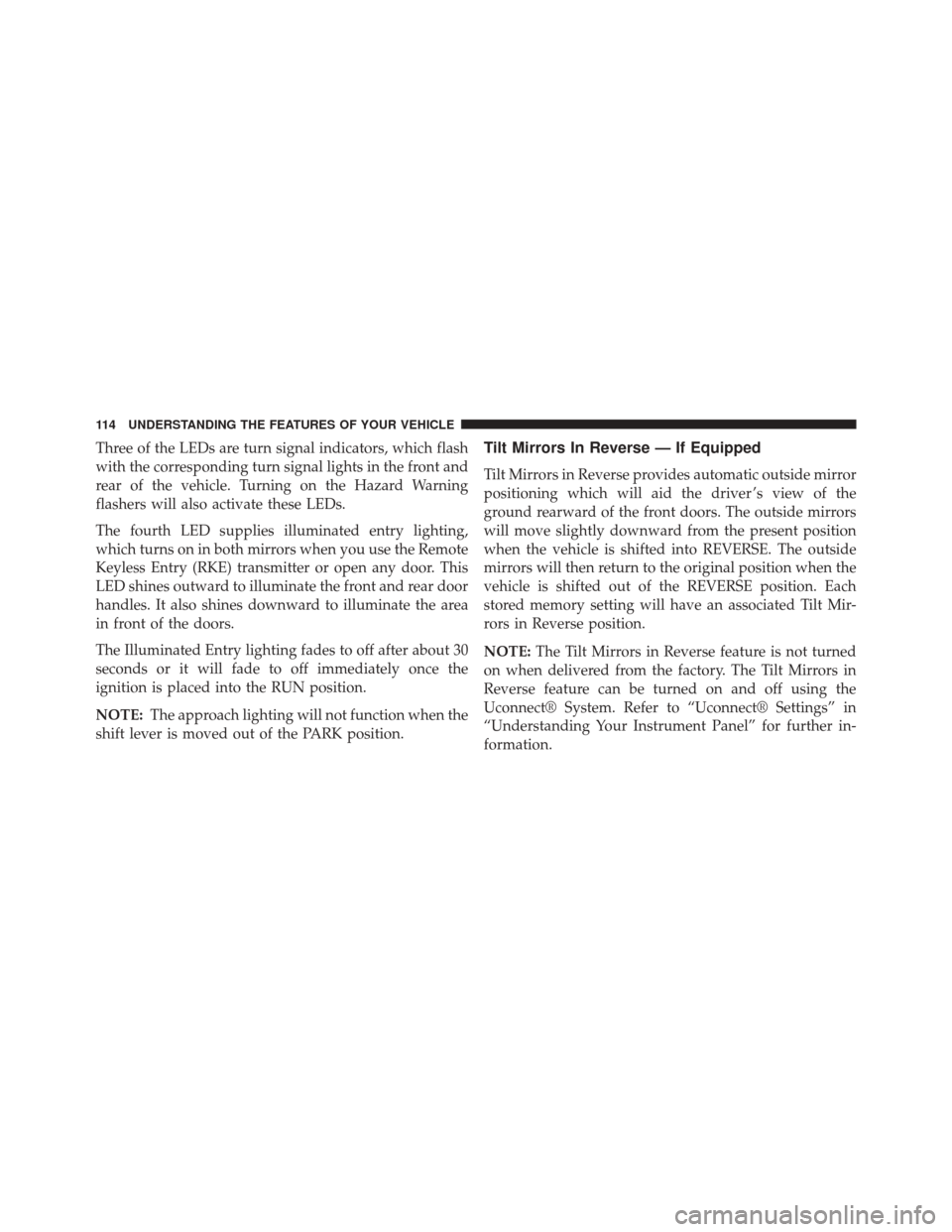

Three of the LEDs are turn signal indicators, which flash
with the corresponding turn signal lights in the front and
rear of the vehicle. Turning on the Hazard Warning
flashers will also activate these LEDs.
The fourth LED supplies illuminated entry lighting,
which turns on in both mirrors when you use the Remote
Keyless Entry (RKE) transmitter or open any door. This
LED shines outward to illuminate the front and rear door
handles. It also shines downward to illuminate the area
in front of the doors.
The Illuminated Entry lighting fades to off after about 30
seconds or it will fade to off immediately once the
ignition is placed into the RUN position.
NOTE:The approach lighting will not function when the
shift lever is moved out of the PARK position.Tilt Mirrors In Reverse — If Equipped
Tilt Mirrors in Reverse provides automatic outside mirror
positioning which will aid the driver ’s view of the
ground rearward of the front doors. The outside mirrors
will move slightly downward from the present position
when the vehicle is shifted into REVERSE. The outside
mirrors will then return to the original position when the
vehicle is shifted out of the REVERSE position. Each
stored memory setting will have an associated Tilt Mir-
rors in Reverse position.
NOTE: The Tilt Mirrors in Reverse feature is not turned
on when delivered from the factory. The Tilt Mirrors in
Reverse feature can be turned on and off using the
Uconnect® System. Refer to “Uconnect® Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Mirrors
The power mirror controls are located on the driver’s
door trim panel.The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch. To adjust a
mirror, press either the L (left) or R (right) button to select
the mirror that you want to adjust.
NOTE:
A light in the select button will illuminate indi-
cating the mirror is activated and can be adjusted.
Using the mirror control switch, press on any of the four
arrows for the direction that you want the mirror to
move.
Power mirror preselected positions can be controlled by
the optional Memory Seat Feature. Refer to “Driver
Memory Seat” in “Understanding The Features Of Your
Vehicle” for further information.
Power Folding Outside Mirrors — If Equipped
The switch for the power folding mirrors is located
between the power mirror switches L (left) and R (right).
Power Mirror Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

Press the switch once and the mirrors will fold in,
pressing the switch a second time will return the mirrors
to the normal driving position.
NOTE:If the vehicle speed is greater than 10 mph
(16 km/h) the folding feature will be disabled.
If the mirrors are in the folded position, and vehicle
speed is equal or greater than 10 mph (16 km/h), they
will automatically unfold.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Rear
Window Features” in “Understanding The Features Of
Your Vehicle” for further information.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is located on the sun visor.
To use the mirror, rotate the sun visor downward and
swing the mirror cover upward. The light turns on
automatically. Closing the mirror cover turns off the light.
Illuminated Vanity Mirror
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

“Slide-On-Rod” And Extender Features Of Sun
Visor
To use the “Slide-On-Rod” feature of the sun visor, rotate
the sun visor downward and swing the sun visor so it is
parallel to the side window, grab the sun visor and pull
rearwards until the sun visor is in the desired position. To
use the extender feature of the sun visor, grab the
extender which is located at the rear of the visor and pull
rearward.
Slide-On-Rod Feature
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

BLIND SPOT MONITORING (BSM) — IF
EQUIPPED
The Blind Spot Monitoring (BSM) system uses two radar-
based sensors, located inside the rear bumper fascia, to
detect highway licensable vehicles (automobiles, trucks,
motorcycles, etc.) that enter the blind spot zones from the
rear/front/side of the vehicle.When the vehicle is started, the BSM warning light will
momentarily illuminate in both outside rear view mirrors
to let the driver know that the system is operational. The
BSM system sensors operate when the vehicle is in any
forward gear or REVERSE and enters stand by mode
when the vehicle is in PARK.
Rear Detection Zones
