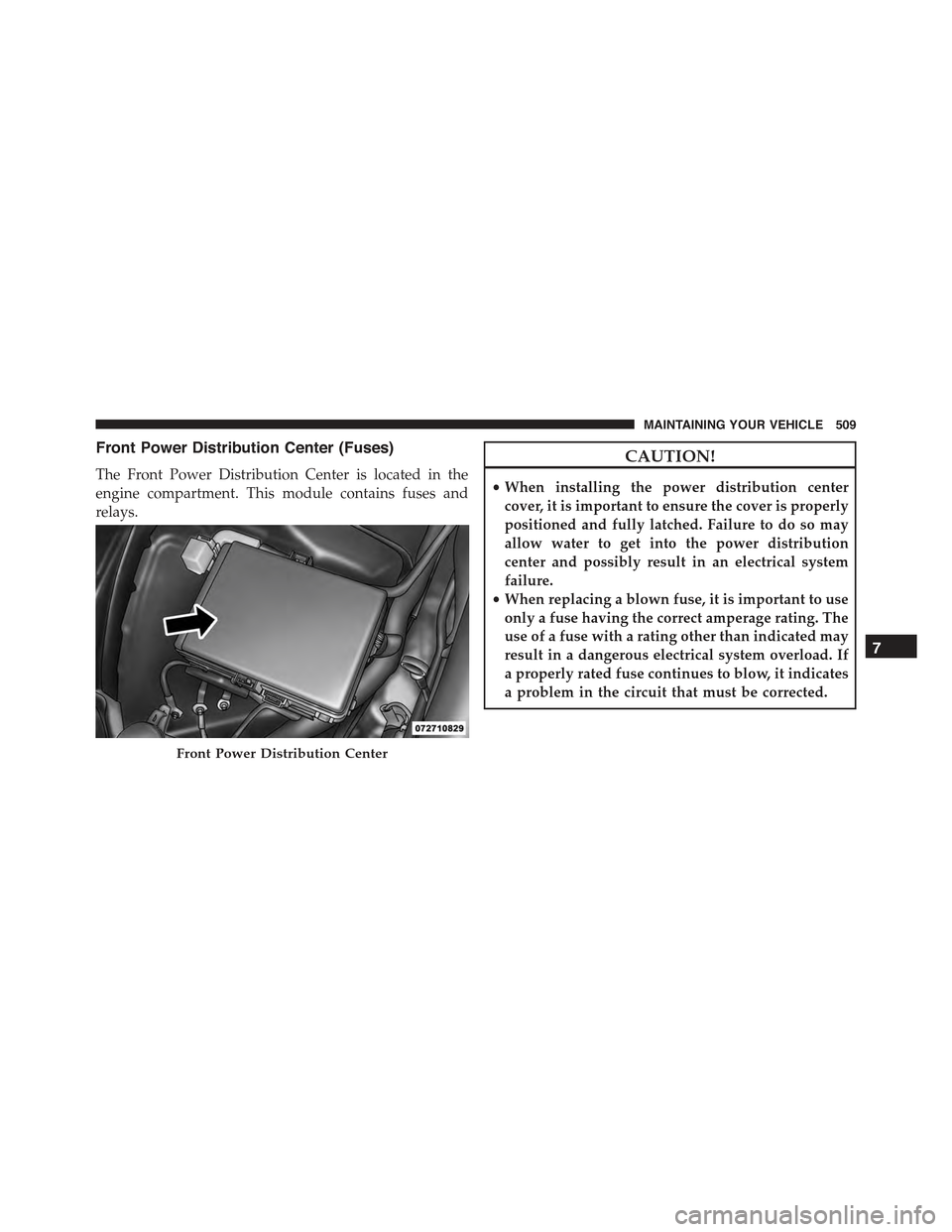

Front Power Distribution Center (Fuses)
The Front Power Distribution Center is located in the
engine compartment. This module contains fuses and
relays.
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Front Power Distribution Center
7
MAINTAINING YOUR VEHICLE 509

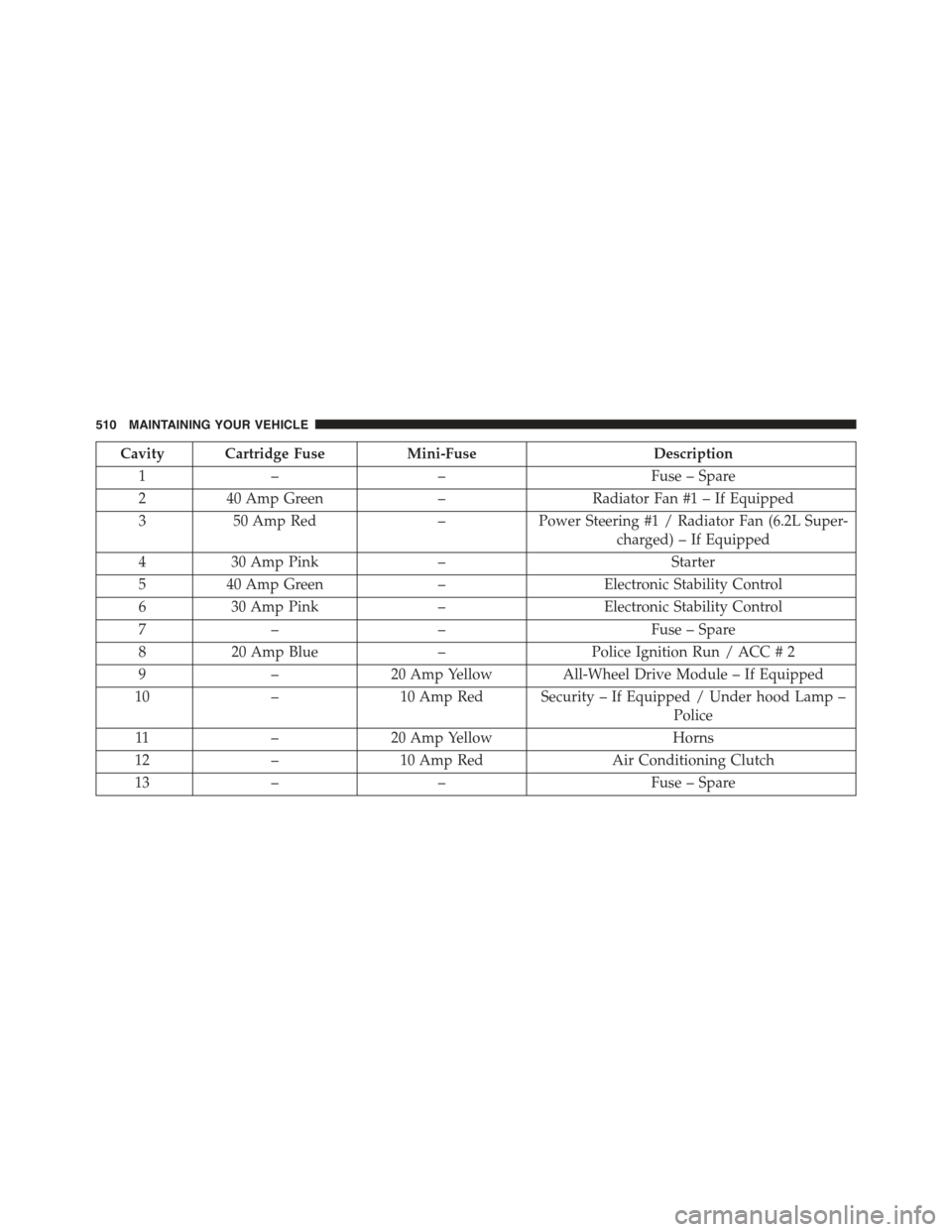

Cavity Cartridge FuseMini-FuseDescription
1––Fuse – Spare
240 Amp Green–Radiator Fan #1 – If Equipped
350 Amp Red–Power Steering #1 / Radiator Fan (6.2L Super-
charged) – If Equipped
430 Amp Pink–Starter
540 Amp Green–Electronic Stability Control
630 Amp Pink–Electronic Stability Control
7––Fuse – Spare
820 Amp Blue–Police Ignition Run / ACC # 2
9–20 Amp Yellow All-Wheel Drive Module – If Equipped
10–10 Amp Red Security – If Equipped / Under hood Lamp –
Police
11–20 Amp YellowHorns
12–10 Amp RedAir Conditioning Clutch
13––Fuse – Spare
510 MAINTAINING YOUR VEHICLE

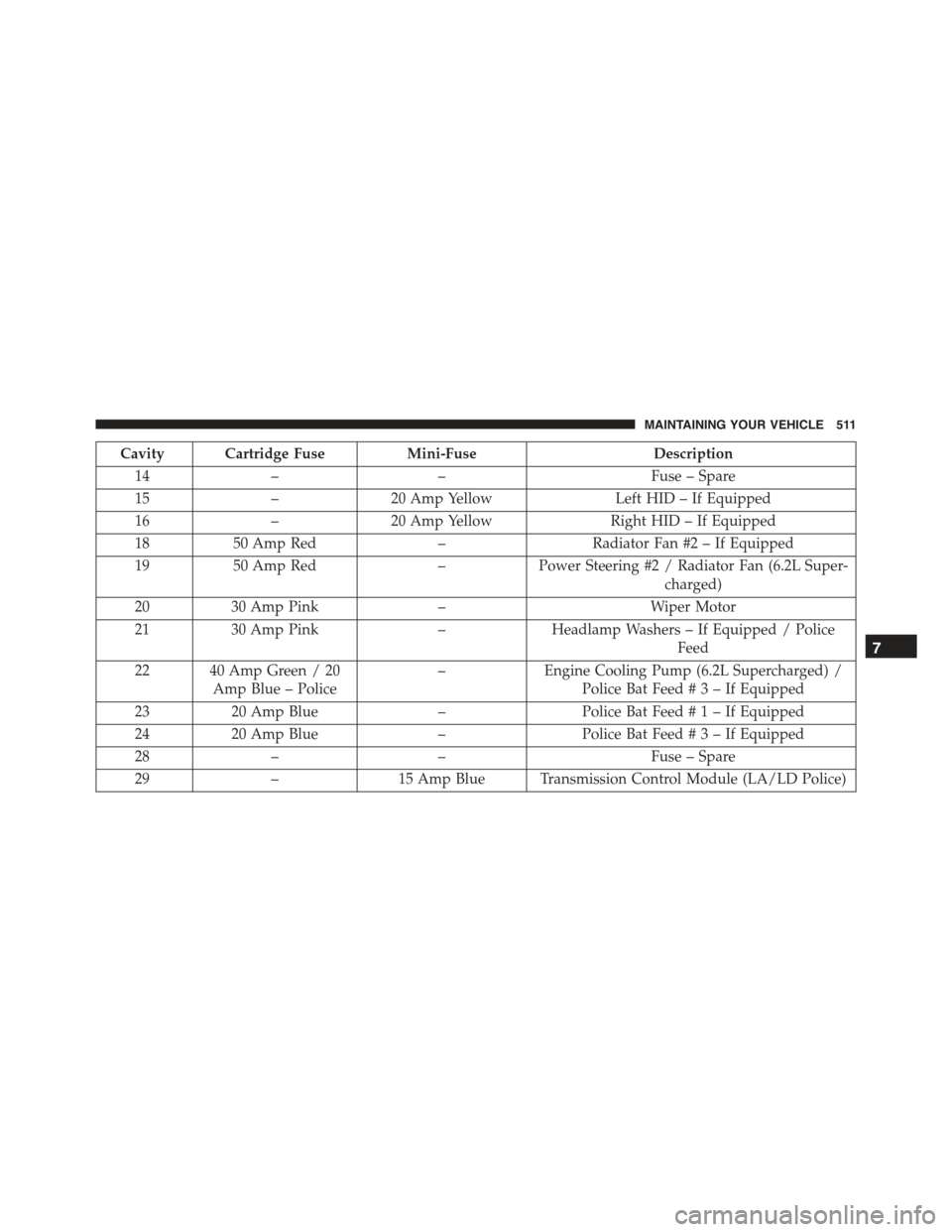

Cavity Cartridge FuseMini-FuseDescription
14––Fuse – Spare
15–20 Amp YellowLeft HID – If Equipped
16–20 Amp YellowRight HID – If Equipped
1850 Amp Red–Radiator Fan #2 – If Equipped
1950 Amp Red–Power Steering #2 / Radiator Fan (6.2L Super-
charged)
2030 Amp Pink–Wiper Motor
2130 Amp Pink–Headlamp Washers – If Equipped / Police
Feed
22 40 Amp Green / 20
Amp Blue – Police
–Engine Cooling Pump (6.2L Supercharged) /
Police Bat Feed#3–IfEquipped
2320 Amp Blue–Police Bat Feed#1–IfEquipped
2420 Amp Blue–Police Bat Feed#3–IfEquipped
28––Fuse – Spare
29–15 Amp Blue Transmission Control Module (LA/LD Police)
7
MAINTAINING YOUR VEHICLE 511

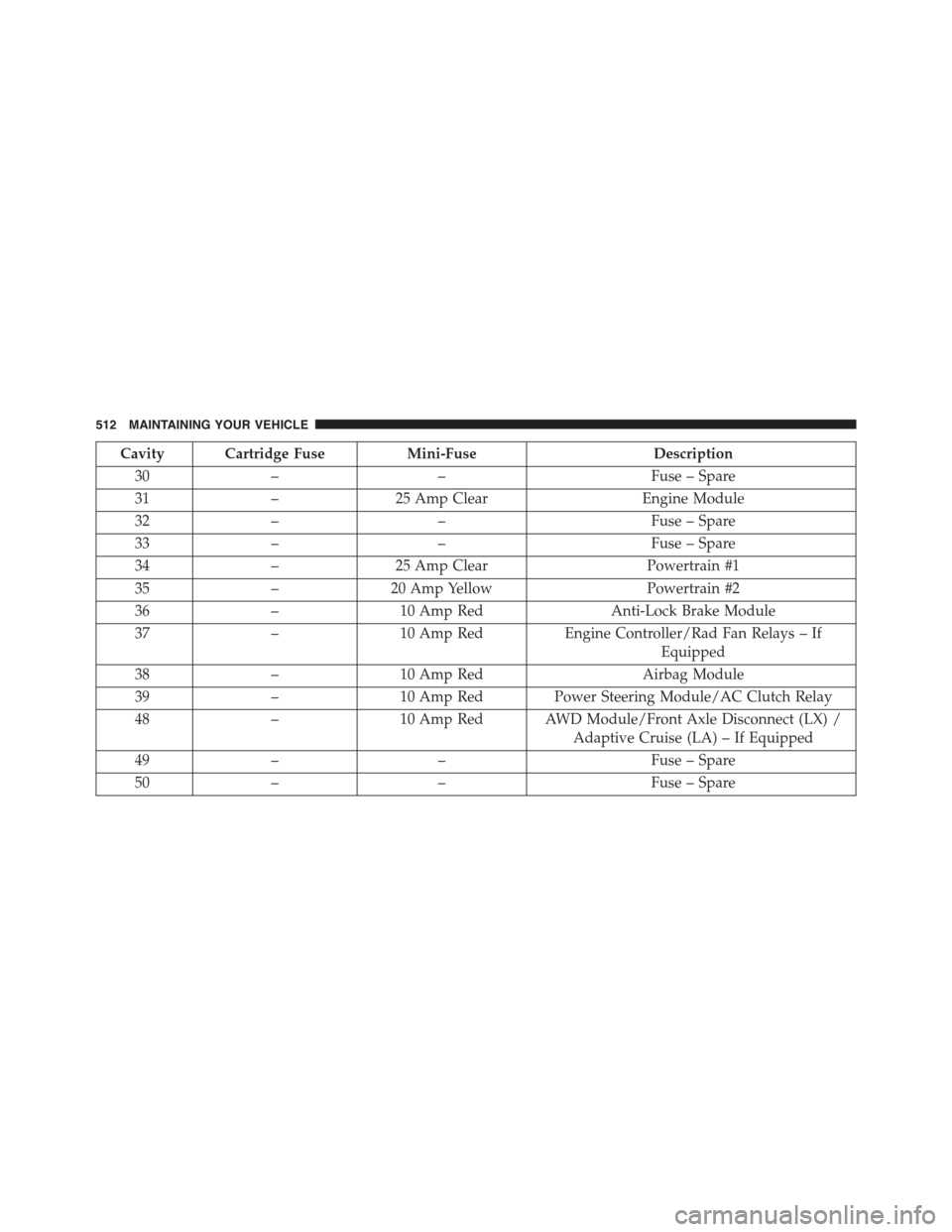

Cavity Cartridge FuseMini-FuseDescription
30––Fuse – Spare
31–25 Amp ClearEngine Module
32––Fuse – Spare
33––Fuse – Spare
34–25 Amp ClearPowertrain #1
35–20 Amp YellowPowertrain #2
36–10 Amp RedAnti-Lock Brake Module
37–10 Amp RedEngine Controller/Rad Fan Relays – If
Equipped
38–10 Amp RedAirbag Module
39–10 Amp Red Power Steering Module/AC Clutch Relay
48–10 Amp Red AWD Module/Front Axle Disconnect (LX) /
Adaptive Cruise (LA) – If Equipped
49––Fuse – Spare
50––Fuse – Spare
512 MAINTAINING YOUR VEHICLE

Cavity Cartridge FuseMini-FuseDescription
51–20 Amp YellowVacuum Pump
52–5 Amp TanAdaptive Cruise (LD/LX) – If Equipped
53––Fuse – Spare

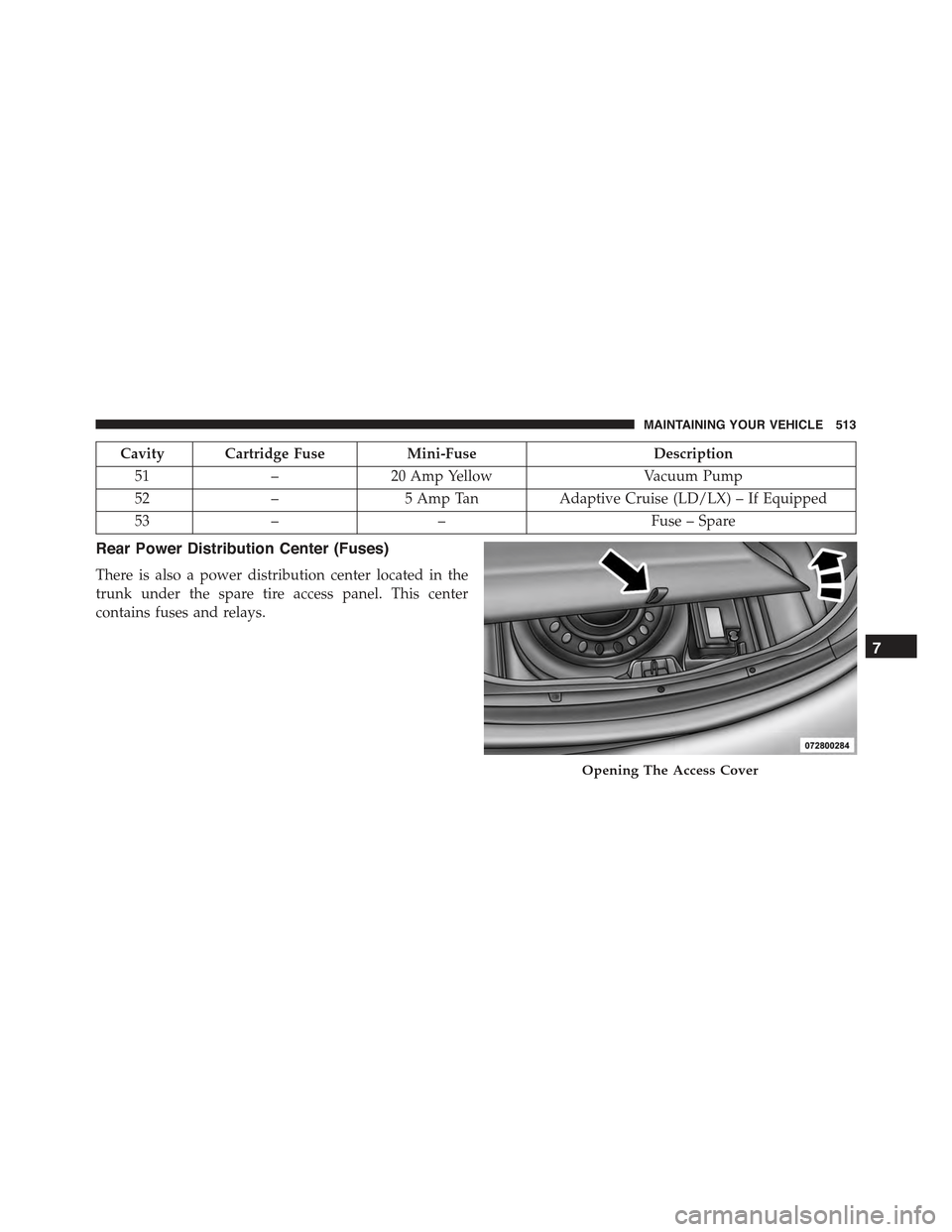

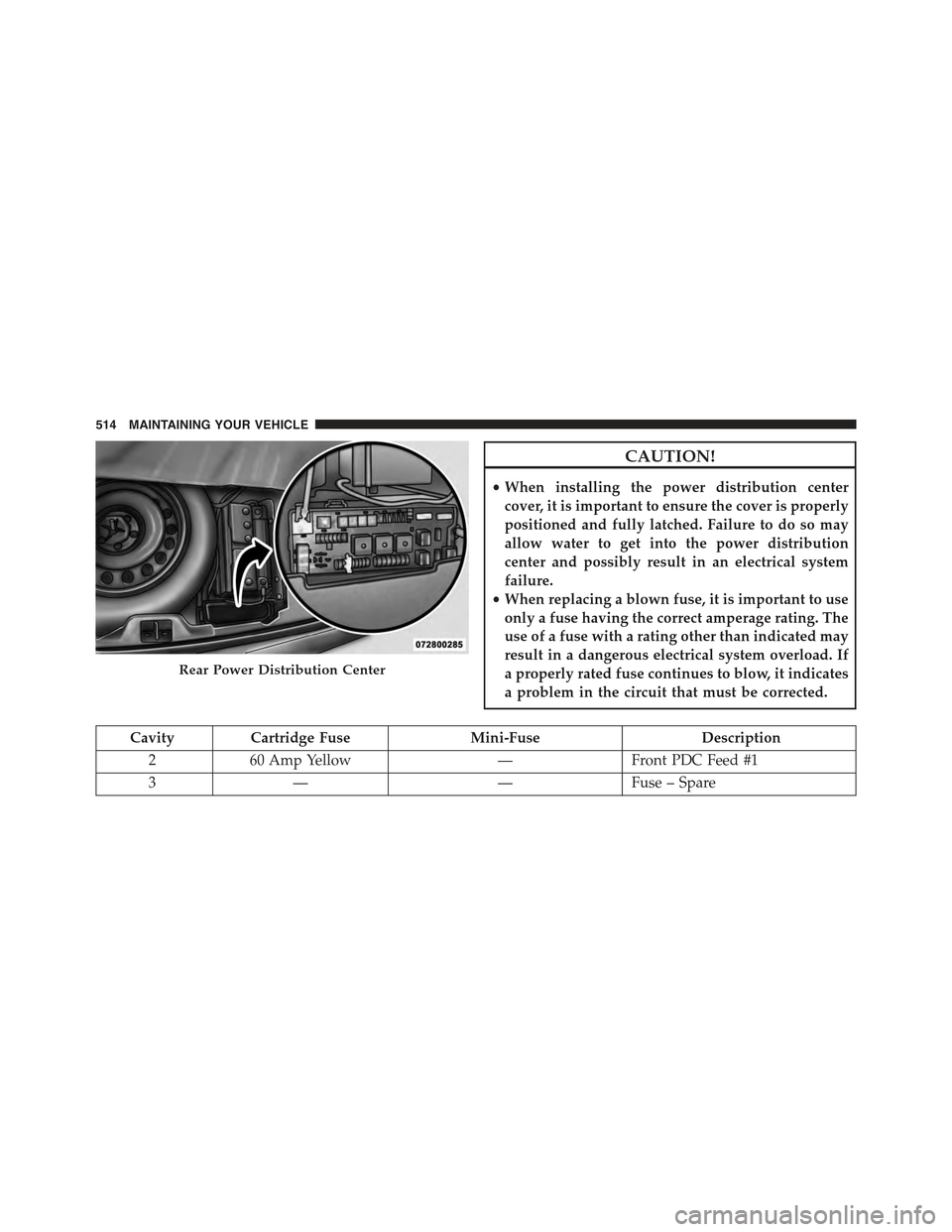

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Cover
7
MAINTAINING YOUR VEHICLE 513

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
CavityCartridge FuseMini-FuseDescription
260 Amp Yellow—Front PDC Feed #1
3——Fuse – Spare
Rear Power Distribution Center
514 MAINTAINING YOUR VEHICLE

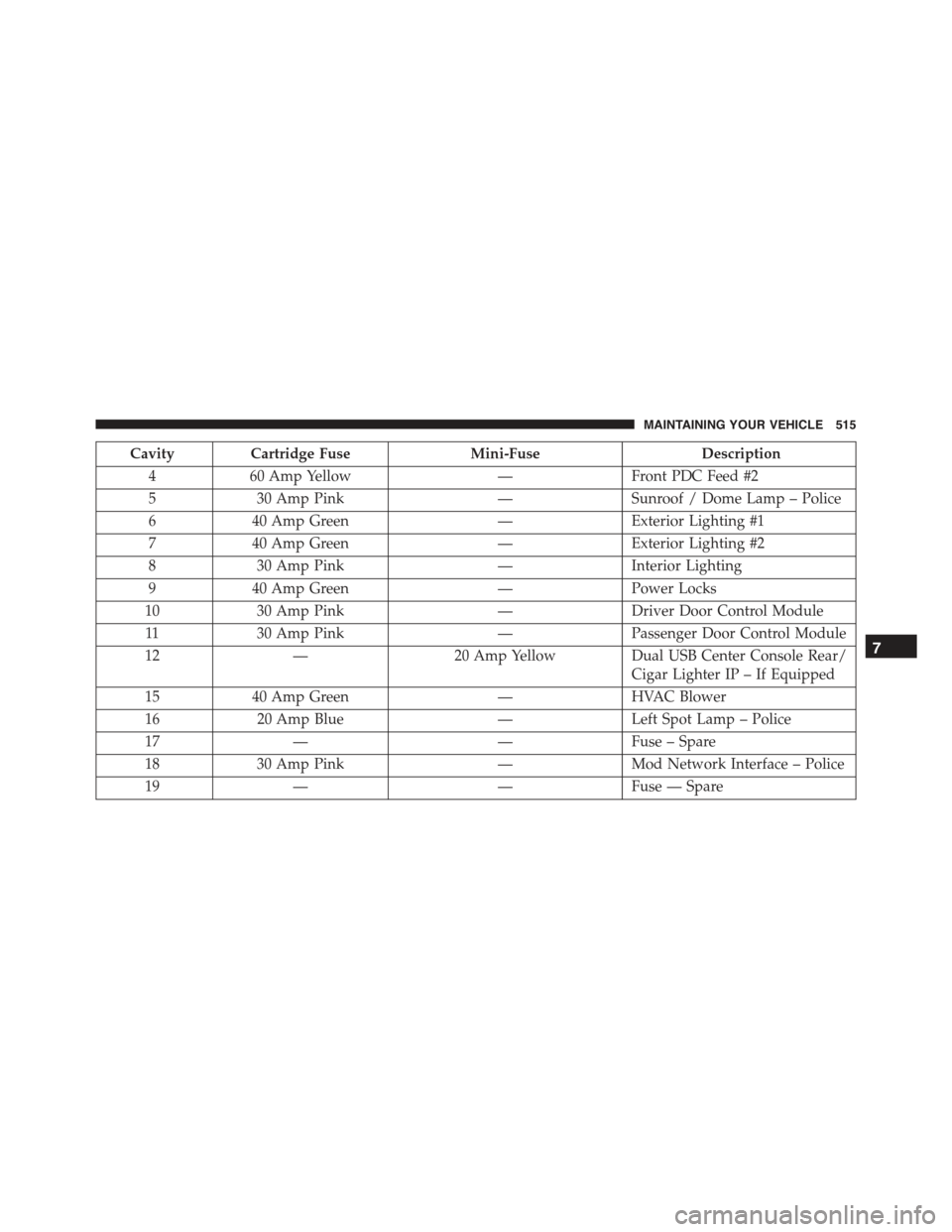

CavityCartridge FuseMini-FuseDescription
460 Amp Yellow—Front PDC Feed #2
530 Amp Pink—Sunroof / Dome Lamp – Police
640 Amp Green—Exterior Lighting #1
740 Amp Green—Exterior Lighting #2
830 Amp Pink—Interior Lighting
940 Amp Green—Power Locks
1030 Amp Pink—Driver Door Control Module
1130 Amp Pink—Passenger Door Control Module
12—20 Amp YellowDual USB Center Console Rear/
Cigar Lighter IP – If Equipped
1540 Amp Green—HVAC Blower
1620 Amp Blue—Left Spot Lamp – Police
17——Fuse – Spare
1830 Amp Pink—Mod Network Interface – Police
19——Fuse — Spare
7
MAINTAINING YOUR VEHICLE 515

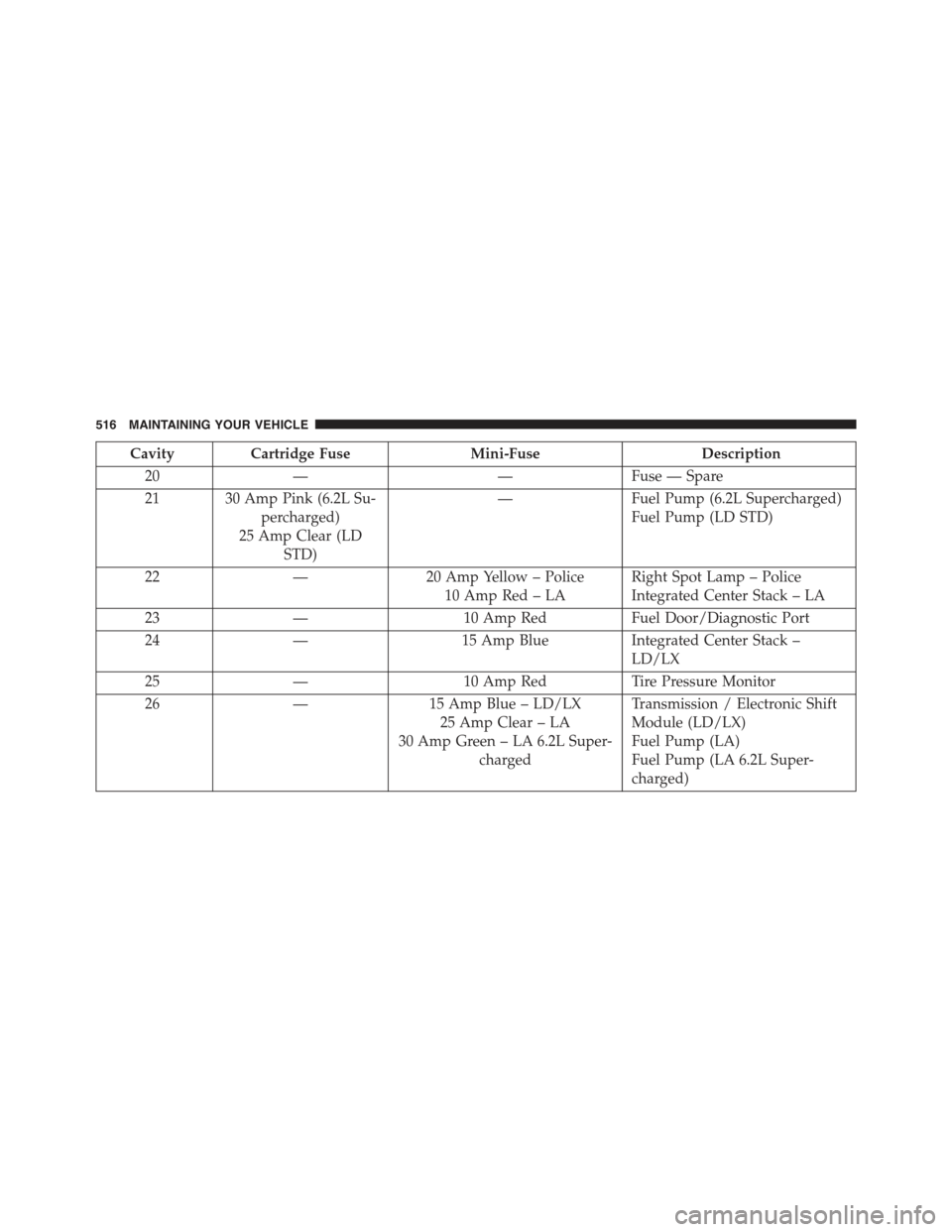

CavityCartridge FuseMini-FuseDescription
20——Fuse — Spare
21 30 Amp Pink (6.2L Su-
percharged)
25 Amp Clear (LD
STD)
—Fuel Pump (6.2L Supercharged)
Fuel Pump (LD STD)
22—20 Amp Yellow – Police
10 Amp Red – LA
Right Spot Lamp – Police
Integrated Center Stack – LA
23—10 Amp RedFuel Door/Diagnostic Port
24—15 Amp BlueIntegrated Center Stack –
LD/LX
25—10 Amp RedTire Pressure Monitor
26—15 Amp Blue – LD/LX
25 Amp Clear – LA
30 Amp Green – LA 6.2L Super-
charged
Transmission / Electronic Shift
Module (LD/LX)
Fuel Pump (LA)
Fuel Pump (LA 6.2L Super-
charged)
516 MAINTAINING YOUR VEHICLE

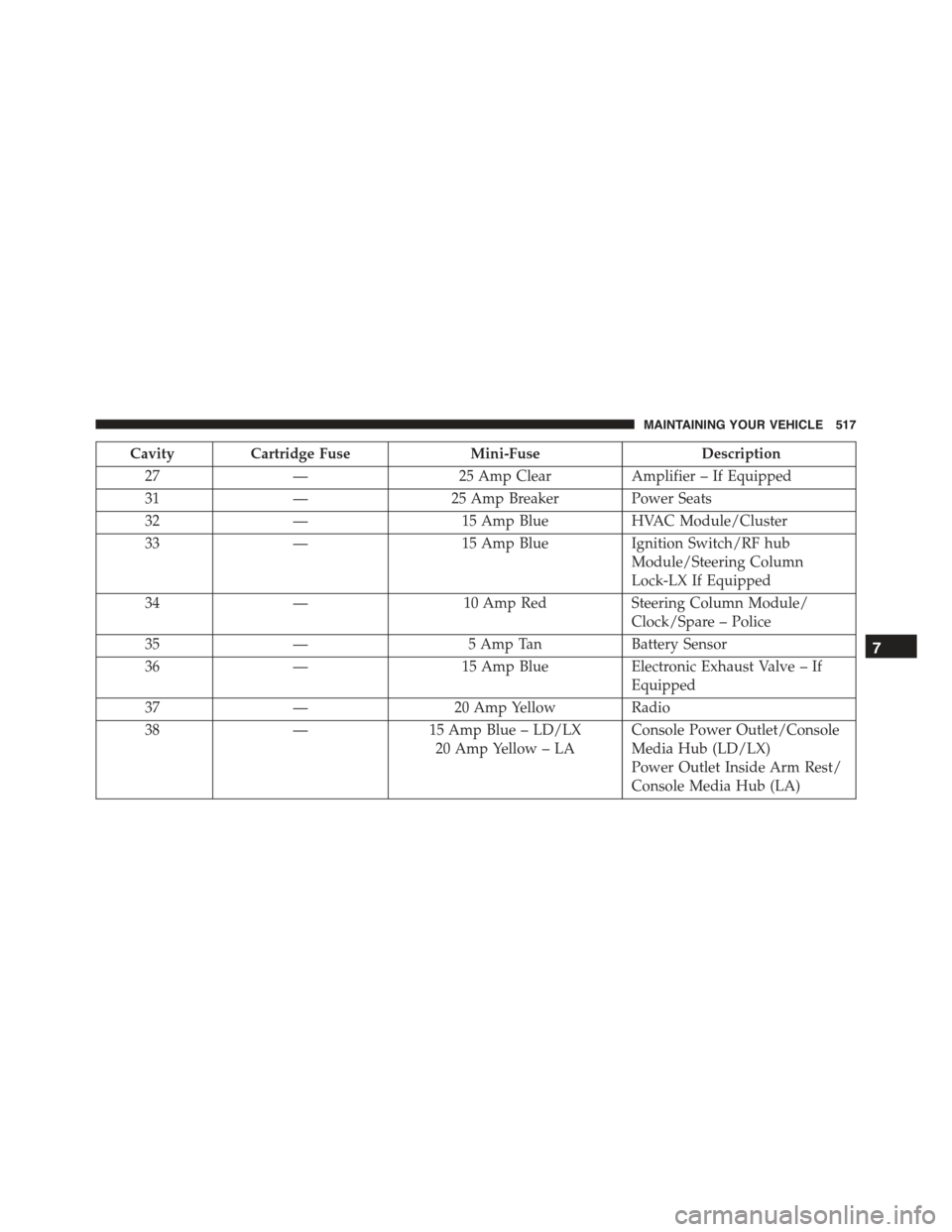

CavityCartridge FuseMini-FuseDescription
27—25 Amp ClearAmplifier – If Equipped
31—25 Amp Breaker Power Seats
32—15 Amp BlueHVAC Module/Cluster
33—15 Amp BlueIgnition Switch/RF hub
Module/Steering Column
Lock-LX If Equipped
34—10 Amp RedSteering Column Module/
Clock/Spare – Police
35—5 Amp TanBattery Sensor
36—15 Amp BlueElectronic Exhaust Valve – If
Equipped
37—20 Amp YellowRadio
38—15 Amp Blue – LD/LX
20 Amp Yellow – LA
Console Power Outlet/Console
Media Hub (LD/LX)
Power Outlet Inside Arm Rest/
Console Media Hub (LA)
7
MAINTAINING YOUR VEHICLE 517

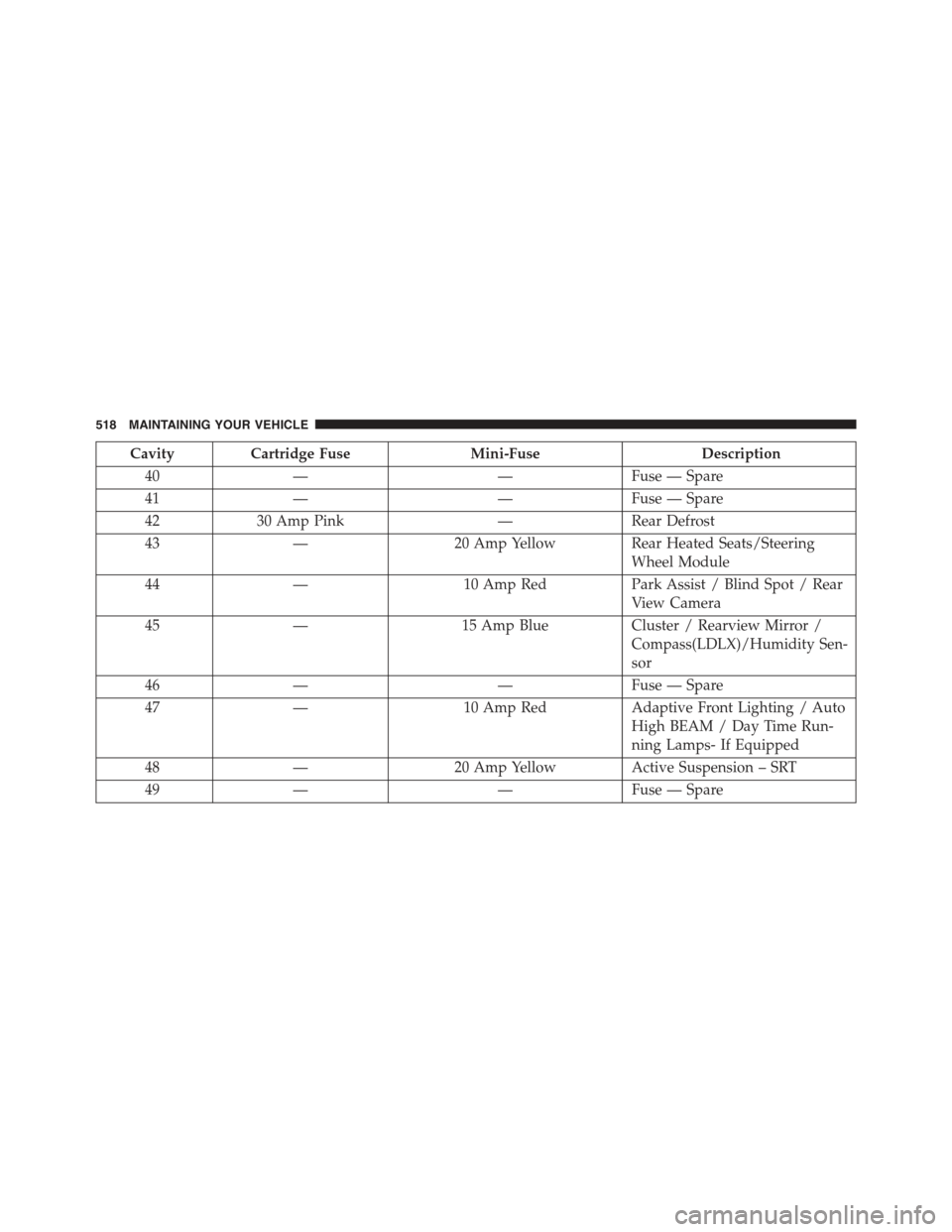

CavityCartridge FuseMini-FuseDescription
40——Fuse — Spare
41——Fuse — Spare
4230 Amp Pink—Rear Defrost
43—20 Amp YellowRear Heated Seats/Steering
Wheel Module
44—10 Amp RedPark Assist / Blind Spot / Rear
View Camera
45—15 Amp BlueCluster / Rearview Mirror /
Compass(LDLX)/Humidity Sen-
sor
46——Fuse — Spare
47—10 Amp RedAdaptive Front Lighting / Auto
High BEAM / Day Time Run-
ning Lamps- If Equipped
48—20 Amp YellowActive Suspension – SRT
49——Fuse — Spare
