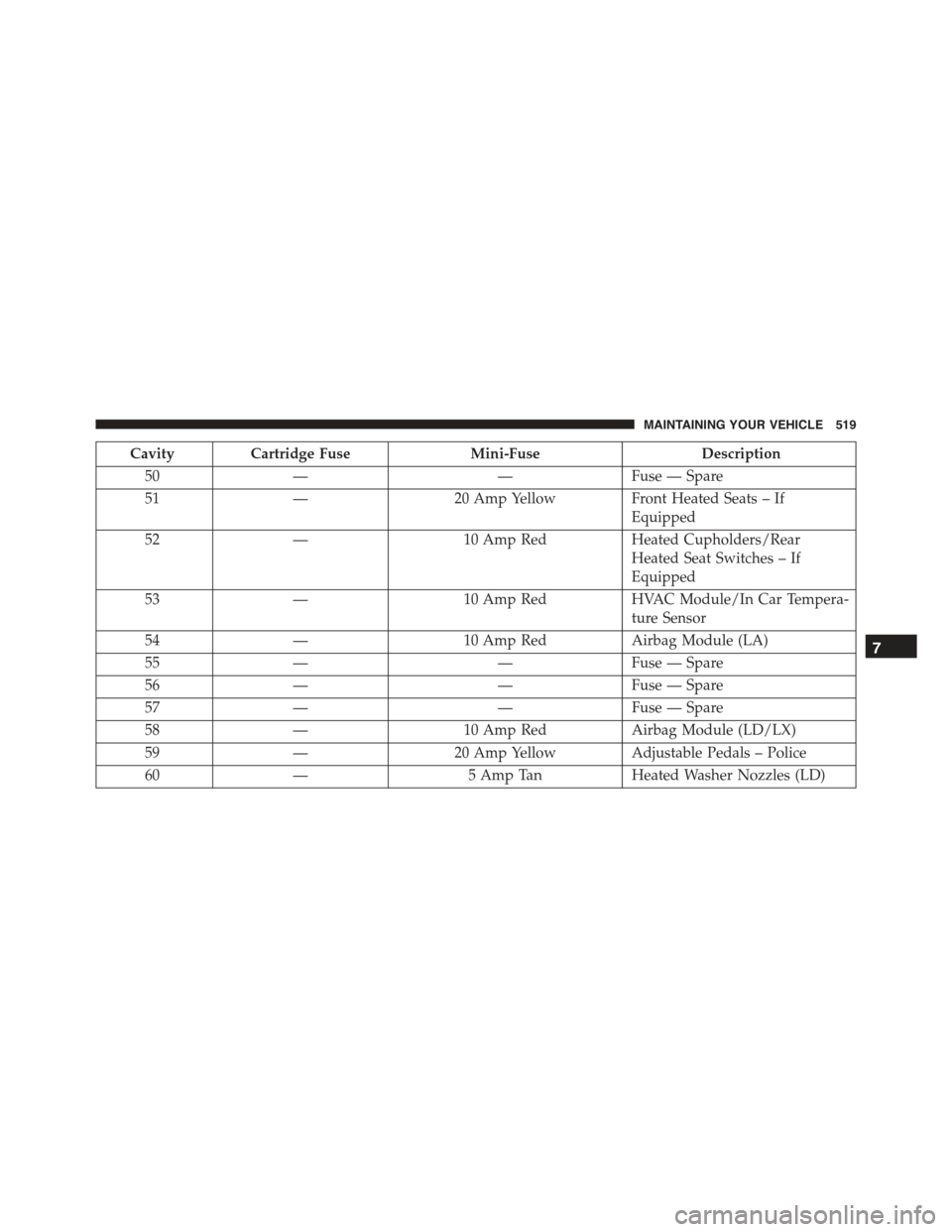

CavityCartridge FuseMini-FuseDescription
50——Fuse — Spare
51—20 Amp YellowFront Heated Seats – If
Equipped
52—10 Amp RedHeated Cupholders/Rear
Heated Seat Switches – If
Equipped
53—10 Amp RedHVAC Module/In Car Tempera-
ture Sensor
54—10 Amp RedAirbag Module (LA)
55——Fuse — Spare
56——Fuse — Spare
57——Fuse — Spare
58—10 Amp RedAirbag Module (LD/LX)
59—20 Amp YellowAdjustable Pedals – Police
60—5 Amp TanHeated Washer Nozzles (LD)
7
MAINTAINING YOUR VEHICLE 519

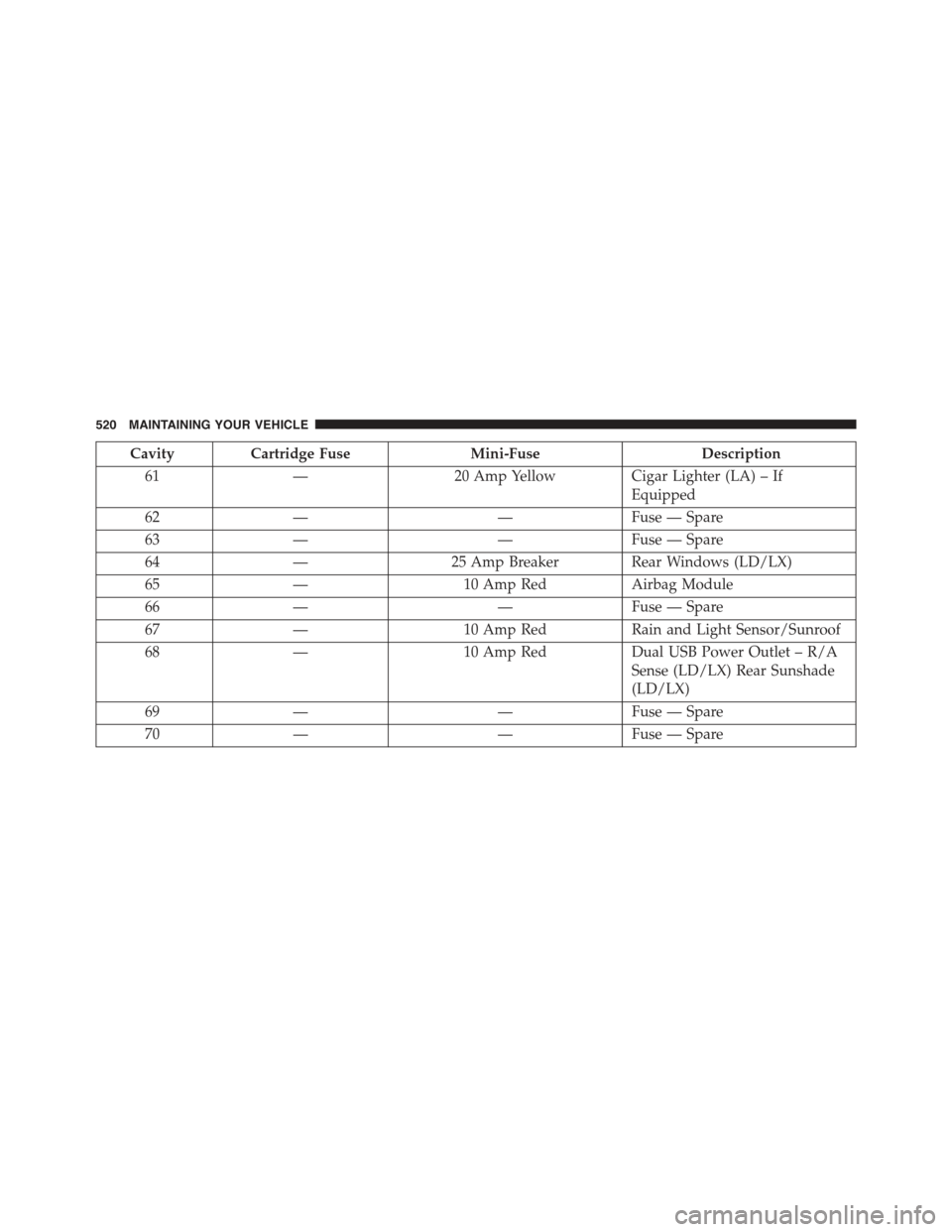

CavityCartridge FuseMini-FuseDescription
61—20 Amp YellowCigar Lighter (LA) – If
Equipped
62——Fuse — Spare
63——Fuse — Spare
64—25 Amp Breaker Rear Windows (LD/LX)
65—10 Amp RedAirbag Module
66——Fuse — Spare
67—10 Amp RedRain and Light Sensor/Sunroof
68—10 Amp RedDual USB Power Outlet – R/A
Sense (LD/LX) Rear Sunshade
(LD/LX)
69——Fuse — Spare
70——Fuse — Spare
520 MAINTAINING YOUR VEHICLE

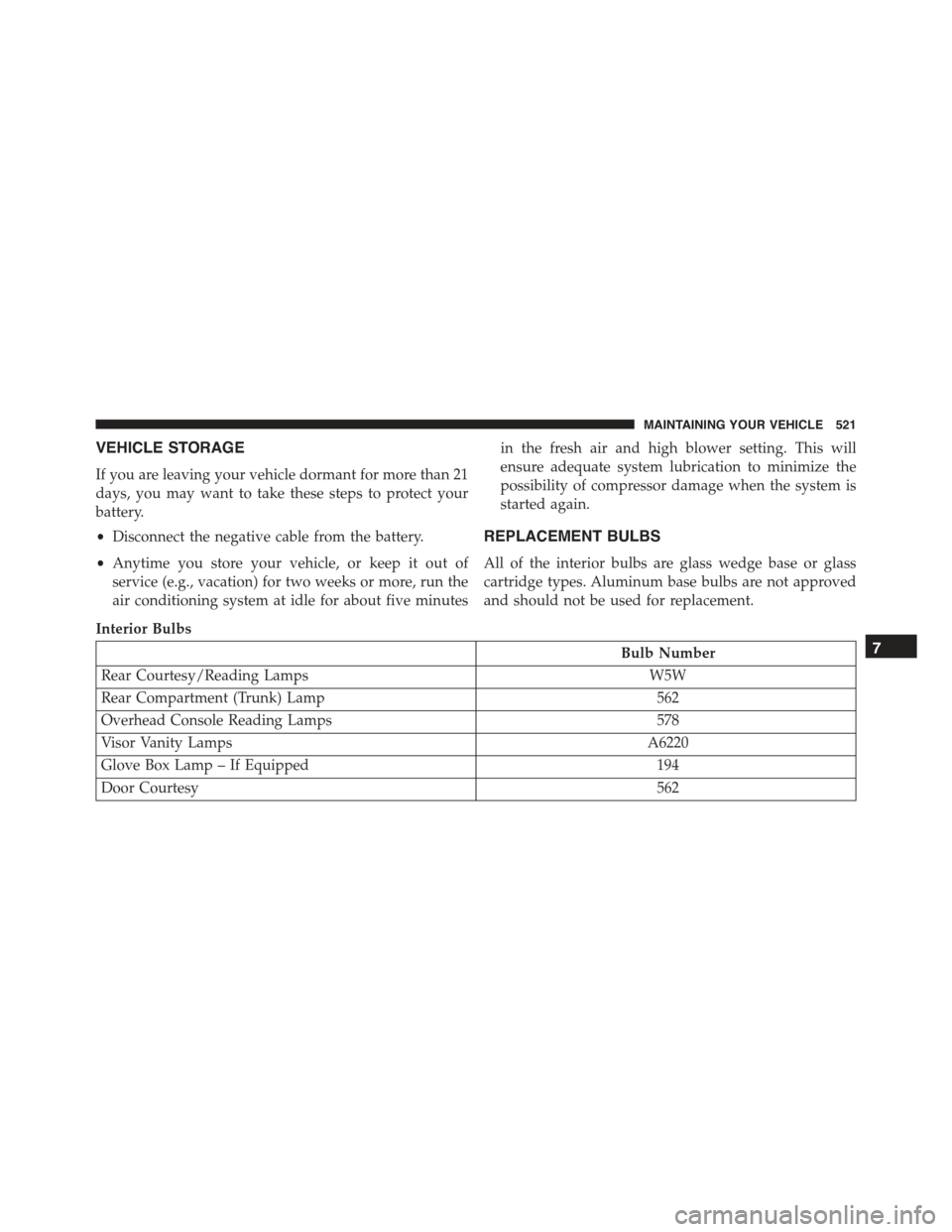

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear Courtesy/Reading LampsW5W
Rear Compartment (Trunk) Lamp562
Overhead Console Reading Lamps578
Visor Vanity LampsA6220
Glove Box Lamp – If Equipped194
Door Courtesy562
7
MAINTAINING YOUR VEHICLE 521

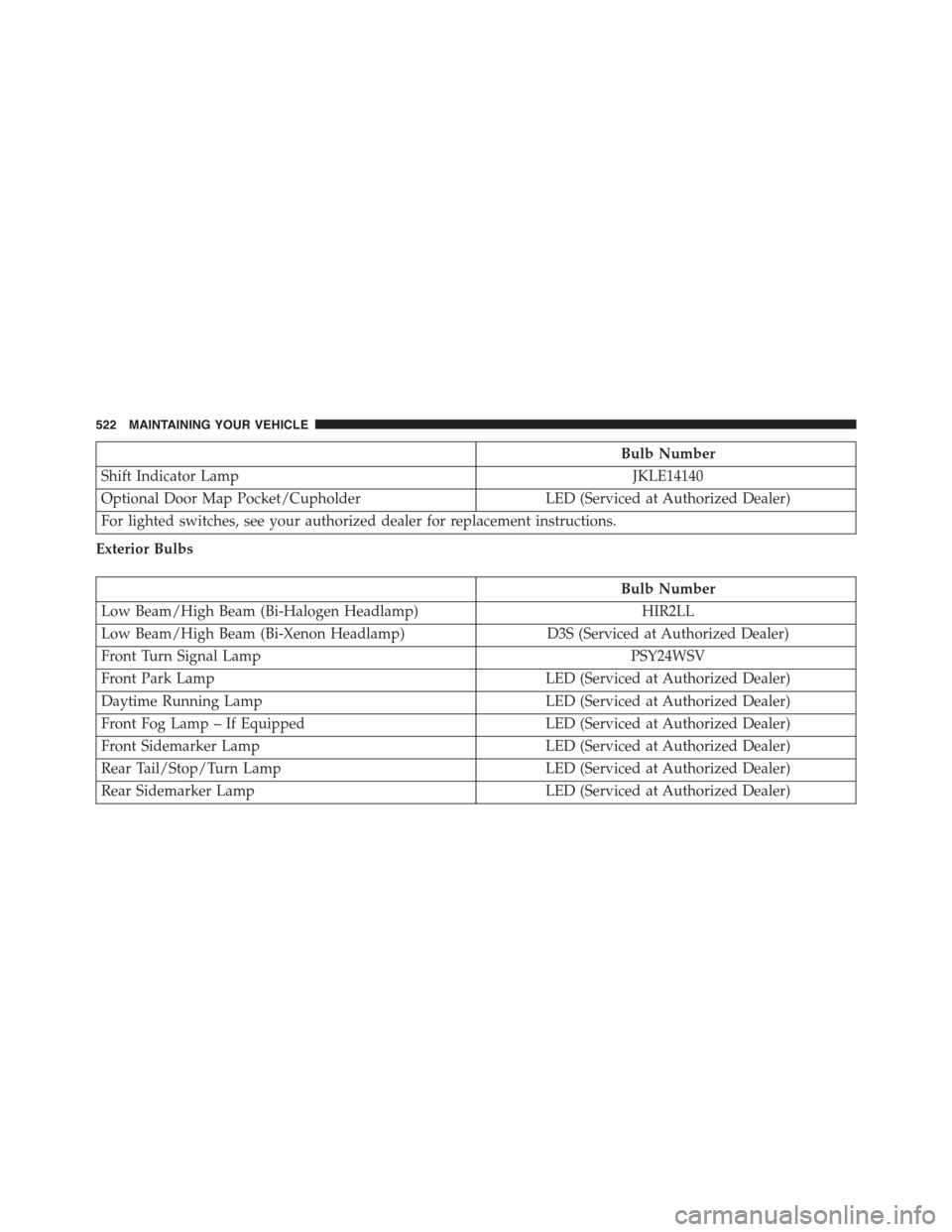

Bulb Number
Shift Indicator LampJKLE14140
Optional Door Map Pocket/CupholderLED (Serviced at Authorized Dealer)
For lighted switches, see your authorized dealer for replacement instructions.
Exterior Bulbs
Bulb Number
Low Beam/High Beam (Bi-Halogen Headlamp)HIR2LL
Low Beam/High Beam (Bi-Xenon Headlamp)D3S (Serviced at Authorized Dealer)
Front Turn Signal LampPSY24WSV
Front Park LampLED (Serviced at Authorized Dealer)
Daytime Running LampLED (Serviced at Authorized Dealer)
Front Fog Lamp – If EquippedLED (Serviced at Authorized Dealer)
Front Sidemarker LampLED (Serviced at Authorized Dealer)
Rear Tail/Stop/Turn LampLED (Serviced at Authorized Dealer)
Rear Sidemarker LampLED (Serviced at Authorized Dealer)
522 MAINTAINING YOUR VEHICLE

Bulb Number
Backup LampLED (Serviced at Authorized Dealer)
Center High Mount Stop Lamp (CHMSL)LED (Serviced at Authorized Dealer)
LicenseLED (Serviced at Authorized Dealer)
Rear Fog Lamp – If EquippedLED (Serviced at Authorized Dealer)

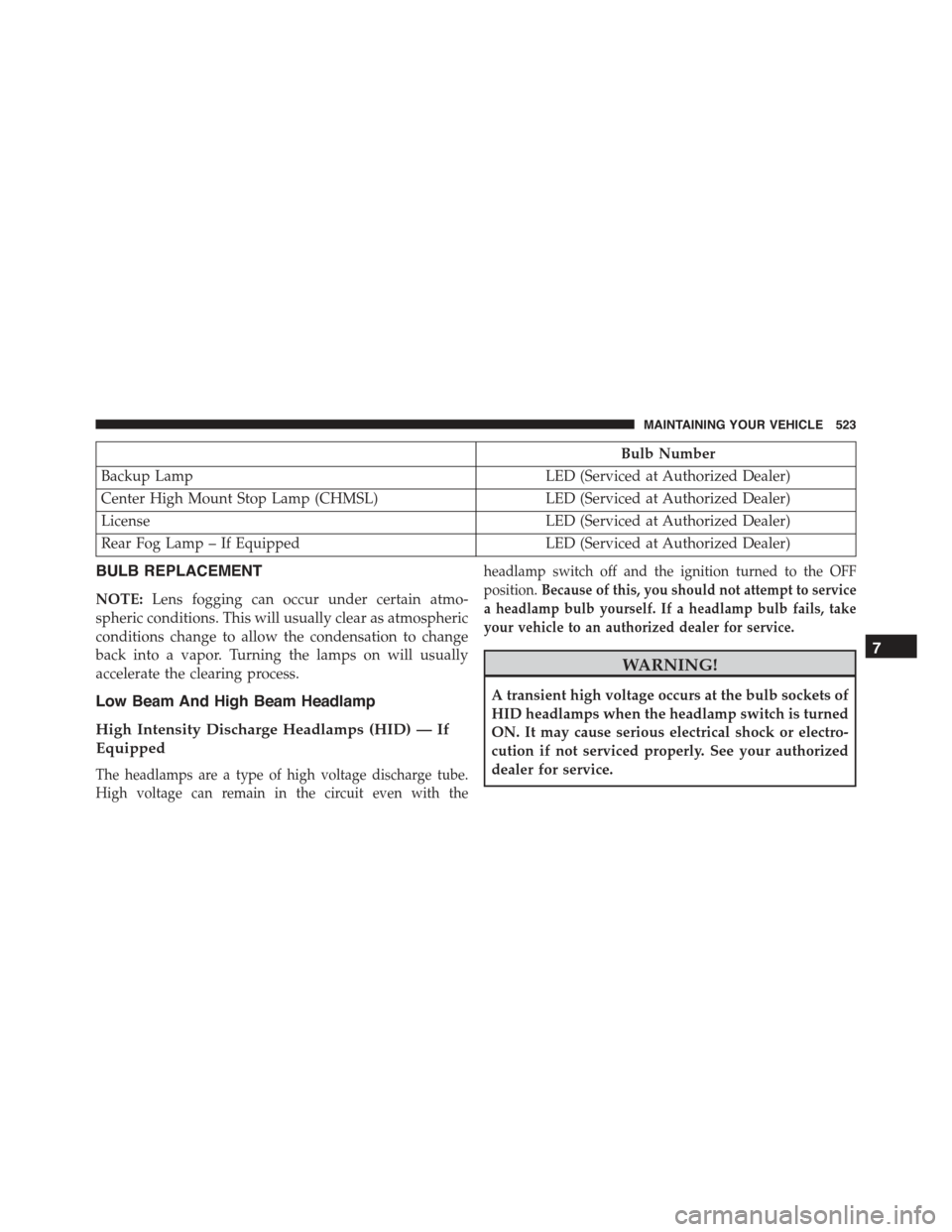

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamp
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the ignition turned to the OFF
position.Because of this, you should not attempt to service
a headlamp bulb yourself. If a headlamp bulb fails, take
your vehicle to an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
7
MAINTAINING YOUR VEHICLE 523

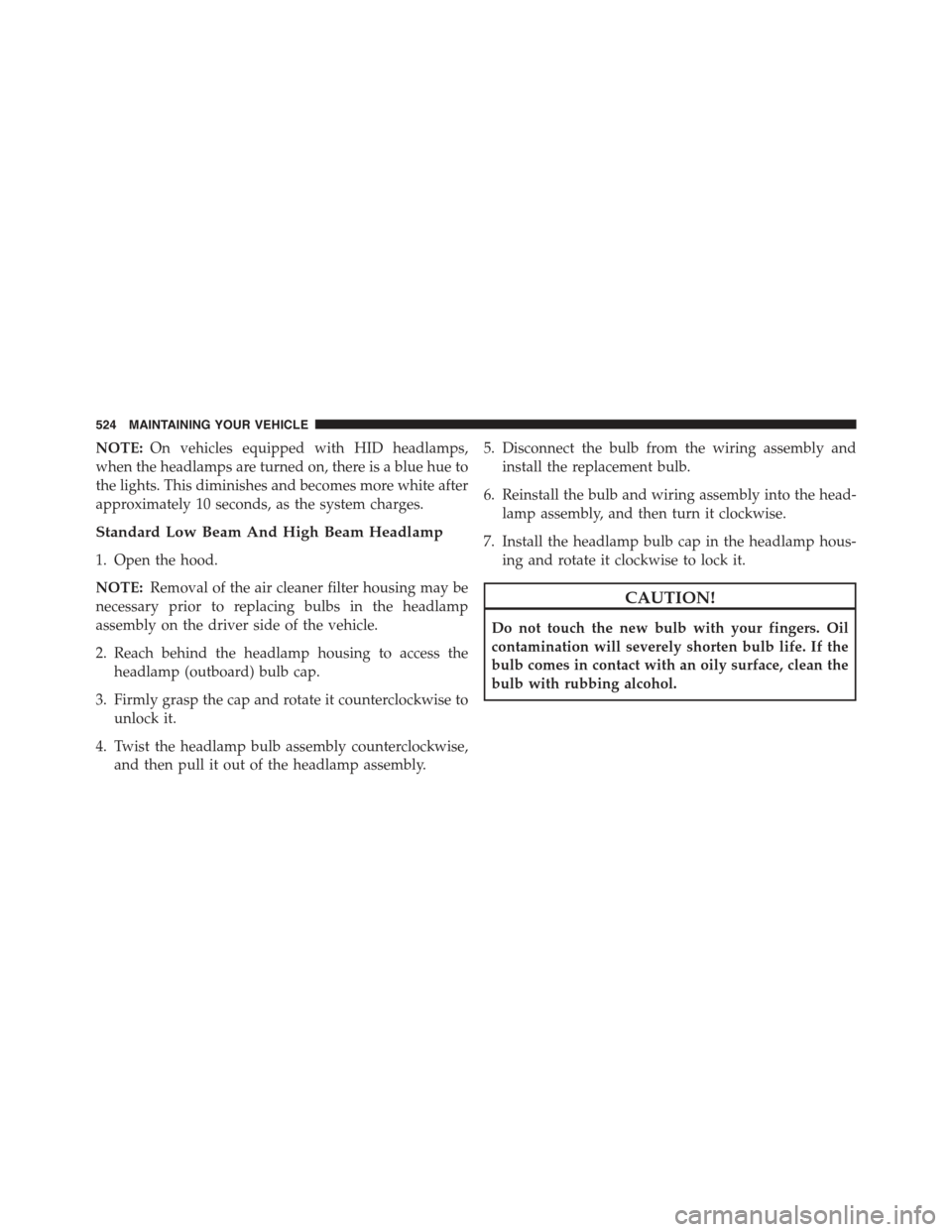

NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Standard Low Beam And High Beam Headlamp
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Reach behind the headlamp housing to access the
headlamp (outboard) bulb cap.
3. Firmly grasp the cap and rotate it counterclockwise to
unlock it.
4. Twist the headlamp bulb assembly counterclockwise,
and then pull it out of the headlamp assembly.
5. Disconnect the bulb from the wiring assembly and
install the replacement bulb.
6. Reinstall the bulb and wiring assembly into the head-
lamp assembly, and then turn it clockwise.
7. Install the headlamp bulb cap in the headlamp hous-
ing and rotate it clockwise to lock it.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
524 MAINTAINING YOUR VEHICLE

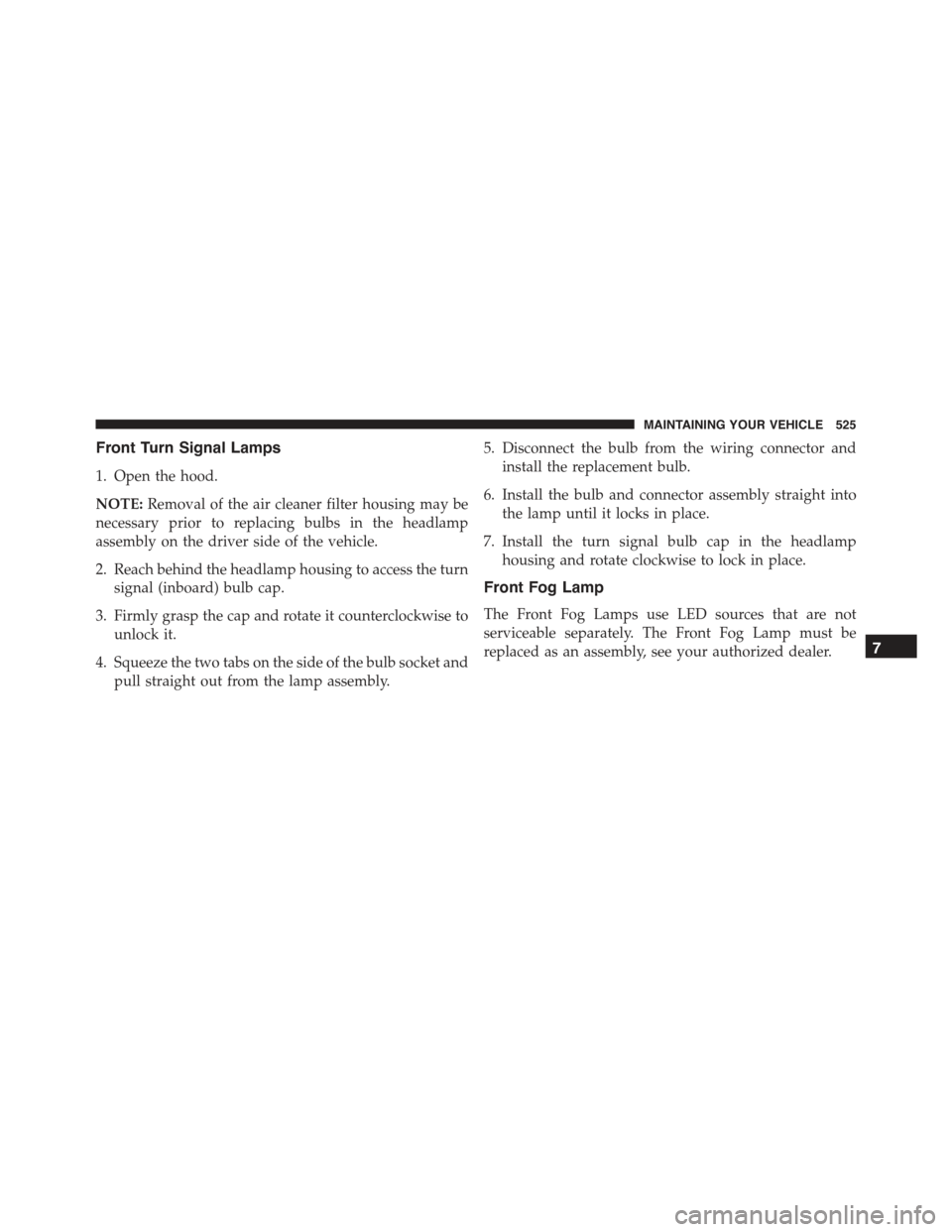

Front Turn Signal Lamps
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Reach behind the headlamp housing to access the turn
signal (inboard) bulb cap.
3. Firmly grasp the cap and rotate it counterclockwise to
unlock it.
4. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the lamp assembly.
5. Disconnect the bulb from the wiring connector and
install the replacement bulb.
6. Install the bulb and connector assembly straight into
the lamp until it locks in place.
7. Install the turn signal bulb cap in the headlamp
housing and rotate clockwise to lock in place.
Front Fog Lamp
The Front Fog Lamps use LED sources that are not
serviceable separately. The Front Fog Lamp must be
replaced as an assembly, see your authorized dealer.7
MAINTAINING YOUR VEHICLE 525

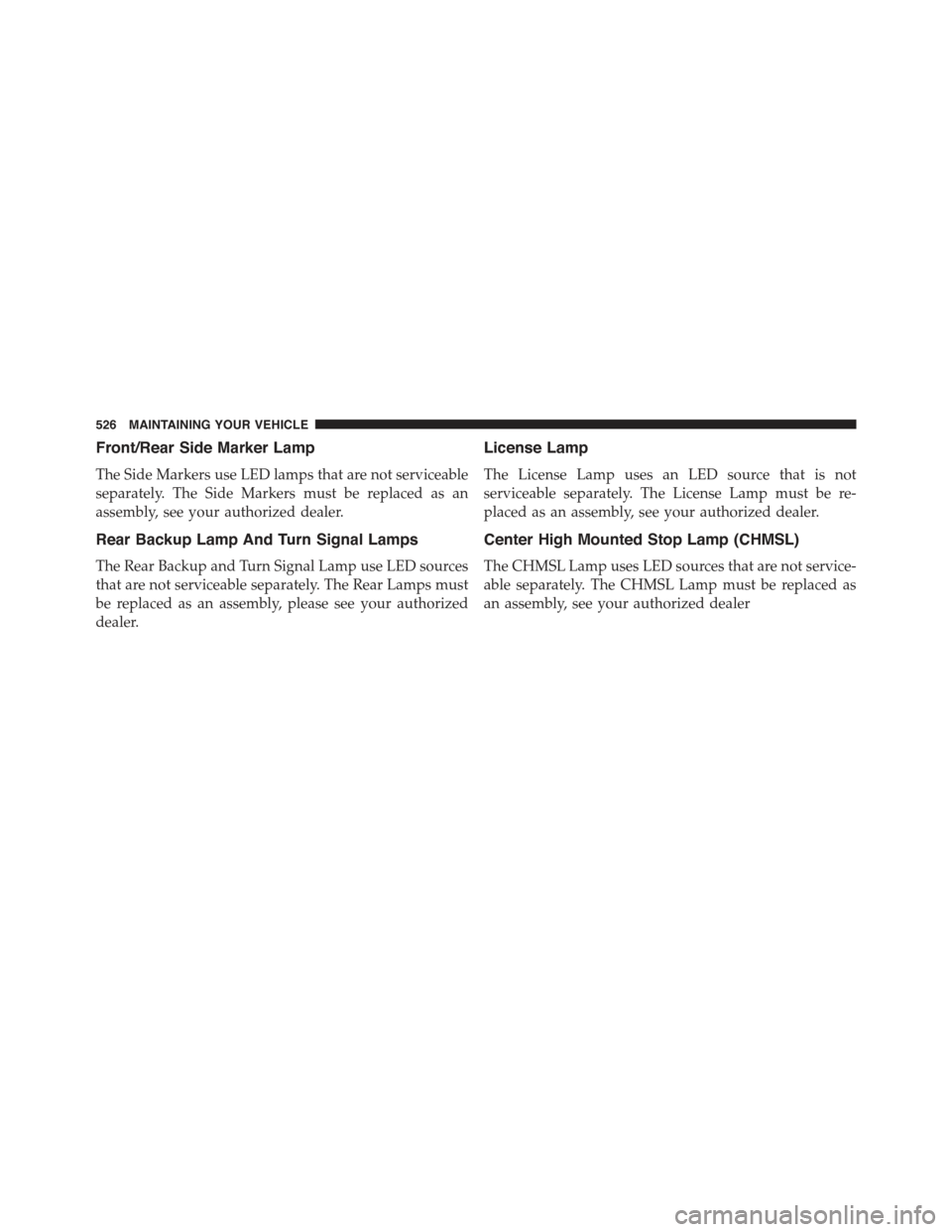

Front/Rear Side Marker Lamp
The Side Markers use LED lamps that are not serviceable
separately. The Side Markers must be replaced as an
assembly, see your authorized dealer.
Rear Backup Lamp And Turn Signal Lamps
The Rear Backup and Turn Signal Lamp use LED sources
that are not serviceable separately. The Rear Lamps must
be replaced as an assembly, please see your authorized
dealer.
License Lamp
The License Lamp uses an LED source that is not
serviceable separately. The License Lamp must be re-
placed as an assembly, see your authorized dealer.
Center High Mounted Stop Lamp (CHMSL)
The CHMSL Lamp uses LED sources that are not service-
able separately. The CHMSL Lamp must be replaced as
an assembly, see your authorized dealer
526 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines18.5 Gallons 69.9 Liters
Engine Oil With Filter
3.6 Liter Engine (SAE 5W-20, API Certified)6 Quarts 5.6 Liters
5.7 Liter Engine (SAE 5W-20, API Certified)7 Quarts 6.6 Liters
Cooling System *
3.6 Liter Engine – We recommend you use MOPAR® Antifreeze/Engine
Coolant 10 Year/150,000 Mile Formula or equivalent.
10 Quarts 9.5 Liters
5.7 Liter Engine without Severe Duty II Cooling System – We recommend
you use MOPAR® Antifreeze/Engine Coolant 10 Year/150,000 Mile For-
mula.
14.5 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System – We recommend you
use MOPAR® Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula.
15 Quarts 14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 527

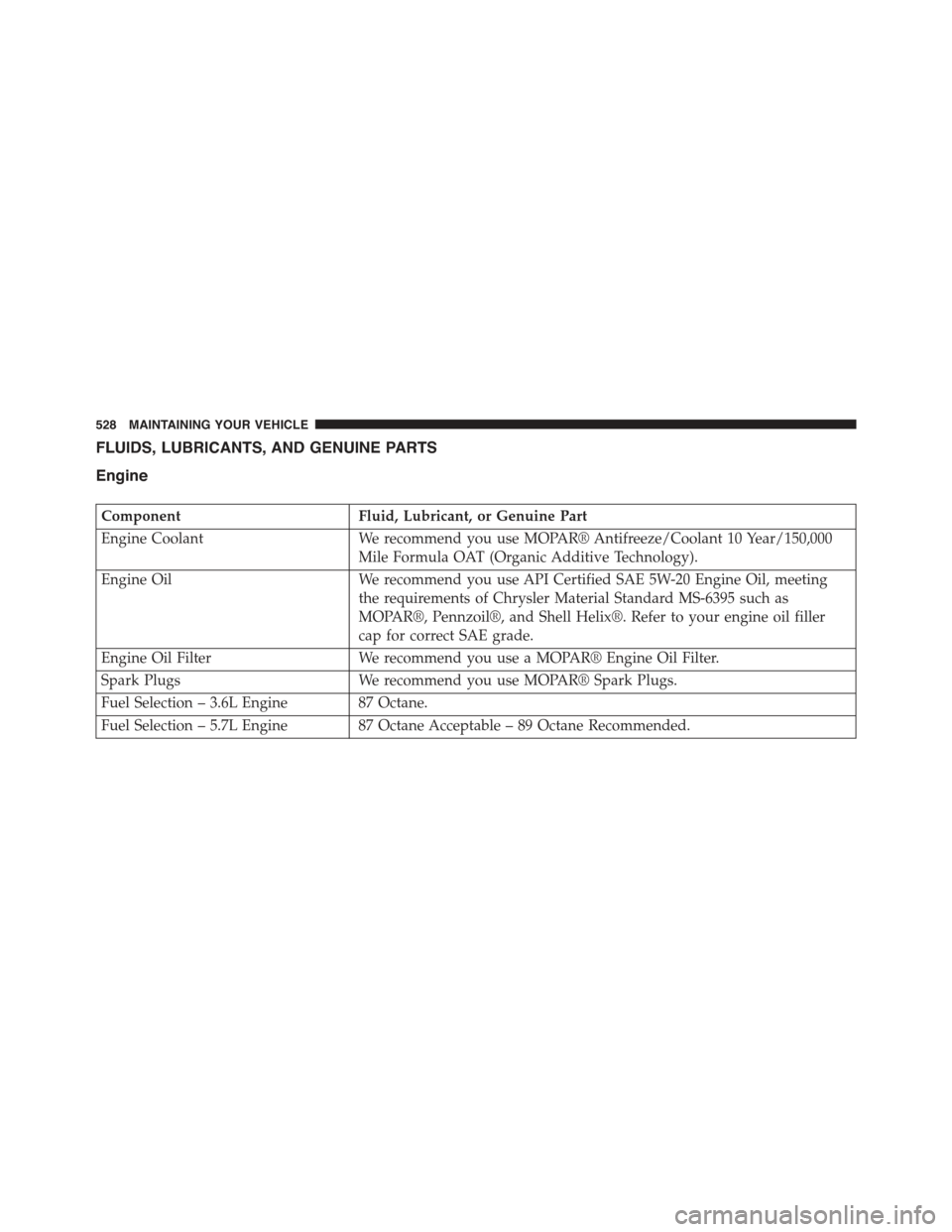

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000
Mile Formula OAT (Organic Additive Technology).
Engine OilWe recommend you use API Certified SAE 5W-20 Engine Oil, meeting
the requirements of Chrysler Material Standard MS-6395 such as
MOPAR®, Pennzoil®, and Shell Helix®. Refer to your engine oil filler
cap for correct SAE grade.
Engine Oil FilterWe recommend you use a MOPAR® Engine Oil Filter.
Spark PlugsWe recommend you use MOPAR® Spark Plugs.
Fuel Selection – 3.6L Engine 87 Octane.
Fuel Selection – 5.7L Engine 87 Octane Acceptable – 89 Octane Recommended.
