Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to main-
tain correct tire pressure, even if under-inflation has not
reached the level to trigger illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunc-
tion indicator to indicate when the system is not operating
properly. The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approximately one
minute and then remain continuously illuminated. This
sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction
indicator is illuminated, the system may not be able to
detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction telltale afterreplacing one or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires and wheels
allow the TPMS to continue to function properly.
CAUTION!
The TPMS has been optimized for the original equip-
ment tires and wheels. TPMS pressures and warning
have been established for the tire size equipped on
your vehicle. Undesirable system operation or sensor
damage may result when using replacement equip-
ment that is not of the same size, type, and/or style.
Aftermarket wheels can cause sensor damage. Using
aftermarket tire sealants may cause the Tire Pressure
Monitoring System (TPMS) sensor to become inoper-
able. After using an aftermarket tire sealant it is
recommended that you take your vehicle to an autho-
rized dealer to have your sensor function checked.4
UNDERSTANDING YOUR INSTRUMENT PANEL 219

Low Fuel Warning Indicator Light
Yellow TelltaleLight What It Means
Low Fuel Warning Indicator Light
When the fuel level reaches approximately 2.8 gal (10.6 L), this light will turn on and a single
chime will sound.
Anti-Lock Brake (ABS) Indicator Light
Yellow Telltale
Light What It Means
Anti-Lock Brake (ABS) Indicator Light
This light monitors the Anti-Lock Brake System (ABS). The light will turn on when the ignition is
placed in the ON/RUN position and may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, then the Anti-Lock portion of the brake
system is not functioning and service is required. However, the conventional brake system will
continue to operate normally if the brake warning light is not on.
If the ABS light is on, the brake system should be serviced as soon as possible to restore the ben-
efits of Anti-Lock Brakes. If the ABS light does not turn on when the ignition is placed in the
ON/RUN position, have the light inspected by an authorized dealer.
220 UNDERSTANDING YOUR INSTRUMENT PANEL

Service Forward Collision Warning Fault Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Service Forward Collision Warning Fault Indicator Light — If Equipped
This telltale will turn on to indicate a fault in the Forward Collision Warning System. Contact
your local authorized dealer for service.
Forward Collision Warning Off Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Forward Collision Warning Off Indicator Light — If Equipped
This light indicates the Forward Collision Warning is off.
Service AWD Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Service AWD Indicator Light — If Equipped
This telltale will turn on to indicate the All Wheel Drive (AWD) system is not functioning prop-
erly and that service is required. Contact your authorized dealership.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 221

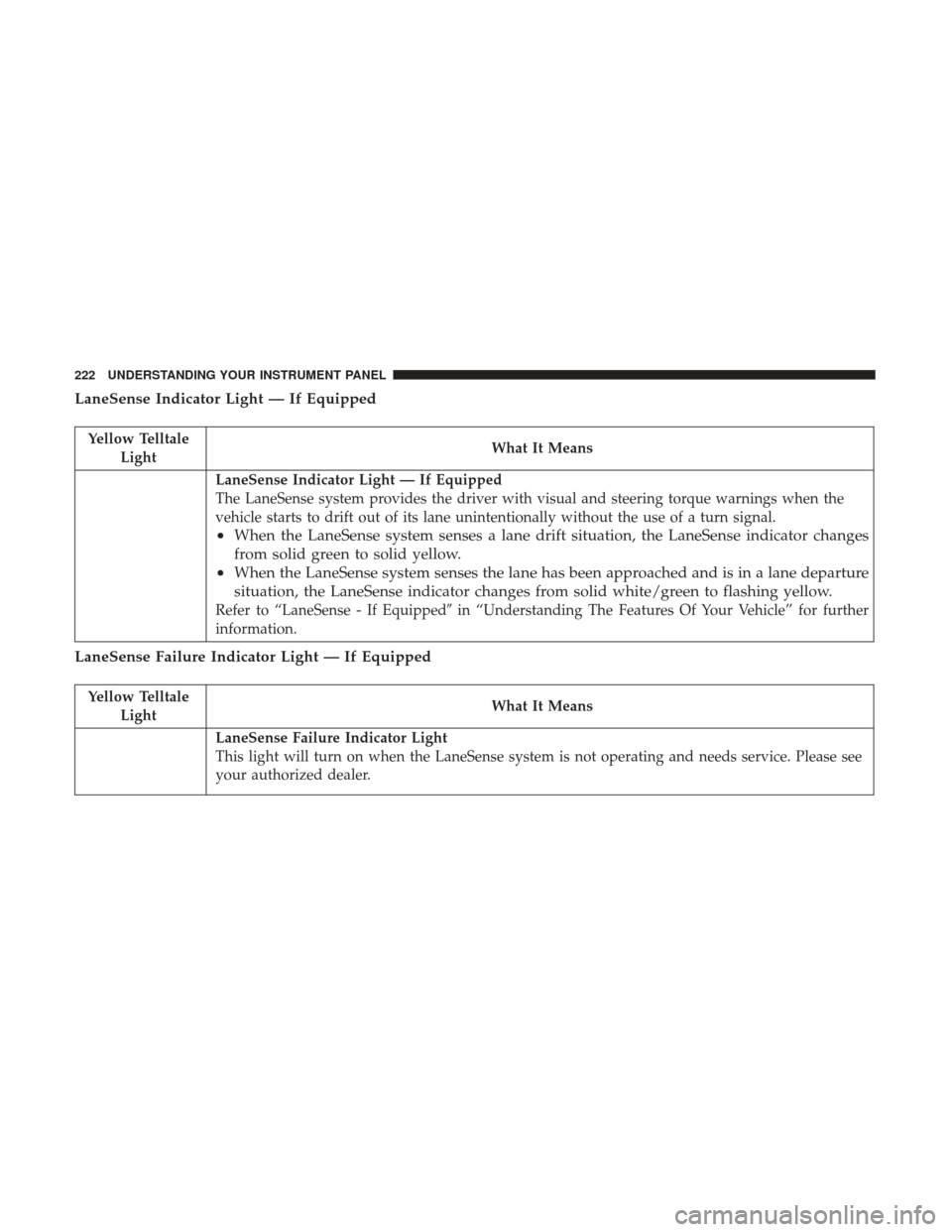

LaneSense Indicator Light — If Equipped
Yellow TelltaleLight What It Means
LaneSense Indicator Light — If Equipped
The LaneSense system provides the driver with visual and steering torque warnings when the
vehicle starts to drift out of its lane unintentionally without the use of a turn signal.
•
When the LaneSense system senses a lane drift situation, the LaneSense indicator changes
from solid green to solid yellow.
• When the LaneSense system senses the lane has been approached and is in a lane departure
situation, the LaneSense indicator changes from solid white/green to flashing yellow.
Refer to “LaneSense - If Equipped in “Understanding The Features Of Your Vehicle” for further
information.
LaneSense Failure Indicator Light — If Equipped
Yellow Telltale Light What It Means
LaneSense Failure Indicator Light
This light will turn on when the LaneSense system is not operating and needs service. Please see
your authorized dealer.
222 UNDERSTANDING YOUR INSTRUMENT PANEL

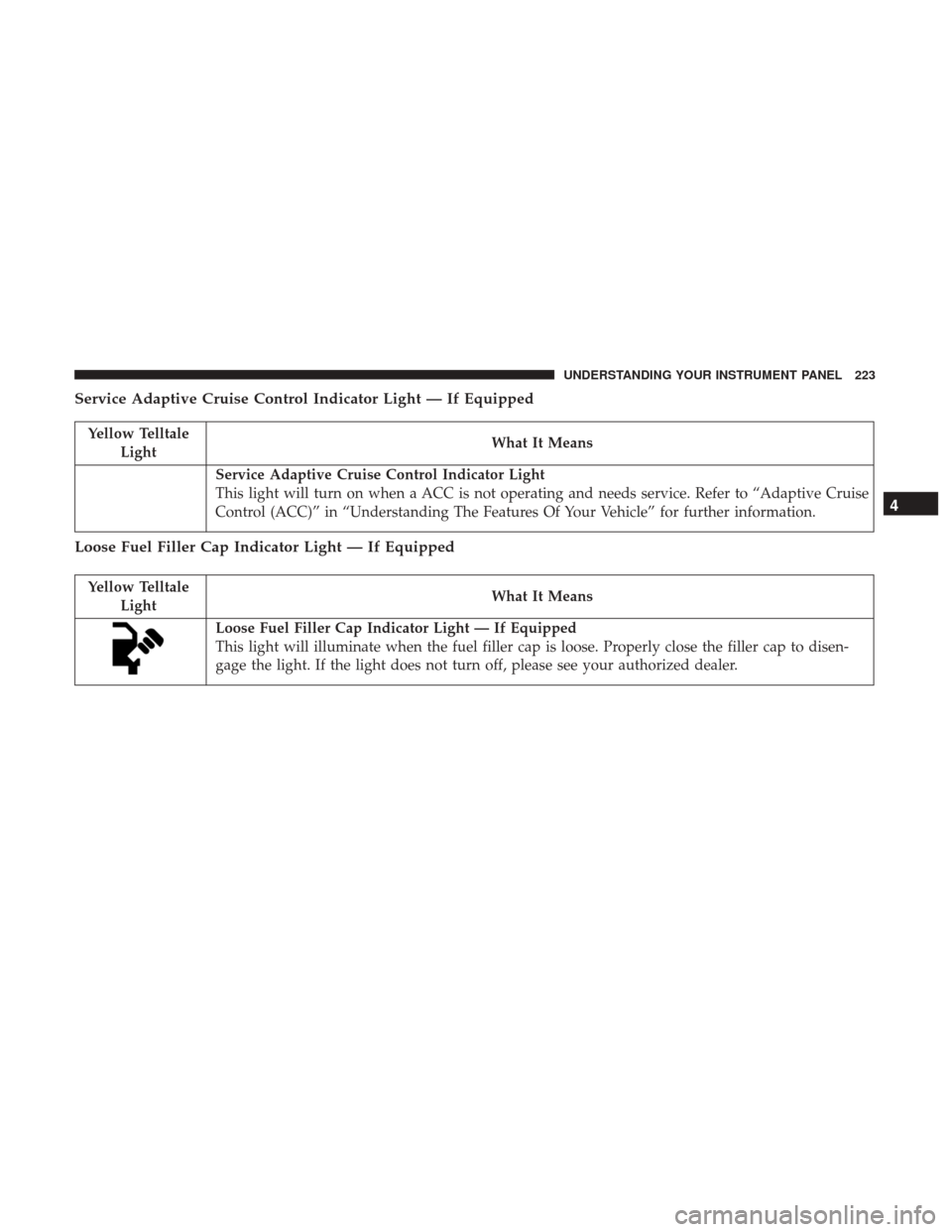

Service Adaptive Cruise Control Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Service Adaptive Cruise Control Indicator Light
This light will turn on when a ACC is not operating and needs service. Refer to “Adaptive Cruise
Control (ACC)” in “Understanding The Features Of Your Vehicle” for further information.
Loose Fuel Filler Cap Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Loose Fuel Filler Cap Indicator Light — If Equipped
This light will illuminate when the fuel filler cap is loose. Properly close the filler cap to disen-
gage the light. If the light does not turn off, please see your authorized dealer.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 223

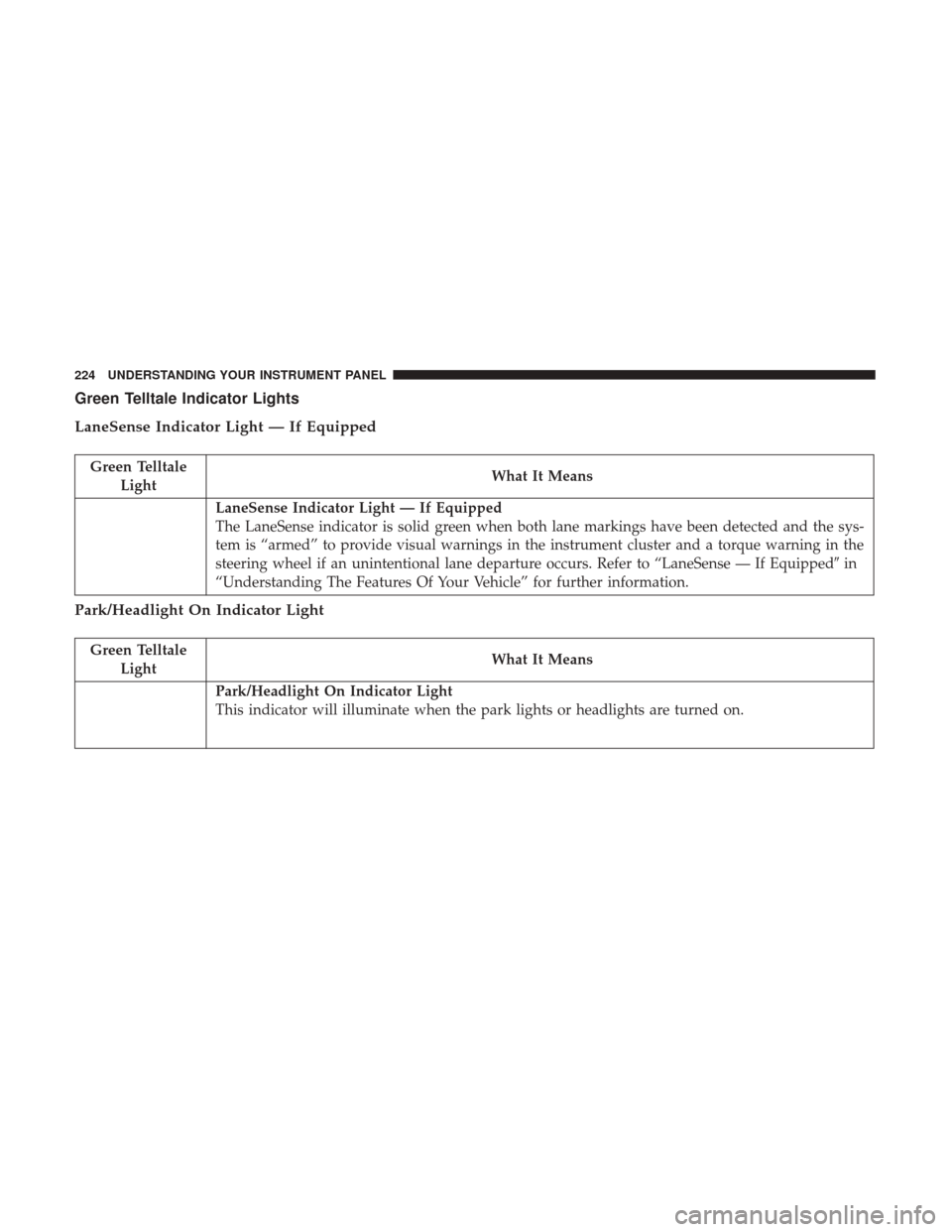

Green Telltale Indicator Lights
LaneSense Indicator Light — If Equipped
Green TelltaleLight What It Means
LaneSense Indicator Light — If Equipped
The LaneSense indicator is solid green when both lane markings have been detected and the sys-
tem is “armed” to provide visual warnings in the instrument cluster and a torque warning in the
steering wheel if an unintentional lane departure occurs. Refer to “LaneSense — If Equipped
in
“Understanding The Features Of Your Vehicle” for further information.
Park/Headlight On Indicator Light
Green Telltale Light What It Means
Park/Headlight On Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
224 UNDERSTANDING YOUR INSTRUMENT PANEL

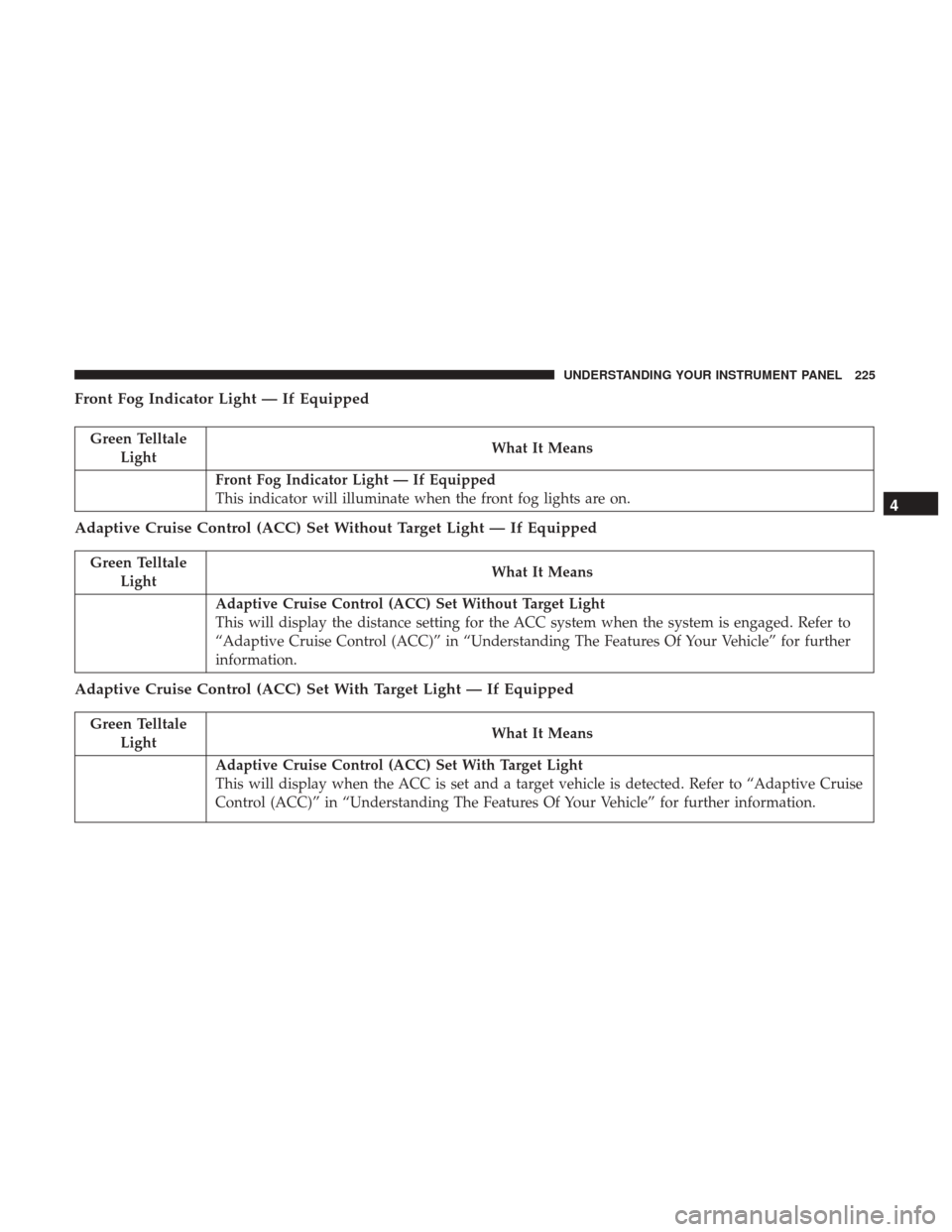

Front Fog Indicator Light — If Equipped
Green TelltaleLight What It Means
Front Fog Indicator Light — If Equipped
This indicator will illuminate when the front fog lights are on.
Adaptive Cruise Control (ACC) Set Without Target Light — If Equipped
Green Telltale
Light What It Means
Adaptive Cruise Control (ACC) Set Without Target Light
This will display the distance setting for the ACC system when the system is engaged. Refer to
“Adaptive Cruise Control (ACC)” in “Understanding The Features Of Your Vehicle” for further
information.
Adaptive Cruise Control (ACC) Set With Target Light — If Equipped
Green Telltale
Light What It Means
Adaptive Cruise Control (ACC) Set With Target Light
This will display when the ACC is set and a target vehicle is detected. Refer to “Adaptive Cruise
Control (ACC)” in “Understanding The Features Of Your Vehicle” for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 225

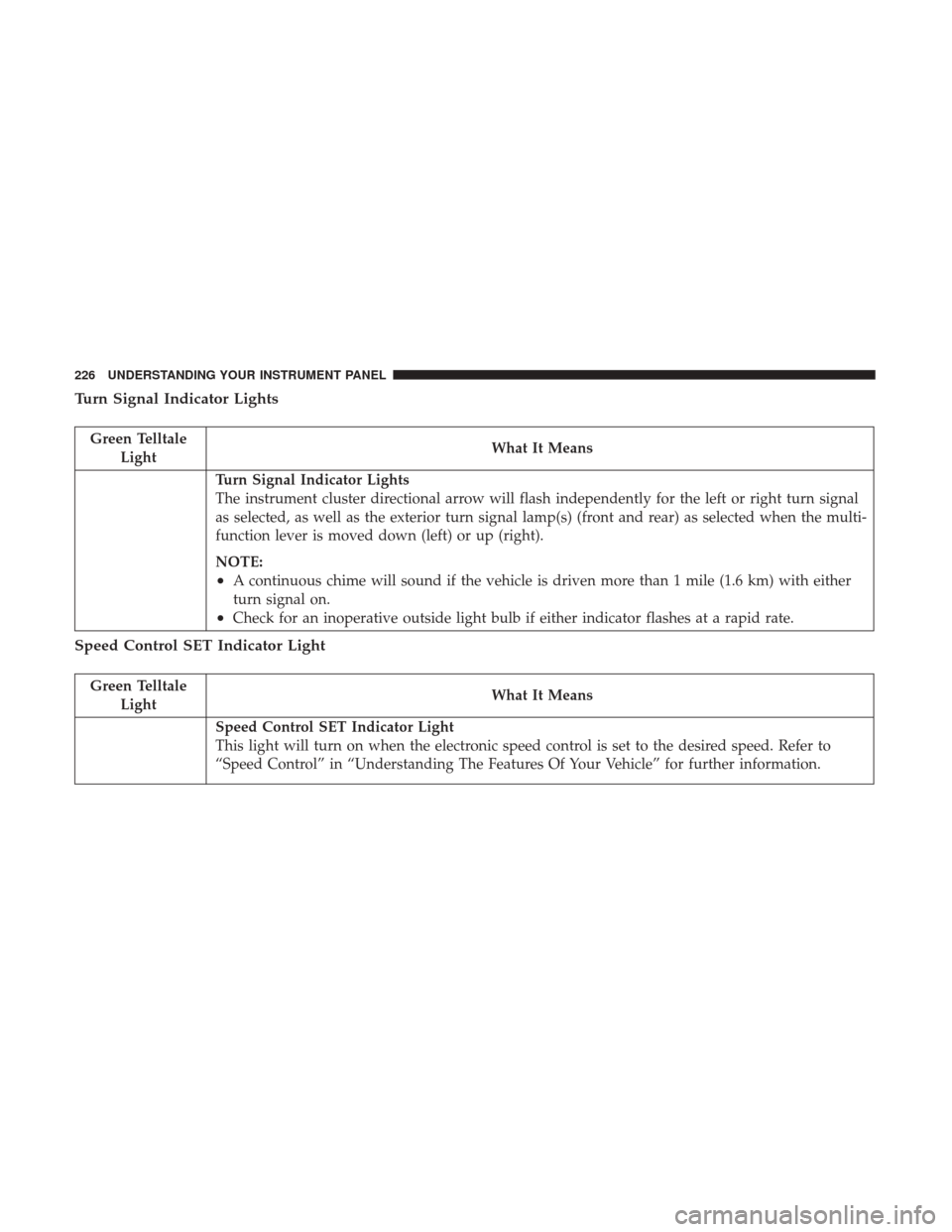

Turn Signal Indicator Lights
Green TelltaleLight What It Means
Turn Signal Indicator Lights
The instrument cluster directional arrow will flash independently for the left or right turn signal
as selected, as well as the exterior turn signal lamp(s) (front and rear) as selected when the multi-
function lever is moved down (left) or up (right).
NOTE:
•A continuous chime will sound if the vehicle is driven more than 1 mile (1.6 km) with either
turn signal on.
•Check for an inoperative outside light bulb if either indicator flashes at a rapid rate.
Speed Control SET Indicator Light
Green Telltale
Light What It Means
Speed Control SET Indicator Light
This light will turn on when the electronic speed control is set to the desired speed. Refer to
“Speed Control” in “Understanding The Features Of Your Vehicle” for further information.
226 UNDERSTANDING YOUR INSTRUMENT PANEL

Sport Mode Indicator Light
Green TelltaleLight What It Means
Sport Mode Indicator Light
This light will turn on when Sport Mode is active.
White Telltale Indicator Lights
Cruise Control Ready Indicator Light
White Telltale
Light What It Means
Cruise Control Ready Indicator Light
This light will turn on when the speed control is on, but not set.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 227

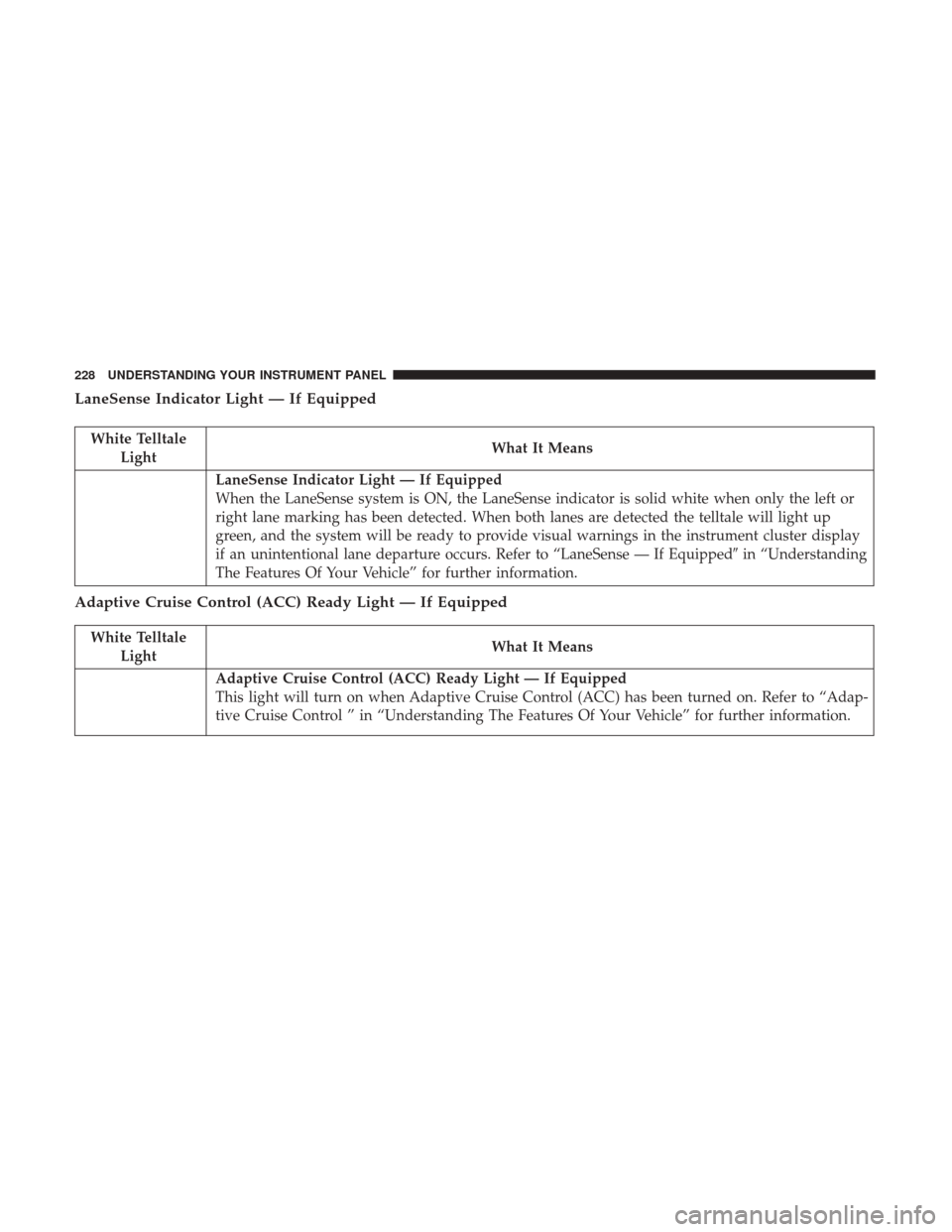

LaneSense Indicator Light — If Equipped
White TelltaleLight What It Means
LaneSense Indicator Light — If Equipped
When the LaneSense system is ON, the LaneSense indicator is solid white when only the left or
right lane marking has been detected. When both lanes are detected the telltale will light up
green, and the system will be ready to provide visual warnings in the instrument cluster display
if an unintentional lane departure occurs. Refer to “LaneSense — If Equipped
in “Understanding
The Features Of Your Vehicle” for further information.
Adaptive Cruise Control (ACC) Ready Light — If Equipped
White Telltale Light What It Means
Adaptive Cruise Control (ACC) Ready Light — If Equipped
This light will turn on when Adaptive Cruise Control (ACC) has been turned on. Refer to “Adap-
tive Cruise Control ” in “Understanding The Features Of Your Vehicle” for further information.
