CHRYSLER 300 C 2008 1.G User Guide

\3To Unlatch The Trunk...................24
\3Using The Panic Alarm..................25
\3Programming Additional Transmitters........25
\3Transmitter Battery Service...............25
\3General Information....................26
\1Remote Starting System — If Equipped........27
\3How To Use Remote Start................27
\1Door Locks............................29
\3Manual Door Locks.....................29
\3Power Door Locks.....................30
\3Child Protection Door Lock...............33
\1Windows.............................36
\3Power Windows.......................36\3Wind Buffeting........................39
\1Trunk Lock And Release...................40
\1Trunk Safety Warning.....................41
\3Trunk Emergency Release................41
\1Occupant Restraints......................42
\3Lap/Shoulder Belts.....................43
\3Lap/Shoulder Belt Untwisting Procedure.....48
\3Seat Belt Pretensioners...................48
\3Enhanced Seat Belt Reminder System
(BeltAlert\2) ..........................49
\3Automatic Locking Mode — If Equipped.....50
\3Seat Belts And Pregnant Women............51
\3Seat Belt Extender......................51
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

\3Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag............52
\3Event Data Recorder (EDR)...............65
\3Child Restraint........................67
\1Engine Break-In Recommendations...........76
\1Safety Tips............................77
\3Transporting Passengers.................77\3Lock Your Vehicle......................77
\3Exhaust Gas..........................78
\3Safety Checks You Should Make Inside
The Vehicle..........................79
\3Periodic Safety Checks You Should Make
Outside The Vehicle....................79
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Fob with Integrated Key and a Wireless
Ignition Node (WIN) with integral ignition switch. You
can insert the double-sided integrated key into the igni-
tion switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three of
which are detented and one spring-loaded. The detented
positions are LOCK, ACC, and ON. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the detented ON position.
Fob with Integrated Key
The Fob with Integrated Key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the Fob.
Wireless Ignition Node (WIN)
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The valet key allows for entry into the vehicle should the
battery in the vehicle or the Fob go dead. The valet key is
also for locking the glove box. You can keep the valet key
with you when valet parking.
To remove the valet key from the Fob, slide the mechani-
cal latch at the top of the Fob sideways with your thumb
and then pull the key out of the Fob with your other
hand.
NOTE:You can insert the double-sided valet key into
the lock cylinders with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

Tip Start Feature
Do notpress the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running.
Ignition Key Removal
Place the selector lever in “P” (Park). Turn the key to the
LOCK position and then remove the key.
NOTE:
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for 10 minutes after
the ignition switch is turned to the LOCK position.
Opening either front door will cancel this feature.
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the power windowswitches, radio, power sunroof (if equipped), and
power outlets will remain active for up to 60 minutes
after the ignition switch is turned to the LOCK posi-
tion. Opening either front door will cancel this feature.
The time for this feature is programmable. For details,
refer to “Delay Power Off to Accessories Until Exit,”
under “Personal Settings (Customer Programmable
Features),” under “Electronic Vehicle Information
Center (EVIC)” in Section 4 of this manual.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Fob with Integrated
Key and Wireless Ignition Node (WIN) to prevent unau-
thorized vehicle operation. Therefore, only Fobs that are
programmed to the vehicle can be used to start and
operate the vehicle. The system will shut the engine off in
two (2) seconds if someone uses an invalid Fob to start
the engine.
After turning the ignition switch to the ON position, the
Vehicle Security Alarm Indicator Light will turn on for
three (3) seconds for a bulb check. If the light remains on
after the bulb check, it indicates that there is a problem
with the electronics. In addition, if the light begins to
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

flash after the bulb check, it indicates that someone used
an invalid Fob to start the engine. Either of these condi-
tions will result in the engine being shut off after two (2)
seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
NOTE:
•The Sentry Key Immobilizer System is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
•Exxon/Mobil Speed Pass,™ additional Fobs, or any
other transponder-equipped components on the same
key chain willnotcause a fault unless the additional
part isphysically held against the Fobbeing used tostart the vehicle. Cell phones, pagers, or other RF
electronics will not cause interference with this system.
All of the Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only Fobs that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.
CAUTION!
Always remove Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit PIN number. Keep the PIN in a secure
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

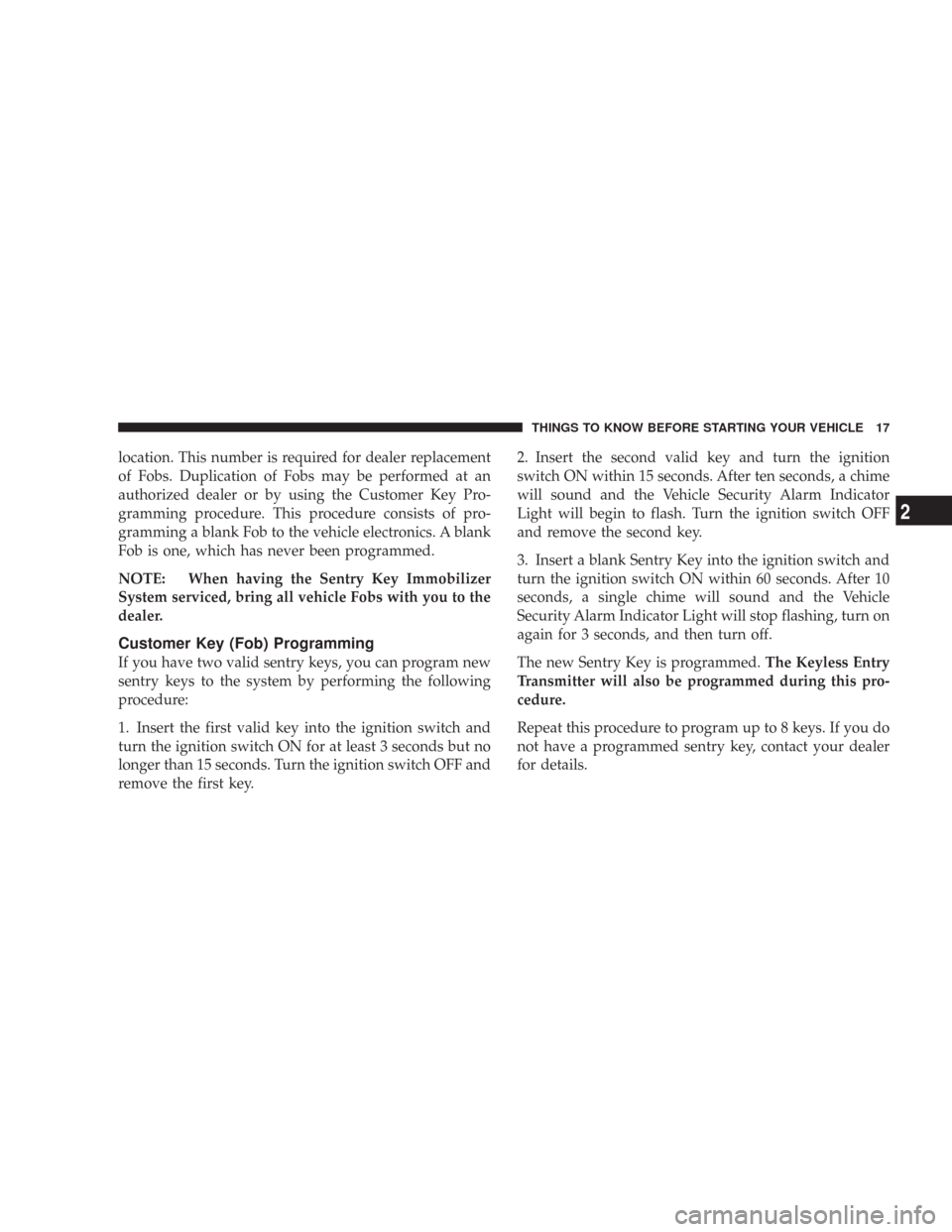

location. This number is required for dealer replacement
of Fobs. Duplication of Fobs may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank Fob to the vehicle electronics. A blank
Fob is one, which has never been programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle Fobs with you to the
dealer.
Customer Key (Fob) Programming
If you have two valid sentry keys, you can program new
sentry keys to the system by performing the following
procedure:
1. Insert the first valid key into the ignition switch and
turn the ignition switch ON for at least 3 seconds but no
longer than 15 seconds. Turn the ignition switch OFF and
remove the first key.2. Insert the second valid key and turn the ignition
switch ON within 15 seconds. After ten seconds, a chime
will sound and the Vehicle Security Alarm Indicator
Light will begin to flash. Turn the ignition switch OFF
and remove the second key.
3. Insert a blank Sentry Key into the ignition switch and
turn the ignition switch ON within 60 seconds. After 10
seconds, a single chime will sound and the Vehicle
Security Alarm Indicator Light will stop flashing, turn on
again for 3 seconds, and then turn off.
The new Sentry Key is programmed.The Keyless Entry
Transmitter will also be programmed during this pro-
cedure.
Repeat this procedure to program up to 8 keys. If you do
not have a programmed sentry key, contact your dealer
for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

NOTE:If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.
General Information
The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. If something triggers the alarm,
the system will prevent the vehicle from starting and
provide the following audible and visual signals: the
horn will pulse; the headlights will flash; the park lights
will flash; and the Vehicle Security Alarm Indicator light
in the instrument cluster will flash.
Rearming of the System:
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after 3
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Arm the System:
Remove the key from the ignition switch and either press
a power door lock switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the system will arm itself
in about 16 seconds. During that time, the Vehicle Secu-
rity Alarm Indicator light will flash. If it does not
illuminate, the system is not arming. Also, if you open a
door during the arming period, the system will cancel the
arming process. If you wish to rearm the system after
closing the door, you must repeat one of the previously
described arming sequences.
To Disarm the System:
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the system.
•The system remains armed during trunk entry. Press-
ing the trunk button will not disarm the system. If
someone enters the vehicle through the trunk and
opens any door the alarm will sound.
•When the system is armed, the interior power door
lock switches will not unlock the doors.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will give you a false alarm. If one of the
previously described arming sequences has occurred, the
system will arm regardless of whether you are in the
vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
