Page 21 of 520

If the alarm system is armed and the battery becomes
disconnected the system will remain armed when the
battery is reconnected. The exterior lights will flash, the
horn will sound, and the ignition will not start the
vehicle. If this occurs, disarm the system.
Tamper Alert
If something has triggered the system in your absence,
the horn will sound three times when you disarm the
system. Check the vehicle for tampering.
ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open any
door.
This feature also turns on the approach lighting in the
outside mirrors (if so equipped). For details, refer to
“Outside Mirrors with Turn Signal & Approach Light-
ing” under “Mirrors” in Section 3 of this manual.The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned ON from the LOCK position.
NOTE:
•None of the courtesy lights will operate if the dimmer
control is in the “defeat” position (extreme downward
position), unless the overhead map/reading lights are
turned on manually.
REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors, open
the trunk, or activate the panic alarm from distances up
to about 35 feet (11 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.
NOTE:Inserting the Fob with Integrated Key into the
ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 22 of 520

continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all Fobs.To unlock the doors:
Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door, or twice within 5
seconds to unlock all doors. The turn signal lights will
flash to acknowledge the unlock signal. The illuminated
entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the transmitter. To change the cur-
rent setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer Pro-
grammable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4 of this manual
for details.
Keyless Entry Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2
Page 23 of 520

•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
transmitter for at least 4 seconds, but no longer than 10
seconds. Then, press and hold the UNLOCK button
while still holding the LOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the transmitter
with the ignition switch in the LOCK position, and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are inside the vehicle will activate the SecurityAlarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the transmitter.
This feature can be turned on or turned off. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Flash Lights with
Remote Key Lock,” under\4Personal Settings (Cus-
tomer Programmable Features),” under “Electronic
Vehicle Information Center (EVIC)” in Section 4 of this
manual for details.
•For vehicles not equipped with the EVIC, perform the
following procedure:
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 24 of 520

1. Press and hold the UNLOCK button on a programmed
transmitter for at least 4 seconds, but no longer than 10
seconds. Then, press and hold the LOCK button while
still holding the UNLOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the transmitter
with the ignition switch in the LOCK position, and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the transmitter. The
time for this feature is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to “Turn Headlights On with
Remote Key Unlock,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4 of this
manual.
To lock the doors:
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
Page 25 of 520

Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Sound Horn with
Remote Key Lock,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic
Vehicle Information Center (EVIC)” in Section 4 of this
manual for details.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed transmitter
for at least 4 seconds, but no longer than 10 seconds.
Then, press the PANIC button while still holding the
LOCK button.2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK button on the transmitter with the
ignition switch in the LOCK position, and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
To unlatch the trunk:
Press the trunk button on the transmitter two times
within 5 seconds to unlatch the trunk.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 26 of 520

Using The Panic Alarm:
To turn the panic alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the panic alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The panic alarm will stay on for 3 minutes unless you
turn it off by either pressing the PANIC button a second
time or drive the vehicle at a speed of 15 mph (24 km/h)
or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the panic
alarm is activated. However, the exterior lights and
horn will remain on.
•You may need to be less than 35 feet (11 meters) from
the vehicle when using the transmitter to turn off the
panic alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Refer to SENTRY KEY “Customer Key (Fob) Program-
ming.”(See page 17 for more information.)
If you do not have a programmed transmitter, contact
your dealer for details.
Transmitter Battery Service
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2
Page 27 of 520

•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Battery access is through a door located on the rear of
the Fob. Insert a small, flat blade screwdriver into the slot
and gently pry open the access door.2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. Reposition the access door panel over the battery
opening and snap into place.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Battery Replacement
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 28 of 520

If your Remote Keyless Entry (RKE) transmitter fails to
operate from a normal distance, check for these two
conditions.
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry (RKE) trans-
mitter to start the engine conveniently from outside the
vehicle while still maintaining security. The system has a
targeted range of 328 ft. (100 m).
NOTE:The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Gear selector lever in “P” (Park).
•Doors closed.
•Hood closed.
•Trunk closed.
•Hazard switch off.
•Brake switch inactive (brake pedal not pressed).
•Ignition key removed from ignition switch.
•Battery at an acceptable charge level.
•RKE Panic button not pressed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2
Page 29 of 520

To Enter Remote Start Mode
Press and release the Remote Start button on
the RKE transmitter twice within 5 seconds.
The parking lights will flash and horn will
honk twice (if programmed). Then, the engine
will start and the vehicle will remain in the Remote Start
mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if so equipped) is disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit Remote Start Mode without Driving the
Vehicle
Allow the engine to run for the entire 15-minute cycle.
To Exit Remote Start Mode & Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE:The ignition switch must be in the ON position
in order to drive the vehicle.
To Turn Off the Engine While in Remote Start
Mode
Press and release the remote start button one time.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 30 of 520

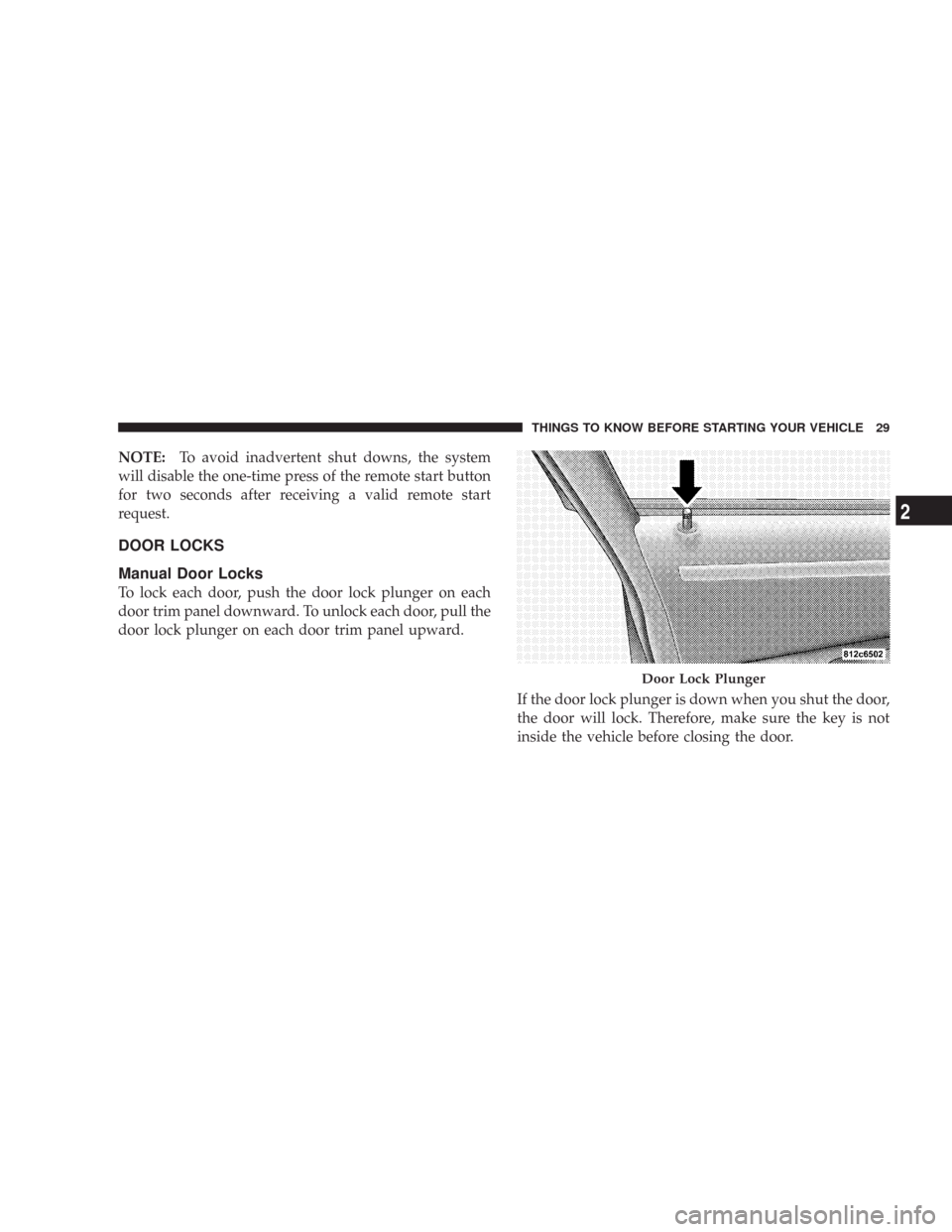

NOTE:To avoid inadvertent shut downs, the system
will disable the one-time press of the remote start button
for two seconds after receiving a valid remote start
request.
DOOR LOCKS
Manual Door Locks
To lock each door, push the door lock plunger on each
door trim panel downward. To unlock each door, pull the
door lock plunger on each door trim panel upward.
If the door lock plunger is down when you shut the door,
the door will lock. Therefore, make sure the key is not
inside the vehicle before closing the door.
Door Lock Plunger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
