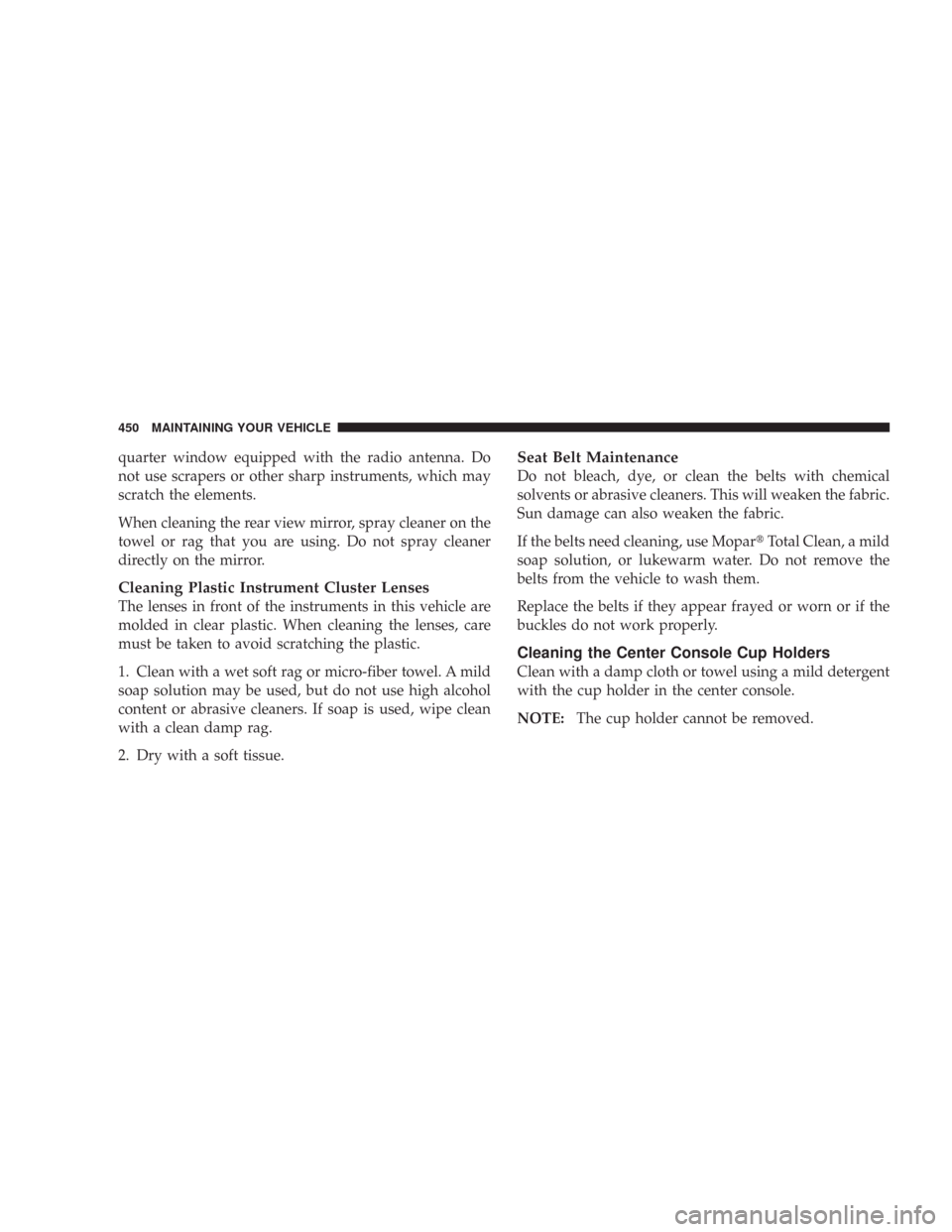

quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag or micro-fiber towel. A mild
soap solution may be used, but do not use high alcohol
content or abrasive cleaners. If soap is used, wipe clean
with a clean damp rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use Mopar\2Total Clean, a mild
soap solution, or lukewarm water. Do not remove the
belts from the vehicle to wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning the Center Console Cup Holders
Clean with a damp cloth or towel using a mild detergent
with the cup holder in the center console.
NOTE:The cup holder cannot be removed.
450 MAINTAINING YOUR VEHICLE

FUSES (POWER DISTRIBUTION CENTERS)
Fuses (Front Power Distribution Center)
A power distribution center is located in the engine
compartment. This center contains fuses and relays.
Cavity Car-
tridge
FuseMini
FuseDescription
1 — 15 Amp
BlueWasher Motor
2 — 25 Amp
NeutralPowertrain Control
Module (PCM)
3 — 25 Amp
NeutralIgnition Run/Start
4 — 25 Amp
NeutralAlternator/EGR Sole-
noid
5———
6 — 25 Amp
NeutralIgnition Coils/Injectors/
Short Runner Valve
7 — 25 Amp
NeutralHeadlight Washer - if
equipped
8 — 25 Amp
NeutralStarter
9———
Front Power Distribution Center
MAINTAINING YOUR VEHICLE 451
7

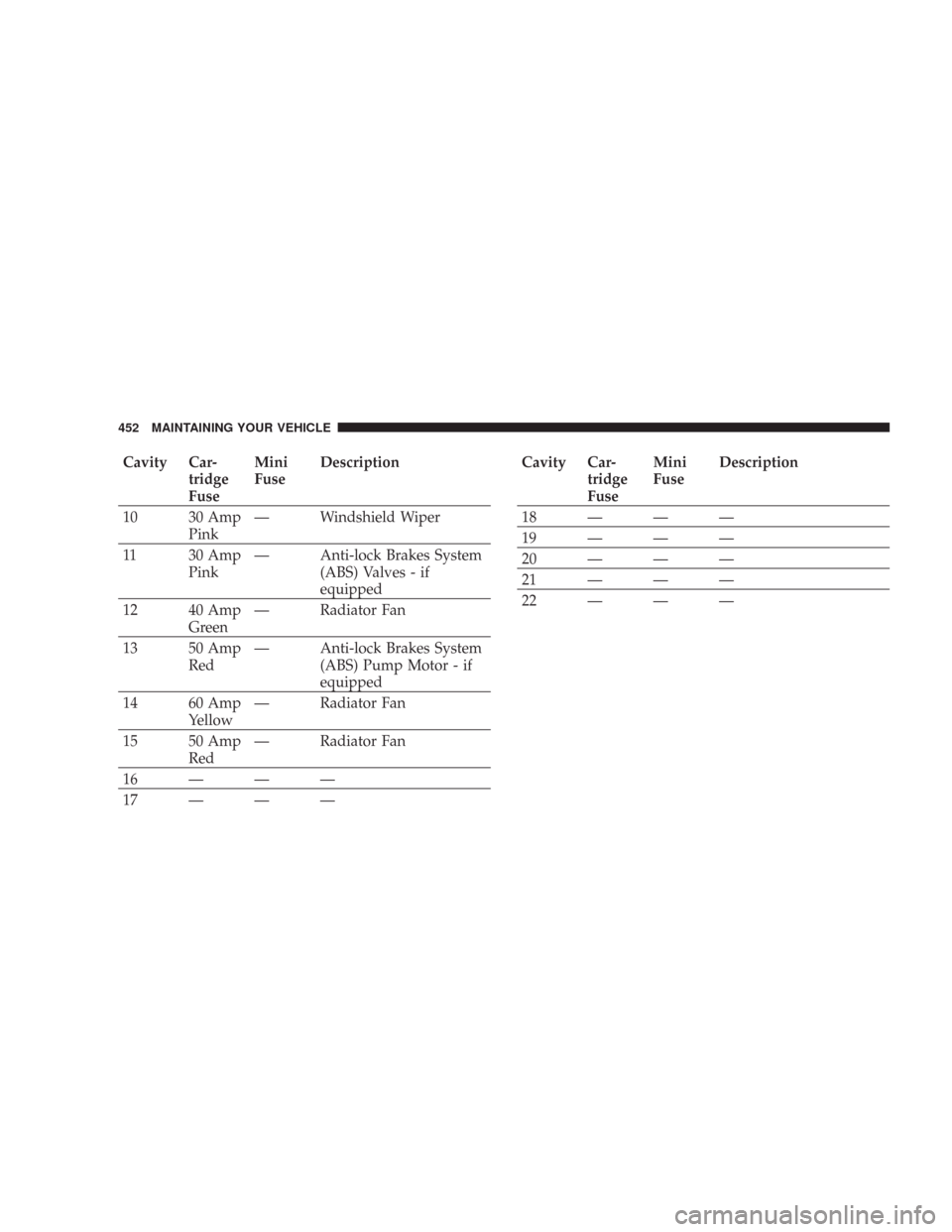

Cavity Car-
tridge
FuseMini
FuseDescription
10 30 Amp
Pink— Windshield Wiper
11 30 Amp
Pink— Anti-lock Brakes System
(ABS) Valves - if
equipped
12 40 Amp
Green— Radiator Fan
13 50 Amp
Red— Anti-lock Brakes System
(ABS) Pump Motor - if
equipped
14 60 Amp
Yellow— Radiator Fan
15 50 Amp
Red— Radiator Fan
16———
17———Cavity Car-
tridge
FuseMini
FuseDescription
18———
19———
20———
21———
22———
452 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribution
Center, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.

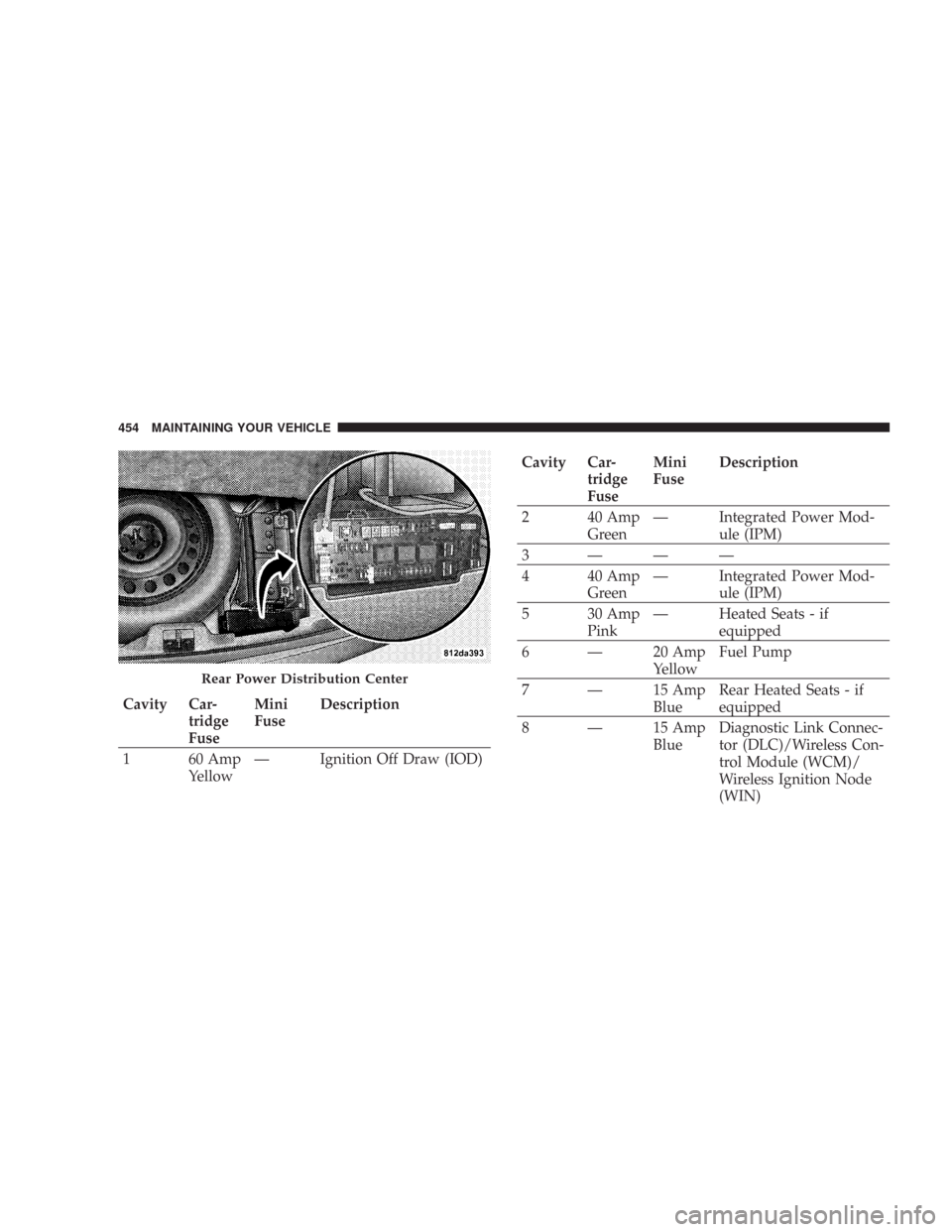

Fuses (Rear Power Distribution Center)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Panel
MAINTAINING YOUR VEHICLE 453
7

Cavity Car-
tridge
FuseMini
FuseDescription
1 60 Amp
Yellow— Ignition Off Draw (IOD)
Cavity Car-
tridge
FuseMini
FuseDescription
2 40 Amp
Green— Integrated Power Mod-
ule (IPM)
3———
4 40 Amp
Green— Integrated Power Mod-
ule (IPM)
5 30 Amp
Pink— Heated Seats - if
equipped
6 — 20 Amp
YellowFuel Pump
7 — 15 Amp
BlueRear Heated Seats - if
equipped
8 — 15 Amp
BlueDiagnostic Link Connec-
tor (DLC)/Wireless Con-
trol Module (WCM)/
Wireless Ignition Node
(WIN)
Rear Power Distribution Center
454 MAINTAINING YOUR VEHICLE

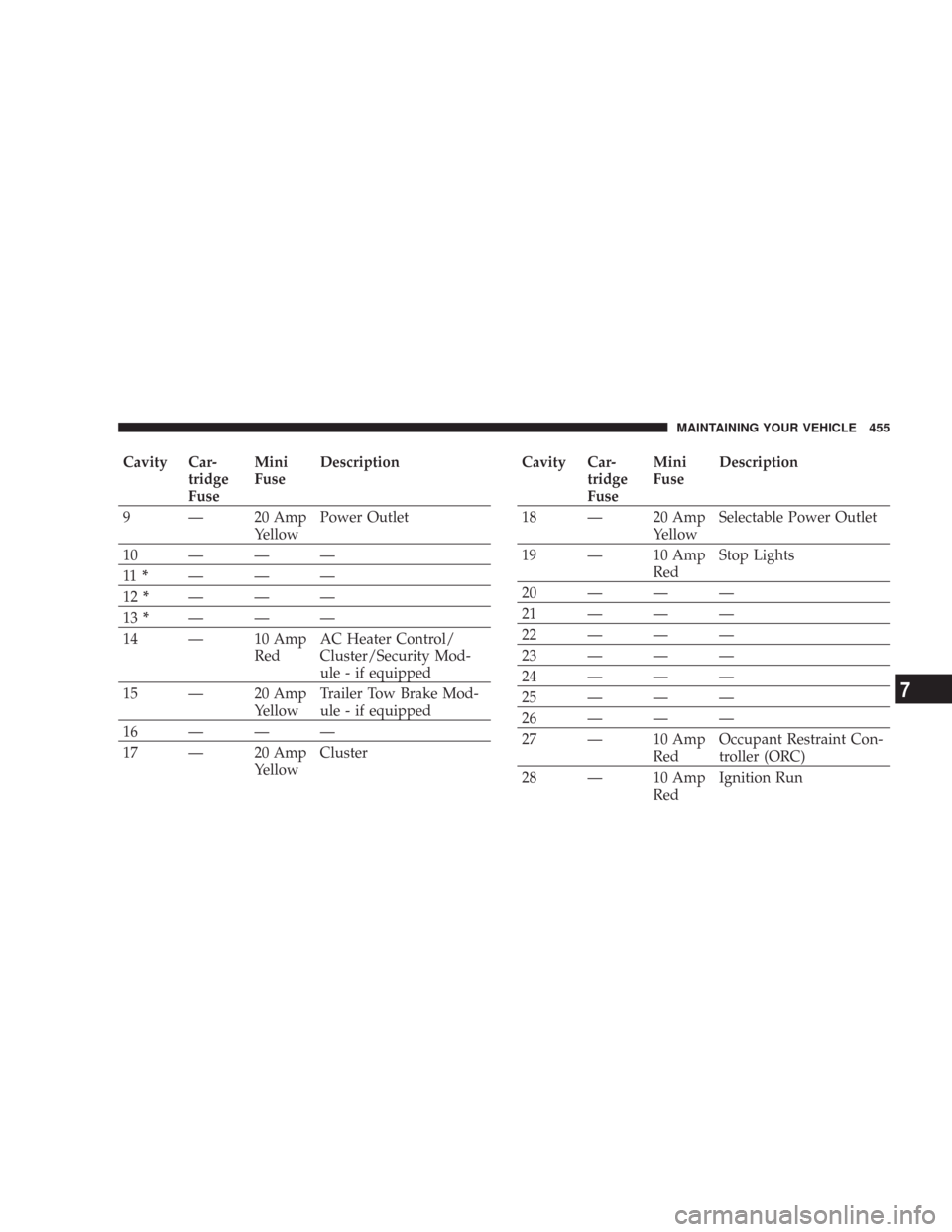

Cavity Car-
tridge
FuseMini
FuseDescription
9 — 20 Amp
YellowPower Outlet
10———
11*———
12*———
13*———
14 — 10 Amp
RedAC Heater Control/
Cluster/Security Mod-
ule - if equipped
15 — 20 Amp
YellowTrailer Tow Brake Mod-
ule - if equipped
16———
17 — 20 Amp
YellowClusterCavity Car-
tridge
FuseMini
FuseDescription
18 — 20 Amp
YellowSelectable Power Outlet
19 — 10 Amp
RedStop Lights
20———
21———
22———
23———
24———
25———
26———
27 — 10 Amp
RedOccupant Restraint Con-
troller (ORC)
28 — 10 Amp
RedIgnition Run
MAINTAINING YOUR VEHICLE 455
7

Cavity Car-
tridge
FuseMini
FuseDescription
29 — 5 Amp
OrangeAdaptive Cruise Control
(ACC) - if equipped/
Cluster/Electronic Sta-
bility Program (ESP) - if
equipped/Powertrain
Control Module (PCM)/
Stop Light Switch
30 — 10 Amp
RedDoor Modules/Power
Mirrors/Steering Con-
trol Module (SCM)
31———
32———
33———
34———Cavity Car-
tridge
FuseMini
FuseDescription
35 — 5 Amp
OrangeAntenna Module - if
equipped/Power
Mirrors/Rain Sensor - if
equipped
36 — 20 Amp
YellowHands Free Phone - if
equipped/Video Moni-
tor - if equipped/Radio
37 — 15 Amp
BlueTransmission
38 — 10 Amp
RedAnalog Clock/Cargo
Light/Satellite Receiver
(SDARS) Video - if
equipped/Vehicle Infor-
mation Module - if
equipped
456 MAINTAINING YOUR VEHICLE

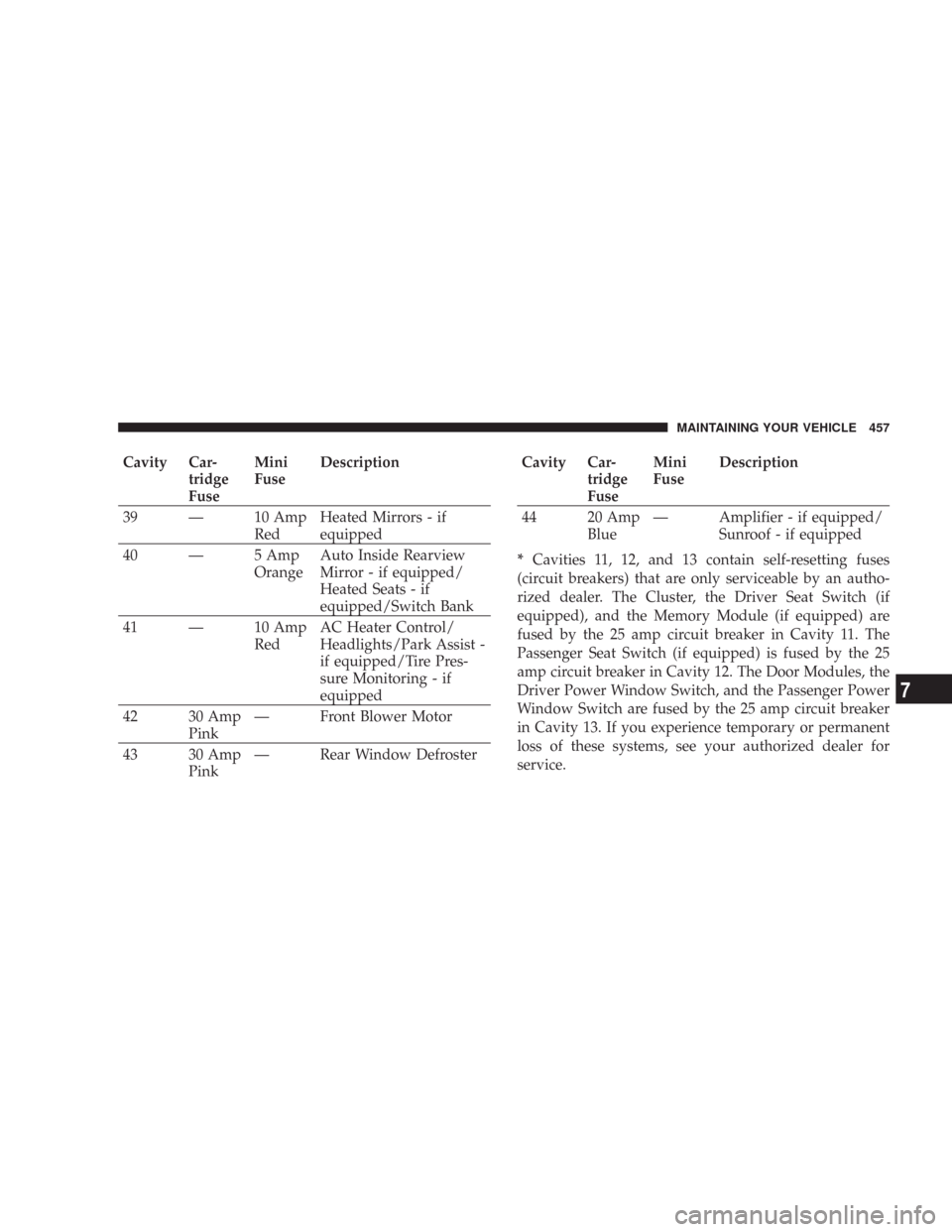

Cavity Car-
tridge
FuseMini
FuseDescription
39 — 10 Amp
RedHeated Mirrors - if
equipped
40 — 5 Amp
OrangeAuto Inside Rearview
Mirror - if equipped/
Heated Seats - if
equipped/Switch Bank
41 — 10 Amp
RedAC Heater Control/
Headlights/Park Assist -
if equipped/Tire Pres-
sure Monitoring - if
equipped
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Rear Window DefrosterCavity Car-
tridge
FuseMini
FuseDescription
44 20 Amp
Blue— Amplifier - if equipped/
Sunroof - if equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The Cluster, the Driver Seat Switch (if
equipped), and the Memory Module (if equipped) are
fused by the 25 amp circuit breaker in Cavity 11. The
Passenger Seat Switch (if equipped) is fused by the 25
amp circuit breaker in Cavity 12. The Door Modules, the
Driver Power Window Switch, and the Passenger Power
Window Switch are fused by the 25 amp circuit breaker
in Cavity 13. If you experience temporary or permanent
loss of these systems, see your authorized dealer for
service.
MAINTAINING YOUR VEHICLE 457
7

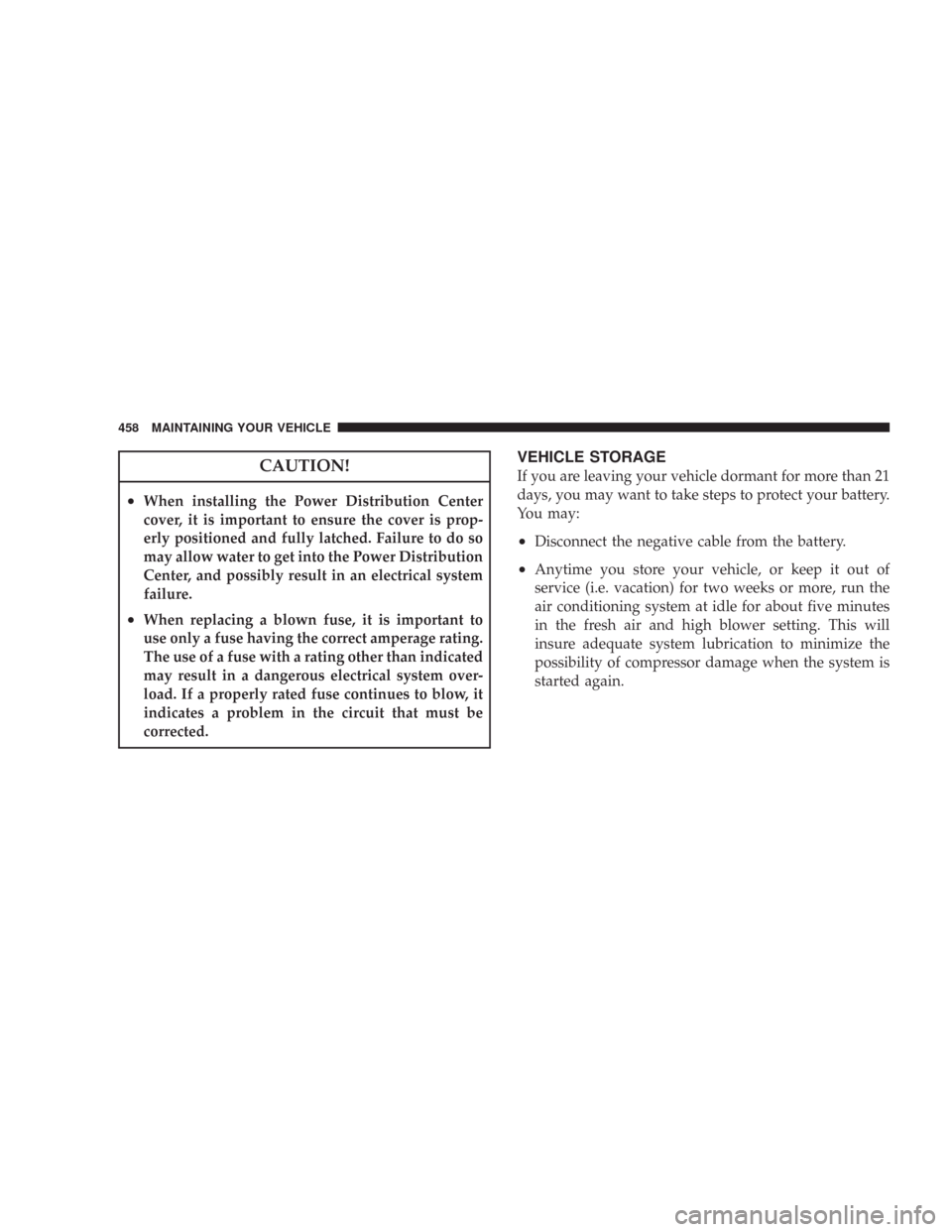

CAUTION!
•When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribution
Center, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
458 MAINTAINING YOUR VEHICLE

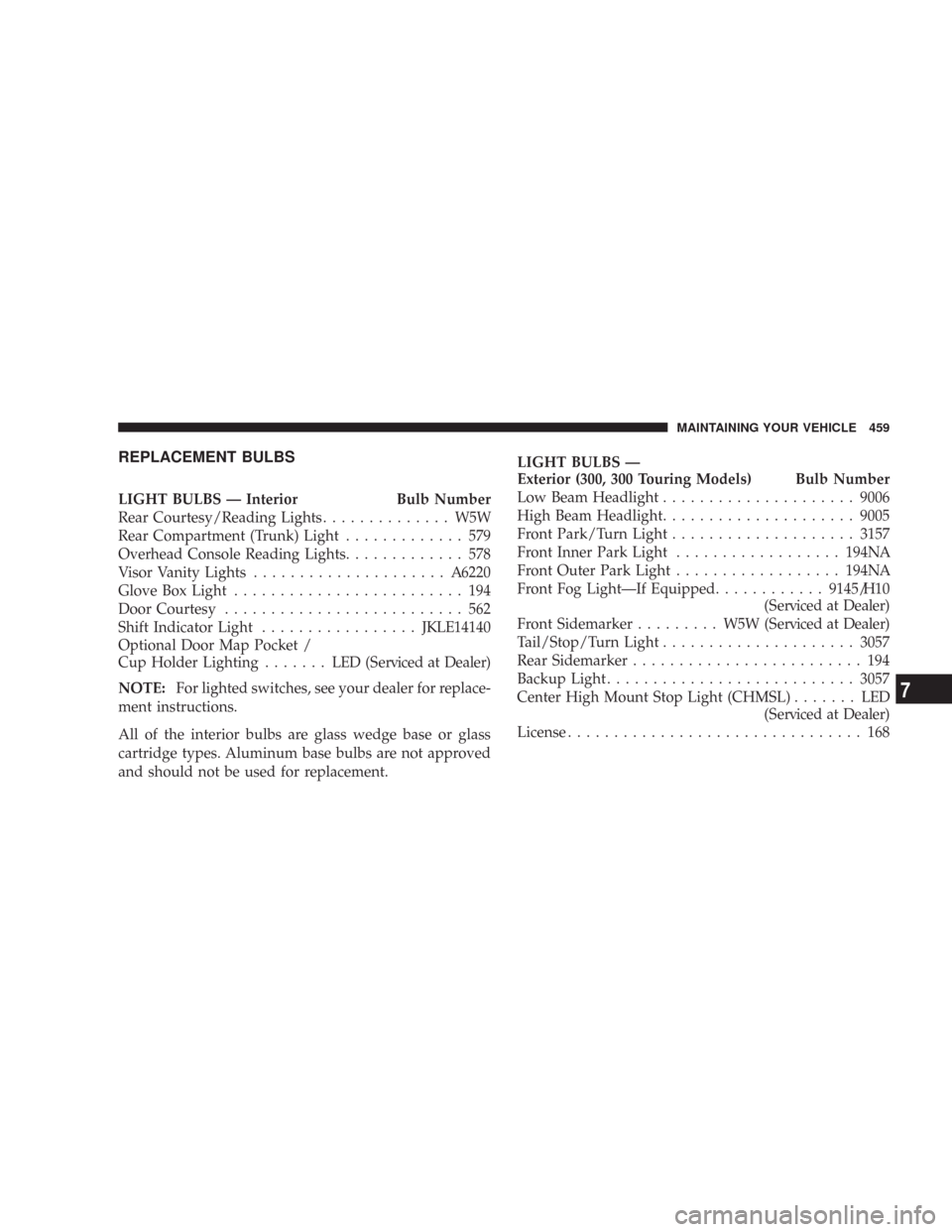

REPLACEMENT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Trunk) Light............. 579
Overhead Console Reading Lights............. 578
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194
Door Courtesy.......................... 562
Shift Indicator Light.................JKLE14140
Optional Door Map Pocket /
Cup Holder Lighting....... LED(Serviced at Dealer)
NOTE:For lighted switches, see your dealer for replace-
ment instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.LIGHT BULBS —
Exterior (300, 300 Touring Models) Bulb Number
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Light....................3157
Front Inner Park Light..................194NA
Front Outer Park Light..................194NA
Front Fog Light—If Equipped............9145/H10
(Serviced at Dealer)
Front Sidemarker......... W5W(Serviced at Dealer)
Tail/Stop/Turn Light.....................3057
Rear Sidemarker......................... 194
Backup Light...........................3057
Center High Mount Stop Light (CHMSL)....... LED
(Serviced at Dealer)
License................................ 168
MAINTAINING YOUR VEHICLE 459
