Should this occur, you should stop as soon as possible
and inflate all of the tires with low pressure (including
those flashing in the EVIC graphic) to the vehicle’s
recommended cold placard pressure value. Once the
system receives the updated tire pressures, the system
will automatically update, the graphic display in the
EVIC will stop flashing, and the TPM Telltale Light will
turn off. The vehicle may need to be driven for up to
20 minutes above 15 mph (25 km/h) in order for the
TPMS to receive this information.Check TPMS Warning
If a system fault is detected, the TPM Telltale Light will flash
on and off for 75 seconds and then remain on solid. The
system fault will also sound a chime. In addition, the EVIC
will display aCHECK TPM SYSTEMmessage for three
seconds and then display dashes (- -) in place of the pressure
value to indicate which sensor is not being received.
376 STARTING AND OPERATING

If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the TPM Telltale Light will no longer
flash, and theCHECK TPM SYSTEMmessage will no
longer display, and a pressure value will display in place
of the dashes. A system fault can occur due to any of the
following:
1. Signal interference due to electronic devices or driving
next to facilities emitting the same radio frequencies as
the TPM sensors.
2. Installing aftermarket window tinting that contains
materials that may block radio wave signals.
3. Accumulation of snow or ice around the wheels or
wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.NOTE:
Vehicles with Full Size Spare
1. The matching full size spare wheel and tire assembly
has a TPM sensor that can be monitored by the TPMS.
2. If you install the full size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
upon the next ignition key cycle, a chime will sound and
the TPM Telltale Light will turn ON. In addition, the
EVIC will display a low pressure message and a graphic
showing the low tire pressure value flashing.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h) the TPM Telltale Light will turn OFF,
as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires.
STARTING AND OPERATING 377
5

NOTE:
Vehicles with Compact Spare
1. The compact spare tire does not have a TPM sensor.
Therefore, the TPMS will not monitor the pressure in the
compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, the TPM Telltale
Light will remain ON and a chime will sound. In
addition, the graphic in the EVIC will still display a
flashing pressure value.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h), the TPM Telltale Light will flash on
and off for 75 seconds and then remain on solid. In
addition, the EVIC will display aCHECK TPM SYS-
TEMmessage for three seconds and then display dashes
(- -) in place of the pressure value.4. For each subsequent ignition key cycle, a chime will
sound, the TPM Telltale Light will flash on and off for
75 seconds and then remain on solid, and the EVIC will
display aCHECK TPM SYSTEMmessage for three
seconds and then display dashes (- -) in place of the
pressure value.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
TPM Telltale Light will turn OFF and the graphic in the
EVIC will display a new pressure value instead of dashes
(- -), as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The
vehicle may need to be driven for up to 20 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
378 STARTING AND OPERATING

Seat Belt Reminder..................... 217
Service...........................467,469
Service Engine Soon (Malfunction Indicator) . . . 220
SmartBeams.......................... 141
Tire Pressure Monitoring (TPMS)........218,369
Traction Control....................... 347
Turn Signal......................81,144,210
Vanity Mirror.......................... 94
Voltage............................. 220
Warning (Instrument Cluster Description)..... 210
Load Leveling System.................... 202
Loading Vehicle......................387,388
Capacities........................... 388
Tires ............................... 353
Locks................................. 29
Auto Unlock.......................... 32
Automatic Door........................ 31
Child Protection........................ 35
Door................................ 29Power Door........................... 30
Low Tire Pressure System.................. 369
Lower Anchors and Tether for CHildren
(LATCH)............................72,73
Lubrication, Body....................... 441
Lumbar Support........................ 130
Maintenance Free Battery.................. 438
Maintenance, General..................... 433
Maintenance Procedures................... 433
Maintenance Schedule.................... 484
Maintenance, Sunroof..................... 194
Malfunction Indicator Light (Check Engine) . . 220,431
Manual, Service......................... 507
Map/Reading Lights..................145,184
Master Cylinder (Brakes).................. 451
Memory Feature (Memory Seat)............. 134
Memory Seat........................... 134
Memory Seats and Radio.................. 134
INDEX 523
10

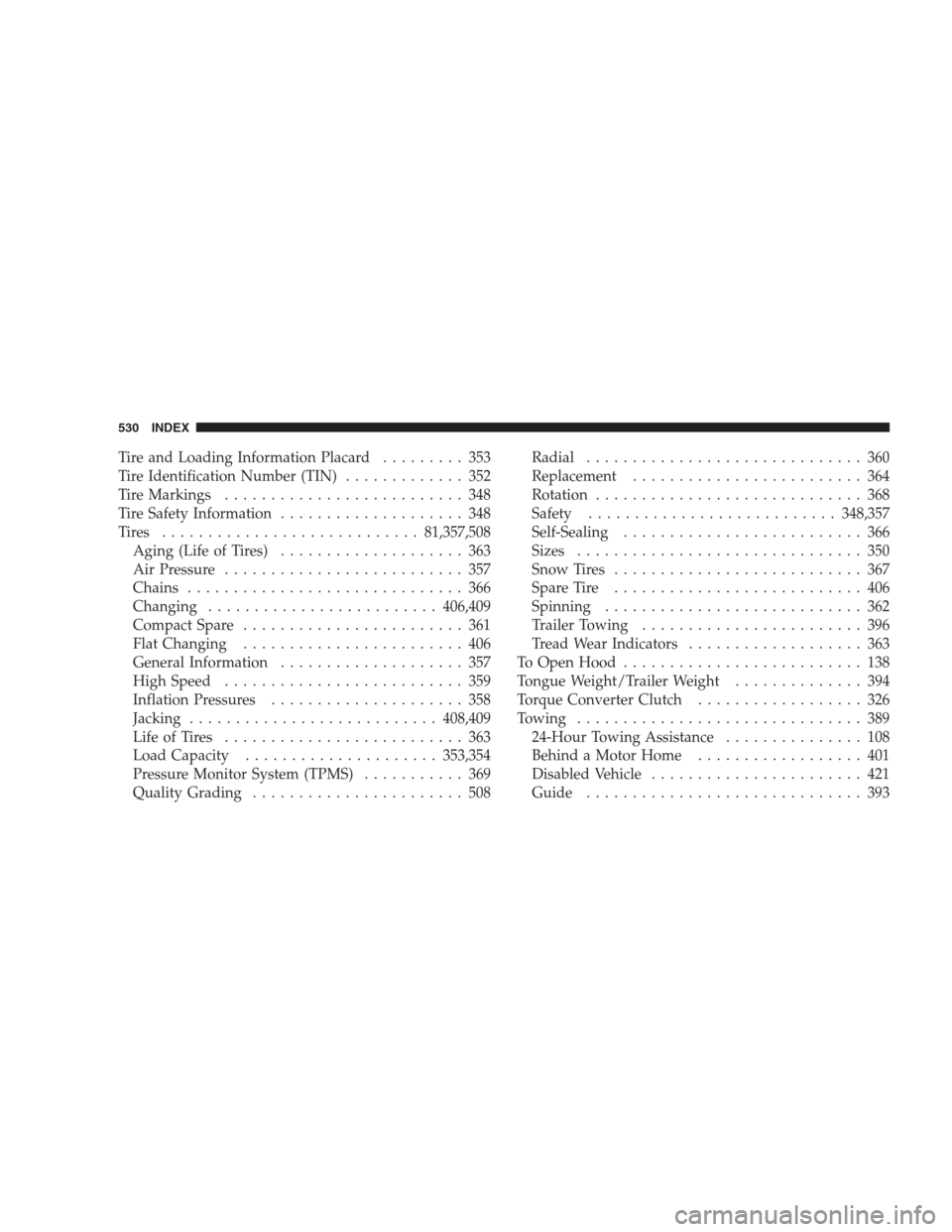

Tire and Loading Information Placard......... 353
Tire Identification Number (TIN)............. 352
Tire Markings.......................... 348
Tire Safety Information.................... 348
Tires ............................81,357,508
Aging (Life of Tires).................... 363
Air Pressure.......................... 357
Chains.............................. 366
Changing.........................406,409
Compact Spare........................ 361
Flat Changing........................ 406
General Information.................... 357
High Speed.......................... 359
Inflation Pressures..................... 358
Jacking...........................408,409
Life of Tires.......................... 363
Load Capacity.....................353,354
Pressure Monitor System (TPMS)........... 369
Quality Grading....................... 508Radial.............................. 360
Replacement......................... 364
Rotation............................. 368
Safety...........................348,357
Self-Sealing.......................... 366
Sizes............................... 350
Snow Tires........................... 367
Spare Tire........................... 406
Spinning............................ 362
Trailer Towing........................ 396
Tread Wear Indicators................... 363
To Open Hood.......................... 138
Tongue Weight/Trailer Weight.............. 394
Torque Converter Clutch.................. 326
Towing............................... 389
24-Hour Towing Assistance............... 108
Behind a Motor Home.................. 401
Disabled Vehicle....................... 421
Guide.............................. 393
530 INDEX
