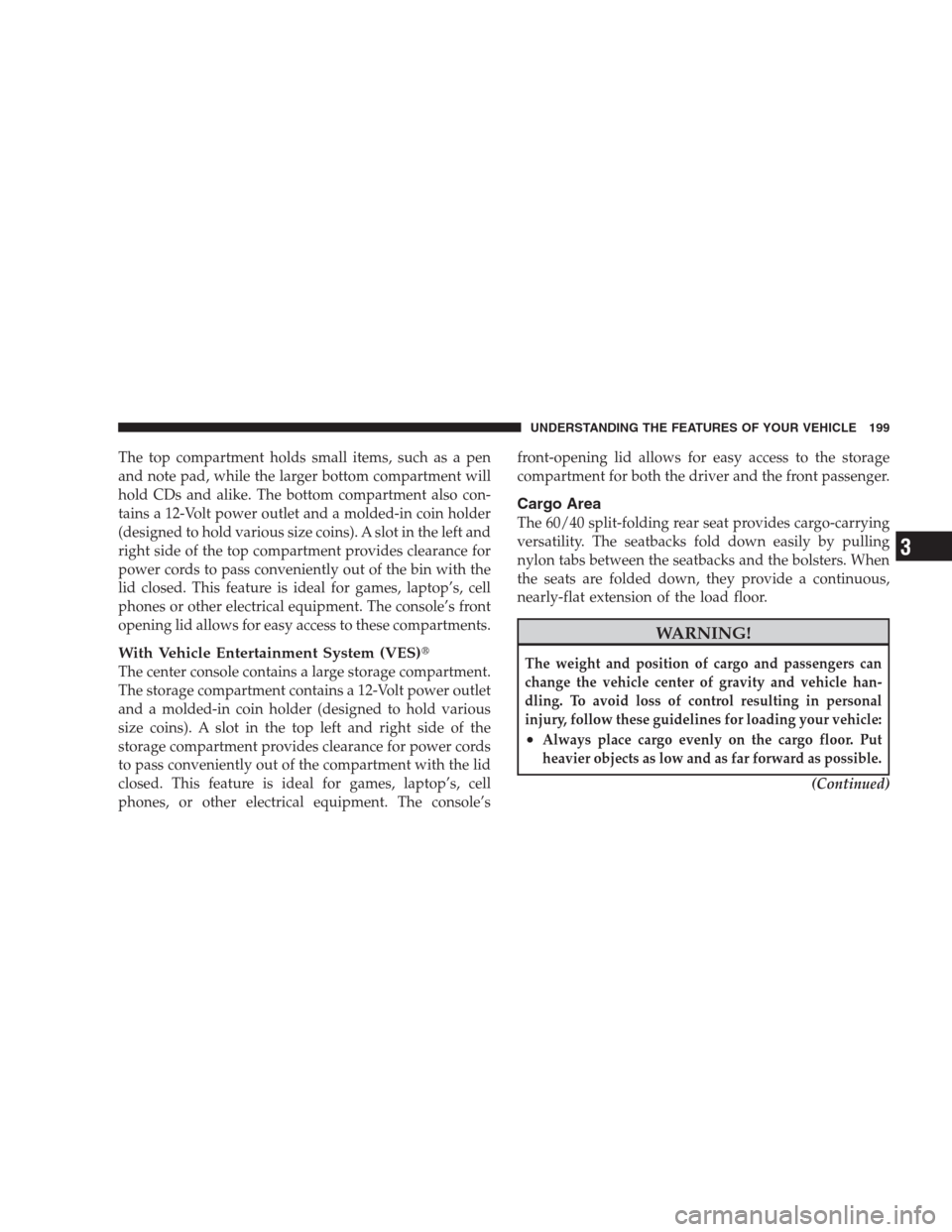

The top compartment holds small items, such as a pen
and note pad, while the larger bottom compartment will
hold CDs and alike. The bottom compartment also con-
tains a 12-Volt power outlet and a molded-in coin holder
(designed to hold various size coins). A slot in the left and
right side of the top compartment provides clearance for
power cords to pass conveniently out of the bin with the
lid closed. This feature is ideal for games, laptop’s, cell
phones or other electrical equipment. The console’s front
opening lid allows for easy access to these compartments.
With Vehicle Entertainment System (VES)
The center console contains a large storage compartment.
The storage compartment contains a 12-Volt power outlet
and a molded-in coin holder (designed to hold various
size coins). A slot in the top left and right side of the
storage compartment provides clearance for power cords
to pass conveniently out of the compartment with the lid
closed. This feature is ideal for games, laptop’s, cell
phones, or other electrical equipment. The console’sfront-opening lid allows for easy access to the storage
compartment for both the driver and the front passenger.
Cargo Area
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly-flat extension of the load floor.
WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle han-
dling. To avoid loss of control resulting in personal
injury, follow these guidelines for loading your vehicle:
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as possible.
(Continued)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199
3

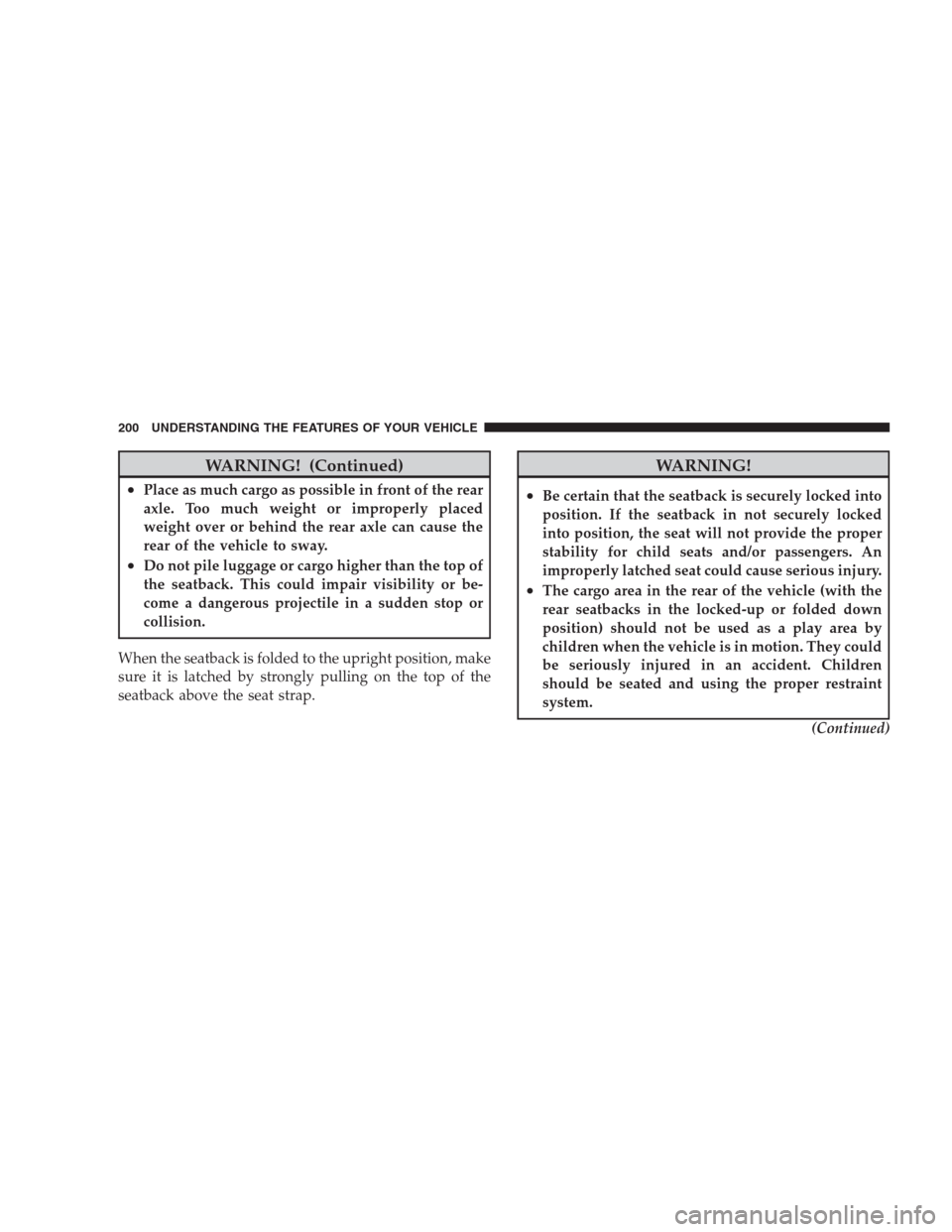

WARNING! (Continued)
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
rear of the vehicle to sway.
•Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children
should be seated and using the proper restraint
system.
(Continued)
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

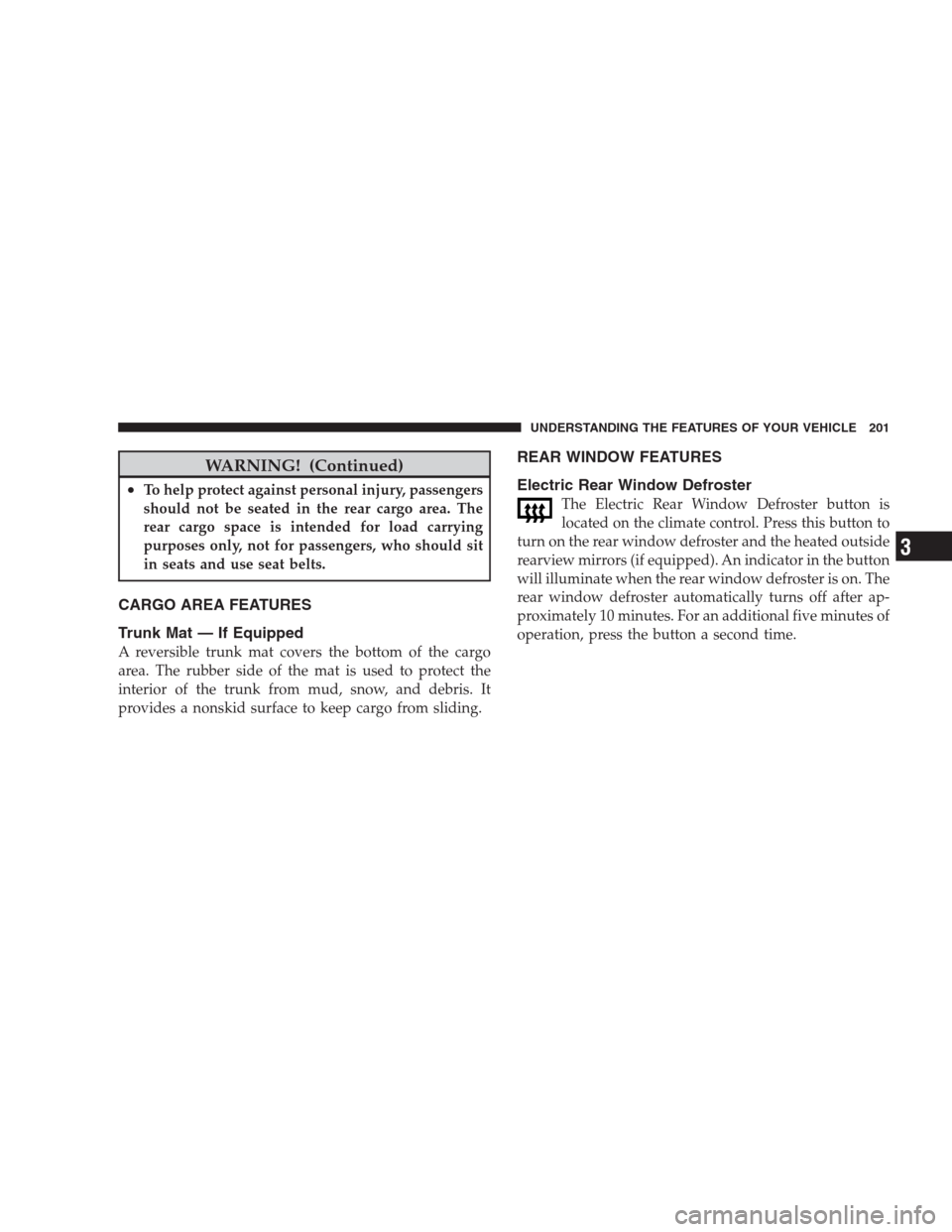

WARNING! (Continued)
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
CARGO AREA FEATURES
Trunk Mat — If Equipped
A reversible trunk mat covers the bottom of the cargo
area. The rubber side of the mat is used to protect the
interior of the trunk from mud, snow, and debris. It
provides a nonskid surface to keep cargo from sliding.
REAR WINDOW FEATURES
Electric Rear Window Defroster
The Electric Rear Window Defroster button is
located on the climate control. Press this button to
turn on the rear window defroster and the heated outside
rearview mirrors (if equipped). An indicator in the button
will illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201
3

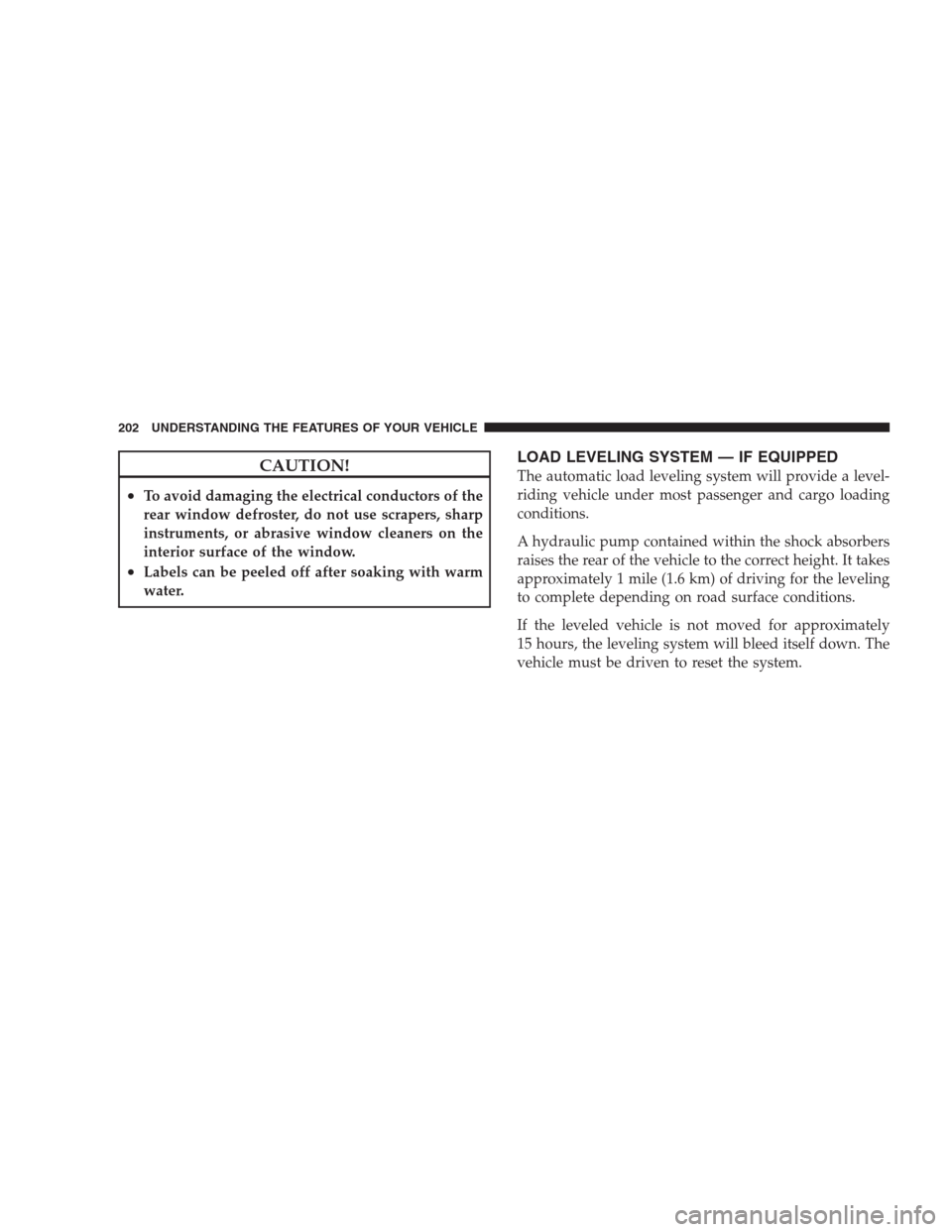

CAUTION!
•To avoid damaging the electrical conductors of the
rear window defroster, do not use scrapers, sharp
instruments, or abrasive window cleaners on the
interior surface of the window.
•Labels can be peeled off after soaking with warm
water.
LOAD LEVELING SYSTEM — IF EQUIPPED
The automatic load leveling system will provide a level-
riding vehicle under most passenger and cargo loading
conditions.
A hydraulic pump contained within the shock absorbers
raises the rear of the vehicle to the correct height. It takes
approximately 1 mile (1.6 km) of driving for the leveling
to complete depending on road surface conditions.
If the leveled vehicle is not moved for approximately
15 hours, the leveling system will bleed itself down. The
vehicle must be driven to reset the system.
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features............... 207
Instrument Cluster — Base............... 208
Instrument Cluster — Premium........... 209
Instrument Cluster Descriptions........... 210
Electronic Vehicle Information Center (EVIC) —
If Equipped.......................... 221
â–«Electronic Vehicle Information Center (EVIC)
Displays........................... 223
â–«Oil Change Required.................. 227
â–«Trip Functions...................... 228â–«Automatic All Wheel Drive (AWD) Displays
— If Equipped...................... 231
▫Keyless Go Display — If Equipped........ 232
â–«Compass Display.................... 233
â–«Driver-Selectable Surround Sound (DSS)
– If Equipped....................... 235
▫Navigation — If Equipped.............. 235
â–«Personal Settings (Customer-Programmable
Features).......................... 236
Setting The Analog Clock................ 2424

Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer (MP3/WMA AUX
Jack)............................... 242
â–«Operating Instructions - Radio Mode...... 243
â–«Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 251
â–«Notes On Playing MP3/WMA Files....... 253
â–«List Button (Disc Mode For MP3/WMA
Play)............................. 255
â–«Info Button (Disc Mode For MP3/WMA
Play)............................. 255
AM/FM/CD/DVD Multimedia System Radio
(RER/REN) – If Equipped................ 258
▫Operating Instructions — Voice Recognition
System (VR) — If Equipped............. 258▫Operating Instructions — Hands-Free
Communication (UConnect)
— If Equipped...................... 258
â–«Clock Setting Procedure............... 258
Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)............... 261
▫Operating Instructions — Radio Mode..... 261
▫Operation Instructions — CD Mode For CD
And MP3 Audio Play................. 264
â–«Notes On Playing MP3 Files............ 266
â–«Operation Instructions - Auxiliary Mode.... 269
Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio............................... 270
▫Operating Instructions — Radio Mode..... 270
204 UNDERSTANDING YOUR INSTRUMENT PANEL

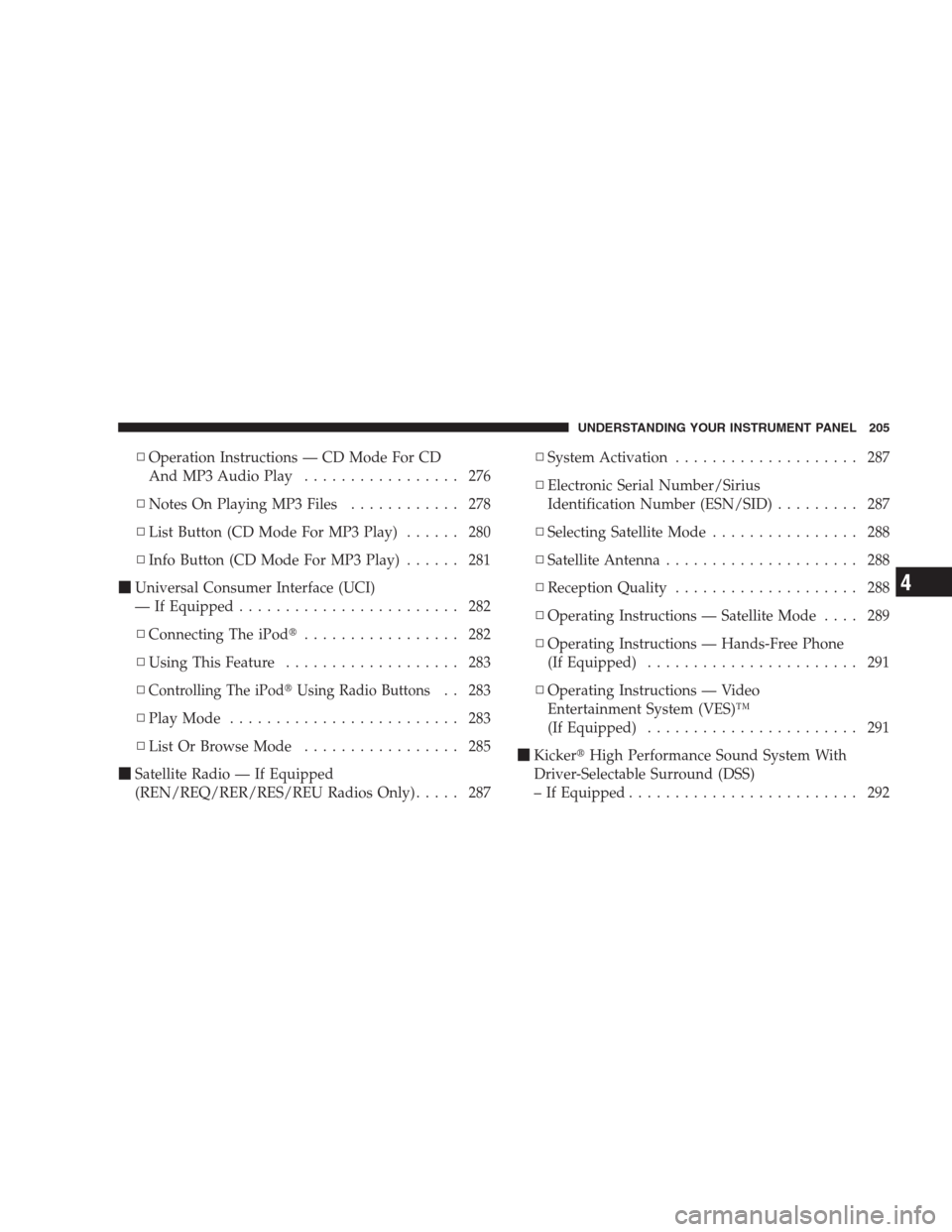

▫Operation Instructions — CD Mode For CD
And MP3 Audio Play................. 276
â–«Notes On Playing MP3 Files............ 278
â–«List Button (CD Mode For MP3 Play)...... 280
â–«Info Button (CD Mode For MP3 Play)...... 281
Universal Consumer Interface (UCI)
— If Equipped........................ 282
â–«Connecting The iPod................. 282
â–«Using This Feature................... 283
â–«
Controlling The iPodUsing Radio Buttons. . 283
â–«Play Mode......................... 283
â–«List Or Browse Mode................. 285
Satellite Radio — If Equipped
(REN/REQ/RER/RES/REU Radios Only)..... 287â–«System Activation.................... 287
â–«Electronic Serial Number/Sirius
Identification Number (ESN/SID)......... 287
â–«Selecting Satellite Mode................ 288
â–«Satellite Antenna..................... 288
â–«Reception Quality.................... 288
▫Operating Instructions — Satellite Mode.... 289
▫Operating Instructions — Hands-Free Phone
(If Equipped)....................... 291
▫Operating Instructions — Video
Entertainment System (VES)â„¢
(If Equipped)....................... 291
KickerHigh Performance Sound System With
Driver-Selectable Surround (DSS)
– If Equipped......................... 292
UNDERSTANDING YOUR INSTRUMENT PANEL 205
4

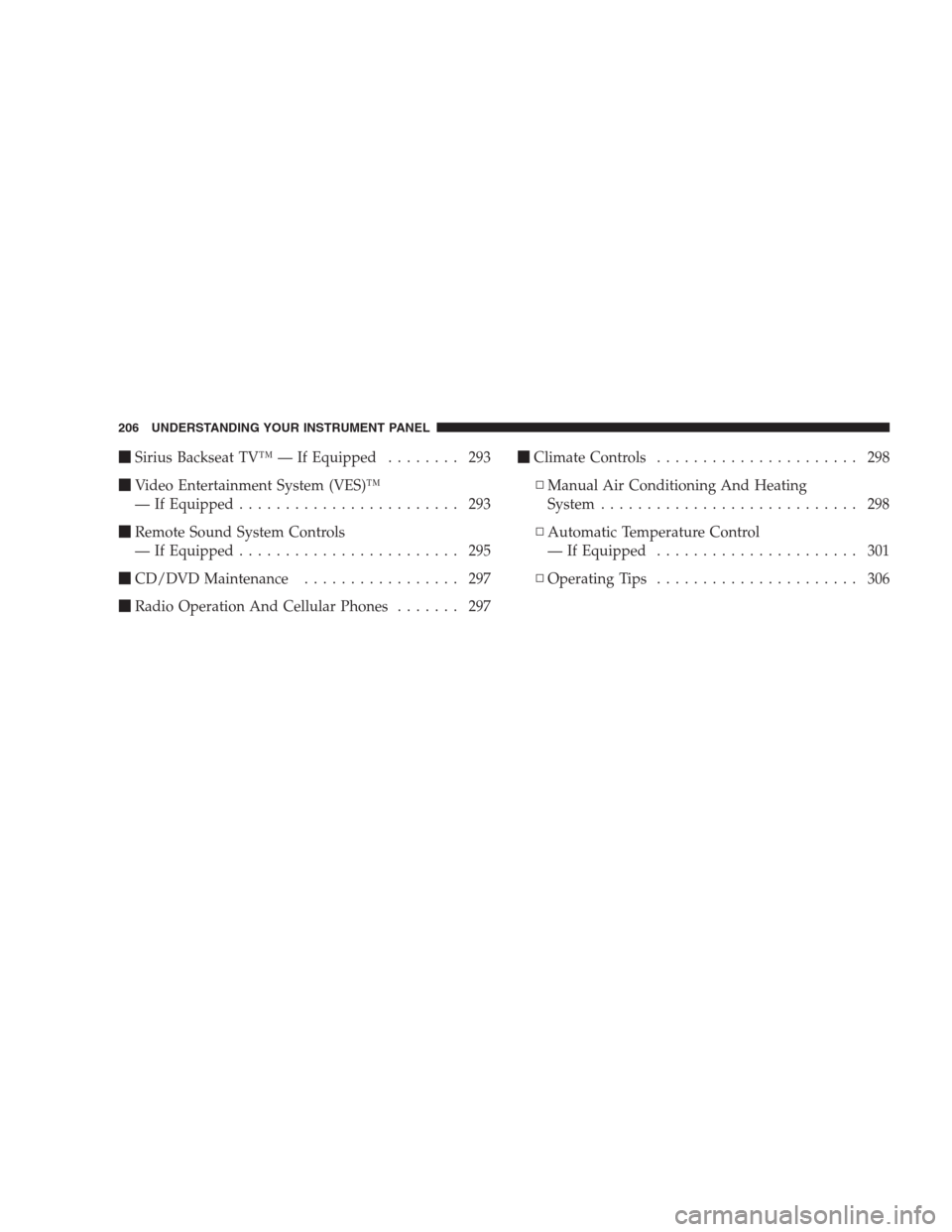

Sirius Backseat TV™ — If Equipped........ 293
Video Entertainment System (VES)â„¢
— If Equipped........................ 293
Remote Sound System Controls
— If Equipped........................ 295
CD/DVD Maintenance................. 297
Radio Operation And Cellular Phones....... 297Climate Controls...................... 298
â–«Manual Air Conditioning And Heating
System............................ 298
â–«Automatic Temperature Control
— If Equipped...................... 301
â–«Operating Tips...................... 306
206 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 - Air Outlet 7 - Radio 13 - Ignition Switch
2 - Instrument Cluster 8 - Climate Control 14 - Hood Release
3 - Hazard Switch 9 - Heated Seat Switch* 15 - Trunk Release Switch
4 - Analog Clock 10 - Power Outlet 16 - Headlight Switch
5 - Electronic Stability Program OFF But-
ton* / Traction Control System OFF Button*11 - Ash Tray* * If Equipped
6 - Glove Compartment 12 - Storage Compartment*UNDERSTANDING YOUR INSTRUMENT PANEL 207
4

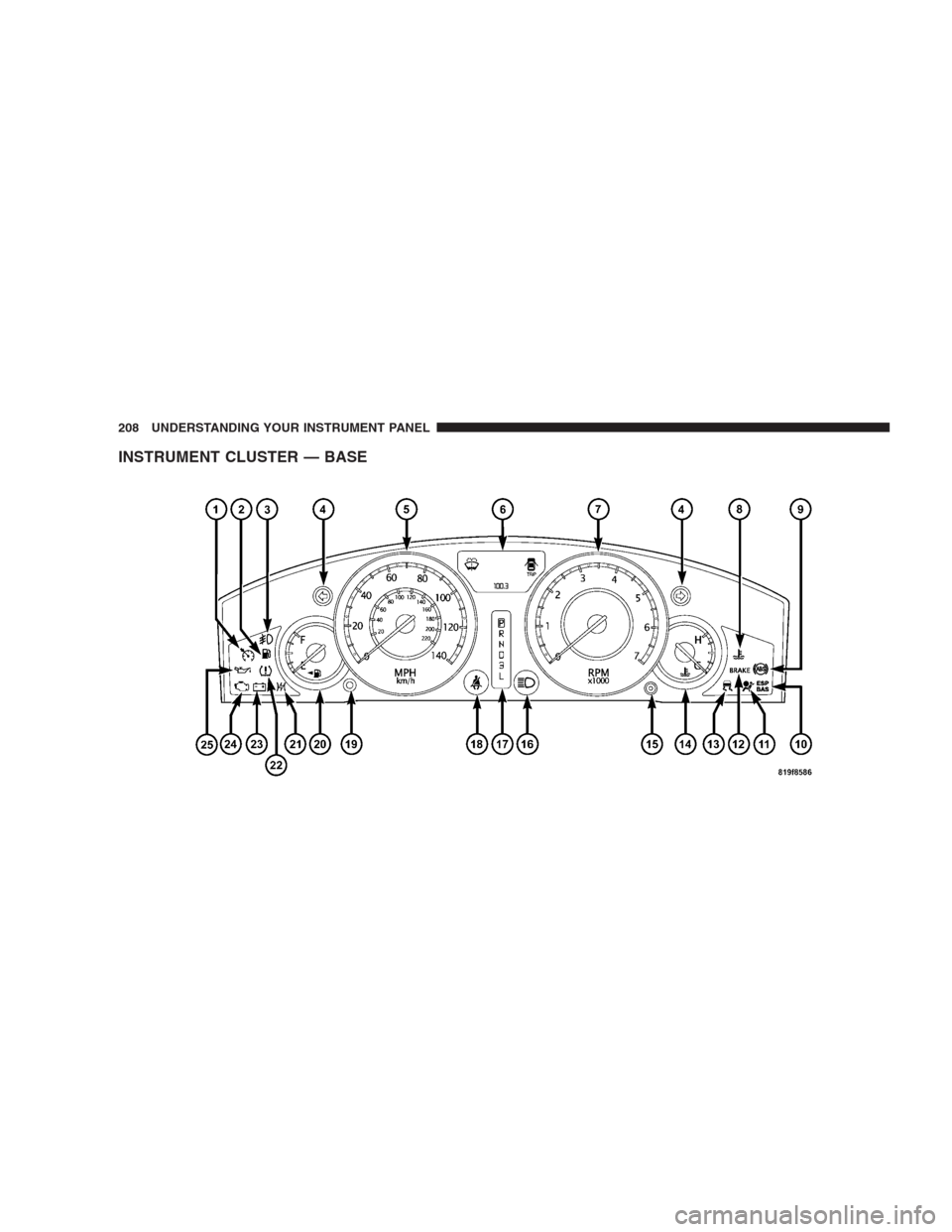

INSTRUMENT CLUSTER — BASE
208 UNDERSTANDING YOUR INSTRUMENT PANEL
