9. Disconnect the bulb from the socket assembly and
install the replacement bulb.
10. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.
11. Reinstall the tail light assembly, fasteners, electrical
connector, and trunk liner.
12. Close the trunk.

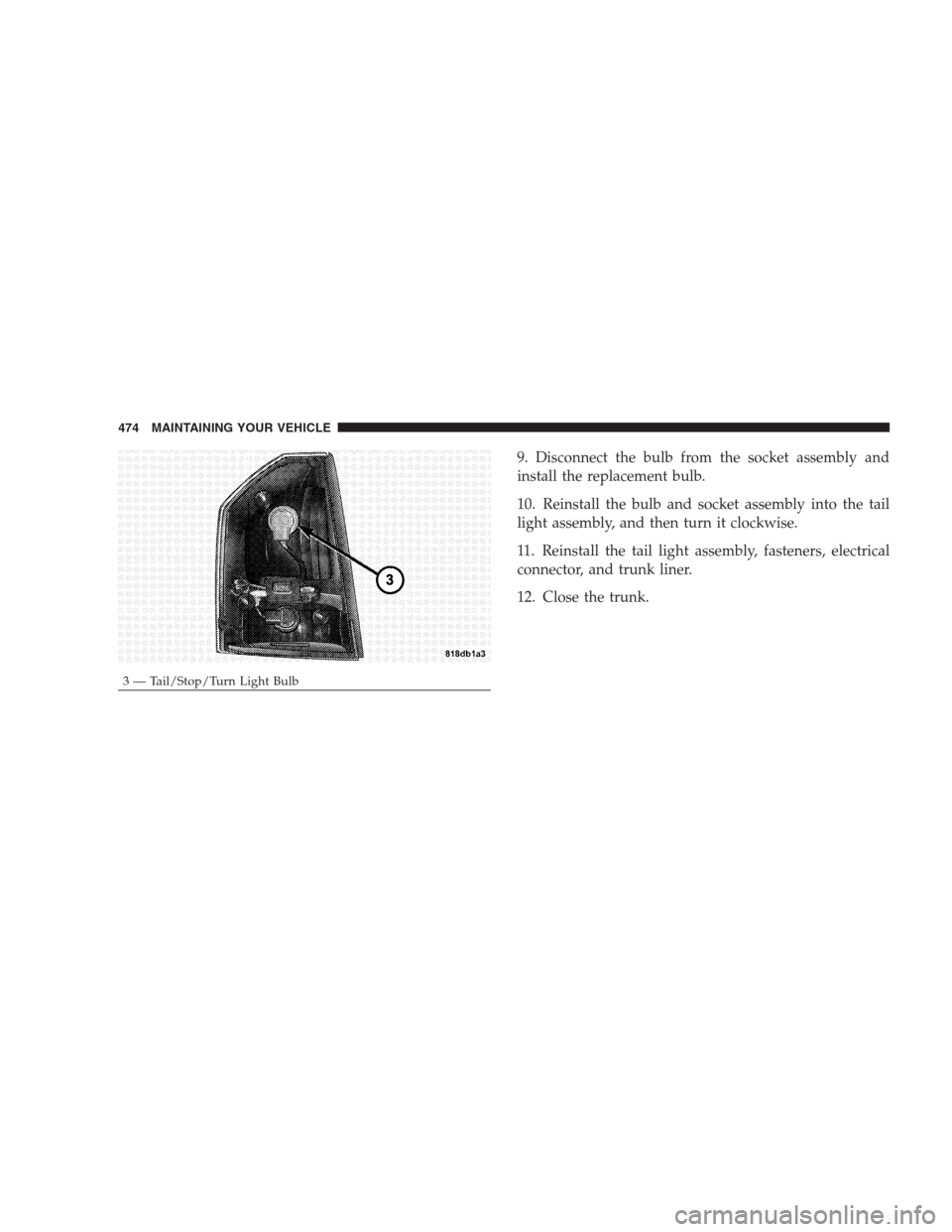

3 — Tail/Stop/Turn Light Bulb 474 MAINTAINING YOUR VEHICLE

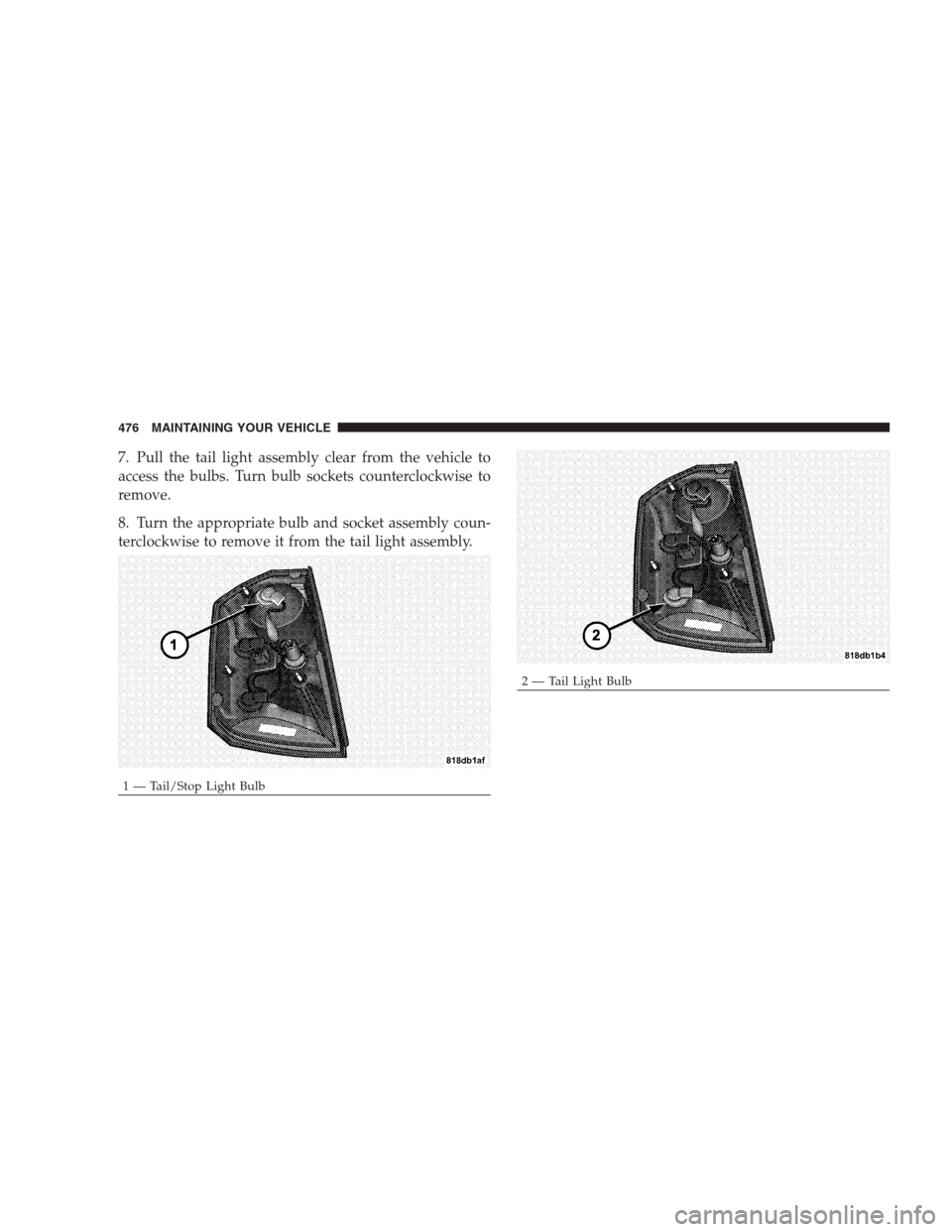

7. Pull the tail light assembly clear from the vehicle to
access the bulbs. Turn bulb sockets counterclockwise to
remove.
8. Turn the appropriate bulb and socket assembly coun-
terclockwise to remove it from the tail light assembly.
1 — Tail/Stop Light Bulb
2 — Tail Light Bulb 476 MAINTAINING YOUR VEHICLE

9. Disconnect the bulb from the socket assembly and
install the replacement bulb.
10. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.

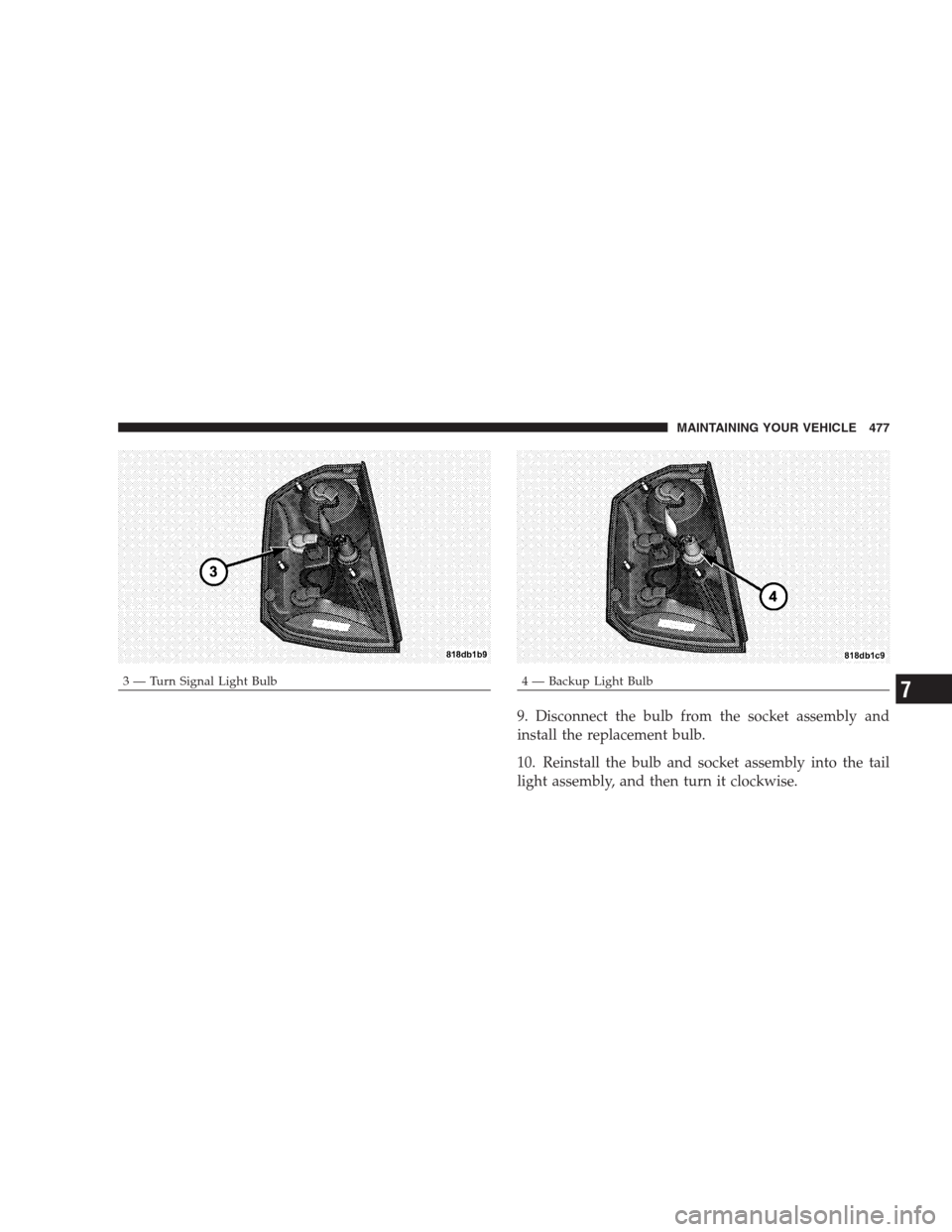

3 — Turn Signal Light Bulb4 — Backup Light BulbMAINTAINING YOUR VEHICLE 4777

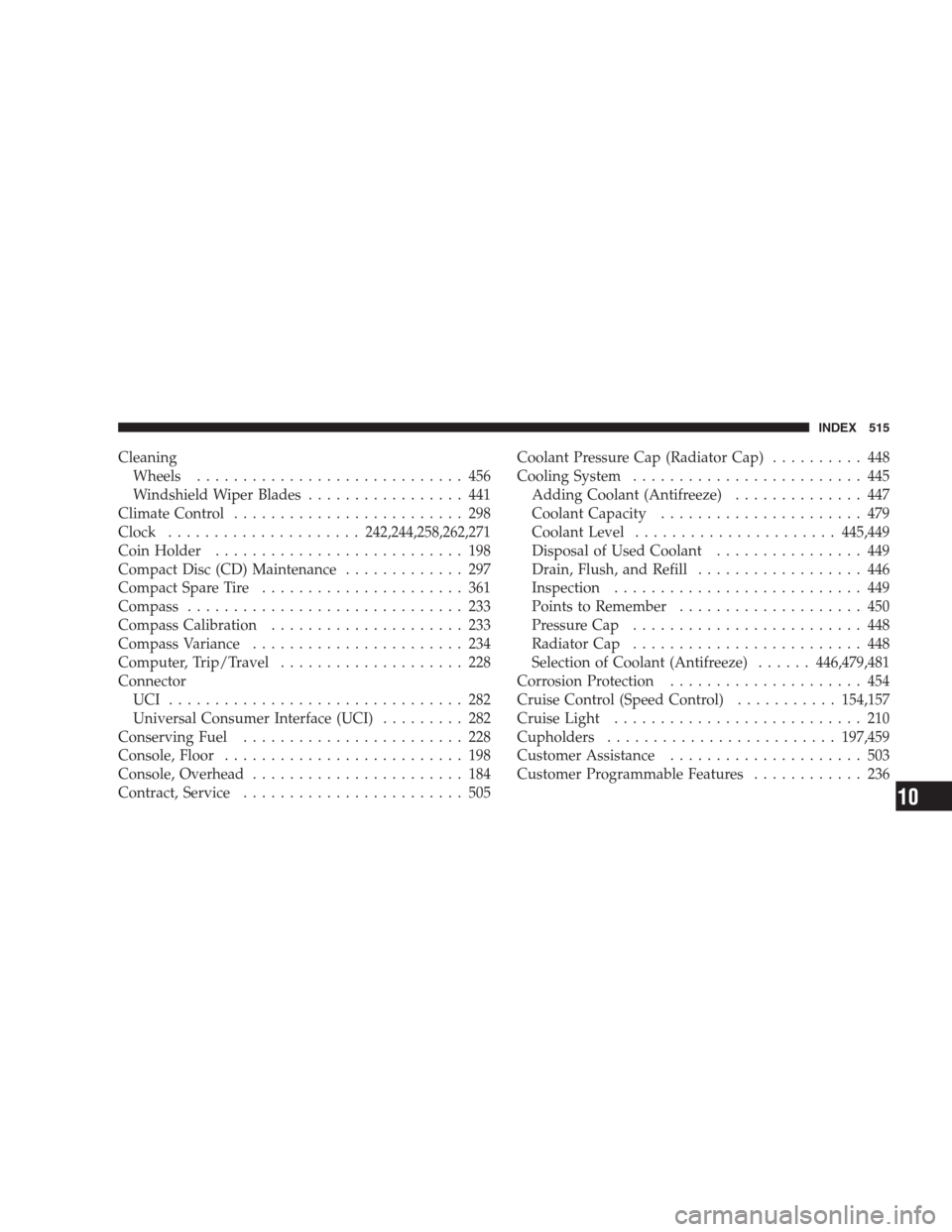

Cleaning
Wheels............................. 456
Windshield Wiper Blades................. 441
Climate Control......................... 298
Clock.....................242,244,258,262,271
Coin Holder........................... 198
Compact Disc (CD) Maintenance............. 297
Compact Spare Tire...................... 361
Compass.............................. 233
Compass Calibration..................... 233
Compass Variance....................... 234
Computer, Trip/Travel.................... 228
Connector
UCI ................................ 282
Universal Consumer Interface (UCI)......... 282
Conserving Fuel........................ 228
Console, Floor.......................... 198
Console, Overhead....................... 184
Contract, Service........................ 505Coolant Pressure Cap (Radiator Cap).......... 448
Cooling System......................... 445
Adding Coolant (Antifreeze).............. 447
Coolant Capacity...................... 479
Coolant Level......................445,449
Disposal of Used Coolant................ 449
Drain, Flush, and Refill.................. 446
Inspection........................... 449
Points to Remember.................... 450
Pressure Cap......................... 448
Radiator Cap......................... 448
Selection of Coolant (Antifreeze)......446,479,481
Corrosion Protection..................... 454
Cruise Control (Speed Control)...........154,157
Cruise Light........................... 210
Cupholders.........................197,459
Customer Assistance..................... 503
Customer Programmable Features............ 236
INDEX 515
10

Power.............................. 128
Rear Folding......................... 133
Reclining............................ 129
Seatback Release....................... 133
Tilting.............................. 128
Security Alarm (Theft Alarm).............18,217
Selection of Coolant (Antifreeze)..........446,481
Selection of Oil......................... 435
Self-Sealing Tires........................ 366
Sentry Key (Immobilizer)................... 15
Sentry Key Programming................... 17
Sentry Key Replacement................... 16
Service Assistance....................... 503
Service Contract......................... 505
Service Engine Soon Light
(Malfunction Indicator).................... 220
Service Manuals........................ 507
Setting the Clock.............242,244,258,262,271
Settings, Personal........................ 236Shifting............................... 318
Automatic Transmission............318,323,328
Shoulder Belt Upper Anchorage.............. 49
Shoulder Belts........................... 44
Side Airbag...........................55,62
Side Curtain (Window Airbag)............... 55
Side View Mirror Adjustment................ 90
Signals, Turn......................81,144,210
Sirius Backseat TV™..................... 293
Slippery Surfaces, Driving On............... 334
SmartBeams........................... 141
Snow Chains (Tire Chains)................. 366
Snow Tires............................ 367
Sound System
Kicker.............................. 292
Spare Tire..........................361,406
Spark Plugs............................ 481
Specifications
Fuel (Gasoline)........................ 481
528 INDEX
