6. Connect the other cable, first to the negative terminal
of the booster battery andthen to the engine ground (-)
of the vehicle with the discharged battery.Make sure
you have a good contact on the engine ground. Refer to
the following illustration for jump-starting connections.WARNING!
•You should not try to start your vehicle by pushing
or towing.
•Do not connect the cable to the negative post of the
discharged battery. The resulting electrical spark
could cause the battery to explode.
•During cold weather when temperatures are be-
low the freezing point, electrolyte in a discharged
battery may freeze. Do not attempt jump-starting
because the battery could rupture or explode. The
battery temperature must be brought above the
freezing point before attempting jump-start.
7. Start the engine in the vehicle that has the booster
battery. Let the engine idle a few minutes. Then, start the
engine in the vehicle with the discharged battery.
Jump-Starting
WHAT TO DO IN EMERGENCIES 419
6

NOTE:Refer toSynchronizing ESPunderElectronic
Stability Programin Section 5 if the ESP/BAS light (in
the instrument cluster) remains on continuously after
starting the engine of the vehicle with the discharged
battery.
8. When removing the jumper cables, reverse the above
sequence exactly. Be careful of the moving belts and fan.
WARNING!
Any procedure other than above could result in:
•Personal injury caused by electrolyte squirting out
the battery vent
•Personal injury or property damage due to battery
explosion
•Damage to charging system of booster vehicle or
of immobilized vehicle
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved by a rocking motion. Turn your
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between RE-
VERSE and DRIVE. Usually, the least accelerator pedal
pressure to maintain the rocking motion without spin-
ning the wheels is most effective.
NOTE:Turn OFF the Electronic Stability Program (ESP)
— if equipped, or Traction Control System (TCS) — if
equipped before rocking the vehicle. Refer to “Electronic
Stability Program” or “Traction Control System” in Sec-
tion 5.
420 WHAT TO DO IN EMERGENCIES

CAUTION!
•When “rocking” a stuck vehicle by moving be-
tween 1st and REVERSE, do not spin the wheels
faster than 15 mph (24 km/h), or drivetrain damage
may result.
•Racing the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 35 mph (55 km/h).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause tire dam-
age or failure. A tire could explode and injure some-
one. Do not spin your vehicle’s wheels faster than
35 mph (55 km/h) when you are stuck, and don’t let
anyone near a spinning wheel, no matter what the
speed.
TOWING A DISABLED VEHICLE
Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. The only ap-
proved method of towing without the ignition key is
with a flatbed truck. Proper towing equipment is neces-
sary to prevent damage to the vehicle.
WHAT TO DO IN EMERGENCIES 421
6

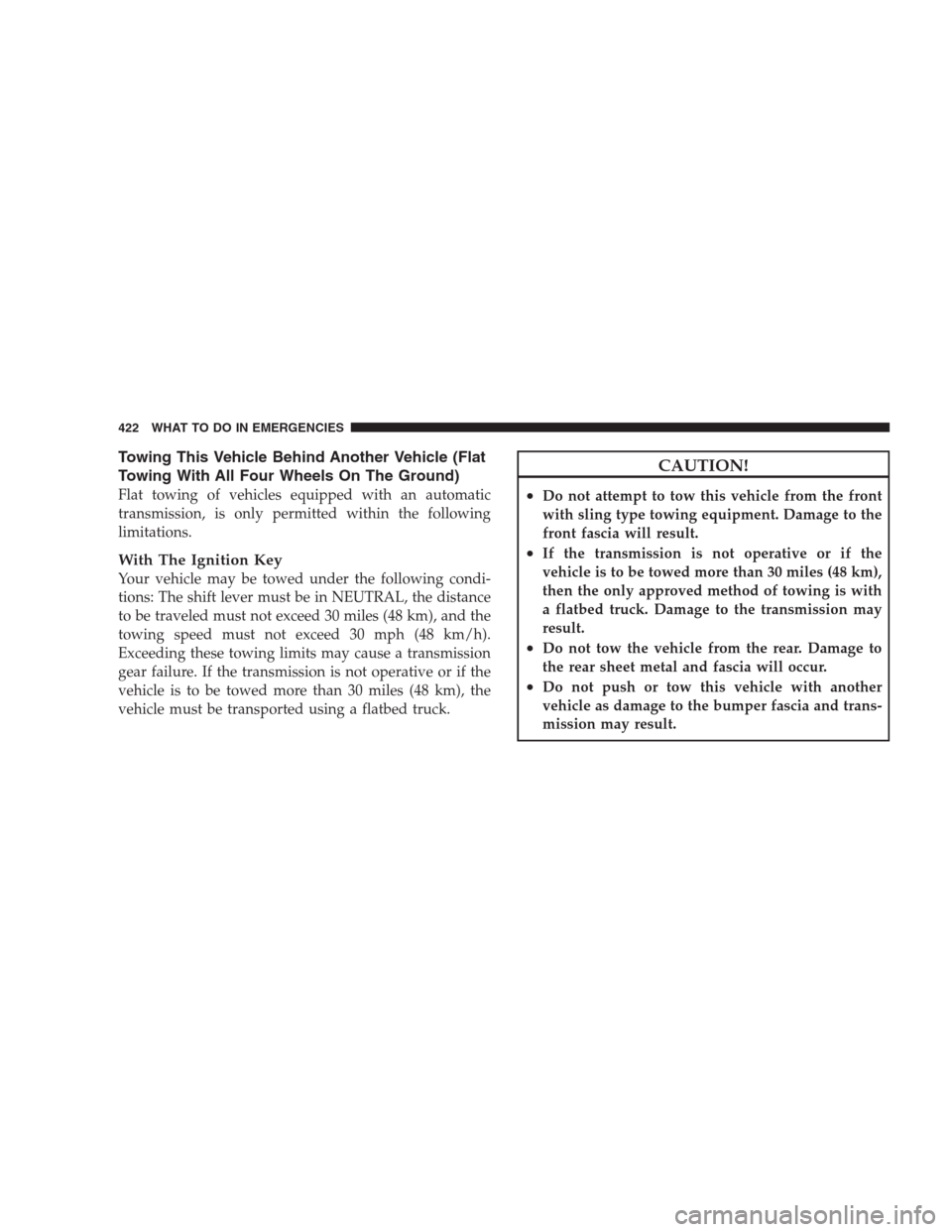

Towing This Vehicle Behind Another Vehicle (Flat
Towing With All Four Wheels On The Ground)
Flat towing of vehicles equipped with an automatic
transmission, is only permitted within the following
limitations.
With The Ignition Key
Your vehicle may be towed under the following condi-
tions: The shift lever must be in NEUTRAL, the distance
to be traveled must not exceed 30 miles (48 km), and the
towing speed must not exceed 30 mph (48 km/h).
Exceeding these towing limits may cause a transmission
gear failure. If the transmission is not operative or if the
vehicle is to be towed more than 30 miles (48 km), the
vehicle must be transported using a flatbed truck.
CAUTION!
•Do not attempt to tow this vehicle from the front
with sling type towing equipment. Damage to the
front fascia will result.
•If the transmission is not operative or if the
vehicle is to be towed more than 30 miles (48 km),
then the only approved method of towing is with
a flatbed truck. Damage to the transmission may
result.
•Do not tow the vehicle from the rear. Damage to
the rear sheet metal and fascia will occur.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
422 WHAT TO DO IN EMERGENCIES

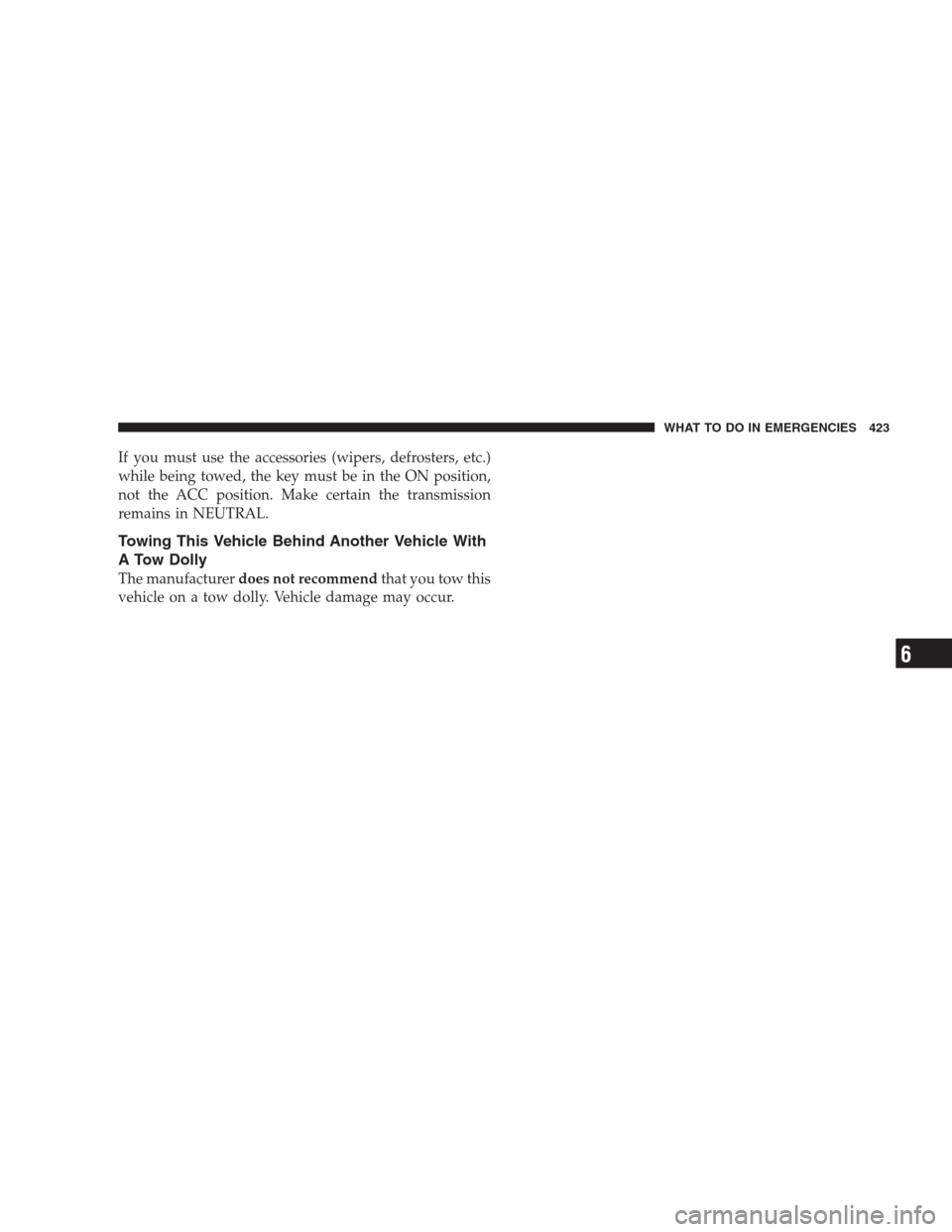

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the key must be in the ON position,
not the ACC position. Make certain the transmission
remains in NEUTRAL.
Towing This Vehicle Behind Another Vehicle With
A Tow Dolly
The manufacturerdoes not recommendthat you tow this
vehicle on a tow dolly. Vehicle damage may occur.
WHAT TO DO IN EMERGENCIES 423
6

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.7L............. 427
Engine Compartment — 3.5L............. 428
Engine Compartment — 5.7L............. 429
Onboard Diagnostic System — OBD II...... 430
▫Loose Fuel Filler Cap................. 430
Emissions Inspection And Maintenance
Programs............................ 431
Replacement Parts..................... 432
Dealer Service........................ 433Maintenance Procedures................. 433
▫Engine Oil......................... 433
▫Engine Oil Filter..................... 437
▫Engine Air Cleaner Filter............... 437
▫Maintenance-Free Battery.............. 438
▫Air Conditioner Maintenance............ 440
▫A/C Air Filter...................... 441
▫Body Lubrication.................... 441
▫Windshield Wiper Blades............... 441
7

▫Windshield Washers/Headlight Washers
— If Equipped...................... 442
▫Exhaust System..................... 443
▫Cooling System..................... 445
▫Brake System....................... 451
▫Automatic Transmission............... 452
▫All Wheel Drive (AWD) — If Equipped.... 454
▫Appearance Care And Protection From
Corrosion.......................... 454
Fuses.............................. 459
▫Integrated Power Module.............. 459
▫Rear Power Distribution Center.......... 462
Vehicle Storage....................... 467
Replacement Bulbs.................... 467Bulb Replacement..................... 469
▫Low Beam Headlight, High Beam Headlight,
Park/Turn Light, Inner Park Light, And
Outer Park Light – 300 Models........... 469
▫Low Beam Headlight, High Beam Headlight,
And Park/Turn Light – 300C............ 471
▫Backup Light, Side Marker Light, And
Tail/Stop Turn Light — 300 Models....... 472
▫Tail/Stop, Tail, Turn Signal Light, And
Backup Light — 300C Models........... 475
▫License Light....................... 478
Fluids And Capacities.................. 479
Fluids, Lubricants, And Genuine Parts....... 481
▫Engine............................ 481
▫Chassis........................... 482
426 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.7L
1 — Integrated Power Module 6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Coolant Pressure Cap
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Fill
4 — Engine Coolant Reservoir 9 — Remote Jump-Start Positive Battery Post
5 — Power Steering Fluid Reservoir 10 — Washer Fluid ReservoirMAINTAINING YOUR VEHICLE 4277

ENGINE COMPARTMENT — 3.5L
1 — Integrated Power Module 6 — Engine Coolant Reservoir
2 — Air Cleaner Filter 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Dipstick
4 — Coolant Pressure Cap 9 — Washer Fluid Reservoir
5 — Power Steering Fluid Reservoir 10 — Remote Jump-Start Positive Battery Post 428 MAINTAINING YOUR VEHICLE
