ESP CHRYSLER 300 C 2009 1.G Owners Manual

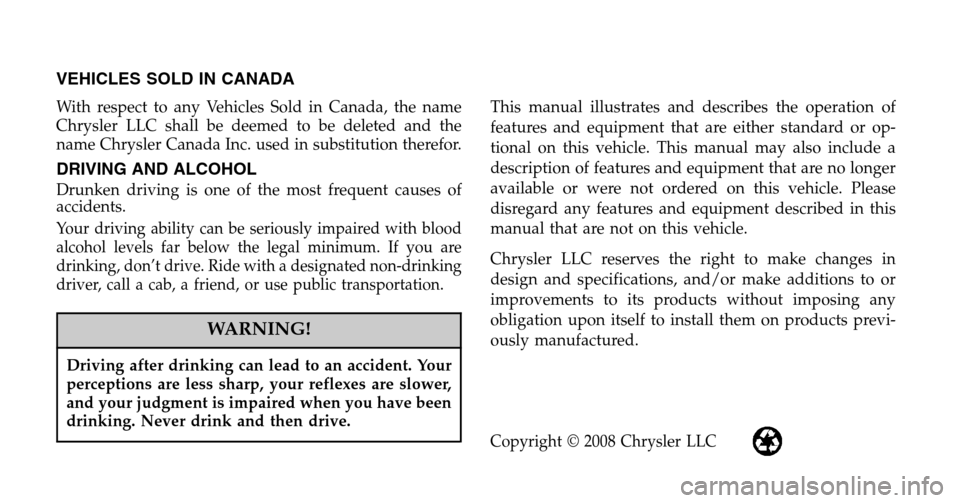

VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler LLC shall be deemed to be deleted and the
name Chrysler Canada Inc. used in substitution therefor.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler LLC reserves the right to make changes in
design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
Copyright © 2008 Chrysler LLC

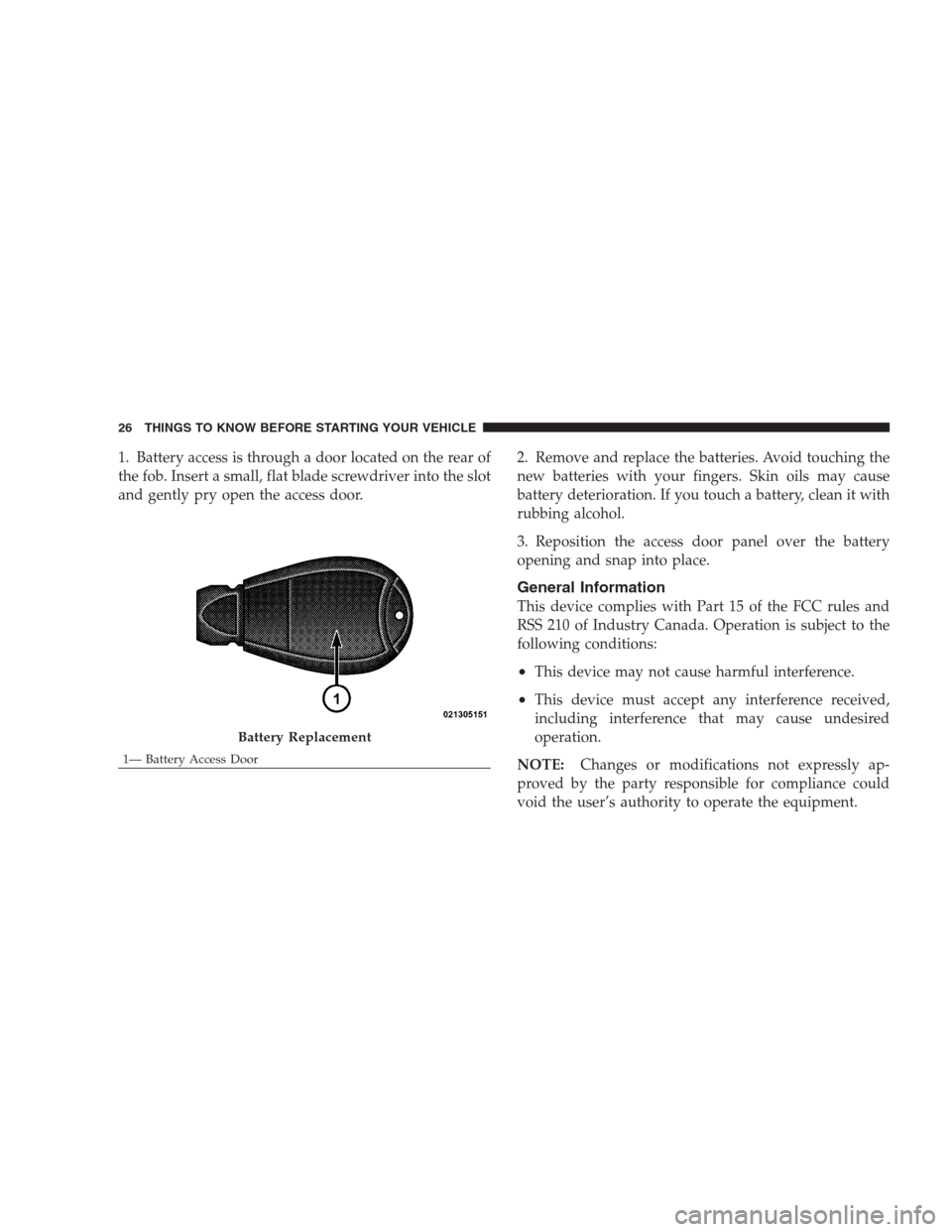

1. Battery access is through a door located on the rear of
the fob. Insert a small, flat blade screwdriver into the slot
and gently pry open the access door.2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. Reposition the access door panel over the battery
opening and snap into place.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Battery Replacement
1— Battery Access Door 26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

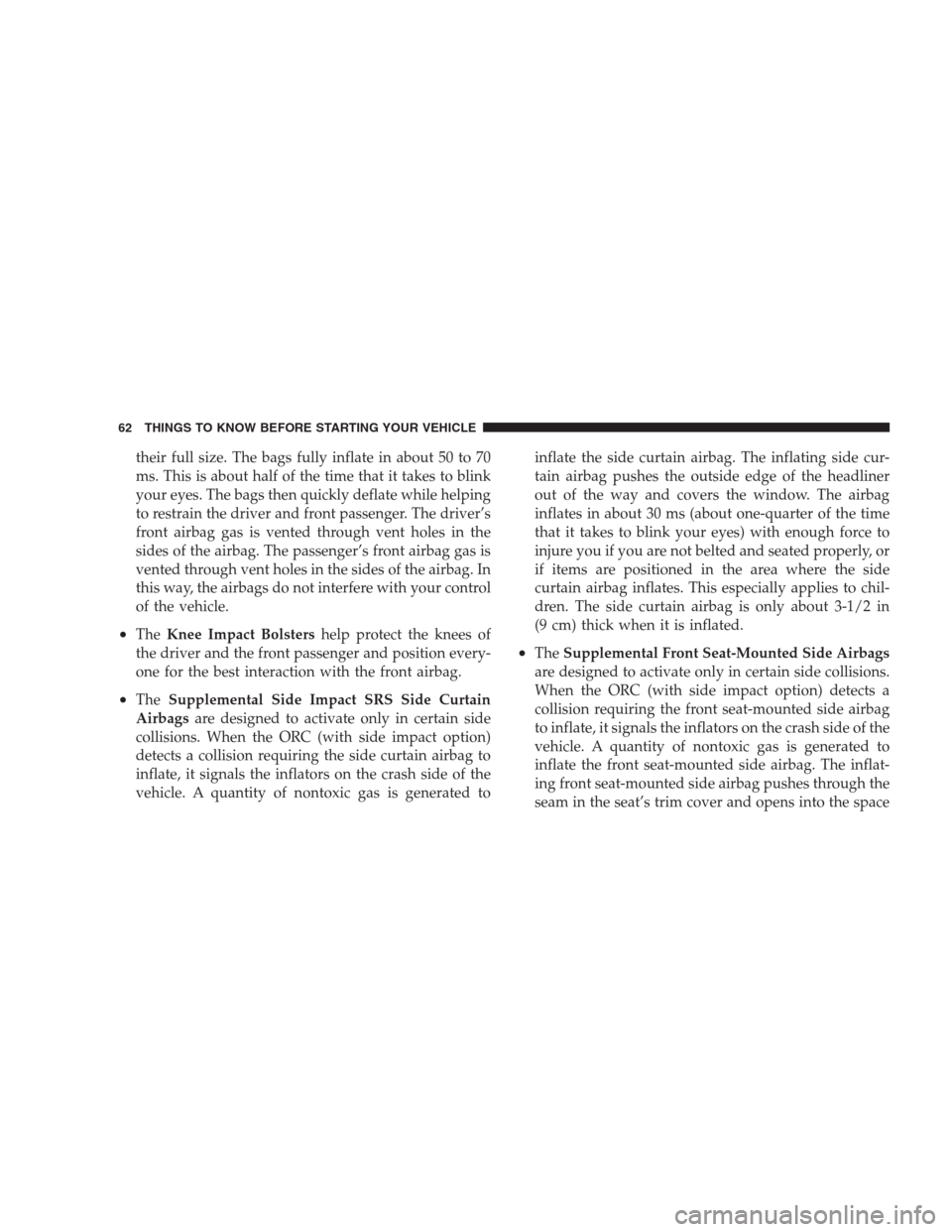

their full size. The bags fully inflate in about 50 to 70
ms. This is about half of the time that it takes to blink
your eyes. The bags then quickly deflate while helping
to restrain the driver and front passenger. The driver’s
front airbag gas is vented through vent holes in the
sides of the airbag. The passenger’s front airbag gas is
vented through vent holes in the sides of the airbag. In
this way, the airbags do not interfere with your control
of the vehicle.
•TheKnee Impact Bolstershelp protect the knees of
the driver and the front passenger and position every-
one for the best interaction with the front airbag.
•TheSupplemental Side Impact SRS Side Curtain
Airbagsare designed to activate only in certain side
collisions. When the ORC (with side impact option)
detects a collision requiring the side curtain airbag to
inflate, it signals the inflators on the crash side of the
vehicle. A quantity of nontoxic gas is generated toinflate the side curtain airbag. The inflating side cur-
tain airbag pushes the outside edge of the headliner
out of the way and covers the window. The airbag
inflates in about 30 ms (about one-quarter of the time
that it takes to blink your eyes) with enough force to
injure you if you are not belted and seated properly, or
if items are positioned in the area where the side
curtain airbag inflates. This especially applies to chil-
dren. The side curtain airbag is only about 3-1/2 in
(9 cm) thick when it is inflated.
•TheSupplemental Front Seat-Mounted Side Airbags
are designed to activate only in certain side collisions.
When the ORC (with side impact option) detects a
collision requiring the front seat-mounted side airbag
to inflate, it signals the inflators on the crash side of the
vehicle. A quantity of nontoxic gas is generated to
inflate the front seat-mounted side airbag. The inflat-
ing front seat-mounted side airbag pushes through the
seam in the seat’s trim cover and opens into the space
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

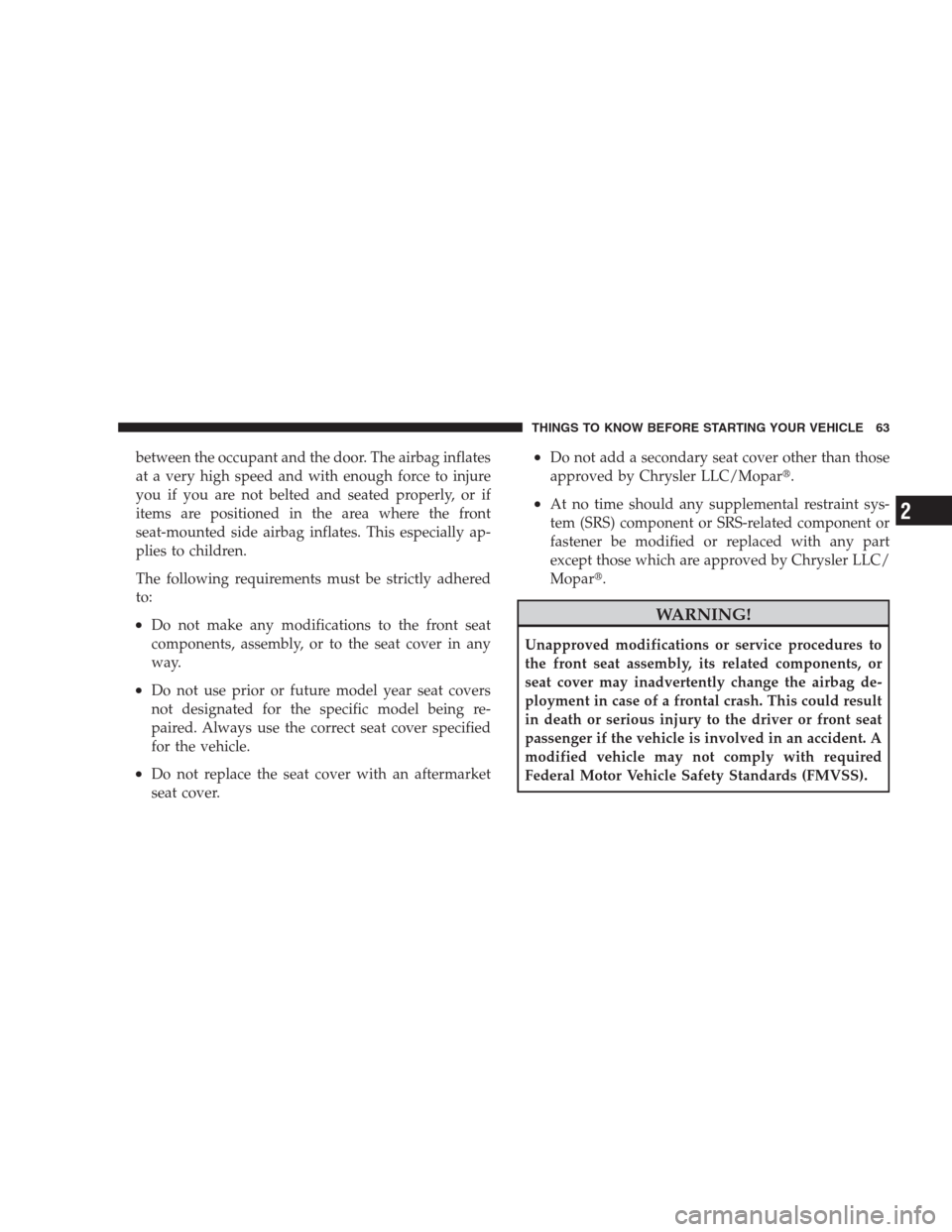

between the occupant and the door. The airbag inflates
at a very high speed and with enough force to injure
you if you are not belted and seated properly, or if
items are positioned in the area where the front
seat-mounted side airbag inflates. This especially ap-
plies to children.
The following requirements must be strictly adhered
to:
•Do not make any modifications to the front seat
components, assembly, or to the seat cover in any
way.
•Do not use prior or future model year seat covers
not designated for the specific model being re-
paired. Always use the correct seat cover specified
for the vehicle.
•Do not replace the seat cover with an aftermarket
seat cover.
•Do not add a secondary seat cover other than those
approved by Chrysler LLC/Mopar.
•At no time should any supplemental restraint sys-
tem (SRS) component or SRS-related component or
fastener be modified or replaced with any part
except those which are approved by Chrysler LLC/
Mopar.
WARNING!
Unapproved modifications or service procedures to
the front seat assembly, its related components, or
seat cover may inadvertently change the airbag de-
ployment in case of a frontal crash. This could result
in death or serious injury to the driver or front seat
passenger if the vehicle is involved in an accident. A
modified vehicle may not comply with required
Federal Motor Vehicle Safety Standards (FMVSS).
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63
2

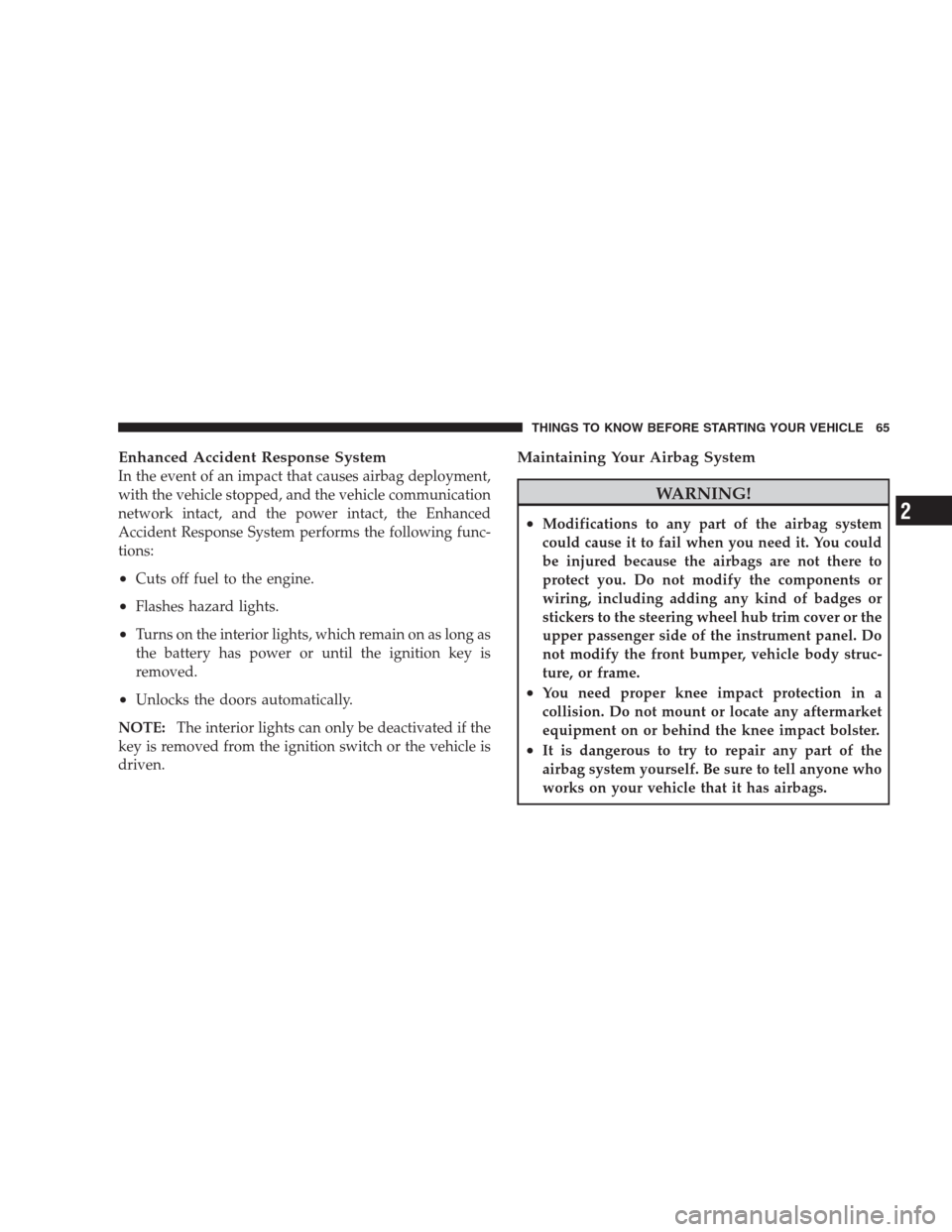

Enhanced Accident Response System
In the event of an impact that causes airbag deployment,
with the vehicle stopped, and the vehicle communication
network intact, and the power intact, the Enhanced
Accident Response System performs the following func-
tions:
•Cuts off fuel to the engine.
•Flashes hazard lights.
•Turns on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlocks the doors automatically.
NOTE:The interior lights can only be deactivated if the
key is removed from the ignition switch or the vehicle is
driven.
Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured because the airbags are not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper passenger side of the instrument panel. Do
not modify the front bumper, vehicle body struc-
ture, or frame.
•You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee impact bolster.
•It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has airbags.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65
2

Automatic Dimming Inside Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger-side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Automatic Dimming Mirror
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

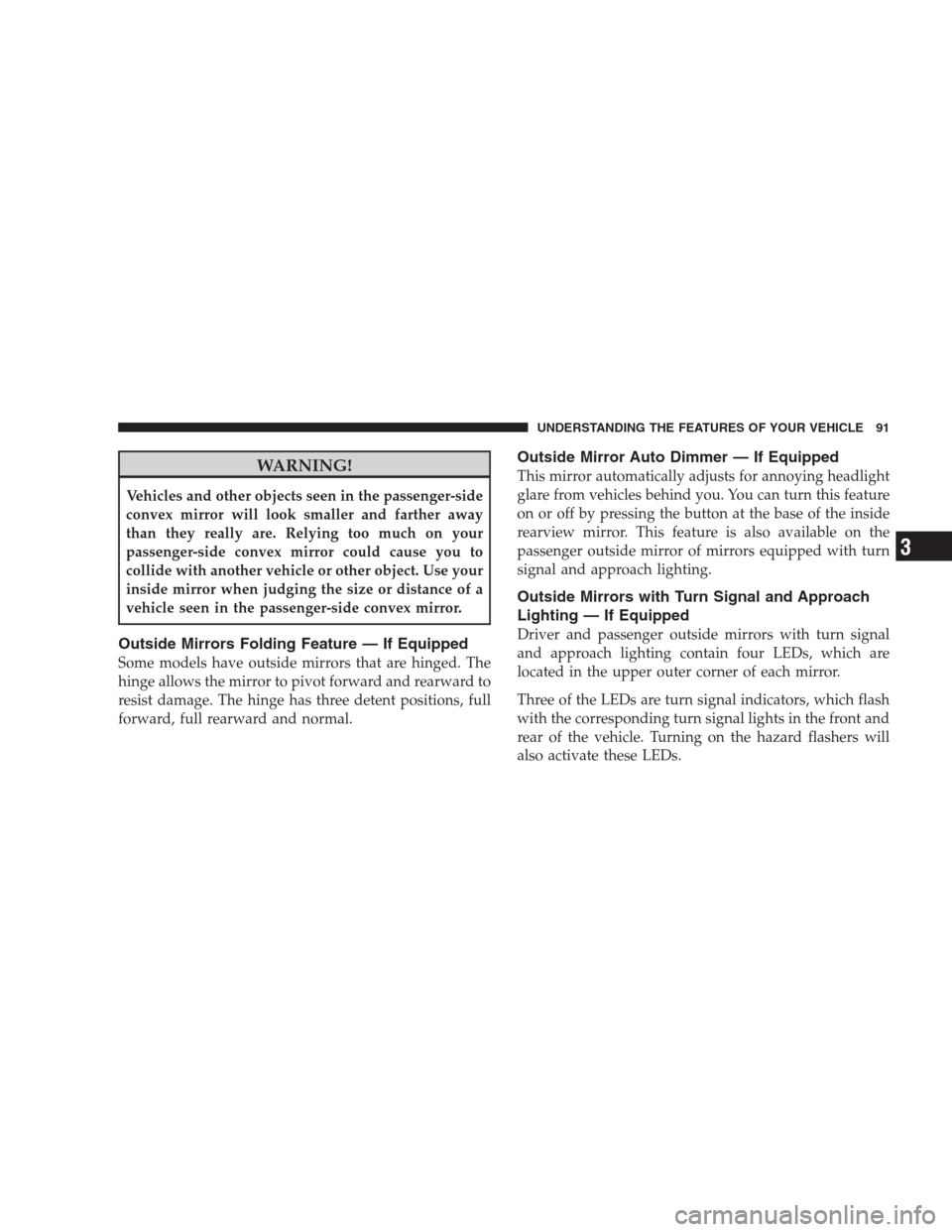

WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger-side convex mirror.
Outside Mirrors Folding Feature — If Equipped
Some models have outside mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions, full
forward, full rearward and normal.
Outside Mirror Auto Dimmer — If Equipped
This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn this feature
on or off by pressing the button at the base of the inside
rearview mirror. This feature is also available on the
passenger outside mirror of mirrors equipped with turn
signal and approach lighting.
Outside Mirrors with Turn Signal and Approach
Lighting — If Equipped
Driver and passenger outside mirrors with turn signal
and approach lighting contain four LEDs, which are
located in the upper outer corner of each mirror.
Three of the LEDs are turn signal indicators, which flash
with the corresponding turn signal lights in the front and
rear of the vehicle. Turning on the hazard flashers will
also activate these LEDs.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

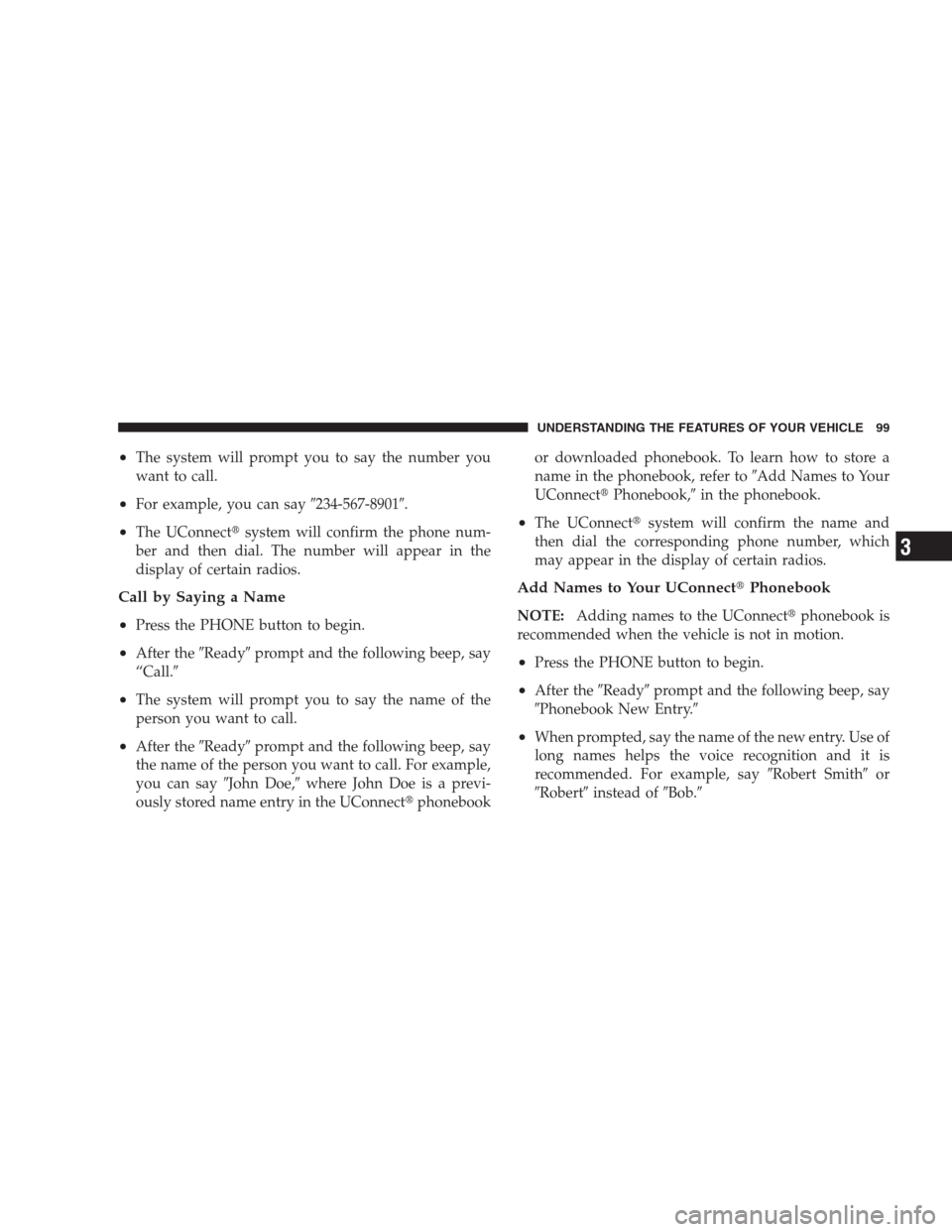

•The system will prompt you to say the number you
want to call.
•For example, you can say234-567-8901.
•The UConnectsystem will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnectphonebookor downloaded phonebook. To learn how to store a
name in the phonebook, refer toAdd Names to Your
UConnectPhonebook,in the phonebook.
•The UConnectsystem will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnectPhonebook
NOTE:Adding names to the UConnectphonebook is
recommended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, sayRobert Smithor
Robertinstead ofBob.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3

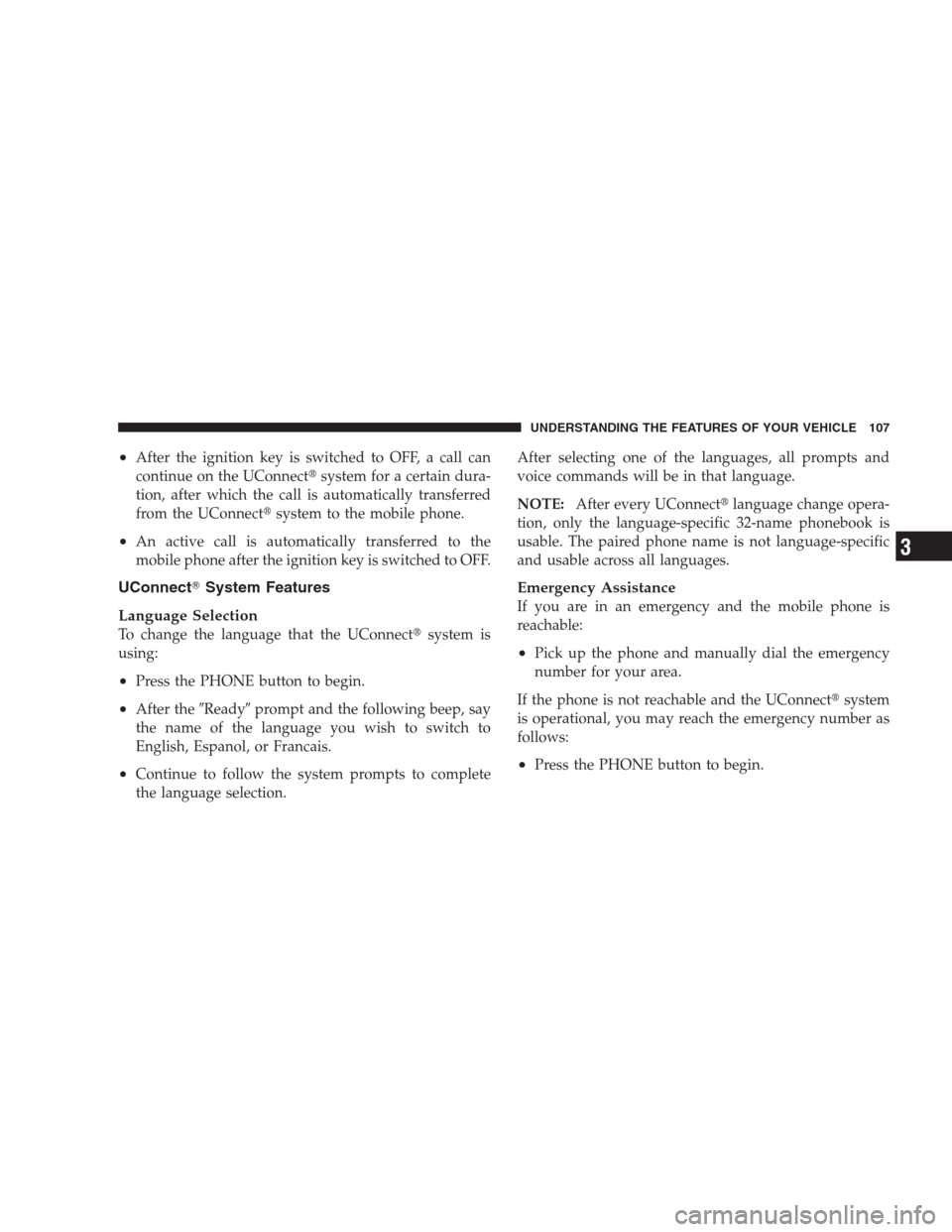

•After the ignition key is switched to OFF, a call can
continue on the UConnectsystem for a certain dura-
tion, after which the call is automatically transferred
from the UConnectsystem to the mobile phone.
•An active call is automatically transferred to the
mobile phone after the ignition key is switched to OFF.
UConnectSystem Features
Language Selection
To change the language that the UConnectsystem is
using:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
the name of the language you wish to switch to
English, Espanol, or Francais.
•Continue to follow the system prompts to complete
the language selection.After selecting one of the languages, all prompts and
voice commands will be in that language.
NOTE:After every UConnectlanguage change opera-
tion, only the language-specific 32-name phonebook is
usable. The paired phone name is not language-specific
and usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
•Pick up the phone and manually dial the emergency
number for your area.
If the phone is not reachable and the UConnectsystem
is operational, you may reach the emergency number as
follows:
•Press the PHONE button to begin.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
3

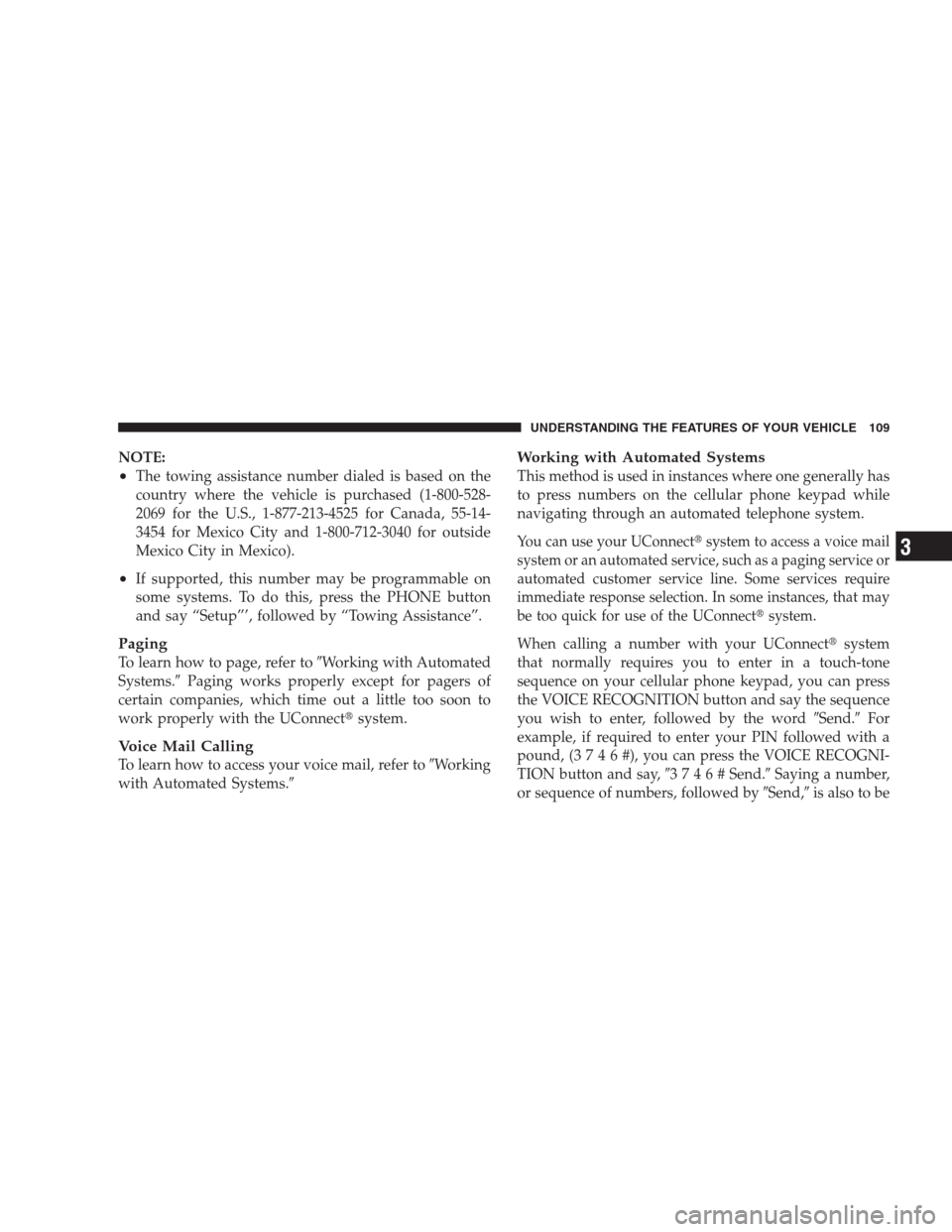

NOTE:
•The towing assistance number dialed is based on the
country where the vehicle is purchased (1-800-528-
2069 for the U.S., 1-877-213-4525 for Canada, 55-14-
3454 for Mexico City and 1-800-712-3040 for outside
Mexico City in Mexico).
•If supported, this number may be programmable on
some systems. To do this, press the PHONE button
and say “Setup”’, followed by “Towing Assistance”.
Paging
To learn how to page, refer toWorking with Automated
Systems.Paging works properly except for pagers of
certain companies, which time out a little too soon to
work properly with the UConnectsystem.
Voice Mail Calling
To learn how to access your voice mail, refer toWorking
with Automated Systems.
Working with Automated Systems
This method is used in instances where one generally has
to press numbers on the cellular phone keypad while
navigating through an automated telephone system.
You can use your UConnectsystem to access a voice mail
system or an automated service, such as a paging service or
automated customer service line. Some services require
immediate response selection. In some instances, that may
be too quick for use of the UConnectsystem.
When calling a number with your UConnectsystem
that normally requires you to enter in a touch-tone
sequence on your cellular phone keypad, you can press
the VOICE RECOGNITION button and say the sequence
you wish to enter, followed by the wordSend.For
example, if required to enter your PIN followed with a
pound, (3746#),youcanpresstheVOICE RECOGNI-
TION button and say,3746#Send.Saying a number,
or sequence of numbers, followed bySend,is also to be
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
3
