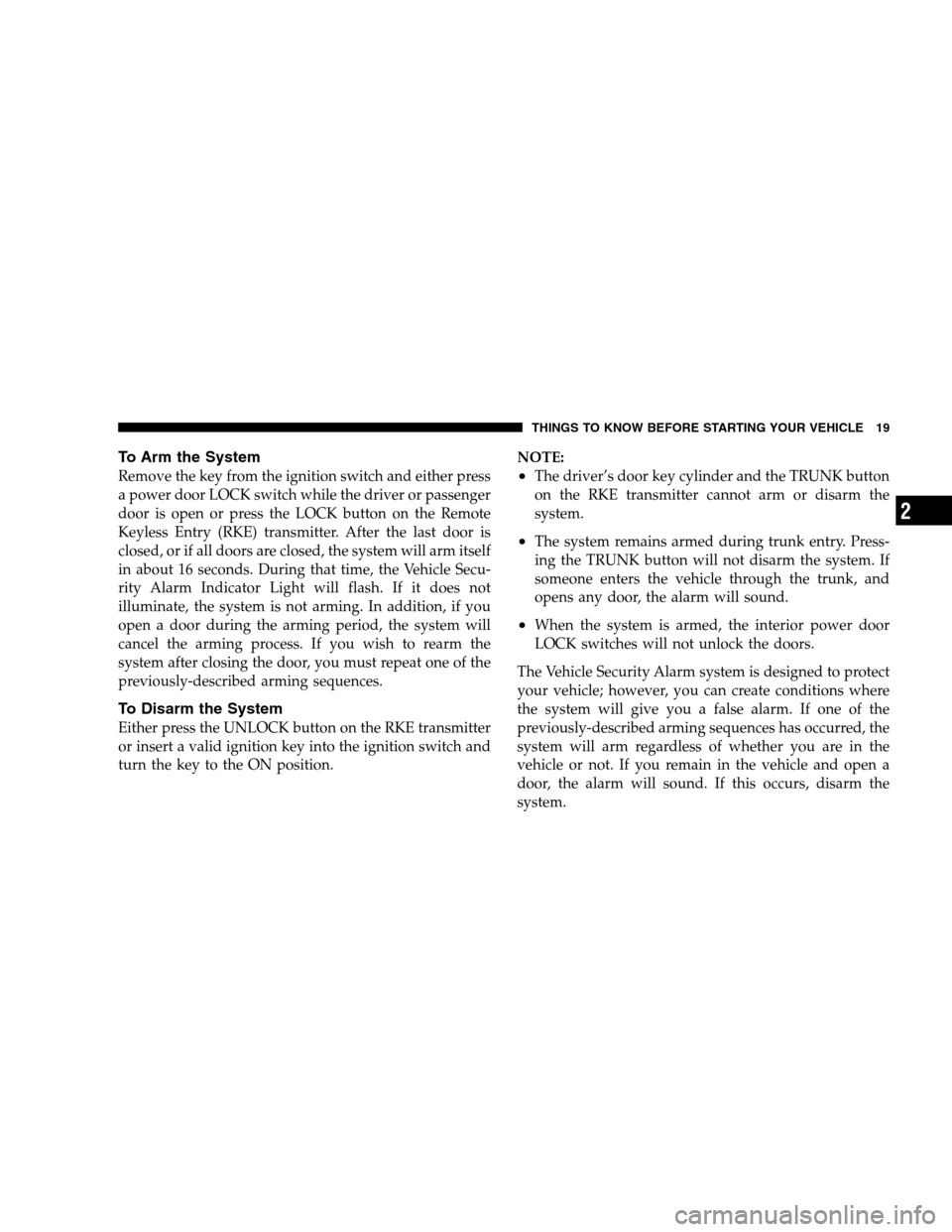

To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the system will arm itself
in about 16 seconds. During that time, the Vehicle Secu-
rity Alarm Indicator Light will flash. If it does not
illuminate, the system is not arming. In addition, if you
open a door during the arming period, the system will
cancel the arming process. If you wish to rearm the
system after closing the door, you must repeat one of the
previously-described arming sequences.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.NOTE:
•The driver’s door key cylinder and the TRUNK button
on the RKE transmitter cannot arm or disarm the
system.
•The system remains armed during trunk entry. Press-
ing the TRUNK button will not disarm the system. If
someone enters the vehicle through the trunk, and
opens any door, the alarm will sound.
•When the system is armed, the interior power door
LOCK switches will not unlock the doors.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will give you a false alarm. If one of the
previously-described arming sequences has occurred, the
system will arm regardless of whether you are in the
vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

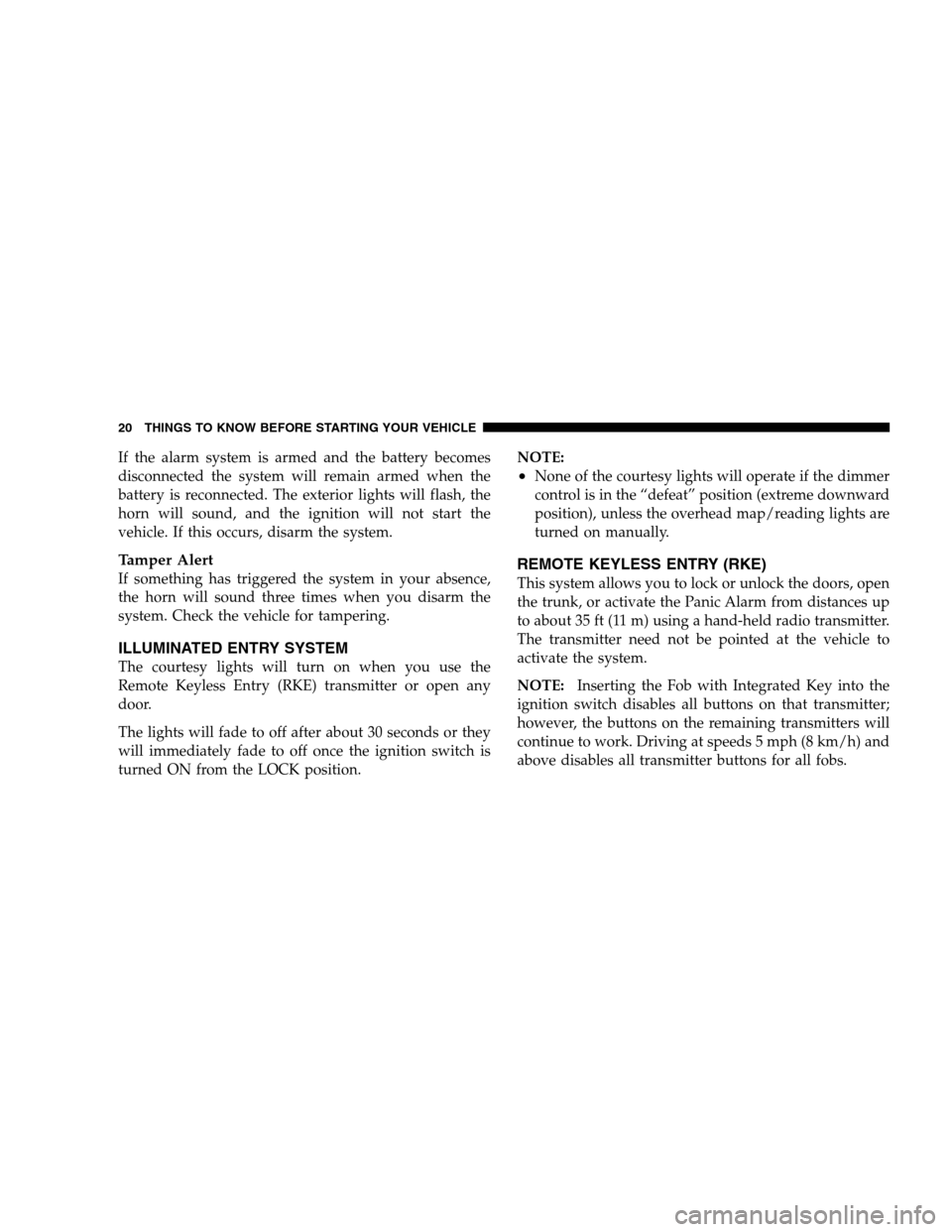

If the alarm system is armed and the battery becomes
disconnected the system will remain armed when the
battery is reconnected. The exterior lights will flash, the
horn will sound, and the ignition will not start the
vehicle. If this occurs, disarm the system.
Tamper Alert
If something has triggered the system in your absence,
the horn will sound three times when you disarm the
system. Check the vehicle for tampering.
ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open any
door.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned ON from the LOCK position.NOTE:
•None of the courtesy lights will operate if the dimmer
control is in the “defeat” position (extreme downward
position), unless the overhead map/reading lights are
turned on manually.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors, open
the trunk, or activate the Panic Alarm from distances up
to about 35 ft (11 m) using a hand-held radio transmitter.
The transmitter need not be pointed at the vehicle to
activate the system.
NOTE:Inserting the Fob with Integrated Key into the
ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will
continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all fobs.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To unlock the doors:
Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door, or twice within five
seconds to unlock all doors. The turn signal lights will
flash to acknowledge the unlock signal. The illuminated
entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the transmitter. For details, refer to
“Remote Key Unlock,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the transmitter.
This feature can be turned on or turned off. For details,
refer to “Flash Lights with Remote Key Lock,” under
Personal Settings (Customer Programmable Features),”
under “Electronic Vehicle Information Center (EVIC)” in
Section 4.
Remote Keyless Entry (RKE) Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

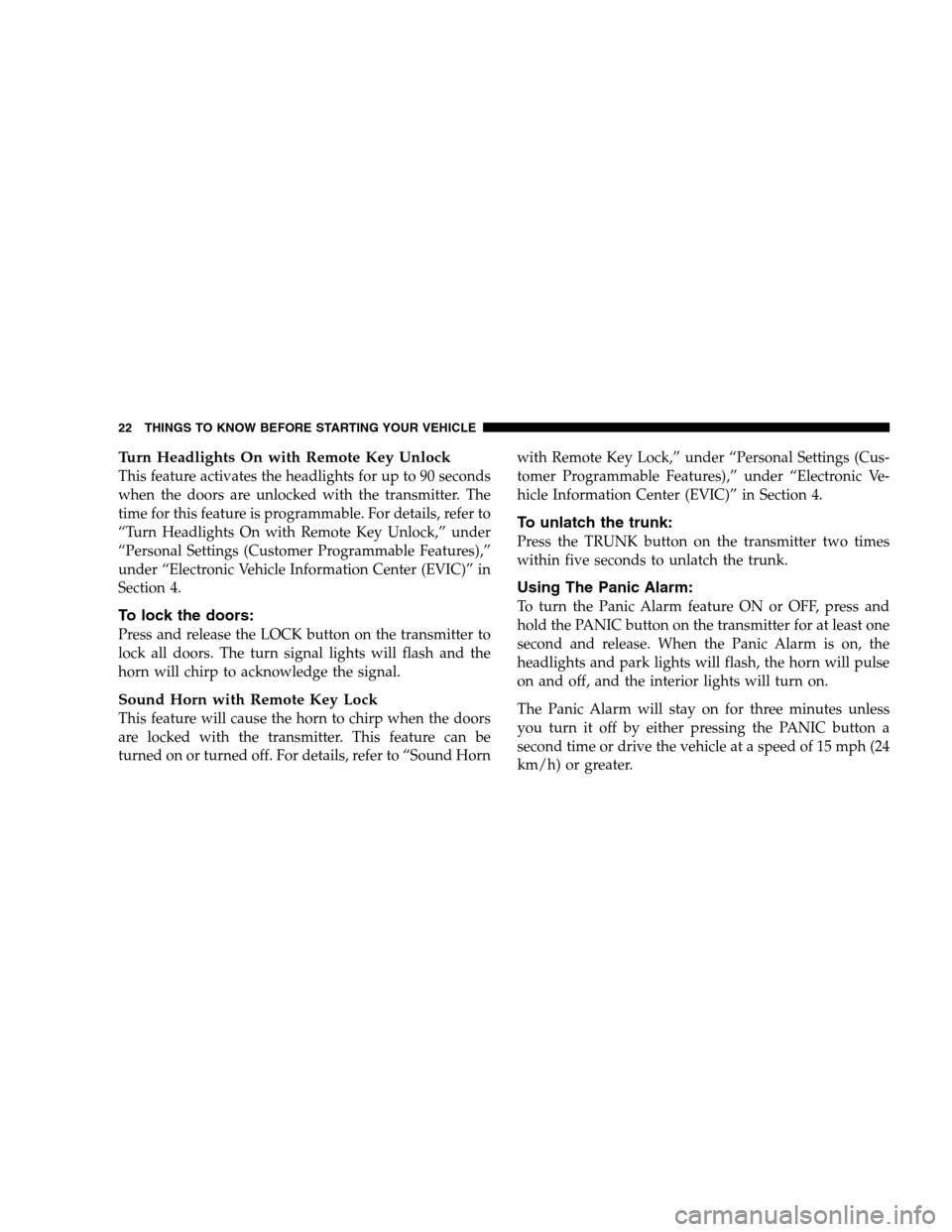

Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the transmitter. The
time for this feature is programmable. For details, refer to
“Turn Headlights On with Remote Key Unlock,” under
“Personal Settings (Customer Programmable Features),”
under “Electronic Vehicle Information Center (EVIC)” in
Section 4.
To lock the doors:
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the transmitter. This feature can be
turned on or turned off. For details, refer to “Sound Hornwith Remote Key Lock,” under “Personal Settings (Cus-
tomer Programmable Features),” under “Electronic Ve-
hicle Information Center (EVIC)” in Section 4.
To unlatch the trunk:
Press the TRUNK button on the transmitter two times
within five seconds to unlatch the trunk.
Using The Panic Alarm:
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph (24
km/h) or greater.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

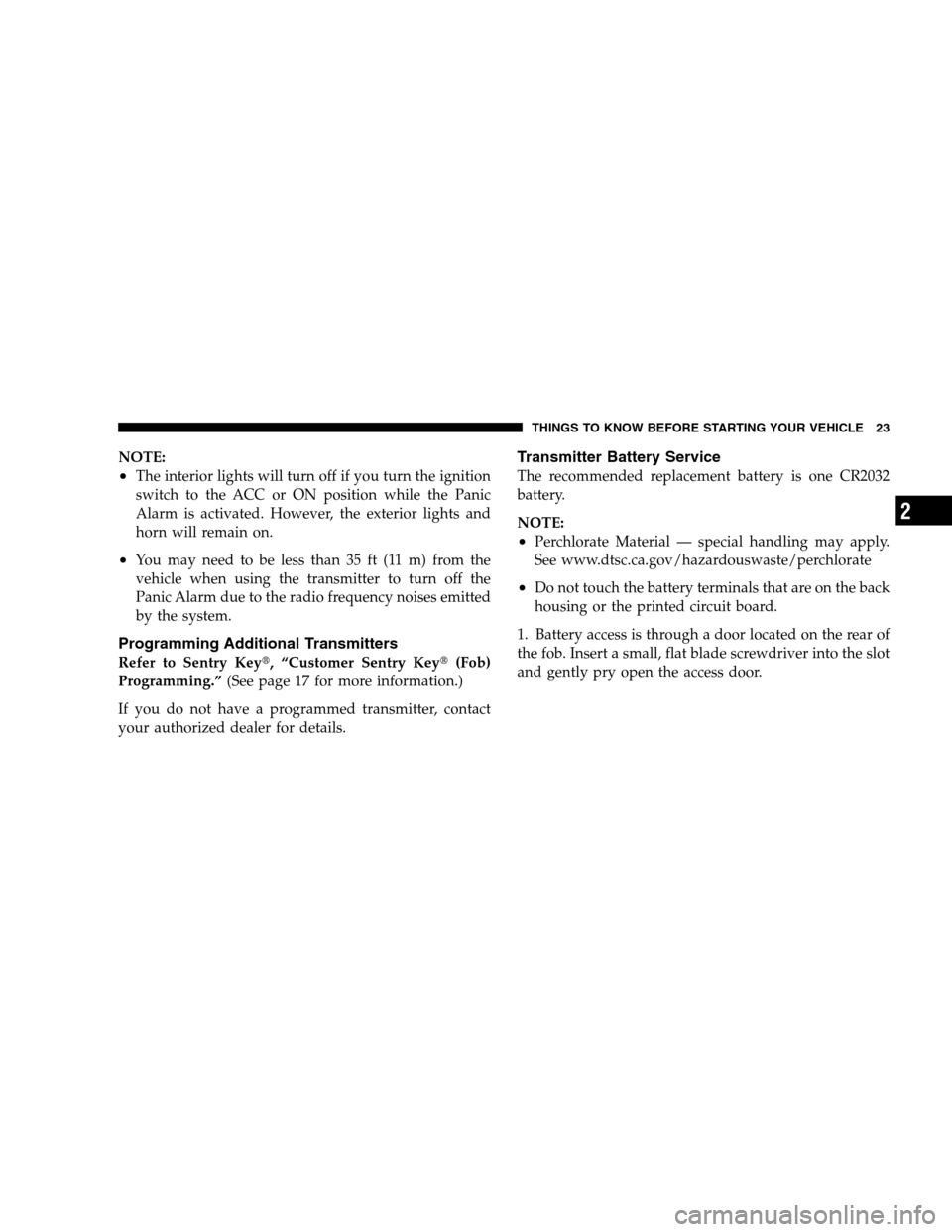

NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
•You may need to be less than 35 ft (11 m) from the
vehicle when using the transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Refer to Sentry Key, “Customer Sentry Key(Fob)
Programming.”(See page 17 for more information.)
If you do not have a programmed transmitter, contact
your authorized dealer for details.
Transmitter Battery Service
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Battery access is through a door located on the rear of
the fob. Insert a small, flat blade screwdriver into the slot
and gently pry open the access door.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

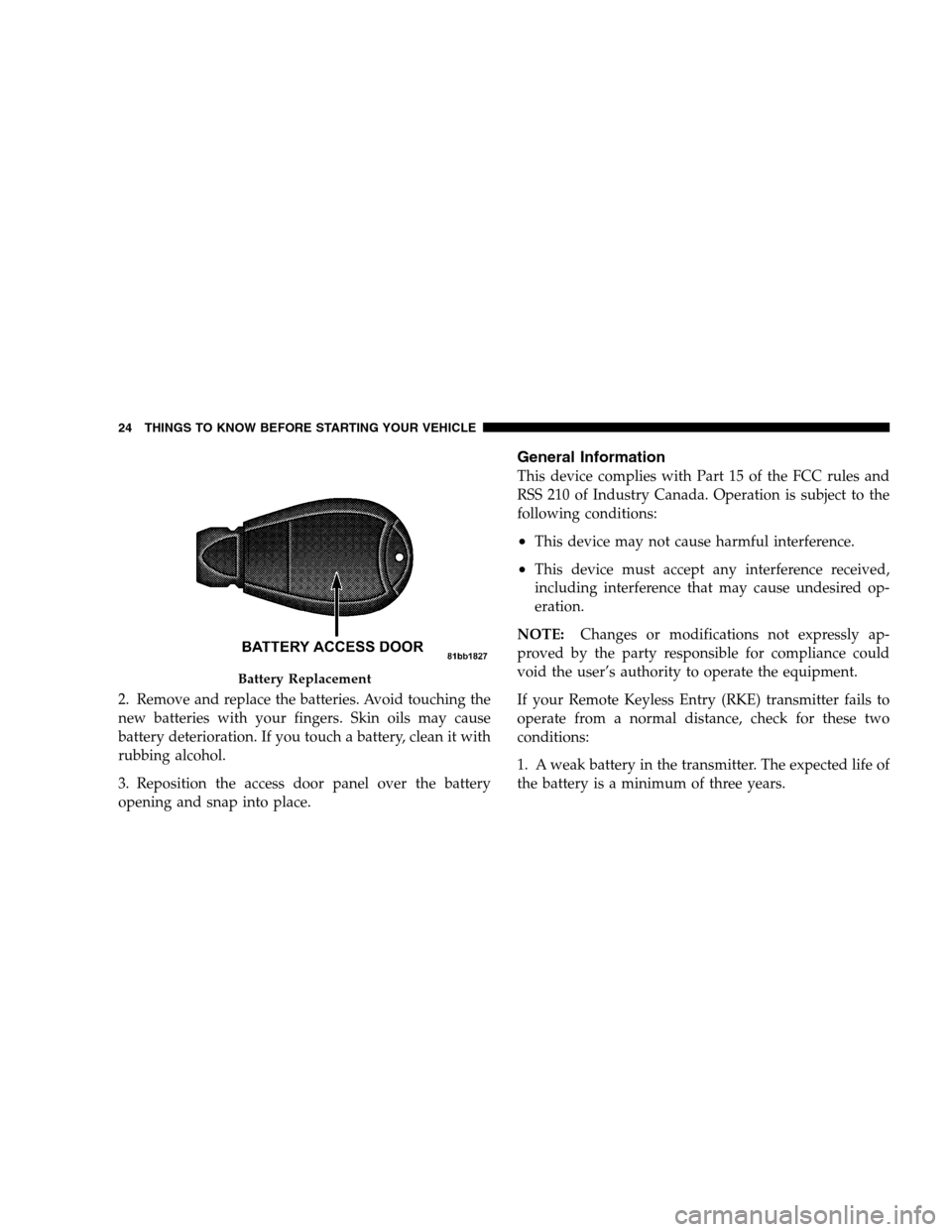

2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. Reposition the access door panel over the battery
opening and snap into place.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Keyless Entry (RKE) transmitter fails to
operate from a normal distance, check for these two
conditions:
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
Battery Replacement
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

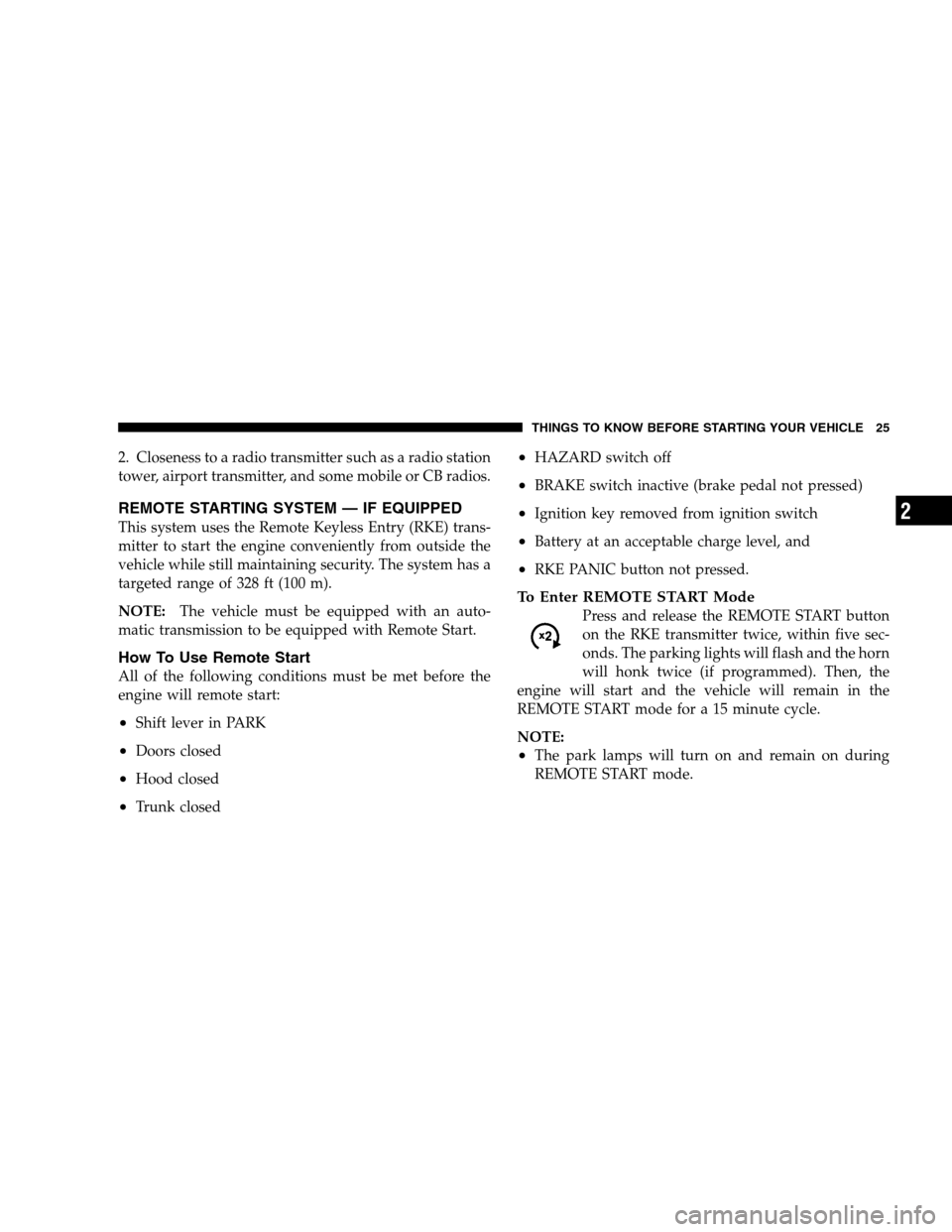

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry (RKE) trans-
mitter to start the engine conveniently from outside the
vehicle while still maintaining security. The system has a
targeted range of 328 ft (100 m).
NOTE:The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Trunk closed
•HAZARD switch off
•BRAKE switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level, and
•RKE PANIC button not pressed.
To Enter REMOTE START Mode
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will honk twice (if programmed). Then, the
engine will start and the vehicle will remain in the
REMOTE START mode for a 15 minute cycle.
NOTE:
•The park lamps will turn on and remain on during
REMOTE START mode.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

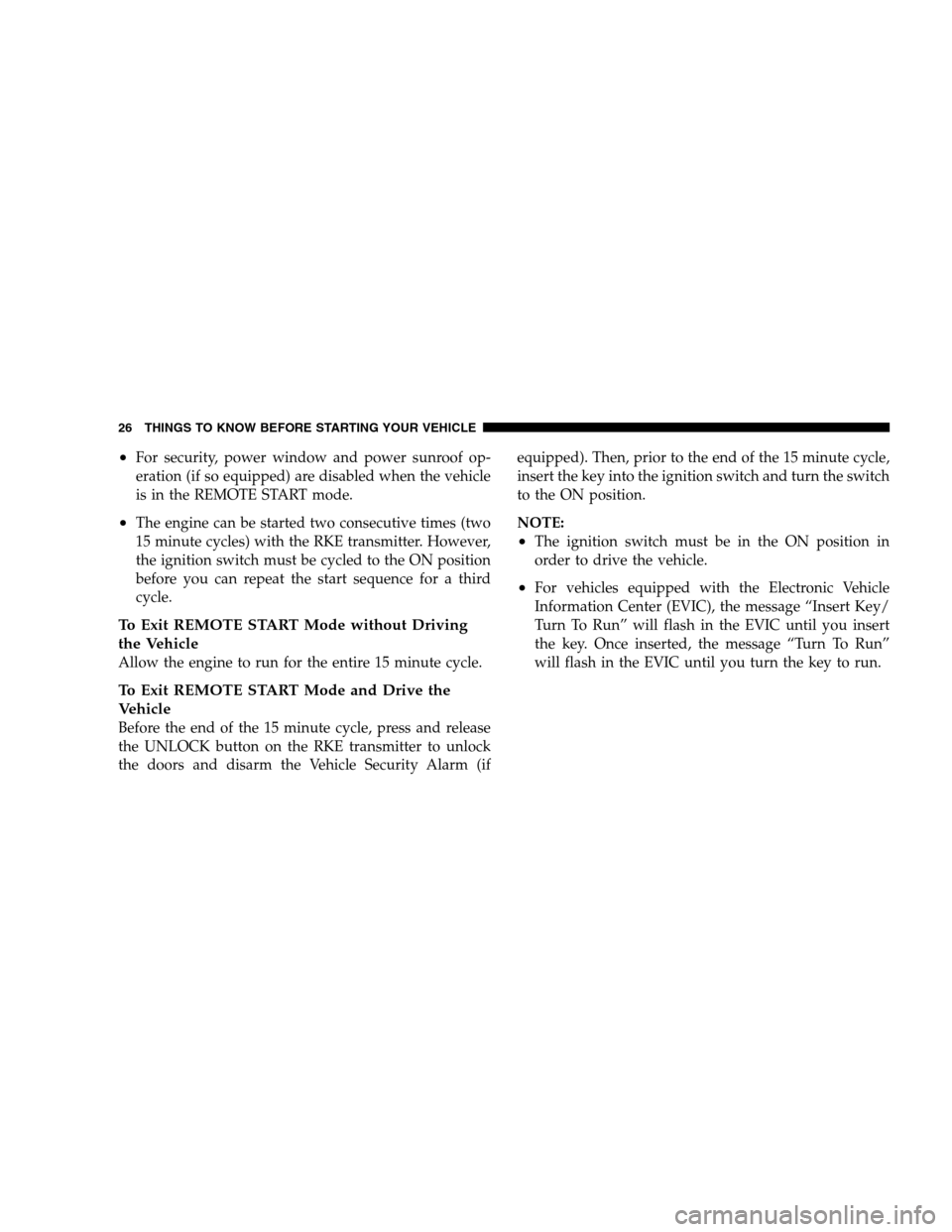

•For security, power window and power sunroof op-
eration (if so equipped) are disabled when the vehicle
is in the REMOTE START mode.
•The engine can be started two consecutive times (two
15 minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit REMOTE START Mode without Driving
the Vehicle
Allow the engine to run for the entire 15 minute cycle.
To Exit REMOTE START Mode and Drive the
Vehicle
Before the end of the 15 minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (ifequipped). Then, prior to the end of the 15 minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE:
•The ignition switch must be in the ON position in
order to drive the vehicle.
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the message “Insert Key/
Turn To Run” will flash in the EVIC until you insert
the key. Once inserted, the message “Turn To Run”
will flash in the EVIC until you turn the key to run.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

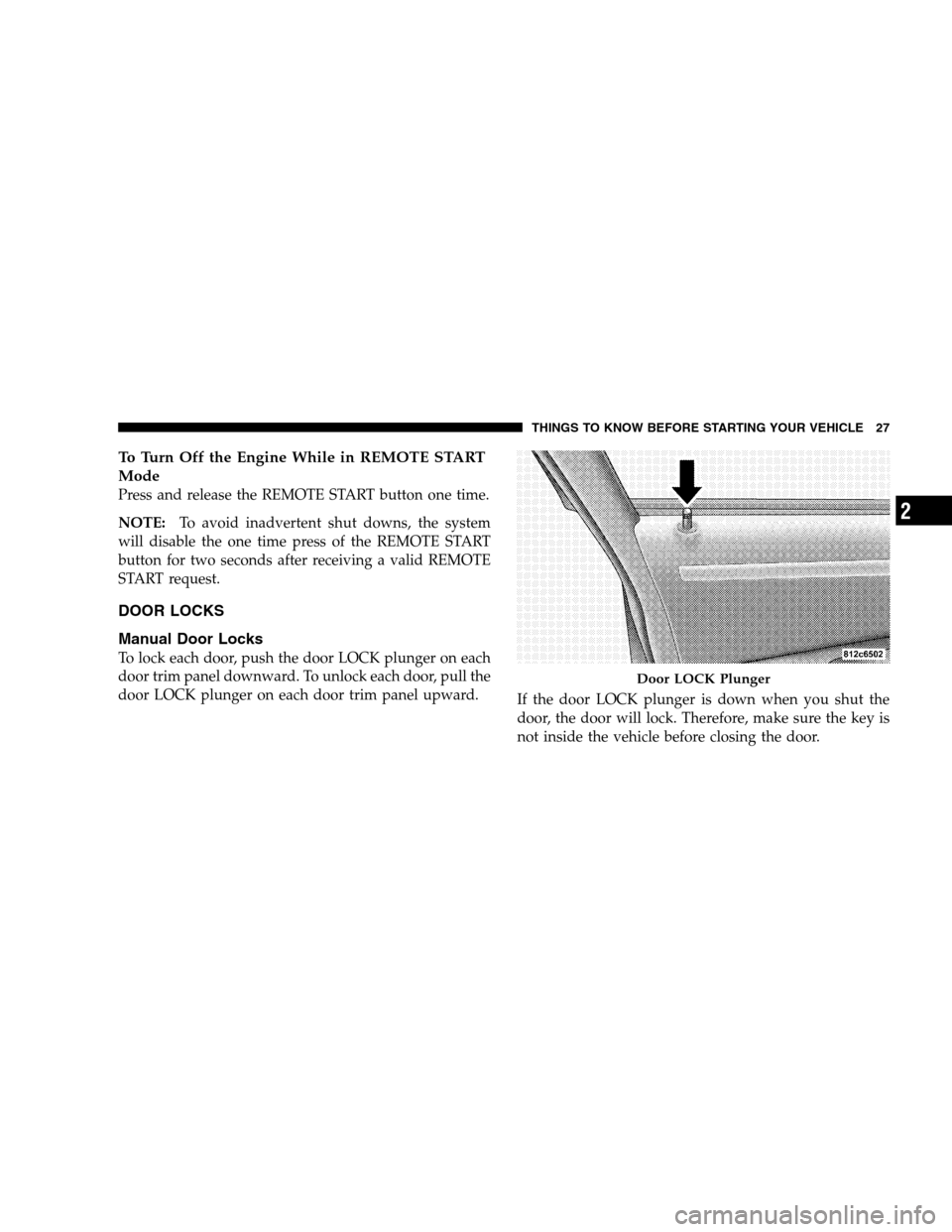

To Turn Off the Engine While in REMOTE START
Mode
Press and release the REMOTE START button one time.
NOTE:To avoid inadvertent shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid REMOTE
START request.
DOOR LOCKS
Manual Door Locks
To lock each door, push the door LOCK plunger on each
door trim panel downward. To unlock each door, pull the
door LOCK plunger on each door trim panel upward.
If the door LOCK plunger is down when you shut the
door, the door will lock. Therefore, make sure the key is
not inside the vehicle before closing the door.
Door LOCK Plunger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors before you drive as
well as when you park and leave the vehicle.
•When leaving the vehicle, always remove the key
from the ignition and lock your vehicle. Unsuper-
vised use of vehicle equipment may cause severe
personal injuries and death.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Power Door Locks
A power door LOCK switch is on each front door trim
panel. Use this switch to lock or unlock the doors.
Power Door LOCK Switch
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
