CHRYSLER 300 SRT 2008 1.G Owner's Guide
Manufacturer: CHRYSLER, Model Year: 2008, Model line: 300 SRT, Model: CHRYSLER 300 SRT 2008 1.GPages: 482, PDF Size: 6.28 MB
Page 31 of 482

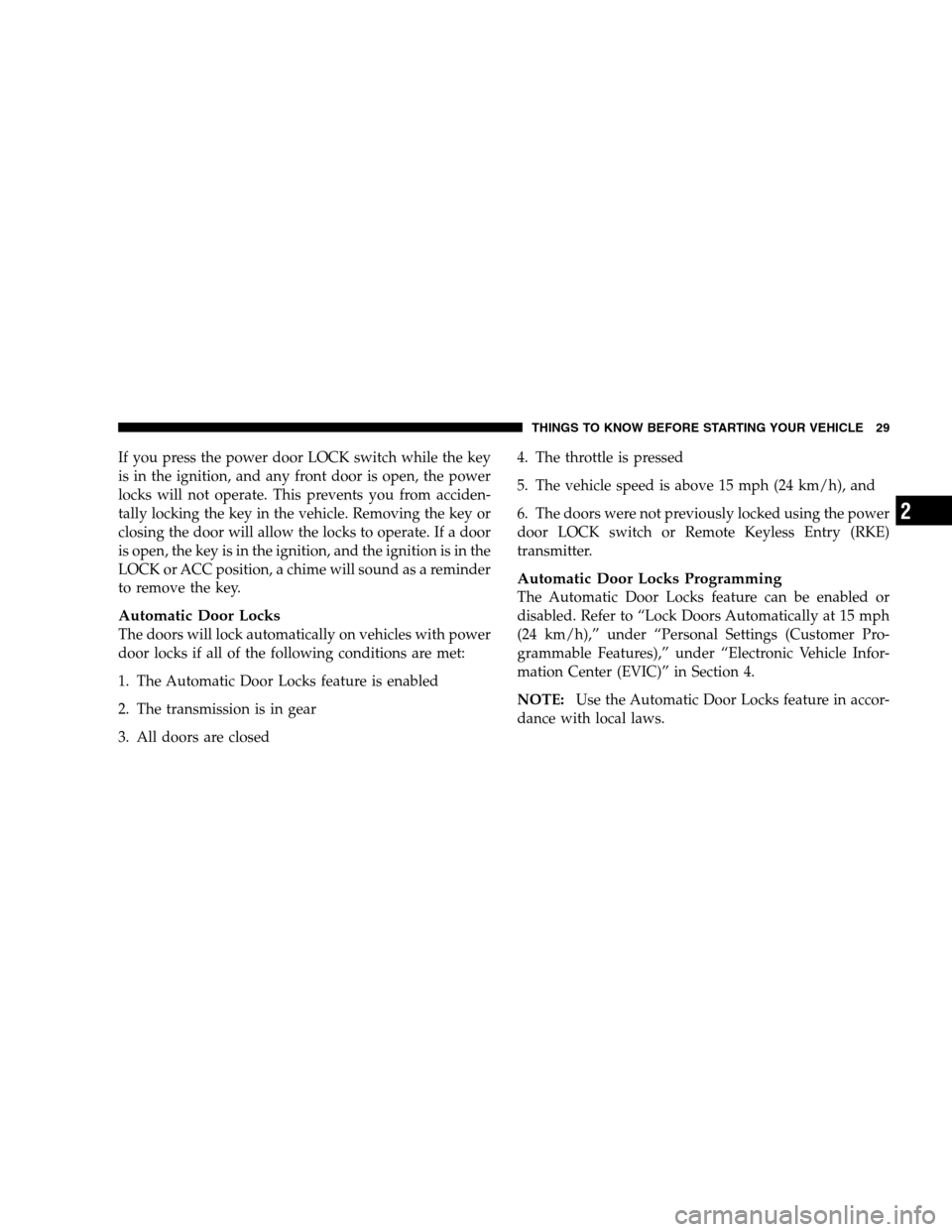

If you press the power door LOCK switch while the key
is in the ignition, and any front door is open, the power
locks will not operate. This prevents you from acciden-
tally locking the key in the vehicle. Removing the key or
closing the door will allow the locks to operate. If a door
is open, the key is in the ignition, and the ignition is in the
LOCK or ACC position, a chime will sound as a reminder
to remove the key.
Automatic Door Locks
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Automatic Door Locks feature is enabled
2. The transmission is in gear
3. All doors are closed4. The throttle is pressed
5. The vehicle speed is above 15 mph (24 km/h), and
6. The doors were not previously locked using the power
door LOCK switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The Automatic Door Locks feature can be enabled or
disabled. Refer to “Lock Doors Automatically at 15 mph
(24 km/h),” under “Personal Settings (Customer Pro-
grammable Features),” under “Electronic Vehicle Infor-
mation Center (EVIC)” in Section 4.
NOTE:Use the Automatic Door Locks feature in accor-
dance with local laws.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
Page 32 of 482
Automatic Unlock Doors on Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The Automatic Unlock Doors On Exit feature is en-
abled
2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h)
3. The transmission is in NEUTRAL or PARK
4. The driver door is opened
5. The doors were not previously unlocked, and
6. The vehicle speed is 0 mph (0 km/h).
Automatic Unlock Doors on Exit Programming
The Automatic Unlock Doors On Exit feature can be
enabled or disabled. Refer to “Unlock Doors Automati-
cally on Exit,” under “Personal Settings (Customer Pro-
grammable Features),” under “Electronic Vehicle Infor-
mation Center (EVIC)” in Section 4.
NOTE:Use the Automatic Unlock Doors On Exit feature
in accordance with local laws.
Child Protection Door Lock
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a Child
Protection Door Lock system.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 482
To Engage the Child Protection Door Lock System
1. Open the rear door.
2. Insert the tip of the valet key (or alike) into the child
lock control and pull it upward.
3. Repeat Steps 1 and 2 for the opposite rear door.NOTE:When the Child Protection Door Lock system is
engaged, the door can be opened only by using the
outside door handle even though the inside door lock is
in the unlocked position.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE:
•After engaging the Child Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the desired position.
Child Lock Control
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 34 of 482
•For emergency exit with the system engaged, move
the door LOCK switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
To Disengage the Child Protection Door Lock
System
1. Open the rear door.
2. Insert the tip of the valet key (or alike) into the child
lock control and pull it downward.
3. Repeat Steps 1 and 2 for the opposite rear door.
NOTE:After disengaging the Child Protection Door
Lock system, always test the door from the inside to
make certain it is in the desired position.
Child Lock Control
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 35 of 482

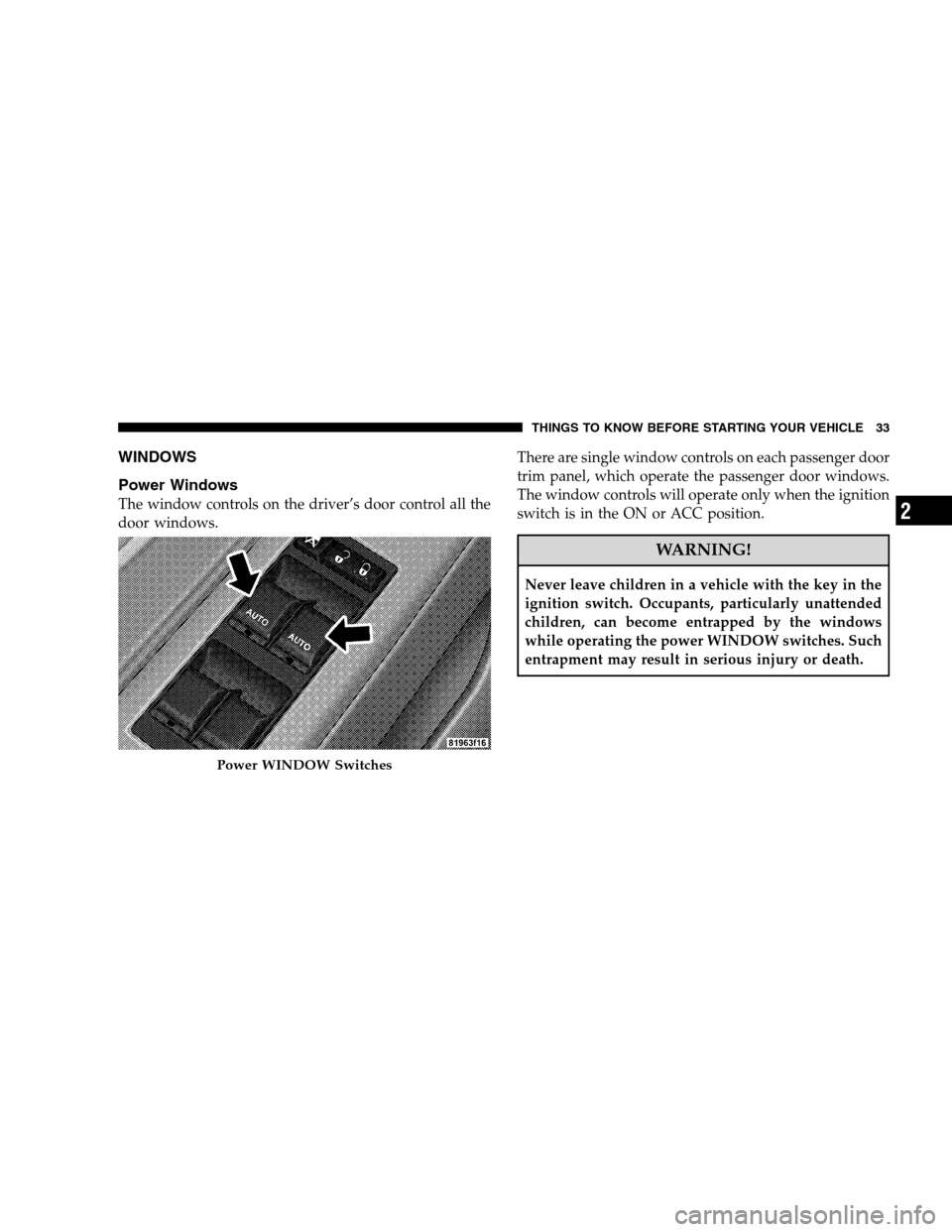

WINDOWS
Power Windows
The window controls on the driver’s door control all the
door windows.There are single window controls on each passenger door
trim panel, which operate the passenger door windows.
The window controls will operate only when the ignition
switch is in the ON or ACC position.
WARNING!
Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power WINDOW switches. Such
entrapment may result in serious injury or death.
Power WINDOW Switches
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
Page 36 of 482

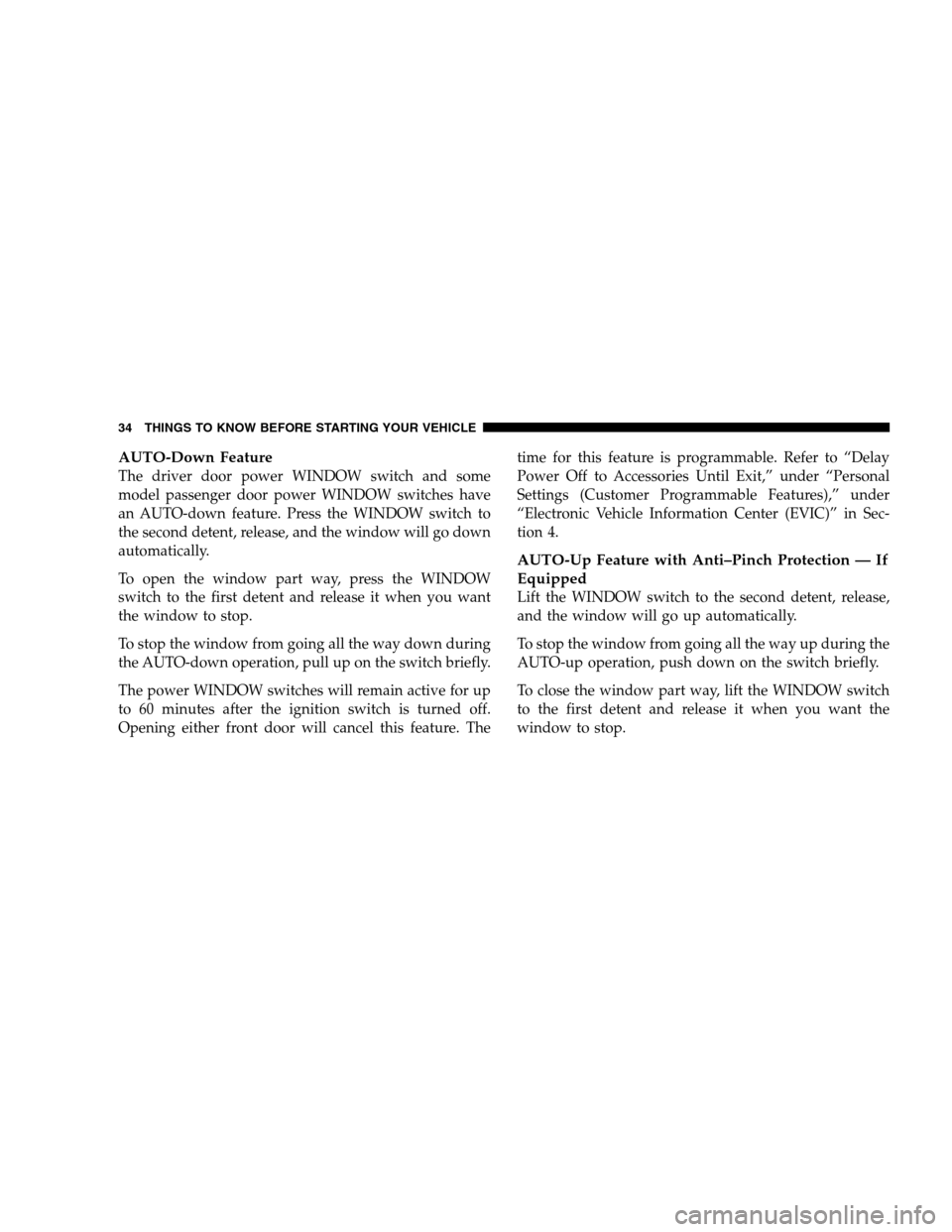

AUTO-Down Feature
The driver door power WINDOW switch and some
model passenger door power WINDOW switches have
an AUTO-down feature. Press the WINDOW switch to
the second detent, release, and the window will go down
automatically.
To open the window part way, press the WINDOW
switch to the first detent and release it when you want
the window to stop.
To stop the window from going all the way down during
the AUTO-down operation, pull up on the switch briefly.
The power WINDOW switches will remain active for up
to 60 minutes after the ignition switch is turned off.
Opening either front door will cancel this feature. Thetime for this feature is programmable. Refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
AUTO-Up Feature with Anti–Pinch Protection — If
Equipped
Lift the WINDOW switch to the second detent, release,
and the window will go up automatically.
To stop the window from going all the way up during the
AUTO-up operation, push down on the switch briefly.
To close the window part way, lift the WINDOW switch
to the first detent and release it when you want the
window to stop.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 37 of 482

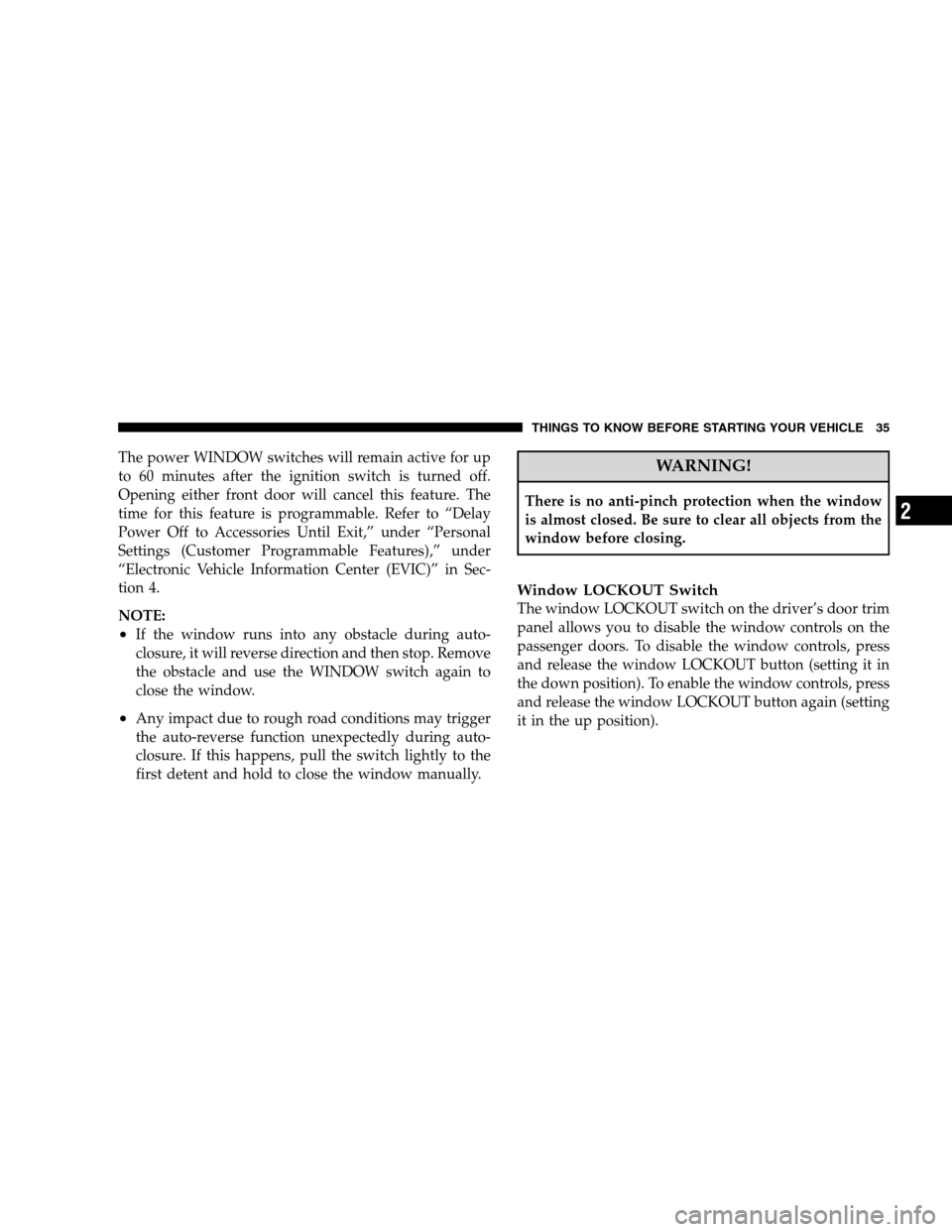

The power WINDOW switches will remain active for up
to 60 minutes after the ignition switch is turned off.
Opening either front door will cancel this feature. The
time for this feature is programmable. Refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
NOTE:
•If the window runs into any obstacle during auto-
closure, it will reverse direction and then stop. Remove
the obstacle and use the WINDOW switch again to
close the window.
•Any impact due to rough road conditions may trigger
the auto-reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly to the
first detent and hold to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Window LOCKOUT Switch
The window LOCKOUT switch on the driver’s door trim
panel allows you to disable the window controls on the
passenger doors. To disable the window controls, press
and release the window LOCKOUT button (setting it in
the down position). To enable the window controls, press
and release the window LOCKOUT button again (setting
it in the up position).
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
Page 38 of 482

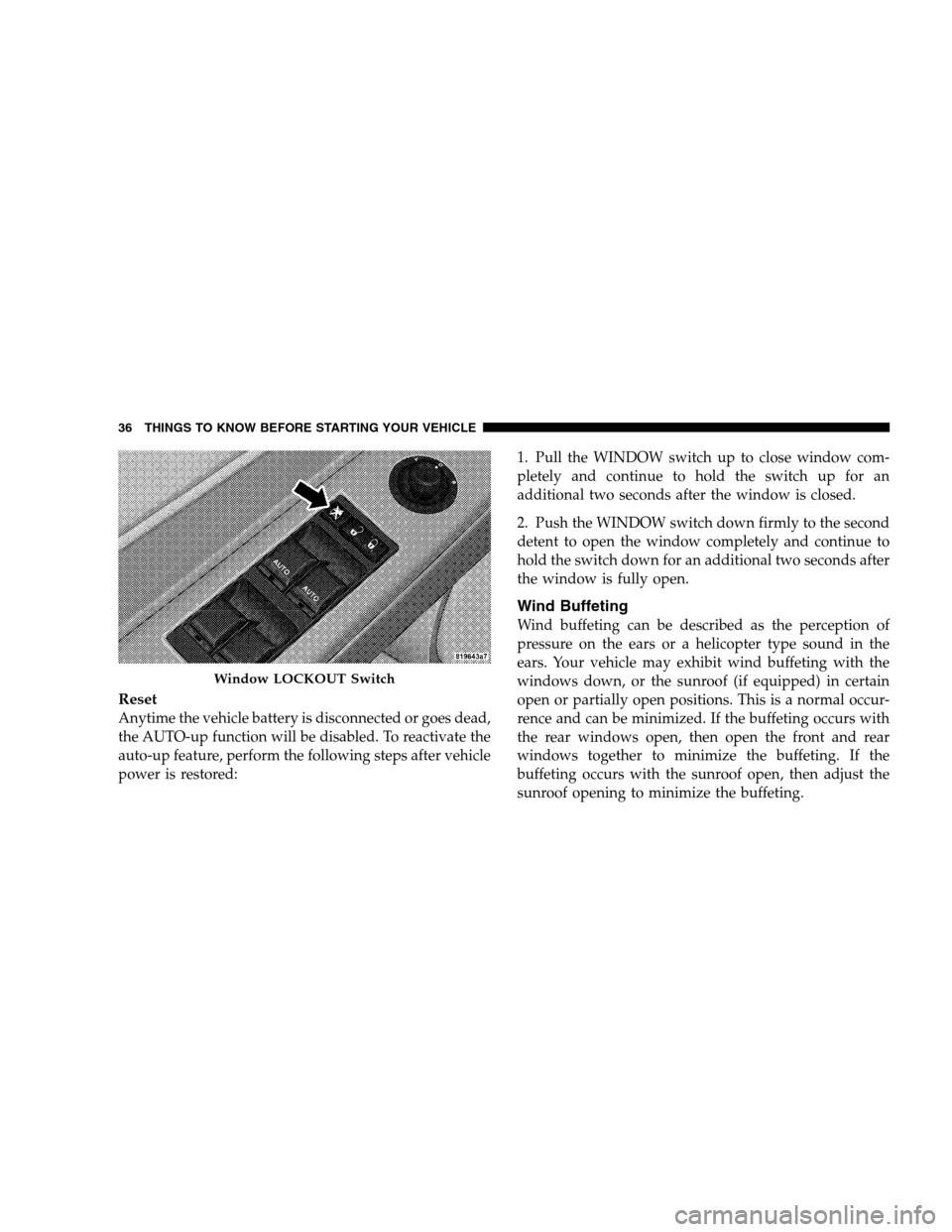

Reset
Anytime the vehicle battery is disconnected or goes dead,
the AUTO-up function will be disabled. To reactivate the
auto-up feature, perform the following steps after vehicle
power is restored:1. Pull the WINDOW switch up to close window com-
pletely and continue to hold the switch up for an
additional two seconds after the window is closed.
2. Push the WINDOW switch down firmly to the second
detent to open the window completely and continue to
hold the switch down for an additional two seconds after
the window is fully open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, then adjust the
sunroof opening to minimize the buffeting.
Window LOCKOUT Switch
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 482

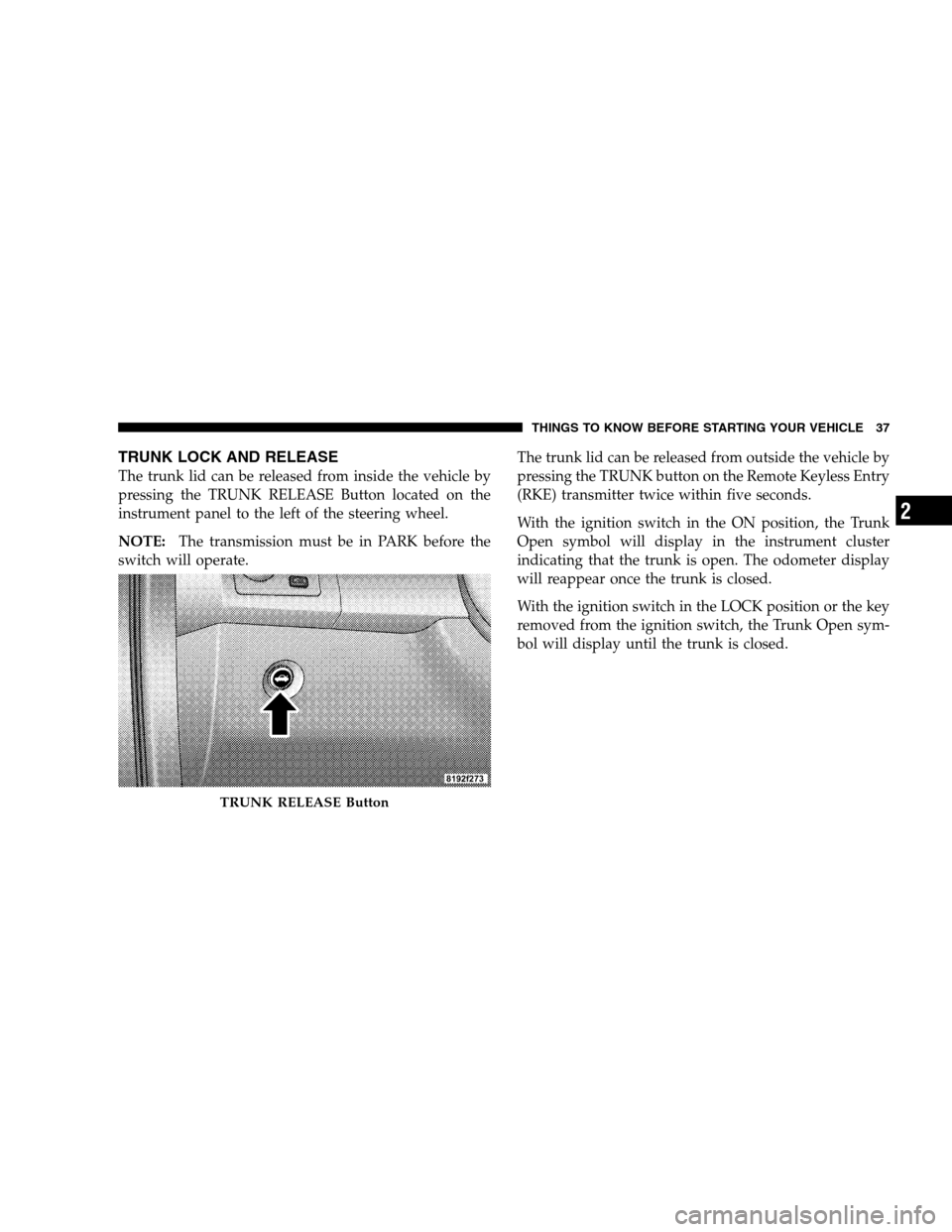

TRUNK LOCK AND RELEASE
The trunk lid can be released from inside the vehicle by
pressing the TRUNK RELEASE Button located on the
instrument panel to the left of the steering wheel.
NOTE:The transmission must be in PARK before the
switch will operate.The trunk lid can be released from outside the vehicle by
pressing the TRUNK button on the Remote Keyless Entry
(RKE) transmitter twice within five seconds.
With the ignition switch in the ON position, the Trunk
Open symbol will display in the instrument cluster
indicating that the trunk is open. The odometer display
will reappear once the trunk is closed.
With the ignition switch in the LOCK position or the key
removed from the ignition switch, the Trunk Open sym-
bol will display until the trunk is closed.
TRUNK RELEASE Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2
Page 40 of 482

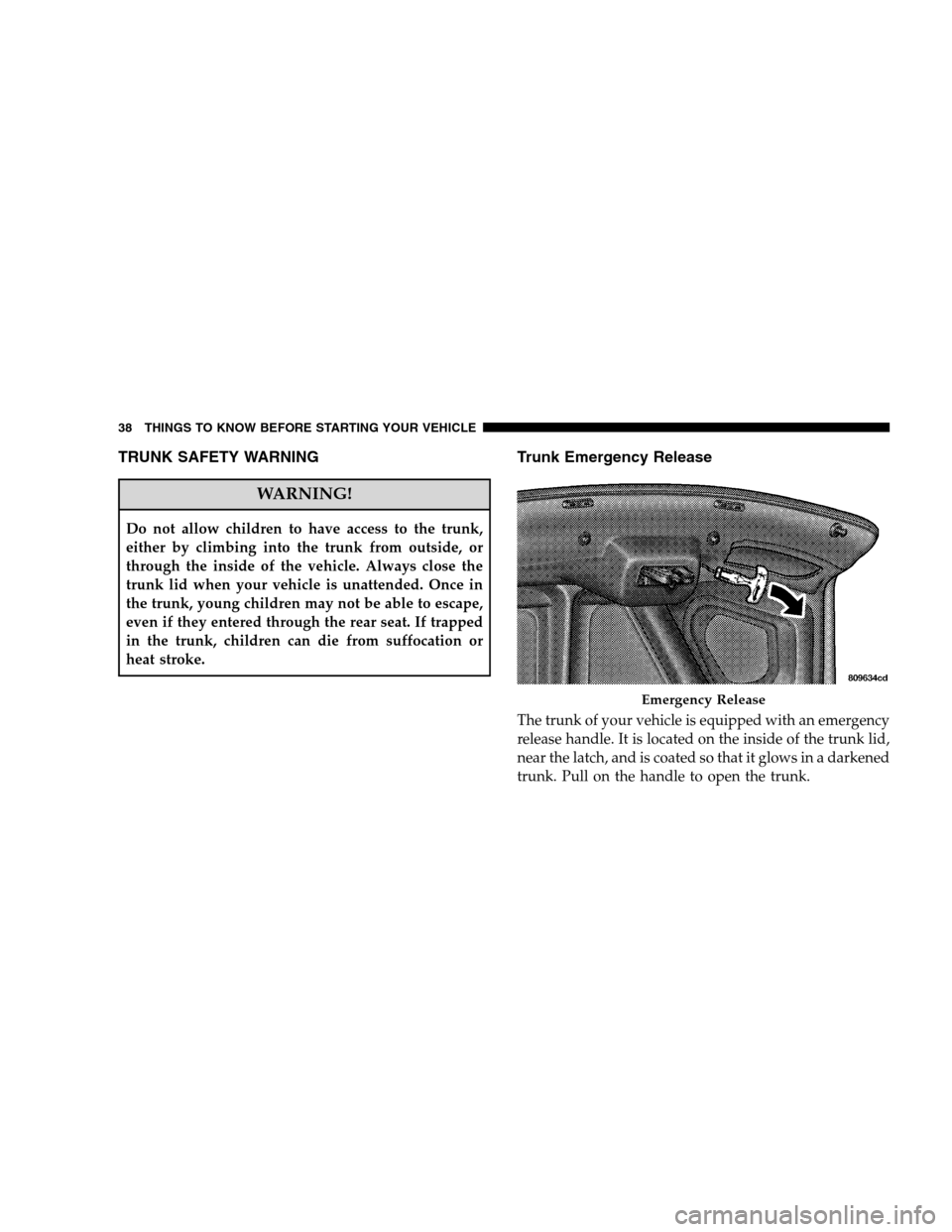

TRUNK SAFETY WARNING
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke.
Trunk Emergency Release
The trunk of your vehicle is equipped with an emergency
release handle. It is located on the inside of the trunk lid,
near the latch, and is coated so that it glows in a darkened
trunk. Pull on the handle to open the trunk.
Emergency Release
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
