windshield wipers CHRYSLER 300 SRT 2009 1.G Owners Manual

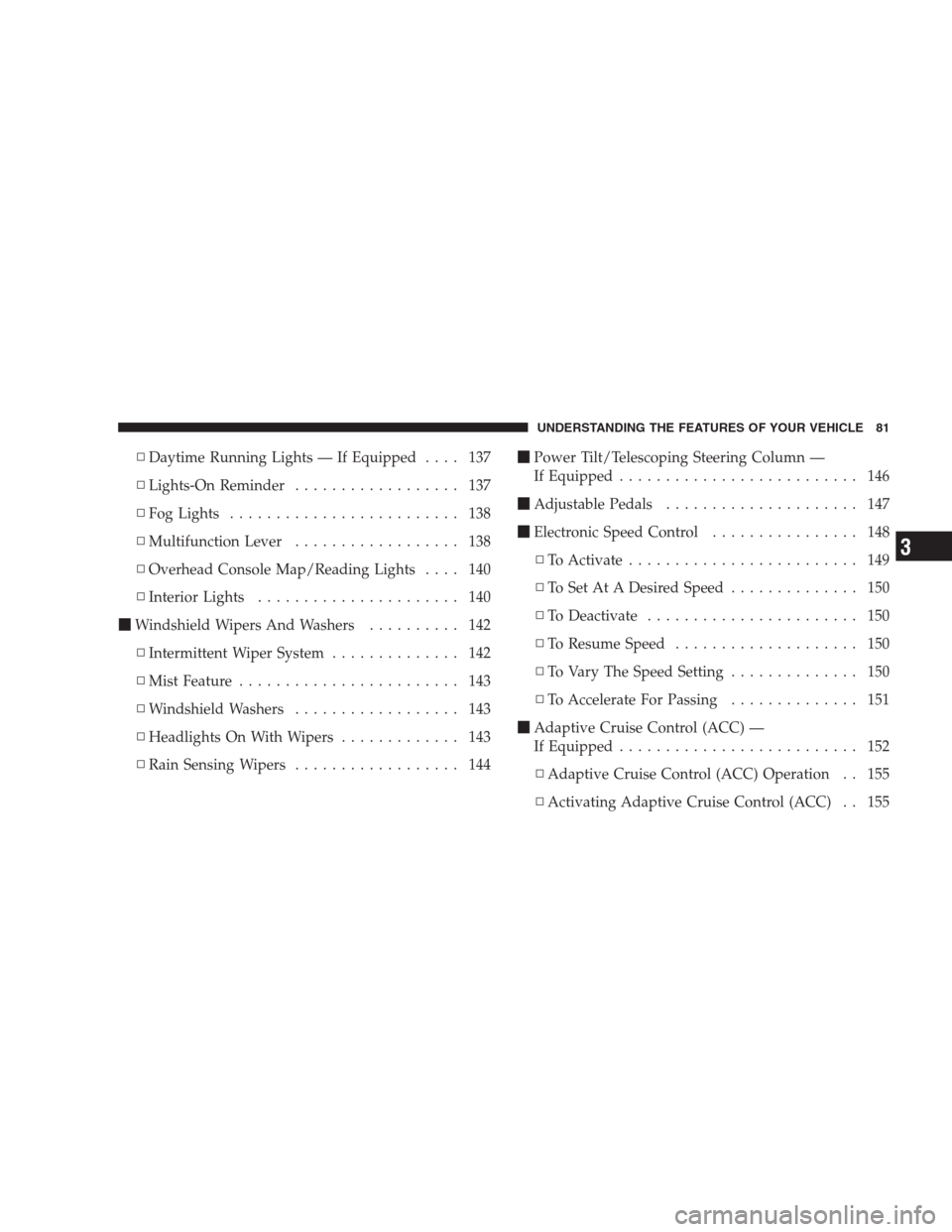

▫Daytime Running Lights — If Equipped.... 137
▫Lights-On Reminder.................. 137
▫Fog Lights......................... 138
▫Multifunction Lever.................. 138
▫Overhead Console Map/Reading Lights.... 140
▫Interior Lights...................... 140
Windshield Wipers And Washers.......... 142
▫Intermittent Wiper System.............. 142
▫Mist Feature........................ 143
▫Windshield Washers.................. 143
▫Headlights On With Wipers............. 143
▫Rain Sensing Wipers.................. 144Power Tilt/Telescoping Steering Column —
If Equipped.......................... 146
Adjustable Pedals..................... 147
Electronic Speed Control................ 148
▫To Activate......................... 149
▫To Set At A Desired Speed.............. 150
▫To Deactivate....................... 150
▫To Resume Speed.................... 150
▫To Vary The Speed Setting.............. 150
▫To Accelerate For Passing.............. 151
Adaptive Cruise Control (ACC) —
If Equipped.......................... 152
▫Adaptive Cruise Control (ACC) Operation . . 155
▫Activating Adaptive Cruise Control (ACC) . . 155
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

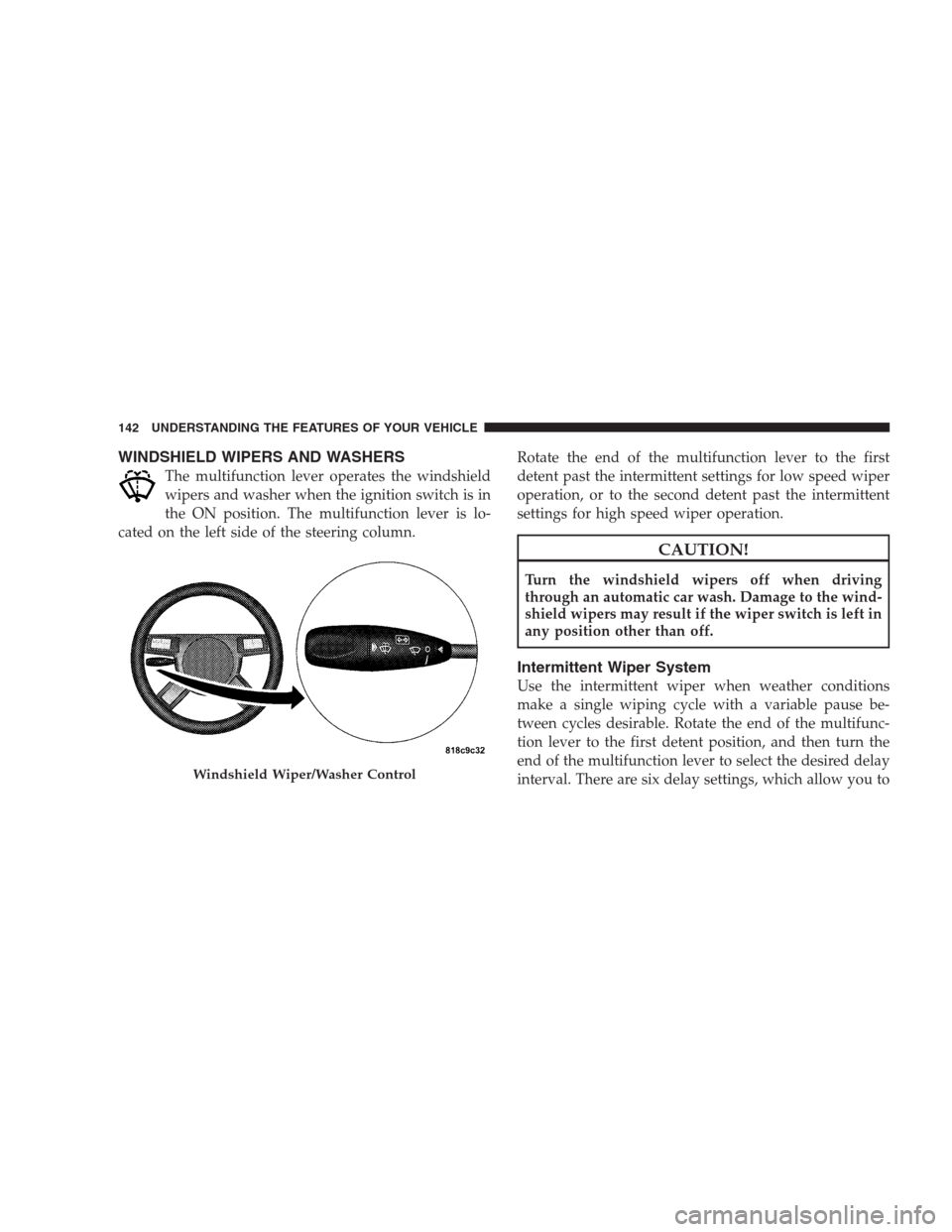

WINDSHIELD WIPERS AND WASHERS
The multifunction lever operates the windshield
wipers and washer when the ignition switch is in
the ON position. The multifunction lever is lo-
cated on the left side of the steering column.Rotate the end of the multifunction lever to the first
detent past the intermittent settings for low speed wiper
operation, or to the second detent past the intermittent
settings for high speed wiper operation.
CAUTION!
Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper switch is left in
any position other than off.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause be-
tween cycles desirable. Rotate the end of the multifunc-
tion lever to the first detent position, and then turn the
end of the multifunction lever to select the desired delay
interval. There are six delay settings, which allow you to
Windshield Wiper/Washer Control
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

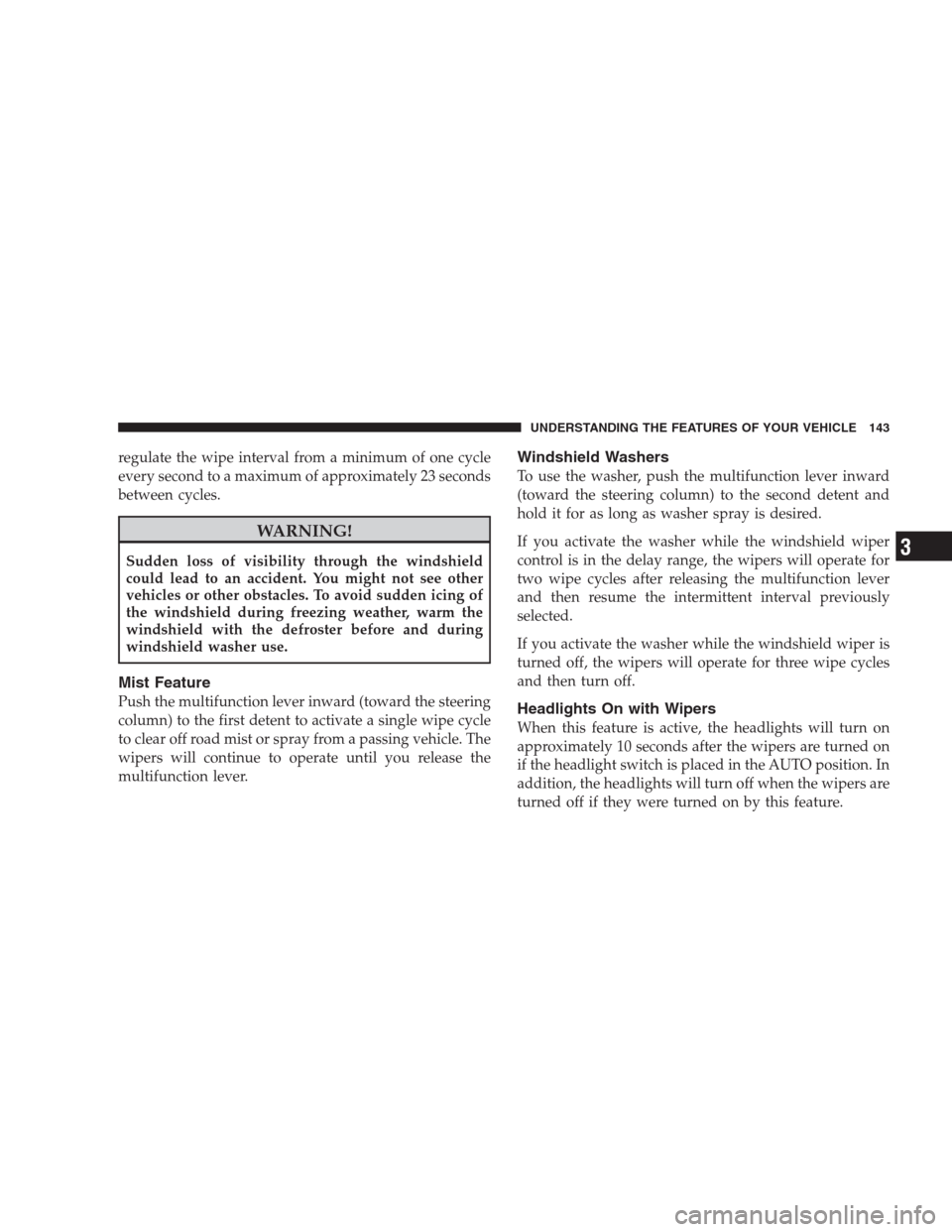

regulate the wipe interval from a minimum of one cycle
every second to a maximum of approximately 23 seconds
between cycles.
WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
Push the multifunction lever inward (toward the steering
column) to the first detent to activate a single wipe cycle
to clear off road mist or spray from a passing vehicle. The
wipers will continue to operate until you release the
multifunction lever.
Windshield Washers
To use the washer, push the multifunction lever inward
(toward the steering column) to the second detent and
hold it for as long as washer spray is desired.
If you activate the washer while the windshield wiper
control is in the delay range, the wipers will operate for
two wipe cycles after releasing the multifunction lever
and then resume the intermittent interval previously
selected.
If you activate the washer while the windshield wiper is
turned off, the wipers will operate for three wipe cycles
and then turn off.
Headlights On with Wipers
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

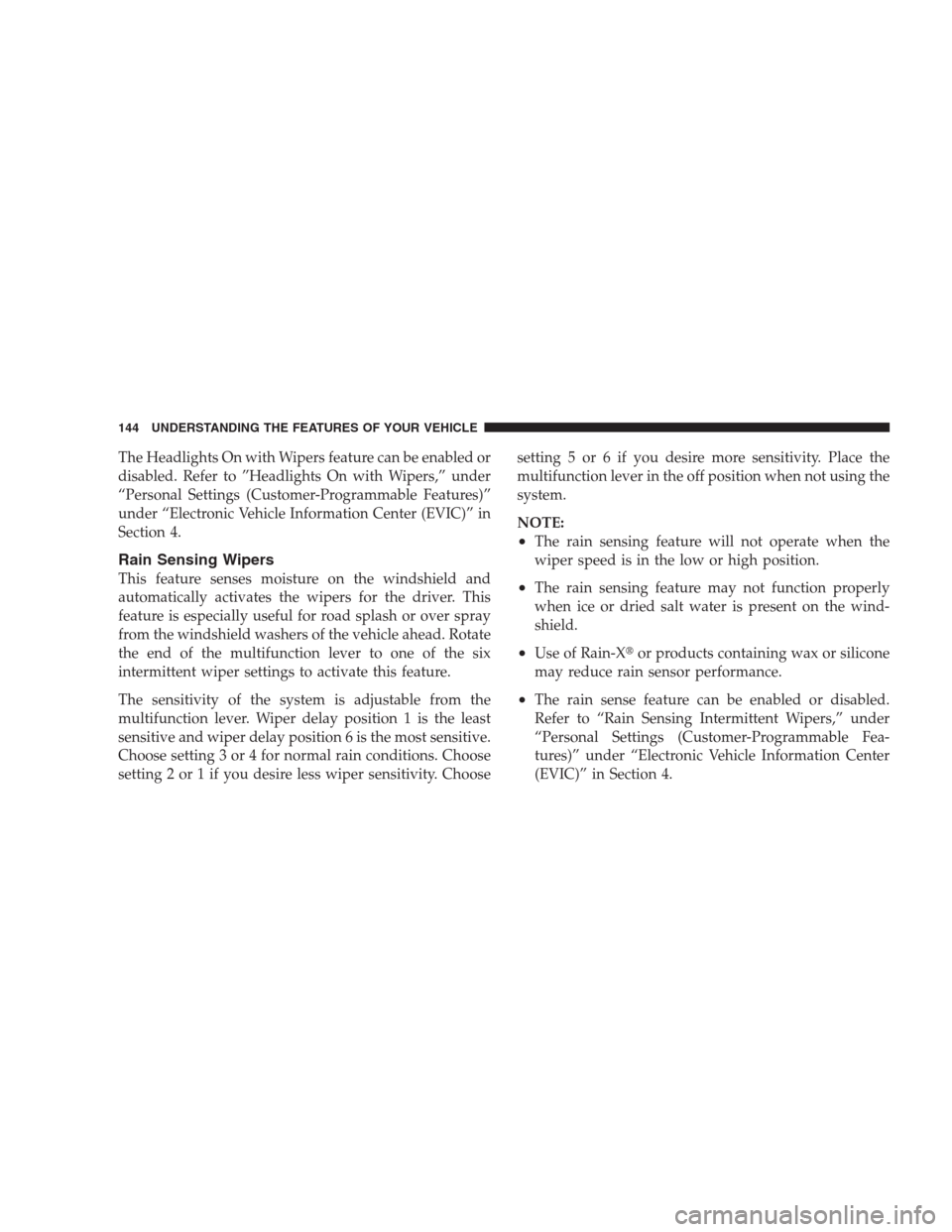

The Headlights On with Wipers feature can be enabled or
disabled. Refer to ”Headlights On with Wipers,” under
“Personal Settings (Customer-Programmable Features)”
under “Electronic Vehicle Information Center (EVIC)” in
Section 4.
Rain Sensing Wipers
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. This
feature is especially useful for road splash or over spray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of the six
intermittent wiper settings to activate this feature.
The sensitivity of the system is adjustable from the
multifunction lever. Wiper delay position 1 is the least
sensitive and wiper delay position 6 is the most sensitive.
Choose setting 3 or 4 for normal rain conditions. Choose
setting 2 or 1 if you desire less wiper sensitivity. Choosesetting 5 or 6 if you desire more sensitivity. Place the
multifunction lever in the off position when not using the
system.
NOTE:
•The rain sensing feature will not operate when the
wiper speed is in the low or high position.
•The rain sensing feature may not function properly
when ice or dried salt water is present on the wind-
shield.
•Use of Rain-Xor products containing wax or silicone
may reduce rain sensor performance.
•The rain sense feature can be enabled or disabled.
Refer to “Rain Sensing Intermittent Wipers,” under
“Personal Settings (Customer-Programmable Fea-
tures)” under “Electronic Vehicle Information Center
(EVIC)” in Section 4.
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

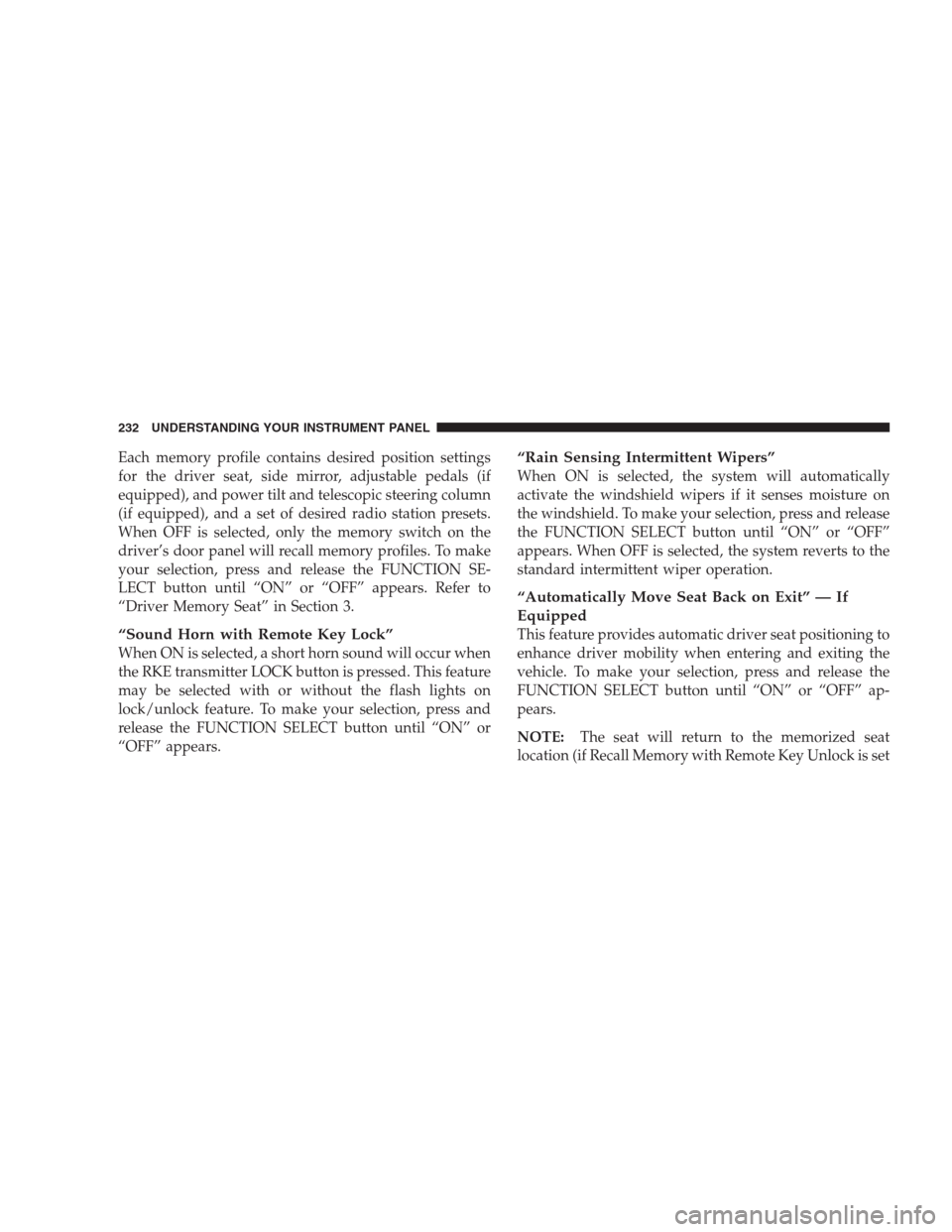

Each memory profile contains desired position settings
for the driver seat, side mirror, adjustable pedals (if
equipped), and power tilt and telescopic steering column
(if equipped), and a set of desired radio station presets.
When OFF is selected, only the memory switch on the
driver’s door panel will recall memory profiles. To make
your selection, press and release the FUNCTION SE-
LECT button until “ON” or “OFF” appears. Refer to
“Driver Memory Seat” in Section 3.
“Sound Horn with Remote Key Lock”
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the flash lights on
lock/unlock feature. To make your selection, press and
release the FUNCTION SELECT button until “ON” or
“OFF” appears.
“Rain Sensing Intermittent Wipers”
When ON is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the FUNCTION SELECT button until “ON” or “OFF”
appears. When OFF is selected, the system reverts to the
standard intermittent wiper operation.
“Automatically Move Seat Back on Exit” — If
Equipped
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, press and release the
FUNCTION SELECT button until “ON” or “OFF” ap-
pears.
NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
232 UNDERSTANDING YOUR INSTRUMENT PANEL

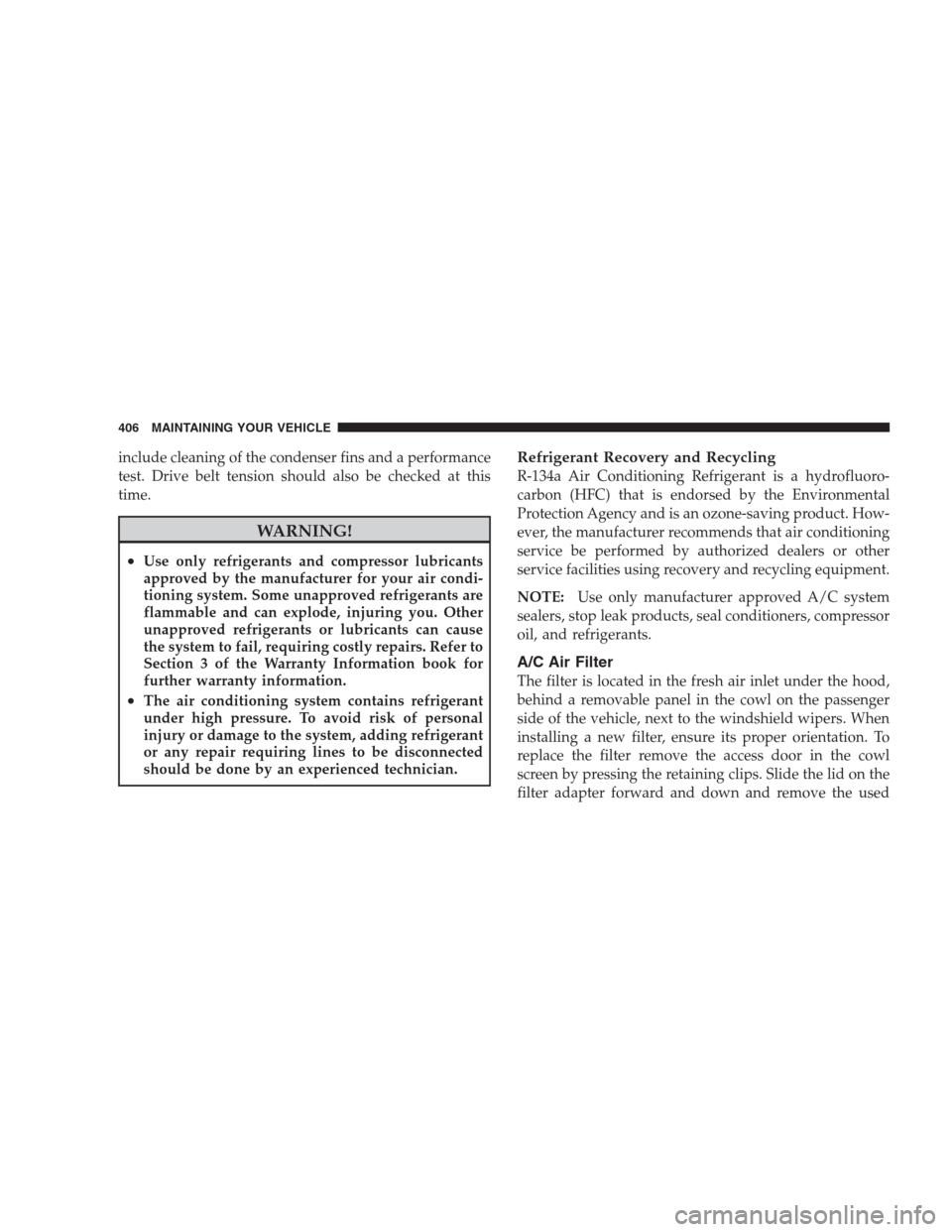

include cleaning of the condenser fins and a performance
test. Drive belt tension should also be checked at this
time.
WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Section 3 of the Warranty Information book for
further warranty information.
•The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced technician.
Refrigerant Recovery and Recycling
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealers or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
sealers, stop leak products, seal conditioners, compressor
oil, and refrigerants.
A/C Air Filter
The filter is located in the fresh air inlet under the hood,
behind a removable panel in the cowl on the passenger
side of the vehicle, next to the windshield wipers. When
installing a new filter, ensure its proper orientation. To
replace the filter remove the access door in the cowl
screen by pressing the retaining clips. Slide the lid on the
filter adapter forward and down and remove the used
406 MAINTAINING YOUR VEHICLE

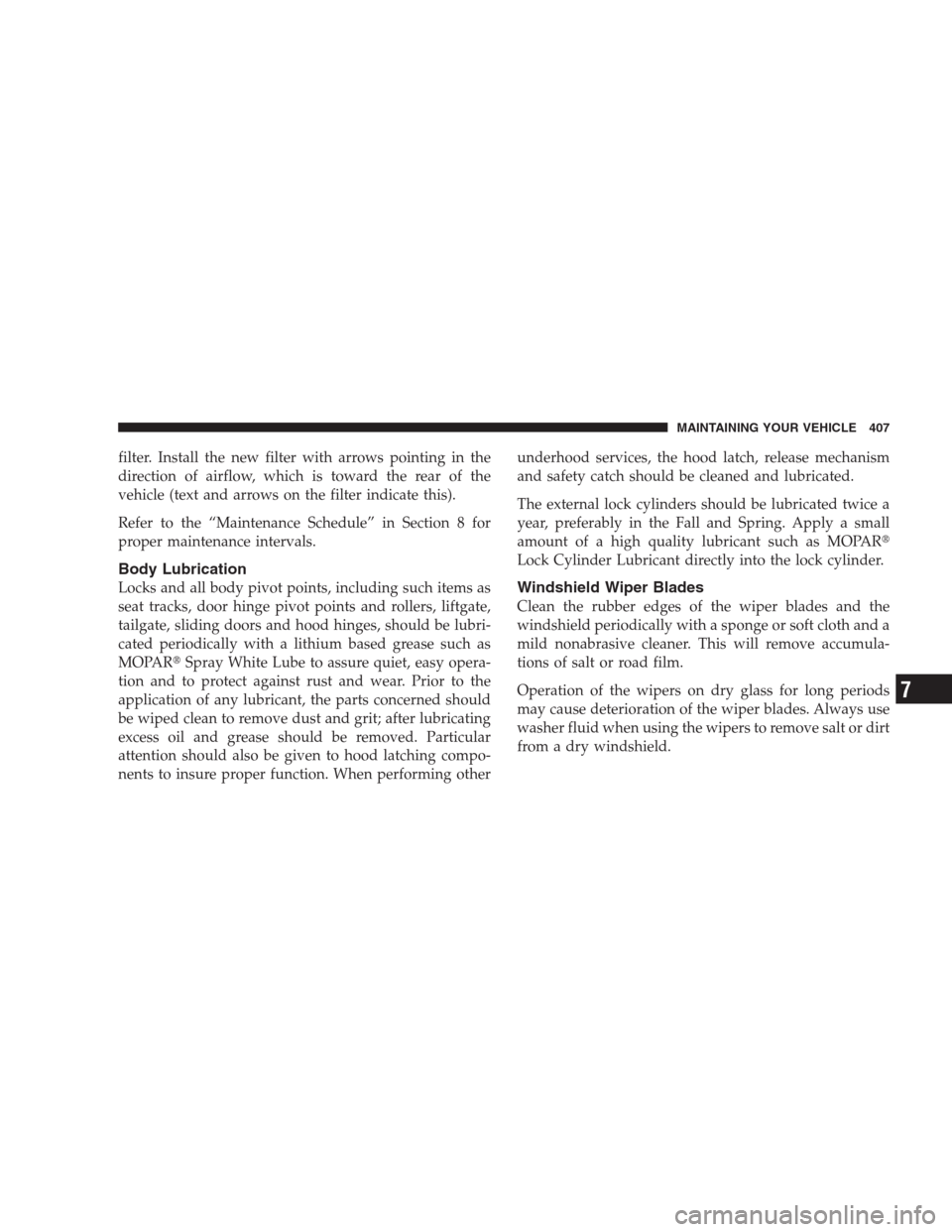

filter. Install the new filter with arrows pointing in the
direction of airflow, which is toward the rear of the
vehicle (text and arrows on the filter indicate this).
Refer to the “Maintenance Schedule” in Section 8 for
proper maintenance intervals.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease such as
MOPARSpray White Lube to assure quiet, easy opera-
tion and to protect against rust and wear. Prior to the
application of any lubricant, the parts concerned should
be wiped clean to remove dust and grit; after lubricating
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to insure proper function. When performing otherunderhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant directly into the lock cylinder.Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
MAINTAINING YOUR VEHICLE 407
7

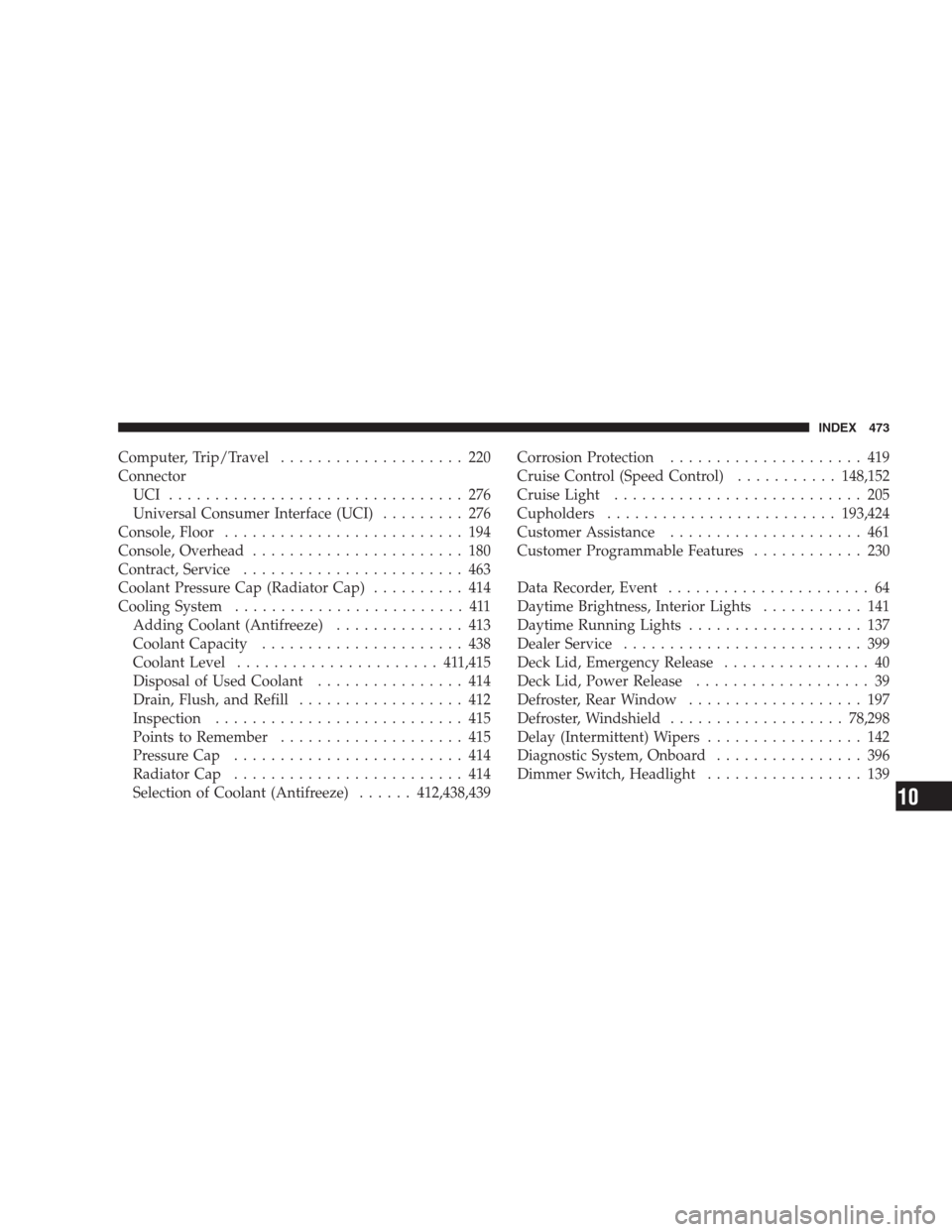

Computer, Trip/Travel.................... 220
Connector
UCI ................................ 276
Universal Consumer Interface (UCI)......... 276
Console, Floor.......................... 194
Console, Overhead....................... 180
Contract, Service........................ 463
Coolant Pressure Cap (Radiator Cap).......... 414
Cooling System......................... 411
Adding Coolant (Antifreeze).............. 413
Coolant Capacity...................... 438
Coolant Level...................... 411,415
Disposal of Used Coolant................ 414
Drain, Flush, and Refill.................. 412
Inspection........................... 415
Points to Remember.................... 415
Pressure Cap......................... 414
Radiator Cap......................... 414
Selection of Coolant (Antifreeze)......412,438,439Corrosion Protection..................... 419
Cruise Control (Speed Control)...........148,152
Cruise Light........................... 205
Cupholders.........................193,424
Customer Assistance..................... 461
Customer Programmable Features............ 230
Data Recorder, Event...................... 64
Daytime Brightness, Interior Lights........... 141
Daytime Running Lights................... 137
Dealer Service.......................... 399
Deck Lid, Emergency Release................ 40
Deck Lid, Power Release................... 39
Defroster, Rear Window................... 197
Defroster, Windshield...................78,298
Delay (Intermittent) Wipers................. 142
Diagnostic System, Onboard................ 396
Dimmer Switch, Headlight................. 139
INDEX 473
10

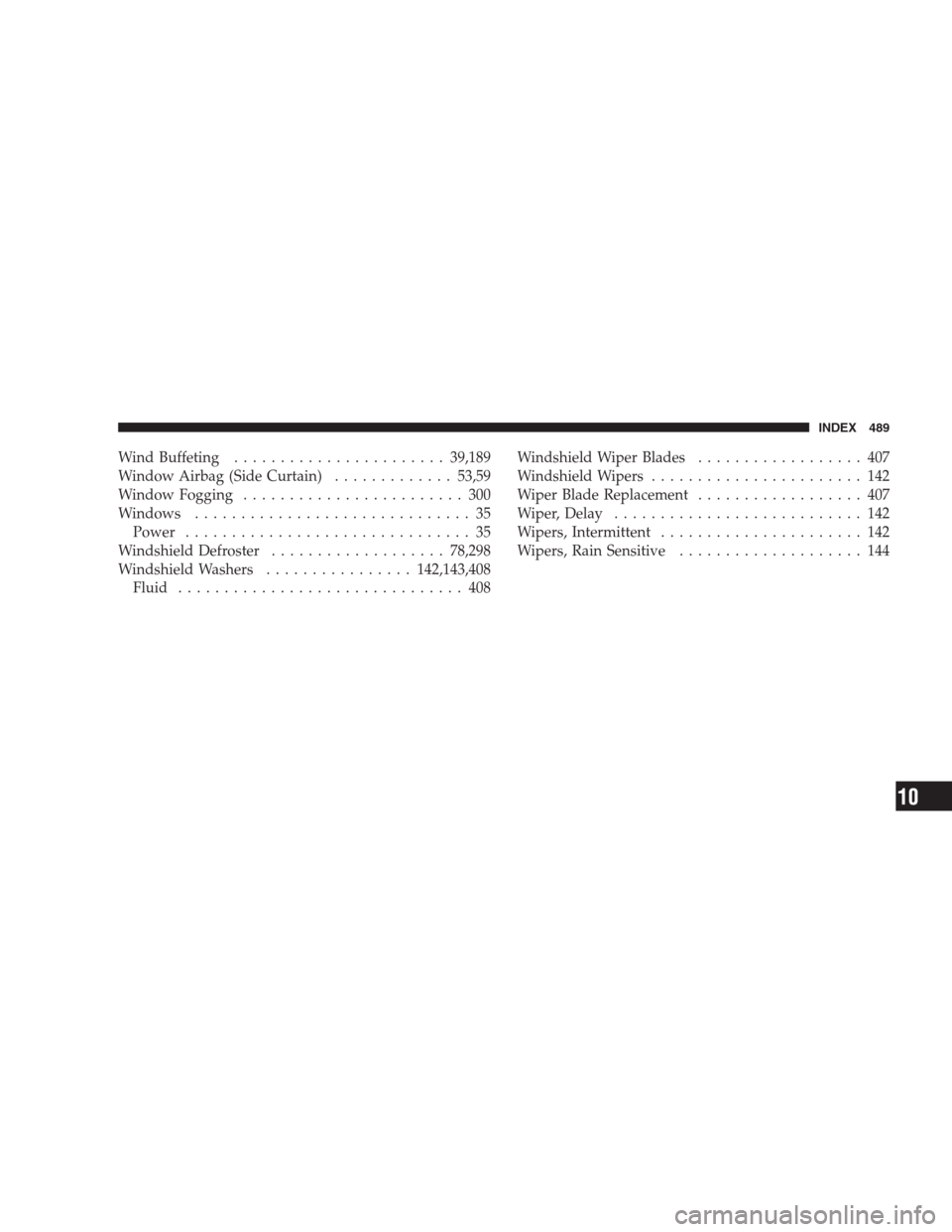

Wind Buffeting.......................39,189
Window Airbag (Side Curtain).............53,59
Window Fogging........................ 300
Windows.............................. 35
Power............................... 35
Windshield Defroster...................78,298
Windshield Washers................142,143,408
Fluid............................... 408Windshield Wiper Blades.................. 407
Windshield Wipers....................... 142
Wiper Blade Replacement.................. 407
Wiper, Delay........................... 142
Wipers, Intermittent...................... 142
Wipers, Rain Sensitive.................... 144
INDEX 489
10
