WARNINGS AND CAUTIONS
This manual containsWARNINGSagainst operating
procedures which could result in an accident or bodily
injury. It also containsCAUTIONSagainst procedures
which could result in damage to your vehicle. If you do
not read this entire manual you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Auto-
mobile Information Disclosure Label affixed to a window
on your vehicle, the vehcile registration and title.
NOTE:It is illegal to remove the VIN.
VIN Location
INTRODUCTION 7
1

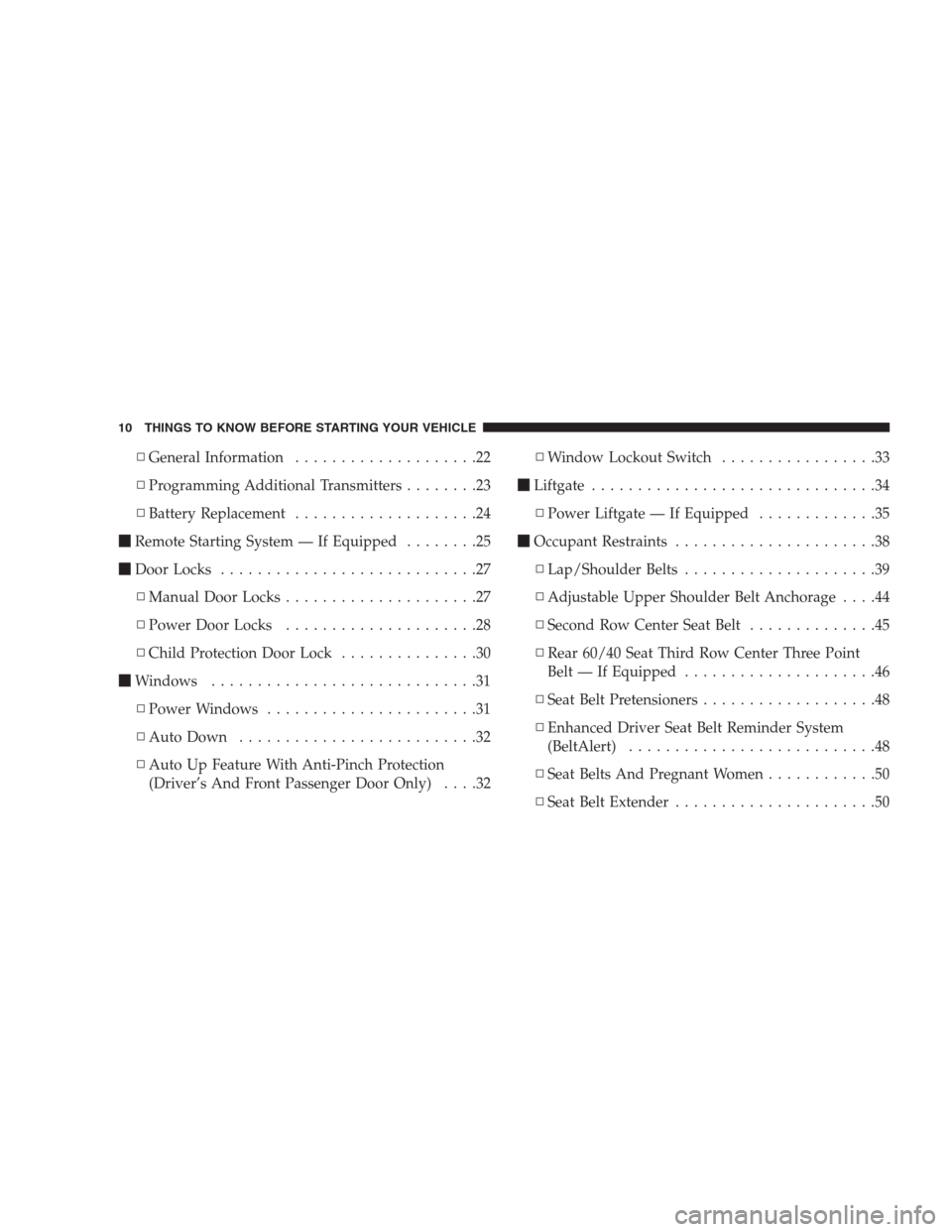

▫General Information....................22
▫Programming Additional Transmitters........23
▫Battery Replacement....................24
Remote Starting System — If Equipped........25
Door Locks............................27
▫Manual Door Locks.....................27
▫Power Door Locks.....................28
▫Child Protection Door Lock...............30
Windows.............................31
▫Power Windows.......................31
▫Auto Down..........................32
▫Auto Up Feature With Anti-Pinch Protection
(Driver’s And Front Passenger Door Only)....32▫Window Lockout Switch.................33
Liftgate...............................34
▫Power Liftgate — If Equipped.............35
Occupant Restraints......................38
▫Lap/Shoulder Belts.....................39
▫Adjustable Upper Shoulder Belt Anchorage....44
▫Second Row Center Seat Belt..............45
▫Rear 60/40 Seat Third Row Center Three Point
Belt — If Equipped.....................46
▫Seat Belt Pretensioners...................48
▫Enhanced Driver Seat Belt Reminder System
(BeltAlert)...........................48
▫Seat Belts And Pregnant Women............50
▫Seat Belt Extender......................50
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

in the ignition cylinder. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.
IGNITION AND STEERING LOCK
In the LOCK position, the steering and ignition systems
are locked to provide anti-theft protection for your ve-
hicle. It may be difficult to turn the key from the LOCK
position when starting your vehicle, if the steering wheel
is locked. Move the steering wheel left and right while
turning the key until it turns easily. The key can be
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

inserted or withdrawn only in the LOCK position. Push
in on the key in the ignition lock cylinder to rotate to the
LOCK position.WARNING!
The key cannot be turned to LOCK until the selector
is in the PARK position. Do not attempt to pull the
shift lever out of PARK after the key is in the LOCK
position.
NOTE:The steering wheel will lock when the key is
removed, and the steering wheel is turned around 115
degrees clockwise or 65 degrees counterclockwise from
the center position.
Ignition Accessory Delay Feature
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC),the power window switches,
radio, hands–free system (if equipped), and power out-
lets will remain active for 10 minutes after the ignition
switch is turned off. Opening either front door will cancel
this feature.
Ignition Switch Positions
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

For vehicles equipped with the Electronic Vehicle Infor-
mation Center (EVIC), the power window switches,
radio, hands–free system (if equipped), and power out-
lets will remain active for up to 10 minutes after the
ignition switch is turned off. Opening either front door
will cancel this feature. The time for this feature is
programmable. For details, refer to “KEY OFF POWER
DELAY > OFF” under “Personal Settings (Customer
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 3 of this manual.
SENTRY KEY — IF EQUIPPED
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorizedvehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two (2)
seconds if someone uses an invalid key to start the
engine.
NOTE:A key that has not been programmed is consid-
ered an invalid key even if it is cut to fit the ignition lock
cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will
turn on for three (3) seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to start the engine. Either of
these conditions will result in the engine being shut off
after two (2) seconds.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the remote start sequence was initiated
but cancelled before the engine begins to crank. After
either of these conditions, or if the Vehicle Theft Alarm is
alarming, or if the PANIC button was pressed, the vehicle
must be reset by inserting a valid key into the ignition
and moving it to the RUN position, then back to LOCK.
DOOR LOCKS
Manual Door Locks
All the doors can be “manually” locked from the inside
by pushing down the door lock plunger, located at the
rear of the door. Both front doors may be opened from the
inside with the door lock plunger in the down or locked
position.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for
a number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys
in the ignition. A child could operate power
windows, other controls, or move the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE:After setting the child protection door lock
system, always test the door from the inside to make
certain it is in the desired position.
NOTE:For emergency exit with the system engaged,
move the door lock switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
WINDOWS
Power Windows
The control on the left front door has up-down switches
that give you finger tip control of all four power win-
dows. There is a single opening and closing switch on the
passenger doors for passenger window control. The
Power Window Switch
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

windows will operate only when the ignition switch is
turned to the ON position and for ten minutes after the
ignition is turned OFF or the driver’s door is opened.
This feature can be turned off by your authorized dealer.
NOTE:The Power Accessory Delay feature will allow
the power windows to operate for ten minutes after the
ignition it turned OFF.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
Auto Down
The driver’s and front passenger window switch has an
Auto Down feature. Push the window switch past the
first detent, release, and the window will go down
automatically. To cancel the Auto Down movement,
operate the switch in either the up or down direction and
release the switch.
Auto Up Feature with Anti-Pinch Protection
(Driver’s and Front Passenger Door Only)
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
auto-up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If the window runs into any obstacle during the
auto-closure it will reverse direction and then stop. Re-
move the obstacle and use the window switch again to
close the window. Any impact due to rough road condi-
tions may trigger the auto reverse function unexpectedly
during auto closure. If this happens pull the switch lightly
to the first detent and hold to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Resetting the Auto-Up Feature
Should the Auto-Up feature stop working the window
probably needs to be reset. To reset Auto-Up:
Pull the window switch up and close the window com-
pletely, then pull and hold the switch for 1 second.
Window Lockout Switch
The window lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
window lock button. To enable the window controls,
press the window control button again.
Window Lockout Switch
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2

WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, knee
bolsters, front airbags for both the driver and front
passenger, and left and right side curtain airbags for the
driver and passengers seated next to a window. If you
will be carrying children too small for adult-size seat
belts, your seat belts or the LATCH feature (refer to the
Child Restraint section in this manual), can be used to
hold infant and child restraint systems.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
