clock CHRYSLER ASPEN 2008 2.G Owner's Manual

When changing a rear wheel, assemble the jack drive
tube to the jack and connect the drive tube to the
extension tube. Place the jack under the axle as close to
the tire as posssible with the drive tubes extending to the
rear. Connect the jack tube extension and wheel wrench.
Before raising the wheel off the ground, make sure that
the jack will not damage surrounding truck parts and
adjust the jack position as required.
4. By rotating the wheel wrench clockwise, raise the
vehicle until the wheel just clears the surface.
Rear Left Jacking Location
Rear Right Jacking Location
WHAT TO DO IN EMERGENCIES 373
6

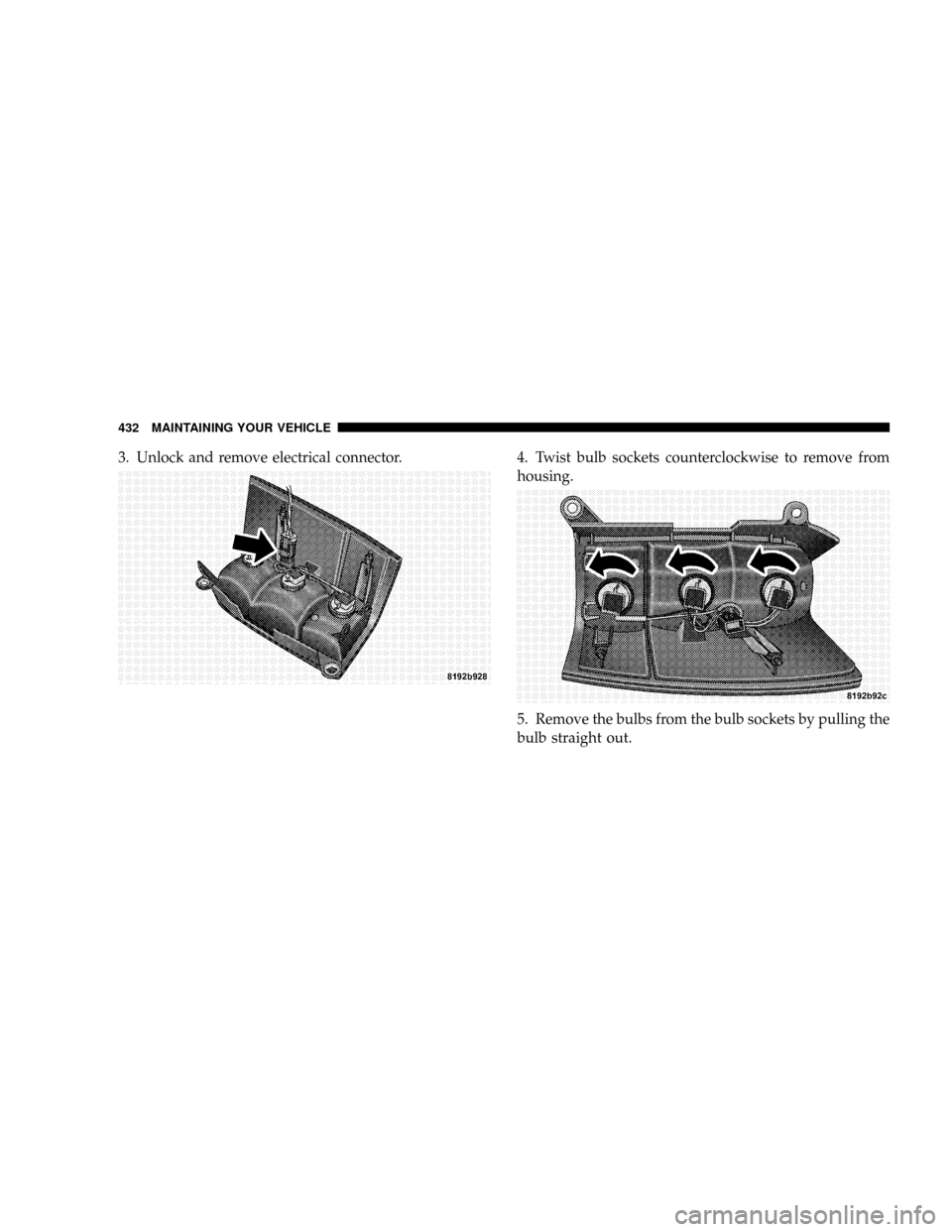

3. Unlock and remove electrical connector. 4. Twist bulb sockets counterclockwise to remove from
housing.
5. Remove the bulbs from the bulb sockets by pulling the
bulb straight out.
432 MAINTAINING YOUR VEHICLE

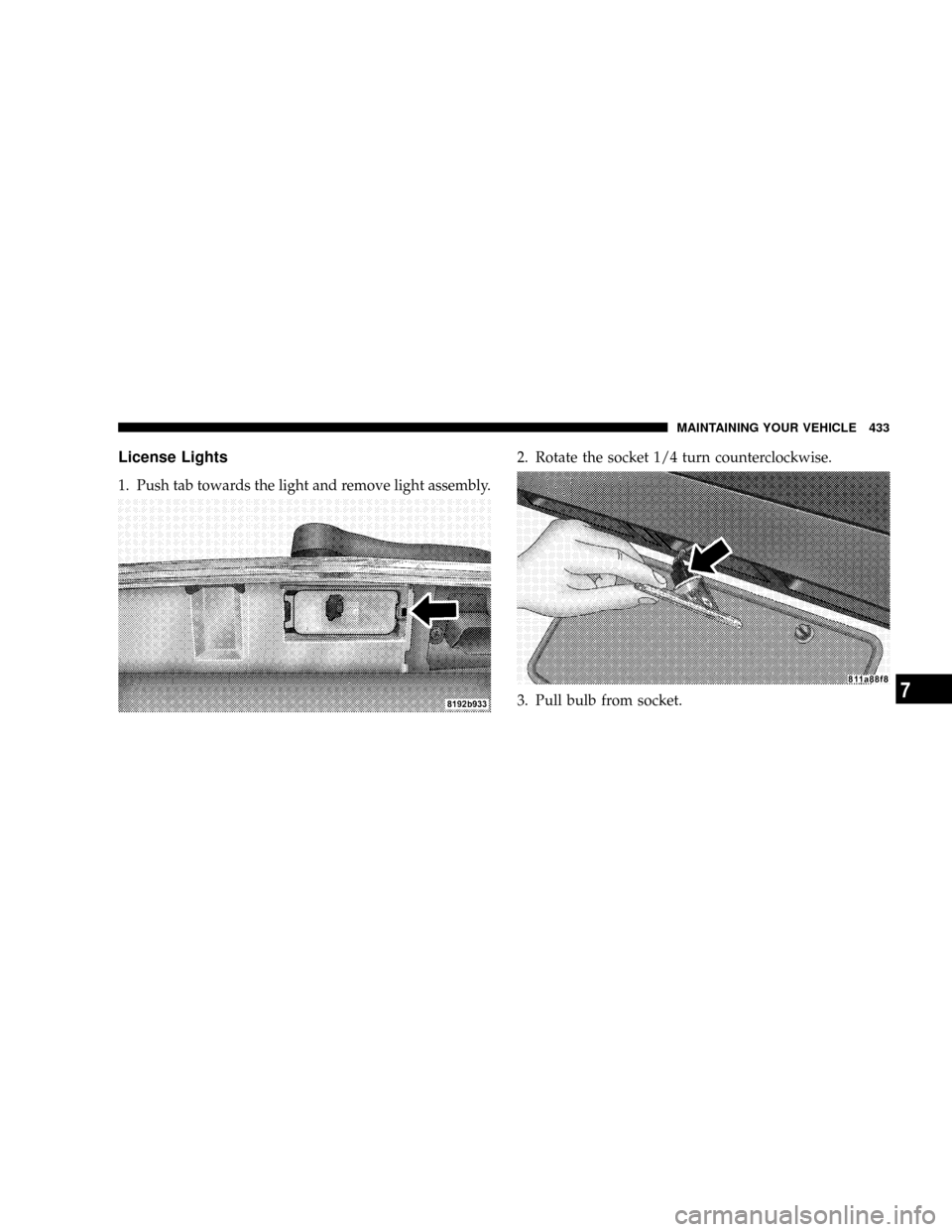

License Lights
1. Push tab towards the light and remove light assembly.2. Rotate the socket 1/4 turn counterclockwise.
3. Pull bulb from socket.
MAINTAINING YOUR VEHICLE 433
7

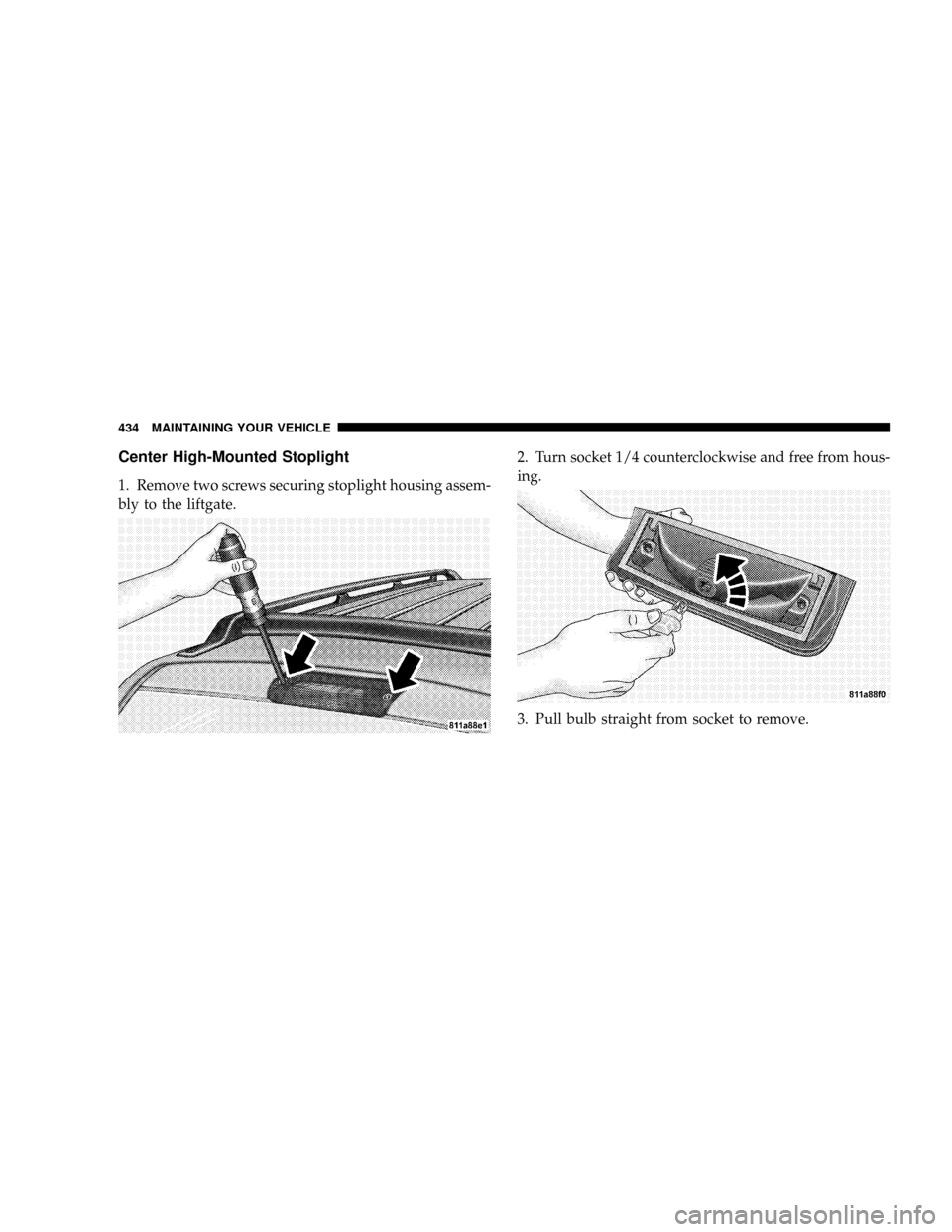

Center High-Mounted Stoplight
1. Remove two screws securing stoplight housing assem-
bly to the liftgate.2. Turn socket 1/4 counterclockwise and free from hous-
ing.
3. Pull bulb straight from socket to remove.
434 MAINTAINING YOUR VEHICLE

Fog Lights
To replace the left foglamp bulb:
1. Remove the three wheel liner screws2. Remove the far left air dam screw at the bottom of the
fascia.
3. Peel back the liner and access the fog light.
4. Rotate the socket and connector 1/4 turn counter-
clockwise and pull straight reward to disengage from the
light.
5. Remove the bulb from the socket and replace.
The right fog light can be accessed from below the
vehicle. Follow the previous Steps 4 and 5 of the left fog
light to replace the bulb.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat build-up, which reduces bulb
life.
1 - Wheel Liner Screws
2 - Far Left Air Dam ScrewMAINTAINING YOUR VEHICLE 4357

Caps, Filler
Fuel................................ 336
Oil (Engine).......................... 392
Power Steering........................ 398
Radiator (Coolant Pressure)............... 405
Car Washes............................ 415
Carbon Monoxide Warning...............75,335
Cargo Management System................. 194
Cargo Organizer....................... 194
Cargo Organizer........................ 194
Cargo (Vehicle Loading)................... 342
Catalytic Converter...................... 395
CD (Compact Disc) Player...............217,220
Cellular Phone..................88,220,221,248
Center High Mounted Stop Light............ 434
Certification Label....................... 342
Charging.............................. 376
Chart, Tire Sizing........................ 305
Child Restraint......................64,65,66Child Restraint Tether Anchors.............68,73
Child Seat.............................. 69
Circuit Breakers......................... 419
Cleaning
Wheels............................. 416
Climate Control......................... 249
Climate Control, Rear Zone..............253,259
Clock.....................214,215,218,221,226
Compact Disc (CD) Maintenance............. 247
Compact Spare Tire...................... 316
Compass Calibration..................... 174
Compass Variance....................... 174
Connector
UCI ................................ 241
Universal Consumer Interface (UCI)......... 241
Console, Floor.......................189,191
Console, Overhead....................165,166
Contract, Service........................ 451
Coolant Pressure Cap (Radiator Cap)....384,385,405
460 INDEX

Child Restraint.......................64,66
Extender............................. 53
Front Seat............................ 42
Pretensioners.......................... 50
Reminder............................ 204
Seats................................. 120
Adjustment.......................... 120
Cleaning............................ 416
Fold and Tumble Rear................127,129
Heated............................. 124
Lumbar Support....................... 122
Memory............................. 137
Rear Folding.......................127,129
Reclining............................ 121
Security Alarm (Theft Alarm).............18,205
Selection of Coolant (Antifreeze)..........403,437
Selection of Oil......................... 391
Sentry Key (Immobilizer)................... 13
Sentry Key Programming................... 15Sentry Key Replacement................... 15
Service and Maintenance................389,440
Service Assistance....................... 449
Service Contract......................... 451
Service Manuals........................ 453
Setting the Clock................215,218,221,226
Settings, Personal........................ 170
Shifting
Automatic Transmission................. 274
Transfer Case......................... 280
Transfer Case, Shifting into Transfer Case
Neutral (N).......................... 361
Transfer Case, Shifting out of Transfer Case
Neutral (N).......................... 362
Shoulder Belt Upper Anchorage.............. 46
Shoulder Belts........................... 42
Signals, Turn.....................149,203,431
Snow Chains (Tire Chains)................. 321
Snow Plow............................ 359
472 INDEX
