Fuses (Interior)
The fuse block contains blade-type mini-fuses, relays,
and circuit breakers for high-current circuits. It is located
in the left kick panel. It is accessible through a snap-in
cover.
Interior Fuse Panel Cover
Interior Fuse Location
420 MAINTAINING YOUR VEHICLE

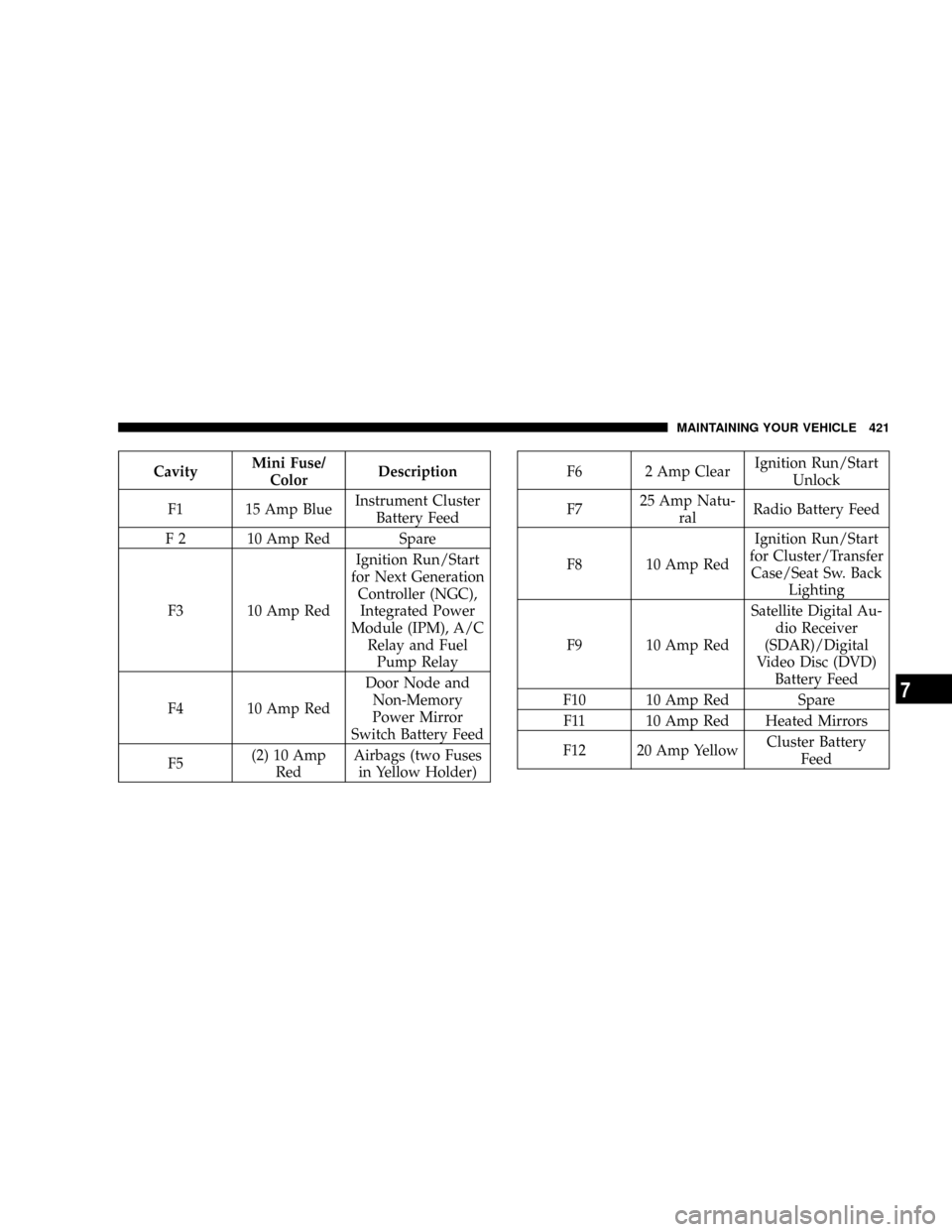

CavityMini Fuse/
ColorDescription
F1 15 Amp BlueInstrument Cluster
Battery Feed
F 2 10 Amp Red Spare
F3 10 Amp RedIgnition Run/Start
for Next Generation
Controller (NGC),
Integrated Power
Module (IPM), A/C
Relay and Fuel
Pump Relay
F4 10 Amp RedDoor Node and
Non-Memory
Power Mirror
Switch Battery Feed
F5(2) 10 Amp
RedAirbags (two Fuses
in Yellow Holder)F6 2 Amp ClearIgnition Run/Start
Unlock
F725 Amp Natu-
ralRadio Battery Feed
F8 10 Amp RedIgnition Run/Start
for Cluster/Transfer
Case/Seat Sw. Back
Lighting
F9 10 Amp RedSatellite Digital Au-
dio Receiver
(SDAR)/Digital
Video Disc (DVD)
Battery Feed
F10 10 Amp Red Spare
F11 10 Amp Red Heated Mirrors
F12 20 Amp YellowCluster Battery
Feed
MAINTAINING YOUR VEHICLE 421
7

F13 10 Amp RedIgnition Run HVAC
Module/Heated
Rear Glass (EBL)
Relay
F14 10 Amp RedABS Module Igni-
tion Run
F15 15 Amp BlueBattery Feed
Bluetootht,
Compass/Trip
Computer (CMTC),
Sentry KeytDiag-
nostics
F16 20 Amp YellowReconfigurable
Power Outlets
F17 20 Amp YellowIgnition Run / Rear
Park Assist / Sec-
ond Row Heated
Seats
F18 20 Amp YellowCigar Lighter Igni-
tion
F19 10 Amp Red Spare Fuse
F20 15 Amp BlueHeating & Air Con-
ditioning w/ATC
Only Battery Feed
F2125 Amp Natu-
ralAmplifier Battery
Feed
422 MAINTAINING YOUR VEHICLE

Fuses (Power Distribution Center)
Your vehicle is equipped with an electrical power distri-
bution center located in the left side of the engine
compartment.
This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may bestamped on the inside cover, otherwise the cavity num-
ber of each fuse is stamped on the inside cover that
corresponds to the following chart. These fuses and
relays can be obtained from your authorized dealer.
CavityCartridge
Fuse /
RelayMini
FuseDescription
1 30 Amp
PinkStarter
2 30 Amp
PinkFront Wiper
3 40 Amp
GreenBrake Batt
4 30 Amp
PinkJB Feed Acc # 2
5 40 Amp
GreenPower Seats
6 30 Amp
PinkRun Remote Relay
Feed
Power Distribution Center
MAINTAINING YOUR VEHICLE 423
7

CavityCartridge
Fuse /
RelayMini
FuseDescription
7 40 Amp
GreenBlower Motor Relay
Feed
8 40 Amp
GreenJB Feed Acc Delay
9 Spare
10 30 Amp
PinkASD
11 40 Amp
GreenPower Liftgate ( If
Equipped)
12 40 Amp
GreenJB Feed / Heated
Rear Glass (EBL)/T-
Case Brake
13 30 Amp
PinkJB Feed RR
14 40 Amp
GreenESP PumpCavityCartridge
Fuse /
RelayMini
FuseDescription
15 50 Amp
RedJB Feed
16 10 Amp
RedSpare
17 Spare
18 20 Amp
YellowFuel Pump
19 20 Amp
YellowNext Generation Con-
troller (NGC)
20 25 Amp
Clear115V Power Inverter
21 20 Amp
YellowABS Batt
22 20 Amp
YellowNext Generation Con-
troller (NGC) Batt
424 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse /
RelayMini
FuseDescription
23 20 Amp
YellowTrailer Tow
24 15 Amp
BlueA/C Clutch
25 15 Amp
BlueStop Lamp Switch
26 Spare
27 20 Amp
YellowRun/Start Relay Feed
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 Spare
32 Relay StarterCavityCartridge
Fuse /
RelayMini
FuseDescription
33 Relay Electronic Automatic
Transaxle (EATX)
34 Relay AC Clutch
35 Relay Fuel Pump Rly
36 Spare
37 Relay Stop Lamp Switch
38 Spare
39 Relay Blower Motor
40 Relay Auto Shut Down
(ASD) Rly
MAINTAINING YOUR VEHICLE 425
7

Fuses (Integrated Power Module)
An integrated power module is located in the left side of
the engine compartment. This center contains cartridge
fuses, mini fuses and relays. A description of each fuse
and component may be stamped on the inside cover,otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
CavityCartridge
Fuse /
RelayMini
FuseDescription
1 Relay Wiper On/Off Rly
2 Relay Wiper Hi/Lo Rly
3 Relay Horn Rly
4 Relay Rear Wiper Rly
5 Relay Lt Trailer-Tow Stop/
Turn Rly
6 Relay Rt Trailer-Tow Stop/
Turn Rly
7 Relay Park Lamps Rly
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
Integrated Power Module
426 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse /
RelayMini
FuseDescription
10 10 Amp
RedRt Park Lamps
11 Relay Radiator Fan Hi Rly
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHorn
17 20 Amp
YellowRear WiperCavityCartridge
Fuse /
RelayMini
FuseDescription
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFront Control Module
(FCM) BATT # 5
23 40 Amp
GreenRadiator Fan
24 Relay Radiator Fan Lo Rly
25 Relay Ft Fog Lamps Rly
26 Relay Adjustable Pedal Rly
MAINTAINING YOUR VEHICLE 427
7

CavityCartridge
Fuse /
RelayMini
FuseDescription
27 30 Amp
GreenIgnition Off Draw
(IOD) #1
28 30 Amp
GreenIgnition Off Draw
(IOD) #2
29 Spare
30 Spare
VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle's battery:
²Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
²The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
²As an alternative to the above steps you may discon-
nect the negative cable from the battery.
