General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user's authority to operate the equipment.
If your Remote Lock Control fails to operate from a
normal distance, check for these two conditions.
1. Weak batteries in transmitter. The expected life of the
batteries is five years.2. Closeness to a radio transmitter, such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
Programming Additional Transmitters
Vehicles will be shipped from the assembly plants with
two key fob transmitters programmed only for that
vehicle. A total of eight key fobs can be programmed for
your vehicle. Additional key fobs can be programmed to
your vehicle through the use of a currently programmed
fob.
NOTE:When entering program mode using that key
fob, all other programmed key fobs will be erased and
you will have to reprogram them for your vehicle.
Use the following procedure to program additional key
fobs if the vehicle is not equipped with Sentry Keyt:
1. Enter your vehicle and close all doors.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

Airbag System Components
The airbag system consists of the following:
²Occupant Restraint Controller
²Side Remote Acceleration Sensors
²Airbag Warning Light
²Driver Airbag
²Passenger Airbag
²Window Bags above Side Windows
²Steering Wheel and Column
²Instrument Panel
²Interconnecting Wiring
²Knee Impact Bolsters
²Front Acceleration Sensors
²Driver and Front Passenger Seat Belt Pretensioners
How the Airbag System Works
²
TheOccupant Restraint Controller (ORC)determines
if a frontal collision is severe enough to require the
airbags to inflate. The front airbag inflators are de-
signed to provide different rates of airbag inflation
from direction provided by the ORC. The ORC will
detect a roll over when equipped with side airbags.
The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or RUN positions. These include all of the
items listed above except the steering wheel and
column, and knee bolsters. If the key is in the OFF
position, in the ACC position, or not in the ignition,
the airbags are not ªonº and will not inflate.
During a moderate-to-severe rear impact the ORC may
deploy the seat belt pretensioners alone.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
2

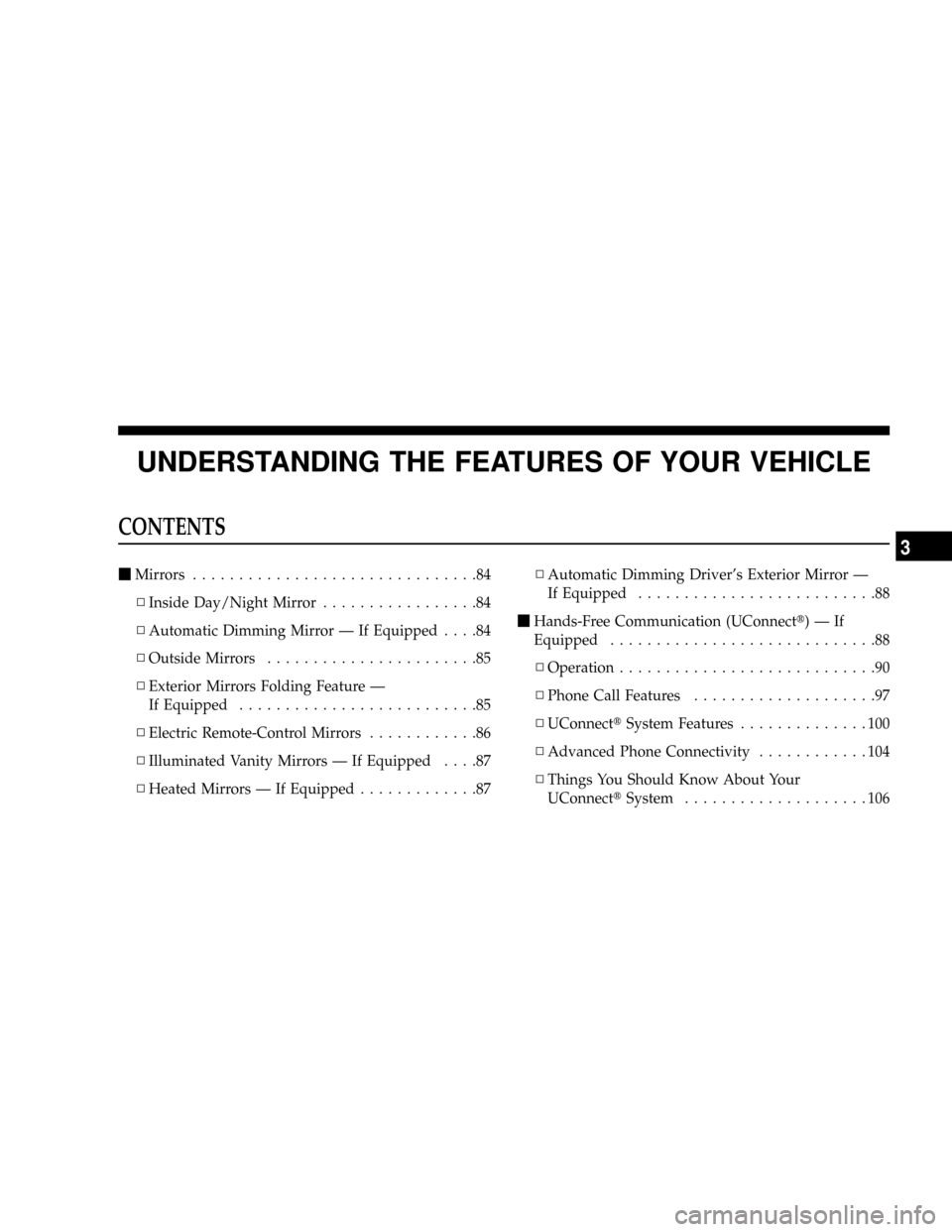

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
mMirrors...............................84
NInside Day/Night Mirror.................84
NAutomatic Dimming Mirror Ð If Equipped....84
NOutside Mirrors.......................85
NExterior Mirrors Folding Feature Ð
If Equipped..........................85
NElectric Remote-Control Mirrors............86
NIlluminated Vanity Mirrors Ð If Equipped....87
NHeated Mirrors Ð If Equipped.............87NAutomatic Dimming Driver's Exterior Mirror Ð
If Equipped..........................88
mHands-Free Communication (UConnectt)ÐIf
Equipped.............................88
NOperation............................90
NPhone Call Features....................97
NUConnecttSystem Features..............100
NAdvanced Phone Connectivity............104
NThings You Should Know About Your
UConnecttSystem....................106
3

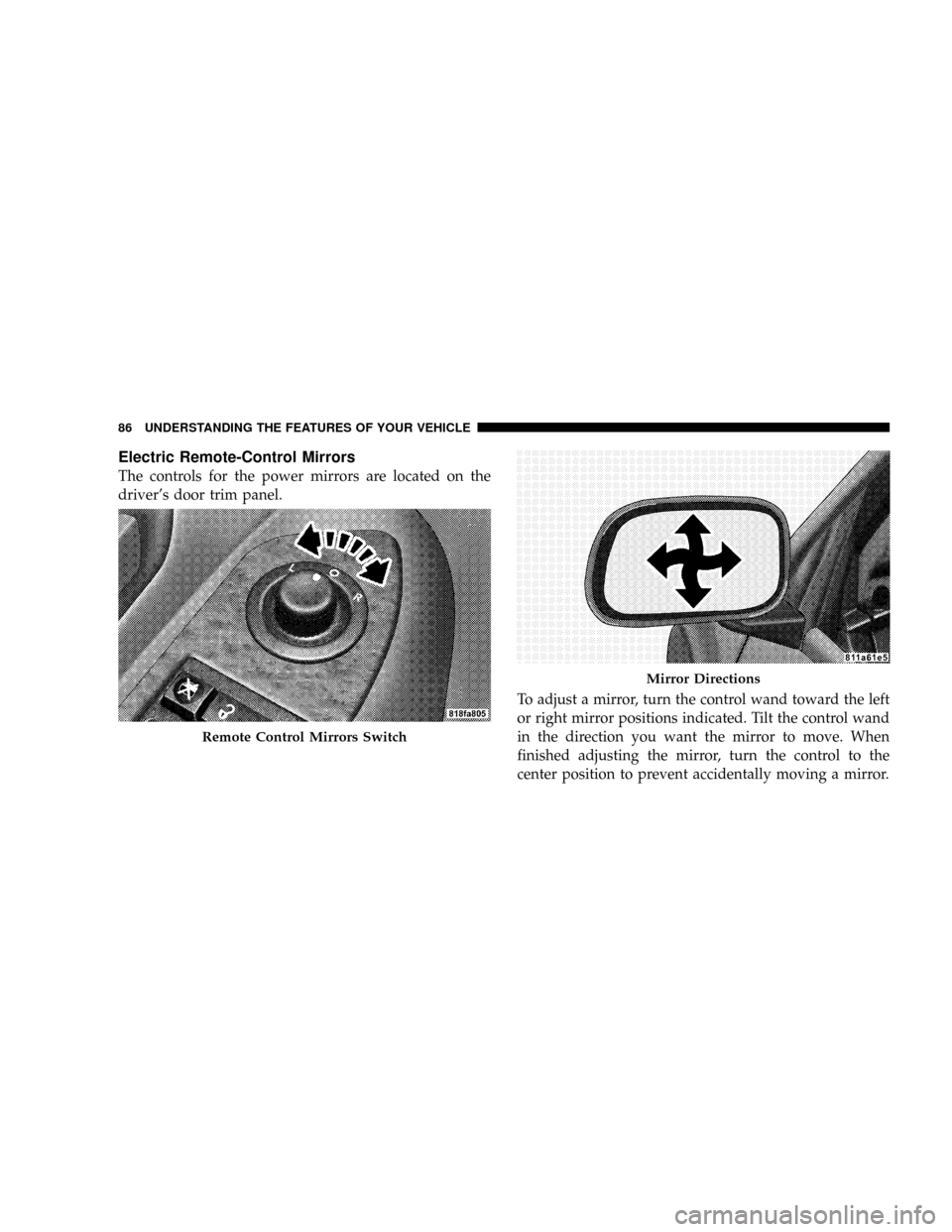

Electric Remote-Control Mirrors
The controls for the power mirrors are located on the
driver's door trim panel.
To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move. When
finished adjusting the mirror, turn the control to the
center position to prevent accidentally moving a mirror.
Remote Control Mirrors Switch
Mirror Directions
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

²Electronic Vehicle Information Center (EVIC) Ð If
Equipped
Courtesy/Reading Lights
Near the front of the console is one courtesy and two
reading lights.
All lights illuminate as courtesy lights when a door is
opened, when the dimmer control is rotated to the
courtesy light position (fully upward position), or when
the UNLOCK button is pressed on the Remote Keyless
Entry (RKE) Transmitter, if so equipped. The two round
lamps are also operated individually as reading lights by
pressing the center of each lens.
NOTE:The courtesy/reading lights will remain on until
the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the vehicle is turned OFF, they will
turn off after 15 minutes.
OVERHEAD CONSOLE WITH ELECTRONIC
VEHICLE INFORMATION CENTER (EVIC) Ð IF
EQUIPPED
The overhead console contains dome/reading lights, and
an Electronic Vehicle Information Center (EVIC).
Dome/Reading Lights
Located in the overhead console are two dome/reading
lights.
The dome/reading lights illuminate when a door is
opened or when the interior lights are turned on by
rotating the dimmer control located on the headlight
switch.
The reading lights are activated by pressing the center of
each lens.
NOTE:The dome/reading lights will remain on until
the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle.
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

GARAGE DOOR OPENER Ð IF EQUIPPED
HomeLinktreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLinktunit operates off your vehicle's
battery.
The HomeLinktbuttons are located in the overhead
console, and contain one, two, or three dots/lines desig-
nating the different HomeLinktchannels.
NOTE:HomeLinktis disabled when the Vehicle Secu-
rity Alarm is active.
HomeLinktButtons
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOperating Instructions - Video Entertainment
System (VESŸ) (If Equipped).............241
mUniversal Consumer Interface (UCI) Ð
If Equipped...........................241
NConnecting The iPodtDevice............242
NControlling The iPodtUsing Radio Buttons . . . 242
NPlay Mode..........................242
NList Or Browse Mode..................244
mVideo Entertainment System (Sales Code XRV) Ð
If Equipped...........................246
mRemote Sound System Controls Ð If Equipped . . 246
NRight-Hand Switch Functions.............246
NLeft-Hand Switch Functions For Radio
Operation...........................247NLeft-Hand Switch Functions For Media
(i.e., CD) Operation....................247
mCompact Disc Maintenance................247
mRadio Operation And Cellular Phones........248
mClimate Controls.......................249
NManual Control......................249
NAir Conditioning Operation..............249
NFront Blower Control...................250
NFront Mode Control...................250
NRear Temperature Control Ð If Equipped....253
NRear Window Defrosting And Rear Window
Washer/Wiper.......................253
NAutomatic Temperature Control (ATC) Ð If
Equipped...........................254
INSTRUMENT PANEL AND CONTROLS 199
4

VIDEO ENTERTAINMENT SYSTEM (SALES CODE
XRV) Ð IF EQUIPPED
The optional Video Entertainment SystemŸ (VESŸ)
consists of a DVD player and LCD (liquid crystal display)
screen, a battery-powered remote control, and two head-
sets. The system is located in the headliner behind the
front row seat. Refer to your VESŸ User's Manual for
detailed operating instructions.
REMOTE SOUND SYSTEM CONTROLS Ð IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel. The left- and right-hand
controls are rocker-type switches with a pushbutton in
the center of each switch. Reach behind the steering
wheel to access the switches.
Right-Hand Switch Functions
²
Press the top of the switch to increase the volume.
²Press the bottom of the switch to decrease the volume.
²Press the button in the center of the switch to change
modes (i.e., AM, FM, etc).
Remote Sound Controls
246 INSTRUMENT PANEL AND CONTROLS

If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the Park
position. When the vehicle is restarted, the wiper will
resume operation.
Rear Window Defrosting
A pushbutton type switch is located in the climate
control panel. Press the switch and the rear win-
dow defroster and electric remote control heated mirrors
(if equipped) will turn on. An amber indicator on the
pushbutton will light when the defroster is turned on. A
symbol will be displayed when the defroster is turned on
with an ATC control. Push again to turn off prior to
time-out. The defroster will automatically turn off after
15 minutes. For 10 more minutes of operation, push the
button again. To prevent excessive battery drain, use the
defroster only when the engine is operating.
CAUTION!
Use care when washing the inside of the rear window
to prevent damage to heating elements. Use a soft
cloth and a mild washing solution, wiping parallel to
the heating elements. Also, keep all objects a safe
distance from the window to prevent damaging the
heating elements.
INSTRUMENT PANEL AND CONTROLS 265
4

Driving
Through Flowing, Rising, or Shallow Standing
Water.............................. 286
DVD Player (Video Entertainment System)...... 246
E-85 Fuel............................. 338
Electric Remote Mirrors.................... 86
Electrical Power Outlets................... 185
Electronic Brake Control System............. 294
Anti-Lock Brake System................. 294
Brake Assist System.................... 295
Electronic Roll Mitigation................ 297
Electronic Stability Program............... 298
Traction Control System................. 297
Electronic Roll Mitigation (ERM)............. 297
Electronic Speed Control (Cruise Control)...... 156
Electronic Stability Program (ESP).........210,298
Electronic Vehicle Information Center
(EVIC).............................163,167Emergency, In Case of
Freeing Vehicle When Stuck............... 378
Jacking............................. 370
Tow Hooks.......................... 378
Towing............................. 379
Emission Control System Maintenance......... 440
Emission Related Components.............. 407
Engine
Air Cleaner.......................... 394
Block Heater......................... 274
Break-In Recommendations................ 74
Compartment......................384,385
Coolant (Antifreeze).................... 437
Exhaust Gas Caution................40,75,335
Fails to Start.......................... 272
Flooded, Starting...................... 272
Fuel Requirements..................... 436
Jump Starting......................... 376
Multi-Displacement..................... 303
462 INDEX
