CHRYSLER ASPEN 2009 2.G Owners Manual

Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
14 40 Amp
GreenESP Pump
15 50 Amp
RedJB Feed
16 10 Amp
RedSpare
17 Spare
18 20 Amp
YellowFuel Pump
19 20 Amp
YellowNext Generation Con-
troller (NGC)
20 25 Amp
Clear115V Power Inverter
21 20 Amp
YellowABS BattCav-
ityCartridge
Fuse /
RelayMini Fuse Description
22 20 Amp
YellowNext Generation Con-
troller (NGC) Batt
23 20 Amp
YellowTrailer Tow
24 15 Amp
BlueA/C Clutch
25 15 Amp
BlueStop Lamp Switch
26 Spare
27 20 Amp
YellowRun/Start Relay Feed
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 Spare
MAINTAINING YOUR VEHICLE 419
7

Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
32 Relay Starter
33 Relay Electronic Automatic
Transaxle (EATX)
34 Relay AC Clutch
35 Relay Fuel Pump Rly
36 Spare
37 Relay Stop Lamp Switch
38 Spare
39 Relay Blower Motor
40 Relay Auto Shut Down
(ASD) RlyUnderhood Fuses (Integrated Power Module)
1 Ð Integrated Power Module 420 MAINTAINING YOUR VEHICLE

An integrated power module is located in the left side of
the engine compartment. This center contains cartridge
fuses, mini fuses and relays. A description of each fuse
and component may be stamped on the inside cover,
otherwise the cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
1 Relay Wiper On/Off Rly
2 Relay Wiper Hi/Lo Rly
3 Relay Horn Rly
4 Relay Rear Wiper Rly
5 Relay Lt Trailer-Tow Stop/
Turn Rly
6 Relay Rt Trailer-Tow Stop/
Turn Rly
7 Relay Park Lamps Rly
Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
10 10 Amp
RedRt Park Lamps
11 Relay Radiator Fan Hi Rly
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
MAINTAINING YOUR VEHICLE 421
7

Cav-
ityCartridge
Fuse /
RelayMini Fuse Description
16 20 Amp
YellowHorn
17 20 Amp
YellowRear Wiper
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFront Control Module
(FCM) BATT # 5
23 40 Amp
GreenRadiator FanCav-
ityCartridge
Fuse /
RelayMini Fuse Description
24 Relay Radiator Fan Lo Rly
25 Relay Ft Fog Lamps Rly
26 Relay Adjustable Pedal Rly
27 30 Amp
GreenIgnition Off Draw
(IOD) #1
28 30 Amp
GreenIgnition Off Draw
(IOD) #2
29 Spare
30 Spare
422 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle's battery:
²Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
²The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
²As an alternative to the above steps you may discon-
nect the negative cable from the battery.
REPLACEMENT LIGHT BULBS
LIGHT BULBS Ð Interior Bulb No.
Dome Light.................... NotServiceable
Liftgate Lamp........................... 567
Overhead Console Lights........... NotServiceable
Reading Light................... NotServiceable
Visor Vanity Lights............... NotServiceable
LIGHT BULBS Ð Exterior Bulb No.
Headlight............................. H13
Front Park/Turn......................3457AK
Backup...............................3057
Center High-Mounted Stop Light............. 921
Front Side Marker........................ 168
Fog Lamp.............................9145
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal and Side Marker....3057
MAINTAINING YOUR VEHICLE 423
7

BULB REPLACEMENT
Headlights/Parking/Turn Signal
1. Remove the two bolts attaching the headlight to the
upper fender reinforcement (hood must be opened to
access bolts).2. Remove one nut that attaches the headlight to the
inner fender panel. Access to the nut is possible by
opening the fender panel access door which is located in
the wheel liner.
3. Grasp the headlight and pull firmly to disengage the
headlight from the fender panel.
424 MAINTAINING YOUR VEHICLE

4. While firmly holding the headlight in your hands
disconnect all connectors by following the procedure
described in step number 5 below.
5. Remove the bulb connector from the headlight making
sure to pull and release the red tab on all connectors.
Loosen the connector by pressing down on the black
and/or green release which is located below or above the
red tab. The green release is located above the red tab on
the H13, the black release is located above the 3457AK
red tab.
6. Twist and remove socket from lamp.
7. Remove bulb from socket and replace.
NOTE:These are Halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat build-up which reduces bulb
life.Tail Lights, Turn Signals And Backup Lights Ð
Replacement
1. Remove the two push-pins from the tail light housing.
MAINTAINING YOUR VEHICLE 425
7

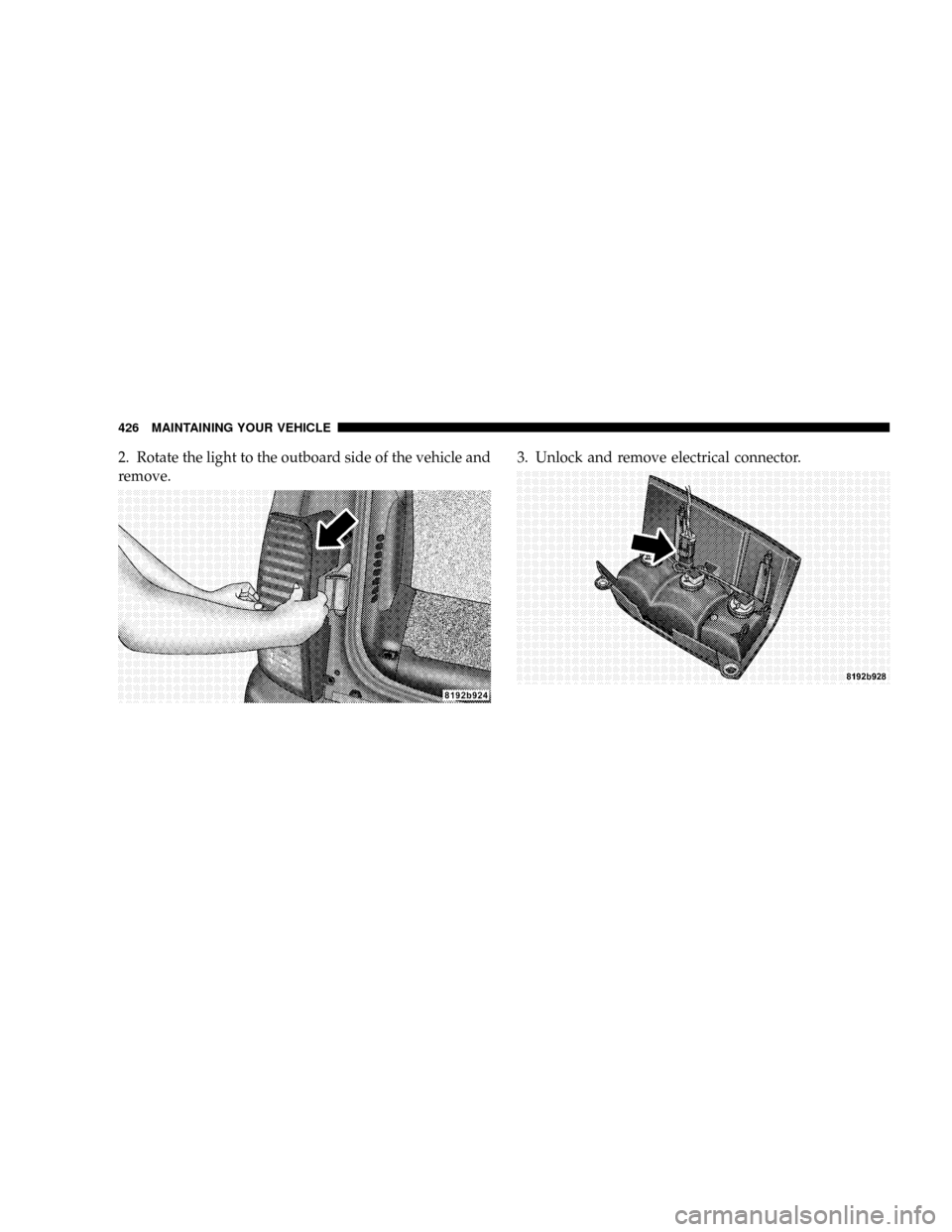

2. Rotate the light to the outboard side of the vehicle and
remove.3. Unlock and remove electrical connector.
426 MAINTAINING YOUR VEHICLE

4. Twist bulb sockets counterclockwise to remove from
housing.
5. Remove the bulbs from the bulb sockets by pulling the
bulb straight out.License Lights
1. Push tab towards the light and remove light assembly.
MAINTAINING YOUR VEHICLE 427
7

2. Rotate the socket 1/4 turn counterclockwise.
3. Pull bulb from socket.Center High-Mounted Stoplight
1. Remove two screws securing stoplight housing assem-
bly to the liftgate.
428 MAINTAINING YOUR VEHICLE
