Page 386 of 481

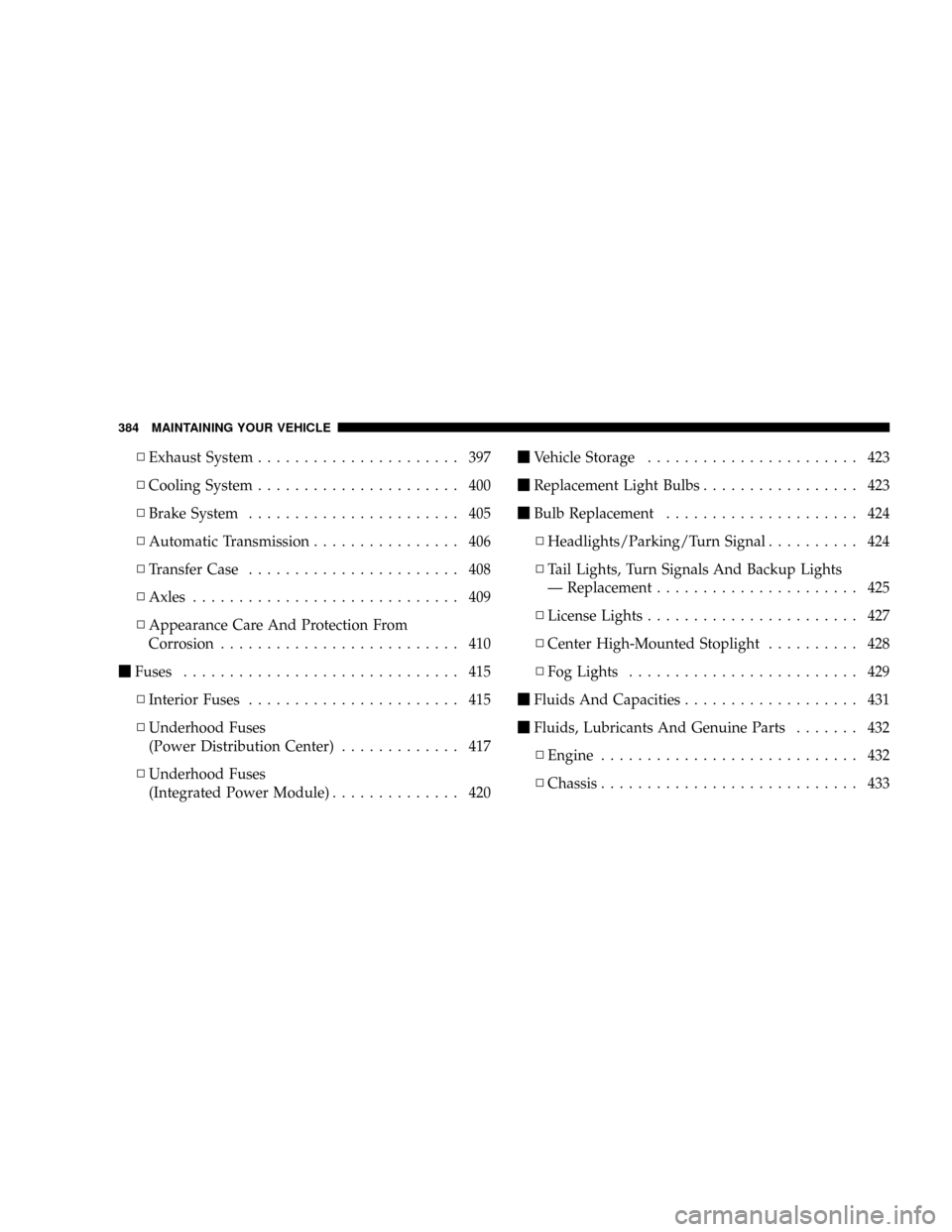

NExhaust System...................... 397
NCooling System...................... 400
NBrake System....................... 405
NAutomatic Transmission................ 406
NTransfer Case....................... 408
NAxles............................. 409
NAppearance Care And Protection From
Corrosion.......................... 410
mFuses.............................. 415
NInterior Fuses....................... 415
NUnderhood Fuses
(Power Distribution Center)............. 417
NUnderhood Fuses
(Integrated Power Module).............. 420mVehicle Storage....................... 423
mReplacement Light Bulbs................. 423
mBulb Replacement..................... 424
NHeadlights/Parking/Turn Signal.......... 424
NTail Lights, Turn Signals And Backup Lights
Ð Replacement...................... 425
NLicense Lights....................... 427
NCenter High-Mounted Stoplight.......... 428
NFog Lights......................... 429
mFluids And Capacities................... 431
mFluids, Lubricants And Genuine Parts....... 432
NEngine............................ 432
NChassis............................ 433
384 MAINTAINING YOUR VEHICLE
Page 425 of 481

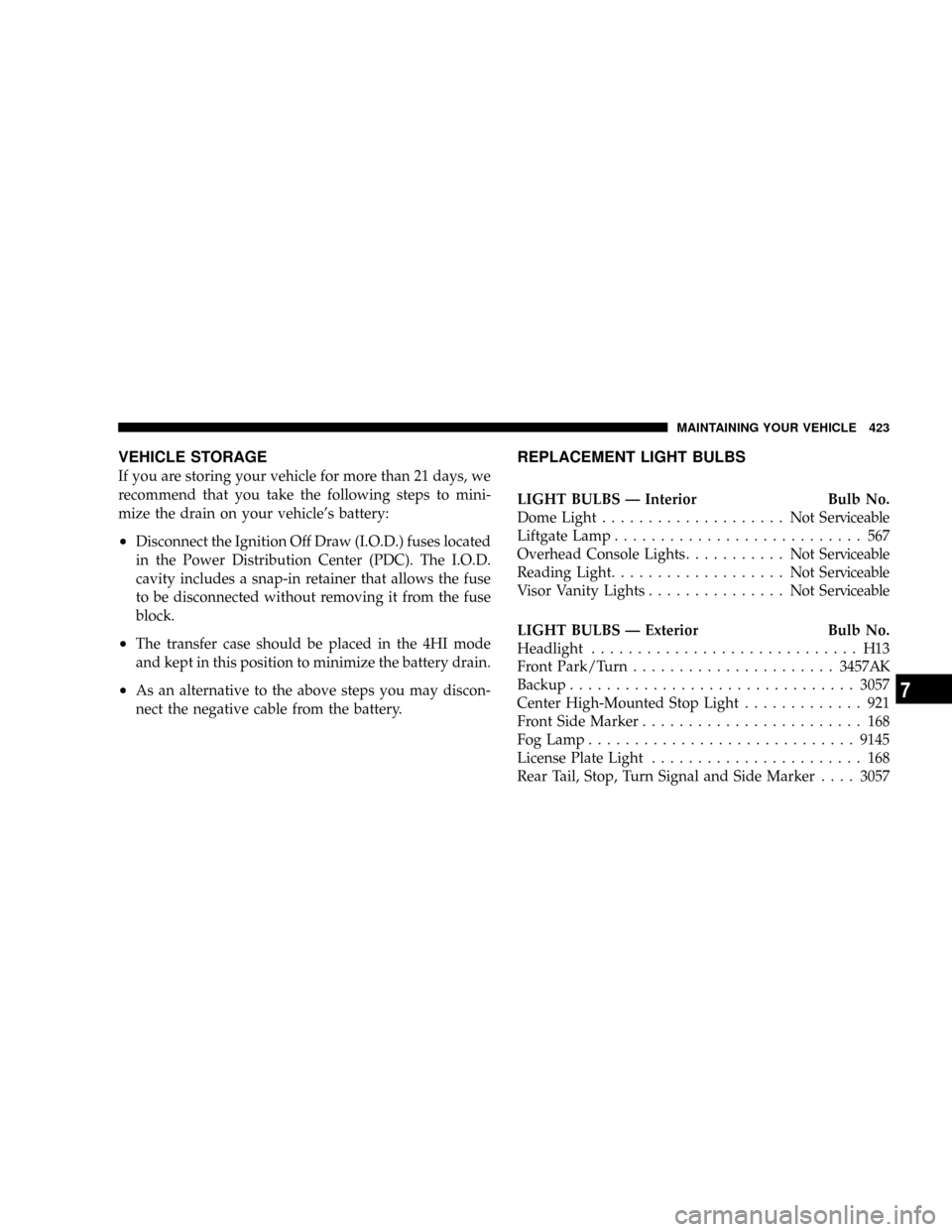

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle's battery:
²Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
²The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
²As an alternative to the above steps you may discon-
nect the negative cable from the battery.
REPLACEMENT LIGHT BULBS
LIGHT BULBS Ð Interior Bulb No.
Dome Light.................... NotServiceable
Liftgate Lamp........................... 567
Overhead Console Lights........... NotServiceable
Reading Light................... NotServiceable
Visor Vanity Lights............... NotServiceable
LIGHT BULBS Ð Exterior Bulb No.
Headlight............................. H13
Front Park/Turn......................3457AK
Backup...............................3057
Center High-Mounted Stop Light............. 921
Front Side Marker........................ 168
Fog Lamp.............................9145
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal and Side Marker....3057
MAINTAINING YOUR VEHICLE 423
7
Page 426 of 481

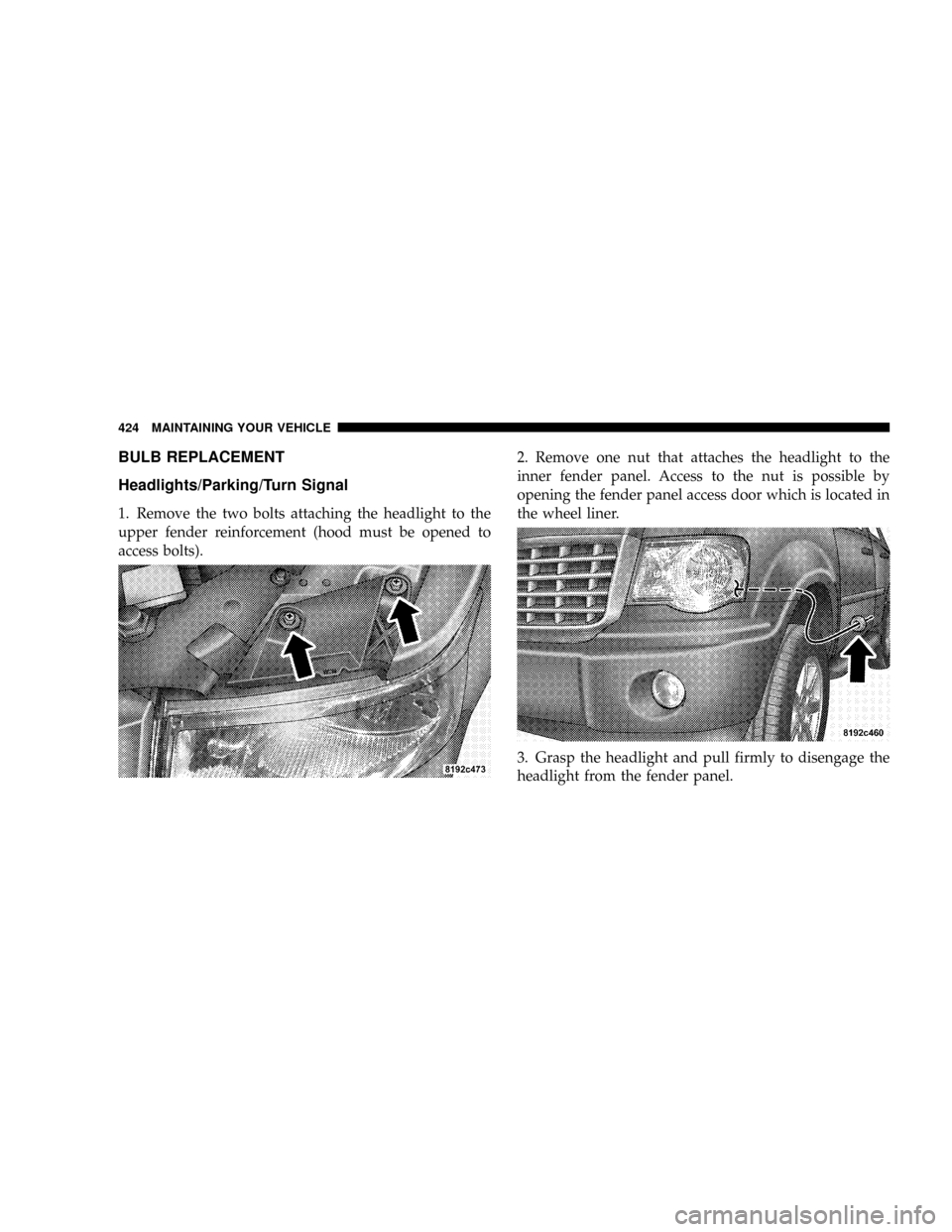

BULB REPLACEMENT
Headlights/Parking/Turn Signal
1. Remove the two bolts attaching the headlight to the
upper fender reinforcement (hood must be opened to
access bolts).2. Remove one nut that attaches the headlight to the
inner fender panel. Access to the nut is possible by
opening the fender panel access door which is located in
the wheel liner.
3. Grasp the headlight and pull firmly to disengage the
headlight from the fender panel.
424 MAINTAINING YOUR VEHICLE
Page 427 of 481

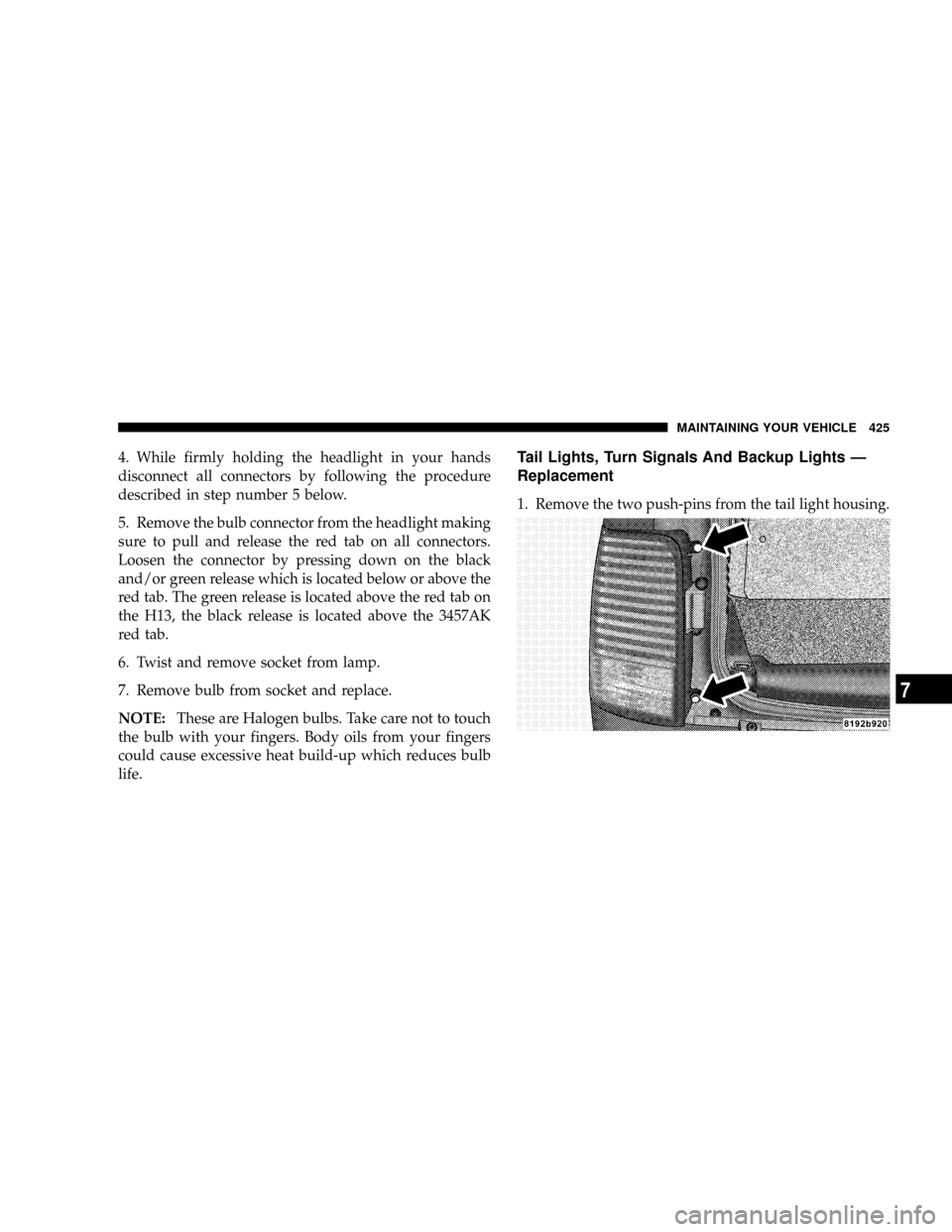

4. While firmly holding the headlight in your hands
disconnect all connectors by following the procedure
described in step number 5 below.
5. Remove the bulb connector from the headlight making
sure to pull and release the red tab on all connectors.
Loosen the connector by pressing down on the black
and/or green release which is located below or above the
red tab. The green release is located above the red tab on
the H13, the black release is located above the 3457AK
red tab.
6. Twist and remove socket from lamp.
7. Remove bulb from socket and replace.
NOTE:These are Halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat build-up which reduces bulb
life.Tail Lights, Turn Signals And Backup Lights Ð
Replacement
1. Remove the two push-pins from the tail light housing.
MAINTAINING YOUR VEHICLE 425
7
